ELECTRICAL TROUBLESHOOTING
MANUAL
SERIES 3 – E36/7 (Z3 Roadster and M Roadster )
SCHEM ATICS MODEL YEAR 1998

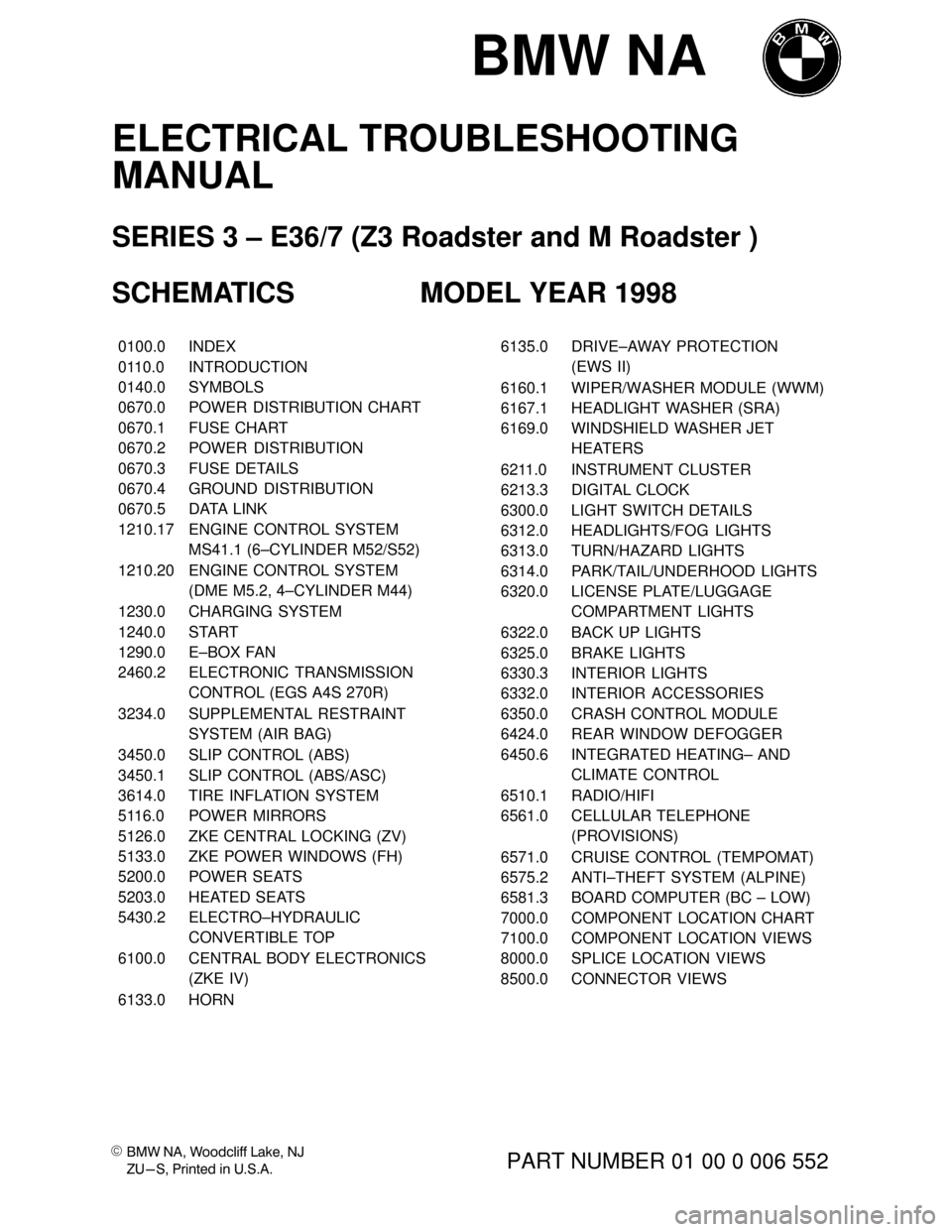

0100.0INDEX
0110.0
INTRODUCTION
0140.0
SYMBOLS
0670.0
POWER DISTRIBUTION CHART

0670.1
FUSE CHART

0670.2
POWER DISTRIBUTION

0670.3
FUSE DETAILS
0670.4GROUND DISTRIBUTION
0670.5
DATA LINK


1210.17


ENGINE CONTROL SYSTEM
MS41.1 (6–CYLINDER M52/S52)




1210.20



ENGINE CONTROL SYSTEM
(DME M5.2, 4–CYLINDER M44)

1230.0
CHARGING SYSTEM
1240.0START
1290.0
E–BOX FAN


2460.2


ELECTRONIC TRANSMISSION
CONTROL (EGS A4S 270R)




3234.0



SUPPLEMENTAL RESTRAINT
SYSTEM (AIR BAG)

3450.0
SLIP CONTROL (ABS)
3450.1SLIP CONTROL (ABS/ASC)
3614.0
TIRE INFLATION SYSTEM
5116.0
POWER MIRRORS
5126.0
ZKE CENTRAL LOCKING (ZV)

5133.0
ZKE POWER WINDOWS (FH)

5200.0
POWER SEATS

5203.0
HEATED SEATS

5430.2
ELECTRO–HYDRAULIC
CONVERTIBLE TOP




6100.0



CENTRAL BODY ELECTRONICS
(ZKE IV)

6133.0
HORN

6135.0
DRIVE–AWAY PROTECTION
(EWS II)

6160.1
WIPER/WASHER MODULE (WWM)
6167.1
HEADLIGHT WASHER (SRA)




6169.0



WINDSHIELD WASHER JET
HEATERS

6211.0
INSTRUMENT CLUSTER
6213.3DIGITAL CLOCK
6300.0
LIGHT SWITCH DETAILS
6312.0
HEADLIGHTS/FOG LIGHTS
6313.0
TURN/HAZARD LIGHTS

6314.0
PARK/TAIL/UNDERHOOD LIGHTS




6320.0



LICENSE PLATE/LUGGAGE
COMPARTMENT LIGHTS
6322.0BACK UP LIGHTS
6325.0
BRAKE LIGHTS
6330.3
INTERIOR LIGHTS
6332.0
INTERIOR ACCESSORIES

6350.0
CRASH CONTROL MODULE

6424.0
REAR WINDOW DEFOGGER

6450.6
INTEGRATED HEATING– AND
CLIMATE CONTROL

6510.1
RADIO/HIFI


6561.0


CELLULAR TELEPHONE
(PROVISIONS)

6571.0
CRUISE CONTROL (TEMPOMAT)

6575.2
ANTI–THEFT SYSTEM (ALPINE)

6581.3
BOARD COMPUTER (BC – LOW)
7000.0COMPONENT LOCATION CHART
7100.0
COMPONENT LOCATION VIEWS
8000.0
SPLICE LOCATION VIEWS

8500.0
CONNECTOR VIEWS

0100.0 INDEX







 !""
#""$






ABS HYDRAULIC UNIT, Y1 3450.0-01. . . . . . . . . . . . . . . . . . . . . . . . .
ABS HYDRAULIC UNIT, Y1w 3450.1-01. . . . . . . . . . . . . . . . . . . . . . . .
ABS HYDRAULIC UNIT, Y1w 3450.1-11. . . . . . . . . . . . . . . . . . . . . . . .
ABS HYDRAULIC UNIT, Y1w 3450.1-05. . . . . . . . . . . . . . . . . . . . . . . .
ABS PUMP MOTOR RELAY, K75 3450.0-00. . . . . . . . . . . . . . . . . . . .
ABS PUMP MOTOR RELAY, K75 3450.1-00. . . . . . . . . . . . . . . . . . . .
ABS PUMP MOTOR RELAY, K75 3450.1-04. . . . . . . . . . . . . . . . . . . .
ABS RELAY, K10 3450.0-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ABS RELAY, K10 3450.1-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR BAG CUT–OFF SWITCH, PASSENGER’S, S559 3234.0-01. .
AIR BAG GAS GENERATOR, DRIVER’S, G5 3234.0-00. . . . . . . . . .
AIR BAG GAS GENERATOR, LEFT SIDE, G14 3234.0-03. . . . . . . .
AIR BAG GAS GENERATOR, PASSENGER’S, G6 3234.0-01. . . . .
AIR BAG GAS GENERATOR, RIGHT SIDE, G15 3234.0-03. . . . . .
AIR CONDITIONING COMPRESSOR, Y2 6450.6-02. . . . . . . . . . . . .
AIR CONDITIONING COMPRESSOR, Y2 6450.6-07. . . . . . . . . . . . .
AIR CONDITIONING RELAY, MOTRONIC, K33a 6450.6-05. . . . . . .
AIR CONDITIONING/
RECIRCULATING SWITCH ASSEMBLY, S220 6450.6-01. . . . . . .
AIR CONDITIONING/
RECIRCULATING SWITCH ASSEMBLY, S220 6450.6-06. . . . . . .
AIR PUMP, Y6133 1210.20-09. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
AIR PUMP, Y6163 1210.17-05. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ANALOG CLOCK, N5 6211.0-07. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ANTENNA AMPLIFIER AM/FM, N8 6510.1-00. . . . . . . . . . . . . . . . . . .
ANTI–THEFT CONTROL MODULE (ALPINE), N12w 6575.2. . . . . .
ANTI–THEFT HORN (ALPINE), H1w 6575.2-01. . . . . . . . . . . . . . . . .
ANTI–THEFT SYSTEM (ALPINE) 6575.2. . . . . . . . . . . . . . . . . . . . . . . ASC DIODE, V7 3450.1-04. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASC SWITCH, S6 3450.1-12. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASC SWITCH, S6 3450.1-03. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASC SWITCH, S6 3450.1-06. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ASHTRAY LIGHT, FRONT, E25 6300.0-01. . . . . . . . . . . . . . . . . . . . . .
ASHTRAY LIGHT, FRONT, E25 6332.0-00. . . . . . . . . . . . . . . . . . . . . .
AUTOMATIC TRANSMISSION RANGE SWITCH, S3 2460.2-08. . .
AUXILIARY FAN MOTOR, M9 6450.6-03. . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FAN MOTOR, M9 6450.6-04. . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FAN MOTOR, M9 6450.6-08. . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FUSE BOX, P95 0670.2-02. . . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY FUSE BOX, P97 0670.2-02. . . . . . . . . . . . . . . . . . . . . . . .
AUXILIARY THROTTLE POSITION MOTOR (ADS), M93 3450.1-09
AUXILIARY THROTTLE POSITION MOTOR (ADS), M93 3450.1-03
AUXILIARY THROTTLE POSITION MOTOR (ADS), M93 3450.1-06
AUXILIARY THROTTLE POSITION SENSOR, R31 3450.1-09. . . .
AUXILIARY THROTTLE POSITION SENSOR, R31 3450.1-03. . . .
AUXILIARY THROTTLE POSITION SENSOR, R31 3450.1-08. . . .
AUXILIARY TURN LIGHT, LEFT FRONT, H9 6313.0-02. . . . . . . . . .
AUXILIARY TURN LIGHT, RIGHT FRONT, H8 6313.0-02. . . . . . . . .
B+ JUMP START JUNCTION POINT, G6430 0670.2-00. . . . . . . . . .
B+ JUMP START JUNCTION POINT, G6430 0670.2-01. . . . . . . . . .
BACK UP LIGHT, LEFT, H27 6322.0-00. . . . . . . . . . . . . . . . . . . . . . . .
BACK UP LIGHT, RIGHT, H28 6322.0-00. . . . . . . . . . . . . . . . . . . . . . .
BACK UP LIGHTS 6322.0-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BATTERY, G1 0670.2-00. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BATTERY, G1 0670.2-01. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BLOWER MOTOR, M30 6450.6-00. . . . . . . . . . . . . . . . . . . . . . . . . . . .

BMBMWBMWBMW
Z3
2.5 VI/SW
0110.0 INTRODUCTION04/99
0110.0-
1998
00
P90
FRONT POWER
DISTRIBUTION
BOXF115A
GROUND
DISTRIBUTION
0670.46160.0-02 2.5 VI/SW 4 8P91
REAR POWER
DISTRIBUTION
BOX
F4430A
X29326 X293
FUSE DETAILS
0670.3
4 VI/SW 86
8530
87
X452
CENTRAL
BODY
ELECTRONICS
(ZKE)
6100.0 K11
WIPER RELAY
FUSE DETAILS
0670.3
X493

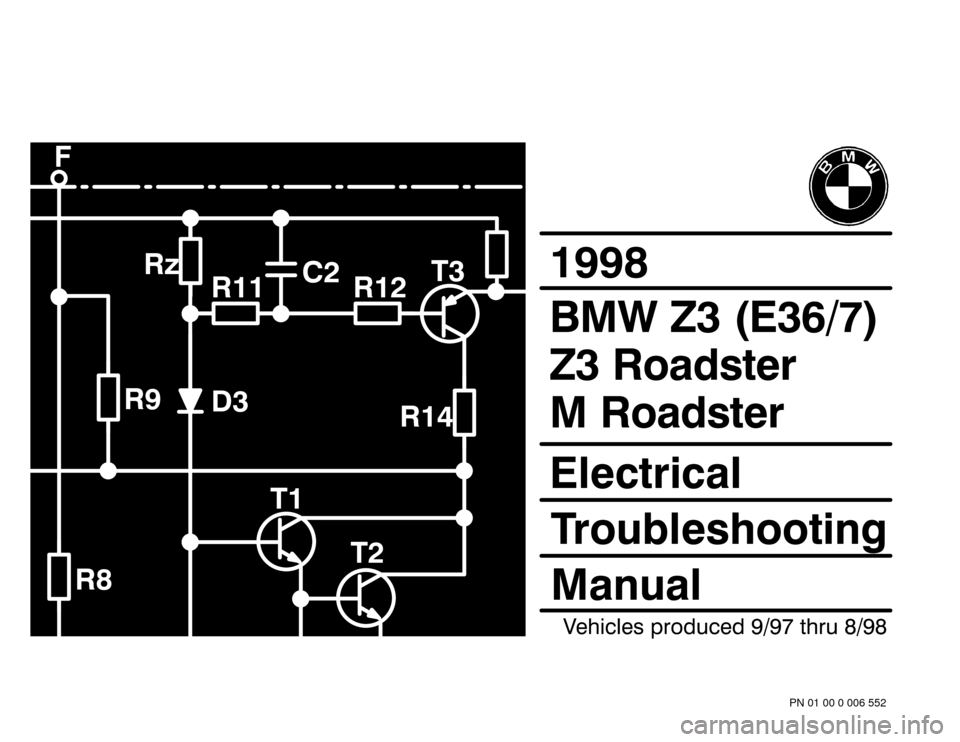

Schematics
The schematics divide the entire vehicle electrical system into individual circuits. Interacting
electrical components are shown on one common schematic.
Switches and other components are represented in such a way that their general layout and
function are self–explicit. They are arranged on the sheet such that the current path can be
followed from positive (top) to negative (bottom).
Important: The components and wires are not drawn to scale. For instance, a lead with a length
of over 1m can be shown as a lead that is only a few cm long. To ensure clear arrangement , all
connectors, lines branches and connected components from the fuses to the component and
from the component to ground connection are not shown within the individual cells. If required,
reference can be made to cells 0670.3 Fuse Details and 0670.4 Ground Distribution where all
lines are illustrated with all plug connections, line branches and connected components.
All circuit symbols used are listed and explained in cell 0140.0 Symbols.
In cell 7000.0 Component Location Chart all important connectors, ground points and
components are listed in tabular form. It provides a precise description of the component
locations in the vehicle.
In cell 7100.0 Component Location Views the location of connectors and components which
are difficult to locate are shown in line arts or illustrations. In cell 8000.0 Splice Location Views
all splices are listed in numerical order and illustrations are provided to assist in locating splices
on larger harnesses. In cell 8500.0 Connector Views diagrams of connectors with more than 2
pins are illustrated.

Example
General conventions can be explained based on the following schematic example.






SYMBOLS !""




#""$


1.5 BR DATA LINK
0670.5 .5 WS/GE
0670.0-030670.0-02
1.5 BRN9
RADIO
THE COMPLETE WIRE
PROGRESSION AND
FURTHER CIRCUITS
CONNECTED TO
GROUND X497 ARE
SHOWN IN CELL
”0670.4 GROUND
DISTRIBUTION” AT
GROUND X497
THE COMPLETE WIRE
PROGRESSION AND FURTHER
CIRCUITS CONNECTED TO
FUSE 18 ARE SHOWN IN CELL
”0670.3 FUSE DETAILS” AT
FUSE 18
CURRENT PATH IS
CONTINUED AS
LABELED P90
FRONT POWER
DISTRIBUTION BOX F18
15A
GROUND
DISTRIBUTION
0670.4
N1
ANTI–THEFT
CONTROL MODULE
(DWA) FUSE DETAILS
0670.3A1
GENERAL MODULE
X252
17X332
2
CIRCUIT REFERENCE–A
WIRE WHICH CONNECTS
TO ANOTHER CIRCUIT
A2
INSTRUMENT
CLUSTER
X16
11RXD
ARROW SHOWS
DIRECTION OF
CURRENT FLOW
AND IS REPEATED
WHERE CURRENT
PATH CONTINUES
X497
X1812615
X491

* K33a *
AIR CONDITIONING
RELAY, MOTRONIC






K48
LOW BEAM LIGHT
RELAYX45
11 12 13456 78 9
38
37
35
34
33
32
31 42
41
40
39 43 44
FRONT POWER DISTRIBUTION BOX
0670.0 POWER DISTRIBUTION CHART !""





#""$



K2
HORN RELAYK47
FRONT FOG LIGHT
RELAYK16
HAZARD FLASHER
RELAYK4
BLOWER RELAY
K10
ABS RELAYK75
ABS PUMP MOTOR
RELAYK22
HIGH SPEED
RELAYK19
COMPRESSOR
CONTROL RELAYK21
NORMAL SPEED
RELAY X56X44X64X58
X63X54X1161
X53X51X52
46
45
3612 3 10
14 15 16 17 18 19 20
21 22 23 24 25 26 27 28 29 30
FUSES FUSES
X0
K9
UNLOADER RELAY,
TERMINAL 15K6304
SECONDARY AIR
PUMP RELAYX6304
4–CYLINDER
X50
K94 *
ENGINE CONTROL
RELAY (ABS/ASC)X18766K95 *
VALVE RELAY
(ABS/ASC)X18767
M ROADSTER






0670.1 FUSE CHART




FUSES 1 TO 29
 !""
#""$



FUSE NUMBER
12345 10 206 7 8 9 11 12 13 14 15 16 17 18 19 21 22 23 24 25 26 27 28 29
1210.20
1240.0
2460.2
3234.0
30A 15A 30A 15A 30A 20A 5A 30A 7.5A 7.5A 5A 15A 5A 5A 5A 10A 5A 7.5A20A15A 30A 5A 5A
ENGINE CONTROL SYSTEM (DME M5.2, 4–CYLINDER M44)
START
SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG) ELECTRONIC TRANSMISSION CONTROL (EGS A4S 270R)
5A 30A 15A 10A30A
5116.0POWER MIRRORS
5133.0
5200.0ZKE POWER WINDOWS (FH)
POWER SEATS
5203.0
6133.0
6160.1
6169.0HEATED SEATS
HORN
WIPER/WASHER MODULE (WWM)
WINDSHIELD WASHER JET HEATERS 5126.0ZKE CENTRAL LOCKING (ZV) 3450.1SLIP CONTROL (ABS/ASC) 1230.0CHARGING SYSTEM
6135.0DRIVE–AWAY PROTECTION (EWS II)












1210.17ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER M52/S52)



6100.0CENTRAL BODY ELECTRONICS (ZKE IV)

6167.1HEADLIGHT WASHER (SRA)
5430.2ELECTRO–HYDRAULIC CONVERTIBLE TOP
1290.0E–BOX FAN
3450.0SLIP CONTROL (ABS)







FUSE CHART




FUSES 30 TO 49
 !""
#""$


FUSE NUMBER
1210.20
1240.0
2460.2
3234.0ENGINE CONTROL SYSTEM (DME M5.2, 4–CYLINDER M44)
START
SUPPLEMENTAL RESTRAINT SYSTEM (AIR BAG) ELECTRONIC TRANSMISSION CONTROL (EGS A4S 270R)
5116.0POWER MIRRORS
5133.0
5200.0ZKE POWER WINDOWS (FH)
POWER SEATS
5203.0
6133.0
6160.1
6169.0HEATED SEATS
HORN
WIPER/WASHER MODULE (WWM)
WINDSHIELD WASHER JET HEATERS 5126.0ZKE CENTRAL LOCKING (ZV) 3450.1SLIP CONTROL (ABS/ASC) 1230.0CHARGING SYSTEM
6135.0DRIVE–AWAY PROTECTION (EWS II)
1210.17ENGINE CONTROL SYSTEM MS41.1 (6–CYLINDER M52/S52)
6100.0CENTRAL BODY ELECTRONICS (ZKE IV)
6167.1HEADLIGHT WASHER (SRA)
5430.2ELECTRO–HYDRAULIC CONVERTIBLE TOP












39
7.5A 5A 30A 10A 15A 25A 30A 7.5A 30A 15A 15A 7.5A 15A30A 10A

40
  38 37 36 35
5A 5A

40A


50A

1290.0E–BOX FAN
3450.0SLIP CONTROL (ABS)








X0
0670.2 POWER DISTRIBUTION !""




#""$
G1
BATTERY0670.2-02
P90
FRONT POWER
DISTRIBUTION BOX



30B+ X6512
X6509M6510
STARTERG6509
GENERATOR
X2
10 RT
1240.0 1230.010 RT
25 RT
G6430
B+ JUMP START
JUNCTION POINT
X6433X6430
X6437X6431
26 X8500A8500
TRANSMISSION
CONTROL MODULE
(EGS)
8 X6300
K6300
ENGINE CONTROL
MODULE RELAY86 30
2460.2 1210.20
6
14 X6002
D100
DATA LINK
CONNECTOR 2.5 RT
1 RT 4 RT 1 RT26
X6000A6000
ENGINE CONTROL
MODULE (DME)
1210.20
4 RT6 X6326
K6326
UNLOADER RELAY,
TERMINAL 15
1210.20
6 RT
50 RT 6 RT6 RT2.5 RT
X6410
4–CYLINDER
2 X6304K6304
SECONDARY AIR
PUMP RELAY
1210.20
4 RT F97
80A
2 X6300
1 RT/WS
87
X6821
4 RT/WS
14 X20
.5 RT/WS
5 X10016
P90
FRONT POWER
DISTRIBUTION BOXF135A
6 X10016.5 RT/WS/GE
FUSE DETAILS
0670.3
ENGINE CONTROL
SYSTEM
(DME M5.2, 4–CYL-
INDER M44)
1210.20

X6821
POWER DISTRIBUTION
8










#""$


 !""
X0
G1
BATTERY0670.2-02
P90
FRONT POWER
DISTRIBUTION BOX
30B+ X6512
X6509M6510
STARTERG6509
GENERATOR
X2
16 RT
1240.0 1230.010 RT
25 RT
G6430
B+ JUMP START
JUNCTION POINT
X6433X6430
X6432X6431
2.5 RT
1 RT .5 RT F97
80A2 X6304
K6304
SECONDARY AIR
PUMP RELAY
1210.17
6 RT
50 RT 6 RT6 RT
X6411
X6437
26 X8500A8500
TRANSMISSION
CONTROL MODULE
(EGS)
2460.2
26 X6000A6000
ENGINE CONTROL
MODULE (DME)
1210.17
6 X6326K6326
UNLOADER RELAY,
TERMINAL 15
1210.17
6
K6300
ENGINE CONTROL
MODULE RELAY
1210.17
X6300
X6412
14
X6002D100
DATA LINK
CONNECTOR
X6415
4 RT
X6414
4 RT
4 RT 4 RT
10 RT
4 RT2.5 RT
6–CYLINDER
2 X6300
1 RT/WSX6822
4 RT/WS
14 X20
.5 RT/WS
5 X10016
F135A
6 X10016.5 RT/WS/GE
FUSE DETAILS
0670.3
2.5 RT/WSENGINE CONTROL
SYSTEM MS41.1
(6–CYLINDER M52/S52)
1210.17X6413
2.5 RT
P90
FRONT POWER
DISTRIBUTION BOX Z3 ROADSTER
86 30
87

2.5 RT/BR
LATE PRODUCTION12
2.5 RT
11
2.5 RT/
BL 2.5 RT/
WS 1 RT/
WS/GE2.5 RT/
SW/WS






2.5 RT/
GN/GE1.5 RT/VI .75 RT/
GR




#""$


POWER DISTRIBUTION
X1015
P90
FRONT POWER
DISTRIBUTION BOX
FUSE DETAILS
0670.3 0670.2-03 0670.2-04
X1001820 17 X100158 7
X10015
F4030AF415A 2.5 RT
16 RTP90
FRONT POWER
DISTRIBUTION BOX
X1186
6 RT4 RT4 RT0670.2-00
X2
30
19 X10018
18F39
7.5A
.75 RT/
GN
1 X10030
14F7
5A
16F8
15A
18F9
20A
20F10
30A
2.5 RT/
GN 2.5 RT/
GN
16
1 X10034
F3830A
2F31
5A
4F32
30A
6
1 RT/
WSF33
10A
1.5 RT/
WS/GEF34
15AF3525A
12
2.5 RT/
BL/GEF36
30A
14
1.5 RT/
BLF37
10A
4 RT2.5 RT 1.5 RT
108
.5 RT/GE X10015
6 RT
 !""
30 30 30 30 30 30 30 30 3030 30 30 30 30 0670.2-01
20F20
30A
30
X10016
19 X10016
2.5 RT
4 RT/GN P97
AUXILIARY FUSE
BOX
X1588
2 1
X1588
F4840A
4 RT
30
4–CYLINDER
Z3 ROADSTER
6–CYLINDER
30
4 RT/
GE
216F18
15A
2.5 RT
30
15 2.5 RT1 X10015
F130A
4 RT/GN ELECTRICAL
CONVERTIBLE TOP
4 RT
4 RT/
WSP95
AUXILIARY FUSE
BOX
X19023
2 1
X19023
F4950A
30
M ROADSTER WITH ASC 4 RT
F620A
