Giving and receiving assistance
106
Access to the threaded socket
Press out the cover with a screwdriver inserted
in the recess at the top.
Being towed
Make sure that the key is in position 1,
because otherwise the steering lock
could engage and the vehicle could no longer
be steered. There is no power assist while the
engine is off. Therefore, you will need to exert
more force to brake and steer the vehicle.<
Turn on the hazard warning flashers, if required
by national regulations. If the electrical system
has failed, clearly identify the vehicle being
towed, e.g. by placing a sign or a warning trian-
gle in the rear window.
Manual transmission
Gearshift lever in idling position.
Automatic transmission
Selector lever in position N.
Do not exceed a towing speed of 45 mph/
70 km/h or a towing distance of 90 miles/
150 km. Otherwise, the automatic transmission
could be damaged.<
Towing methods
In some countries, it is not permitted to tow the
vehicle with a tow bar or tow rope on public
roads.
Familiarize yourself with the applicable towing
regulations for the country in which you are
driving.
With a tow bar
The towing vehicle must not be lighter
than the towed vehicle, otherwise it may
be impossible to maintain control.<
The towing eyelets of both vehicles should be
on the same side. Should it prove impossible to
avoid mounting the tow bar at an angle, please
observe the following:
>Clearance and maneuvering capability will
be sharply limited during cornering.
>The tow bar will generate lateral forces if it is
attached offset.
Attach the tow bar to the tow fittings only,
as attaching it to other parts of the vehicle
could result in damage.<
With a tow rope
Before the towing vehicle starts to drive off,
make sure that the tow rope is taut.
Use nylon ropes or straps for towing
because they prevent sudden jerking
movements. Attach the tow rope to the tow fit-
tings only, as attaching it to other parts of the
vehicle could result in damage.<
With a tow truck
Have the BMW transported by a tow truck with
a lift sling or a flat bed.
Do not lift the vehicle by the towing eye-
let, or by parts of the body or chassis.
Otherwise damage could result.<
Tow-starting
Do not tow-start vehicles with an auto-
matic transmission. Vehicles with a cata-
lytic converter should only be tow-started if the

Everything from A to Z
118 Central locking
– from inside21
Central locking system19
Changes, technical, refer to
For your own safety5
Changing a wheel101
– Run-Flat Tires101
Charge indicator lamp12,102
Check gas cap, indicator
lamp13
Child-restraint mounting
system, LATCH38
Child-restraint systems37
Child seat, refer to Installing
child-restraint systems37
Chrome parts, refer to the
Caring for your vehicle
brochure
Cigarette lighter69
Cleaning the rear window,
refer to the Caring for your
vehicle brochure
Cleaning the vehicle, refer to
the Caring for your vehicle
brochure
Cleaning the windows
– automatically, refer to Rain
sensor45
– reservoir capacity114
– spray nozzles46
– washer/wiper system45
– washer fluid46
– washer fluid reservoir46
Clock49
– 12h/24h mode50
– onboard computer50
– setting50
– setting, refer also to Owner's
Manual for Radio/Onboard
Computer
Clothes hooks70
Cockpit10
Cold start, refer to Starting the
engine40
Combination, wheel/tire88
Comfort area, refer to Around
the center console14Compact disc operation, refer
to Owner's Manual for
Radio/Onboard Computer
Computer50
– button BC50
– clock, 12h/24h mode50
– refer to Owner's Manual for
Onboard Computer
Computer, refer to the
separate Owner's Manual
Condensation, refer to When
the vehicle is parked76
Condensation, removing from
windows
– air conditioning63
– automatic climate control66
Configuring settings, refer to
Vehicle Memory, Key
Memory18
Connecting vacuum cleaner,
refer to Connecting
electrical appliances71
Consumption, refer to
Average fuel
consumption50
Consumption display, refer to
Fuel gauge48
Controls, refer to Cockpit10
Convenience operation
– convertible top20
– from outside20
– windows20
Convertible top25,27
– care, refer to the Caring for
your vehicle brochure
– convenience operation20
– electrical fault28
– emergency closing28
– fully automatic27
– malfunction28
– manual25
– mechanical25
Convertible top compartment
panel23
Coolant94
– checking level94
– indicator lamp13
– thermometer49
Coolant temperature49Coolant water, refer to
Coolant94
Cooling
– maximum66
– refer to Switching cooling
function on/off63,66
Cooling fluid, refer to
Coolant94
Cooling function
– air conditioning63
– automatic climate control66
Cooling system, refer to
Capacities114
Cooling system, refer to
Coolant94
Copyright2
Correct tires89
Cruise control46
Cruising range50
Cup holders, refer to
Beverage holders69
Curb weight, refer to
Weights113
Cylinders, refer to Engine
data110
D
Dashboard, refer to
Cockpit10
Dashboard lighting, refer to
Instrument lighting60
Data, technical
– capacities114
– dimensions111,112
– engine110
– measurements111,112
– weights113
Daytime running lamps59
DBC Dynamic Brake
Control51
– indicator/warning lamp13
Deadlocking, refer to
Locking19
Defective bulb59
Defrosting, windows63,66
Defrosting the windshield,
refer to Defrosting
windows63,66

Reference
At a glance
Controls
Driving tips
Mobility
119

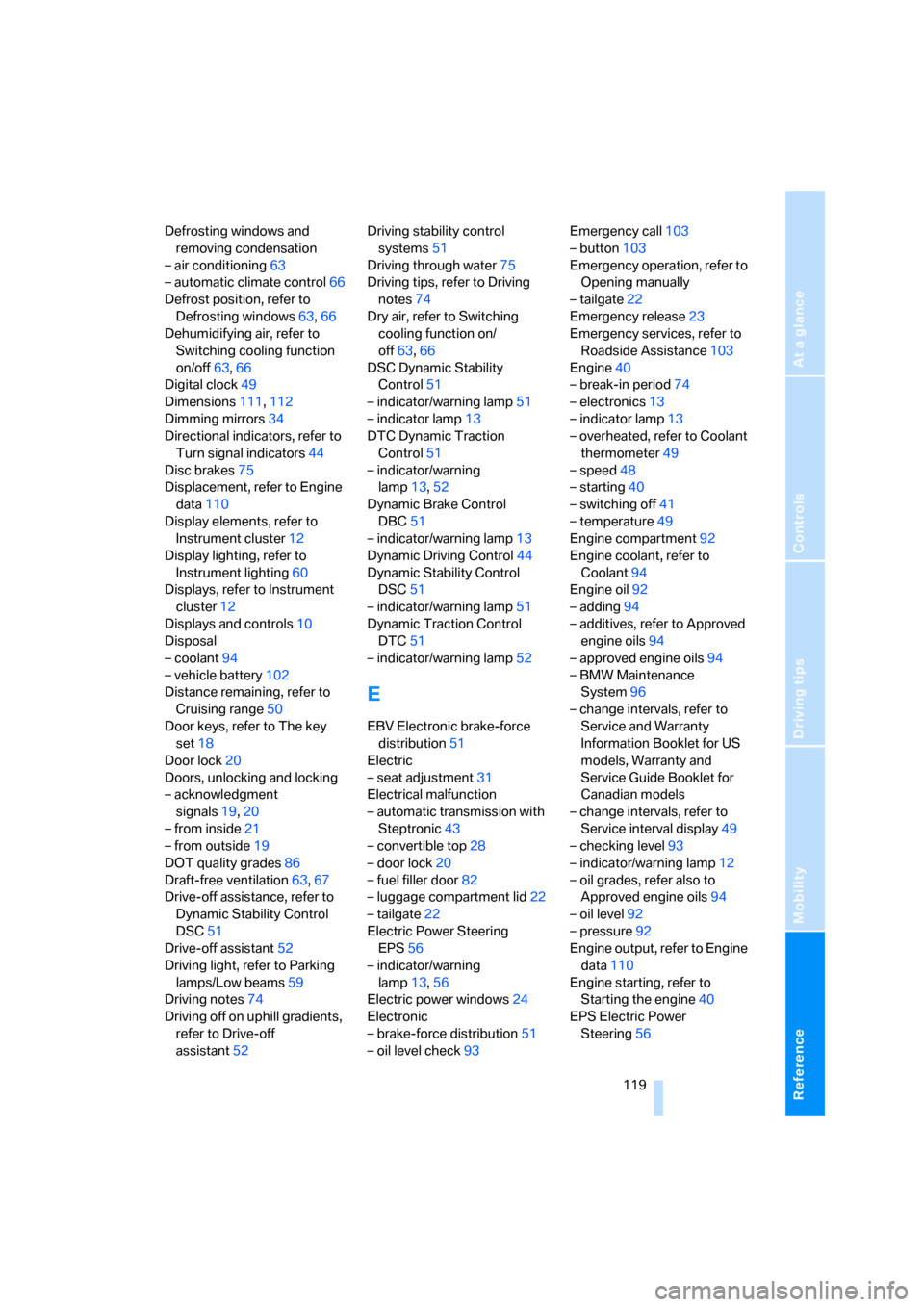

Defrosting windows and
removing condensation
– air conditioning63
– automatic climate control66
Defrost position, refer to
Defrosting windows63,66
Dehumidifying air, refer to
Switching cooling function
on/off63,66
Digital clock49
Dimensions111,112
Dimming mirrors34
Directional indicators, refer to
Turn signal indicators44
Disc brakes75
Displacement, refer to Engine
data110
Display elements, refer to
Instrument cluster12
Display lighting, refer to
Instrument lighting60
Displays, refer to Instrument
cluster12
Displays and controls10
Disposal
– coolant94
– vehicle battery102
Distance remaining, refer to
Cruising range50
Door keys, refer to The key
set18
Door lock20
Doors, unlocking and locking
– acknowledgment
signals19,20
– from inside21
– from outside19
DOT quality grades86
Draft-free ventilation63,67
Drive-off assistance, refer to
Dynamic Stability Control
DSC51
Drive-off assistant52
Driving light, refer to Parking
lamps/Low beams59
Driving notes74
Driving off on uphill gradients,
refer to Drive-off
assistant52Driving stability control
systems51
Driving through water75
Driving tips, refer to Driving
notes74
Dry air, refer to Switching
cooling function on/
off63,66
DSC Dynamic Stability
Control51
– indicator/warning lamp51
– indicator lamp13
DTC Dynamic Traction
Control51
– indicator/warning
lamp13,52
Dynamic Brake Control
DBC51
– indicator/warning lamp13
Dynamic Driving Control44
Dynamic Stability Control
DSC51
– indicator/warning lamp51
Dynamic Traction Control
DTC51
– indicator/warning lamp52
E
EBV Electronic brake-force
distribution51
Electric
– seat adjustment31
Electrical malfunction
– automatic transmission with
Steptronic43
– convertible top28
– door lock20
– fuel filler door82
– luggage compartment lid22
– tailgate22
Electric Power Steering
EPS56
– indicator/warning
lamp13,56
Electric power windows24
Electronic
– brake-force distribution51
– oil level check93Emergency call103
– button103
Emergency operation, refer to
Opening manually
– tailgate22
Emergency release23
Emergency services, refer to
Roadside Assistance103
Engine40
– break-in period74
– electronics13
– indicator lamp13
– overheated, refer to Coolant
thermometer49
– speed48
– starting40
– switching off41
– temperature49
Engine compartment92
Engine coolant, refer to
Coolant94
Engine oil92
– adding94
– additives, refer to Approved
engine oils94
– approved engine oils94
– BMW Maintenance
System96
– change intervals, refer to
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet for
Canadian models
– change intervals, refer to
Service interval display49
– checking level93
– indicator/warning lamp12
– oil grades, refer also to
Approved engine oils94
– oil level92
– pressure92
Engine output, refer to Engine
data110
Engine starting, refer to
Starting the engine40
EPS Electric Power
Steering56

Reference
At a glance
Controls
Driving tips
Mobility
121
Head restraints32
– removing32
– safe seating position30
Heated
– mirrors34
– rear window63,67
– seats33
Heating
– mirrors34
– rear window63,67
– seats33
Heavy loads, refer to Cargo
loading76
Height, refer to
Dimensions111,112
Height adjustment
– seats31
– steering wheel35
High beams60
– bulb replacement99
– headlamp flasher44
– indicator lamp12
High temperatures74
Holders for beverages69
Homepage of BMW4
Hood91
Horn10
Hot exhaust system74
Hydraulic Brake Assistant,
refer to Dynamic Brake
Control DBC51
Hydraulics, brake95
Hydroplaning75
I
Ice warning, refer to Outside
temperature warning48
Identification mark
– Run-Flat Tires88
– tire coding86
– tires88,89
Ignition, refer to Ignition
switched on40
Ignition key positions, refer to
Ignition lock40
Ignition keys, refer to The key
set18
Ignition lock40Imprint2
Inclines75
Indicator/warning lamp12
– airbags57
– alarm system24
– automatic transmission with
Steptronic43
– brakes13
– coolant temperature49
– DSC51
– DTC52
– engine oil level92
– engine oil pressure92
– engine temperature49
– fasten safety belts33
– Flat Tire Monitor53
– passenger airbags37
– reserve48
– Tire Pressure Monitor55
Indicator and warning lamps,
overview12
Individual vehicle
– equipment, refer to Your
individual vehicle5
Inflation pressure, refer to Tire
inflation pressure84
Inflation pressure monitoring,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor54
Initializing
– after power supply
interruption102
– Flat Tire Monitor FTM53
– windows25
Inspection49
Instrument cluster12
Instrument lighting60
Instrument panel, refer to
Cockpit10
Instrument panel, refer to
Instrument cluster12
Interior lamps61
– remote control19
Interior motion sensor
24
Interior rearview mirror34
– automatic dimming
feature34Interior temperature
adjusting63,66
Interlock, refer to Steering
locked40,42
Intermittent
– operation of the wipers45
Interval
– display, service49
J
Jack101
Jacking points102
Jets, refer to
Ventilation63,67
Jump-starting104
K
Key Memory18
Keys18
Keys, refer to The key set18
Key switch for passenger
airbags36
Kickdown43
Knee airbags56
Knock control83
L
Lamps59
Lamps and bulbs98
LATCH, child-restraint
mounting system38
Leather care, refer to the
Caring for your vehicle
brochure
LEDs Light-emitting
diodes98
Length, refer to
Dimensions111,112
License plate lamps, bulb
replacement101
Light-alloy wheels, care, refer
to the Caring for your vehicle
brochure
Light-emitting diodes
LEDs98

Everything from A to Z
122 Lighter socket, refer to
Cigarette lighter69
Lighting
– instruments60
– lamps and bulbs98
– vehicle, refer to Lamps59
Lighting of the instruments,
refer to Instrument
lighting60
LIGHTS ON warning60
Light switch59
Loads, refer to Cargo
loading76
Loads, securing77
Locking the doors
– from inside21
– from outside19,20
Locking the vehicle
– from inside21
– from outside19
Longlife oils
– approved engine oils94
Low beams59
– automatic59
– bulb replacement99
– indicator lamp, defective
bulb13
Luggage compartment, refer
to Cargo bay23
Luggage compartment lid22
– emergency release23
– indicator lamp13
– opening from inside the
vehicle22
– opening from the outside22
– remote control19
M
M+S tires, refer to Winter
tires89
Maintenance96
– refer to Service Booklet
– refer to Service interval
display49,96
Making telephone calls, refer
to Owner's Manual for
TelephoneMalfunction
– automatic transmission with
Steptronic43
– convertible top28
– door lock20
– fuel filler door82
– luggage compartment lid22
– tailgate22
Malfunction of electrical
accessory102
Manual
– air distribution66
– air flow rate66
Manual convertible top25
Manual mode, refer to
Automatic transmission with
Steptronic43
Manual operation
– door lock20
– driver's door20
– fuel filler door82
– luggage compartment lid22
– power convertible top28
– tailgate22
– transmission lock, automatic
transmission42
Manual transmission42
Manufacturer5
Master keys with remote
control18
Maximum cooling66
Maximum speed
– with winter tires89
Measurements, refer to
Dimensions111,112
Mechanical seat31
Memory
– Seat memory32
– Vehicle Memory, Key
Memory18
Microfilter
– air conditioning64
– automatic climate control67
Microphone, refer to Mobile
phone preparation
package71
Minidisc operation, refer to
Owner's Manual for Radio/
Onboard ComputerMirrors34
– exterior mirrors34
– heating34
– interior rearview mirror34
Mobile communications in the
vehicle, refer to the separate
Owner's Manual
Mobile phone, refer to the
separate Owner's Manual
Mobile phone preparation
package71
Mobile phones, use inside the
car, refer to Mobile
communications in the
vehicle74
Modifications, technical, refer
to For your own safety5
M Sports seat31
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signal
indicators/headlamp
flasher44
– refer to Washer/wiper
system45
N
Navigation system, refer to the
separate Owner's Manual
Neck support, refer to Head
restraints32
Nets69
New
– keys18
– tires88
Nylon rope, refer to Tow
rope106
O
OBD socket, refer to Socket
for On-Board Diagnosis
OBD96
Octane numbers, refer to Fuel
specifications83
Odometer48

Reference
At a glance
Controls
Driving tips
Mobility
123

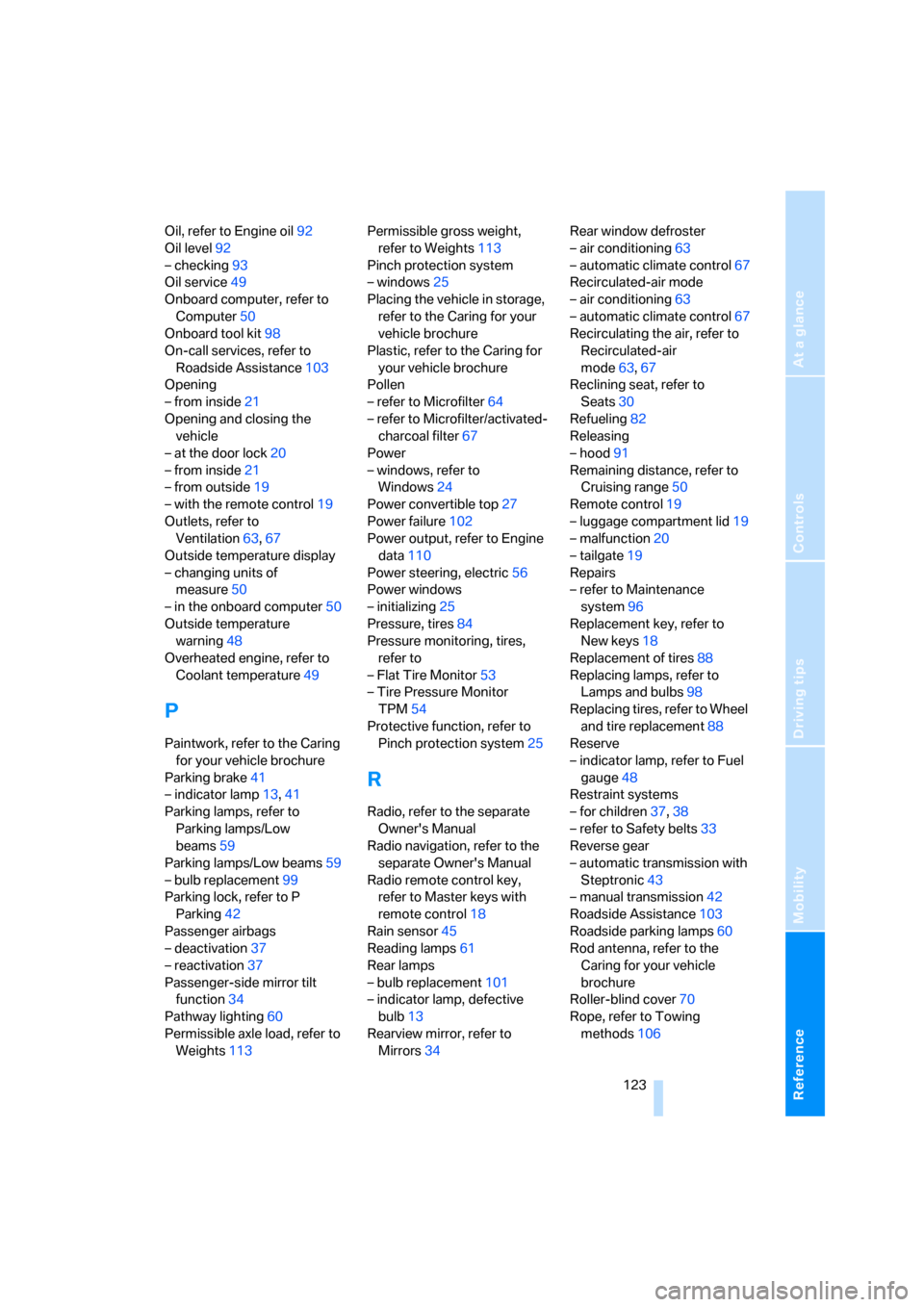

Oil, refer to Engine oil92
Oil level92
– checking93
Oil service49
Onboard computer, refer to
Computer50
Onboard tool kit98
On-call services, refer to
Roadside Assistance103
Opening
– from inside21
Opening and closing the
vehicle
– at the door lock20
– from inside21
– from outside19
– with the remote control19
Outlets, refer to
Ventilation63,67
Outside temperature display
– changing units of
measure50
– in the onboard computer50
Outside temperature
warning48
Overheated engine, refer to
Coolant temperature49
P
Paintwork, refer to the Caring
for your vehicle brochure
Parking brake41
– indicator lamp13,41
Parking lamps, refer to
Parking lamps/Low
beams59
Parking lamps/Low beams59
– bulb replacement99
Parking lock, refer to P
Parking42
Passenger airbags
– deactivation37
– reactivation37
Passenger-side mirror tilt
function34
Pathway lighting60
Permissible axle load, refer to
Weights113Permissible gross weight,
refer to Weights113
Pinch protection system
– windows25
Placing the vehicle in storage,
refer to the Caring for your
vehicle brochure
Plastic, refer to the Caring for
your vehicle brochure
Pollen
– refer to Microfilter64
– refer to Microfilter/activated-
charcoal filter67
Power
– windows, refer to
Windows24
Power convertible top27
Power failure102
Power output, refer to Engine
data110
Power steering, electric56
Power windows
– initializing25
Pressure, tires84
Pressure monitoring, tires,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor
TPM54
Protective function, refer to
Pinch protection system25
R
Radio, refer to the separate
Owner's Manual
Radio navigation, refer to the
separate Owner's Manual
Radio remote control key,
refer to Master keys with
remote control18
Rain sensor45
Reading lamps61
Rear lamps
– bulb replacement101
– indicator lamp, defective
bulb13
Rearview mirror, refer to
Mirrors34Rear window defroster
– air conditioning63
– automatic climate control67
Recirculated-air mode
– air conditioning63
– automatic climate control67
Recirculating the air, refer to
Recirculated-air
mode63,67
Reclining seat, refer to
Seats30
Refueling82
Releasing
– hood91
Remaining distance, refer to
Cruising range50
Remote control19
– luggage compartment lid19
– malfunction20
– tailgate19
Repairs
– refer to Maintenance
system96
Replacement key, refer to
New keys18
Replacement of tires88
Replacing lamps, refer to
Lamps and bulbs98
Replacing tires, refer to Wheel
and tire replacement88
Reserve
– indicator lamp, refer to Fuel
gauge48
Restraint systems
– for children37,38
– refer to Safety belts33
Reverse gear
– automatic transmission with
Steptronic43
– manual transmission42
Roadside Assistance103
Roadside parking lamps60
Rod antenna, refer to the
Caring for your vehicle
brochure
Roller-blind cover70
Rope, refer to Towing
methods106

Reference
At a glance
Controls
Driving tips
Mobility
125

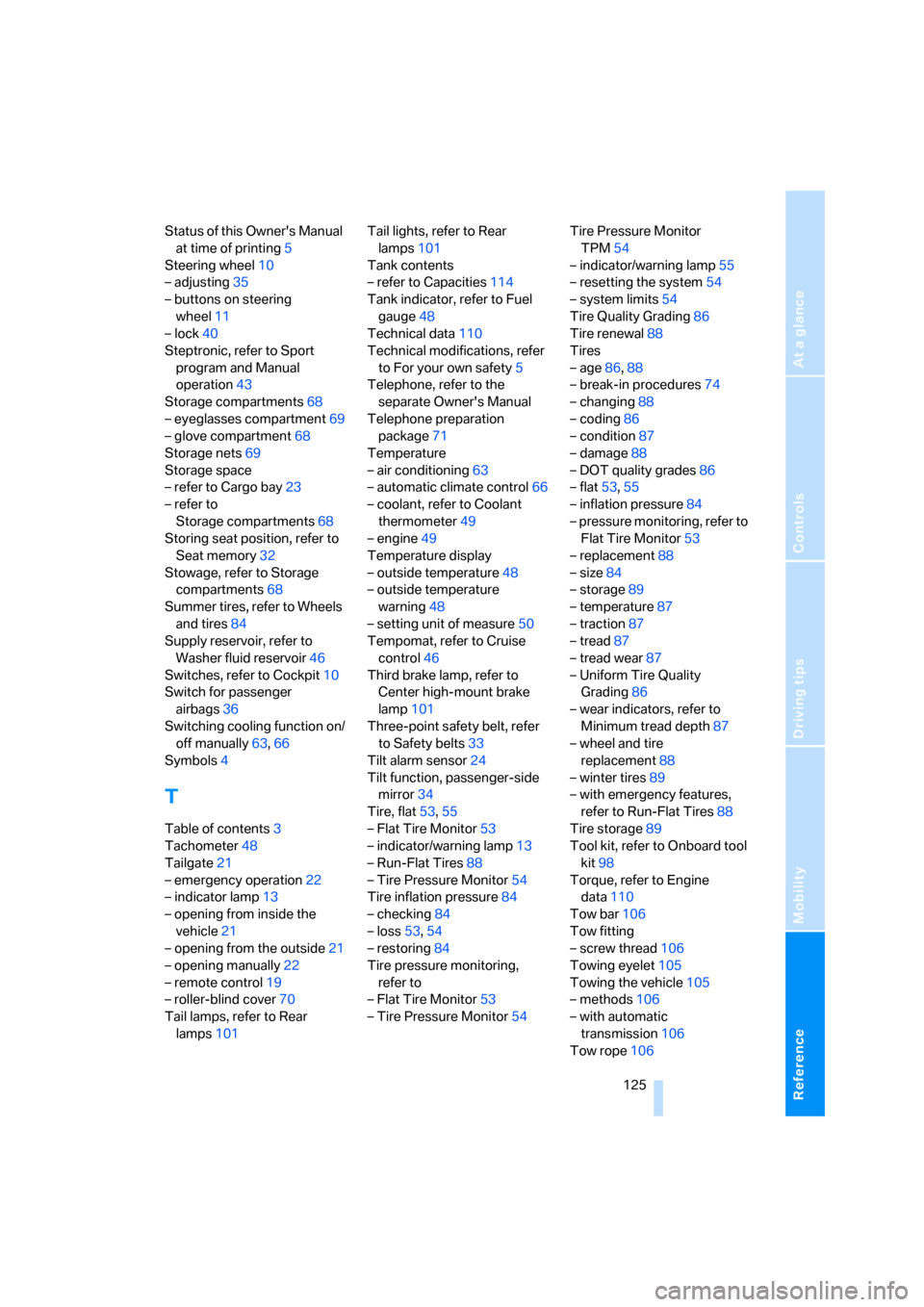

Status of this Owner's Manual
at time of printing5
Steering wheel10
– adjusting35
– buttons on steering
wheel11
– lock40
Steptronic, refer to Sport
program and Manual
operation43
Storage compartments68
– eyeglasses compartment69
– glove compartment68
Storage nets69
Storage space
– refer to Cargo bay23
– refer to
Storage compartments68
Storing seat position, refer to
Seat memory32
Stowage, refer to Storage
compartments68
Summer tires, refer to Wheels
and tires84
Supply reservoir, refer to
Washer fluid reservoir46
Switches, refer to Cockpit10
Switch for passenger
airbags36
Switching cooling function on/
off manually63,66
Symbols4
T
Table of contents3
Tachometer48
Tailgate21
– emergency operation22
– indicator lamp13
– opening from inside the
vehicle21
– opening from the outside21
– opening manually22
– remote control19
– roller-blind cover70
Tail lamps, refer to Rear
lamps101Tail lights, refer to Rear
lamps101
Tank contents
– refer to Capacities114
Tank indicator, refer to Fuel
gauge48
Technical data110
Technical modifications, refer
to For your own safety5
Telephone, refer to the
separate Owner's Manual
Telephone preparation
package71
Temperature
– air conditioning63
– automatic climate control66
– coolant, refer to Coolant
thermometer49
– engine49
Temperature display
– outside temperature48
– outside temperature
warning48
– setting unit of measure50
Tempomat, refer to Cruise
control46
Third brake lamp, refer to
Center high-mount brake
lamp101
Three-point safety belt, refer
to Safety belts33
Tilt alarm sensor24
Tilt function, passenger-side
mirror34
Tire, flat53,55
– Flat Tire Monitor53
– indicator/warning lamp13
– Run-Flat Tires88
– Tire Pressure Monitor54
Tire inflation pressure84
– checking84
– loss53,54
– restoring84
Tire pressure monitoring,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor
54Tire Pressure Monitor
TPM54
– indicator/warning lamp55
– resetting the system54
– system limits54
Tire Quality Grading86
Tire renewal88
Tires
– age86,88
– break-in procedures74
– changing88
– coding86
– condition87
– damage88
– DOT quality grades86
– flat53,55
– inflation pressure84
– pressure monitoring, refer to
Flat Tire Monitor53
– replacement88
– size84
– storage89
– temperature87
– traction87
– tread87
– tread wear87
– Uniform Tire Quality
Grading86
– wear indicators, refer to
Minimum tread depth87
– wheel and tire
replacement88
– winter tires89
– with emergency features,
refer to Run-Flat Tires88
Tire storage89
Tool kit, refer to Onboard tool
kit98
Torque, refer to Engine
data110
Tow bar106
Tow fitting
– screw thread106
Towing eyelet105
Towing the vehicle105
– methods106
– with automatic
transmission106
Tow rope106
