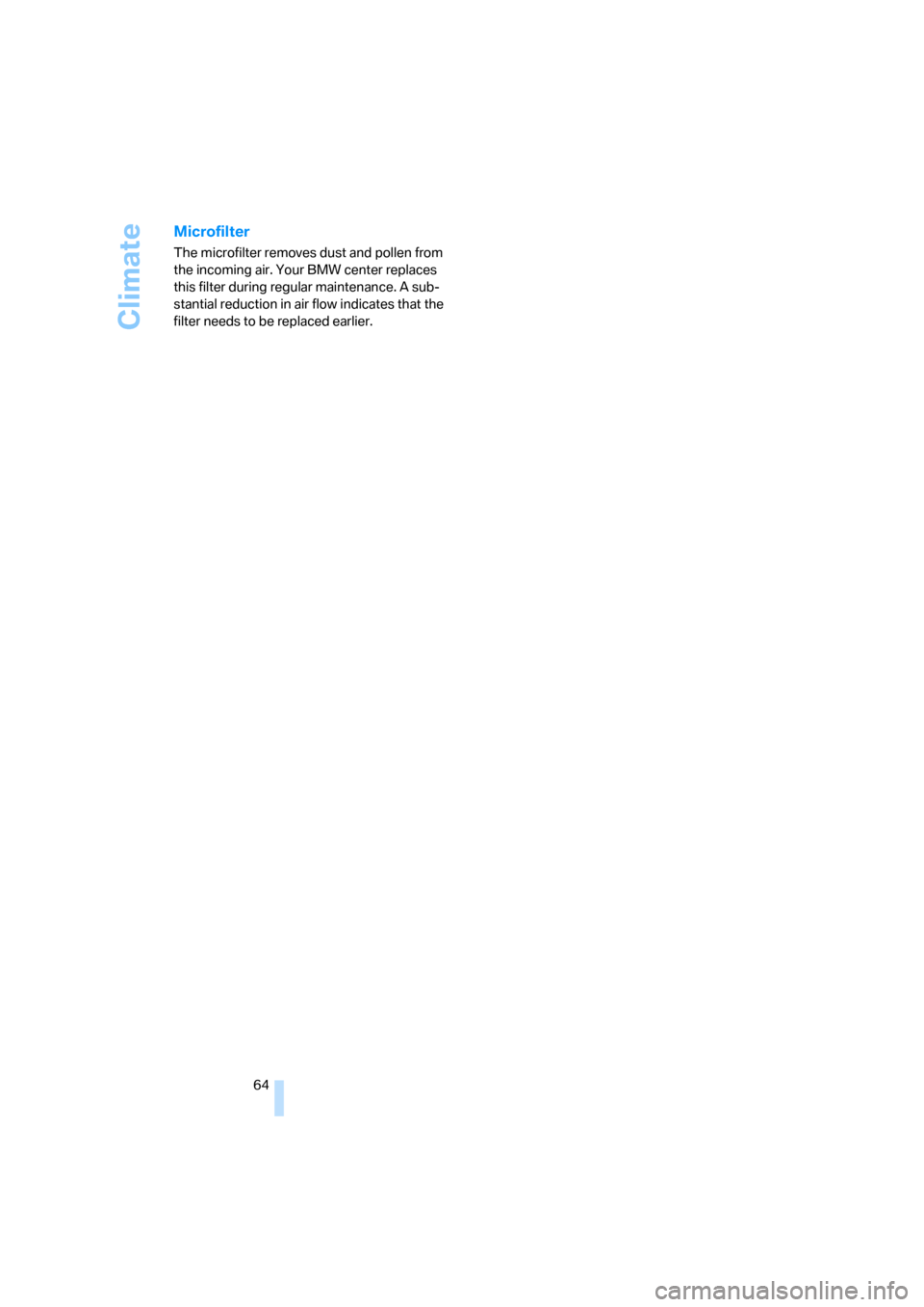

Climate
64
Microfilter
The microfilter removes dust and pollen from
the incoming air. Your BMW center replaces
this filter during regular maintenance. A sub-
stantial reduction in air flow indicates that the
filter needs to be replaced earlier.

Reference
At a glance
Controls
Driving tips
Mobility

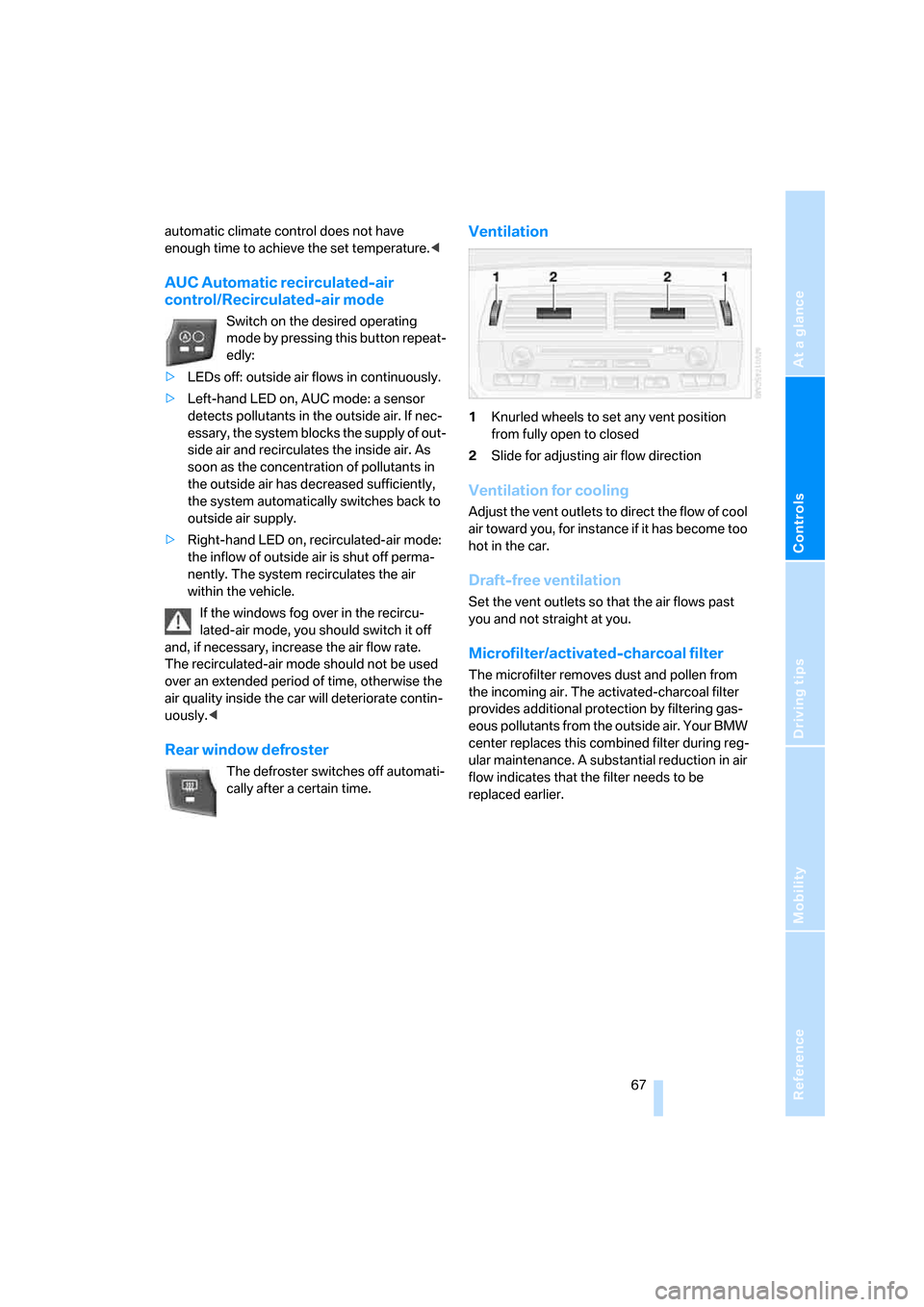

67
automatic climate control does not have
enough time to achieve the set temperature.<
AUC Automatic recirculated-air
control/Recirculated-air mode
Switch on the desired operating
mode by pressing this button repeat-
edly:
>LEDs off: outside air flows in continuously.
>Left-hand LED on, AUC mode: a sensor
detects pollutants in the outside air. If nec-
essary, the system blocks the supply of out-
side air and recirculates the inside air. As
soon as the concentration of pollutants in
the outside air has decreased sufficiently,
the system automatically switches back to
outside air supply.
>Right-hand LED on, recirculated-air mode:
the inflow of outside air is shut off perma-
nently. The system recirculates the air
within the vehicle.
If the windows fog over in the recircu-
lated-air mode, you should switch it off
and, if necessary, increase the air flow rate.
The recirculated-air mode should not be used
over an extended period of time, otherwise the
air quality inside the car will deteriorate contin-
uously.<
Rear window defroster
The defroster switches off automati-
cally after a certain time.
Ventilation
1Knurled wheels to set any vent position
from fully open to closed
2Slide for adjusting air flow direction
Ventilation for cooling
Adjust the vent outlets to direct the flow of cool
air toward you, for instance if it has become too
hot in the car.
Draft-free ventilation
Set the vent outlets so that the air flows past
you and not straight at you.
Microfilter/activated-charcoal filter
The microfilter removes dust and pollen from
the incoming air. The activated-charcoal filter
provides additional protection by filtering gas-
eous pollutants from the outside air. Your BMW
center replaces this combined filter during reg-
ular maintenance. A substantial reduction in air
flow indicates that the filter needs to be
replaced earlier.

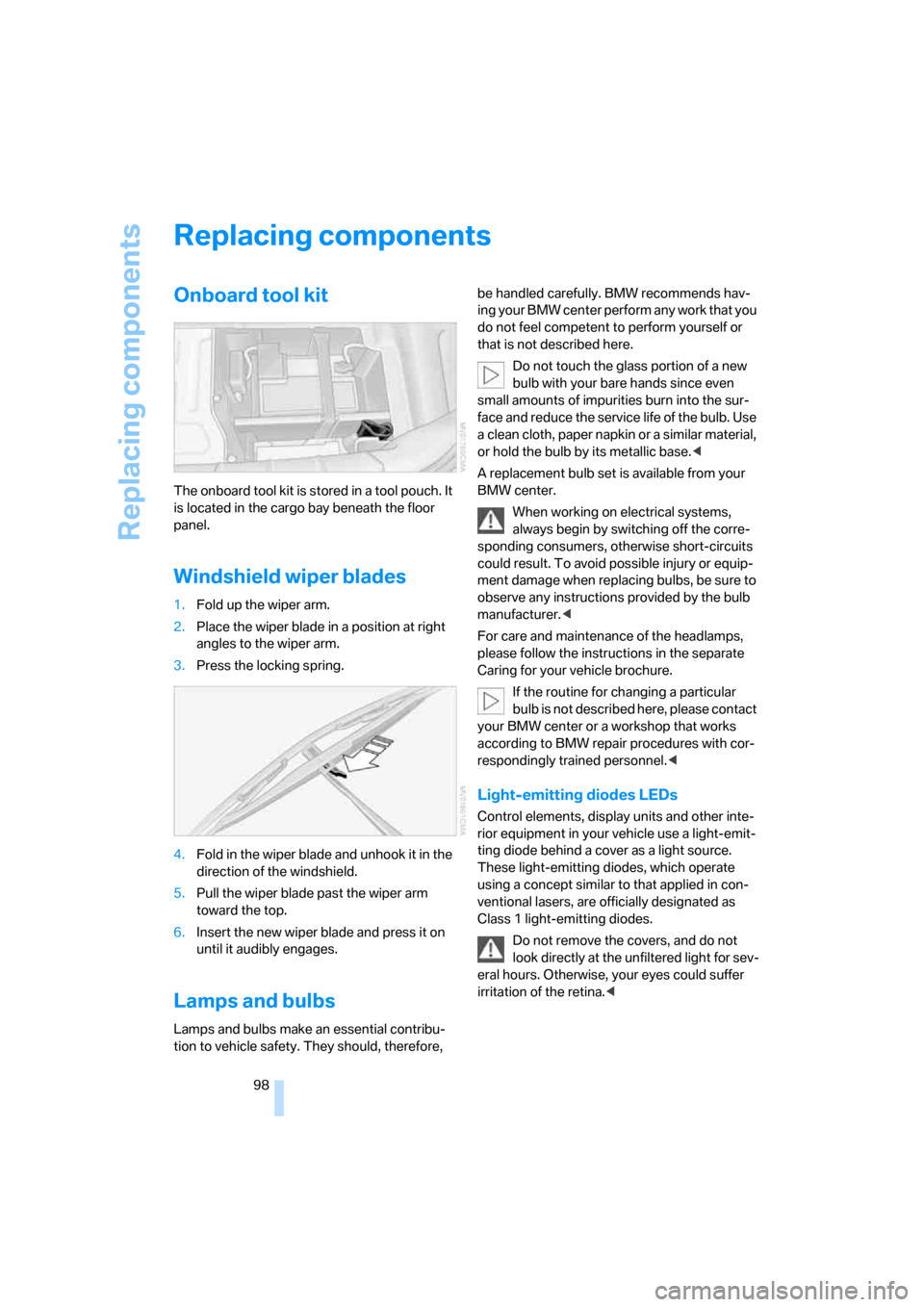

Replacing components
98
Replacing components
Onboard tool kit
The onboard tool kit is stored in a tool pouch. It
is located in the cargo bay beneath the floor
panel.
Windshield wiper blades
1.Fold up the wiper arm.
2.Place the wiper blade in a position at right
angles to the wiper arm.
3.Press the locking spring.
4.Fold in the wiper blade and unhook it in the
direction of the windshield.
5.Pull the wiper blade past the wiper arm
toward the top.
6.Insert the new wiper blade and press it on
until it audibly engages.
Lamps and bulbs
Lamps and bulbs make an essential contribu-
tion to vehicle safety. They should, therefore, be handled carefully. BMW recommends hav-
ing your BMW center perform any work that you
do not feel competent to perform yourself or
that is not described here.
Do not touch the glass portion of a new
bulb with your bare hands since even
small amounts of impurities burn into the sur-
face and reduce the service life of the bulb. Use
a clean cloth, paper napkin or a similar material,
or hold the bulb by its metallic base.<
A replacement bulb set is available from your
BMW center.
When working on electrical systems,
always begin by switching off the corre-
sponding consumers, otherwise short-circuits
could result. To avoid possible injury or equip-
ment damage when replacing bulbs, be sure to
observe any instructions provided by the bulb
manufacturer.<
For care and maintenance of the headlamps,
please follow the instructions in the separate
Caring for your vehicle brochure.
If the routine for changing a particular
bulb is not described here, please contact
your BMW center or a workshop that works
according to BMW repair procedures with cor-
respondingly trained personnel.<
Light-emitting diodes LEDs
Control elements, display units and other inte-
rior equipment in your vehicle use a light-emit-
ting diode behind a cover as a light source.
These light-emitting diodes, which operate
using a concept similar to that applied in con-
ventional lasers, are officially designated as
Class 1 light-emitting diodes.
Do not remove the covers, and do not
look directly at the unfiltered light for sev-
eral hours. Otherwise, your eyes could suffer
irritation of the retina.<

Everything from A to Z
116
Everything from A to Z
Index
A
ABS Antilock Brake
System51
– indicator lamp12
Accident, refer to Emergency
call103
Acknowledgment signal for
locking/unlocking vehicle19
Activated-charcoal filter for
automatic climate control67
Additives
– coolant94
– engine oil94
Adjusting
– seats30
Adjusting the thigh support32
Airbags56
– deactivating37
– indicator/warning lamp13
– passenger airbags indicator
lamp37
– reactivation37
– safe seating position30
Airbag switch, refer to Key
switch for passenger
airbags36
Air conditioning62
Air-conditioning operation,
refer to Cooling
function63,66
Air distribution
– air conditioning63
– automatic66
– automatic climate control66
– individual63,66
– manual66
Air flow rate
– air conditioning63
– automatic climate control66
Airing out, refer to
Ventilation63,67Air outlets, refer to
Ventilation63,67
Air pressure, refer to Tire
inflation pressure84
Air recirculation, refer to
Recirculated-air
mode63,67
AKI, refer to Fuel
specifications83
Alarm system23
– avoiding unintentional
alarms24
– interior motion sensor24
– switching off an alarm24
– tilt alarm sensor24
All-season tires, refer to
Winter tires87,89
Ambient air, refer to
Recirculated-air
mode63,67
Ambient temperature
display48
Antenna, refer to the Caring
for your vehicle brochure
Antifreeze46,94
– coolant94
– washer fluids46
Antilock Brake System
ABS51
– indicator/warning lamp12
– indicator lamp13
Anti-theft alarm system, refer
to Alarm system23
Anti-theft protection19,23
Approved engine oils94
Artificial leather, refer to the
Caring for your vehicle
brochure
Ashtray69
Assistance systems, refer to
Driving stability control
systems51AUC Automatic recirculated-
air control67
Audio device, external68
Automatic
– air distribution66
– air flow rate66
– cruise control46
– headlamp control59
– luggage compartment lid
operation22
– recirculated-air control
AUC67
– tailgate operation21
Automatic car wash, refer to
the Caring for your vehicle
brochure
Automatic climate control65
Automatic convertible top27
Automatic lamps59
Automatic transmission with
Steptronic42
– indicator lamp13
– interlock40,42
– selector lever43
– selector lever lock42
– shiftlock42
– shift paddles on steering
wheel43
– towing the vehicle106
– tow-starting106
AUTO program for automatic
climate control66
AUX-In jack68
Average fuel consumption50
– setting unit of measure50
Average speed50
– setting unit of measure50
Avoiding unintentional
alarms24
Axle loads, refer to
Weights113

Everything from A to Z
120 Equipment scope, refer to the
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet
ESP Electronic Stability
Program, refer to DSC
Dynamic Stability
Control51
Event Data Recorders97
Exhaust system, refer to Hot
exhaust system74
Exterior mirrors34
– adjusting34
– automatic dimming
feature34
– automatic heating34
– folding in and out34
External audio device68
Eyeglasses compartment69
Eyes, tow-starting and towing
away105
F
False alarm
– refer to Avoiding
unintentional alarms24
– refer to Switching off an
alarm24
Fasten safety belts, refer to
Safety belts33
Filter
– refer to Microfilter64
– refer to Microfilter/activated-
charcoal filter67
Fine wood, refer to the Caring
for your vehicle brochure
First aid, refer to First-aid
kit104
First-aid kit104
Flat tire
– Flat Tire Monitor53
– refer to Changing a
wheel101
– refer to Tire condition87
– Run-Flat Tires88
– Tire Pressure Monitor54Flat Tire Monitor FTM53
– flat tire warning53
– indicator/warning lamp53
– initializing the system53
– snow chains90
– system limits53
Floods, refer to Driving
through water75
Floor covers, carpets, refer to
the Caring for your vehicle
brochure
Floor mats, refer to the Caring
for your vehicle brochure
Fog lamps60
– indicator lamp13
Footbrake, refer to Braking
safely75
For your own safety5
Front airbags56
FTM, refer to Flat Tire
Monitor53
Fuel
– average consumption50
– capacity, refer to
Capacities114
– display48
– quality83
– refer to Average fuel
consumption50
– refer to Fuel
specifications83
– tank capacity83
Fuel display, refer to Fuel
gauge48
Fuel filler door, refer to Gas
cap82
Fuel level
– refer to Fuel tank capacity83
Fuel tank capacity, refer to
Capacities114
Fully automatic convertible
top
27
Fuses102
G
Gas cap82
Gasoline, refer to Fuel
specifications83Gasoline gauge, refer to Fuel
gauge48
Gear indicator, automatic
transmission with
Steptronic42
Gear lever
– automatic transmission with
Steptronic42
– manual transmission42
Gearshifts
– automatic transmission with
Steptronic42
– manual transmission42
Glove compartment68
Gross weight, refer to
Weights113
H
Halogen lamps
– replacing bulbs99
Handbrake, refer to Parking
brake41
Hands-free microphone71
Hardtop, refer to the separate
Owner's Manual
Hardtop preparation77
Hazard warning flashers14
Headlamp control,
automatic59
Headlamp flasher44
– indicator lamp12
Headlamps
– bulb replacement99
– care, refer to the Caring for
your vehicle brochure
– cleaning45
– cleaning system, washer
fluid46
– cover99
– glass, care, refer to the
Caring for your vehicle
brochure
– washer reservoir, refer to
Washer fluid reservoir46
– washer reservoir volume,
refer to Capacities114

Everything from A to Z
122 Lighter socket, refer to
Cigarette lighter69
Lighting
– instruments60
– lamps and bulbs98
– vehicle, refer to Lamps59
Lighting of the instruments,
refer to Instrument
lighting60
LIGHTS ON warning60
Light switch59
Loads, refer to Cargo
loading76
Loads, securing77
Locking the doors
– from inside21
– from outside19,20
Locking the vehicle
– from inside21
– from outside19
Longlife oils
– approved engine oils94
Low beams59
– automatic59
– bulb replacement99
– indicator lamp, defective
bulb13
Luggage compartment, refer
to Cargo bay23
Luggage compartment lid22
– emergency release23
– indicator lamp13
– opening from inside the
vehicle22
– opening from the outside22
– remote control19
M
M+S tires, refer to Winter
tires89
Maintenance96
– refer to Service Booklet
– refer to Service interval
display49,96
Making telephone calls, refer
to Owner's Manual for
TelephoneMalfunction
– automatic transmission with
Steptronic43
– convertible top28
– door lock20
– fuel filler door82
– luggage compartment lid22
– tailgate22
Malfunction of electrical
accessory102
Manual
– air distribution66
– air flow rate66
Manual convertible top25
Manual mode, refer to
Automatic transmission with
Steptronic43
Manual operation
– door lock20
– driver's door20
– fuel filler door82
– luggage compartment lid22
– power convertible top28
– tailgate22
– transmission lock, automatic
transmission42
Manual transmission42
Manufacturer5
Master keys with remote
control18
Maximum cooling66
Maximum speed
– with winter tires89
Measurements, refer to
Dimensions111,112
Mechanical seat31
Memory
– Seat memory32
– Vehicle Memory, Key
Memory18
Microfilter
– air conditioning64
– automatic climate control67
Microphone, refer to Mobile
phone preparation
package71
Minidisc operation, refer to
Owner's Manual for Radio/
Onboard ComputerMirrors34
– exterior mirrors34
– heating34
– interior rearview mirror34
Mobile communications in the
vehicle, refer to the separate
Owner's Manual
Mobile phone, refer to the
separate Owner's Manual
Mobile phone preparation
package71
Mobile phones, use inside the
car, refer to Mobile
communications in the
vehicle74
Modifications, technical, refer
to For your own safety5
M Sports seat31
Multifunctional steering
wheel, refer to Buttons on
the steering wheel11
Multifunction switch
– refer to Turn signal
indicators/headlamp
flasher44
– refer to Washer/wiper
system45
N
Navigation system, refer to the
separate Owner's Manual
Neck support, refer to Head
restraints32
Nets69
New
– keys18
– tires88
Nylon rope, refer to Tow
rope106
O
OBD socket, refer to Socket
for On-Board Diagnosis
OBD96
Octane numbers, refer to Fuel
specifications83
Odometer48

Reference
At a glance
Controls
Driving tips
Mobility
123
Oil, refer to Engine oil92
Oil level92
– checking93
Oil service49
Onboard computer, refer to
Computer50
Onboard tool kit98
On-call services, refer to
Roadside Assistance103
Opening
– from inside21
Opening and closing the
vehicle
– at the door lock20
– from inside21
– from outside19
– with the remote control19
Outlets, refer to
Ventilation63,67
Outside temperature display
– changing units of
measure50
– in the onboard computer50
Outside temperature
warning48
Overheated engine, refer to
Coolant temperature49
P
Paintwork, refer to the Caring
for your vehicle brochure
Parking brake41
– indicator lamp13,41
Parking lamps, refer to
Parking lamps/Low
beams59
Parking lamps/Low beams59
– bulb replacement99
Parking lock, refer to P
Parking42
Passenger airbags
– deactivation37
– reactivation37
Passenger-side mirror tilt
function34
Pathway lighting60
Permissible axle load, refer to
Weights113Permissible gross weight,
refer to Weights113
Pinch protection system
– windows25
Placing the vehicle in storage,
refer to the Caring for your
vehicle brochure
Plastic, refer to the Caring for
your vehicle brochure
Pollen
– refer to Microfilter64
– refer to Microfilter/activated-
charcoal filter67
Power
– windows, refer to
Windows24
Power convertible top27
Power failure102
Power output, refer to Engine
data110
Power steering, electric56
Power windows
– initializing25
Pressure, tires84
Pressure monitoring, tires,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor
TPM54
Protective function, refer to
Pinch protection system25
R
Radio, refer to the separate
Owner's Manual
Radio navigation, refer to the
separate Owner's Manual
Radio remote control key,
refer to Master keys with
remote control18
Rain sensor45
Reading lamps61
Rear lamps
– bulb replacement101
– indicator lamp, defective
bulb13
Rearview mirror, refer to
Mirrors34Rear window defroster
– air conditioning63
– automatic climate control67
Recirculated-air mode
– air conditioning63
– automatic climate control67
Recirculating the air, refer to
Recirculated-air
mode63,67
Reclining seat, refer to
Seats30
Refueling82
Releasing
– hood91
Remaining distance, refer to
Cruising range50
Remote control19
– luggage compartment lid19
– malfunction20
– tailgate19
Repairs
– refer to Maintenance
system96
Replacement key, refer to
New keys18
Replacement of tires88
Replacing lamps, refer to
Lamps and bulbs98
Replacing tires, refer to Wheel
and tire replacement88
Reserve
– indicator lamp, refer to Fuel
gauge48
Restraint systems
– for children37,38
– refer to Safety belts33
Reverse gear
– automatic transmission with
Steptronic43
– manual transmission42
Roadside Assistance103
Roadside parking lamps60
Rod antenna, refer to the
Caring for your vehicle
brochure
Roller-blind cover70
Rope, refer to Towing
methods106
