Page 15 of 132
At a glance
Controls
Driving tips
Mobility Reference
13
Colors
The indicator and warning lamps can light up in
various colors and combinations.
>Red:
Stop the vehicle immediately
or
an important reminder
>Red and yellow:
Continue driving cautiously
>Yellow:
Have the system checked soon
or
for your information
>Green or blue:
For your information Antilock Brake System ABS/Driving
stability control systems for Canadian
models
Brake system
+
Parking brake released95
Parking brake applied41
With other warning lamps52
Brake warning lamp for Canadian mod-
els
Brake pads
+76
Fog lamps60
Electric Power Steering
+56
Flat Tire Monitor
* +53
Tire Pressure Monitor
* +54
Airbags
+56
'Fasten safety belts' reminder33
Defective bulb59
Doors or luggage compartment lid/tail-
gate open
Automatic transmission
+43
Engine electronics
+
Malfunction in the engine electronics.
You can continue to drive with reduced
engine output. Please have the system
inspected by your BMW center.
Service engine soon
+97
Service engine soon indicator lamp for
Canadian models
Dynamic Stability Control
DSC
+51
Dynamic Traction Control
DTC
+51
Add coolant94
Add washer fluid46
Check gas cap
+82

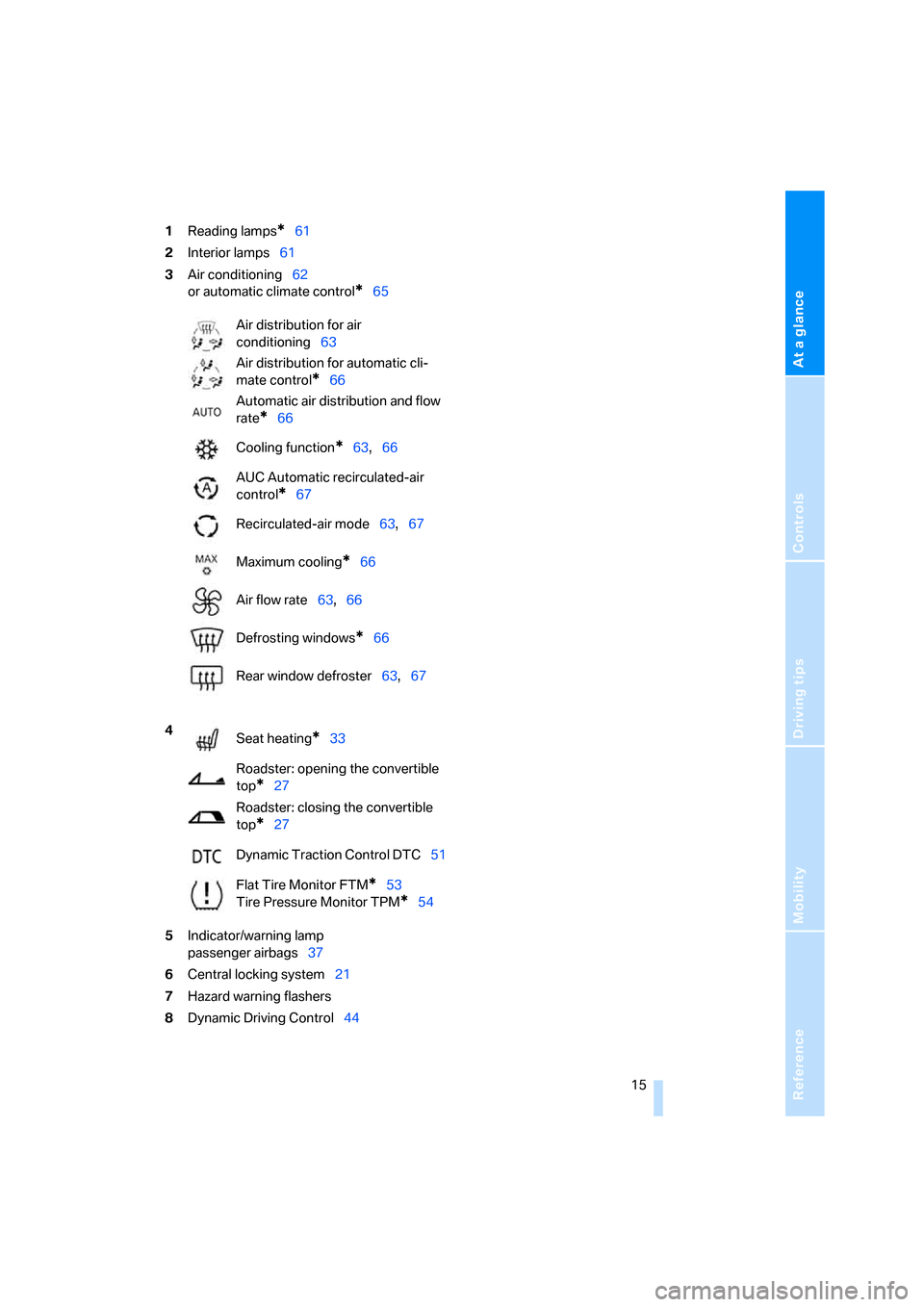

Page 17 of 132
At a glance
Controls
Driving tips
Mobility Reference
15
1Reading lamps*61
2Interior lamps61
3Air conditioning62
or automatic climate control
*65
5Indicator/warning lamp
passenger airbags37
6Central locking system21
7Hazard warning flashers
8Dynamic Driving Control44 Air distribution for air
conditioning63
Air distribution for automatic cli-
mate control
*66
Automatic air distribution and flow
rate
*66
Cooling function
*63,66
AUC Automatic recirculated-air
control
*67
Recirculated-air mode63,67
Maximum cooling
*66
Air flow rate63,66
Defrosting windows
*66
Rear window defroster63,67
4
Seat heating
*33
Roadster: opening the convertible
top
*27
Roadster: closing the convertible
top
*27
Dynamic Traction Control DTC51
Flat Tire Monitor FTM
*53
Tire Pressure Monitor TPM
*54
Page 53 of 132
Reference
At a glance
Controls
Driving tips
Mobility
51
Technology for driving comfort and safety
Driving stability control
systems
Your BMW is equipped with a s eries of systems
that help maintain driving stability even in
adverse driving situations.
Antilock Brake System ABS
ABS keeps the wheels from locking during
braking. Steering stability is maintained even
during full brake applications. In this way, active
safety is enhanced.
ABS is operational each time the engine is
started. Braking safely, refer to page76.
Electronic brake-force distribution
The system controls brake-force application at
the rear wheels in order to obtain increased sta-
bility in the vehicle's braking response.
Dynamic Brake Control DBC
When you apply the brakes rapidly, this system
automatically produces the maximum braking
force boost and thus helps to achieve the short-
est possible braking distance during full brak-
ing. At the same time, the benefits of the ABS
are also exploited.
As long as you want full braking to continue, do
not reduce pressure on the brake.
Dynamic Stability Control DSC
DSC prevents slip at the drive wheels while
starting off and accelerating the vehicle. DSC
also recognizes unstable vehicle conditions,
such as fishtailing or nose-diving. In these
cases, and subject to physical limits, DSC helps
to keep the vehicle on a steady course by
reducing engine speed and by applying brakes
at individual wheels.
The laws of physics cannot be repealed
even with DSC. It will always be the
driver's responsibility to drive in a manner that
matches road conditions. Therefore, do not limit the additional safety margin by practicing
risky driving.<
Deactivating DSC
Press the button for at least 3 seconds; the indi-
cator lamp for DSC lights up in the instrument
cluster. Dynamic Traction Control DTC and
DSC have been deactivated simultaneously. No
more interventions to increase stability and for-
ward momentum are carried out.
To enhance vehicle stability, reactivate DSC as
soon as possible.
Activating DSC
Press the button again; the indicator lamp goes
out in the instrument cluster.
Checking
The indicator lamp flashes:
DSC controls the drive forces and
brake forces.
The indicator lamp is lit:
DSC has been deactivated completely.
Dynamic Traction Control DTC
DTC is a variant of the DSC in which forward
momentum is optimized for special road condi-
tions, e.g. snow-covered roads that have not
yet been cleared. The system ensures maxi-
mum forward momentum, but driving stability is
limited. Therefore, drive carefully in accordance
with conditions.

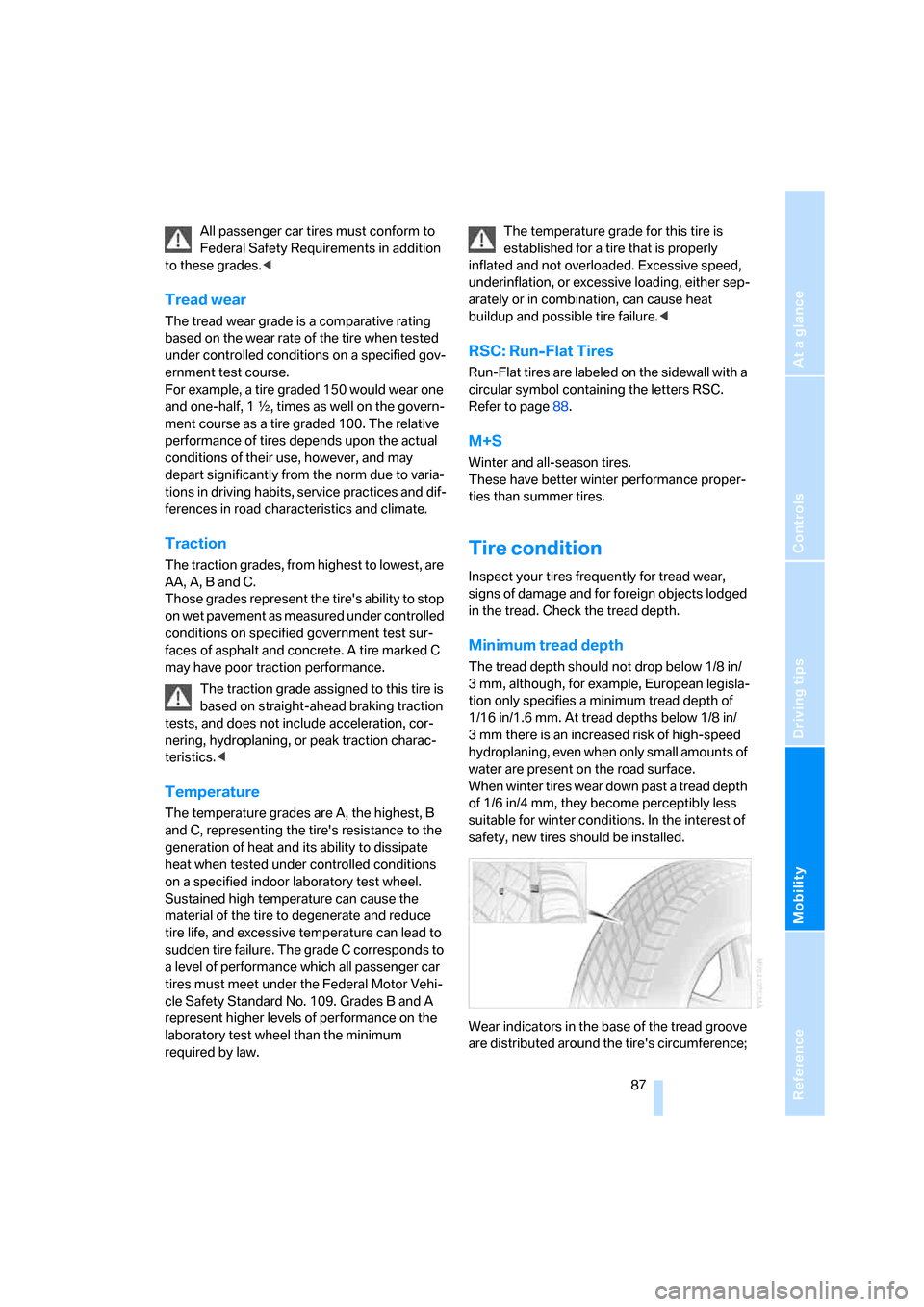

Page 89 of 132
Reference
At a glance
Controls
Driving tips
Mobility
87
All passenger car tires must conform to
Federal Safety Requirements in addition
to these grades.<
Tread wear
The tread wear grade is a comparative rating
based on the wear rate of the tire when tested
under controlled conditions on a specified gov-
ernment test course.
For example, a tire graded 150 would wear one
and one-half, 1 γ, times as well on the govern-
ment course as a tire graded 100. The relative
performance of tires depends upon the actual
conditions of their use, however, and may
depart significantly from the norm due to varia-
tions in driving habits, service practices and dif-
ferences in road characteristics and climate.
Traction
The traction grades, from highest to lowest, are
AA, A, B and C.
Those grades represent the tire's ability to stop
on wet pavement as measured under controlled
conditions on specified government test sur-
faces of asphalt and concrete. A tire marked C
may have poor traction performance.
The traction grade assigned to this tire is
based on straight-ahead braking traction
tests, and does not include acceleration, cor-
nering, hydroplaning, or peak traction charac-
teristics.<
Temperature
The temperature grades are A, the highest, B
and C, representing the tire's resistance to the
generation of heat and its ability to dissipate
heat when tested under controlled conditions
on a specified indoor laboratory test wheel.
Sustained high temperature can cause the
material of the tire to degenerate and reduce
tire life, and excessive temperature can lead to
sudden tire failure. The grade C corresponds to
a level of performance which all passenger car
tires must meet under the Federal Motor Vehi-
cle Safety Standard No. 109. Grades B and A
represent higher levels of performance on the
laboratory test wheel than the minimum
required by law.The temperature grade for this tire is
established for a tire that is properly
inflated and not overloaded. Excessive speed,
underinflation, or excessive loading, either sep-
arately or in combination, can cause heat
buildup and possible tire failure.<
RSC: Run-Flat Tires
Run-Flat tires are labeled on the sidewall with a
circular symbol containing the letters RSC.
Refer to page88.
M+S
Winter and all-season tires.
These have better winter performance proper-
ties than summer tires.
Tire condition
Inspect your tires frequently for tread wear,
signs of damage and for foreign objects lodged
in the tread. Check the tread depth.
Minimum tread depth
The tread depth should not drop below 1/8 in/
3 mm, although, for example, European legisla-
tion only specifies a minimum tread depth of
1/16 in/1.6 mm. At tread depths below 1/8 in/
3 mm there is an increased risk of high-speed
hydroplaning, even when only small amounts of
water are present on the road surface.
When winter tires wear down past a tread depth
of 1/6 in/4 mm, they become perceptibly less
suitable for winter conditions. In the interest of
safety, new tires should be installed.
Wear indicators in the base of the tread groove
are distributed around the tire's circumference;

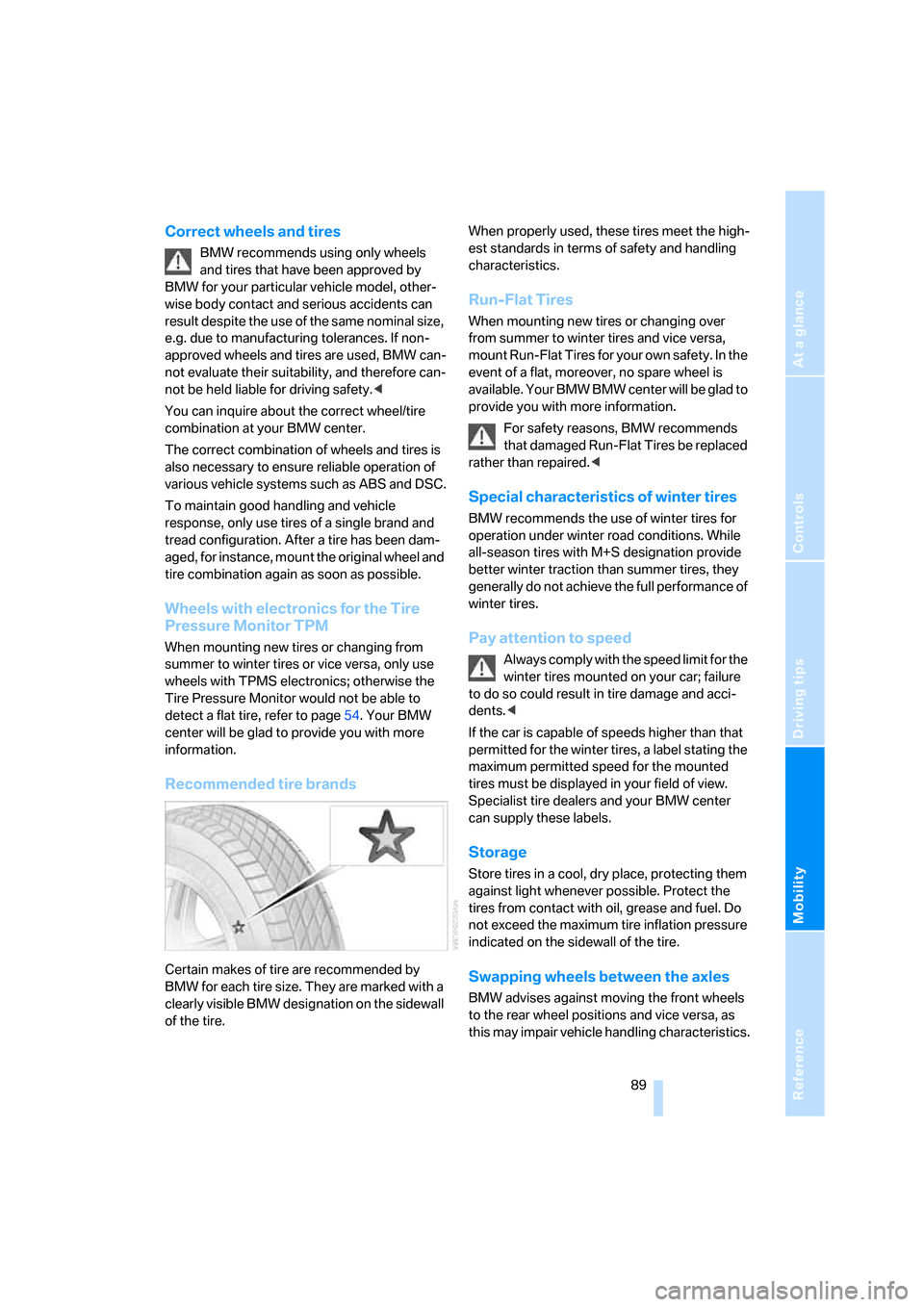

Page 91 of 132
Reference
At a glance
Controls
Driving tips
Mobility
89
Correct wheels and tires
BMW recommends using only wheels
and tires that have been approved by
BMW for your particular vehicle model, other-
wise body contact and serious accidents can
result despite the use of the same nominal size,
e.g. due to manufacturing tolerances. If non-
approved wheels and tires are used, BMW can-
not evaluate their suitability, and therefore can-
not be held liable for driving safety.<
You can inquire about the correct wheel/tire
combination at your BMW center.
The correct combination of wheels and tires is
also necessary to ensure reliable operation of
various vehicle systems such as ABS and DSC.
To maintain good handling and vehicle
response, only use tires of a single brand and
tread configuration. After a tire has been dam-
aged, for instance, mount the original wheel and
tire combination again as soon as possible.
Wheels with electronics for the Tire
Pressure Monitor TPM
When mounting new tires or changing from
summer to winter tires or vice versa, only use
wheels with TPMS electronics; otherwise the
Tire Pressure Monitor would not be able to
detect a flat tire, refer to page54. Your BMW
center will be glad to provide you with more
information.
Recommended tire brands
Certain makes of tire are recommended by
BMW for each tire size. They are marked with a
clearly visible BMW designation on the sidewall
of the tire.When properly used, these tires meet the high-
est standards in terms of safety and handling
characteristics.
Run-Flat Tires
When mounting new tires or changing over
from summer to winter tires and vice versa,
mount Run-Flat Tires for your own safety. In the
event of a flat, moreover, no spare wheel is
available. Your BMW BMW center will be glad to
provide you with more information.
For safety reasons, BMW recommends
that damaged Run-Flat Tires be replaced
rather than repaired.<
Special characteristics of winter tires
BMW recommends the use of winter tires for
operation under winter road conditions. While
all-season tires with M+S designation provide
better winter traction than summer tires, they
generally do not achieve the full performance of
winter tires.
Pay attention to speed
Always comply with the speed limit for the
winter tires mounted on your car; failure
to do so could result in tire damage and acci-
dents.<
If the car is capable of speeds higher than that
permitted for the winter tires, a label stating the
maximum permitted speed for the mounted
tires must be displayed in your field of view.
Specialist tire dealers and your BMW center
can supply these labels.
Storage
Store tires in a cool, dry place, protecting them
against light whenever possible. Protect the
tires from contact with oil, grease and fuel. Do
not exceed the maximum tire inflation pressure
indicated on the sidewall of the tire.
Swapping wheels between the axles
BMW advises against moving the front wheels
to the rear wheel positions and vice versa, as
this may impair vehicle handling characteristics.

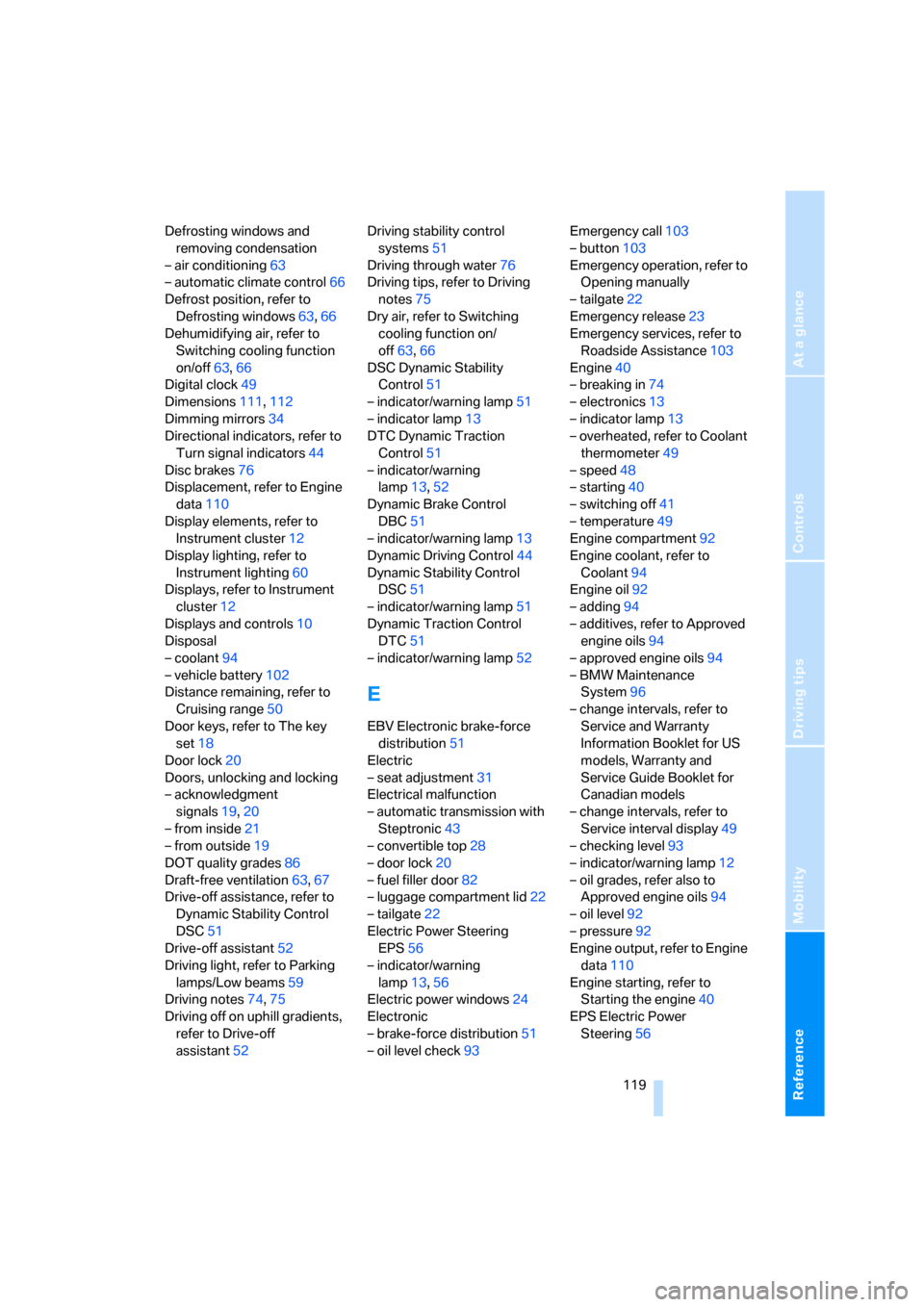

Page 121 of 132
Reference
At a glance
Controls
Driving tips
Mobility
119
Defrosting windows and
removing condensation
– air conditioning63
– automatic climate control66
Defrost position, refer to
Defrosting windows63,66
Dehumidifying air, refer to
Switching cooling function
on/off63,66
Digital clock49
Dimensions111,112
Dimming mirrors34
Directional indicators, refer to
Turn signal indicators44
Disc brakes76
Displacement, refer to Engine
data110
Display elements, refer to
Instrument cluster12
Display lighting, refer to
Instrument lighting60
Displays, refer to Instrument
cluster12
Displays and controls10
Disposal
– coolant94
– vehicle battery102
Distance remaining, refer to
Cruising range50
Door keys, refer to The key
set18
Door lock20
Doors, unlocking and locking
– acknowledgment
signals19,20
– from inside21
– from outside19
DOT quality grades86
Draft-free ventilation63,67
Drive-off assistance, refer to
Dynamic Stability Control
DSC51
Drive-off assistant52
Driving light, refer to Parking
lamps/Low beams59
Driving notes74,75
Driving off on uphill gradients,
refer to Drive-off
assistant52Driving stability control
systems51
Driving through water76
Driving tips, refer to Driving
notes75
Dry air, refer to Switching
cooling function on/
off63,
66
DSC Dynamic Stability
Control51
– indicator/warning lamp51
– indicator lamp13
DTC Dynamic Traction
Control51
– indicator/warning
lamp13,52
Dynamic Brake Control
DBC51
– indicator/warning lamp13
Dynamic Driving Control44
Dynamic Stability Control
DSC51
– indicator/warning lamp51
Dynamic Traction Control
DTC51
– indicator/warning lamp52
E
EBV Electronic brake-force
distribution51
Electric
– seat adjustment31
Electrical malfunction
– automatic transmission with
Steptronic43
– convertible top28
– door lock20
– fuel filler door82
– luggage compartment lid22
– tailgate22
Electric Power Steering
EPS56
– indicator/warning
lamp13,56
Electric power windows24
Electronic
– brake-force distribution51
– oil level check93Emergency call103
– button103
Emergency operation, refer to
Opening manually
– tailgate22
Emergency release23
Emergency services, refer to
Roadside Assistance103
Engine40
– breaking in74
– electronics13
– indicator lamp13
– overheated, refer to Coolant
thermometer49
– speed48
– starting40
– switching off41
– temperature49
Engine compartment92
Engine coolant, refer to
Coolant94
Engine oil92
– adding94
– additives, refer to Approved
engine oils94
– approved engine oils94
– BMW Maintenance
System96
– change intervals, refer to
Service and Warranty
Information Booklet for US
models, Warranty and
Service Guide Booklet for
Canadian models
– change intervals, refer to
Service interval display49
– checking level93
– indicator/warning lamp12
– oil grades, refer also to
Approved engine oils94
– oil level92
– pressure92
Engine output, refer to Engine
data110
Engine starting, refer to
Starting the engine40
EPS Electric Power
Steering56

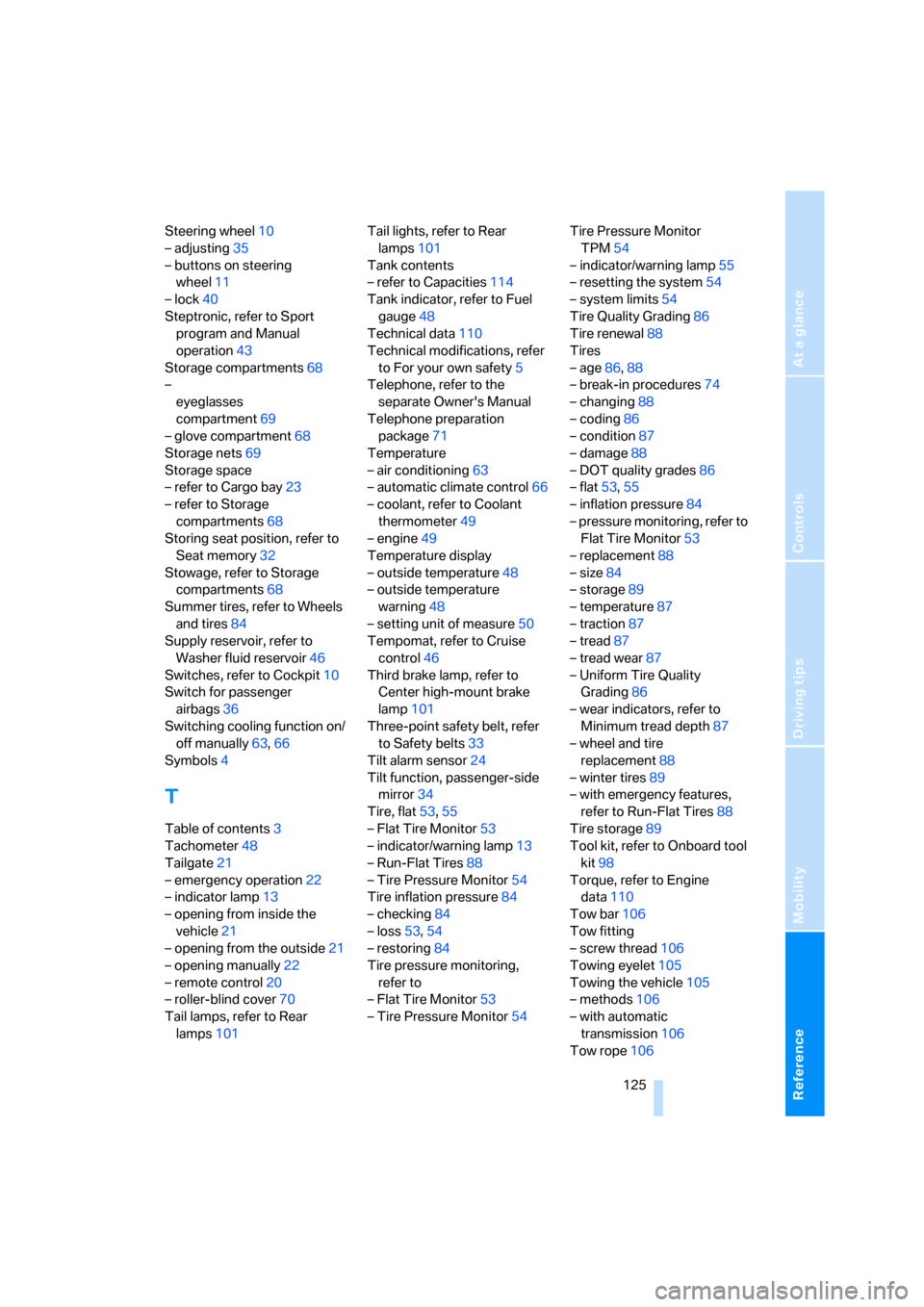

Page 127 of 132
Reference
At a glance
Controls
Driving tips
Mobility
125
Steering wheel10
– adjusting35
– buttons on steering
wheel11
– lock40
Steptronic, refer to Sport
program and Manual
operation43
Storage compartments68
–
eyeglasses
compartment69
– glove compartment68
Storage nets69
Storage space
– refer to Cargo bay23
– refer to Storage
compartments68
Storing seat position, refer to
Seat memory32
Stowage, refer to Storage
compartments68
Summer tires, refer to Wheels
and tires84
Supply reservoir, refer to
Washer fluid reservoir46
Switches, refer to Cockpit10
Switch for passenger
airbags36
Switching cooling function on/
off manually63,66
Symbols4
T
Table of contents3
Tachometer48
Tailgate21
– emergency operation22
– indicator lamp13
– opening from inside the
vehicle21
– opening from the outside21
– opening manually22
– remote control20
– roller-blind cover70
Tail lamps, refer to Rear
lamps101Tail lights, refer to Rear
lamps101
Tank contents
– refer to Capacities114
Tank indicator, refer to Fuel
gauge48
Technical data110
Technical modifications, refer
to For your own safety5
Telephone, refer to the
separate Owner's Manual
Telephone preparation
package71
Temperature
– air conditioning63
– automatic climate control66
– coolant, refer to Coolant
thermometer49
– engine49
Temperature display
– outside temperature48
– outside temperature
warning48
– setting unit of measure50
Tempomat, refer to Cruise
control46
Third brake lamp, refer to
Center high-mount brake
lamp101
Three-point safety belt, refer
to Safety belts33
Tilt alarm sensor24
Tilt function, passenger-side
mirror34
Tire, flat53,55
– Flat Tire Monitor53
– indicator/warning lamp13
– Run-Flat Tires88
– Tire Pressure Monitor54
Tire inflation pressure84
– checking84
– loss53,54
– restoring84
Tire pressure monitoring,
refer to
– Flat Tire Monitor53
– Tire Pressure Monitor
54Tire Pressure Monitor
TPM54
– indicator/warning lamp55
– resetting the system54
– system limits54
Tire Quality Grading86
Tire renewal88
Tires
– age86,88
– break-in procedures74
– changing88
– coding86
– condition87
– damage88
– DOT quality grades86
– flat53,55
– inflation pressure84
– pressure monitoring, refer to
Flat Tire Monitor53
– replacement88
– size84
– storage89
– temperature87
– traction87
– tread87
– tread wear87
– Uniform Tire Quality
Grading86
– wear indicators, refer to
Minimum tread depth87
– wheel and tire
replacement88
– winter tires89
– with emergency features,
refer to Run-Flat Tires88
Tire storage89
Tool kit, refer to Onboard tool
kit98
Torque, refer to Engine
data110
Tow bar106
Tow fitting
– screw thread106
Towing eyelet105
Towing the vehicle105
– methods106
– with automatic
transmission106
Tow rope106
Page 128 of 132
Everything from A to Z
126 Tow-starting106
Tow truck106
TPM Tire Pressure
Monitor54
Track width, refer to
Dimensions111,112
Traction control, refer to
Dynamic Stability Control
DSC51
Transmission
– automatic transmission with
Steptronic42
– manual transmission42
Transmission detent, refer to
Range selection42
Transmission malfunction,
refer to Malfunction43
Transporting children
safely36
Transport securing device,
refer to Cargo loading77
Tread depth, refer to Minimum
tread depth87
Trip distance recorder, refer to
Trip odometer48
Triple turn signal44
Trip meter, refer to Trip
odometer48
Trip odometer48
Turning circle, refer to
Dimensions111,112
Turn signal indicators44
– bulb replacement100
– indicator lamp12,13
Turn signals
– triple turn signal44
TV function, refer to Owner's
Manual for Onboard
Computer
Tying down loads, refer to
Cargo loading77
U
Undercoating, refer to the
Caring for your vehicle
brochure
Uniform Tire Quality Grading/
UTQR86Units
– average consumption50
– average speed50
– temperature50
– time50
Units of measure
– outside temperature
display50
– time format50
Unlatching, refer to
Unlocking19
Unlocking
– from inside21
– from outside19
– luggage compartment
lid20,22
– tailgate20,21
Used batteries, refer to
Battery disposal102
V
Vehicle
– battery102
– break-in period74
– care, refer to the Caring for
your vehicle brochure
– cargo loading77
– car wash, refer to the Caring
for your vehicle brochure
– dimensions, refer to
Dimensions111,112
– engine41
– leaving the vehicle41
– parked77
– placing in storage, refer to
the Caring for your vehicle
brochure
– weight113
Vehicle Memory18
Ventilation63,67
– air conditioning63
– automatic climate control67
– draft-free63,67
Vents, refer to
Ventilation63,67
Viscosity94Volume
– fuel tank, refer to
Capacities114
W
Warning and indicator
lamps12
Warning triangle104
Warranty, refer to Service and
Warranty Information
Booklet for US models,
Warranty and Service Guide
Booklet for Canadian
models96
Warranty and service6
Washer/wiper system45
Washer fluid reservoir46
Washer fluids46
Washer reservoir, refer to
Washer fluid reservoir46
Washing systems46
Waste tray, refer to Ashtray69
Water on roads, refer to
Driving through water76
Wear indicator in tires, refer to
Minimum tread depth87
Weights113
Wheel/tire combination, refer
to Correct wheels and
tires89
Wheelbase, refer to
Dimensions111,112
Wheels and tires84
Width, refer to
Dimensions111,112
Wind deflector70
Window defrosting, refer to
Defrosting windows
– automatic climate control66
– heating and ventilation63
Windows24
– convenience operation20
– opening/closing25
– pinch protection system25
– power supply interruption25
