fuel pressure BMW Z4 M ROADSTER&COUPE 2007 Owners Manual

Cockpit
10
Instrument cluster
For descriptions of equipment listed here
without a page reference, please refer to
the Owner's Manual for the BMW Z4 under the
respective term. <
1 Speedometer
2 Indicator lamps for turn signals
3 Indicator and warning lamps 10
4 Tachometer 17
with indicator and warning lamps 10
5 Engine oil thermometer 17
6 Fuel gauge 17
7 Button for
>Displaying the clock
> Service interval display
8 Button for
>Resetting trip odometer
> Setting the clock
9 Display for
>Trip odometer/Odometer
> Clock
> Service interval
> ComputerIndicator and warning lamps
Technology that monitors itself
Indicator and warning lamps that are identified
by
+ are tested for proper functioning whenever
the ignition key is turned. They each light up
once for different periods of time.
If a malfunction occurs in one of the monitored
systems, the corresponding lamp does not go
out after the engine has started, or it lights up
again while the vehicle is in motion. More infor-
mation can be found on the specified pages or
in the Owner's Manual for the BMW Z4 under
the respective terms.
Turn signal indicators
Battery charge current
+
Headlamp flasher/High beams
Engine oil pressure/
Engine oil level
+28

Under the hood
28
Under the hood
Important parts in the engine compartment
1Washer fluid reservoir for headlamp and
windshield washer system
2 Filler neck for engine oil, refer to Adding
engine oil
3 Jump-starting connection 4
Reservoir for brake fluid
5 Coolant expansion tank
6 Chassis ground, negative terminal
7 Dipstick for engine oil, refer to Checking the
oil level
Engine oil
Like fuel consumption, engine oil consumption
depends on your driving style and the vehicle's
operating conditions.
Warning lamp
Engine oil pressure
The warning lamp lights up in red:
The engine oil pressure is too low.
Stop the vehicle immediately and
switch off the engine. Check the engine oil level
and top up if necessary. If the oil level is correct,
please contact your nearest BMW center or a
workshop that works according to BMW repair procedures with correspondingly trained per-
sonnel.
Do not continue driving, otherwise the
engine could sustain serious damage
from inadequate lubrication. <
Engine oil level
The warning lamp lights up in yellow
while you are driving. A signal also
sounds.
The oil level is at the absolute minimum; check
engine oil level using dipstick 7 and refill as
soon as possible. Do not drive more than
30 miles/50 km before refilling.

Reference
At a glance
Controls
Driving tips
Mobility
43
Engine compartment28
Engine data 38
Engine oil 28
– adding 29
– additives 29
– alternative oil grades 30
– approved engine oils 29
– dipstick 29
– indicator/warning lamp 10
– oil grades, refer also to
Approved engine oils 29
Engine oil level 28
– checking 29
– indicator/warning lamp 10
Engine oil pressure 28
– indicator/warning lamp 10
Engine oil sensor
– indicator/warning lamp 10
Engine oil temperature, refer
to Engine oil
thermometer 17
Engine oil thermometer 17
Engine output, refer to Engine data 38
Engine speed, refer to Engine
data 38
ESP Electronic Stability Program, refer to Dynamic
Stability Control DSC 18
F
Fasten safety belts
– warning lamp11
Filling sealant into wheel 33
Flat tire
– Flat Tire Monitor 18
– M Mobility System 31
– Tire Pressure Monitor 18
Flat tire, refer to Repairing a
flat tire 31
Flat Tire Monitor FTM 18
– indicator/warning
lamp 11,18
– snow chains 27
FTM, refer to Flat Tire
Monitor 18 Fuel
– capacity, refer to
Capacities 41
– display 17
– quality 26
Fuel, refer to Fuel specifications 26
Fuel display, refer to Fuel gauge 17
Fuel reserve indicator, refer to
Fuel gauge 17
Fuel tank capacity, refer to Capacities 41
G
Gasoline, refer to Fuel
specifications 26
Gross weight, refer to
Weights 41
Ground clearance 22
H
Hazard warning flashers 12
Headlamp flasher
– indicator lamp 10
Headlamp washer reservoir
– volume, refer to
Capacities 41
Height, refer to
Dimensions 39,40
High beams
– indicator lamp 10
Hood 28
Horn 8
I
Indicator/warning lamp
– brakes 11
– Flat Tire Monitor 18
– Tire Pressure Monitor 19
Indicator and warning lamps, overview 10
Inflation pressure monitoring,
refer to
– Flat Tire Monitor 18
– Tire Pressure Monitor 18Inspection, refer to Service
interval display 17
Instrument cluster 10
Instrument panel, refer to
Cockpit 8
Instrument panel, refer to Instrument cluster 10
Interval
– display, service 17
K
Knock control26
L
Length, refer to
Dimensions 39,40
Longlife oils 30
– alternative oils 30
– approved engine oils 29
Low-beam headlamps
– indicator lamp 11
Low beams
– indicator lamp, defective bulb 11
Luggage compartment capacity, refer to Cargo bay
capacity 41
Luggage compartment lid
– indicator lamp 11
M
M Mobility System 31
– compressor 32
– viscosity 32
Maintenance
– refer to Service interval display 17
Manufacturer 5
Measurements, refer to Dimensions 39,40
Mobility System 31
O
Octane numbers, refer to Fuel
specifications 26

Everything from A to Z
44
Oil, refer to Engine oil
28
Oil consumption 28
Oil grades 29
Oil level 28
– checking 29
– indicator lamp 10
Oil pressure 28
– indicator/warning lamp 10
Oil sensor
– indicator lamp 10
Oil service 17
Onboard tool kit 31
P
Parking brake
– indicator lamp11
Parking lamps
– indicator lamp 11
Parts and accessories, refer to Your individual vehicle 5
Permissible axle load, refer to
Weights 41
Permissible gross weight, refer to Weights 41
Power output, refer to Engine data 38
Power steering, hydraulic 19
Pressure, tires
– restoring with M Mobility System 31
Pressure monitoring, tires, refer to
– Flat Tire Monitor 18
– Tire Pressure Monitor TPM 18
R
Rear lamps
– indicator lamp, defective
bulb 11
Refueling 26
S
Safety belts
– warning lamp 11 Safety systems, refer to
– Dynamic Stability Control
DSC 18
Sealant bottle, refer to
M Mobility System 31
Service interval display 17
Signal horn, refer to Horn 8
Special oils, refer to Approved engine oils 29
Specified engine oils 29
Speedometer 10
Sport program
– Dynamic Driving Control 16
Stability control, refer to
– Driving stability control systems 18
– Dynamic Stability Control DSC 18
Status at time of printing 5
Steering wheel 8
– buttons on steering wheel 9
Switches, refer to Cockpit 8
Symbols 4
T
Table of contents 3
Tachometer 17
Tailgate
– indicator lamp 11
Tank capacity, refer to Fuel
tank capacity 41
Tank indicator, refer to Fuel gauge 17
Technical data 38
Temperature
– engine 17
Tire, flat 18,19
– Flat Tire Monitor 18
– indicator/warning lamp 11
– M Mobility System 31
– Tire Pressure Monitor 18
Tire inflation pressure 27
– loss 18
Tire pressure monitoring, refer to
– Flat Tire Monitor 18
– Tire Pressure Monitor 18Tire Pressure Monitor
TPM 18
– indicator/warning lamp 19
Tires
– flat 18,19
– M Mobility System 31
– pressure monitoring, refer to
Flat Tire Monitor 18
Tool kit, refer to Onboard tool kit 31
Torque, refer to Engine data 38
TPM Tire Pressure
Monitor 18
Track width, refer to Dimensions 39,40
Traction control, refer to Dynamic Stability Control
DSC 18
Turning circle, refer to Dimensions 39,40
Turn signal indicators
– indicator lamp 10
V
Vehicle
– break-in period 22
– dimensions, refer to Dimensions 39,40
– weight 41
Volume
– fuel tank, refer to Capacities 41
W
Warning and indicator
lamps 10
Washer fluid reservoir, refer to
– Capacities 41
Weights 41
Wheelbase, refer to
Dimensions 39,40
Wheels and tires 27
Width, refer to
Dimensions 39,40

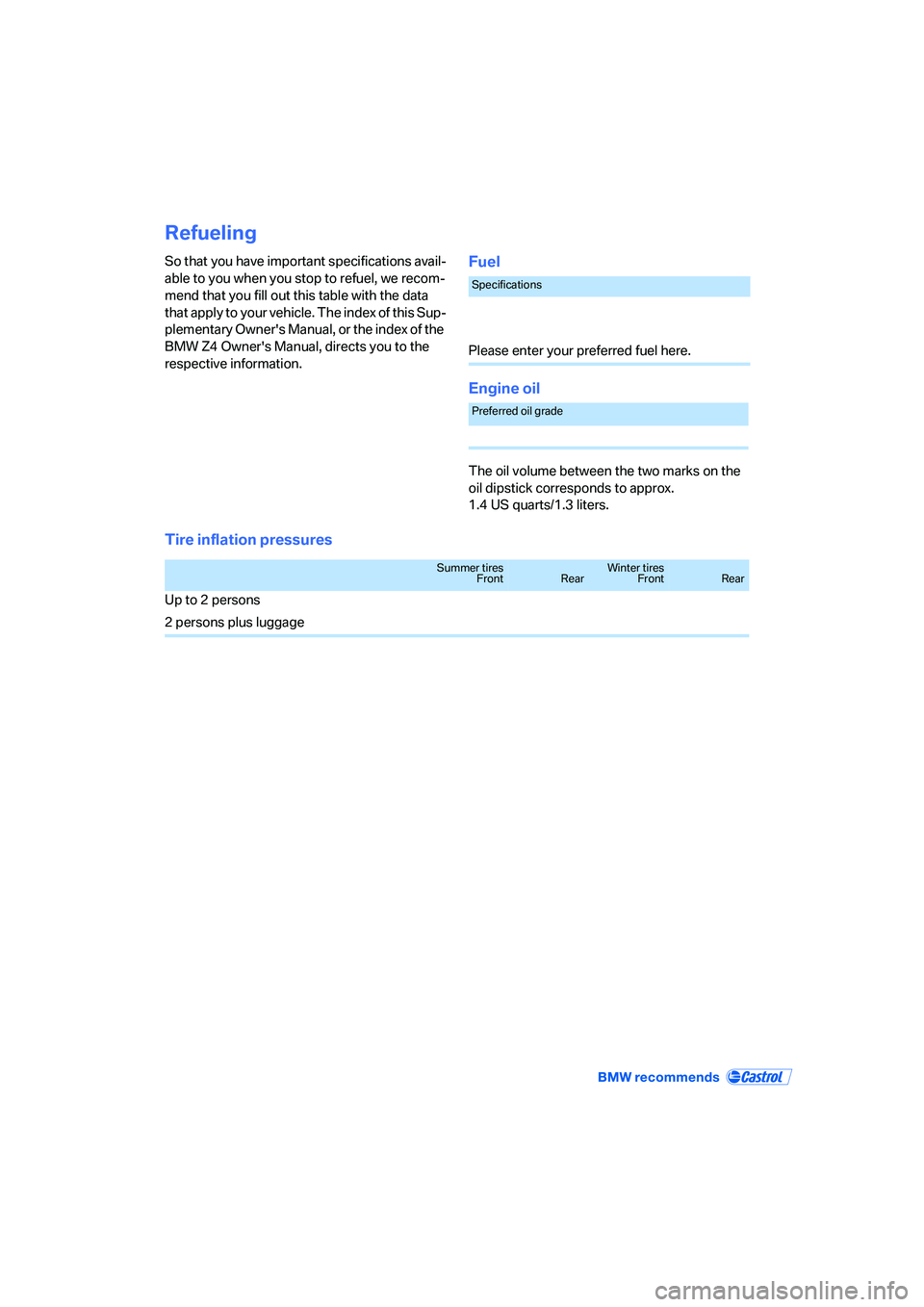

Refueling
So that you have important specifications avail-
able to you when you stop to refuel, we recom-
mend that you fill out this table with the data
that apply to your vehicle. The index of this Sup-
plementary Owner's Manual, or the index of the
BMW Z4 Owner's Manual, directs you to the
respective information.Fuel
Engine oil
The oil volume between the two marks on the
oil dipstick corresponds to approx.
1.4 US quarts/1.3 liters.
Tire inflation pressures
Specifications
Please enter your preferred fuel here.
Preferred oil grade
Summer tiresFrontRearWinter tiresFrontRear
Up to 2 persons
2 persons plus luggage
