Special operating instructions
22

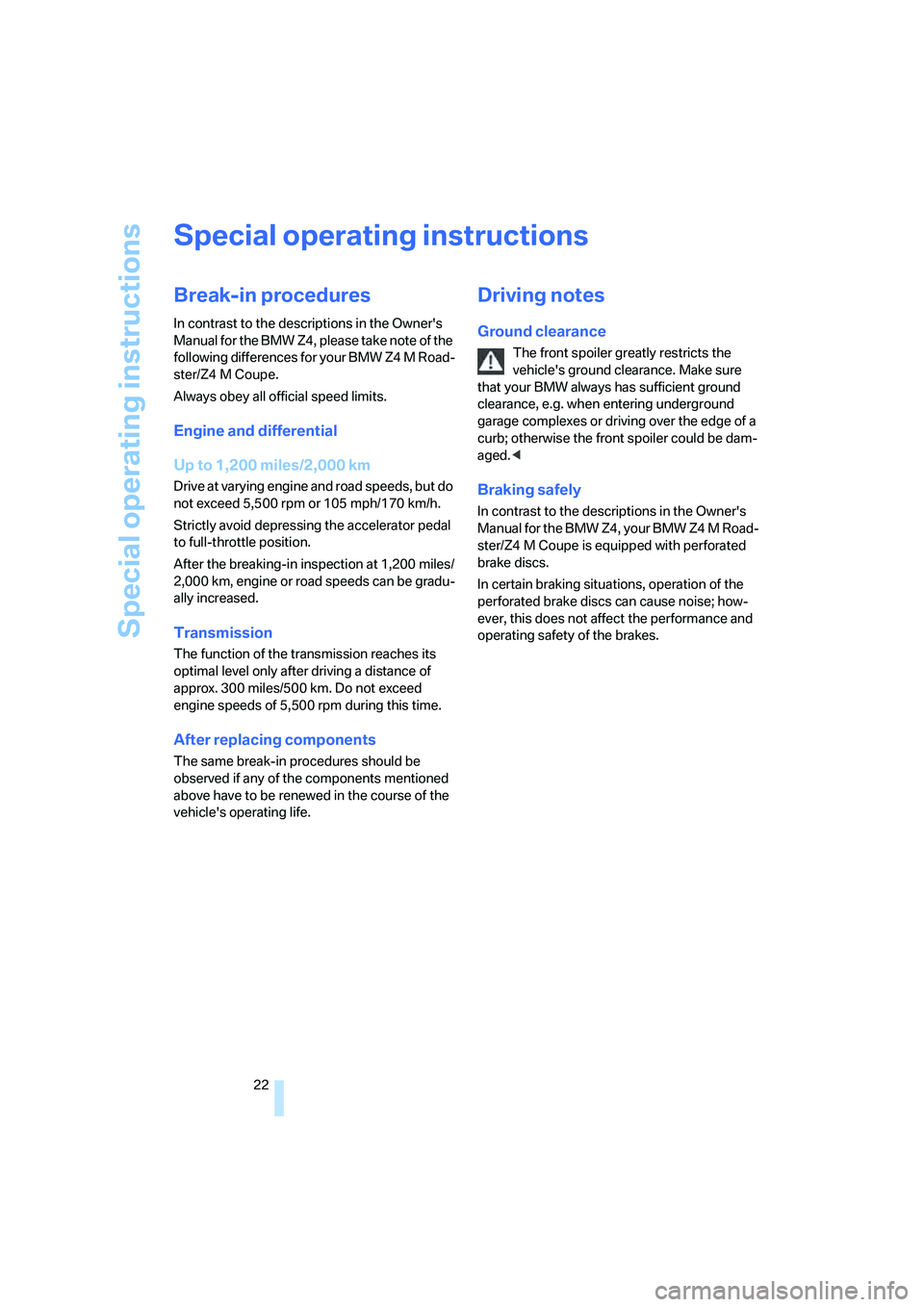

Special operating instructions
Break-in procedures
In contrast to the descriptions in the Owner's
Manual for the BMW Z4, please take note of the
following differences for your BMW Z4 M Road-
ster/Z4 M Coupe.
Always obey all official speed limits.
Engine and differential
Up to 1,200 miles/2,000 km
Drive at varying engine and road speeds, but do
not exceed 5,500 rpm or 105 mph/170 km/h.
Strictly avoid depressing the accelerator pedal
to full-throttle position.
After the breaking-in inspection at 1,200 miles/
2,000 km, engine or road speeds can be gradu-
ally increased.
Transmission
The function of the tr ansmission reaches its
optimal level only after driving a distance of
approx. 300 miles/500 km. Do not exceed
engine speeds of 5,500 rpm during this time.
After replacing components
The same break-in procedures should be
observed if any of the components mentioned
above have to be renewed in the course of the
vehicle's operating life.
Driving notes
Ground clearance
The front spoiler greatly restricts the
vehicle's ground clearance. Make sure
that your BMW always has sufficient ground
clearance, e.g. when entering underground
garage complexes or driving over the edge of a
curb; otherwise the front spoiler could be dam-
aged. <
Braking safely
In contrast to the descriptions in the Owner's
Manual for the BMW Z4, your BMW Z4 M Road-
ster/Z4 M Coupe is equipped with perforated
brake discs.
In certain braking situations, operation of the
perforated brake discs can cause noise; how-
ever, this does not affect the performance and
operating safety of the brakes.

Reference
At a glance
Controls
Driving tips
Mobility
29
The warning lamp lights up in yellow
after the engine is switched off. A signal
also sounds.
Check the engine oil level using dipstick 7 at the
earliest opportunity, e. g. when you stop to
refuel, and refill engine oil.
The warning lamp lights up in yellow
within 30 seconds after the engine is
started:
The oil level sensor is defective. Have the sys-
tem checked as soon as possible.
Checking the oil level
1. Position the vehicle on a level surface.
2. Switch off the engine when it is at operating
temperature.
3. After approx. 1 minute, pull dipstick 7 out
and wipe it off with a clean, lint-free cloth,
paper towel or something similar.
4. Carefully push the dipstick fully into its tube,
then pull it out again.
The oil level must be between the two
marks on the dipstick.
The oil volume between the two marks on the
dipstick corresponds to approx. 1.4 US quarts/
1.3 liters.
Adding engine oil
Do not add oil until the oil level has dropped
almost to the lower mark on the dipstick, refer to
Checking the oil level. Do not add oil beyond the upper mark on
the dipstick, otherwise excessive oil can
lead to engine damage. <
Before you check the engine oil level after add-
ing oil, restart the engine and let it run to obtain
a correct reading. Then proceed as described
under Checking the oil level. BMW engines are designed to operate
without oil additives; the use of additives
could even lead to damage in some cases. The
same applies to the transmission and differen-
tial as well as to the power steering. <
Continuous exposure to used oil has
caused cancer in laboratory tests. For this
reason, thoroughly wash any areas of skin that
have come into contact with oil using soap and
water.
Keep oils, greases, etc. out of the reach of chil-
dren and comply with the warnings on the con-
tainers. Otherwise, health hazards may result. <
Comply with the applicable environmen-
tal regulations concerning the disposal of
used oil. <
Recommendation: have the oil changed at your
BMW center.
Approved engine oils
The quality of the engine oil is extremely impor-
tant for the function and life of an engine. BMW
only approves specific oils after confirming their
suitability for use in its vehicles with extensive
testing.

Reference
At a glance
Controls
Driving tips
Mobility
41

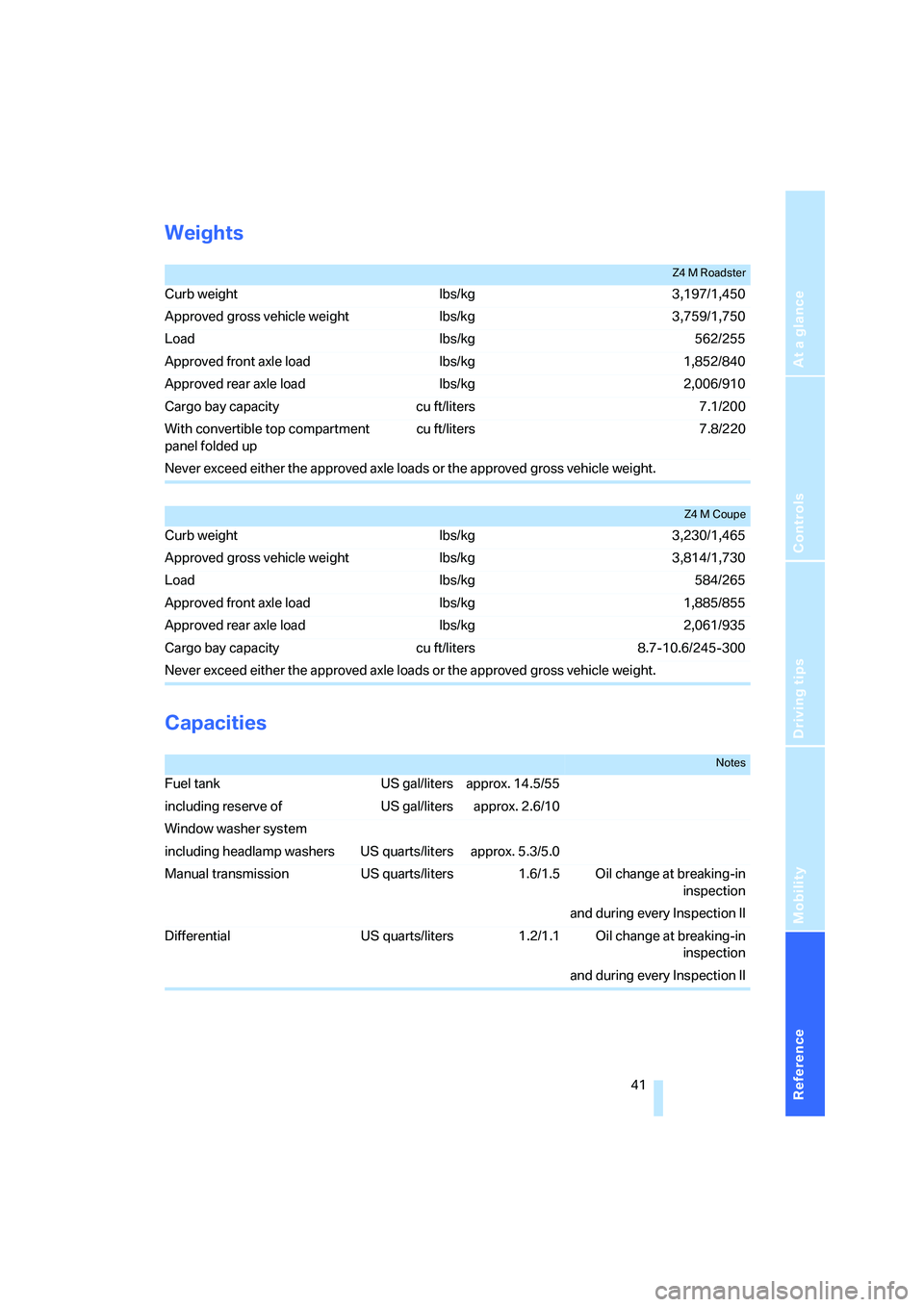

Weights
Capacities
Z4 M Roadster
Curb weight lbs/kg 3,197/1,450
Approved gross vehicle weight lbs/kg 3,759/1,750
Load lbs/kg 562/255
Approved front axle load lbs/kg 1,852/840
Approved rear axle load lbs/kg 2,006/910
Cargo bay capacity cu ft/liters 7.1/200
With convertible top compartment
panel folded upcu ft/liters 7.8/220
Never exceed either the approved axle loads or the approved gross vehicle weight.
Z4 M Coupe
Curb weight lbs/kg 3,230/1,465
Approved gross vehicle weight lbs/kg 3,814/1,730
Load lbs/kg 584/265
Approved front axle load lbs/kg 1,885/855
Approved rear axle load lbs/kg 2,061/935
Cargo bay capacity cu ft/liters 8.7-10.6/245-300
Never exceed either the approved axle loads or the approved gross vehicle weight.
Notes
Fuel tank US gal/liters approx. 14.5/55
including reserve of US gal/liters approx. 2.6/10
Window washer system
including headlamp washers US quarts/liters approx. 5.3/5.0
Manual transmission US quarts/liters 1.6/1.5 Oil change at breaking-in inspection
and during every Inspection II
Differential US quarts/liters 1.2/1.1 Oil change at breaking-in inspection
and during every Inspection II

Everything from A to Z
42
Everything from A to Z
Index
A
ABS Antilock Brake System
– indicator lamp11
Accessories, refer to
– Your individual vehicle 5
Airbags
– indicator lamp 11
– warning lamp 11
AKI, refer to Fuel specifications 26
Antilock Brake System ABS
– indicator lamp 11
Approved engine oils 29
Assistance systems, refer to
Dynamic Stability Control
DSC 18
Axle loads, refer to Weights 41
B
Battery
– indicator lamp10
Brake fluid
– indicator/warning lamp 11
Brake hydraulic system
– indicator/warning lamp 11
Brake lamps
– indicator lamp, defective bulb 11
Brake pad wear indicator
– warning lamp 11
Brakes
– indicator/warning lamps 11
– operating noise 22
Brake system
– indicator/warning lamps 11
Breaking-in inspection 17
Breaking in the differential,
refer to Engine and
differential 22
Breaking in the transmission,
refer to Transmission 22Break-in procedures
22
Buttons on the steering wheel 9
C
Capacity
– cargo bay, refer to
Weights 41
Cargo bay
– battery cover 31
– capacity 41
Center console, refer to Around the center
console 12
Charge indicator lamp 10
Check gas cap, indicator lamp 11
Cockpit 8
Comfort area, refer to Around the center console 12
Compound brake discs, refer to Braking safely 22
Consumption display, refer to
Fuel gauge 17
Controls and displays 8
Coolant
– indicator lamp 11
Coolant temperature 17
Coolant temperature gauge,
refer to Coolant
temperature 17
Curb weight, refer to
Weights 41
Customized equipment, refer to Your individual vehicle 5
Cylinders, refer to Engine data 38
D
Dashboard, refer to Cockpit 8Data
38
– dimensions 39,40
– engine data 38
– technical 38
Data, technical
– capacities 41
– engine data 38
– weights 41
DBC Dynamic Brake Control
– warning lamp 11
Dimensions 39,40
Dipstick, engine oil 29
Displacement, refer to Engine data 38
Display elements, refer to
Instrument cluster 10
Displays, refer to Instrument cluster 10
Displays and controls 8
Drive-off assistance, refer to Dynamic Stability Control
DSC 18
Driving notes 22
Driving stability control
systems 18
DSC Dynamic Stability Control 18
– indicator lamp 11,18
Dynamic Brake Control DBC
– indicator lamp 11
Dynamic Driving Control 16
Dynamic Stability Control DSC 18
– indicator lamp 11,18
E
Engine
– breaking in 22
– data 38
– electronics 11
– indicator lamp 11
– speed 17
