BMW Z4M COUPE 2006 E86 Owner's Guide

Reference
At a glance
Controls
Driving tips
Mobility
19

Driving tips
This section provides you with information
useful in dealing with specific driving and
operating conditions.
Driving tips

Special operating instructions
22

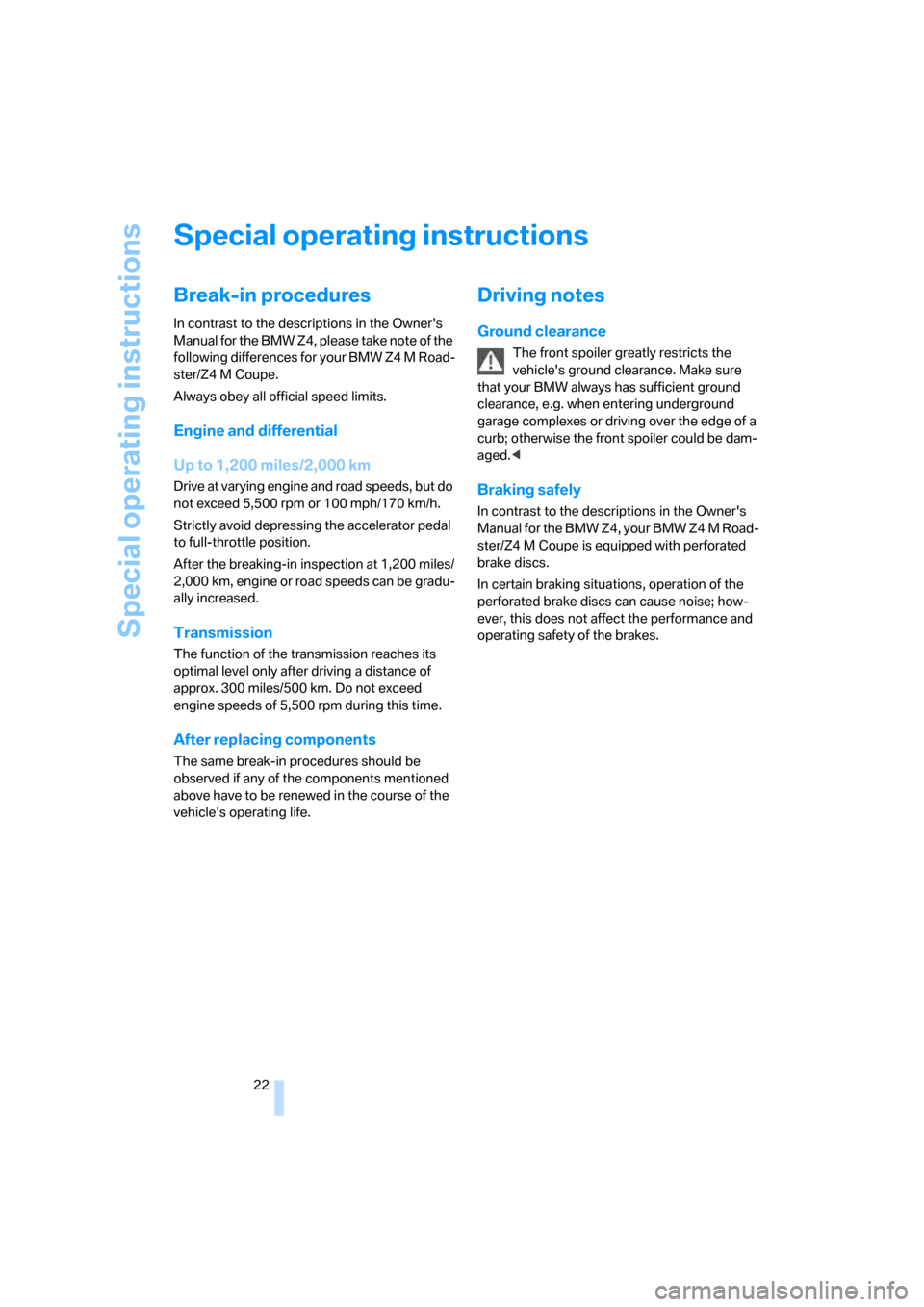

Special operating instructions
Break-in procedures
In contrast to the descriptions in the Owner's
Manual for the BMW Z4, please take note of the
following differences for your BMW Z4 M Road-
ster/Z4 M Coupe.
Always obey all official speed limits.
Engine and differential
Up to 1,200 miles/2,000 km
Drive at varying engine and road speeds, but do
not exceed 5,500 rpm or 100 mph/170 km/h.
Strictly avoid depressing the accelerator pedal
to full-throttle position.
After the breaking-in inspection at 1,200 miles/
2,000 km, engine or road speeds can be gradu-
ally increased.
Transmission
The function of the transmission reaches its
optimal level only after driving a distance of
approx. 300 miles/500 km. Do not exceed
engine speeds of 5,500 rpm during this time.
After replacing components
The same break-in procedures should be
observed if any of the components mentioned
above have to be renewed in the course of the
vehicle's operating life.
Driving notes
Ground clearance
The front spoiler greatly restricts the
vehicle's ground clearance. Make sure
that your BMW always has sufficient ground
clearance, e.g. when entering underground
garage complexes or driving over the edge of a
curb; otherwise the front spoiler could be dam-
aged.<
Braking safely
In contrast to the descriptions in the Owner's
Manual for the BMW Z4, your BMW Z4 M Road-
ster/Z4 M Coupe is equipped with perforated
brake discs.
In certain braking situations, operation of the
perforated brake discs can cause noise; how-
ever, this does not affect the performance and
operating safety of the brakes.

Reference
At a glance
Controls
Driving tips
Mobility
23

Mobility
This section helps you maintain your car's
mobility by supplying important information
on vital topics including fuels and lubricants,
wheels and tires, service, maintenance and
breakdown assistance.
Mobility

Refueling
26

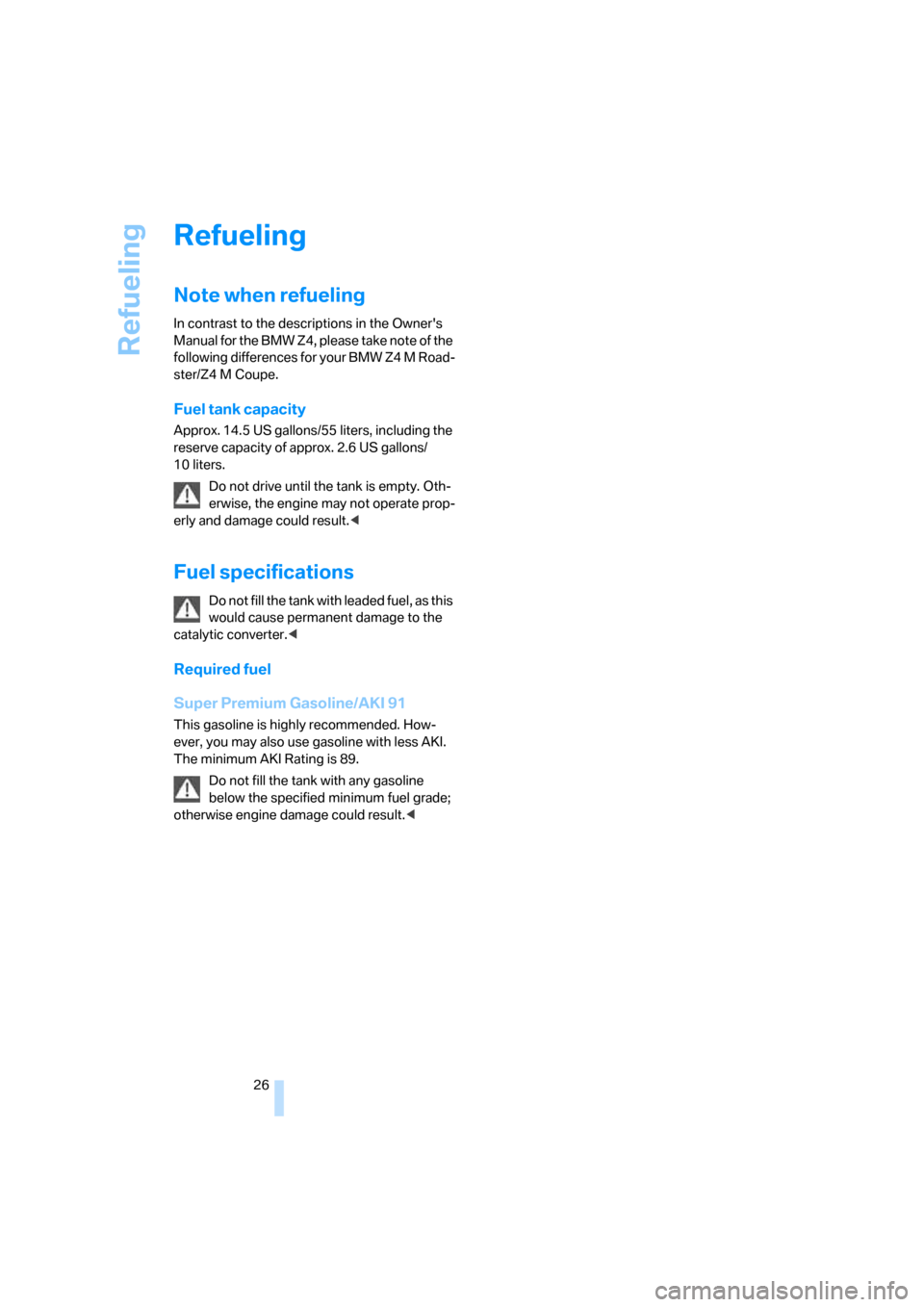

Refueling
Note when refueling
In contrast to the descriptions in the Owner's
Manual for the BMW Z4, please take note of the
following differences for your BMW Z4 M Road-
ster/Z4 M Coupe.
Fuel tank capacity
Approx. 14.5 US gallons/55 liters, including the
reserve capacity of approx. 2.6 US gallons/
10 liters.
Do not drive until the tank is empty. Oth-
erwise, the engine may not operate prop-
erly and damage could result.<
Fuel specifications
Do not fill the tank with leaded fuel, as this
would cause permanent damage to the
catalytic converter.<
Required fuel
Super Premium Gasoline/AKI 91
This gasoline is highly recommended. How-
ever, you may also use gasoline with less AKI.
The minimum AKI Rating is 89.
Do not fill the tank with any gasoline
below the specified minimum fuel grade;
otherwise engine damage could result.<

Reference
At a glance
Controls
Driving tips
Mobility
27

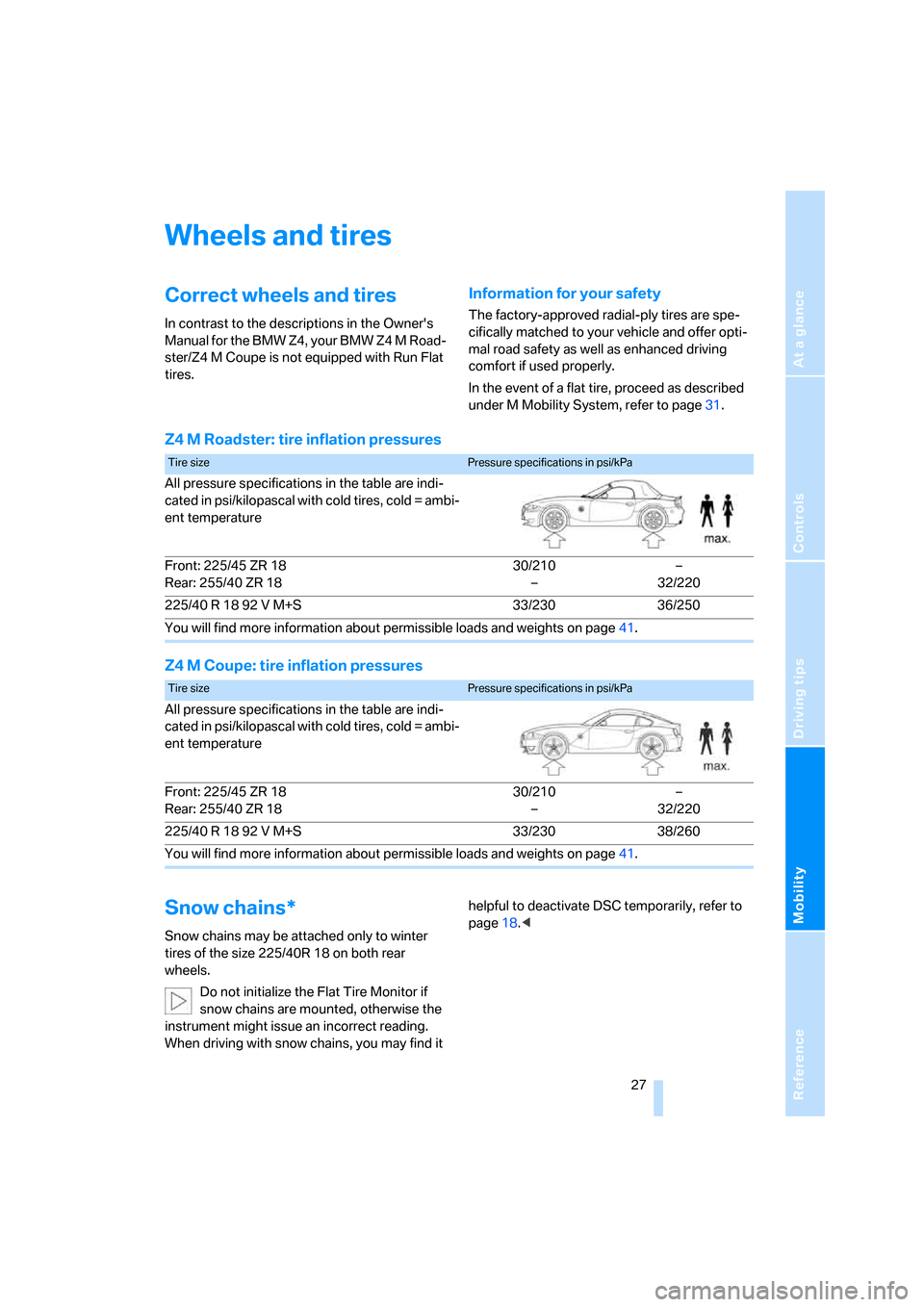

Wheels and tires
Correct wheels and tires
In contrast to the descriptions in the Owner's
Manual for the BMW Z4, your BMW Z4 M Road-
ster/Z4 M Coupe is not equipped with Run Flat
tires.
Information for your safety
The factory-approved radial-ply tires are spe-
cifically matched to your vehicle and offer opti-
mal road safety as well as enhanced driving
comfort if used properly.
In the event of a flat tire, proceed as described
under M Mobility System, refer to page31.
Z4 M Roadster: tire inflation pressures
Z4 M Coupe: tire inflation pressures
Snow chains*
Snow chains may be attached only to winter
tires of the size 225/40R 18 on both rear
wheels.
Do not initialize the Flat Tire Monitor if
snow chains are mounted, otherwise the
instrument might issue an incorrect reading.
When driving with snow chains, you may find it helpful to deactivate DSC temporarily, refer to
page18.<
Tire sizePressure specifications in psi/kPa
All pressure specifications in the table are indi-
cated in psi/kilopascal with cold tires, cold = ambi-
ent temperature
Front: 225/45 ZR 18
Rear: 255/40 ZR 1830/210
––
32/220
225/40 R 18 92 V M+S 33/230 36/250
You will find more information about permissible loads and weights on page41.
Tire sizePressure specifications in psi/kPa
All pressure specifications in the table are indi-
cated in psi/kilopascal with cold tires, cold = ambi-
ent temperature
Front: 225/45 ZR 18
Rear: 255/40 ZR 1830/210
––
32/220
225/40 R 18 92 V M+S 33/230 38/260
You will find more information about permissible loads and weights on page41.

Under the hood
28

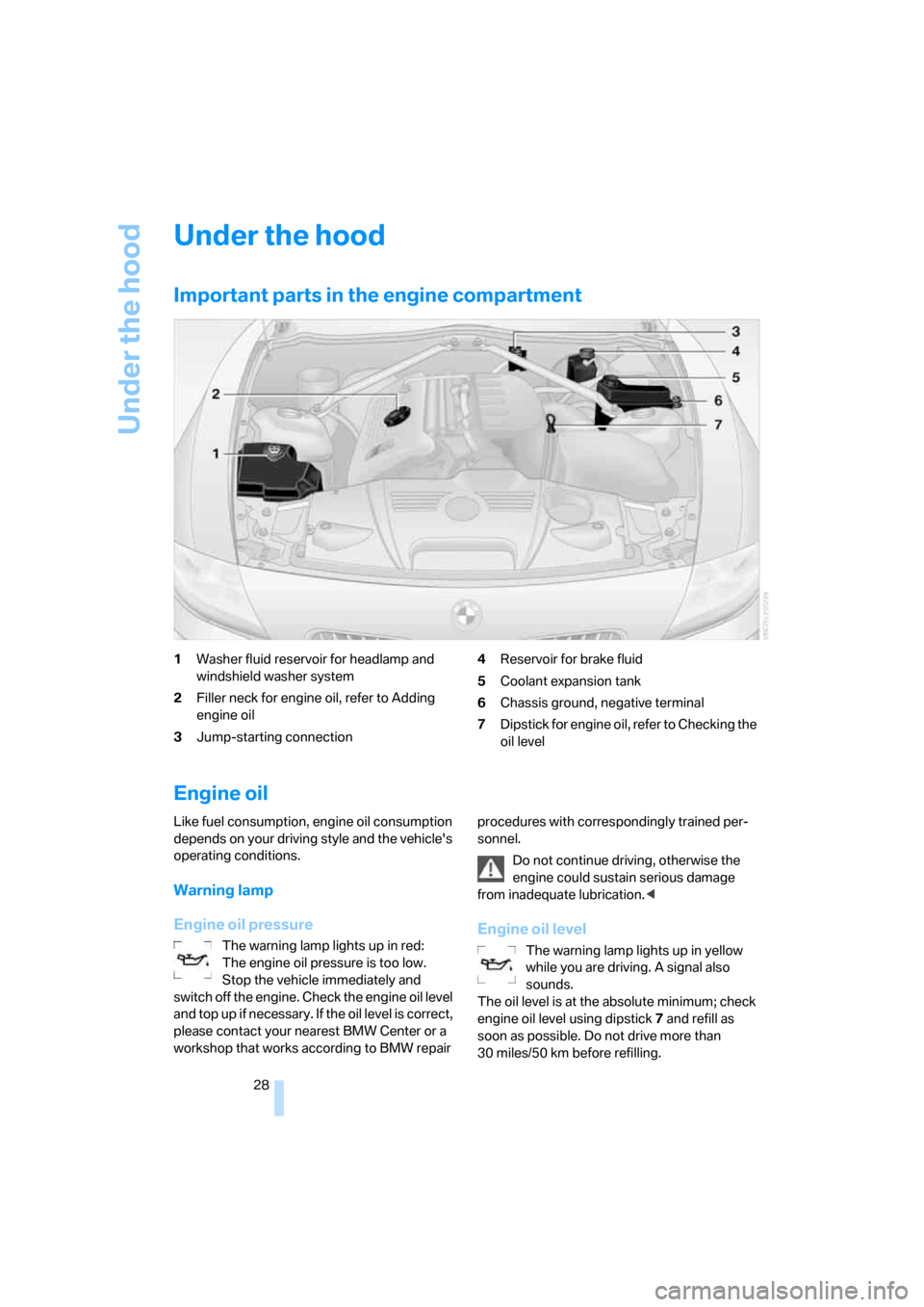

Under the hood
Important parts in the engine compartment
1Washer fluid reservoir for headlamp and
windshield washer system
2Filler neck for engine oil, refer to Adding
engine oil
3Jump-starting connection4Reservoir for brake fluid
5Coolant expansion tank
6Chassis ground, negative terminal
7Dipstick for engine oil, refer to Checking the
oil level
Engine oil
Like fuel consumption, engine oil consumption
depends on your driving style and the vehicle's
operating conditions.
Warning lamp
Engine oil pressure
The warning lamp lights up in red:
The engine oil pressure is too low.
Stop the vehicle immediately and
switch off the engine. Check the engine oil level
and top up if necessary. If the oil level is correct,
please contact your nearest BMW Center or a
workshop that works according to BMW repair procedures with correspondingly trained per-
sonnel.
Do not continue driving, otherwise the
engine could sustain serious damage
from inadequate lubrication.<
Engine oil level
The warning lamp lights up in yellow
while you are driving. A signal also
sounds.
The oil level is at the absolute minimum; check
engine oil level using dipstick 7 and refill as
soon as possible. Do not drive more than
30 miles/50 km before refilling.
