BMW Z4M COUPE 2006 E86 Service and warranty information

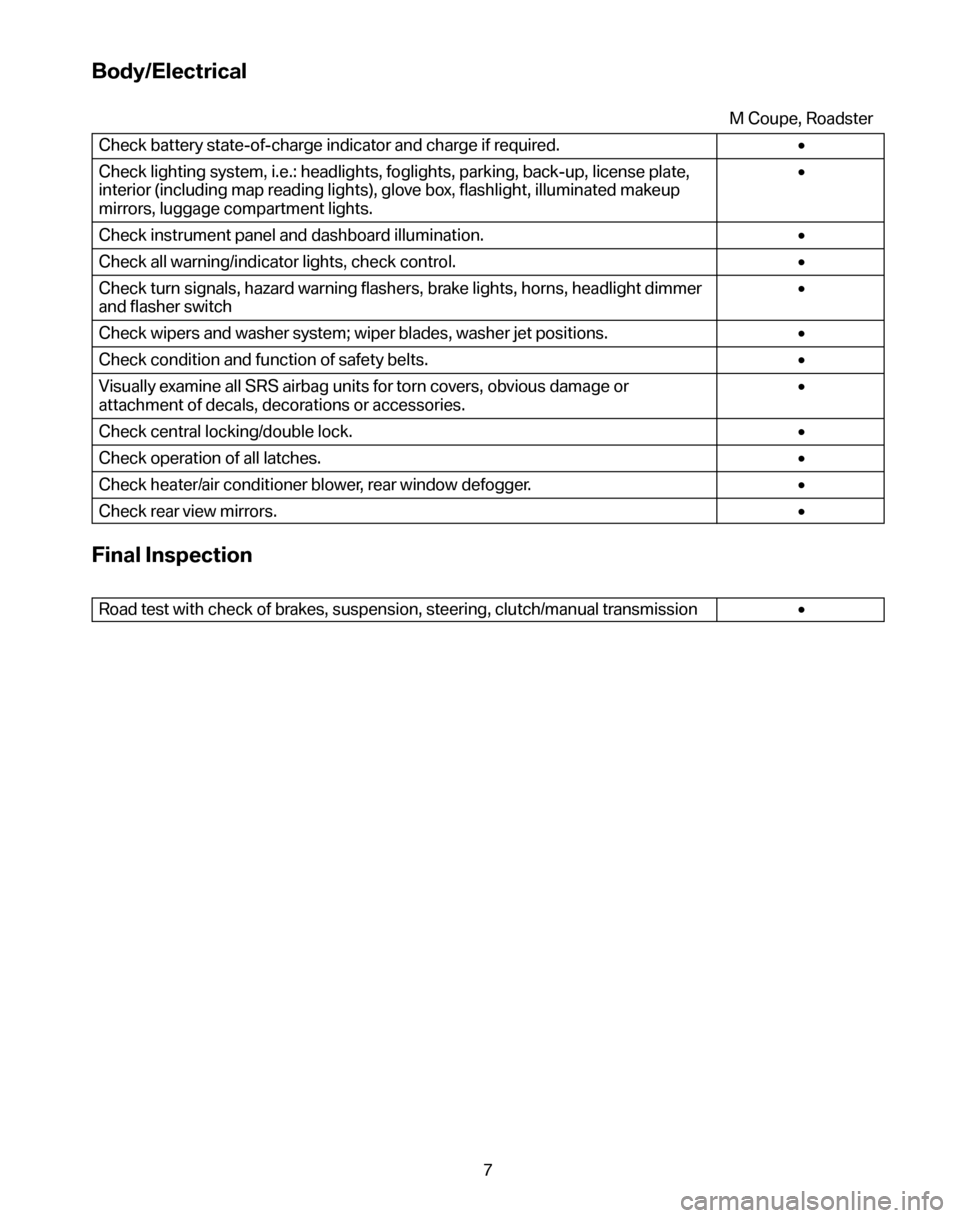

Body/Electrical
M Coupe, Roadster
Check battery state-of-charge indicator and charge if required. •
Check lighting system, i.e.: headlights, foglights, parking, back-up, license plate,
interior (including map reading lights), glove box, flashlight, illuminated makeup
mirrors, luggage compartment lights. •
Check instrument panel and dashboard illumination. •
Check all warning/indicator lights, check control. •
Check turn signals, hazard warning flashers, brake lights, horns, headlight dimmer
and flasher switch •
Check wipers and washer system; wiper blades, washer jet positions. •
Check condition and function of safety belts. •
Visually examine all SRS airbag units for torn covers, obvious damage or
attachment of decals, decorations or accessories. •
Check central locking/double lock. •
Check operation of all latches. •
Check heater/air conditioner blower, rear window defogger. •
Check rear view mirrors. •
Final Inspection
Road test with check of brakes, suspension, steering, clutch/manual transmission•
7

Inspection II
Includes all items listed under Inspection I, and the following checks and maintenance operations.
Engine Compartment M Coupe, Roadster
Replace air cleaner element. (Note: Reduce replacement interval in dusty
operating conditions). •
Replace spark plugs. •
Undercarriage
Replace transmission fluid. •
Replace differential oil. •
Brake Fluid Service
Replace brake fluid every 2 years (time interval begins from the vehicle’s
production date). •
Oxygen Sensor Service
Replace Oxygen Sensor every 100,000 miles.
•
M-Mobility System Service
Replace sealant cartridge every 4 years. •
8

Speedometer
(Odometer Memory)
changed:
MileageDate
Record of Spark Plug Replacement
(Every Inspection 2) Record of Oxygen
Sensor replacement
(Every 100,000 Miles) Record of
brake/clutch fluid changes
(Every 2 years) Record of
M—Mobility
System Sealant
cartridge changes (Every 4 years)
Date Mileage Date Mileage Date Mileage
Speedometer
(Odometer Memory)
changed:
Mileage
Date
9

10

11

12

Emission Control Maintenance Schedule BMW M Coupe and Roadster
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Abbreviations:
I - Inspect
R - Replace part(s) and/or fluid listed
Basic Engine
Engine oil ........................
Engine oil filter .....................
Fuel System
Air filter ..........................
Ignition System
Spark plugs .......................
Emission Control Components
Oxygen sensor .....................
BMW M Coupe,
Roadster
Oil Service
Inspection I
Oil Service
Inspection II
R
R R
R R
R R
R
R
R
Replace at intervals of 100,000 miles
Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and must therefore
be replaced to maximize vehicle fuel economy and minimize exhaust pollution.
The mileage interval varies according to individual driving conditions and is determined by the service
interval indicator.
13

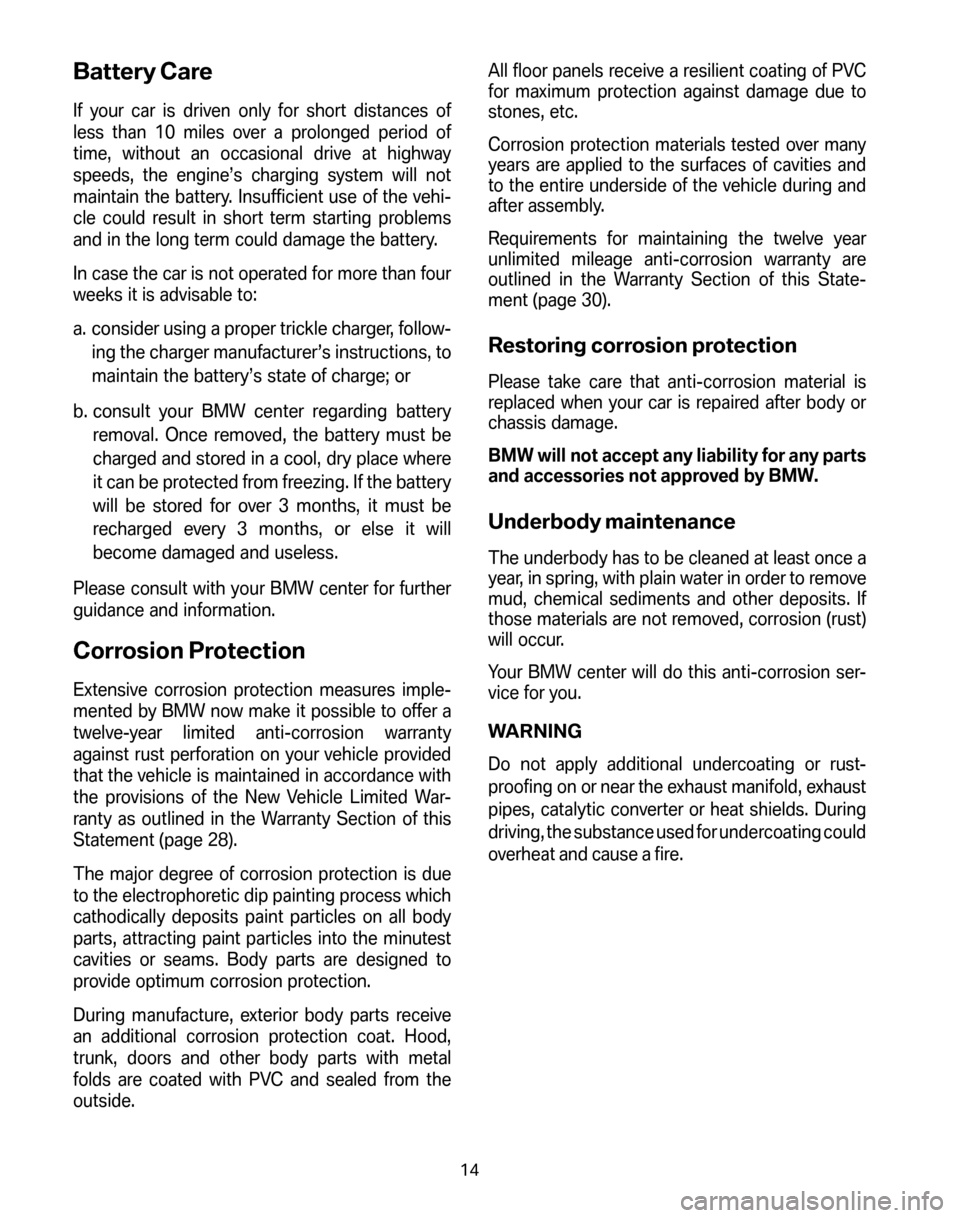

Battery Care
If your car is driven only for short distances of
less than 10 miles over a prolonged period of
time, without an occasional drive at highway
speeds, the engine’s charging system will not
maintain the battery. Insufficient use of the vehi-
cle could result in short term starting problems
and in the long term could damage the battery.
In case the car is not operated for more than four
weeks it is advisable to:
a. consider using a proper trickle charger, follow- ing the charger manufacturer’s instructions, to
maintain the battery’s state of charge; or
b. consult your BMW center regarding battery removal. Once removed, the battery must be
charged and stored in a cool, dry place where
it can be protected from freezing. If the battery
will be stored for over 3 months, it must be
recharged every 3 months, or else it will
become damaged and useless.
Please consult with your BMW center for further
guidance and information.
Corrosion Protection
Extensive corrosion protection measures imple-
mented by BMW now make it possible to offer a
twelve-year limited anti-corrosion warranty
against rust perforation on your vehicle provided
that the vehicle is maintained in accordance with
the provisions of the New Vehicle Limited War-
ranty as outlined in the Warranty Section of this
Statement (page 28).
The major degree of corrosion protection is due
to the electrophoretic dip painting process which
cathodically deposits paint particles on all body
parts, attracting paint particles into the minutest
cavities or seams. Body parts are designed to
provide optimum corrosion protection.
During manufacture, exterior body parts receive
an additional corrosion protection coat. Hood,
trunk, doors and other body parts with metal
folds are coated with PVC and sealed from the
outside. All floor panels receive a resilient coating of PVC
for maximum protection against damage due to
stones, etc.
Corrosion protection materials tested over many
years are applied to the surfaces of cavities and
to the entire underside of the vehicle during and
after assembly.
Requirements for maintaining the twelve year
unlimited mileage anti-corrosion warranty are
outlined in the Warranty Section of this State-
ment (page 30).
Restoring corrosion protection
Please take care that anti-corrosion material is
replaced when your car is repaired after body or
chassis damage.
BMW will not accept any liability for any parts
and accessories not approved by BMW.
Underbody maintenance
The underbody has to be cleaned at least once a
year, in spring, with plain water in order to remove
mud, chemical sediments and other deposits. If
those materials are not removed, corrosion (rust)
will occur.
Your BMW center will do this anti-corrosion ser-
vice for you.
WARNING
Do not apply additional undercoating or rust-
proofing on or near the exhaust manifold, exhaust
pipes, catalytic converter or heat shields. During
driving, the substance used for undercoating could
overheat and cause a fire.
