service schedule BMW Z4M ROADSTER 2006 E85 Service and warranty information

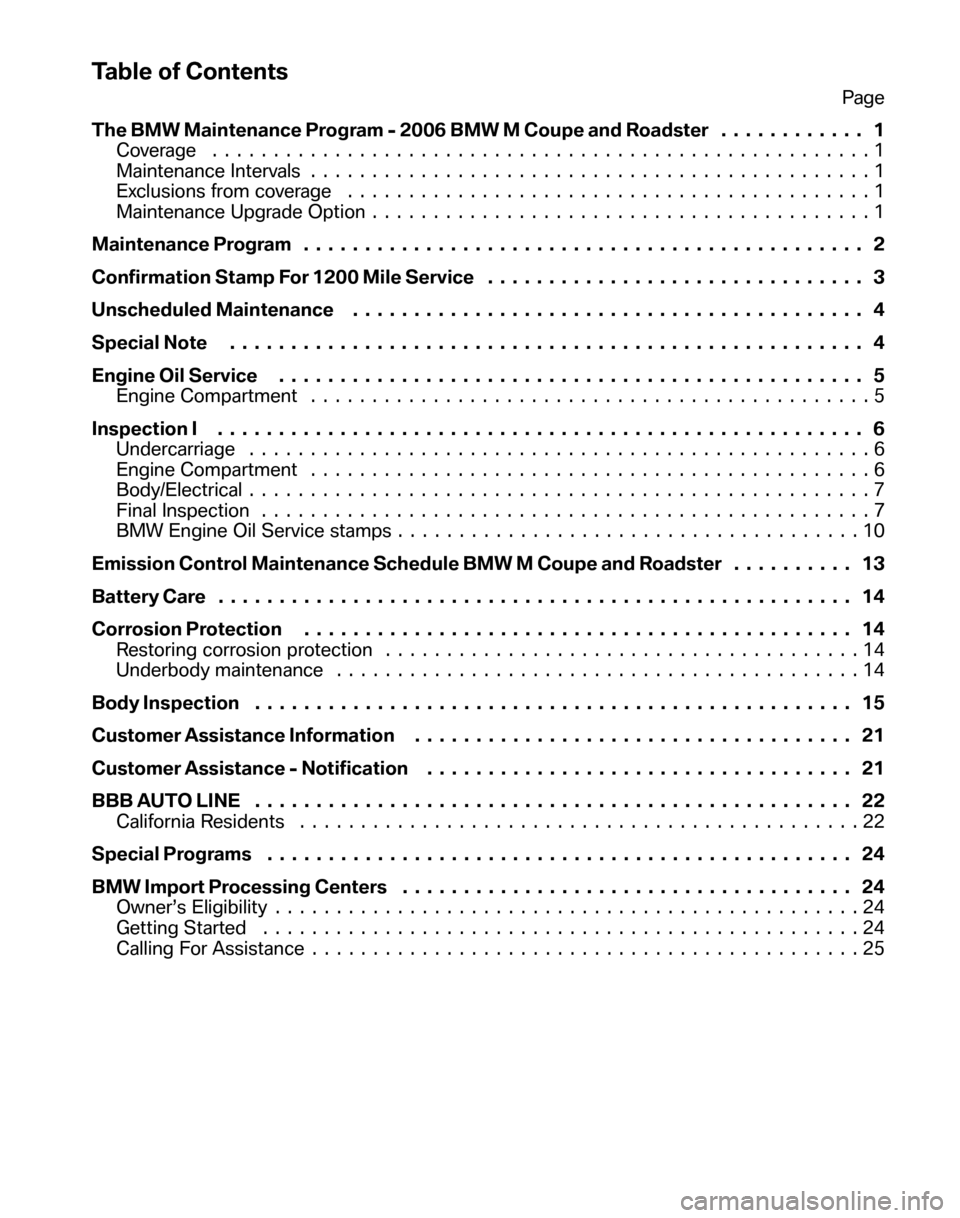

Table of Contents
Page
The BMW Maintenance Program - 2006 BMW M Coupe and Roadster . . .......... 1
Coverage ......................................................1
Maintenance Intervals ..............................................1
Exclusions from coverage ...........................................1
Maintenance Upgrade Option .........................................1
Maintenance Program . . ............................................ 2
Confirmation Stamp For 1200 Mile Service . . ............................. 3
Unscheduled Maintenance .......................................... 4
Special Note .................................................... 4
Engine Oil Service ................................................ 5
Engine Compartment ..............................................5
Inspection I . .................................................... 6
Undercarriage ...................................................6
Engine Compartment ..............................................6
Body/Electrical ...................................................7
Final Inspection ..................................................7
BMW Engine Oil Service stamps ......................................10
Emission Control Maintenance Schedule BMW M Coupe and Roadster . . . . . ..... 13
BatteryCare .................................................... 14
Corrosion Protection ............................................. 14
Restoring corrosion protection .......................................14
Underbody maintenance ...........................................14
Body Inspection ................................................. 15
Customer Assistance Information .................................... 21
Customer Assistance - Notification ................................... 21
BBB AUTO LINE ................................................. 22
California Residents ..............................................22
Special Programs ................................................ 24
BMW Import Processing Centers ..................................... 24
Owner’s Eligibility ................................................24
Getting Started .................................................24
Calling For Assistance .............................................25

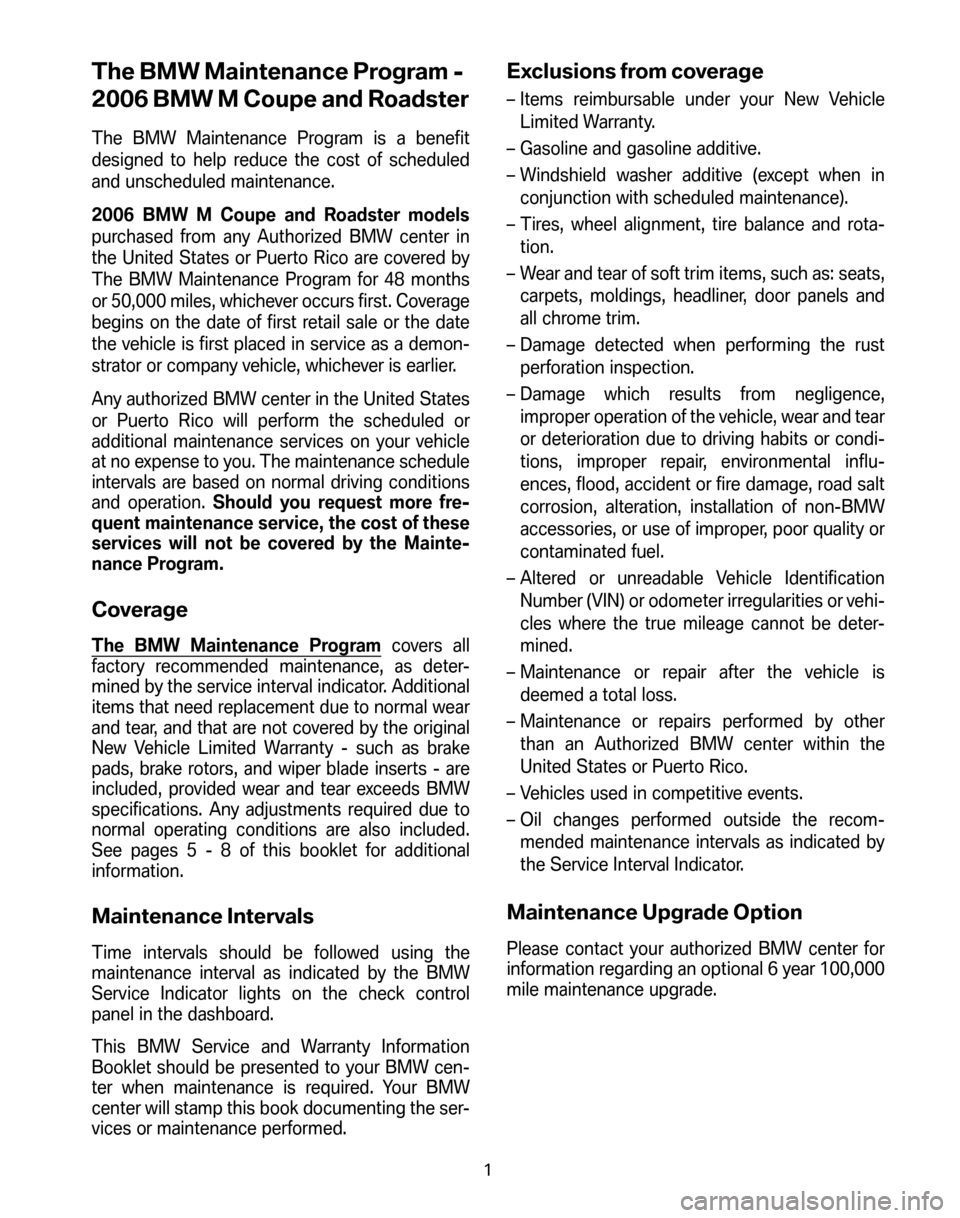

The BMW Maintenance Program -
2006 BMW M Coupe and Roadster
The BMW Maintenance Program is a benefit
designed to help reduce the cost of scheduled
and unscheduled maintenance.
2006 BMW M Coupe and Roadster models
purchased from any Authorized BMW center in
the United States or Puerto Rico are covered by
The BMW Maintenance Program for 48 months
or 50,000 miles, whichever occurs first. Coverage
begins on the date of first retail sale or the date
the vehicle is first placed in service as a demon-
strator or company vehicle, whichever is earlier.
Any authorized BMW center in the United States
or Puerto Rico will perform the scheduled or
additional maintenance services on your vehicle
at no expense to you. The maintenance schedule
intervals are based on normal driving conditions
and operation. Should you request more fre-
quent maintenance service, the cost of these
services will not be covered by the Mainte-
nance Program.
Coverage
The BMW Maintenance Program covers allfactory recommended maintenance, as deter-
mined by the service interval indicator. Additional
items that need replacement due to normal wear
and tear, and that are not covered by the original
New Vehicle Limited Warranty - such as brake
pads, brake rotors, and wiper blade inserts - are
included, provided wear and tear exceeds BMW
specifications. Any adjustments required due to
normal operating conditions are also included.
See page s5-8of this booklet for additional
information.
Maintenance Intervals
Time intervals should be followed using the
maintenance interval as indicated by the BMW
Service Indicator lights on the check control
panel in the dashboard.
This BMW Service and Warranty Information
Booklet should be presented to your BMW cen-
ter when maintenance is required. Your BMW
center will stamp this book documenting the ser-
vices or maintenance performed.
Exclusions from coverage
– Items reimbursable under your New Vehicle
Limited Warranty.
– Gasoline and gasoline additive.
– Windshield washer additive (except when in conjunction with scheduled maintenance).
– Tires, wheel alignment, tire balance and rota- tion.
– Wear and tear of soft trim items, such as: seats, carpets, moldings, headliner, door panels and
all chrome trim.
– Damage detected when performing the rust perforation inspection.
– Damage which results from negligence, improper operation of the vehicle, wear and tear
or deterioration due to driving habits or condi-
tions, improper repair, environmental influ-
ences, flood, accident or fire damage, road salt
corrosion, alteration, installation of non-BMW
accessories, or use of improper, poor quality or
contaminated fuel.
– Altered or unreadable Vehicle Identification Number (VIN) or odometer irregularities or vehi-
cles where the true mileage cannot be deter-
mined.
– Maintenance or repair after the vehicle is deemed a total loss.
– Maintenance or repairs performed by other than an Authorized BMW center within the
United States or Puerto Rico.
– Vehicles used in competitive events.
– Oil changes performed outside the recom- mended maintenance intervals as indicated by
the Service Interval Indicator.
Maintenance Upgrade Option
Please contact your authorized BMW center for
information regarding an optional 6 year 100,000
mile maintenance upgrade.
1

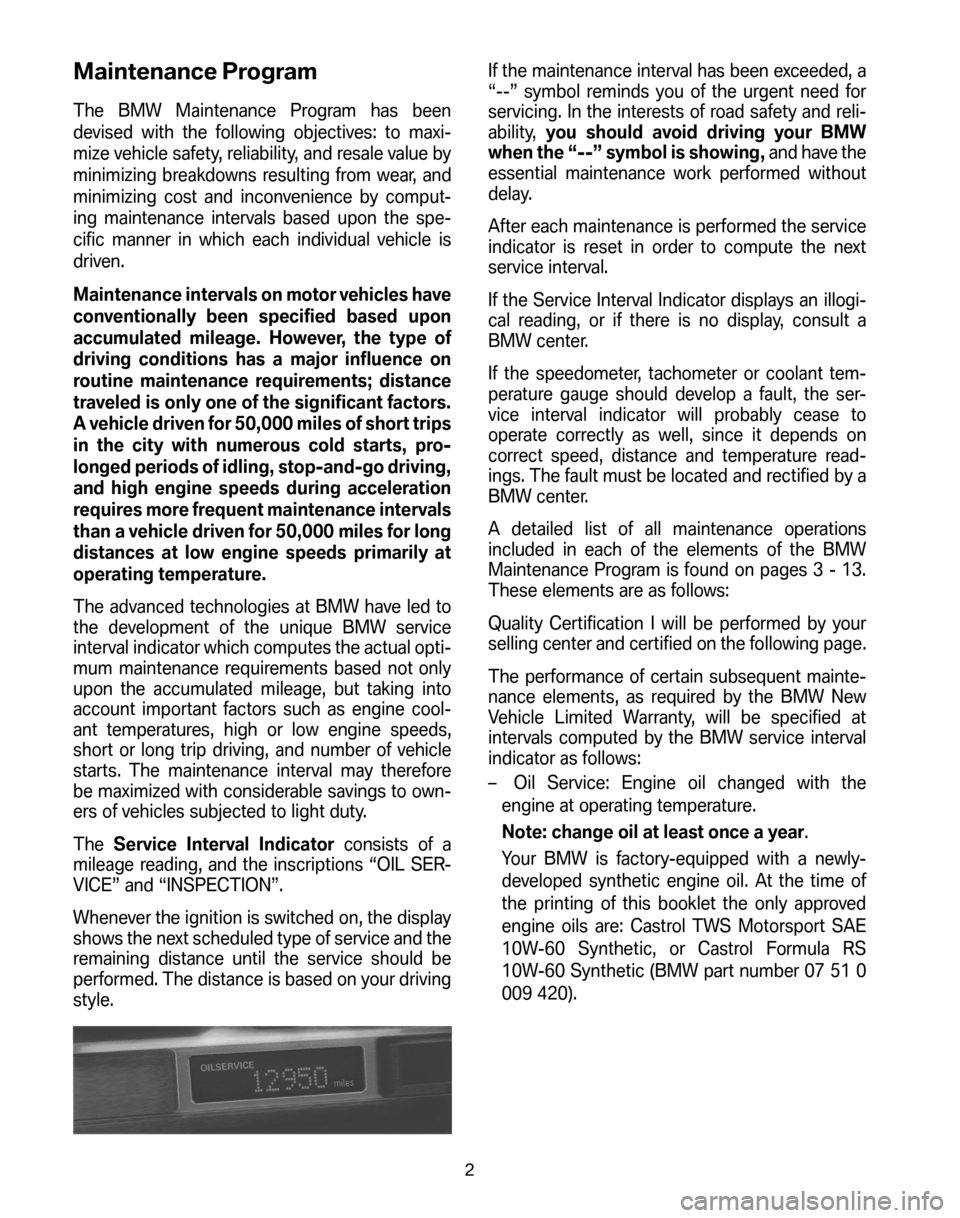

Maintenance Program
The BMW Maintenance Program has been
devised with the following objectives: to maxi-
mize vehicle safety, reliability, and resale value by
minimizing breakdowns resulting from wear, and
minimizing cost and inconvenience by comput-
ing maintenance intervals based upon the spe-
cific manner in which each individual vehicle is
driven.
Maintenance intervals on motor vehicles have
conventionally been specified based upon
accumulated mileage. However, the type of
driving conditions has a major influence on
routine maintenance requirements; distance
traveled is only one of the significant factors.
A vehicle driven for 50,000 miles of short trips
in the city with numerous cold starts, pro-
longed periods of idling, stop-and-go driving,
and high engine speeds during acceleration
requires more frequent maintenance intervals
than a vehicle driven for 50,000 miles for long
distances at low engine speeds primarily at
operating temperature.
The advanced technologies at BMW have led to
the development of the unique BMW service
interval indicator which computes the actual opti-
mum maintenance requirements based not only
upon the accumulated mileage, but taking into
account important factors such as engine cool-
ant temperatures, high or low engine speeds,
short or long trip driving, and number of vehicle
starts. The maintenance interval may therefore
be maximized with considerable savings to own-
ers of vehicles subjected to light duty.
The Service Interval Indicator consists of a
mileage reading, and the inscriptions “OIL SER-
VICE” and “INSPECTION”.
Whenever the ignition is switched on, the display
shows the next scheduled type of service and the
remaining distance until the service should be
performed. The distance is based on your driving
style. If the maintenance interval has been exceeded, a
“--” symbol reminds you of the urgent need for
servicing. In the interests of road safety and reli-
ability,
you should avoid driving your BMW
when the “--” symbol is showing, and have the
essential maintenance work performed without
delay.
After each maintenance is performed the service
indicator is reset in order to compute the next
service interval.
If the Service Interval Indicator displays an illogi-
cal reading, or if there is no display, consult a
BMW center.
If the speedometer, tachometer or coolant tem-
perature gauge should develop a fault, the ser-
vice interval indicator will probably cease to
operate correctly as well, since it depends on
correct speed, distance and temperature read-
ings. The fault must be located and rectified by a
BMW center.
A detailed list of all maintenance operations
included in each of the elements of the BMW
Maintenance Program is found on page s3-13.
These elements are as follows:
Quality Certification I will be performed by your
selling center and certified on the following page.
The performance of certain subsequent mainte-
nance elements, as required by the BMW New
Vehicle Limited Warranty, will be specified at
intervals computed by the BMW service interval
indicator as follows:
– Oil Service: Engine oil changed with the
engine at operating temperature.
Note: change oil at least once a year .
Your BMW is factory-equipped with a newly-
developed synthetic engine oil. At the time of
the printing of this booklet the only approved
engine oils are: Castrol TWS Motorsport SAE
10W-60 Synthetic, or Castrol Formula RS
10W-60 Synthetic (BMW part number 07 51 0
009 420).
2

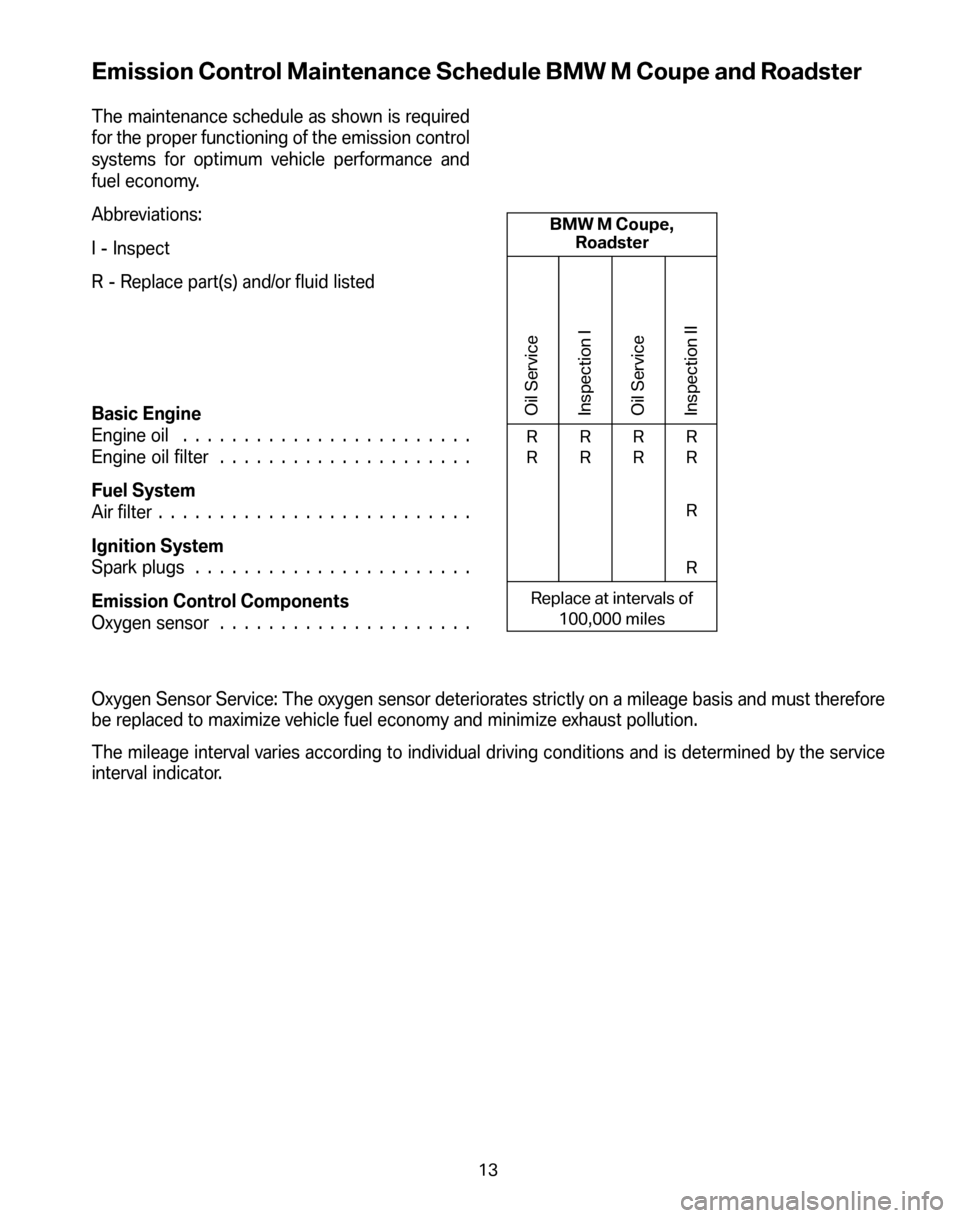

Emission Control Maintenance Schedule BMW M Coupe and Roadster
The maintenance schedule as shown is required
for the proper functioning of the emission control
systems for optimum vehicle performance and
fuel economy.
Abbreviations:
I - Inspect
R - Replace part(s) and/or fluid listed
Basic Engine
Engine oil ........................
Engine oil filter .....................
Fuel System
Air filter ..........................
Ignition System
Spark plugs .......................
Emission Control Components
Oxygen sensor .....................
BMW M Coupe,
Roadster
Oil Service
Inspection I
Oil Service
Inspection II
R
R R
R R
R R
R
R
R
Replace at intervals of 100,000 miles
Oxygen Sensor Service: The oxygen sensor deteriorates strictly on a mileage basis and must therefore
be replaced to maximize vehicle fuel economy and minimize exhaust pollution.
The mileage interval varies according to individual driving conditions and is determined by the service
interval indicator.
13

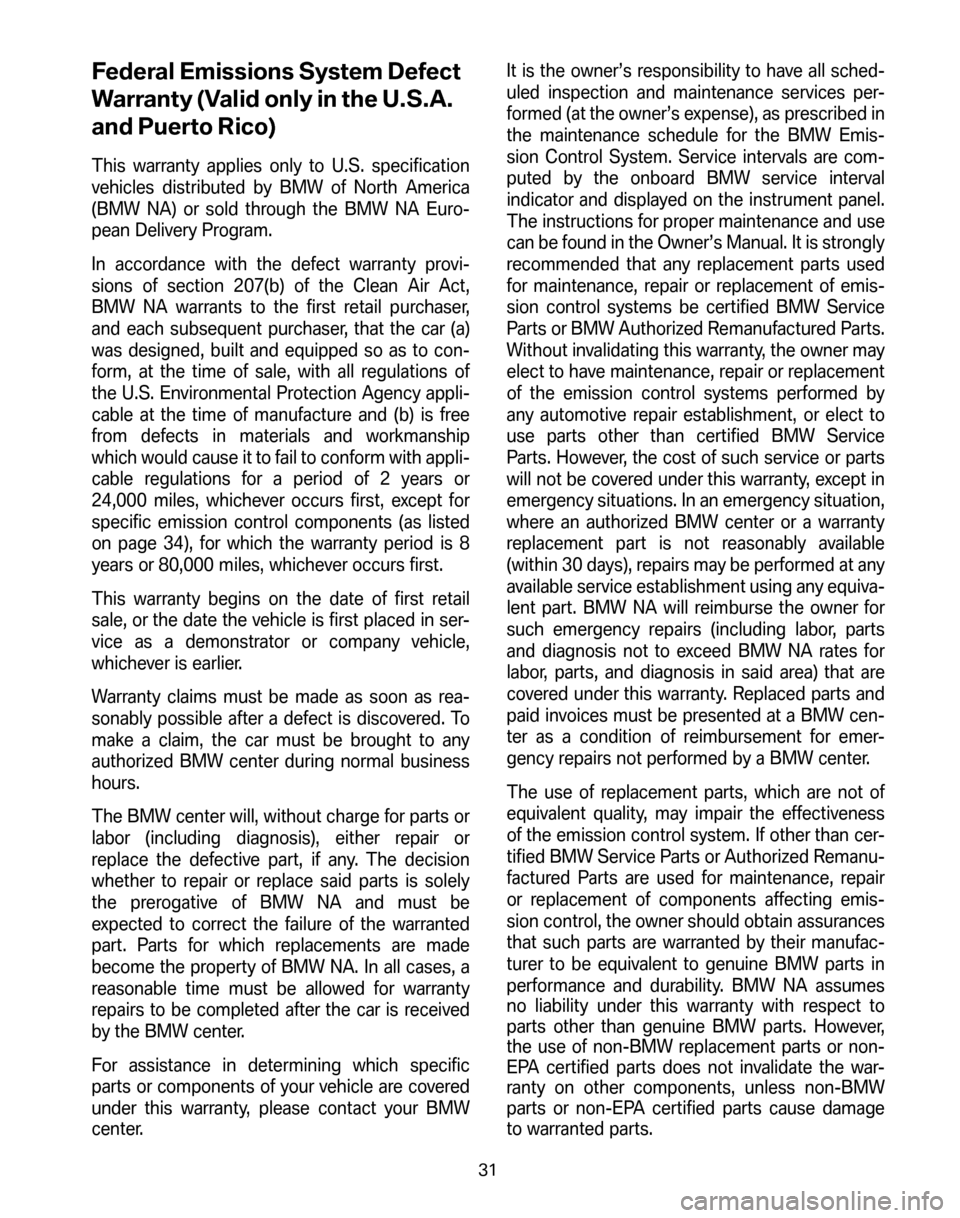

Federal Emissions System Defect
Warranty (Valid only in the U.S.A.
and Puerto Rico)
This warranty applies only to U.S. specification
vehicles distributed by BMW of North America
(BMW NA) or sold through the BMW NA Euro-
pean Delivery Program.
In accordance with the defect warranty provi-
sions of section 207(b) of the Clean Air Act,
BMW NA warrants to the first retail purchaser,
and each subsequent purchaser, that the car (a)
was designed, built and equipped so as to con-
form, at the time of sale, with all regulations of
the U.S. Environmental Protection Agency appli-
cable at the time of manufacture and (b) is free
from defects in materials and workmanship
which would cause it to fail to conform with appli-
cable regulations for a period of 2 years or
24,000 miles, whichever occurs first, except for
specific emission control components (as listed
on page 34), for which the warranty period is 8
years or 80,000 miles, whichever occurs first.
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in ser-
vice as a demonstrator or company vehicle,
whichever is earlier.
Warranty claims must be made as soon as rea-
sonably possible after a defect is discovered. To
make a claim, the car must be brought to any
authorized BMW center during normal business
hours.
The BMW center will, without charge for parts or
labor (including diagnosis), either repair or
replace the defective part, if any. The decision
whether to repair or replace said parts is solely
the prerogative of BMW NA and must be
expected to correct the failure of the warranted
part. Parts for which replacements are made
become the property of BMW NA. In all cases, a
reasonable time must be allowed for warranty
repairs to be completed after the car is received
by the BMW center.
For assistance in determining which specific
parts or components of your vehicle are covered
under this warranty, please contact your BMW
center. It is the owner’s responsibility to have all sched-
uled inspection and maintenance services per-
formed (at the owner’s expense), as prescribed in
the maintenance schedule for the BMW Emis-
sion Control System. Service intervals are com-
puted by the onboard BMW service interval
indicator and displayed on the instrument panel.
The instructions for proper maintenance and use
can be found in the Owner’s Manual. It is strongly
recommended that any replacement parts used
for maintenance, repair or replacement of emis-
sion control systems be certified BMW Service
Parts or BMW Authorized Remanufactured Parts.
Without invalidating this warranty, the owner may
elect to have maintenance, repair or replacement
of the emission control systems performed by
any automotive repair establishment, or elect to
use parts other than certified BMW Service
Parts. However, the cost of such service or parts
will not be covered under this warranty, except in
emergency situations. In an emergency situation,
where an authorized BMW center or a warranty
replacement part is not reasonably available
(within 30 days), repairs may be performed at any
available service establishment using any equiva-
lent part. BMW NA will reimburse the owner for
such emergency repairs (including labor, parts
and diagnosis not to exceed BMW NA rates for
labor, parts, and diagnosis in said area) that are
covered under this warranty. Replaced parts and
paid invoices must be presented at a BMW cen-
ter as a condition of reimbursement for emer-
gency repairs not performed by a BMW center.
The use of replacement parts, which are not of
equivalent quality, may impair the effectiveness
of the emission control system. If other than cer-
tified BMW Service Parts or Authorized Remanu-
factured Parts are used for maintenance, repair
or replacement of components affecting emis-
sion control, the owner should obtain assurances
that such parts are warranted by their manufac-
turer to be equivalent to genuine BMW parts in
performance and durability. BMW NA assumes
no liability under this warranty with respect to
parts other than genuine BMW parts. However,
the use of non-BMW replacement parts or non-
EPA certified parts does not invalidate the war-
ranty on other components, unless non-BMW
parts or non-EPA certified parts cause damage
to warranted parts.
31

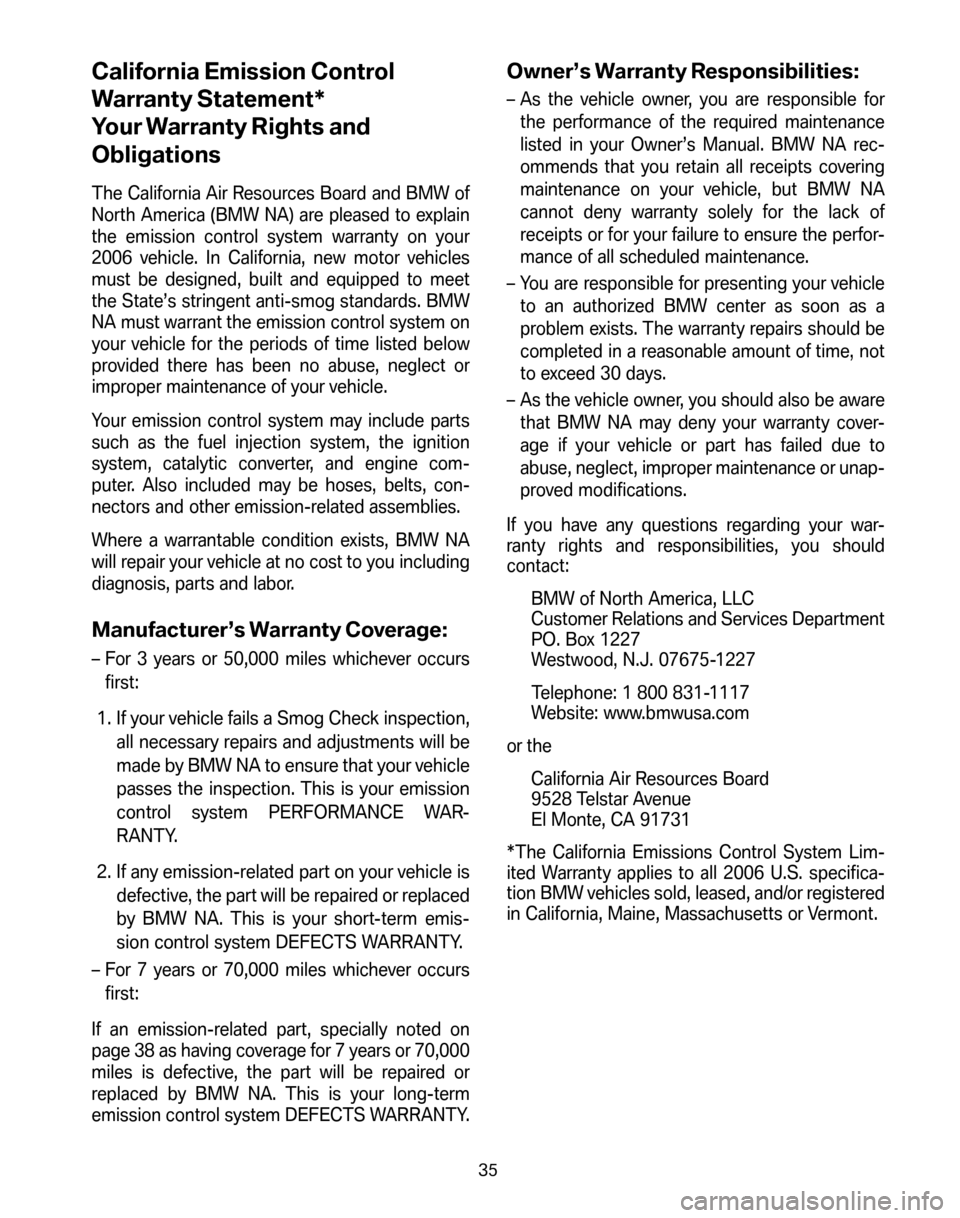

California Emission Control
Warranty Statement*
Your Warranty Rights and
Obligations
The California Air Resources Board and BMW of
North America (BMW NA) are pleased to explain
the emission control system warranty on your
2006 vehicle. In California, new motor vehicles
must be designed, built and equipped to meet
the State’s stringent anti-smog standards. BMW
NA must warrant the emission control system on
your vehicle for the periods of time listed below
provided there has been no abuse, neglect or
improper maintenance of your vehicle.
Your emission control system may include parts
such as the fuel injection system, the ignition
system, catalytic converter, and engine com-
puter. Also included may be hoses, belts, con-
nectors and other emission-related assemblies.
Where a warrantable condition exists, BMW NA
will repair your vehicle at no cost to you including
diagnosis, parts and labor.
Manufacturer’s Warranty Coverage:
– For 3 years or 50,000 miles whichever occurs first:
1. If your vehicle fails a Smog Check inspection, all necessary repairs and adjustments will be
made by BMW NA to ensure that your vehicle
passes the inspection. This is your emission
control system PERFORMANCE WAR-
RANTY.
2. If any emission-related part on your vehicle is defective, the part will be repaired or replaced
by BMW NA. This is your short-term emis-
sion control system DEFECTS WARRANTY.
– For 7 years or 70,000 miles whichever occursfirst:
If an emission-related part, specially noted on
page 38 as having coverage for 7 years or 70,000
miles is defective, the part will be repaired or
replaced by BMW NA. This is your long-term
emission control system DEFECTS WARRANTY.
Owner’s Warranty Responsibilities:
– As the vehicle owner, you are responsible for the performance of the required maintenance
listed in your Owner’s Manual. BMW NA rec-
ommends that you retain all receipts covering
maintenance on your vehicle, but BMW NA
cannot deny warranty solely for the lack of
receipts or for your failure to ensure the perfor-
mance of all scheduled maintenance.
– You are responsible for presenting your vehicle to an authorized BMW center as soon as a
problem exists. The warranty repairs should be
completed in a reasonable amount of time, not
to exceed 30 days.
– As the vehicle owner, you should also be aware that BMW NA may deny your warranty cover-
age if your vehicle or part has failed due to
abuse, neglect, improper maintenance or unap-
proved modifications.
If you have any questions regarding your war-
ranty rights and responsibilities, you should
contact: BMW of North America, LLC
Customer Relations and Services Department
PO. Box 1227
Westwood, N.J. 07675-1227
Telephone: 1 800 831-1117
Website: www.bmwusa.com
or the California Air Resources Board
9528 Telstar Avenue
El Monte, CA 91731
*The California Emissions Control System Lim-
ited Warranty applies to all 2006 U.S. specifica-
tion BMW vehicles sold, leased, and/or registered
in California, Maine, Massachusetts or Vermont.
35

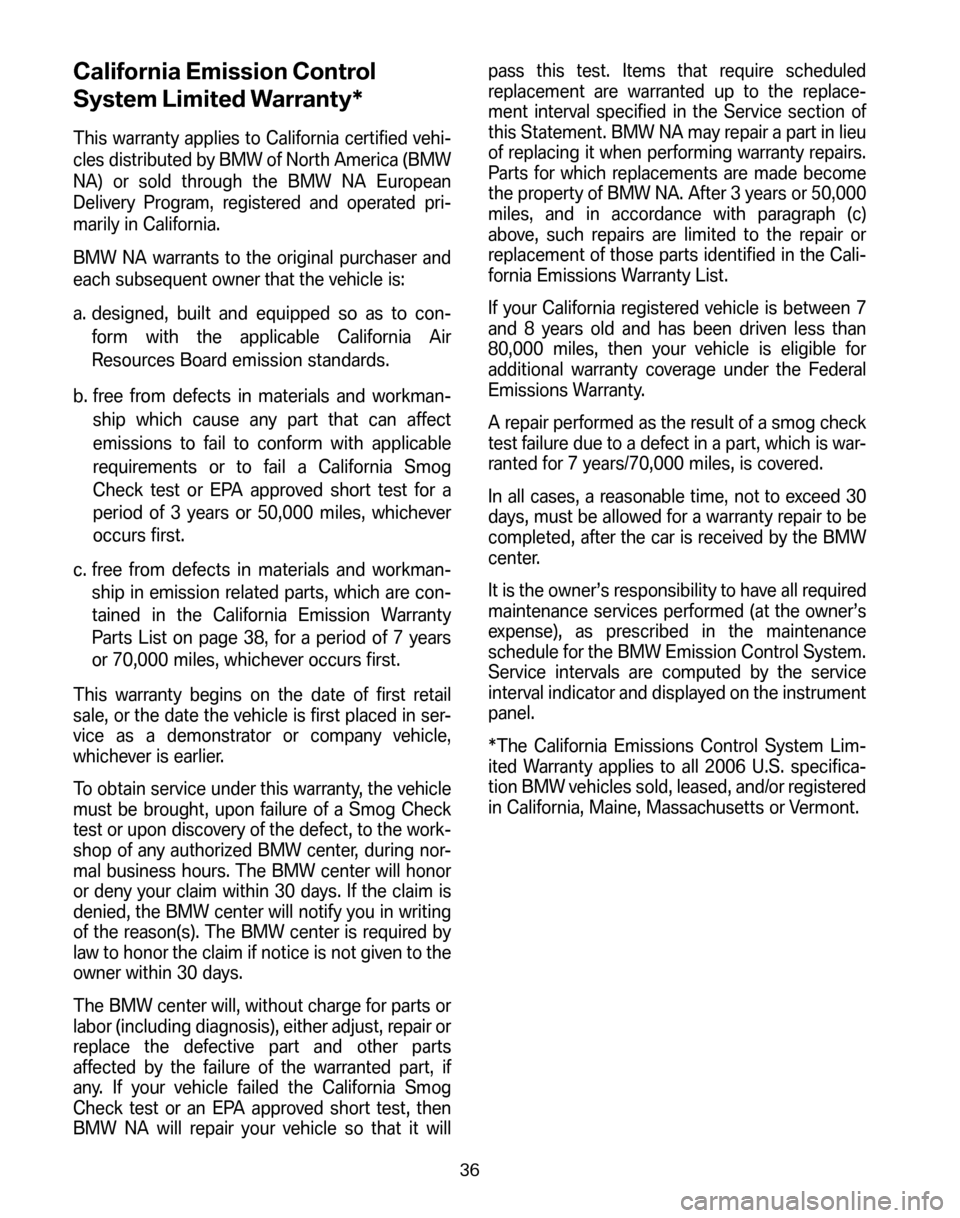

California Emission Control
System Limited Warranty*
This warranty applies to California certified vehi-
cles distributed by BMW of North America (BMW
NA) or sold through the BMW NA European
Delivery Program, registered and operated pri-
marily in California.
BMW NA warrants to the original purchaser and
each subsequent owner that the vehicle is:
a. designed, built and equipped so as to con- form with the applicable California Air
Resources Board emission standards.
b. free from defects in materials and workman- ship which cause any part that can affect
emissions to fail to conform with applicable
requirements or to fail a California Smog
Check test or EPA approved short test for a
period of 3 years or 50,000 miles, whichever
occurs first.
c. free from defects in materials and workman- ship in emission related parts, which are con-
tained in the California Emission Warranty
Parts List on page 38, for a period of 7 years
or 70,000 miles, whichever occurs first.
This warranty begins on the date of first retail
sale, or the date the vehicle is first placed in ser-
vice as a demonstrator or company vehicle,
whichever is earlier.
To obtain service under this warranty, the vehicle
must be brought, upon failure of a Smog Check
test or upon discovery of the defect, to the work-
shop of any authorized BMW center, during nor-
mal business hours. The BMW center will honor
or deny your claim within 30 days. If the claim is
denied, the BMW center will notify you in writing
of the reason(s). The BMW center is required by
law to honor the claim if notice is not given to the
owner within 30 days.
The BMW center will, without charge for parts or
labor (including diagnosis), either adjust, repair or
replace the defective part and other parts
affected by the failure of the warranted part, if
any. If your vehicle failed the California Smog
Check test or an EPA approved short test, then
BMW NA will repair your vehicle so that it will pass this test. Items that require scheduled
replacement are warranted up to the replace-
ment interval specified in the Service section of
this Statement. BMW NA may repair a part in lieu
of replacing it when performing warranty repairs.
Parts for which replacements are made become
the property of BMW NA. After 3 years or 50,000
miles, and in accordance with paragraph (c)
above, such repairs are limited to the repair or
replacement of those parts identified in the Cali-
fornia Emissions Warranty List.
If your California registered vehicle is between 7
and 8 years old and has been driven less than
80,000 miles, then your vehicle is eligible for
additional warranty coverage under the Federal
Emissions Warranty.
A repair performed as the result of a smog check
test failure due to a defect in a part, which is war-
ranted for 7 years/70,000 miles, is covered.
In all cases, a reasonable time, not to exceed 30
days, must be allowed for a warranty repair to be
completed, after the car is received by the BMW
center.
It is the owner’s responsibility to have all required
maintenance services performed (at the owner’s
expense), as prescribed in the maintenance
schedule for the BMW Emission Control System.
Service intervals are computed by the service
interval indicator and displayed on the instrument
panel.
*The California Emissions Control System Lim-
ited Warranty applies to all 2006 U.S. specifica-
tion BMW vehicles sold, leased, and/or registered
in California, Maine, Massachusetts or Vermont.
36
