dimensions BMW Z8 CONVERTIBLE 2002 Owners Manual

Contents

Owner service procedures
Advanced technology
Technical data

Replacement procedures:

Onboard tool kit130
Windshield wiper blades130
Lamps and bulbs131
Changing a wheel137
Battery138
Fuses140

In case of electrical
malfunction:

Fuel filler door142
Luggage compartment lid,
storage compartment142
Passenger door143
Closing the convertible top143

Giving and receiving
assistance:

Jump-starting145
Towing the vehicle146Airbags150
Car radio reception151
Dynamic Stability Control
(DSC)152
Safety belt tensioner153
Interior rearview mirror with
automatic dimmer154
Xenon lamps155Engine data158
Dimensions159
Weights160
Capacities161
Electrical system162
Drive belts162

117n
IndexDataTechnologyRepairsCar careControlsOverview
Washing your vehicle You can have your new BMW washed
in an automatic car wash. Car-wash
systems that do not employ brushes
are preferable.
Wipe away tough dirt and loosen and
remove dead insects before washing
the vehicle.
In order to avoid spots, do not wash the
vehicle when the hood is warm, or
during or immediately after exposure to
strong sunlight.
In order to protect your convertible top,
do not use washing programs featuring
wax application on your vehicle. The
small amount of beading wax always
used in automatic car washes will not
harm the convertible top.
When using an automatic car wash, be
sure that
>the car-wash system is suited for the
dimensions of your vehicle
>no damage will occur on vehicles
with attached body accessories (such
as spoilers or antennas). Consult the
car-wash operator if necessary>the wheels and tires of your vehicle
cannot be damaged by the convey-
ance devices of the car-wash system
>the vehicle is cleaned with minimum
brush pressure, and that ample water
is available for washing and rinsing.
Parts of the vehicle which are inacces-
sible to the automatic washer Ð such as
door sills, door and hood edges, etc. Ð
should be cleaned by hand.
In the winter months, it is especially
important to ensure that the vehicle is
washed on a regular basis. Large quan-
tities of dirt and road salt are difficult to
remove, and they also cause damage to
the vehicle.
If spray wands or high-pressure
washers are used, be sure to
maintain an adequate distance between
the spray source and the vehicle's
surface. Inadequate distance and
excessive pressure can damage or
weaken the finish, making it more
susceptible to further damage. In addi-
tion, moisture could penetrate to
vehicle components, leading to long-
term damage.<
When cleaning the headlamps,
please observe the following:
>Do not clean by wiping with a dry
cloth. Never use abrasives or strong
solvents to clean the covers
>Remove dirt and contamination (such
as insects) by soaking with BMW Car
Shampoo and then rinsing with plenty
of water
>Always use a deicer spray to remove
accumulated ice and snow Ð never
use a scraper.<
After washing the vehicle, apply
the brakes briefly to dry them.
Braking efficiency might otherwise be
reduced by the moisture and the brake
rotors could also be corroded.<
Caring for your vehicle

Overview
Controls and features
Operation, care
and maintenance
Technical data
Index Advanced technology
157n
IndexDataTechnologyRepairsCar careControlsOverview
Engine data158
Dimensions159
Weights160
Capacities161
Electrical system162
Drive belts162
Data
Owner service procedures

159n
IndexDataTechnologyRepairsCar careControlsOverview

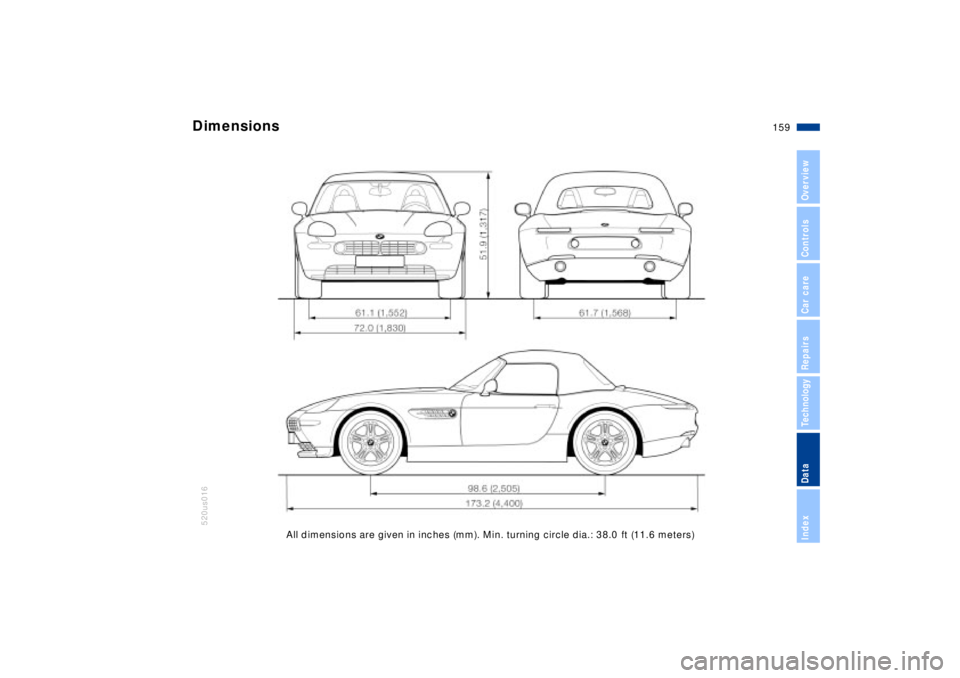

520us016
All dimensions are given in inches (mm). Min. turning circle dia.: 38.0 ft (11.6 meters)
Dimensions

Everything from A to Z
167n
IndexDataTechnologyRepairsCar careControlsOverview
Connector for Onboard
Diagnostic126
Consumption display62
Controls16
Convertible top41
closing in event of
electrical
malfunction143t
manual operation143t
Coolant113, 161
Coolant temperature
gauge63
Copyright4
Cornering Brake Control
(CBC)21, 89
Cruise control61
Curb weight160
Current check indicator20DDashboard16
Data
dimensions159
engine158
technical158
weights160
Daytime driving lamps69
DBC (Dynamic Brake
Control)90
Deactivating the tilt alarm
sensor and interior motion
sensor34Deep water87
Defrosting the
windows60, 75
Difficult steering20, 94
Dimensions159
Dipstick111
Disc brakes90
Displacement158
Display lighting69
Displays18
Disposal
engine oil113
used batteries140t
Door keys30
Door warning lamp, bulb
replacement134t
Doors
emergency
actuation32t
mirrors48
remote control33
unlocking and locking32
DOT Quality Grades100
Draft-free ventilation75
Drink holder78, 80
Drive belts162
Driving in winter92
Driving notes87
DSC (Dynamic Stability
Control)22, 65, 152
Dynamic Brake Control
(DBC)90Dynamic Performance
Control66
Dynamic Stability Control
(DSC)22, 65, 152
EElectric defrosting of
mirrors48
Electric power seats45
Electric power windows40
Electrical equipment
failure140t
Electrical failure
convertible top143t
doors32t
fuel filler door142t
luggage
compartment142t
passenger-side
door143t
Electrical system162
Electronic vehicle
immobilizer31
Emergency operation
convertible top143t
doors32t
fuel filler door142t
luggage
compartment142t
passenger-side
door143tEmergency release from
luggage compartment's
interior38
Engine
coolant113, 161
data158
output158
speed158
starting56
switching off57
Engine compartment108
Engine oil111
add111t
consumption111
filling capacity161
filter change161
pressure indicator
lamp20
quality112
specifications112
viscosity112
Engine oil level
check111
Equipment
options and accessories5
Exit lamps, bulb
replacement134
Exterior finish119
Exterior mirrors48
