170 Driving and Operating Press
K on the RKE transmitter to
unlock. To open the fuel door, push
and release the rearward center
edge of the door.
Turn the fuel cap counterclockwise
to remove. While refueling, hang the
tethered fuel cap from the hook on
the fuel door.
{ Warning
Overfilling the fuel tank by more
than three clicks of a standard fill
nozzle may cause:
(Continued) Warning (Continued) .
Vehicle performance issues,
including engine stalling and
damage to the fuel system.
.
Fuel spills.
.
Potential fuel fires.
Be careful not to spill fuel. Wait a
few seconds after you have finished
pumping before removing the
nozzle. Clean fuel from painted
surfaces as soon as possible. See
Exterior Care 0 241 .
When replacing the fuel cap, turn it
clockwise until it clicks. Make sure
the cap is fully installed. The
diagnostic system can determine if
the fuel cap has been left off or
improperly installed. This would
allow fuel to evaporate into the
atmosphere. See Malfunction
Indicator Lamp (Check Engine
Light) 0 102 .{ WarningIf a fire starts while you are
refueling, do not remove the
nozzle. Shut off the flow of fuel by
shutting off the pump or by
notifying the station attendant.
Leave the area immediately.
CautionIf a new fuel cap is needed, be
sure to get the right type of cap
from your dealer. The wrong type
of fuel cap may not fit properly,
may cause the malfunction
indicator lamp to light, and could
damage the fuel tank and
emissions system. See
Malfunction Indicator Lamp
(Check Engine Light) 0 102 .

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Driving and Operating 171
Filling a Portable Fuel
Container
{ WarningFilling a portable fuel container
while it is in the vehicle can cause
fuel vapors that can ignite either
by static electricity or other
means. You or others could be
badly burned and the vehicle
could be damaged. Always:
.
Use approved fuel
containers.
.
Remove the container from
the vehicle, trunk, or pickup
bed before filling.
.
Place the container on the
ground.
.
Place the nozzle inside the
fill opening of the container
before dispensing fuel, and
keep it in contact with the fill
opening until filling is
complete.
(Continued) Warning (Continued) .
Fill the container no more
than 95% full to allow for
expansion.
.
Do not smoke, light
matches, or use lighters
while pumping fuel.
.
Avoid using cell phones or
other electronic devices.
Trailer Towing General Towing
Information The vehicle is neither designed nor
intended to tow a trailer.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
172 Driving and Operating
Conversions and
Add-Ons Add-On Electrical
Equipment
{ WarningThe Data Link Connector (DLC) is
used for vehicle service
and Emission Inspection/
Maintenance testing. See
Malfunction Indicator Lamp
(Check Engine Light) 0 102 .
A device connected to the DLC —
such as an aftermarket fleet or
driver-behavior tracking device —
may interfere with vehicle
systems. This could affect vehicle
operation and cause a crash.
Such devices may also access
information stored in the vehicle ’ s
systems. CautionSome electrical equipment can
damage the vehicle or cause
components to not work and
would not be covered by the
vehicle warranty. Always check
with your dealer before adding
electrical equipment.
Add-on equipment can drain the
vehicle's 12-volt battery, even if the
vehicle is not operating.
The vehicle has an airbag system.
Before attempting to add anything
electrical to the vehicle, see
Servicing the Airbag-Equipped
Vehicle 0 69 and Adding Equipment
to the Airbag-Equipped Vehicle
0 69 .

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Vehicle Care 173
Vehicle Care General Information General Information . . . . . . . . . . 174
California Proposition
65 Warning . . . . . . . . . . . . . . . . . 174
California Perchlorate
Materials Requirements . . . . . 175
Accessories and
Modifications . . . . . . . . . . . . . . . . 175
Vehicle Checks Doing Your Own
Service Work . . . . . . . . . . . . . . . 175
Hood . . . . . . . . . . . . . . . . . . . . . . . . . 176

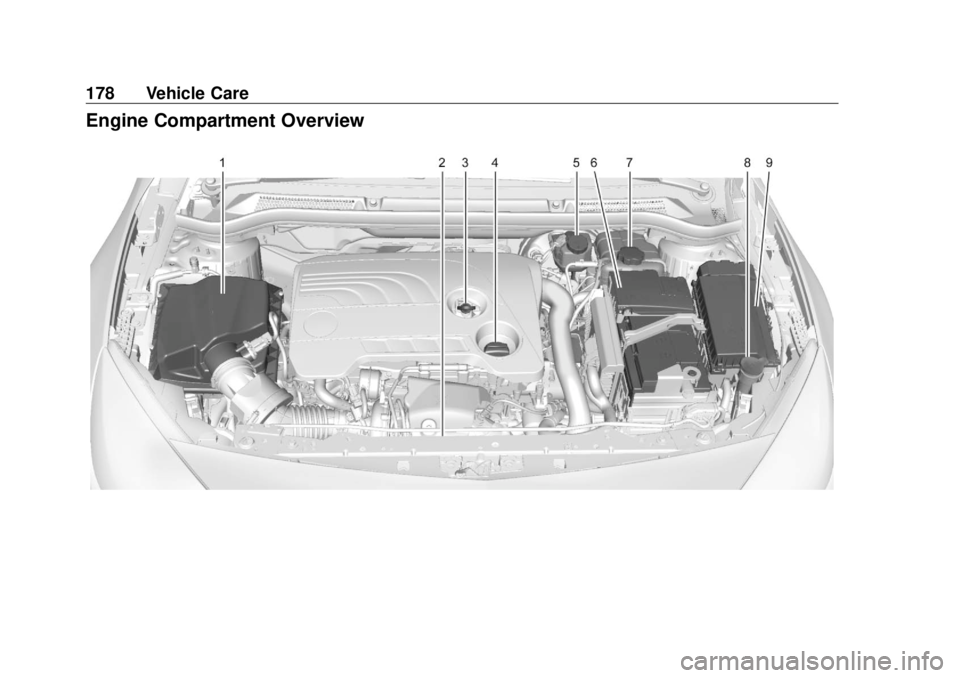

Engine Compartment
Overview . . . . . . . . . . . . . . . . . . . . 178
Engine Oil . . . . . . . . . . . . . . . . . . . . 179
Engine Oil Life System . . . . . . . 181
Automatic Transmission
Fluid . . . . . . . . . . . . . . . . . . . . . . . . 182
Engine Air Cleaner/Filter . . . . . . 183
Cooling System . . . . . . . . . . . . . . 183
Engine Overheating . . . . . . . . . . 187
Washer Fluid . . . . . . . . . . . . . . . . . 188
Brakes . . . . . . . . . . . . . . . . . . . . . . . 189
Brake Fluid . . . . . . . . . . . . . . . . . . . 190
Battery - North America . . . . . . 191
Starter Switch Check . . . . . . . . . 191 Automatic Transmission Shift
Lock Control Function
Check . . . . . . . . . . . . . . . . . . . . . . . 192
Ignition Transmission Lock
Check . . . . . . . . . . . . . . . . . . . . . . . 192
Park Brake and P (Park)
Mechanism Check . . . . . . . . . . 192
Wiper Blade Replacement . . . . 193
Windshield Replacement . . . . . 193
Gas Strut(s) . . . . . . . . . . . . . . . . . . 193
Headlamp Aiming Headlamp Aiming . . . . . . . . . . . . 195
Bulb Replacement Bulb Replacement . . . . . . . . . . . . 195
High Intensity Discharge (HID)
Lighting . . . . . . . . . . . . . . . . . . . . . 195
LED Lighting . . . . . . . . . . . . . . . . . 195
Adaptive Forward Lighting
Lamps . . . . . . . . . . . . . . . . . . . . . . 195
Fog Lamps . . . . . . . . . . . . . . . . . . . 196
Front Turn Signal Lamps . . . . . 197
Sidemarker Lamps . . . . . . . . . . . 197
Side Turn Signal Lamps . . . . . . 198
Back-Up Lamps . . . . . . . . . . . . . . 199
License Plate Lamp . . . . . . . . . . 201
Electrical System
Electrical System Overload . . . 201
Fuses and Circuit Breakers . . . 202 Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 202
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 205
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 207
Wheels and Tires Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 208
All-Season Tires . . . . . . . . . . . . . . 209
Winter Tires . . . . . . . . . . . . . . . . . . 209
Low-Profile Tires . . . . . . . . . . . . . 210
Tire Sidewall Labeling . . . . . . . . 210
Tire Designations . . . . . . . . . . . . . 212
Tire Terminology and
Definitions . . . . . . . . . . . . . . . . . . 213
Tire Pressure . . . . . . . . . . . . . . . . . 216
Tire Pressure Monitor
System . . . . . . . . . . . . . . . . . . . . . . 217
Tire Pressure Monitor
Operation . . . . . . . . . . . . . . . . . . . 218
Tire Inspection . . . . . . . . . . . . . . . . 221
Tire Rotation . . . . . . . . . . . . . . . . . 221
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 222
Buying New Tires . . . . . . . . . . . . . 223
Different Size Tires and
Wheels . . . . . . . . . . . . . . . . . . . . . . 224
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 224

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
174 Vehicle Care Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 226
Wheel Replacement . . . . . . . . . . 226
Tire Chains . . . . . . . . . . . . . . . . . . . 227
If a Tire Goes Flat . . . . . . . . . . . . 227
Tire Changing . . . . . . . . . . . . . . . . 229
Compact Spare Tire . . . . . . . . . . 234
Jump Starting Jump Starting - North
America . . . . . . . . . . . . . . . . . . . . . 235
Towing the Vehicle Towing the Vehicle . . . . . . . . . . . 238
Recreational Vehicle
Towing . . . . . . . . . . . . . . . . . . . . . . 239
Appearance Care Exterior Care . . . . . . . . . . . . . . . . . 241
Interior Care . . . . . . . . . . . . . . . . . . 246
Floor Mats . . . . . . . . . . . . . . . . . . . . 249 General Information For service and parts needs, visit
your dealer. You will receive
genuine GM parts and GM-trained
and supported service people.
Genuine GM parts have one of
these marks:
California Proposition
65 Warning
{ WarningMost motor vehicles, including
this one, as well as many of its
service parts and fluids, contain
and/or emit chemicals known to
the State of California to cause
cancer and birth defects or other
reproductive harm. Engine
exhaust, many parts and
systems, many fluids, and some
component wear by-products
contain and/or emit these
chemicals. For more information
go to www.P65Warnings.ca.gov/
passenger-vehicle.
See Battery - North America 0 191
and Jump Starting - North America
0 235 and the back cover.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Vehicle Care 175
California Perchlorate
Materials Requirements Certain types of automotive
applications, such as airbag
initiators, seat belt pretensioners,
and lithium batteries contained in
Remote Keyless Entry transmitters,
may contain perchlorate materials.
Special handling may be necessary.
For additional information, see
www.dtsc.ca.gov/hazardouswaste/
perchlorate.
Accessories and
Modifications Adding non-dealer accessories or
making modifications to the vehicle
can affect vehicle performance and
safety, including such things as
airbags, braking, stability, ride and
handling, emissions systems,
aerodynamics, durability, and
electronic systems like antilock
brakes, traction control, and stability
control. These accessories or
modifications could even cause
malfunction or damage not covered
by the vehicle warranty. Damage to suspension components
caused by modifying vehicle height
outside of factory settings will not be
covered by the vehicle warranty.
Damage to vehicle components
resulting from modifications or the
installation or use of non-GM
certified parts, including control
module or software modifications, is
not covered under the terms of the
vehicle warranty and may affect
remaining warranty coverage for
affected parts.
GM Accessories are designed to
complement and function with other
systems on the vehicle. See your
dealer to accessorize the vehicle
using genuine GM Accessories
installed by a dealer technician.
Also, see Adding Equipment to the

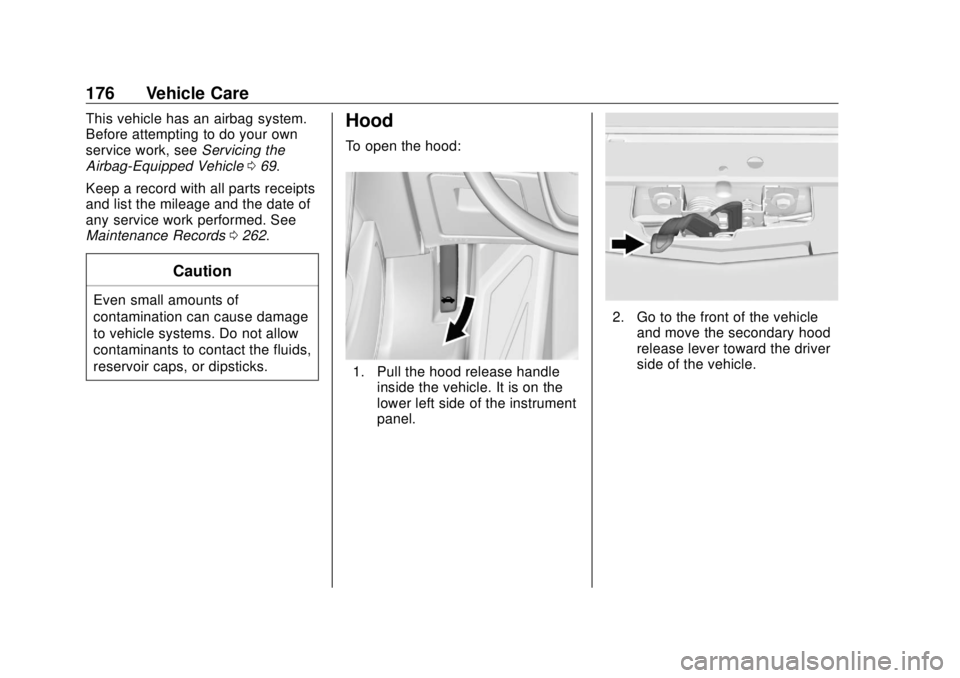

Airbag-Equipped Vehicle 0 69 .Vehicle Checks Doing Your Own
Service Work
{ WarningIt can be dangerous to work on
your vehicle if you do not have
the proper knowledge, service
manual, tools, or parts. Always
follow owner ’ s manual procedures
and consult the service manual
for your vehicle before doing any
service work.
If doing some of your own service
work, use the proper service
manual. It tells you much more
about how to service the vehicle
than this manual can. To order the
proper service manual, see Service
Publications Ordering Information
0 275 .

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
176 Vehicle Care This vehicle has an airbag system.
Before attempting to do your own
service work, see Servicing the
Airbag-Equipped Vehicle 0 69 .
Keep a record with all parts receipts
and list the mileage and the date of
any service work performed. See
Maintenance Records 0 262 .
CautionEven small amounts of
contamination can cause damage
to vehicle systems. Do not allow
contaminants to contact the fluids,
reservoir caps, or dipsticks. Hood To open the hood:
1. Pull the hood release handle
inside the vehicle. It is on the
lower left side of the instrument
panel. 2. Go to the front of the vehicle
and move the secondary hood
release lever toward the driver
side of the vehicle.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Vehicle Care 177
3. Lift the hood and release the
hood prop from its retainer,
above the radiator. Securely
place the hood prop into the
slot on the underside of
the hood. To close the hood:
1. Before closing the hood, be
sure all filler caps are on
properly. Then, lift the hood to
relieve pressure on the hood
prop. Remove the hood prop
from the slot in the underside
of the hood and return the prop
to its retainer. The prop rod
must click into place when
returning it to the retainer to
prevent hood damage. 2. Lower the hood 30 cm (12 in)
above the vehicle and release
it so it fully latches. Check to
make sure the hood is closed
and repeat the process if
necessary.
CautionDo not press the hood into the
latch. This may dent the hood.

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
178 Vehicle Care
Engine Compartment Overview

Buick Cascada Owner Manual (GMNA-Localizing-U.S-11373983) - 2018 -
CRC - 7/10/17
Vehicle Care 1791. Engine Air Cleaner/Filter 0 183 .
2. Engine Cooling Fan (Out of
View). See Cooling System
0 183 .
3. Engine Oil Dipstick. See
Engine Oil 0 179 .
4. Engine Oil Fill Cap. See
Engine Oil 0 179 .
5. Brake Fluid Reservoir. See
Brakes 0 189 .
6. Battery - North America 0 191 .
7. Engine Coolant Surge Tank
and Pressure Cap. See
Cooling System 0 183 .
8. Windshield Washer Fluid
Reservoir. See Washer Fluid
0 188 .
9. Engine Compartment Fuse
Block 0 202 .
Engine Oil To ensure proper engine
performance and long life, careful
attention must be paid to engine oil. Following these simple, but
important steps will help protect
your investment:
.
Use engine oil approved to the
proper specification and of the
proper viscosity grade. See
“ Selecting the Right Engine Oil ”
in this section.
.
Check the engine oil level
regularly and maintain the
proper oil level. See “ Checking
Engine Oil ” and “ When to Add
Engine Oil ” in this section.
.
Change the engine oil at the
appropriate time. See Engine Oil
Life System 0 181 .
.
Always dispose of engine oil
properly. See “ What to Do with
Used Oil ” in this section.
Checking Engine Oil
Check the engine oil level regularly,
every 650 km (400 mi), especially
prior to a long trip. The engine oil
dipstick handle is a loop. See
Engine Compartment Overview
0 178 for the location.{ WarningThe engine oil dipstick handle
may be hot; it could burn you.
Use a towel or glove to touch the
dipstick handle.
If a low oil Driver Information Center
(DIC) message displays, check the
oil level.
Follow these guidelines:
.
To get an accurate reading, park
the vehicle on level ground.
Check the engine oil level after
the engine has been off for at
least two hours. Checking the
engine oil level on steep grades
or too soon after engine shutoff
can result in incorrect readings.
Accuracy improves when
checking a cold engine prior to
starting. Remove the dipstick
and check the level.
.
If unable to wait two hours, the
engine must be off for at least
15 minutes if the engine is
warm, or at least 30 minutes if
