BUICK CENTURY 1996 Owners Manual

I Long; TripMighway Maintenance Schedule I

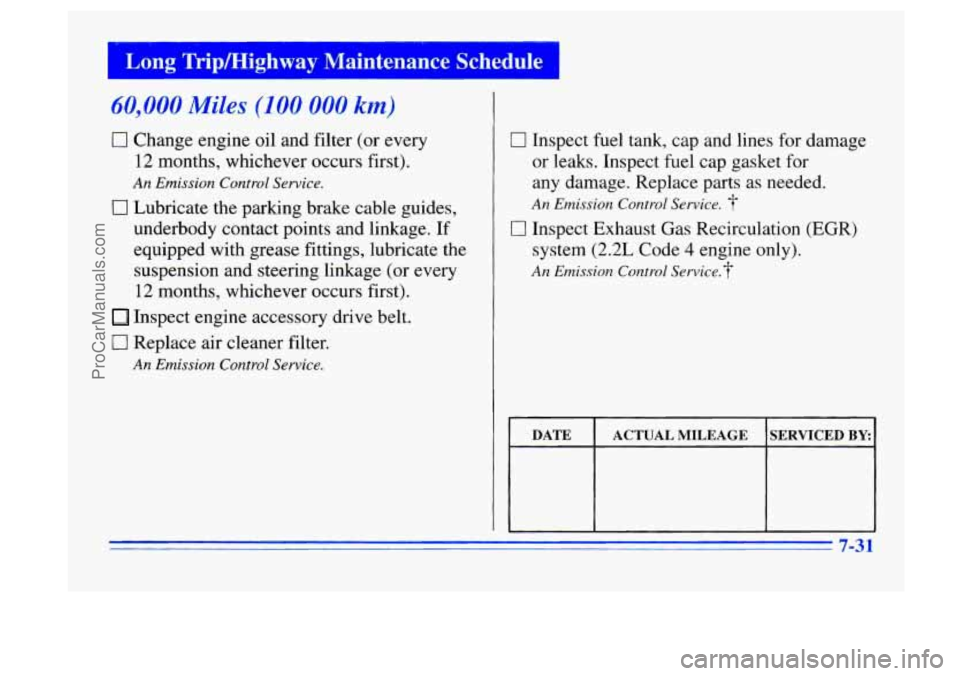

60,000 Miles (100 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the parking brake cable guides,
underbody contact points and linkage.
If
equipped with grease fittings, lubricate the
suspension and steering linkage (or every
12 months, whichever occurs first).
Inspect engine accessory drive belt.
0 Replace air cleaner filter.
An Emission Control Service.
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket for
any damage. Replace parts as needed.
0 Inspect Exhaust Gas Recirculation (EGR)
An Emission Control Service.
system (2.2L Code 4 engine only).
An Emission Control Service.
7-31
ProCarManuals.com

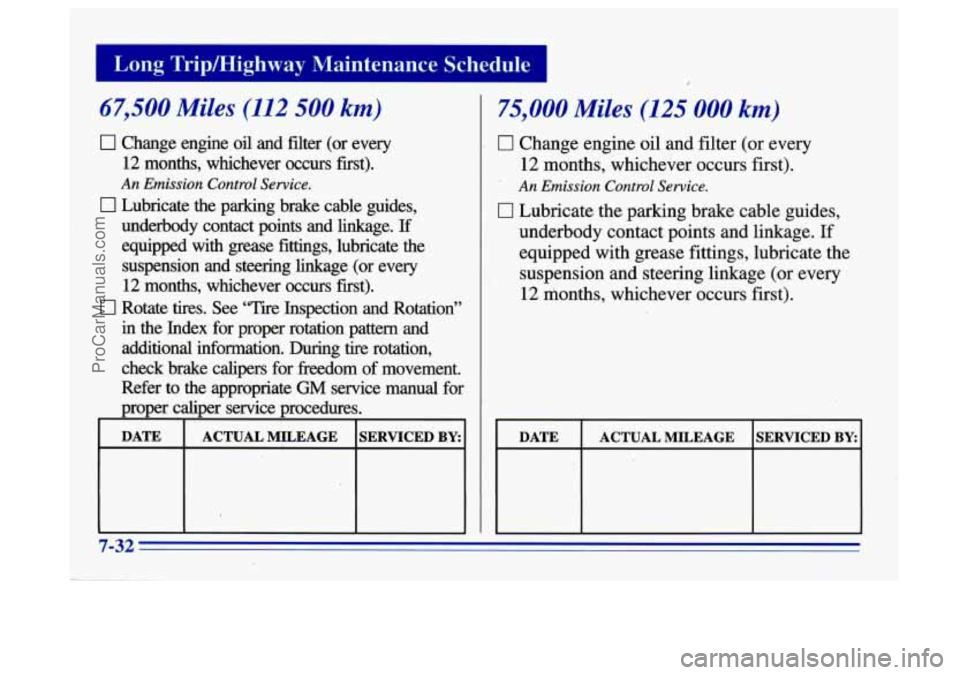

67,500 Miles (112 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the parking brake cable guides,
underbody contact
pints and linkage. If
equipped with grease fittings, lubricate the
suspension and steering linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation’’
in the Index for proper rotation pattern and
additional information. During tire rotation,
check brake calipers for fieedom
of movement.
Refer to the appropriate
GM service manual for
DroDer caber service mocedures.
t
AI A A
DATE
ACTUAL MILEAGE
SERVICED B,X I
75,000 Miles (125 000 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
’ An Emission Control Service.
0 Lubricate the parking brake cable guides,
underbody c,ontact points and linkage. If
equipped with grease fittings, lubricate the
suspension and steering linkage (or every
12 months, whichever occurs first).
I
DATE ACTUAL MILEAGE 3ERVICED BY:
7-32
ProCarManuals.com

Long Tripmighway Maintenance Schedule

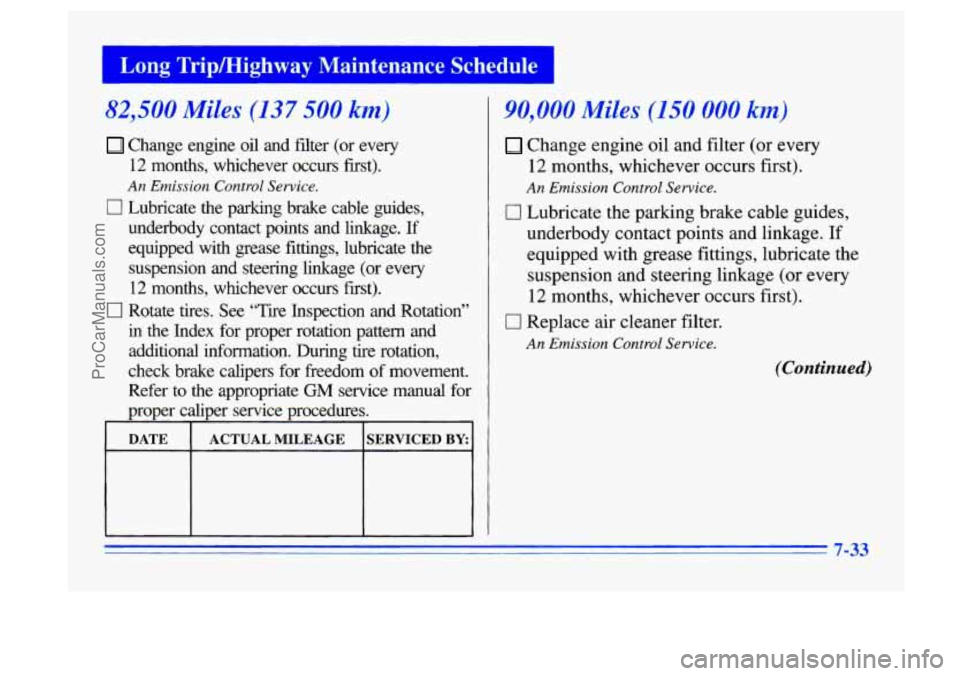

82,500 Miles (137 500 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the parking brake cable guides,
underbody contact points and linkage.
If
equipped with grease fittings, lubricate the
suspension
and steering linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation” in the Index for proper rotation pattern
and
additional information. During tire rotation,
check brake calipers for freedom of movement.
Refer
to the appropriate GM service manual for
proper caliper service procedures.
I I I 1
I DATE I ACTUAL MILEAGE ISERVICED BY: I
90,000 Miles (150 000 km)
Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Service.
0 Lubricate the parking brake cable guides,
underbody contact points and linkage.
If
equipped with grease fittings, lubricate the
suspension and steering linkage (or every
12 months, whichever occurs first).
0 Replace air cleaner filter.
An Emission Control Service.
(Continued)
7-33
ProCarManuals.com

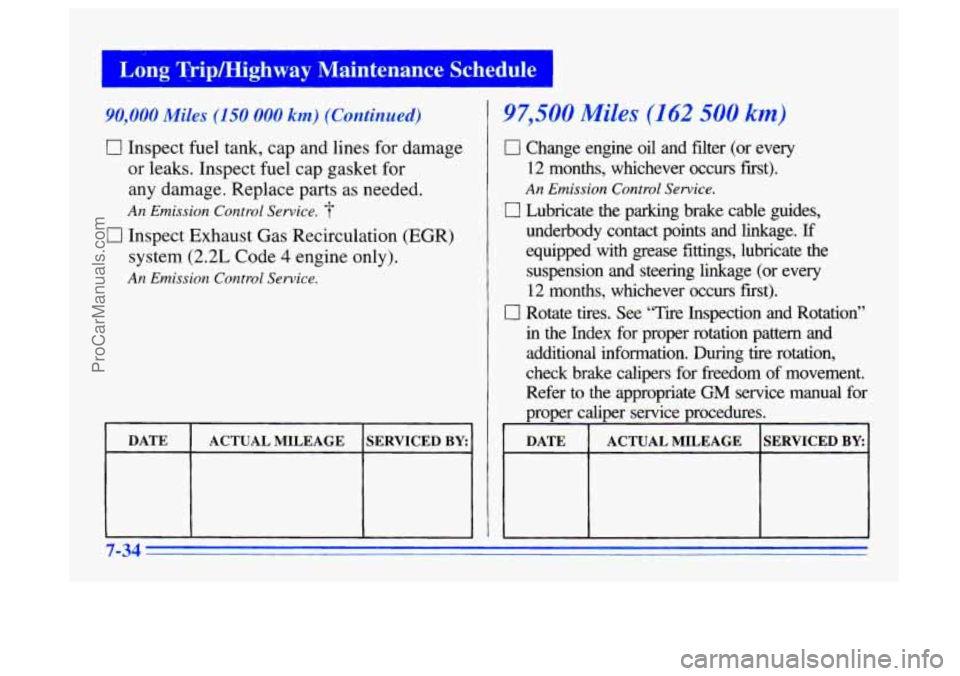

50 000 km) (Continued)
0 Inspect fuel tank, cap and lines for damage
or leaks. Inspect fuel cap gasket
for
any damage. Replace parts as needed.
An Emission Control Service.
0 Inspect Exhaust Gas Recirculation (EGR)
system
(2.2L Code 4 engine only).
An Emission Control Service.
I DATE I ACTUAL MILEAGE I SERVICED BY I
97,500 Miles (162 500 km)
0 Change engine oil and filter (or every
12 months, whichever occurs first).
An Emission Control Sewice.
0 Lubricate the parking brake cable guides,
underbody contact points and linkage.
If
equipped with grease fittings, lubricate the
suspension and steering linkage (or every
12 months, whichever occurs first).
0 Rotate tires. See “Tire Inspection and Rotation”
in the Index for proper rotation pattern and additional information. During tire rotation,
check brake calipers for fieedom of movement.
Refer to the appropriate
GM service manual for
proper caliper service procedures.
DATE ACTUAL MILEAGE SERVICED BY
7-34
ProCarManuals.com

I - mg Tripmighway Maintenance Schedule

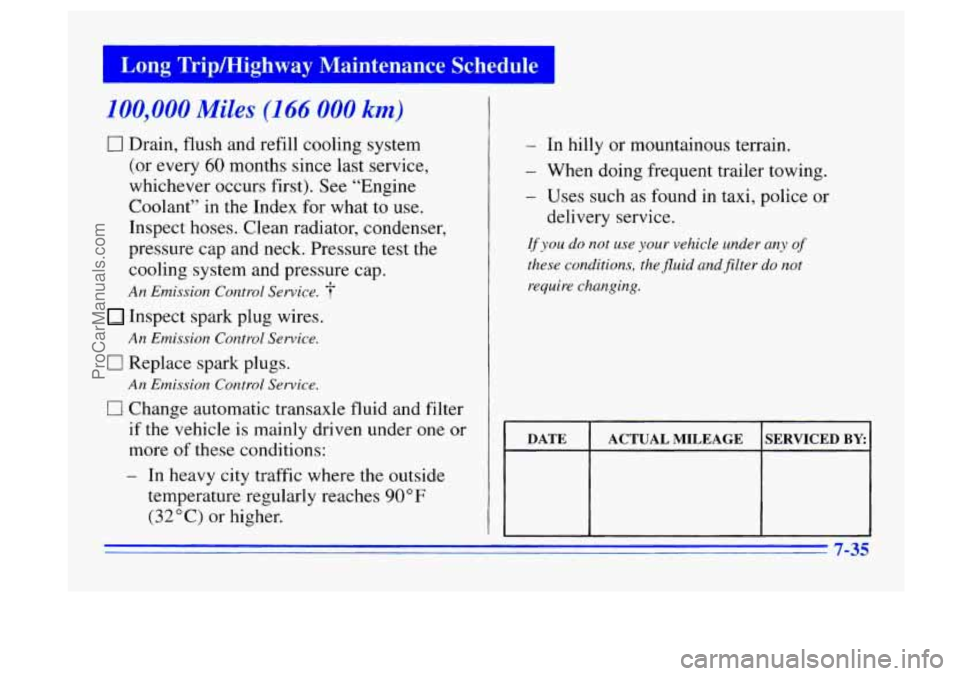

100,000 Miles (1 66 000 ’ 2)
0 Drain, flush and refill cooling system
(or every
60 months since last service,
whichever occurs first). See “Engine
Coolant’’ in the Index for what
to use.
Inspect hoses. Clean radiator, condenser,
pressure cap and neck. Pressure test the
cooling system and pressure cap.
An Emission Control Service. 3-
Inspect spark plug wires.
An Emission Control Service.
0 Replace spark plugs.
0 Change automatic transaxle fluid and filter
if
the vehicle is mainly driven under one or
more of these conditions:
- In heavy city traffic where the outside
temperature regularly reaches
90 OF
(32°C) or higher.
An Erni,wion Control Service.
- In hilly or mountainous terrain.
- When doing frequent trailer towing.
- Uses such as found in taxi, police or
delivery service.
IJ‘yocr do not use your vehicle under any of
these conditions, the fluid and filter do not
require changing.
DATE
SERVICED BY ACTUAL MILEAGE
ProCarManuals.com

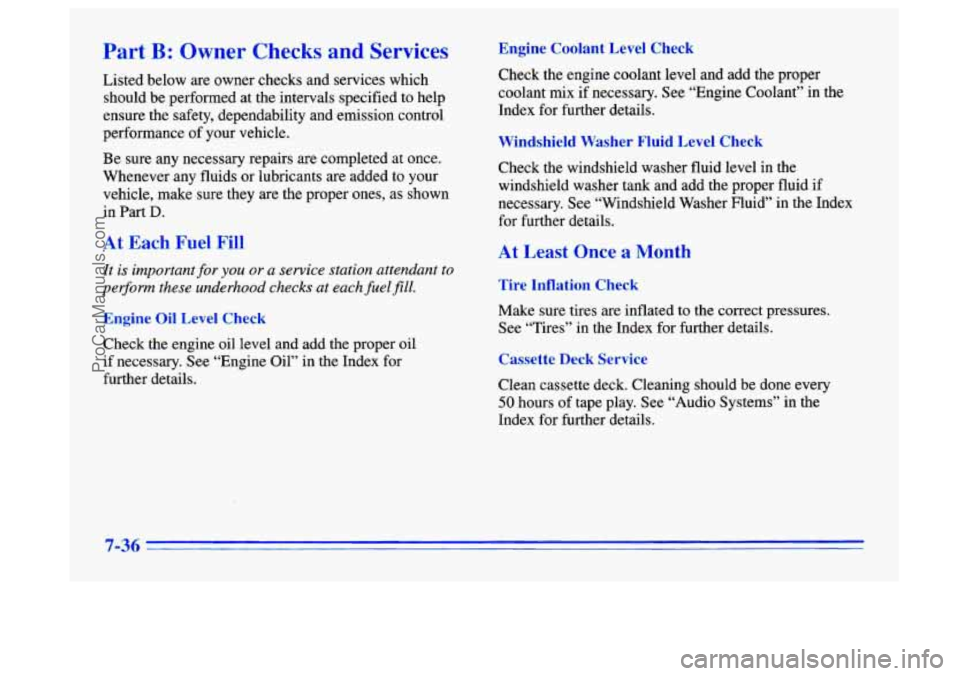

Part B: Owner Checks and Services
Listed below are owner checks and services which
should be performed at the intervals specified to help
ensure the safety, dependability and emission control
performance of your vehicle.
Be sure any necessary repairs are completed at once.
Whenever any fluids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
in Part
D.
Engine Cc --ant - - el Chc -’L
Check the engine coolant level and add the proper
coolant mix if necessary. See “Engine Coolant” in
the
Index for further details.
Windshield Washer Fluid Level Check
Check the windshield washer fluid level in the
windshield washer tank and add the proper fluid if
necessary. See “Windshield Washer Fluid” in the Index
for further details.
At Each Fuel Fill
It is important for you or a service station attendant to
perform these underhood checks at each fuel fill.
At Least Once a Month
Tire Inflation Check
Engine Oil Level Check Make sure tires are inflated to the correct pressures.
See “Tires”
in the Index for further details.
Check the engine oil level and add the proper oil
if necessary. See “Engine Oil” in the Index for
further details.
Cassette Deck Service
Clean cassette deck. Cleaning should be done every
50 hours of tape play. See “Audio Systems” in the
Index for further details.
7-36
ProCarManuals.com

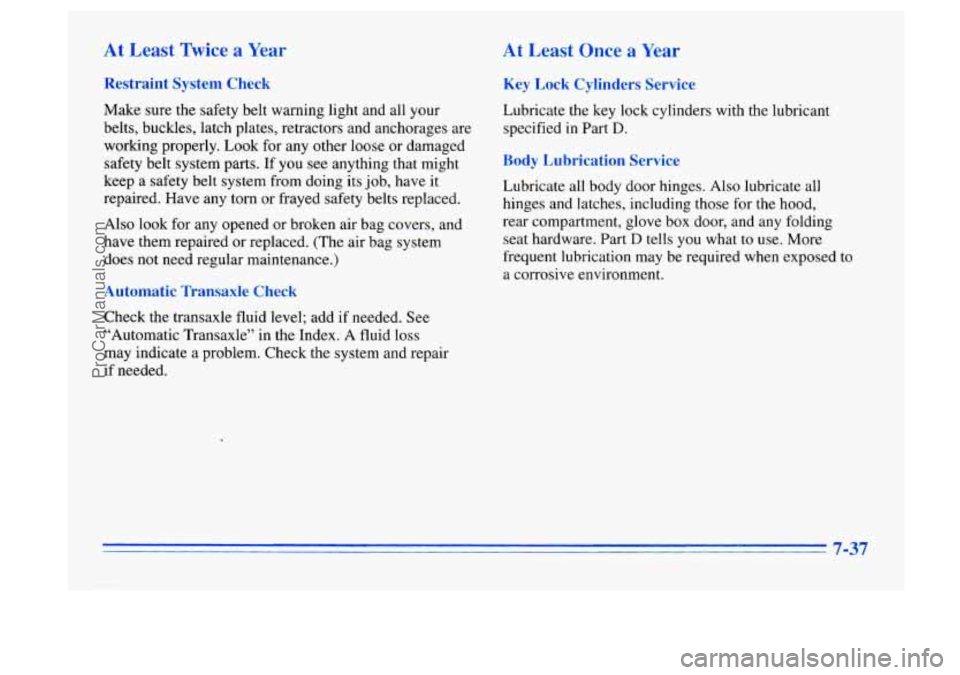

At Least Twice a Year
Restraint System Check
Make sure the safety belt warning light and all your
belts, buckles, latch plates, retractors and anchorages are
working properly. Look for any other loose or damaged
safety belt system parts. If you see anything that might
keep a safety belt system from doing its job, have it
repaired. Have any torn or frayed safety belts replaced.
Also look for
any opened or broken air bag covers, and
have them repaired or replaced. (The air bag system
does not need regular maintenance.)
Automatic Transaxle Check
Check the transaxle fluid level; add if needed. See
“Automatic Transaxle” in the Index. A fluid loss
may indicate a problem. Check the system and repair
if needed.
At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specified
in Part D.
Body Lubrication Service
Lubricate all body door hinges. Also lubricate all
hinges and latches, including those for the hood,
rear compartment, glove box door, and any folding
seat hardware. Part
D tells you what to use. More
frequent lubrication may be required when exposed to
a corrosive environment.
7-37
ProCarManuals.com

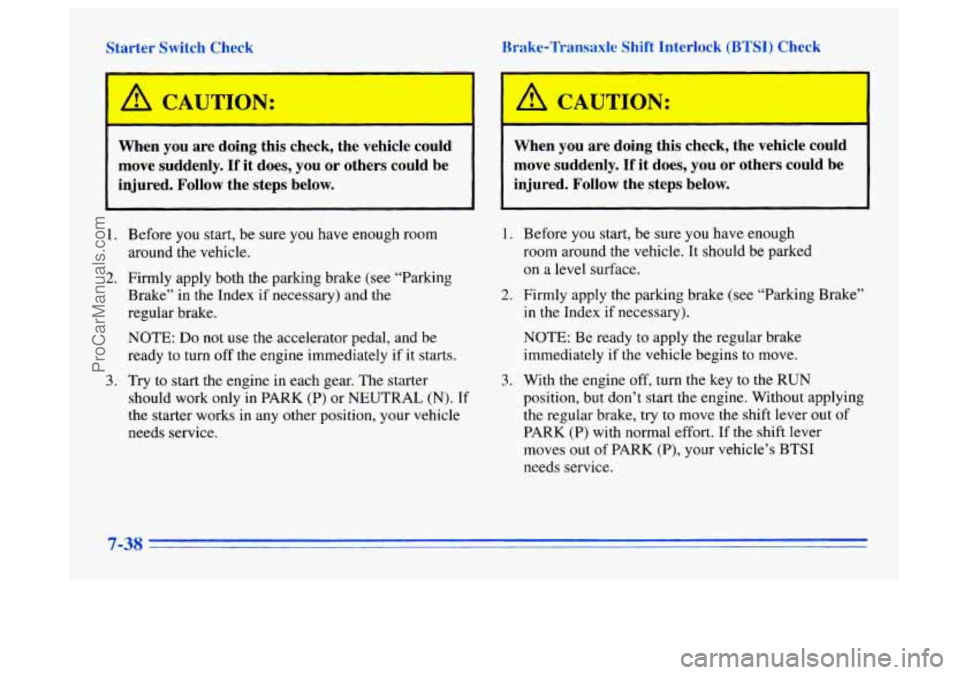

- --Aer :h - eck
A CAUTION:
When you are doing this check, the vehicle could
move suddenly. If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake (see “Parking
Brake’’ in the Index if necessary)
and the
regular brake.
NOTE: Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK
(P) or NEUTRAL (N). If
the starter works in any other position, your vehicle
needs service.
Brake-Transaxle Shift Interlock (BTSI) Check
A CAUTION:
When you are doing this check, the vehicle could
move suddenly.
If it does, you or others could be
injured. Follow the steps below.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake (see “Parking Brake”
in the Index if necessary).
NOTE: Be ready to apply the regular brake
immediately if
the vehicle begins to move.
3. With the engine off, turn the key to the RUN
position, but don’t start the engine. Without applying
the regular brake, try to move the shift lever out
of
PARK (P) with normal effort. If the shift lever
moves out
of PARK (P), your vehicle’s BTSI
needs service.
7-38
ProCarManuals.com

Steering Column Lock Check
While parked, and with the parking brake set, try to turn
the key
to LOCK in each shift lever position.
The key should turn to LOCK only when the shift
The key should come out only in LOCK.
Parking Brake and Automatic Transaxle PARK (P)
Mechanism Check
lever is in PARK (P).
A C A UTION:
-
When you are doing this check, your vehicle
could begin to move.
You or others could be
injured and property could be damaged. Make
sure there is room in front of your vehicle in case
it begins to roll. Be ready to apply the regular
brake at once should the vehicle begin to move.
Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot
on the regular brake,
set the parking brake.
To check the parking brake: With the engine running
and transaxle in NEUTRAL (N), slowly remove foot
pressure from the regular brake pedal.
Do this until
the vehicle
is held by the parking brake only.
To check the PARK (P) mechanism’s holding ability:
Shift to PARK (P). Then release all brakes.
Underbody Flushing Service
At least every spring, use plain water to flush any
corrosive materials from the underbody. Take care to
clean thoroughly any areas where mud and other debris
can collect.
7-39
ProCarManuals.com

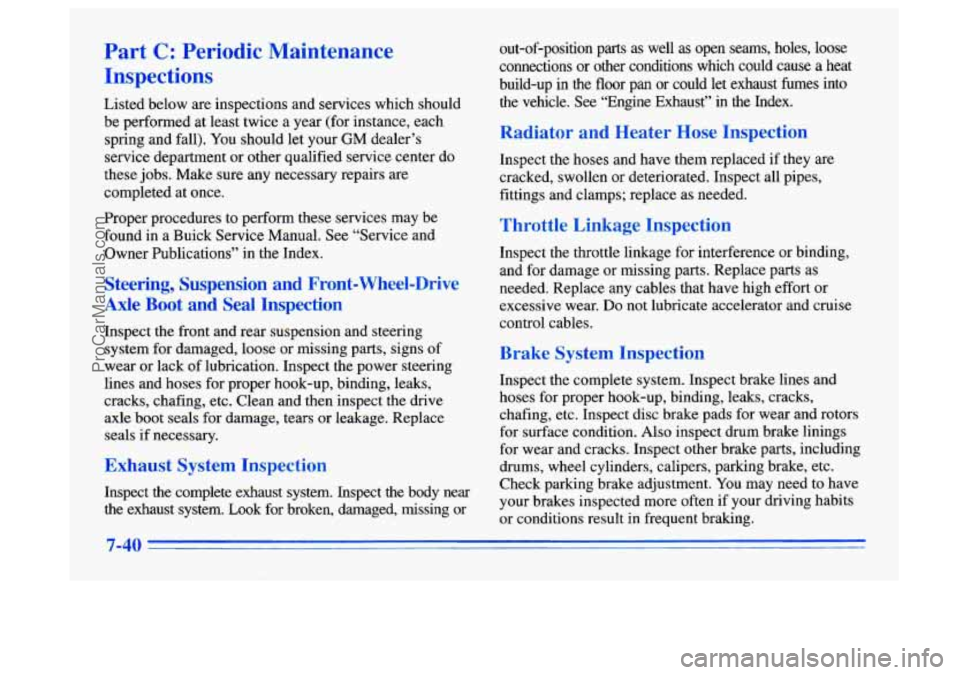

Part C: Periodic Maintenance
Inspections
Listed below are inspections and services which should
be performed
at least twice a year (for instance, each
spring and fall). You should
let your GM dealer’s
service department or other qualified service center do
these jobs. Make sure an.y necessary repairs are
completed at once.
Proper procedures to perform these services may be
found in a Buick Service Manual. See “Service and
Owner Publications” in the Index.
Steering, Suspension and Front- Wheel-Drive
Axle Boot and Seal Inspection
Inspect the front and rear suspension and steering
system for damaged, loose or missing parts, signs of
wear or lack of lubrication. Inspect the power steering
lines and hoses for proper hook-up, binding, leaks,
cracks, chafing, etc. Clean and then inspect the drive
axle boot seals for damage, tears or leakage. Replace
seals if necessary.
Exhaust System Inspection
Inspect the complete exhaust system. Inspect the body near
the exhaust system.
Look for broken, damaged, missing or out-of-position parts as well
as open seams, holes, loose
connections or other conditions which could cause a
heat
build-up in the floor pan or could let exhaust fumes into
the vehicle. See “Engine Exhaust” in the Index.
Radiator and Heater Hose Inspection
Inspect the hoses and have them replaced if they are
cracked, swollen or deteriorated. Inspect all pipes,
fittings and clamps; replace as needed.
Throttle Linkage Inspection
Inspect the throttle linkage for interference or binding,
and for damage or missing parts. Replace parts
as
needed. Replace any cables that have high effort or
excessive wear.
Do not lubricate accelerator and cruise
control cables.
Brake System Inspection
Inspect the complete system. Inspect brake lines and
hoses for proper hook-up, binding, leaks, cracks,
chafing, etc. Inspect disc brake pads for wear and rotors
for surface condition. Also inspect drum brake linings
for wear and cracks. Inspect other brake parts, including
drums, wheel cylinders, calipers, parking brake, etc.
Check parking brake adjustment. You may need to have
your brakes inspected more often if your driving habits
or conditions result in frequent braking.
7-40
ProCarManuals.com
