6-23 Checking Coolant
The engine coolant recovery tank is located on the
driver's side of the engine compartment.
The vehicle must be on a level surface. When your
engine is cold, the coolant level should be at FULL
COLD or a little higher. When your engine is warm, the
level should be up to FULL HOT or a little higher.
If this light comes on and
stays on, it means you're
low on engine coolant.
Adding Coolant
If you need more coolant, add the proper DEX
-COOL

coolant mixture at the coolant recovery tank, but be
careful not to spill it.
CAUTION:
Turning the radiator pressure cap when the
engine and radiator are hot can allow steam and
scalding liquids to blow out and burn you badly.
With the coolant recovery tank, you will almost
never have to add coolant at the radiator. Never
turn the radiator pressure cap
-- even a
little
-- when the engine and radiator are hot.

yellowblue
6-24
CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol,
and it will burn if the engine parts are hot
enough. Don't spill coolant on a hot engine.
Power Steering Fluid
When to Check Power Steering Fluid
It is not necessary to regularly check power steering
fluid unless you suspect there is a leak in the system or
you hear an unusual noise. A fluid loss in this system
could indicate a problem. Have the system inspected
and repaired.
The power steering fluid reservoir is located below the
generator and behind the accessory drive belt.
How to Check Power Steering Fluid
When the engine compartment is cool, wipe the cap and
the top of the reservoir clean, then unscrew the cap and
wipe the dipstick with a clean rag. Replace the cap and
completely tighten it. Then remove the cap again and
look at the fluid level on the dipstick.
The level should be at the FULL COLD mark. If
necessary, add only enough fluid to bring the level up to
the mark.
What to Use
To determine what kind of fluid to use, see
ªRecommended Fluids and Lubricantsº in the Index.
Always use the proper fluid. Failure to use the proper
fluid can cause leaks and damage hoses and seals.

yellowblue
6-25

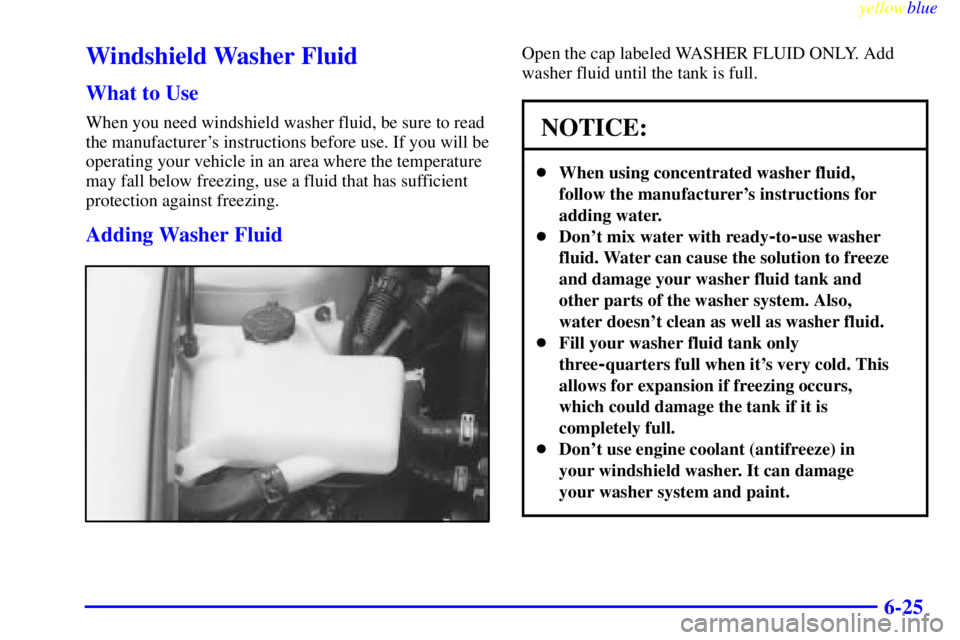

Windshield Washer Fluid
What to Use
When you need windshield washer fluid, be sure to read
the manufacturer's instructions before use. If you will be
operating your vehicle in an area where the temperature
may fall below freezing, use a fluid that has sufficient
protection against freezing.
Adding Washer Fluid
Open the cap labeled WASHER FLUID ONLY. Add
washer fluid until the tank is full.
NOTICE:

When using concentrated washer fluid,
follow the manufacturer's instructions for
adding water.

Don't mix water with ready
-to-use washer
fluid. Water can cause the solution to freeze
and damage your washer fluid tank and
other parts of the washer system. Also,
water doesn't clean as well as washer fluid.

Fill your washer fluid tank only
three
-quarters full when it's very cold. This
allows for expansion if freezing occurs,
which could damage the tank if it is
completely full.

Don't use engine coolant (antifreeze) in
your windshield washer. It can damage
your washer system and paint.

yellowblue
6-26

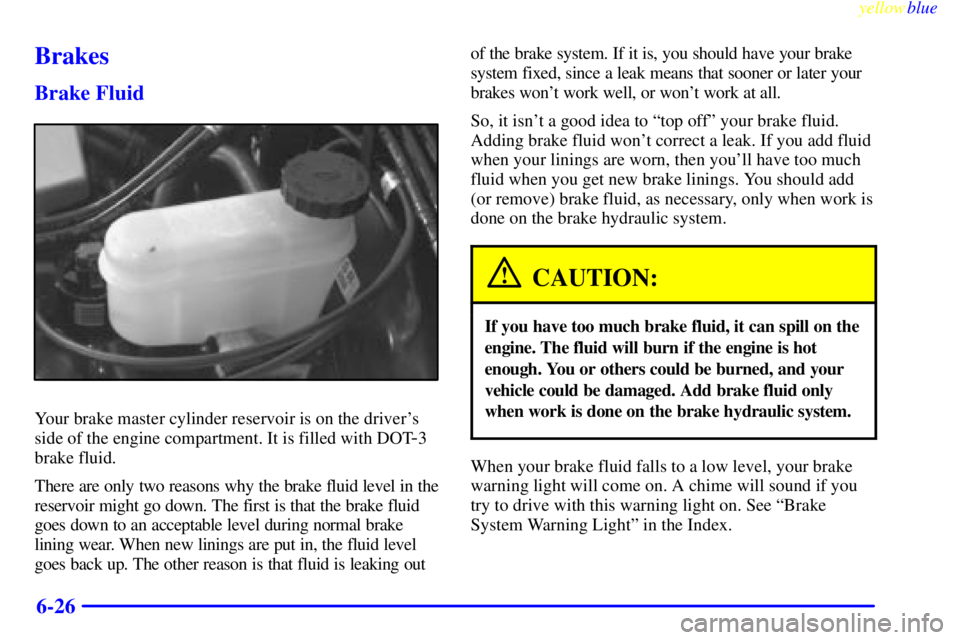

Brakes
Brake Fluid
Your brake master cylinder reservoir is on the driver's
side of the engine compartment. It is filled with DOT
-3
brake fluid.
There are only two reasons why the brake fluid level in the
reservoir might go down. The first is that the brake fluid
goes down to an acceptable level during normal brake
lining wear. When new linings are put in, the fluid level
goes back up. The other reason is that fluid is leaking outof the brake system. If it is, you should have your brake
system fixed, since a leak means that sooner or later your
brakes won't work well, or won't work at all.
So, it isn't a good idea to ªtop offº your brake fluid.
Adding brake fluid won't correct a leak. If you add fluid
when your linings are worn, then you'll have too much
fluid when you get new brake linings. You should add
(or remove) brake fluid, as necessary, only when work is
done on the brake hydraulic system.
CAUTION:
If you have too much brake fluid, it can spill on the
engine. The fluid will burn if the engine is hot
enough. You or others could be burned, and your
vehicle could be damaged. Add brake fluid only
when work is done on the brake hydraulic system.
When your brake fluid falls to a low level, your brake
warning light will come on. A chime will sound if you
try to drive with this warning light on. See ªBrake
System Warning Lightº in the Index.

yellowblue
6-27

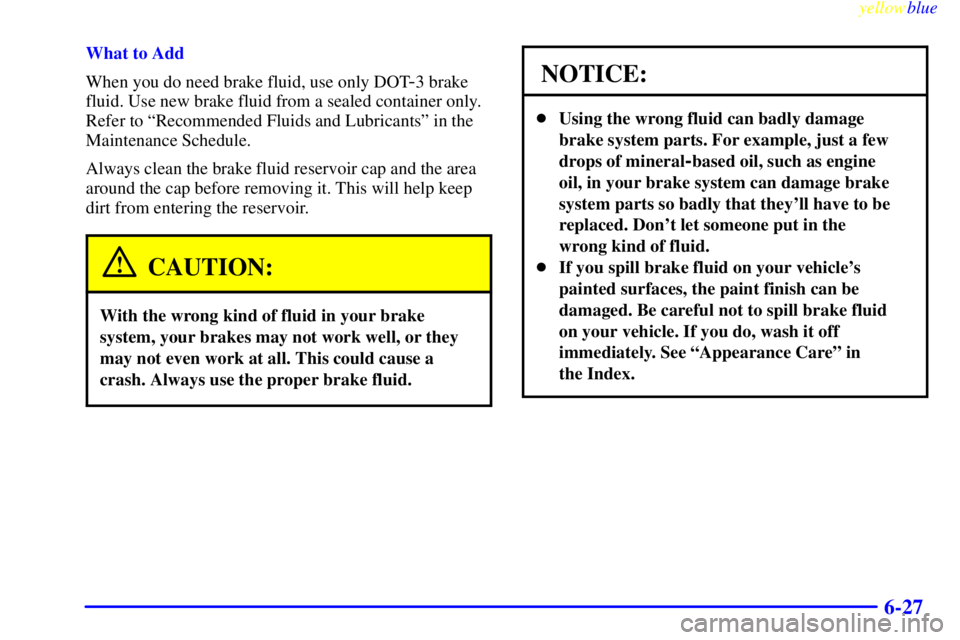

What to Add
When you do need brake fluid, use only DOT
-3 brake
fluid. Use new brake fluid from a sealed container only.
Refer to ªRecommended Fluids and Lubricantsº in the
Maintenance Schedule.
Always clean the brake fluid reservoir cap and the area
around the cap before removing it. This will help keep
dirt from entering the reservoir.
CAUTION:
With the wrong kind of fluid in your brake
system, your brakes may not work well, or they
may not even work at all. This could cause a
crash. Always use the proper brake fluid.
NOTICE:

Using the wrong fluid can badly damage
brake system parts. For example, just a few
drops of mineral
-based oil, such as engine
oil, in your brake system can damage brake
system parts so badly that they'll have to be
replaced. Don't let someone put in the
wrong kind of fluid.

If you spill brake fluid on your vehicle's
painted surfaces, the paint finish can be
damaged. Be careful not to spill brake fluid
on your vehicle. If you do, wash it off
immediately. See ªAppearance Careº in
the Index.

yellowblue
6-31
Bulb Replacement
The following procedure tells you how to replace your
headlamp bulbs. For the type of bulb, see ªReplacement
Bulbsº in the Index.
For any bulb changing procedure not listed in this
section, contact your dealer's service department.
Halogen Bulbs
CAUTION:
Halogen bulbs have pressurized gas inside and
can burst if you drop or scratch the bulb. You or
others could be injured. Be sure to read and
follow the instructions on the bulb package.
Headlamps
A. Headlamp
B. Front Turn Signal
The entire front headlamp assembly must be removed to
replace the headlamps. If more hand clearance is
required, you may find it easier to remove the engine air
cleaner/filter assembly before replacing bulbs on the
driver's side.

yellowblue
6-33
The driver's side low-beam headlamp access area
is behind and between the high
-beam area and the
air cleaner.
1. Loosen the two bolts on the inboard edge of the
headlamp assembly. This allows you to pull out
the assembly for more hand clearance when
changing bulbs.
2. Reach into the assembly
and turn the bulb socket
one
-quarter of a turn
toward the center of the
engine compartment,
while pressing it firmly.
3. Remove the wire connector from the bulb by
lifting the lock tab (B) and pulling it away from the
plastic base.
4. Install the bulb by putting the small tab (D) into the
small notch in the lamp (E).5. Turn the bulb socket one
-quarter of a turn making
sure the tab is properly engaged in the panel slot.
6. To reassemble, attach the wire connector (A) to the
plastic base making sure the lock tab (B) is over the
lock (C).
7. Replace the headlamp assembly and tighten the two
bolts on the inboard edge of the assembly.
Headlamp Aiming
Your vehicle has a headlamp system equipped with
horizontal and vertical aim indicators. The aim has been
pre
-set at the factory and should need no further
adjustment. This is true even though your vertical and
horizontal aim indicators may not fall exactly on the ª0º
(zero) marks on their scales.
If your vehicle is damaged in an accident, the headlamp
aim may be affected. Aim adjustment may be necessary
if it is difficult to see lane markers (for horizontal aim),
or if oncoming drivers flash their high beams at you (for
vertical aim). If you believe your headlamps need to be
re
-aimed, we recommend that you take it to your dealer
for service; however, it is possible for you to re
-aim
your headlamps as described in the following procedure.

yellowblue
6-56
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the underside of the spare tire
cover. It's very helpful if you ever need to order parts.
On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.

yellowblue
6-60
Fuse Usage
18 Not Used
19 Radio
20 Cooling Fan
21 Not Used
22 Not Used
23 Windshield Wipers
24 Flat Pack Motor
25 PCM
26 Cigarette Lighter
27 Crank
28 HVAC BlowerEngine Compartment Fuse Block

yellowblue
6-66
Replacement Bulbs
Exterior Bulb Number. . . . . . . . . . . . . . . . . . . . . . . .
Headlamp
High
-Beam 9005. . . . . . . . . . . . . . . . . . . . . . . . . . .
Low
-Beam 9006. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking/Turn 3057. . . . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tail 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tail/Turn 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior
Rail Courtesy, Reading PC168. . . . . . . . . . . . . . . . . .
Front Overhead Reading PC168. . . . . . . . . . . . . . . . .
For service information on other bulbs, contact your
dealer's service department.
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the Index for
more information.Engine Code 1 (L67) 3.8L V6 SFI
Automatic Transaxle
Drain and Refill 7.4 quarts (7.0 L). . . . . . . . . . . . . .
After Complete Overhaul 10.0 quarts (9.5 L). . . . .
After performing either transaxle procedure, check
fluid level when done. More fluid may be needed.
Belt Tensions
Automatically controlled by a Self
-Tension idler
pulley. Tension adjustment should never be necessary.
Cooling System13.0 quarts (12.3 L) . . . . . . . . . . . . .
Engine Crankcase
Oil change with filter change 4.5 quarts (4.3 L). . . . .
Fuel Tank18.5 gallons (70.0 L) . . . . . . . . . . . . . . . . .
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
Tire Pressure
See Tire
-Loading Information label on the rear edge
of the driver's door.
R
-134a Air Conditioning
See refrigerant charge label under the hood.
All capacities are approximate. When adding, be sure
to fill to the appropriate level as recommended in
this manual.
