2-38
When the vehicle has a low
fluid condition, the
WASHER FLUID LOW
light will come on to remind
you to get more washer
fluid soon.

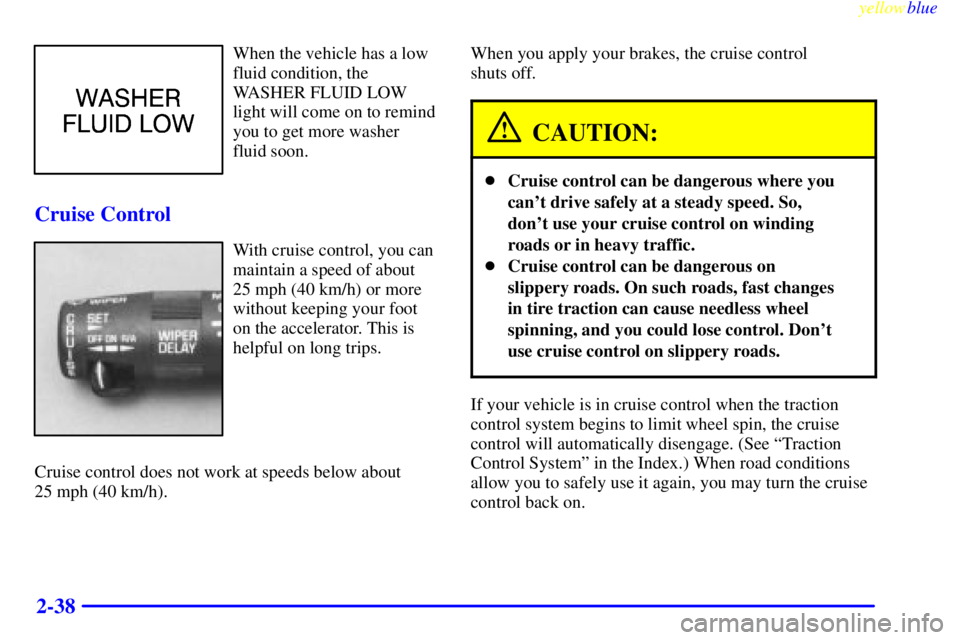

Cruise Control
With cruise control, you can
maintain a speed of about
25 mph (40 km/h) or more
without keeping your foot
on the accelerator. This is
helpful on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).When you apply your brakes, the cruise control
shuts off.
CAUTION:

Cruise control can be dangerous where you
can't drive safely at a steady speed. So,
don't use your cruise control on winding
roads or in heavy traffic.

Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control. Don't
use cruise control on slippery roads.
If your vehicle is in cruise control when the traction
control system begins to limit wheel spin, the cruise
control will automatically disengage. (See ªTraction
Control Systemº in the Index.) When road conditions
allow you to safely use it again, you may turn the cruise
control back on.

yellowblue
4-8

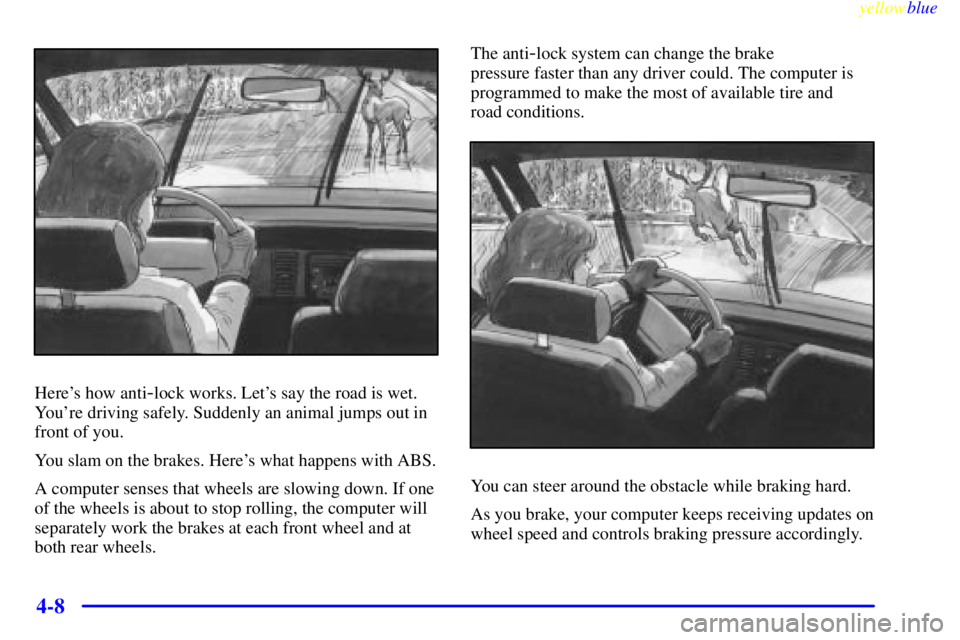

Here's how anti-lock works. Let's say the road is wet.
You're driving safely. Suddenly an animal jumps out in
front of you.
You slam on the brakes. Here's what happens with ABS.
A computer senses that wheels are slowing down. If one
of the wheels is about to stop rolling, the computer will
separately work the brakes at each front wheel and at
both rear wheels.The anti
-lock system can change the brake
pressure faster than any driver could. The computer is
programmed to make the most of available tire and
road conditions.
You can steer around the obstacle while braking hard.
As you brake, your computer keeps receiving updates on
wheel speed and controls braking pressure accordingly.

yellowblue
4-9
Remember: Anti-lock doesn't change the time you need
to get your foot up to the brake pedal or always decrease
stopping distance. If you get too close to the vehicle in
front of you, you won't have time to apply your brakes
if that vehicle suddenly slows or stops. Always leave
enough room up ahead to stop, even though you have
anti
-lock brakes.
Using Anti
-Lock
Don't pump the brakes. Just hold the brake pedal
down firmly and let anti
-lock work for you. You may
hear a motor or clicking noise during a hard stop, but
this is normal.
Traction Control System
Your vehicle has a traction control system that limits
wheel spin. This is especially useful in slippery road
conditions. The system operates only if it senses that
one or both of the front wheels are spinning or
beginning to lose traction. When this happens, the
system works the front brakes and reduces engine
power to limit wheel spin.
You may feel or hear the system working, but this
is normal.If your vehicle is in cruise control when the traction
control system begins to limit wheel spin, the cruise
control will automatically disengage. When road
conditions allow you to safely use it again, you may
reengage the cruise control. (See ªCruise Controlº
in the Index.)
This light should come
on briefly when you start
the engine. If it stays on
or comes on while you
are driving, there's a
problem with your traction
control system.
See ªTraction Control System Warning Lightº in the
Index. When this warning light is on, the system will not
limit wheel spin. Adjust your driving accordingly.
The traction control system automatically comes on
whenever you start your vehicle. To limit wheel spin,
especially in slippery road conditions, you should
always leave the system on. But you can turn the
traction control system off if you ever need to. (You
should turn the system off if your vehicle ever gets stuck
in sand, mud, ice or snow. See ªRocking Your Vehicleº
in the Index.)

yellowblue
4-10
To turn the system off,
press the TRAC CONT
button located on the
instrument panel.
The traction control system warning light will come on
and stay on. If the system is limiting wheel spin when
you press the button, the warning light will come
on
-- but the system won't turn off right away. It
will wait until there's no longer a current need to limit
wheel spin.
You can turn the system back on at any time by pressing
the button again. The traction control system warning
light should go off.
Braking in Emergencies
With anti-lock, you can steer and brake at the same
time. In many emergencies, steering can help you more
than even the very best braking.
Steering
Power Steering
If you lose power steering assist because the engine
stops or the system is not functioning, you can steer but
it will take much more effort.
Magnasteer

Your vehicle is equipped with GM Magnasteer, a
steering system that continuously adjusts the effort you
feel when steering at all vehicle speeds. It provides ease
when parking yet a firm, solid feel at highway speeds.
Steering Tips
Driving on Curves
It's important to take curves at a reasonable speed.
A lot of the ªdriver lost controlº accidents mentioned on
the news happen on curves. Here's why:
Experienced driver or beginner, each of us is subject to
the same laws of physics when driving on curves. The
traction of the tires against the road surface makes it
possible for the vehicle to change its path when you turn
the front wheels. If there's no traction, inertia will keep
the vehicle going in the same direction. If you've ever
tried to steer a vehicle on wet ice, you'll understand this.

yellowblue
4-14

Check your mirrors, glance over your shoulder, and
start your left lane change signal before moving out
of the right lane to pass. When you are far enough
ahead of the passed vehicle to see its front in your
inside mirror, activate your right lane change signal
and move back into the right lane. (Remember that
your right outside mirror is convex. The vehicle you
just passed may seem to be farther away from you
than it really is.)

Try not to pass more than one vehicle at a time
on two
-lane roads. Reconsider before passing the
next vehicle.

Don't overtake a slowly moving vehicle too rapidly.
Even though the brake lamps are not flashing, it may
be slowing down or starting to turn.

If you're being passed, make it easy for the
following driver to get ahead of you. Perhaps you
can ease a little to the right.
Loss of Control
Let's review what driving experts say about what
happens when the three control systems (brakes, steering
and acceleration) don't have enough friction where the
tires meet the road to do what the driver has asked.
In any emergency, don't give up. Keep trying to steer and
constantly seek an escape route or area of less danger.
Skidding
In a skid, a driver can lose control of the vehicle.
Defensive drivers avoid most skids by taking reasonable
care suited to existing conditions, and by not ªoverdrivingº
those conditions. But skids are always possible.
The three types of skids correspond to your vehicle's
three control systems. In the braking skid, your wheels
aren't rolling. In the steering or cornering skid, too
much speed or steering in a curve causes tires to slip and
lose cornering force. And in the acceleration skid, too
much throttle causes the driving wheels to spin.
A cornering skid is best handled by easing your foot off
the accelerator pedal.
If you have the traction control system, remember: It
helps avoid only the acceleration skid.
If you do not have traction control, or if the system is
off, then an acceleration skid is also best handled by
easing your foot off the accelerator pedal.
If your vehicle starts to slide, ease your foot off the
accelerator pedal and quickly steer the way you want the
vehicle to go. If you start steering quickly enough, your
vehicle may straighten out. Always be ready for a
second skid if it occurs.

yellowblue
5-17
If a Tire Goes Flat
It's unusual for a tire to ªblow outº while you're driving,
especially if you maintain your tires properly. If air goes
out of a tire, it's much more likely to leak out slowly.
But if you should ever have a ªblowout,º here are a few
tips about what to expect and what to do:
If a front tire fails, the flat tire will create a drag that
pulls the vehicle toward that side. Take your foot off the
accelerator pedal and grip the steering wheel firmly.
Steer to maintain lane position, and then gently brake to
a stop well out of the traffic lane.
A rear blowout, particularly on a curve, acts much like a
skid and may require the same correction you'd use in a
skid. In any rear blowout, remove your foot from the
accelerator pedal. Get the vehicle under control by
steering the way you want the vehicle to go. It may be
very bumpy and noisy, but you can still steer. Gently
brake to a stop
-- well off the road if possible.
If a tire goes flat, the next part shows how to use your
jacking equipment to change a flat tire safely.
Changing a Flat Tire
If a tire goes flat, avoid further tire and wheel damage
by driving slowly to a level place. Turn on your hazard
warning flashers.
CAUTION:
Changing a tire can cause an injury. The vehicle
can slip off the jack and roll over you or other
people. You and they could be badly injured.
Find a level place to change your tire. To help
prevent the vehicle from moving:
1. Set the parking brake firmly.
2. Put the shift lever in PARK (P).
3. Turn off the engine.
To be even more certain the vehicle won't move,
you can put blocks at the front and rear of the
tire farthest away from the one being changed.
That would be the tire on the other side of the
vehicle, at the opposite end.

yellowblue
5-22

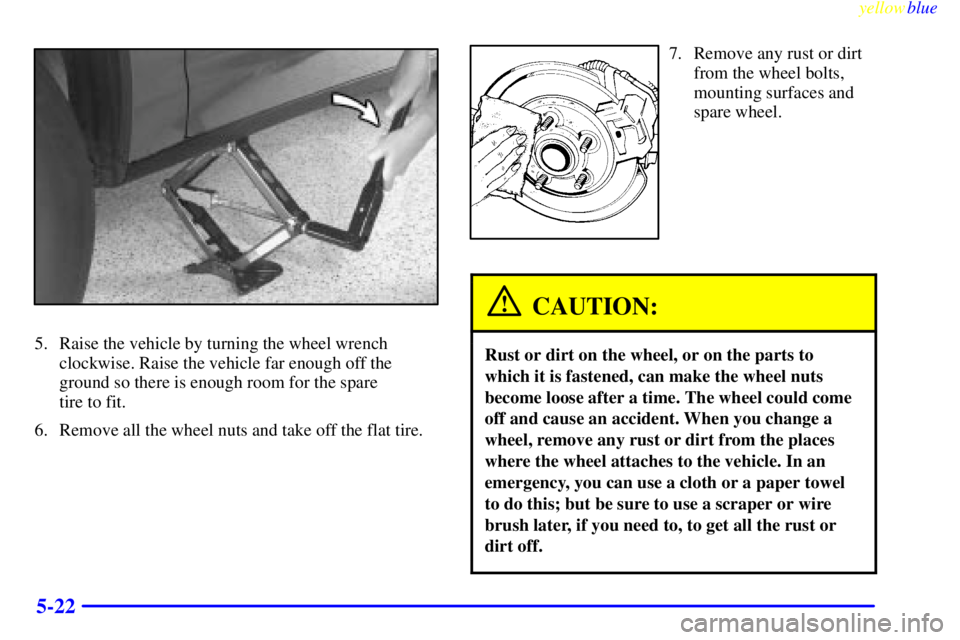

5. Raise the vehicle by turning the wheel wrench
clockwise. Raise the vehicle far enough off the
ground so there is enough room for the spare
tire to fit.
6. Remove all the wheel nuts and take off the flat tire.
7. Remove any rust or dirt
from the wheel bolts,
mounting surfaces and
spare wheel.
CAUTION:
Rust or dirt on the wheel, or on the parts to
which it is fastened, can make the wheel nuts
become loose after a time. The wheel could come
off and cause an accident. When you change a
wheel, remove any rust or dirt from the places
where the wheel attaches to the vehicle. In an
emergency, you can use a cloth or a paper towel
to do this; but be sure to use a scraper or wire
brush later, if you need to, to get all the rust or
dirt off.

yellowblue
6-42

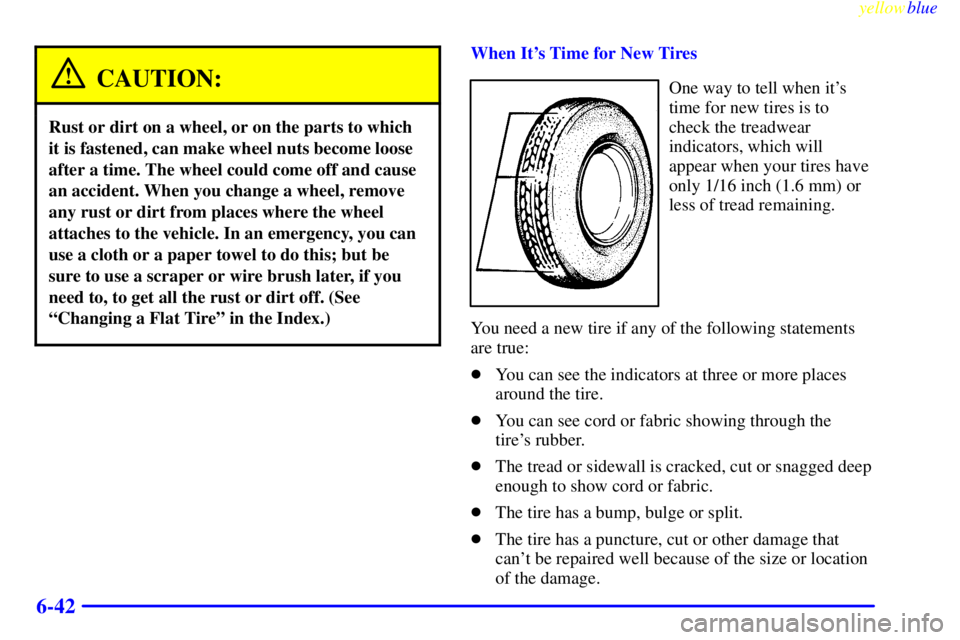

CAUTION:
Rust or dirt on a wheel, or on the parts to which
it is fastened, can make wheel nuts become loose
after a time. The wheel could come off and cause
an accident. When you change a wheel, remove
any rust or dirt from places where the wheel
attaches to the vehicle. In an emergency, you can
use a cloth or a paper towel to do this; but be
sure to use a scraper or wire brush later, if you
need to, to get all the rust or dirt off. (See
ªChanging a Flat Tireº in the Index.)
When It's Time for New Tires
One way to tell when it's
time for new tires is to
check the treadwear
indicators, which will
appear when your tires have
only 1/16 inch (1.6 mm) or
less of tread remaining.
You need a new tire if any of the following statements
are true:

You can see the indicators at three or more places
around the tire.

You can see cord or fabric showing through the
tire's rubber.

The tread or sidewall is cracked, cut or snagged deep
enough to show cord or fabric.

The tire has a bump, bulge or split.

The tire has a puncture, cut or other damage that
can't be repaired well because of the size or location
of the damage.

yellowblue
6-66
Replacement Bulbs
Exterior Bulb Number. . . . . . . . . . . . . . . . . . . . . . . .
Headlamp
High
-Beam 9005. . . . . . . . . . . . . . . . . . . . . . . . . . .
Low
-Beam 9006. . . . . . . . . . . . . . . . . . . . . . . . . . .
Parking/Turn 3057. . . . . . . . . . . . . . . . . . . . . . . . . . .
Back
-Up 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tail 194. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tail/Turn 3057. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Interior
Rail Courtesy, Reading PC168. . . . . . . . . . . . . . . . . .
Front Overhead Reading PC168. . . . . . . . . . . . . . . . .
For service information on other bulbs, contact your
dealer's service department.
Capacities and Specifications
The following approximate capacities are given in
English and metric conversions. Please refer to
ªRecommended Fluids and Lubricantsº in the Index for
more information.Engine Code 1 (L67) 3.8L V6 SFI
Automatic Transaxle
Drain and Refill 7.4 quarts (7.0 L). . . . . . . . . . . . . .
After Complete Overhaul 10.0 quarts (9.5 L). . . . .
After performing either transaxle procedure, check
fluid level when done. More fluid may be needed.
Belt Tensions
Automatically controlled by a Self
-Tension idler
pulley. Tension adjustment should never be necessary.
Cooling System13.0 quarts (12.3 L) . . . . . . . . . . . . .
Engine Crankcase
Oil change with filter change 4.5 quarts (4.3 L). . . . .
Fuel Tank18.5 gallons (70.0 L) . . . . . . . . . . . . . . . . .
Wheel Nut Torque100 lb
-ft (140 N´m) . . . . . . . . . .
Tire Pressure
See Tire
-Loading Information label on the rear edge
of the driver's door.
R
-134a Air Conditioning
See refrigerant charge label under the hood.
All capacities are approximate. When adding, be sure
to fill to the appropriate level as recommended in
this manual.

yellowblue
9-5
Fluids and Lubricants 7-36 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
French Language Manual ii. . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 6
-3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Release Button 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door Release Tag 6-6 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Filling Your Tank 6-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gage 2-78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
In Foreign Countries 6-4 . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuse Block, Rear Compartment 6-63, 6-64 . . . . . . . . . . . . . . .
Fuse Block, Under Rear Seat 6-63, 6-64 . . . . . . . . . . . . . . . . .
Fuses and Circuit Breakers 6-58 . . . . . . . . . . . . . . . . . . . . . . .
Gages
Engine Coolant Temperature 2-73 . . . . . . . . . . . . . . . . . . . .
Fuel 2-78 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Garage Door Opener 2-52, 2-60 . . . . . . . . . . . . . . . . . . . . . . .
Garment Hooks 2-59 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GAWR 4-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Glove Box 2-52 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Gross Axle Weight Rating (GAWR) 4-31 . . . . . . . . . . . . . . . .
Gross Vehicle Weight Rating (GVWR) 4-31 . . . . . . . . . . . . . .
Guide en Fran†ais ii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GVWR 4
-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Halogen Bulbs 6-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard Warning Flashers 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . .
Hazard Warning Light 5-2 . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Head Restraints 1-7 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Headlamps 2-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Aiming 6-33 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Bulb Replacement 6-31 . . . . . . . . . . . . . . . . . . . . . . . . . . . . High/Low Beam Changer 2
-36 . . . . . . . . . . . . . . . . . . . . . .
Wiring 6-57 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hearing Impaired, Customer Assistance 8-4 . . . . . . . . . . . . . .
Heated Outside Rearview Mirror 2-51 . . . . . . . . . . . . . . . . . . .
Heated Seats 1-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Heating 3-5 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
High-Beam Headlamps 2-36 . . . . . . . . . . . . . . . . . . . . . . . . . .
Highway Hypnosis 4-22 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hill and Mountain Roads 4-23 . . . . . . . . . . . . . . . . . . . . . . . . .
Hitches, Trailer 4-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hood
Checking Things Under 6
-8 . . . . . . . . . . . . . . . . . . . . . . . . .
Release 6-9 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Horn 2-34 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Hydroplaning 4-18 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Key Positions 2-19 . . . . . . . . . . . . . . . . . . . . . . . . . .
Ignition Transaxle Lock Check 7-34 . . . . . . . . . . . . . . . . . . . .
Illuminated Entry 2-43 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inflation, Tire 6-40 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside Day/Night Rearview Mirror 2-46 . . . . . . . . . . . . . . . . .
Inspections 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Brake System 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine Cooling System 7-35 . . . . . . . . . . . . . . . . . . . . . . . .
Exhaust Systems 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front-Wheel-Drive Axle Boot and Seal 7-35 . . . . . . . . . . .
Steering 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Suspension 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Throttle System 7-35 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
