2-17
Ignition Positions
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be injured or even killed. They could
operate power windows or other controls or even
make the vehicle move. Don't leave the keys in
the vehicle with children.
With the ignition key in the ignition, you can turn the
switch to five positions:
ACCESSORY (A): The accessory position lets you use
the radio and windshield wipers when the engine is off.
To use ACC, push in the key and turn it toward you.
Your steering wheel will stay locked.
LOCK (B): Before you put the key into the ignition
switch, the switch is in LOCK. It's also the only position
from which you can remove your key. This position
locks your ignition, steering wheel and transaxle. It's a
theft
-deterrent feature.
OFF (C): This position lets you turn off the engine but
still turn the steering wheel. It doesn't lock the steering
wheel. Use OFF if you must have your vehicle pushed
or towed.
RUN (D): This position is where the key returns after
you start your vehicle. With the engine off, you can
use RUN to display some of your warning and
indicator lights.
START (E): This position starts your engine.
A warning chime will sound if you open the driver's
door when the ignition is in OFF, LOCK or
ACCESSORY and the key is in the ignition.

yellowblue
2-20 To Use the Engine Coolant Heater
1. Turn off the engine.
2. Open the hood and unwrap the electrical cord. The
cord is attached to the underside of the vehicle's
diagonal brace, which is located above the air
cleaner assembly.
3. Plug it into a normal, grounded 110
-volt AC outlet.
CAUTION:
Plugging the cord into an ungrounded outlet
could cause an electrical shock. Also, the wrong
kind of extension cord could overheat and cause
a fire. You could be seriously injured. Plug the
cord into a properly grounded three
-prong
11 0
-volt AC outlet. If the cord won't reach, use a
heavy
-duty three-prong extension cord rated for
at least 15 amps.
4. Before starting the engine, be sure to unplug and
store the cord as it was before to keep it away
from moving engine parts. If you don't, it could
be damaged.How long should you keep the coolant heater plugged
in? The answer depends on the outside temperature, the
kind of oil you have, and some other things. Instead of
trying to list everything here, we ask that you contact
your dealer in the area where you'll be parking your
vehicle. The dealer can give you the best advice for that
particular area.
Automatic Transaxle Operation
Your automatic transaxle will have a shift lever on the
steering column.
The graphic shown above is displayed on your
instrument panel cluster in reference to your steering
column shift lever.

yellowblue
3-7 Dual Automatic ComforTemp Climate
Control (If Equipped)
With this system, you set a temperature. You can then
either let the system automatically control airflow
direction and force to maintain the temperature, or you
can manually adjust it. The system works best if you
keep your windows closed while using it.
Automatic Control
For the most efficient operation, you should set the
system temperature and press AUTO. The system will
select the best fan speed and airflow settings to keep you
comfortable. The air conditioning compressor will run if
the outside temperature is above 40
F (4
C). You may
notice a delay of two to three minutes before the fan
comes on at start up in cool weather.Temperature Control
The TEMP switch sets the temperature for the entire system
when the light on the DUAL button isn't lit. If the DUAL
button light is lit, this master temperature control sets the
temperature for the driver only. Press the up arrow to raise the
temperature and press the down arrow to lower the
temperature. The display will show your selection for a few
seconds, then the outside temperature will be displayed. If
you push the AUTO button, the system will control the fan
speed and airflow.
Passenger's Temperature Control
The PASSENGER CONTROL buttons with the arrows
adjust the temperature on the passenger's side so it is
warmer or cooler than the temperature set by the driver.
Push the DUAL button so that the indicator light is lit.
Press the right arrow button to raise the temperature.
Press the left arrow button to lower the temperature. The
display will not show the passenger's temperature, only
that of the driver. Indicators in the passenger control
section will show passenger temperature relative to the
driver's set temperature.

yellowblue
3-8

The amber light indicates the same temperature as
set for the driver.

The red lights indicate a warmer temperature than
that of the driver.

The blue lights indicate a cooler temperature than
that of the driver.
Manual Control
If you prefer to manually control the heating, cooling
and ventilation in your vehicle, you can select airflow
direction, fan speed, outside or recirculated air and air
compressor operation with the following buttons:
AIR FLOW: This control has several settings to control
the direction of airflow when the system is not in AUTO.
To access the various modes available, continue to press
the AIR FLOW rocker button up or down until the
desired mode appears in the display:

WINDSHIELD/FLOOR: This setting directs half
of the air to the floor ducts and half to the defroster
and side window vents.

MID/FLOOR: This setting directs half of the air
through the instrument panel outlets. Most of the
remaining air is directed through the floor ducts and
a little to the defroster and side window vents.
MID: This setting directs air through the instrument
panel outlets.

FLOOR: This setting sends most of the air through
the ducts near the floor. The rest comes out of the
defroster and side window vents.
FRONT: This setting brings in outside air and directs
most of the air through the defrost vent. Some of the air also
goes to the floor ducts and the side window defogger outlets.
The indicator on the button will light and WINDSHIELD
will be lit in the display. The air conditioning compressor will
run automatically in this setting unless the outside
temperature is below 40F (4C).
VENT: This pushbutton turns the air conditioning
compressor on and off. The indicator is lit when the
compressor is turned off. Recirculation is not permitted
when the compressor is off. The system will try to control
the temperature automatically, but without the compressor.
VENT is not permitted in FRONT defrost mode. If the
VENT button is pushed while in FRONT defrost mode,
the indicator will light for one second and then turn off.

yellowblue
3-9
RECIRC: This setting recirculates much of the air
inside your vehicle. This setting is not permitted in
FRONT defrost mode and is only permitted in
WINDSHIELD/FLOOR mode if the compressor is
turned on. The indicator light will be lit when
recirculation is engaged, but will light for one second
and then turn off if selected when not permitted.
Heating (Engine Coolant Heater)
If your vehicle has an engine coolant heater, you can use
it to help your system provide warm air faster when it's
cold outside
-- 0
F (-18
C) or lower. An engine
coolant heater warms the coolant your engine and
heating system use to provide heat. See ªEngine Coolant
Heaterº in the Index.
Defogging and Defrosting
Your system has two settings for clearing the front and
side windows. To defrost the windows quickly, press the
FRONT button; set the temperature to 90
F (32
C),
select high fan speed and turn the DUAL button off. To
warm passengers while keeping the windows clear, push
the AIR FLOW button until WINDSHIELD/FLOOR
appears in the display. Select fan speed for comfort and
windshield clearing performance.
Rear Window Defogger
The rear window defogger uses a warming grid to
remove fog from the rear window. Press the button to
turn the rear defogger on. It will turn itself off after
about 10 minutes. If you turn it on again, the rear
defogger will only run for about five minutes before
turning off. You can also turn it off by pressing the
button again. The picture above on the left refers to the
defogger button that is found on a Manual Single Zone
Climate Control system or Dual ComforTemp Climate
Control system; the button on the right is found on the
Dual Automatic ComforTemp Climate Control system.

yellowblue

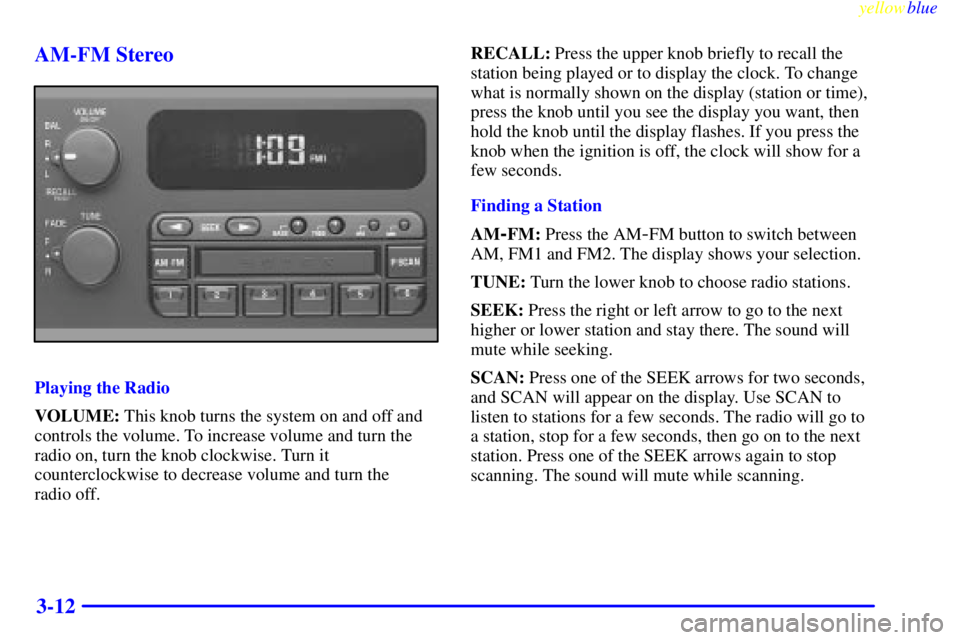

3-12 AM-FM Stereo
Playing the Radio
VOLUME: This knob turns the system on and off and
controls the volume. To increase volume and turn the
radio on, turn the knob clockwise. Turn it
counterclockwise to decrease volume and turn the
radio off.RECALL: Press the upper knob briefly to recall the
station being played or to display the clock. To change
what is normally shown on the display (station or time),
press the knob until you see the display you want, then
hold the knob until the display flashes. If you press the
knob when the ignition is off, the clock will show for a
few seconds.
Finding a Station
AM
-FM: Press the AM-FM button to switch between
AM, FM1 and FM2. The display shows your selection.
TUNE: Turn the lower knob to choose radio stations.
SEEK: Press the right or left arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press one of the SEEK arrows for two seconds,
and SCAN will appear on the display. Use SCAN to
listen to stations for a few seconds. The radio will go to
a station, stop for a few seconds, then go on to the next
station. Press one of the SEEK arrows again to stop
scanning. The sound will mute while scanning.

yellowblue

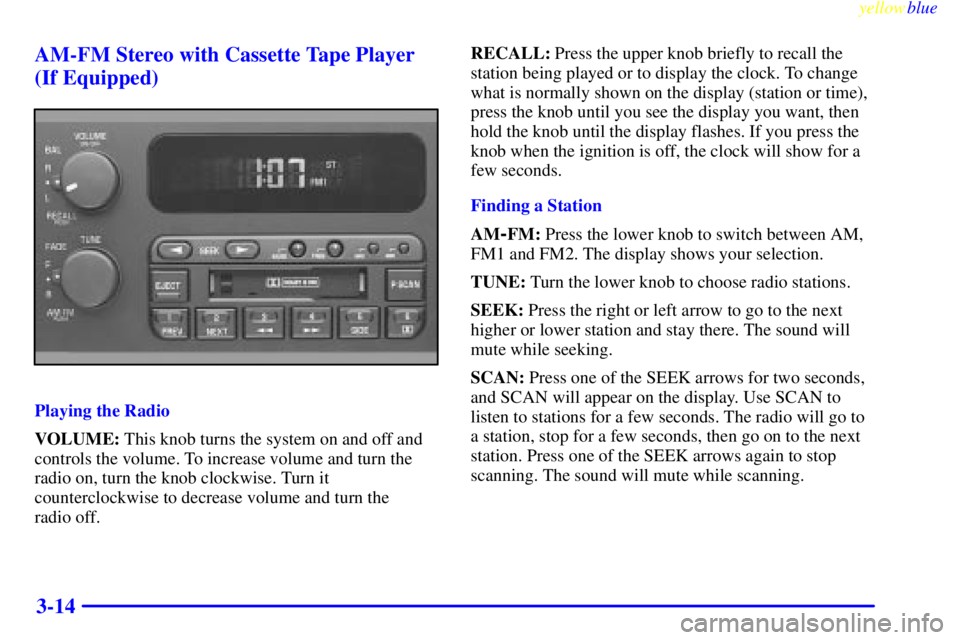

3-14 AM-FM Stereo with Cassette Tape Player
(If Equipped)
Playing the Radio
VOLUME: This knob turns the system on and off and
controls the volume. To increase volume and turn the
radio on, turn the knob clockwise. Turn it
counterclockwise to decrease volume and turn the
radio off.RECALL: Press the upper knob briefly to recall the
station being played or to display the clock. To change
what is normally shown on the display (station or time),
press the knob until you see the display you want, then
hold the knob until the display flashes. If you press the
knob when the ignition is off, the clock will show for a
few seconds.
Finding a Station
AM
-FM: Press the lower knob to switch between AM,
FM1 and FM2. The display shows your selection.
TUNE: Turn the lower knob to choose radio stations.
SEEK: Press the right or left arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press one of the SEEK arrows for two seconds,
and SCAN will appear on the display. Use SCAN to
listen to stations for a few seconds. The radio will go to
a station, stop for a few seconds, then go on to the next
station. Press one of the SEEK arrows again to stop
scanning. The sound will mute while scanning.

yellowblue
3-16
While the tape is playing, use the VOLUME, FADE,
BAL, BASS and TREB controls just as you do for the
radio. Other controls may have different functions when
a tape is inserted. The display will show an arrow to
show which side of the tape is playing.
If you want to insert a tape when the ignition or radio is
off, first press EJECT or RECALL. Note that the
cassette tape adapter kits for portable compact disc
players will work in your cassette tape player.
Your tape bias is set automatically.
If E and a number appear on the radio display, the tape
won't play because of an error.

E10: The tape is tight and the player can't turn the
tape hubs. Remove the tape. Hold the tape with the
open end down and try to turn the right hub
counterclockwise with a pencil. Turn the tape over
and repeat. If the hubs do not turn easily, your tape
may be damaged and should not be used in the
player. Try a new tape to make sure your player is
working properly.

E11: The tape is broken. Try a new tape.If any error occurs repeatedly or if an error can't be
corrected, please contact your dealer. If your radio
displays an error number, write it down and provide it to
your dealer when reporting the problem.
PREV (1): Press this button to search for the previous
selection on the tape. Your tape must have at least three
seconds of silence between each selection for PREV to
work. The sound will mute while seeking.
NEXT (2): Press this button to search for the next
selection on the tape. Your tape must have at least three
seconds of silence between each selection for NEXT to
work. The sound will mute while seeking.
The SEEK left and right arrows will also find the
previous and next selections on the tape.
 (3): Press this button to reverse the tape rapidly.
Press it again to return to playing speed. The radio will
play while the tape reverses.


(4): Press this button to advance quickly to
another part of the tape. Press the button again to return
to playing speed. The radio will play while the
tape advances.
SIDE (5): Press this button to change the side of the
tape that is playing.

yellowblue
3-17

(6): Press this button to reduce background noise.
The display will show either OFF or ON for a few
seconds when you press the button.
Dolby Noise Reduction is manufactured under a license
from Dolby Laboratories Licensing Corporation. Dolby
and the double
-D symbol are trademarks of Dolby
Laboratories Licensing Corporation.
EJECT: Press this button to remove the tape. The radio
will play.
CLN: If this message appears on the display, the
cassette tape player needs to be cleaned. It will still play
tapes, but you should clean it as soon as possible to
prevent damage to the tapes and player. See ªCare of
Your Cassette Tape Playerº in the Index. After you clean
the player, press and hold EJECT for five seconds to
reset the CLN indicator. The radio will display
--- to
show the indicator was reset.

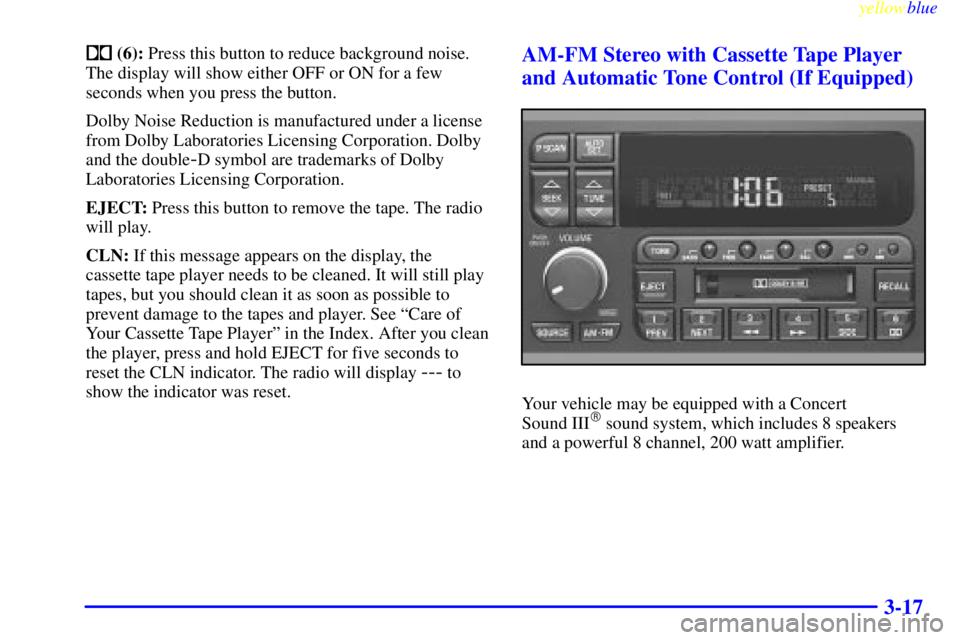

AM-FM Stereo with Cassette Tape Player
and Automatic Tone Control (If Equipped)
Your vehicle may be equipped with a Concert
Sound III
sound system, which includes 8 speakers
and a powerful 8 channel, 200 watt amplifier.

yellowblue
3-18
Playing the Radio
VOLUME: Press this knob to turn the system on and
off. To increase volume, turn the knob clockwise. Turn
it counterclockwise to decrease the volume.
RECALL: Press this button briefly to recall the station
being played or to display the clock. To change what is
normally shown on the display (station or time), press this
button until you see the display you want, then hold the
button until the display flashes. If you press the button when
the ignition is off, the clock will show for a few seconds.
Finding a Station
AM
-FM: Press this button to switch between AM, FM1
and FM2. The display shows your selection.
TUNE: Press the up or down arrow to choose
radio stations.
SEEK: Press the up or down arrow to go to the next
higher or lower station and stay there. The sound will
mute while seeking.
SCAN: Press one of the SEEK arrows for two seconds
and SCAN will appear on the display. Use SCAN to
listen to stations for a few seconds. The radio will go to
a station, stop for a few seconds, then go on to the next
station. Press one of the SEEK buttons again to stop
scanning. The sound will mute while scanning.PUSHBUTTONS: The six numbered pushbuttons let
you return to your favorite stations. You can set up to
18 stations (six AM, six FM1 and six FM2). Just:
1. Turn the radio on.
2. Press AM
-FM to select the band.
3. Tune in the desired station.
4. Press TONE to select the setting you prefer.
5. Press and hold one of the six numbered buttons. The
sound will mute. When it returns, release the button.
Whenever you press that numbered button, the
station you set will return and the tone you selected
will be automatically selected for that button.
6. Repeat the steps for each pushbutton.
P SCAN: Press this button to listen to each of your
preset stations for a few seconds. The radio will go to
the first preset station, stop for a few seconds, then go
on to the next preset station. Press P SCAN again to stop
scanning. If a preset station has weak reception, the
radio will not stop at the preset station.
