Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-10 Remote Keyless Entry
2
-17 Trunk
2
-20 Theft
2
-21 PASS-Key
II
2
-22 New Vehicle ªBreak-Inº
2
-22 Ignition Positions
2
-24 Starting Your Engine
2
-25 Engine Coolant Heater (If Equipped)
2
-26 Automatic Transaxle Operation
2
-30 Parking Brake
2
-31 Shifting Into PARK (P)
2
-33 Shifting Out of PARK (P)
2
-34 Parking Over Things That Burn
2
-34 Engine Exhaust2
-35 Running Your Engine While You're Parked
2
-36 Horn
2
-36 Tilt Wheel
2
-36 Turn Signal/Multifunction Lever
2
-42 Exterior Lamps
2
-44 Interior Lamps
2
-46 Mirrors
2
-50 Storage Compartments
2
-52 Sun Visors
2
-52 Auxiliary Power Connection (Power Drop)
2
-53 OnStar
System (If Equipped)
2
-57 Sunroof (If Equipped)
2
-58 The Instrument Panel -- Your
Information System
2
-60 Instrument Panel Cluster
2
-61 Warning Lights, Gages and Indicators

2-2

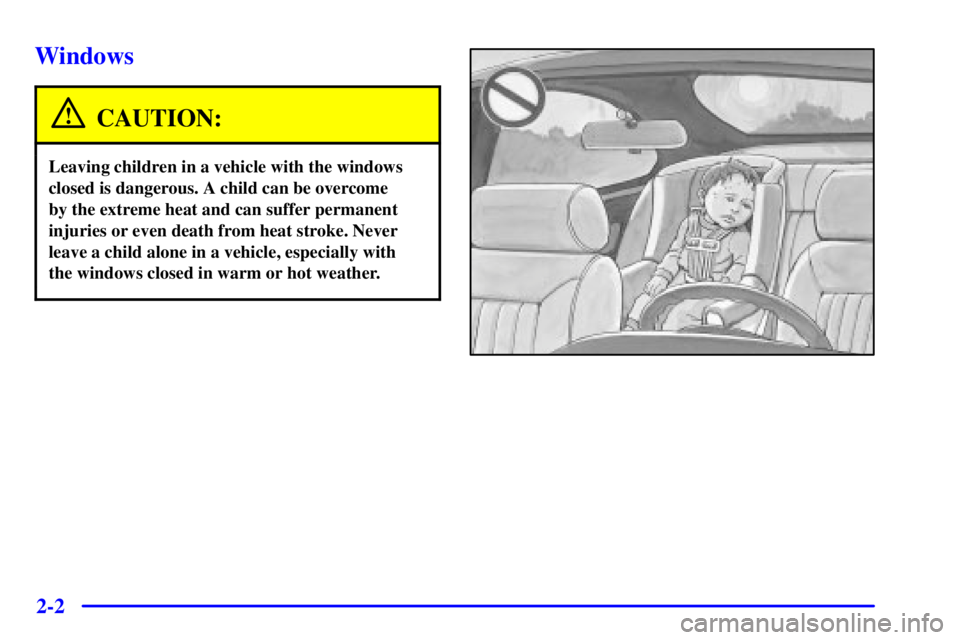

Windows
CAUTION:
Leaving children in a vehicle with the windows
closed is dangerous. A child can be overcome
by the extreme heat and can suffer permanent
injuries or even death from heat stroke. Never
leave a child alone in a vehicle, especially with
the windows closed in warm or hot weather.

2-3 Power Windows
Switches on the driver's door armrest control each
of the windows when the ignition is on. In addition,
each passenger's door has a switch for its own window.Express
-Down Window
The driver's window switch has an express
-down
feature. This switch is labeled AUTO. Tap the rear of
the switch and the driver's window will open a small
amount. If the rear of the switch is pressed all the
way down, the window will go all the way down.
To stop the window while it is lowering, press the front
of the switch. To raise the window, press and hold the
front of the switch.
The driver's window controls also include a lock
-out
switch. Press LOCK to stop front and rear passengers
from using their window switches. The driver can still
control all the windows with the lock on. Press the other
side of the LOCK button for normal window operation.

2-4

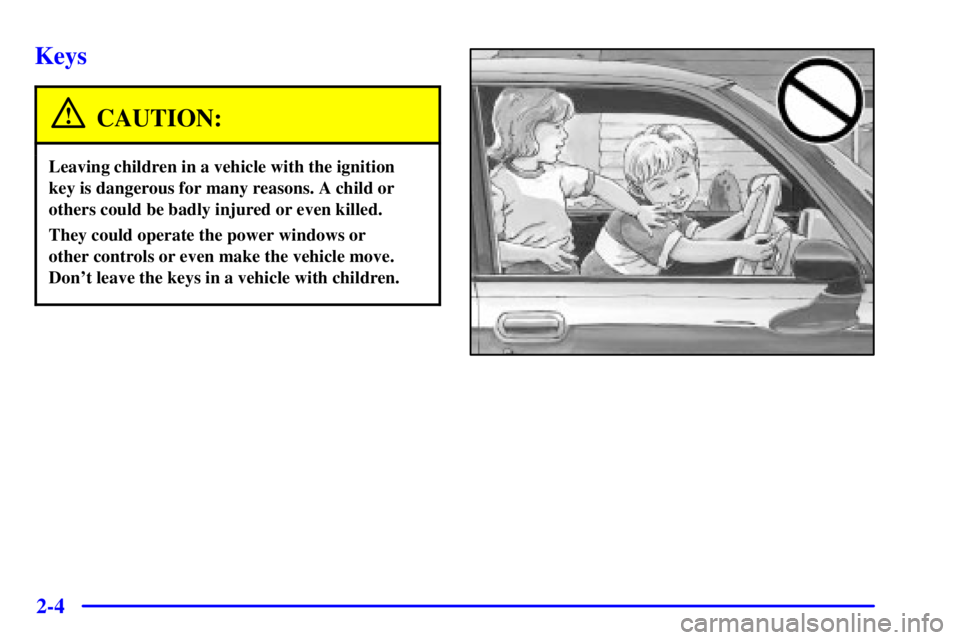

Keys
CAUTION:
Leaving children in a vehicle with the ignition
key is dangerous for many reasons. A child or
others could be badly injured or even killed.
They could operate the power windows or
other controls or even make the vehicle move.
Don't leave the keys in a vehicle with children.

2-5
The ignition key is for the
ignition only.
The door key is for the
doors and all other locks.The ignition and door keys don't have plugs.
Your dealer or Buick Roadside Assistance has the
code for your keys.
If you need a new ignition or door key, contact your
dealer who can obtain the correct key code. Also, see
ªRoadside Assistanceº in the Index for more information.
NOTICE:
Your vehicle has a number of features that can
help prevent theft. But you can have a lot of
trouble getting into your vehicle if you ever
lock your keys inside. You may even have to
damage your vehicle to get in. So be sure you
have extra keys.

2-6

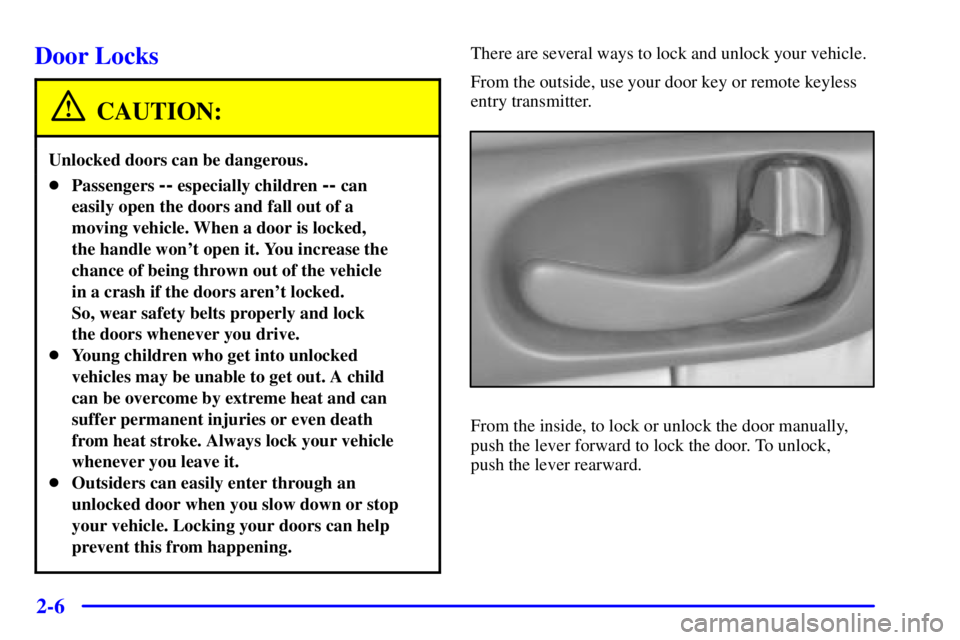

Door Locks
CAUTION:
Unlocked doors can be dangerous.

Passengers -- especially children -- can
easily open the doors and fall out of a
moving vehicle. When a door is locked,
the handle won't open it. You increase the
chance of being thrown out of the vehicle
in a crash if the doors aren't locked.
So, wear safety belts properly and lock
the doors whenever you drive.

Young children who get into unlocked
vehicles may be unable to get out. A child
can be overcome by extreme heat and can
suffer permanent injuries or even death
from heat stroke. Always lock your vehicle
whenever you leave it.

Outsiders can easily enter through an
unlocked door when you slow down or stop
your vehicle. Locking your doors can help
prevent this from happening.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or remote keyless
entry transmitter.
From the inside, to lock or unlock the door manually,
push the lever forward to lock the door. To unlock,
push the lever rearward.

2-7 Power Door Locks
Your vehicle is equipped
with front power door lock
switches. Press a power
door lock switch to lock
or unlock all doors.
The rear doors do not have power door lock switches.
There is a lever on each rear door that is used to
manually lock or unlock each door. Manual locks
cannot lock or unlock all doors.
Programmable Automatic Power
Door Locks
Programmable automatic power door locks is a standard
feature that is intended to provide enhanced security and
convenience by automatically locking and unlocking
doors. This feature provides four operating modes.Programmable Modes
Your vehicle can be programmed to one of the
following modes.
Mode 1: No automatic door lock or unlock.
Mode 2:

Automatic all
-door lock when the transaxle is shifted
out of PARK (P); no automatic door unlock.

Automatic door relock when any door is unlocked,
opened and then all doors are again closed while the
vehicle is not in PARK (P) or NEUTRAL (N) and
the driver's foot is on the brake pedal.
Mode 3:

Automatic all
-door lock when the transaxle is shifted
out of PARK (P).

Automatic all
-door unlock when the transaxle is
shifted into PARK (P).

Automatic door relock when any door is unlocked,
opened and then all doors are again closed while the
vehicle is not in PARK (P) or NEUTRAL (N) and
the driver's foot is on the brake pedal.

2-8
Mode 4:

Automatic all
-door lock when the transaxle is shifted
out of PARK (P).

Automatic driver's door only unlock when the
transaxle is shifted into PARK (P).

Automatic door relock when any door is unlocked,
opened and then all doors are again closed while the
vehicle is not in PARK (P) or NEUTRAL (N) and
the driver's foot is on the brake pedal.
When your vehicle was shipped from the factory, it was
programmed to Mode 3. The mode to which your
vehicle was programmed may have been changed since
it left the factory. To determine the programmable mode
to which your vehicle is programmed or to program
your vehicle to a different mode, do the following:
1. Turn the ignition key to RUN.
2. Close all of the doors.
3. Apply your regular brakes.
4. Press and hold the power door lock switch in the
lock position. While holding the door lock switch in
the lock position, move the shift lever out of and
back into PARK (P).After an initial transaxle cycle, each additional cycle
will advance the operating mode by one, starting from
the current operating mode. During this procedure, the
automatic door lock and unlock functions will operate
as defined by each mode listed previously, providing
the driver with feedback of the current operating mode.
If cycled beyond Mode 4, the vehicle will enter
operating Mode 1. When the door lock switch is
released, the vehicle will remain in the most recent
operating mode.
Disconnecting the vehicle's battery for up to a year will
not change the programmed mode of the programmable
automatic power door locks.

2-9 Rear-Door Child Security Locks
Your vehicle is equipped with rear-door child security
locks that help prevent passengers from opening the rear
doors of your vehicle from the inside. To use one of
these locks:
1. Open one of the rear doors.
2. On the inside of the
rear door will be a lock.
Insert your key into
this lock and turn it
upward. This will
engage the safety lock.
To disengage the feature,
turn the lock downward.
3. Close the door.
4. Do the same thing to the other rear door lock.
The rear doors of your vehicle cannot be opened from the
inside when this feature is in use. If you want to open the
rear door when the security lock is on, unlock the door
from the inside and then open the door from the outside.
Lockout Protection Feature
This feature prevents a driver who has left the key in the
vehicle's ignition from locking the doors by using the
power door locks while any door is open. The feature
works by disabling the power door locks when a key is
in the ignition and any door is open.
You may override the lockout protection feature by
holding the power door lock switch in the lock position
for more than three seconds while the key is in the
ignition and any door is open.
Remember, this feature can't guarantee that you'll never
be locked out of your vehicle. If you use the manual
door lock or if you don't leave the key in the ignition,
you could still lock your keys inside your vehicle.
Always remember to take your keys with you.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside. Then get out and
close the door. (Also see ªDelayed Lockingº in this
section for more information.)

2-10
Remote Keyless Entry
With this feature, you can lock and unlock your doors
or unlock your trunk from about 3 feet (1 m) up to
30 feet (9 m) away using the remote keyless entry
transmitter supplied with your vehicle.
Your remote keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received,
including interference that may cause undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.Changes or modifications to this system by other than
an authorized service facility could void authorization to
use this equipment.
At times you may notice a decrease in range. This is
normal for any remote keyless entry system. If the
transmitter does not work or if you have to stand closer
to your vehicle for the transmitter to work, try this:

Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.

Check the location. Other vehicles or objects may
be blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.

Check to determine if battery replacement is
necessary. See the instructions that follow.

If you're still having trouble, see your dealer or
a qualified technician for service.
