clock BUICK ENCLAVE 2009 Owner's Guide

Secondary Latch System
This vehicle has an underbody
mounted tire hoist assembly that has
a secondary latch system. It is
designed to stop the compact spare
tire from suddenly falling off the
vehicle if the cable holding the spare
tire is damaged. For the secondary
latch to work, the tire must be
stowed with the valve stem pointing
down. SeeStoring a Flat or
Spare Tire and Tools on page 5-80
for instructions on storing the
spare tire correctly.
{CAUTION
Before beginning this procedure
read all the instructions. Failure to
read and follow the instructions
could damage the hoist assembly
and you and others could get
hurt. Read and follow the
instructions listed next.To release the spare tire from the
secondary latch:
{CAUTION
Someone standing too close
during the procedure could be
injured by the jack. If the spare
tire does not slide off the jack
completely, make sure no one is
behind you or on either side of
you as you pull the jack out from
the under spare.
1. If the cable is not visible, start
this procedure at Step 3.2. Turn the lug wrench
counterclockwise until
approximately 6 inches
(15 cm) of cable is exposed.
3. Attach the lug wrench to the jack
and raise the jack at least
10 turns.
4. Place the jack under the vehicle,
ahead of the rear bumper.
Position the center lift point of
the jack under the center of
the spare tire. All-Wheel-Drive Vehicle shown
5-78 Service and Appearance Care

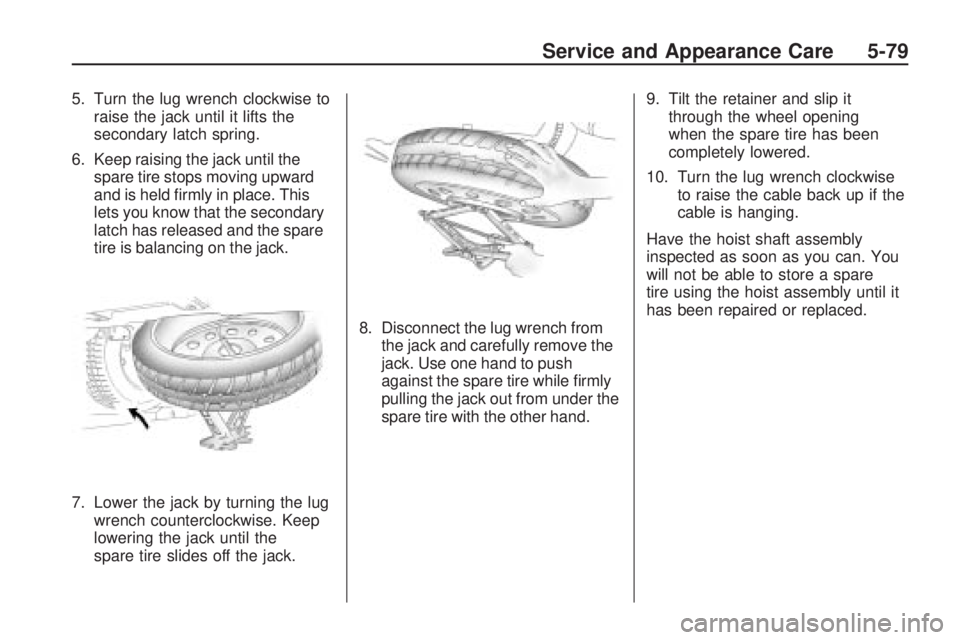

5. Turn the lug wrench clockwise to
raise the jack until it lifts the
secondary latch spring.
6. Keep raising the jack until the
spare tire stops moving upward
and is held rmly in place. This
lets you know that the secondary
latch has released and the spare
tire is balancing on the jack.
7. Lower the jack by turning the lug
wrench counterclockwise. Keep
lowering the jack until the
spare tire slides off the jack.8. Disconnect the lug wrench from
the jack and carefully remove the
jack. Use one hand to push
against the spare tire while rmly
pulling the jack out from under the
spare tire with the other hand.9. Tilt the retainer and slip it
through the wheel opening
when the spare tire has been
completely lowered.
10. Turn the lug wrench clockwise
to raise the cable back up if the
cable is hanging.
Have the hoist shaft assembly
inspected as soon as you can. You
will not be able to store a spare
tire using the hoist assembly until it
has been repaired or replaced.
Service and Appearance Care 5-79

8. Make sure the metal tube is
centered at the striker. Push
the tube toward the front of the
vehicle.
9. Close the liftgate and make sure
it is latched properly.
Storing the Tools
A. Tool Bag
B. Wing Bolt
C. Jack
Put back all tools as they were
stored in the jack storage
compartment and put the
compartment cover back on.
1. Ensure that the bottom of the
jack is facing toward you.
2. Turn the jack (C) on its side and
place down on the holding
bracket.3. Reinstall the wing bolt (B) by
turning clockwise.
4. To replace the cover, line up the
tab at the front of the cover with
the notch in the cover opening.
Push the cover in place and
make sure that the rear clips are
in the slots and push the
cover closed.
Store the center cap or the plastic
bolt-on wheel covers until a full size
tire is put back on the vehicle. When
you replace the compact spare with a
full-size tire, reinstall the bolt-on
wheel covers or the center cap.
Hand-tighten them over the wheel
nuts, using the lug wrench.
