198 Driving and Operating
If the Vehicle Is Stuck
Slowly and cautiously spin the
wheels to free the vehicle when
stuck in sand, mud, ice, or snow.
If stuck too severely for the traction
system to free the vehicle, turn the
traction system off and use the
rocking method. SeeTraction
Control/Electronic Stability Control
0 222.
{Warning
If the vehicle's tires spin at high
speed, they can explode, and you
or others could be injured. The
vehicle can overheat, causing an
engine compartment fire or other
damage. Spin the wheels as little
as possible and avoid going
above 56 km/h (35 mph).
Select All-Wheel Drive (AWD)
Mode.
See Driver Mode Control 0223 and
All-Wheel Drive 0218.
Rocking the Vehicle to Get
it Out
Turn the steering wheel left and
right to clear the area around the
front wheels. Turn off any traction
system. Shift back and forth
between R (Reverse) and a low
forward gear, spinning the wheels
as little as possible. To prevent
transmission wear, wait until the
wheels stop spinning before shifting
gears. Release the accelerator
pedal while shifting, and press
lightly on the accelerator pedal
when the transmission is in gear.
Slowly spinning the wheels in the
forward and reverse directions
causes a rocking motion that could
free the vehicle. If that does not get
the vehicle out after a few tries, it
might need to be towed out. If the
vehicle does need to be towed out,
see Towing the Vehicle 0331.
Vehicle Load Limits
It is very important to know how
much weight the vehicle can
carry. This weight is called the vehicle capacity weight and
includes the weight of all
occupants, cargo, and all
nonfactory-installed options.
Two labels on the vehicle may
show how much weight it may
properly carry, the Tire and
Loading Information label and
the Certification/Tire label.
{Warning
Do not load the vehicle any
heavier than the Gross
Vehicle Weight Rating
(GVWR), or either the
maximum front or rear Gross
Axle Weight Rating (GAWR).
This can cause systems to
break and change the way the
vehicle handles. This could
cause loss of control and a
crash. Overloading can also
reduce stopping distance,
damage the tires, and shorten
the life of the vehicle.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
12146155) - 2019 - crc - 9/10/18
Driving and Operating 217

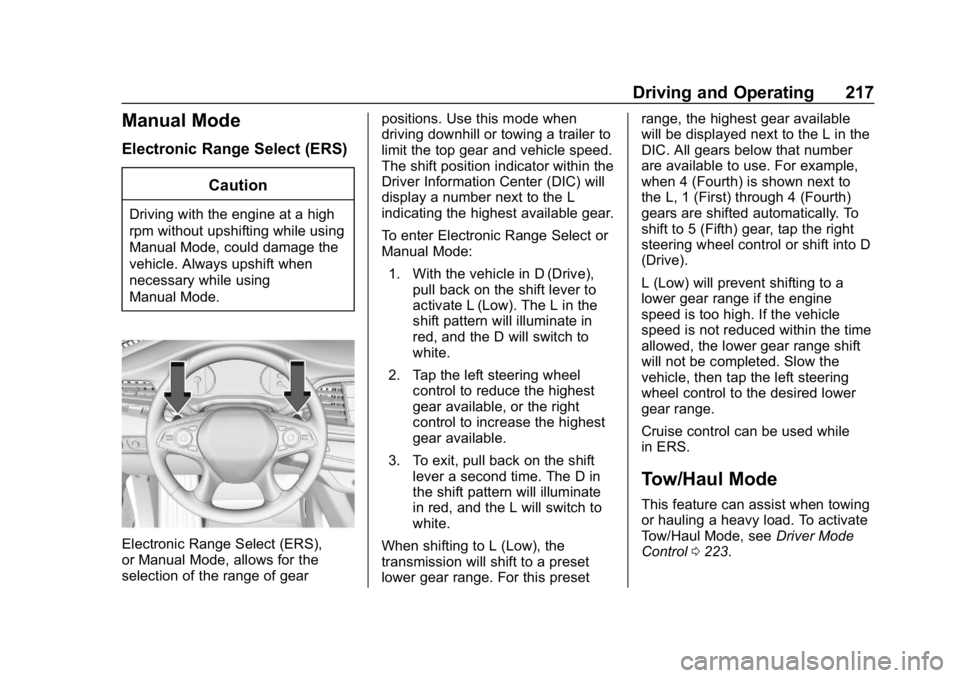

Manual Mode
Electronic Range Select (ERS)Caution
Driving with the engine at a high
rpm without upshifting while using
Manual Mode, could damage the
vehicle. Always upshift when
necessary while using
Manual Mode.
Electronic Range Select (ERS),
or Manual Mode, allows for the
selection of the range of gear positions. Use this mode when
driving downhill or towing a trailer to
limit the top gear and vehicle speed.
The shift position indicator within the
Driver Information Center (DIC) will
display a number next to the L
indicating the highest available gear.
To enter Electronic Range Select or
Manual Mode:
1. With the vehicle in D (Drive), pull back on the shift lever to
activate L (Low). The L in the
shift pattern will illuminate in
red, and the D will switch to
white.
2. Tap the left steering wheel control to reduce the highest
gear available, or the right
control to increase the highest
gear available.
3. To exit, pull back on the shift lever a second time. The D in
the shift pattern will illuminate
in red, and the L will switch to
white.
When shifting to L (Low), the
transmission will shift to a preset
lower gear range. For this preset range, the highest gear available
will be displayed next to the L in the
DIC. All gears below that number
are available to use. For example,
when 4 (Fourth) is shown next to
the L, 1 (First) through 4 (Fourth)
gears are shifted automatically. To
shift to 5 (Fifth) gear, tap the right
steering wheel control or shift into D
(Drive).
L (Low) will prevent shifting to a
lower gear range if the engine
speed is too high. If the vehicle
speed is not reduced within the time
allowed, the lower gear range shift
will not be completed. Slow the
vehicle, then tap the left steering
wheel control to the desired lower
gear range.
Cruise control can be used while
in ERS.
Tow/Haul Mode
This feature can assist when towing
or hauling a heavy load. To activate
Tow/Haul Mode, see
Driver Mode
Control 0223.
