odometer BUICK ENCLAVE 2020 Owners Manual

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Instruments and Controls 101
Instruments and
Controls Controls Steering Wheel Adjustment . . . 102
Steering Wheel Controls . . . . . . 102
Heated Steering Wheel . . . . . . . 102
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . 103
Windshield Wiper/Washer . . . . 103
Rear Window Wiper/
Washer . . . . . . . . . . . . . . . . . . . . . 104
Compass . . . . . . . . . . . . . . . . . . . . . 105
Clock . . . . . . . . . . . . . . . . . . . . . . . . . 106
Power Outlets . . . . . . . . . . . . . . . . 106
Wireless Charging . . . . . . . . . . . . 107
Warning Lights, Gauges, and
Indicators Warning Lights, Gauges, and
Indicators . . . . . . . . . . . . . . . . . . . 110
Instrument Cluster (Base
Level) . . . . . . . . . . . . . . . . . . . . . . . 111
Instrument Cluster
(Uplevel) . . . . . . . . . . . . . . . . . . . . 114
Speedometer . . . . . . . . . . . . . . . . . 116
Odometer . . . . . . . . . . . . . . . . . . . . . 116
Trip Odometer . . . . . . . . . . . . . . . . 116
Tachometer . . . . . . . . . . . . . . . . . . . 116 Fuel Gauge . . . . . . . . . . . . . . . . . . . 117
Engine Oil Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 118
Engine Coolant Temperature
Gauge . . . . . . . . . . . . . . . . . . . . . . 118
Voltmeter Gauge . . . . . . . . . . . . . . 119
Seat Belt Reminders . . . . . . . . . 120
Airbag Readiness Light . . . . . . . 120
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . 121
Charging System Light . . . . . . . 122
Malfunction Indicator Lamp
(Check Engine Light) . . . . . . . . 122
Brake System Warning
Light . . . . . . . . . . . . . . . . . . . . . . . . 124
Electric Parking Brake
Light . . . . . . . . . . . . . . . . . . . . . . . . 124
Service Electric Parking Brake
Light . . . . . . . . . . . . . . . . . . . . . . . . 125
Antilock Brake System (ABS)
Warning Light . . . . . . . . . . . . . . . 125
Sport Mode Light . . . . . . . . . . . . . 125
Tow/Haul Mode Light . . . . . . . . . 125
Lane Keep Assist (LKA)
Light . . . . . . . . . . . . . . . . . . . . . . . . 126
Vehicle Ahead Indicator . . . . . . 126
Pedestrian Ahead Indicator . . . 126
Traction Off Light . . . . . . . . . . . . . 127
StabiliTrak OFF Light . . . . . . . . . 127 Traction Control System (TCS)/
StabiliTrak Light . . . . . . . . . . . . . 127
Tire Pressure Light . . . . . . . . . . . 128
Engine Oil Pressure Light . . . . 128
Low Fuel Warning Light . . . . . . 129
Security Light . . . . . . . . . . . . . . . . . 129
High-Beam On Light . . . . . . . . . . 129
Lamps On Reminder . . . . . . . . . 129
Cruise Control Light . . . . . . . . . . 130
Door Ajar Light . . . . . . . . . . . . . . . 130
Information Displays Driver Information Center (DIC)
(Base Level) . . . . . . . . . . . . . . . . 130
Driver Information Center (DIC)
(Uplevel) . . . . . . . . . . . . . . . . . . . . 133
Vehicle Messages Vehicle Messages . . . . . . . . . . . . 136
Engine Power Messages . . . . . 136
Vehicle Speed Messages . . . . . 137
Vehicle Personalization Vehicle Personalization . . . . . . . 137
Universal Remote System Universal Remote System . . . . 142
Universal Remote System
Programming . . . . . . . . . . . . . . . 142
Universal Remote System
Operation . . . . . . . . . . . . . . . . . . . 144

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
116 Instruments and Controls desired item is highlighted.
A checkmark will be displayed next
to the selected item.
Display Themes : There are two
instrument cluster display
configurations to choose from: Sport
and Touring.
Info Pages : Press
k while Info
Pages is displayed to enter the Info
Pages menu and select the items to
be displayed in the Info app. See
Driver Information Center (DIC)
(Base Level) 0 130 or
Driver Information Center (DIC)
(Uplevel) 0 133 .
Speed Warning : The Speed
Warning display allows the driver to
set a speed that they do not want to
exceed. To set the Speed Warning
press
k when Speed Warning is
displayed.
Scroll to set speed and press
k .
Press
l or
g to adjust the value.
Press
V to set the speed. Once the speed is set, this feature
can be turned off by pressing
Vwhile viewing this page. If the
selected speed limit is exceeded, a
pop-up warning is displayed with a
chime.
Software Information : Displays
open source software information.
Speedometer The speedometer shows the
vehicle's speed in either kilometers
per hour (km/h) or miles per
hour (mph).
Odometer The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.
Trip Odometer The trip odometer shows how far
the vehicle has been driven since
the trip odometer was last reset. The trip odometer is accessed and
reset through the Driver Information
Center (DIC). See Driver
Information Center (DIC) (Base
Level) 0 130 or
Driver Information Center (DIC)
(Uplevel) 0 133 .
Tachometer The tachometer displays the engine
speed in revolutions per
minute (rpm).
For vehicles with the Stop/Start
system, when the ignition is on, the
tachometer indicates the vehicle
status. When pointing to AUTO
STOP, the engine is off but the
vehicle is on and can move. The
engine could auto start at any time.
When the indicator points to OFF,
the vehicle is off.
When the engine is on, the
tachometer will indicate the engine ’ s
revolutions per minute (rpm). The
tachometer may vary by several
hundred rpm ’ s, during Auto Stop
mode, when the engine is shutting
off and restarting.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19

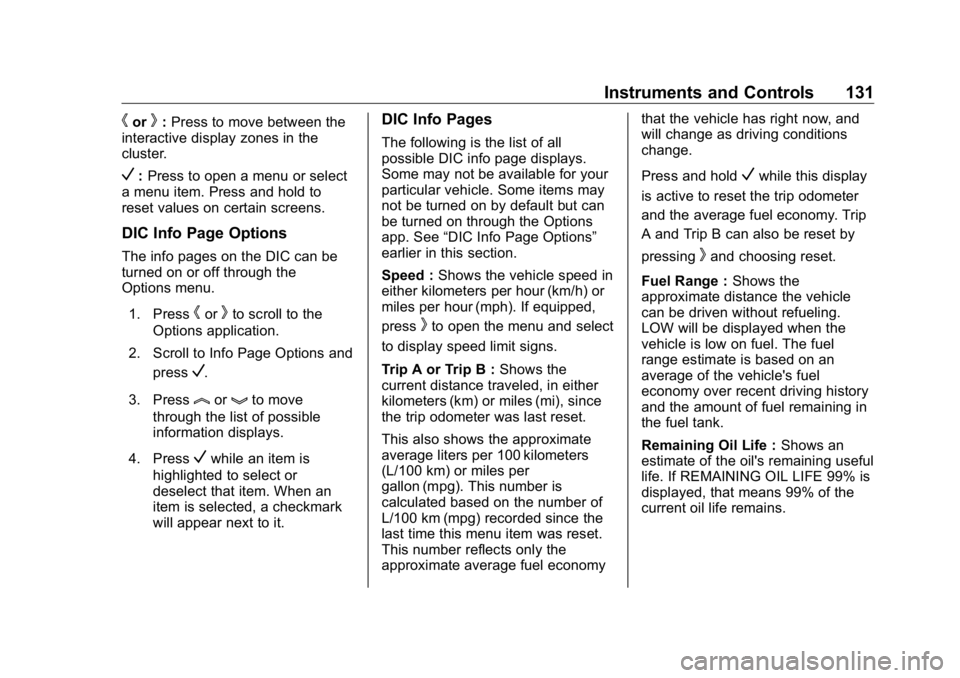

Instruments and Controls 131
h or
k : Press to move between the
interactive display zones in the
cluster.
V : Press to open a menu or select
a menu item. Press and hold to
reset values on certain screens.
DIC Info Page Options The info pages on the DIC can be
turned on or off through the
Options menu.
1. Press
h or
k to scroll to the
Options application.
2. Scroll to Info Page Options and
press
V .
3. Press
l or
g to move
through the list of possible
information displays.
4. Press
V while an item is
highlighted to select or
deselect that item. When an
item is selected, a checkmark
will appear next to it. DIC Info Pages The following is the list of all
possible DIC info page displays.
Some may not be available for your
particular vehicle. Some items may
not be turned on by default but can
be turned on through the Options
app. See “ DIC Info Page Options ”
earlier in this section.
Speed : Shows the vehicle speed in
either kilometers per hour (km/h) or
miles per hour (mph). If equipped,
press
k to open the menu and select
to display speed limit signs.
Trip A or Trip B : Shows the
current distance traveled, in either
kilometers (km) or miles (mi), since
the trip odometer was last reset.
This also shows the approximate
average liters per 100 kilometers
(L/100 km) or miles per
gallon (mpg). This number is
calculated based on the number of
L/100 km (mpg) recorded since the
last time this menu item was reset.
This number reflects only the
approximate average fuel economy that the vehicle has right now, and
will change as driving conditions
change.
Press and hold
V while this display
is active to reset the trip odometer
and the average fuel economy. Trip
A and Trip B can also be reset by
pressing
k and choosing reset.
Fuel Range : Shows the
approximate distance the vehicle
can be driven without refueling.
LOW will be displayed when the
vehicle is low on fuel. The fuel
range estimate is based on an
average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Remaining Oil Life : Shows an
estimate of the oil's remaining useful
life. If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
134 Instruments and Controls
V : Press to open a menu or select
a menu item. Press and hold to
reset values on certain screens.
DIC Info Page Options The info pages on the DIC can be
turned on or off through the
Options menu.
1. Press
h to access the cluster
applications.
2. Press
l or
g to scroll to the
Options application.
3. Press
V to enter the
Options menu.
4. Scroll to Info Pages and
press
k .
5. Press
l or
g to move
through the list of possible
information displays.
6. Press
V while an item is
highlighted to select or
deselect that item. When an
item is selected, a checkmark
will appear next to it. DIC Info Pages The following is the list of all
possible DIC info page displays.
Some may not be available for your
particular vehicle. Some items may
not be turned on by default but can
be turned on through the Options
app. See “ DIC Info Page Options ”
earlier in this section.
Speed : Shows the vehicle speed in
either kilometers per hour (km/h) or
miles per hour (mph). The vehicle
odometer is also shown on
this page.
Trip A or Trip B, Average Fuel
Economy, and Average Speed :
Shows the current distance traveled,
in either kilometers (km) or
miles (mi), since the trip odometer
was last reset.
The Average Fuel Economy display
shows the approximate average
liters per 100 kilometers (L/100 km)
or miles per gallon (mpg). This
number is calculated based on the
number of L/100 km (mpg) recorded
since the last time this menu item
was reset. This number reflects only the approximate average fuel
economy that the vehicle has right
now, and will change as driving
conditions change.
The Average Speed display shows
the average speed of the vehicle in
kilometers per hour (km/h) or miles
per hour (mph). This average is
calculated based on the various
vehicle speeds recorded since the
last reset of this value.
Press and hold
V while this display
is active to reset the trip odometer,
the average fuel economy, and the
average speed. Or press
k and
select reset in the menu.
Fuel Range and Instantaneous
Fuel Economy : Shows the
approximate distance the vehicle
can be driven without refueling.
LOW will be displayed when the
vehicle is low on fuel. The fuel
range estimate is based on an
average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank. The Instantaneous

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Vehicle Care 301road, the tires and wheels may need
to be rebalanced. See your dealer
for proper diagnosis.
Wheel Replacement Replace any wheel that is bent,
cracked, or badly rusted or
corroded. If wheel nuts keep coming
loose, the wheel, wheel bolts, and
wheel nuts should be replaced.
If the wheel leaks air, replace it.
Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts. { WarningUsing the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
CautionThe wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis. Used Replacement Wheels
{ WarningReplacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{ WarningIf the vehicle has a tire size other
than 255/65R18, do not use tire
chains. There is not enough
clearance. Tire chains used on a
vehicle without the proper amount
of clearance can cause damage
to the brakes, suspension,
or other vehicle parts. The area
damaged by the tire chains could
(Continued)

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Service and Maintenance 339
Maintenance Records After the scheduled services are performed, record the date, odometer reading, who performed the service, and the
type of services performed in the boxes provided. Retain all maintenance receipts.
Date Odometer
Reading Serviced By Services Performed

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
348 Customer Information To learn about the GM Mobility
program, see www.gmmobility.com
or call the GM Mobility Assistance
Center at 1-800-323-9935. Text
Telephone (TTY) users, call
1-800-833-9935.
General Motors of Canada also has
a Mobility program. See www.gm.ca
or call 1-800-GM-DRIVE
(800-463-7483) for details. TTY
users call 1-800-263-3830.
Roadside Assistance
Program For U.S.-purchased vehicles, call
1-800-252-1112; (Text Telephone
(TTY): 1-888-889-2438).
For Canadian-purchased vehicles,
call 1-800-268-6800.
Service is available 24 hours a day,
365 days a year.
Calling for Assistance
When calling Roadside Assistance,
have the following information
ready: .
Your name, home address, and
home telephone number
.
Telephone number of your
location
.
Location of the vehicle
.
Model, year, color, and license
plate number of the vehicle
.
Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
.
Description of the problem
Coverage Services are provided for the
duration of the vehicle ’ s powertrain
warranty.
In the U.S., anyone driving the
vehicle is covered. In Canada, a
person driving the vehicle without
permission from the owner is not
covered.
Roadside Assistance is not a part of
the New Vehicle Limited Warranty.
General Motors North America and
Buick reserve the right to make any changes or discontinue the
Roadside Assistance program at
any time without notification.
General Motors North America and
Buick reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Services Provided .
Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
.
Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification
before this service is given.
.
Emergency Tow from a Public
Road or Highway: Tow to the
nearest Buick dealer for
warranty service, or if the vehicle
was in a crash and cannot be

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Index 373Fuses
Engine Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 273
Fuses and Circuit Breakers . . . 273
Instrument Panel Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 277
Rear Compartment Fuse
Block . . . . . . . . . . . . . . . . . . . . . . . . 278
G Garage Door Opener . . . . . . . . . . . 142
Programming . . . . . . . . . . . . . . . . . 142
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . 269
Gauges
Engine Coolant
Temperature . . . . . . . . . . . . . . . . .118
Engine Oil Temperature . . . . . . . .118
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .117
Odometer . . . . . . . . . . . . . . . . . . . . . .116
Speedometer . . . . . . . . . . . . . . . . . .116
Tachometer . . . . . . . . . . . . . . . . . . . .116
Trip Odometer . . . . . . . . . . . . . . . . .116
Voltmeter . . . . . . . . . . . . . . . . . . . . . .119
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .110
General Information
Service and Maintenance . . . . . 326
Towing . . . . . . . . . . . . . . . . . . . . . . . . 234 General Information (cont'd)
Vehicle Care . . . . . . . . . . . . . . . . . . 248
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 96
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 347
H Hazard Warning Flashers . . . . . . . 150
Head Restraints . . . . . . . . . . . . . . . . . 40
Headlamps
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 271
Automatic . . . . . . . . . . . . . . . . . . . . . 149
Bulb Replacement . . . . . . . . . . . . 271
Daytime Running
Lamps (DRL) . . . . . . . . . . . . . . . . 149
Flash-to-Pass . . . . . . . . . . . . . . . . . 148
High-Beam On Light . . . . . . . . . . 129
High/Low Beam Changer . . . . . 148
Lamps On Reminder . . . . . . . . . 129
Heated
Rear Seats . . . . . . . . . . . . . . . . . . . . . 51
Steering Wheel . . . . . . . . . . . . . . . 102
Heated and Ventilated Front
Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Heated Mirrors . . . . . . . . . . . . . . . . . . . 31
Heater
Engine . . . . . . . . . . . . . . . . . . . . . . . . 185
Heating . . . . . . . . . . . . . . . . . . . . 156, 160 High Voltage Devices and
Wiring . . . . . . . . . . . . . . . . . . . . . . . . . 272
High-Beam On Light . . . . . . . . . . . . 129
High-Speed Operation . . . . . . . . . . 289
Hill and Mountain Roads . . . . . . . . 174
Hill Start Assist (HSA) . . . . . . . . . . 200
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 250
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 103
How to Wear Seat Belts
Properly . . . . . . . . . . . . . . . . . . . . . . . . 55
HVAC . . . . . . . . . . . . . . . . . . . . . . 156, 160
I Ignition Positions . . . . . . . . . . . . . . . 181
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 29
Indicator
Pedestrian Ahead . . . . . . . . . . . . 126
Vehicle Ahead . . . . . . . . . . . . . . . . 126
Infants and Young Children,
Restraints . . . . . . . . . . . . . . . . . . . . . . 76
Information
Publication Ordering . . . . . . . . . . 353
Infotainment . . . . . . . . . . . . . . . . . . . . 155
Infotainment System . . . . . . . . . . . . 357
Instrument Cluster . . . . . . . . . 111, 114
Instrument Panel Overview . . . . . . . 5
Interior Rearview Mirrors . . . . . . . . . 32
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
Index 375M Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . 339
Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 334
Maintenance Schedule . . . . . . . . . 328
Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 337
Malfunction Indicator Lamp . . . . . 122
Manual Mode . . . . . . . . . . . . . . . . . . . 196
Massage . . . . . . . . . . . . . . . . . . . . . . . . 48
Memory Seats . . . . . . . . . . . . . . . . . . . 43
Messages
Engine Power . . . . . . . . . . . . . . . . 136
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 136
Vehicle Speed . . . . . . . . . . . . . . . . 137
Mirror
Rear Camera . . . . . . . . . . . . . . . . . . . 32
Mirrors
Automatic Dimming . . . . . . . . . . . . . 31
Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 32
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 30
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 30
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 31
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Tilt in Reverse . . . . . . . . . . . . . . . . . . 31
Mirrors, Interior Rearview . . . . . . . . 32 Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 202
Driver Control . . . . . . . . . . . . . . . . . 202
Monitor System, Tire
Pressure . . . . . . . . . . . . . . . . . . . . . . 290
N Navigation
Connected Services . . . . . . . . . . 366
New Vehicle Break-In . . . . . . . . . . . 181
O Odometer . . . . . . . . . . . . . . . . . . . . . . . 116
Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . .116
Off-Road . . . . . . . . . . . . . . . . . . . . . . . 169
Driving . . . . . . . . . . . . . . . . . . . . . . . . 169
Recovery . . . . . . . . . . . . . . . . . . . . . 168
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 253
Engine Oil Life System . . . . . . . 255
Pressure Light . . . . . . . . . . . . . . . . 128
Older Children, Restraints . . . . . . . 74
Online Owner Center . . . . . . . . . . . 347
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 357
OnStar Additional
Information . . . . . . . . . . . . . . . . . . . . 360
OnStar Emergency . . . . . . . . . . . . . 359
OnStar Overview . . . . . . . . . . . . . . . 358
OnStar Security . . . . . . . . . . . . . . . . 360 Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . 106
Overheating, Engine . . . . . . . . . . . . 262
Overview
Instrument Panel . . . . . . . . . . . . . . . . 5
P Park
Shifting Out of . . . . . . . . . . . . . . . . 187
Park Assist . . . . . . . . . . . . . . . . . . . . . 216
Parking
Brake and P (Park)
Mechanism Check . . . . . . . . . . 267
Extended . . . . . . . . . . . . . . . . . . . . . 189
Over Things That Burn . . . . . . . 189
Parking or Backing
Assistance Systems . . . . . . . . . . 216
Passenger Airbag Status
Indicator . . . . . . . . . . . . . . . . . . . . . . 121
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . 163
Passenger Sensing System . . . . . 68
Pedestrian Ahead Indicator . . . . . 126
Perchlorate Materials
Requirements, California . . . . . . 249
Personalization
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 137

Buick Enclave Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
13527524) - 2020 - CRC - 4/10/19
378 Index Systems
Driver Assistance . . . . . . . . . . . . . 214
T Tachometer . . . . . . . . . . . . . . . . . . . . . 116
Text Telephone (TTY) Users . . . . 347
Theft-Deterrent Systems . . . . . . . . . 29
Immobilizer . . . . . . . . . . . . . . . . . . . . . 29
Third-Row Seats . . . . . . . . . . . . . . . . . 51
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281
All-Season . . . . . . . . . . . . . . . . . . . . 282
Buying New Tires . . . . . . . . . . . . . 297
Chains . . . . . . . . . . . . . . . . . . . . . . . . 301
Changing . . . . . . . . . . . . . . . . . . . . . 304
Compact Spare . . . . . . . . . . . . . . . 309
Designations . . . . . . . . . . . . . . . . . 285
Different Size . . . . . . . . . . . . . . . . . 298
If a Tire Goes Flat . . . . . . . . . . . . 302
Inspection . . . . . . . . . . . . . . . . . . . . 295
Pressure . . . . . . . . . . . . . . . . . 288, 289
Pressure Light . . . . . . . . . . . . . . . . 128
Pressure Monitor Operation . . 291
Pressure Monitor System . . . . . 290
Rotation . . . . . . . . . . . . . . . . . . . . . . 295
Sidewall Labeling . . . . . . . . . . . . . 283
Terminology and Definitions . . 285 Tires (cont'd)
Uniform Tire Quality
Grading . . . . . . . . . . . . . . . . . . . . . 299
Wheel Alignment and Tire
Balance . . . . . . . . . . . . . . . . . . . . . 300
Wheel Replacement . . . . . . . . . . 301
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . 296
Winter . . . . . . . . . . . . . . . . . . . . . . . . 282
Top Tier Fuel . . . . . . . . . . . . . . . . . . . 231
Tow/Haul Mode . . . . . . . . . . . . . . . . . 196
Tow/Haul Mode Light . . . . . . . . . . . 125
Towing
Driving Characteristics . . . . . . . . 234
Equipment . . . . . . . . . . . . . . . . . . . . 241
General Information . . . . . . . . . . 234
Recreational Vehicle . . . . . . . . . . 314
Trailer . . . . . . . . . . . . . . . . . . . . . . . . 238
Trailer Sway Control (TSC) . . . 244
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 313
Traction
Control System
(TCS)/StabiliTrak Light . . . . . . 127
Off Light . . . . . . . . . . . . . . . . . . . . . . 127
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . 200
Trailer
Sway Control (TSC) . . . . . . . . . . 244 Trailer (cont'd)
Towing . . . . . . . . . . . . . . . . . . . . . . . . 238
Transmission
Automatic . . . . . . . . . . . . . . . . . . . . . 191
Fluid, Automatic . . . . . . . . . . . . . . 256
Transportation Program,
Courtesy . . . . . . . . . . . . . . . . . . . . . . 350
Trip Odometer . . . . . . . . . . . . . . . . . . 116
Turn and Lane-Change
Signals . . . . . . . . . . . . . . . . . . . . . . . . 150
U Uniform Tire Quality Grading . . . 299
Universal Remote System . . . . . . 142
Operation . . . . . . . . . . . . . . . . . . . . . 144
Programming . . . . . . . . . . . . . . . . . 142
Using This Manual . . . . . . . . . . . . . . . . 2
V Vehicle
Alarm System . . . . . . . . . . . . . . . . . . 28
Canadian Owners . . . . . . . . . . . . . . . 2
Control . . . . . . . . . . . . . . . . . . . . . . . 167
Identification Number (VIN) . . . 340
Load Limits . . . . . . . . . . . . . . . . . . . 177
Messages . . . . . . . . . . . . . . . . . . . . 136
Personalization . . . . . . . . . . . . . . . 137
Remote Start . . . . . . . . . . . . . . . . . . . 15
Security . . . . . . . . . . . . . . . . . . . . . . . . 28
