BUICK LACROSSE 2006 Owner's Manual

6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be found where
the hanging antenna wire is attached to the
motor-head unit.
7. Firmly press and release the “Learn” or “Smart”
button. The name and color of the button may
vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold the
programmed Universal Home Remote button for
two seconds, then release. Repeat the press/hold/
release sequence a second time, and depending on
the brand of the garage door opener, or other rolling
code device, repeat this sequence a third time to
complete the programming.
The Universal Home Remote should now activate
your rolling-code equipped device.
To program the remaining two Universal Home Remote
buttons, begin with Step 2 of “Programming Universal
Home Remote.” You do not want to repeat Step 1,
as this will erase all previous programming from
the Universal Home Remote buttons.Gate Operator and Canadian
Programming
Canadian radio-frequency laws require transmitter
signals to time out or quit after several seconds of
transmission. This may not be long enough for Universal
Home Remote to pick up the signal during programming.
Similarly, some U.S. gate operators are manufactured
to time out in the same manner.
If you live in Canada, or you are having difficulty
programming a gate operator or garage door opener
by using the “Programming Universal Home Remote”
procedures, regardless of where you live, replace Step 3
under “Programming Universal Home Remote” with
the following:
Continue to press and hold the Universal Home Remote
button while you press and release every two seconds
(cycle) the hand-held transmitter button until the
frequency signal has been successfully accepted by the
Universal Home Remote. The Universal Home Remote
indicator light will ash slowly at rst and then rapidly.
Proceed with Step 4 under “Programming Universal
Home Remote” to complete.
2-43

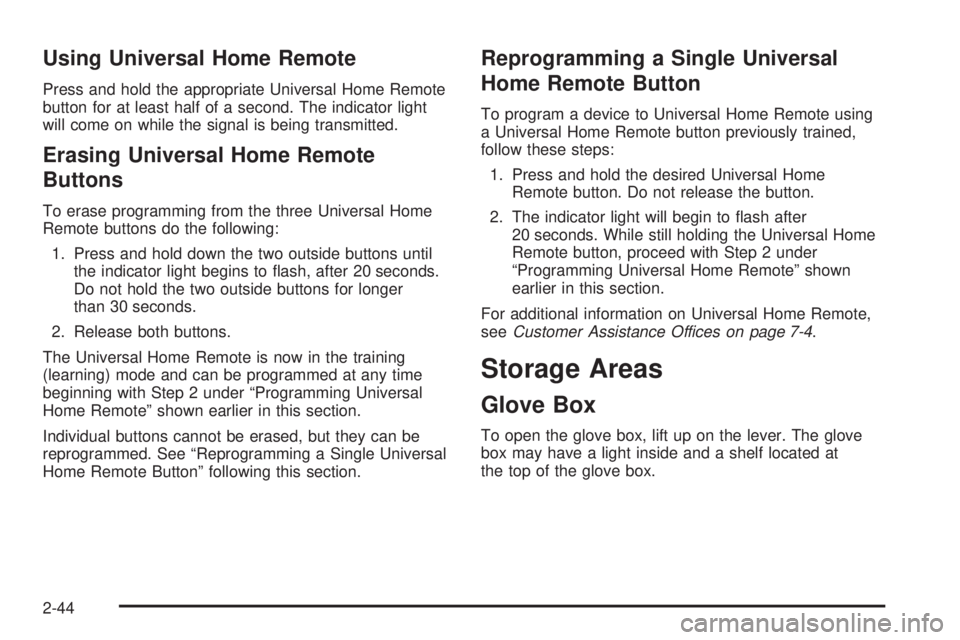

Using Universal Home Remote
Press and hold the appropriate Universal Home Remote
button for at least half of a second. The indicator light
will come on while the signal is being transmitted.
Erasing Universal Home Remote
Buttons
To erase programming from the three Universal Home
Remote buttons do the following:
1. Press and hold down the two outside buttons until
the indicator light begins to ash, after 20 seconds.
Do not hold the two outside buttons for longer
than 30 seconds.
2. Release both buttons.
The Universal Home Remote is now in the training
(learning) mode and can be programmed at any time
beginning with Step 2 under “Programming Universal
Home Remote” shown earlier in this section.
Individual buttons cannot be erased, but they can be
reprogrammed. See “Reprogramming a Single Universal
Home Remote Button” following this section.
Reprogramming a Single Universal
Home Remote Button
To program a device to Universal Home Remote using
a Universal Home Remote button previously trained,
follow these steps:
1. Press and hold the desired Universal Home
Remote button. Do not release the button.
2. The indicator light will begin to ash after
20 seconds. While still holding the Universal Home
Remote button, proceed with Step 2 under
“Programming Universal Home Remote” shown
earlier in this section.
For additional information on Universal Home Remote,
seeCustomer Assistance Offices on page 7-4.
Storage Areas
Glove Box
To open the glove box, lift up on the lever. The glove
box may have a light inside and a shelf located at
the top of the glove box.
2-44

Cupholder(s)
If your vehicle is the
ve-passenger model,
there is a cupholder in
front of the center console.
The cupholder has an arm that adjusts to two positions
to t either a large cup or two smaller cups.If your vehicle is the six-passenger model, there is a
cupholder located underneath the seat. To access,
pull the center seat forward. The cupholder has an
arm that adjusts to two positions to t either a large
cup or two smaller cups.
2-45

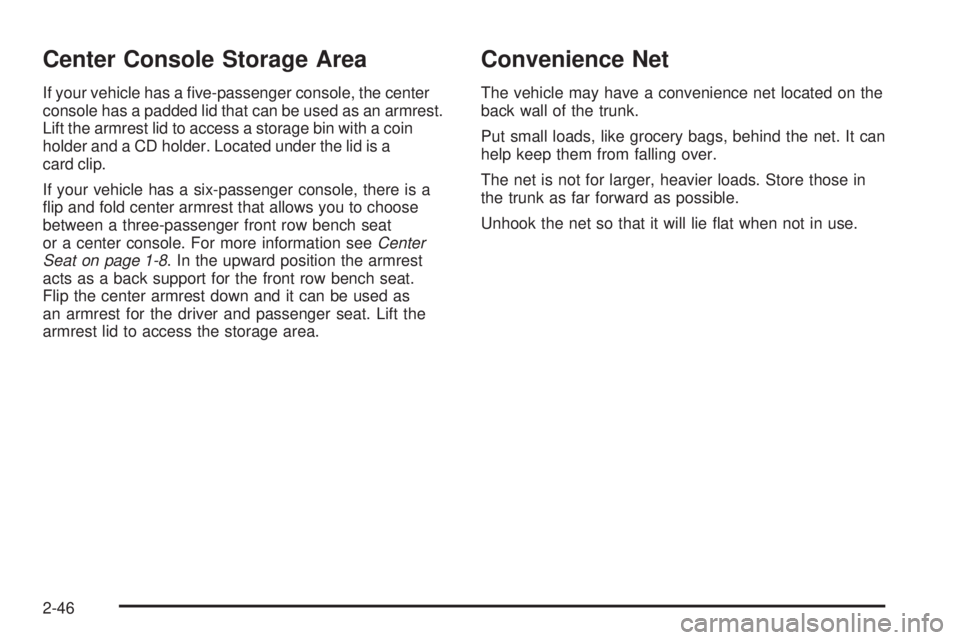

Center Console Storage Area
If your vehicle has a ve-passenger console, the center
console has a padded lid that can be used as an armrest.
Lift the armrest lid to access a storage bin with a coin
holder and a CD holder. Located under the lid is a
card clip.
If your vehicle has a six-passenger console, there is a
ip and fold center armrest that allows you to choose
between a three-passenger front row bench seat
or a center console. For more information seeCenter
Seat on page 1-8. In the upward position the armrest
acts as a back support for the front row bench seat.
Flip the center armrest down and it can be used as
an armrest for the driver and passenger seat. Lift the
armrest lid to access the storage area.
Convenience Net
The vehicle may have a convenience net located on the
back wall of the trunk.
Put small loads, like grocery bags, behind the net. It can
help keep them from falling over.
The net is not for larger, heavier loads. Store those in
the trunk as far forward as possible.
Unhook the net so that it will lie at when not in use.
2-46

Sunroof
The vehicle may have a sunroof. It includes a sliding
glass panel and a sunshade.
The sunroof control is
on the headliner, by
the map lamps.
The sunroof control works only when the ignition is on
or in ACCESSORY, or when Retained Accessory Power
(RAP) is active. SeeRetained Accessory Power
(RAP) on page 2-23.To raise the sunroof to the vent position, open the
sunshade by hand, then press the back of the control.
Push and hold the front of the control to close the
sunroof from the vent position.
With the sunroof in the vent position, press and release
the back of the control to express-open the sunroof.
The sunshade will automatically open with the sunroof.
To stop the express-open function, press the back
of the control again.
To close the sunroof, press and hold the front of the
control. To stop the sunroof, release the control.
The sunshade must be closed manually.
The sunroof panel cannot be opened or closed if your
vehicle has an electrical failure.
2-47

✍NOTES
2-48

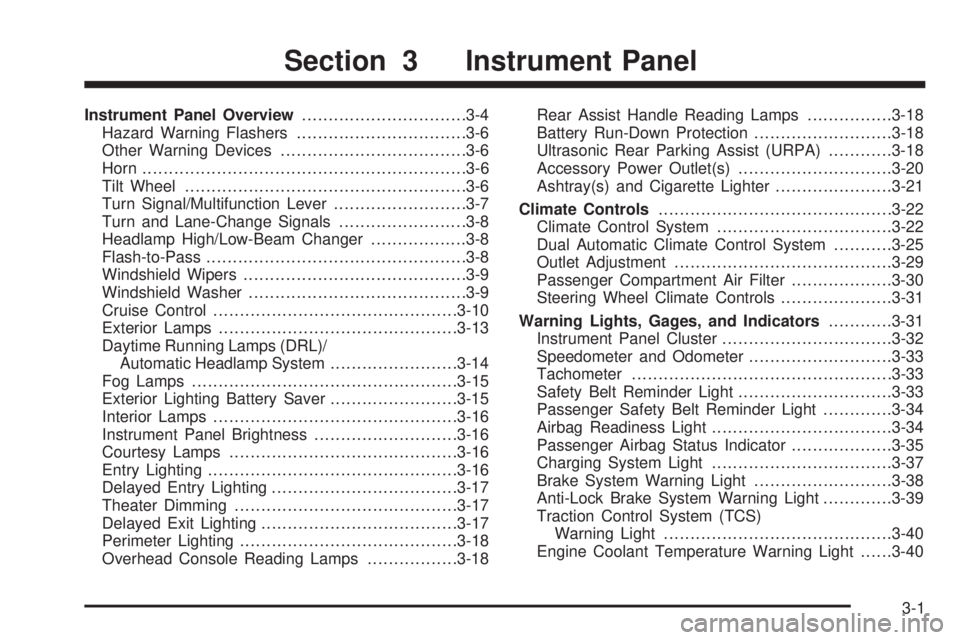

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn.............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-8
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-9
Windshield Washer.........................................3-9
Cruise Control..............................................3-10
Exterior Lamps.............................................3-13
Daytime Running Lamps (DRL)/
Automatic Headlamp System........................3-14
Fog Lamps..................................................3-15
Exterior Lighting Battery Saver........................3-15
Interior Lamps..............................................3-16
Instrument Panel Brightness...........................3-16
Courtesy Lamps...........................................3-16
Entry Lighting...............................................3-16
Delayed Entry Lighting...................................3-17
Theater Dimming..........................................3-17
Delayed Exit Lighting.....................................3-17
Perimeter Lighting.........................................3-18
Overhead Console Reading Lamps.................3-18Rear Assist Handle Reading Lamps................3-18
Battery Run-Down Protection..........................3-18
Ultrasonic Rear Parking Assist (URPA)............3-18
Accessory Power Outlet(s).............................3-20
Ashtray(s) and Cigarette Lighter......................3-21
Climate Controls............................................3-22
Climate Control System.................................3-22
Dual Automatic Climate Control System...........3-25
Outlet Adjustment.........................................3-29
Passenger Compartment Air Filter...................3-30
Steering Wheel Climate Controls.....................3-31
Warning Lights, Gages, and Indicators............3-31
Instrument Panel Cluster................................3-32
Speedometer and Odometer...........................3-33
Tachometer.................................................3-33
Safety Belt Reminder Light.............................3-33
Passenger Safety Belt Reminder Light.............3-34
Airbag Readiness Light..................................3-34
Passenger Airbag Status Indicator...................3-35
Charging System Light..................................3-37
Brake System Warning Light..........................3-38
Anti-Lock Brake System Warning Light.............3-39
Traction Control System (TCS)
Warning Light...........................................3-40
Engine Coolant Temperature Warning Light......3-40
Section 3 Instrument Panel
3-1

Engine Coolant Temperature Gage..................3-41
Low Coolant Warning Light............................3-41
Malfunction Indicator Lamp.............................3-41
Oil Pressure Light.........................................3-44
Change Engine Oil Light................................3-45
Security Light...............................................3-46
Cruise Control Light......................................3-46
Reduced Engine Power Light.........................3-46
Highbeam On Light.......................................3-47
Headlamps Suggested Light...........................3-47
Low Washer Fluid Warning Light.....................3-47
Door Ajar Light.............................................3-47
Trunk Ajar Light............................................3-48
Service Vehicle Soon Light............................3-48
Fuel Gage...................................................3-48
Low Fuel Warning Light.................................3-49
Check Gas Cap Light....................................3-49Driver Information Center (DIC).......................3-50
DIC Operation and Displays...........................3-51
DIC Compass (Uplevel Only)..........................3-57
DIC Warnings and Messages.........................3-59
DIC Vehicle Personalization............................3-75
Audio System(s).............................................3-84
Setting the Time...........................................3-85
Radio with CD (Base)...................................3-86
Radio with CD (Uplevel)................................3-90
Radio with CD (MP3)....................................3-99
Radio with Six-Disc CD................................3-113
Theft-Deterrent Feature................................3-126
Audio Steering Wheel Controls......................3-126
Radio Reception.........................................3-128
Care of Your CDs.......................................3-128
Care of the CD Player.................................3-129
Backglass Antenna......................................3-129
XM™ Satellite Radio Antenna System............3-130
Chime Level Adjustment...............................3-130
Section 3 Instrument Panel
3-2

✍NOTES
3-3

Instrument Panel Overview
3-4
