BUICK LACROSSE 2008 Owner's Manual

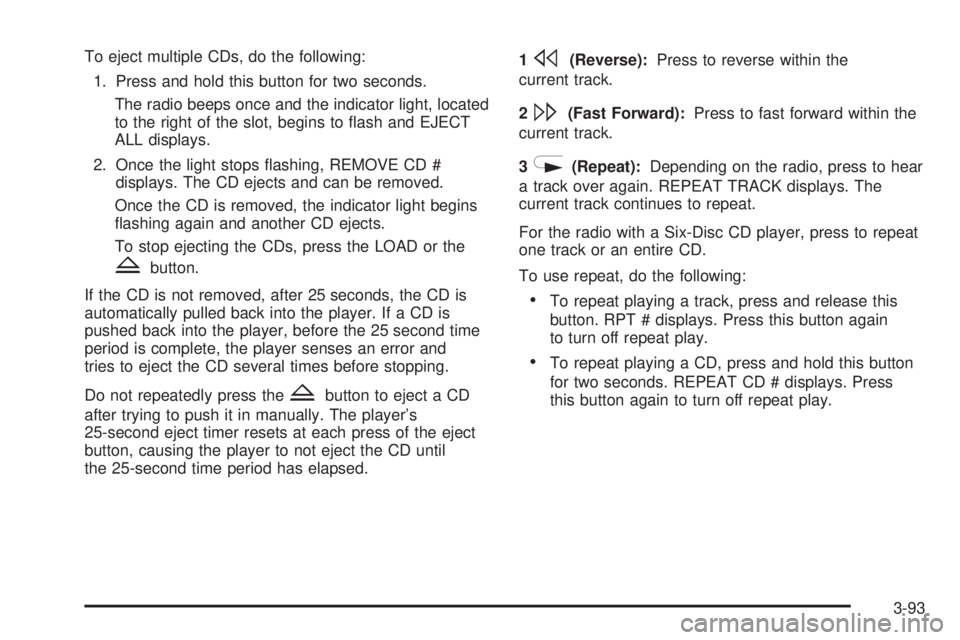

To eject multiple CDs, do the following:
1. Press and hold this button for two seconds.
The radio beeps once and the indicator light, located
to the right of the slot, begins to ash and EJECT
ALL displays.
2. Once the light stops ashing, REMOVE CD #
displays. The CD ejects and can be removed.
Once the CD is removed, the indicator light begins
ashing again and another CD ejects.
To stop ejecting the CDs, press the LOAD or the
Zbutton.
If the CD is not removed, after 25 seconds, the CD is
automatically pulled back into the player. If a CD is
pushed back into the player, before the 25 second time
period is complete, the player senses an error and
tries to eject the CD several times before stopping.
Do not repeatedly press the
Zbutton to eject a CD
after trying to push it in manually. The player’s
25-second eject timer resets at each press of the eject
button, causing the player to not eject the CD until
the 25-second time period has elapsed.1
s(Reverse):Press to reverse within the
current track.
2
\(Fast Forward):Press to fast forward within the
current track.
3
N(Repeat):Depending on the radio, press to hear
a track over again. REPEAT TRACK displays. The
current track continues to repeat.
For the radio with a Six-Disc CD player, press to repeat
one track or an entire CD.
To use repeat, do the following:
To repeat playing a track, press and release this
button. RPT # displays. Press this button again
to turn off repeat play.
To repeat playing a CD, press and hold this button
for two seconds. REPEAT CD # displays. Press
this button again to turn off repeat play.
3-93

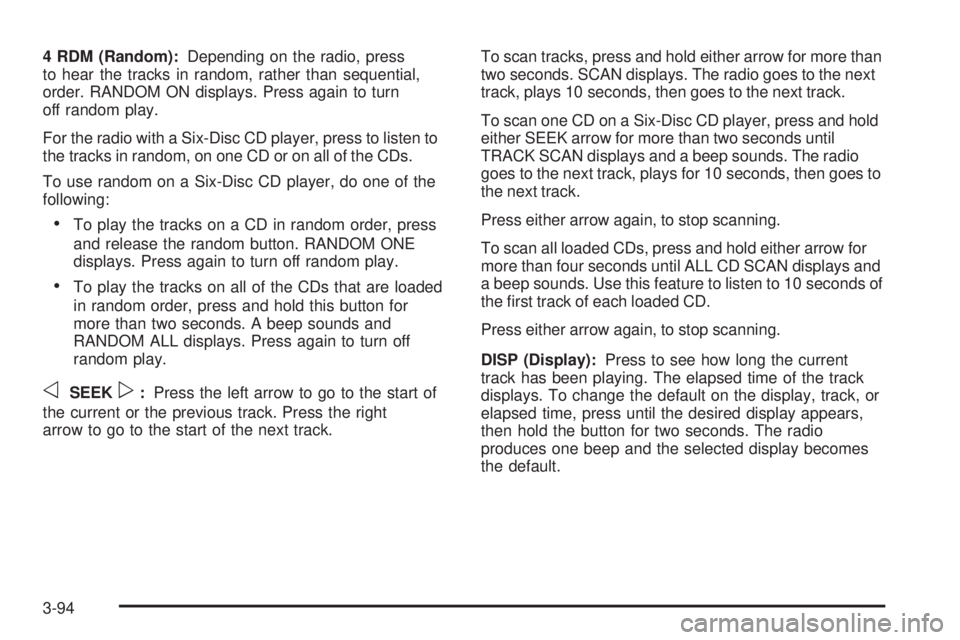

4 RDM (Random):Depending on the radio, press
to hear the tracks in random, rather than sequential,
order. RANDOM ON displays. Press again to turn
off random play.
For the radio with a Six-Disc CD player, press to listen to
the tracks in random, on one CD or on all of the CDs.
To use random on a Six-Disc CD player, do one of the
following:
To play the tracks on a CD in random order, press
and release the random button. RANDOM ONE
displays. Press again to turn off random play.
To play the tracks on all of the CDs that are loaded
in random order, press and hold this button for
more than two seconds. A beep sounds and
RANDOM ALL displays. Press again to turn off
random play.
oSEEKp:Press the left arrow to go to the start of
the current or the previous track. Press the right
arrow to go to the start of the next track.To scan tracks, press and hold either arrow for more than
two seconds. SCAN displays. The radio goes to the next
track, plays 10 seconds, then goes to the next track.
To scan one CD on a Six-Disc CD player, press and hold
either SEEK arrow for more than two seconds until
TRACK SCAN displays and a beep sounds. The radio
goes to the next track, plays for 10 seconds, then goes to
the next track.
Press either arrow again, to stop scanning.
To scan all loaded CDs, press and hold either arrow for
more than four seconds until ALL CD SCAN displays and
a beep sounds. Use this feature to listen to 10 seconds of
the rst track of each loaded CD.
Press either arrow again, to stop scanning.
DISP (Display):Press to see how long the current
track has been playing. The elapsed time of the track
displays. To change the default on the display, track, or
elapsed time, press until the desired display appears,
then hold the button for two seconds. The radio
produces one beep and the selected display becomes
the default.
3-94

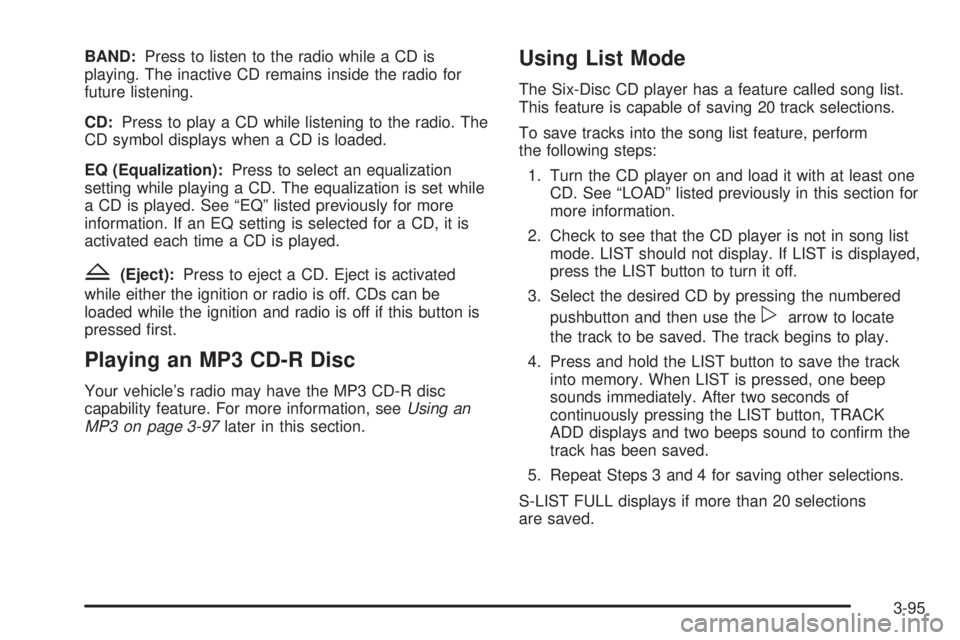

BAND:Press to listen to the radio while a CD is
playing. The inactive CD remains inside the radio for
future listening.
CD:Press to play a CD while listening to the radio. The
CD symbol displays when a CD is loaded.
EQ (Equalization):Press to select an equalization
setting while playing a CD. The equalization is set while
a CD is played. See “EQ” listed previously for more
information. If an EQ setting is selected for a CD, it is
activated each time a CD is played.
Z(Eject):Press to eject a CD. Eject is activated
while either the ignition or radio is off. CDs can be
loaded while the ignition and radio is off if this button is
pressed rst.
Playing an MP3 CD-R Disc
Your vehicle’s radio may have the MP3 CD-R disc
capability feature. For more information, seeUsing an
MP3 on page 3-97later in this section.
Using List Mode
The Six-Disc CD player has a feature called song list.
This feature is capable of saving 20 track selections.
To save tracks into the song list feature, perform
the following steps:
1. Turn the CD player on and load it with at least one
CD. See “LOAD” listed previously in this section for
more information.
2. Check to see that the CD player is not in song list
mode. LIST should not display. If LIST is displayed,
press the LIST button to turn it off.
3. Select the desired CD by pressing the numbered
pushbutton and then use the
parrow to locate
the track to be saved. The track begins to play.
4. Press and hold the LIST button to save the track
into memory. When LIST is pressed, one beep
sounds immediately. After two seconds of
continuously pressing the LIST button, TRACK
ADD displays and two beeps sound to conrm the
track has been saved.
5. Repeat Steps 3 and 4 for saving other selections.
S-LIST FULL displays if more than 20 selections
are saved.
3-95

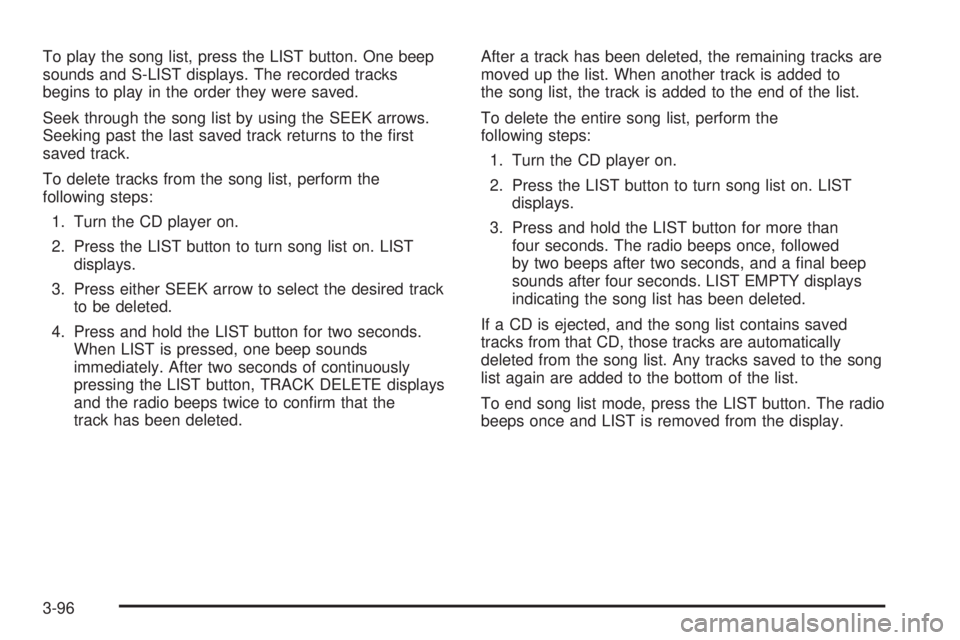

To play the song list, press the LIST button. One beep
sounds and S-LIST displays. The recorded tracks
begins to play in the order they were saved.
Seek through the song list by using the SEEK arrows.
Seeking past the last saved track returns to the rst
saved track.
To delete tracks from the song list, perform the
following steps:
1. Turn the CD player on.
2. Press the LIST button to turn song list on. LIST
displays.
3. Press either SEEK arrow to select the desired track
to be deleted.
4. Press and hold the LIST button for two seconds.
When LIST is pressed, one beep sounds
immediately. After two seconds of continuously
pressing the LIST button, TRACK DELETE displays
and the radio beeps twice to conrm that the
track has been deleted.After a track has been deleted, the remaining tracks are
moved up the list. When another track is added to
the song list, the track is added to the end of the list.
To delete the entire song list, perform the
following steps:
1. Turn the CD player on.
2. Press the LIST button to turn song list on. LIST
displays.
3. Press and hold the LIST button for more than
four seconds. The radio beeps once, followed
by two beeps after two seconds, and a nal beep
sounds after four seconds. LIST EMPTY displays
indicating the song list has been deleted.
If a CD is ejected, and the song list contains saved
tracks from that CD, those tracks are automatically
deleted from the song list. Any tracks saved to the song
list again are added to the bottom of the list.
To end song list mode, press the LIST button. The radio
beeps once and LIST is removed from the display.
3-96

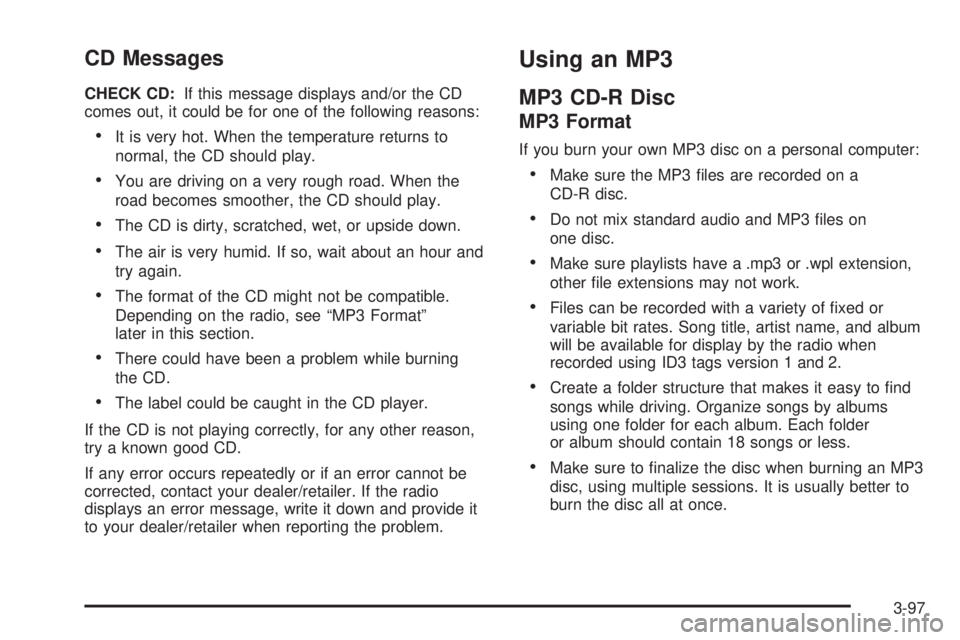

CD Messages
CHECK CD:If this message displays and/or the CD
comes out, it could be for one of the following reasons:
It is very hot. When the temperature returns to
normal, the CD should play.
You are driving on a very rough road. When the
road becomes smoother, the CD should play.
The CD is dirty, scratched, wet, or upside down.
The air is very humid. If so, wait about an hour and
try again.
The format of the CD might not be compatible.
Depending on the radio, see “MP3 Format”
later in this section.
There could have been a problem while burning
the CD.
The label could be caught in the CD player.
If the CD is not playing correctly, for any other reason,
try a known good CD.
If any error occurs repeatedly or if an error cannot be
corrected, contact your dealer/retailer. If the radio
displays an error message, write it down and provide it
to your dealer/retailer when reporting the problem.
Using an MP3
MP3 CD-R Disc
MP3 Format
If you burn your own MP3 disc on a personal computer:
Make sure the MP3 les are recorded on a
CD-R disc.
Do not mix standard audio and MP3 les on
one disc.
Make sure playlists have a .mp3 or .wpl extension,
other le extensions may not work.
Files can be recorded with a variety of xed or
variable bit rates. Song title, artist name, and album
will be available for display by the radio when
recorded using ID3 tags version 1 and 2.
Create a folder structure that makes it easy to nd
songs while driving. Organize songs by albums
using one folder for each album. Each folder
or album should contain 18 songs or less.
Make sure to nalize the disc when burning an MP3
disc, using multiple sessions. It is usually better to
burn the disc all at once.
3-97

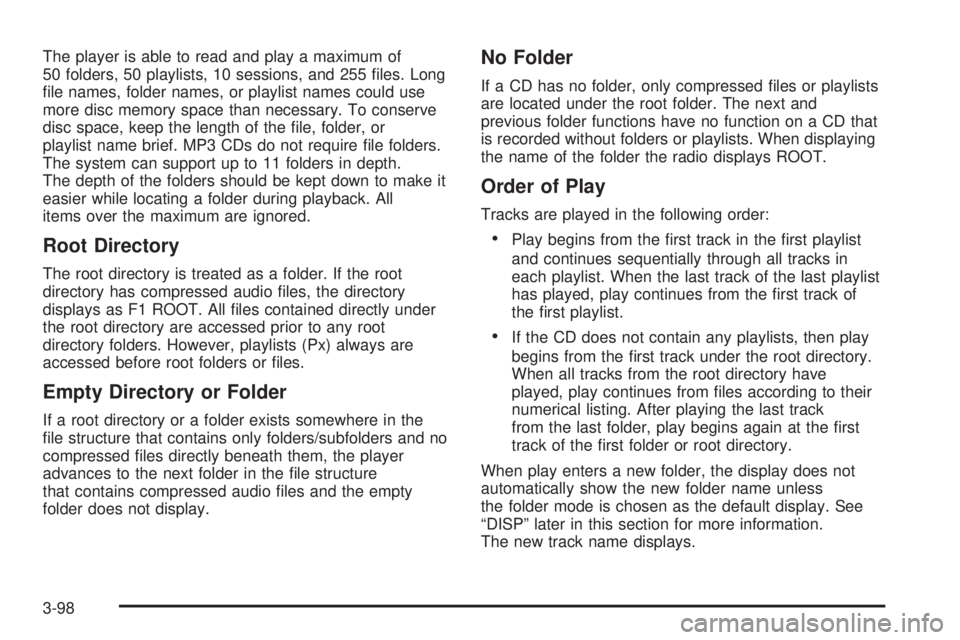

The player is able to read and play a maximum of
50 folders, 50 playlists, 10 sessions, and 255 les. Long
le names, folder names, or playlist names could use
more disc memory space than necessary. To conserve
disc space, keep the length of the le, folder, or
playlist name brief. MP3 CDs do not require le folders.
The system can support up to 11 folders in depth.
The depth of the folders should be kept down to make it
easier while locating a folder during playback. All
items over the maximum are ignored.
Root Directory
The root directory is treated as a folder. If the root
directory has compressed audio les, the directory
displays as F1 ROOT. All les contained directly under
the root directory are accessed prior to any root
directory folders. However, playlists (Px) always are
accessed before root folders or les.
Empty Directory or Folder
If a root directory or a folder exists somewhere in the
le structure that contains only folders/subfolders and no
compressed les directly beneath them, the player
advances to the next folder in the le structure
that contains compressed audio les and the empty
folder does not display.
No Folder
If a CD has no folder, only compressed les or playlists
are located under the root folder. The next and
previous folder functions have no function on a CD that
is recorded without folders or playlists. When displaying
the name of the folder the radio displays ROOT.
Order of Play
Tracks are played in the following order:
Play begins from the rst track in the rst playlist
and continues sequentially through all tracks in
each playlist. When the last track of the last playlist
has played, play continues from the rst track of
the rst playlist.
If the CD does not contain any playlists, then play
begins from the rst track under the root directory.
When all tracks from the root directory have
played, play continues from les according to their
numerical listing. After playing the last track
from the last folder, play begins again at the rst
track of the rst folder or root directory.
When play enters a new folder, the display does not
automatically show the new folder name unless
the folder mode is chosen as the default display. See
“DISP” later in this section for more information.
The new track name displays.
3-98

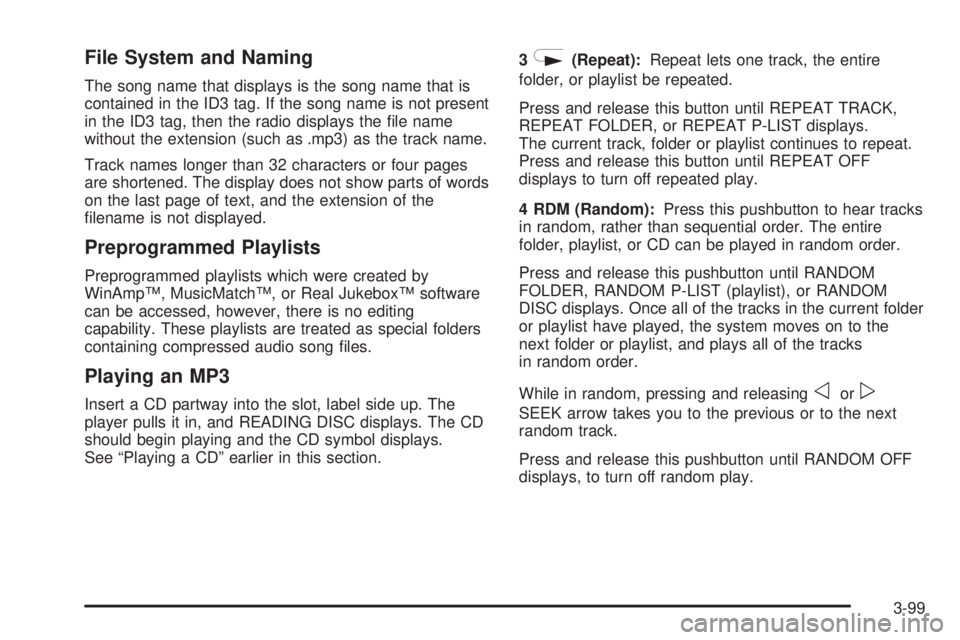

File System and Naming
The song name that displays is the song name that is
contained in the ID3 tag. If the song name is not present
in the ID3 tag, then the radio displays the le name
without the extension (such as .mp3) as the track name.
Track names longer than 32 characters or four pages
are shortened. The display does not show parts of words
on the last page of text, and the extension of the
lename is not displayed.
Preprogrammed Playlists
Preprogrammed playlists which were created by
WinAmp™, MusicMatch™, or Real Jukebox™ software
can be accessed, however, there is no editing
capability. These playlists are treated as special folders
containing compressed audio song les.
Playing an MP3
Insert a CD partway into the slot, label side up. The
player pulls it in, and READING DISC displays. The CD
should begin playing and the CD symbol displays.
See “Playing a CD” earlier in this section.3
N(Repeat):Repeat lets one track, the entire
folder, or playlist be repeated.
Press and release this button until REPEAT TRACK,
REPEAT FOLDER, or REPEAT P-LIST displays.
The current track, folder or playlist continues to repeat.
Press and release this button until REPEAT OFF
displays to turn off repeated play.
4 RDM (Random):Press this pushbutton to hear tracks
in random, rather than sequential order. The entire
folder, playlist, or CD can be played in random order.
Press and release this pushbutton until RANDOM
FOLDER, RANDOM P-LIST (playlist), or RANDOM
DISC displays. Once all of the tracks in the current folder
or playlist have played, the system moves on to the
next folder or playlist, and plays all of the tracks
in random order.
While in random, pressing and releasing
oorp
SEEK arrow takes you to the previous or to the next
random track.
Press and release this pushbutton until RANDOM OFF
displays, to turn off random play.
3-99

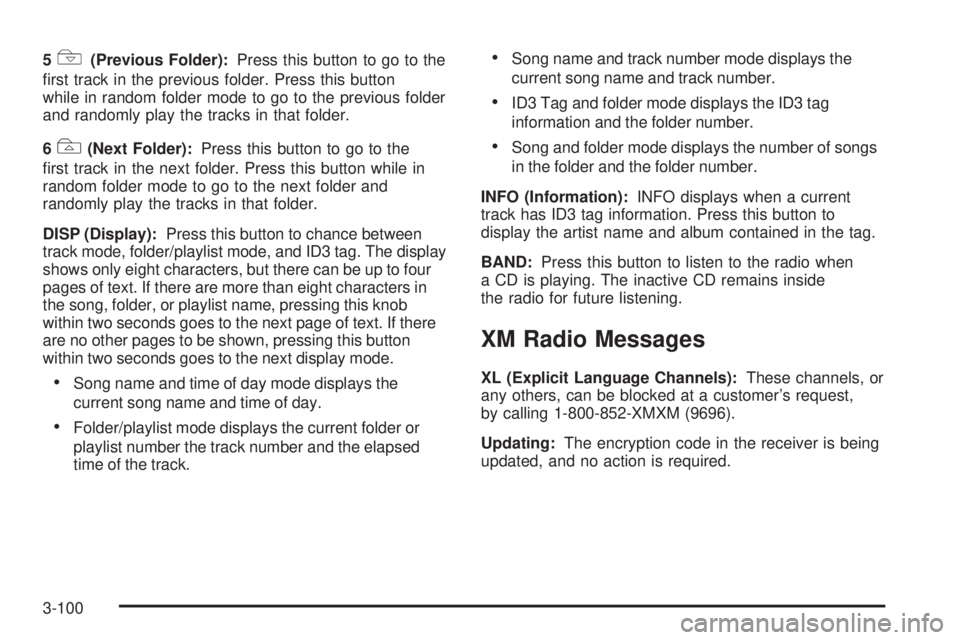

5!(Previous Folder):Press this button to go to the
rst track in the previous folder. Press this button
while in random folder mode to go to the previous folder
and randomly play the tracks in that folder.
6
#(Next Folder):Press this button to go to the
rst track in the next folder. Press this button while in
random folder mode to go to the next folder and
randomly play the tracks in that folder.
DISP (Display):Press this button to chance between
track mode, folder/playlist mode, and ID3 tag. The display
shows only eight characters, but there can be up to four
pages of text. If there are more than eight characters in
the song, folder, or playlist name, pressing this knob
within two seconds goes to the next page of text. If there
are no other pages to be shown, pressing this button
within two seconds goes to the next display mode.
Song name and time of day mode displays the
current song name and time of day.
Folder/playlist mode displays the current folder or
playlist number the track number and the elapsed
time of the track.
Song name and track number mode displays the
current song name and track number.
ID3 Tag and folder mode displays the ID3 tag
information and the folder number.
Song and folder mode displays the number of songs
in the folder and the folder number.
INFO (Information):INFO displays when a current
track has ID3 tag information. Press this button to
display the artist name and album contained in the tag.
BAND:Press this button to listen to the radio when
a CD is playing. The inactive CD remains inside
the radio for future listening.
XM Radio Messages
XL (Explicit Language Channels):These channels, or
any others, can be blocked at a customer’s request,
by calling 1-800-852-XMXM (9696).
Updating:The encryption code in the receiver is being
updated, and no action is required.
3-100

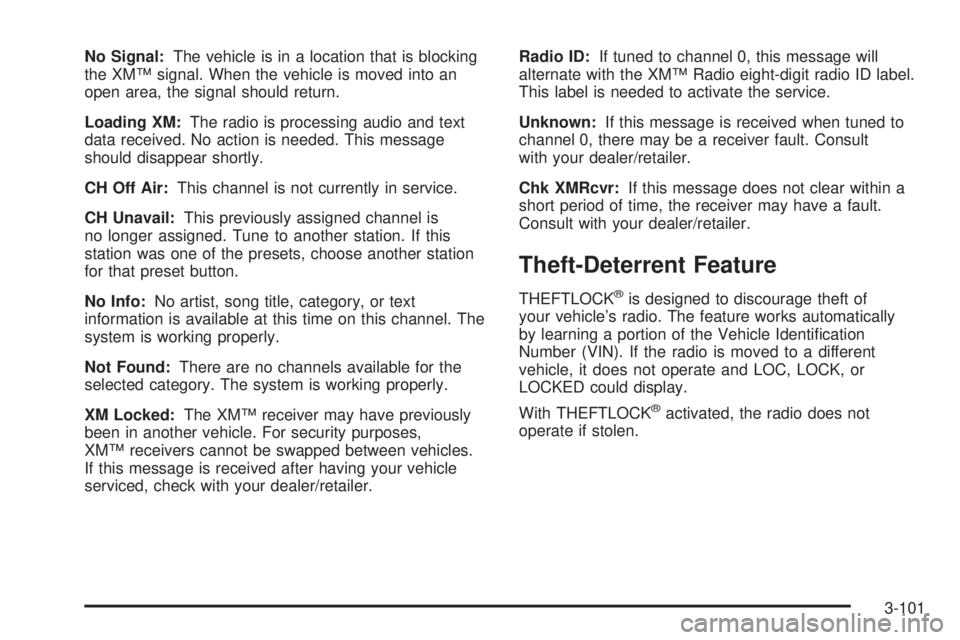

No Signal:The vehicle is in a location that is blocking
the XM™ signal. When the vehicle is moved into an
open area, the signal should return.
Loading XM:The radio is processing audio and text
data received. No action is needed. This message
should disappear shortly.
CH Off Air:This channel is not currently in service.
CH Unavail:This previously assigned channel is
no longer assigned. Tune to another station. If this
station was one of the presets, choose another station
for that preset button.
No Info:No artist, song title, category, or text
information is available at this time on this channel. The
system is working properly.
Not Found:There are no channels available for the
selected category. The system is working properly.
XM Locked:The XM™ receiver may have previously
been in another vehicle. For security purposes,
XM™ receivers cannot be swapped between vehicles.
If this message is received after having your vehicle
serviced, check with your dealer/retailer.Radio ID:If tuned to channel 0, this message will
alternate with the XM™ Radio eight-digit radio ID label.
This label is needed to activate the service.
Unknown:If this message is received when tuned to
channel 0, there may be a receiver fault. Consult
with your dealer/retailer.
Chk XMRcvr:If this message does not clear within a
short period of time, the receiver may have a fault.
Consult with your dealer/retailer.
Theft-Deterrent Feature
THEFTLOCK®is designed to discourage theft of
your vehicle’s radio. The feature works automatically
by learning a portion of the Vehicle Identication
Number (VIN). If the radio is moved to a different
vehicle, it does not operate and LOC, LOCK, or
LOCKED could display.
With THEFTLOCK
®activated, the radio does not
operate if stolen.
3-101

Audio Steering Wheel Controls
If your vehicle has this
feature, some audio
controls can be adjusted at
the steering wheel. They
include the following:
xw(Seek):Press the seek arrows to go to the next or
to the previous radio station. The radio seeks stations
only with a strong signal that are in the selected band.
To scan stations, press and hold either arrow for
two seconds until a beep sounds. The radio goes to a
station, play for a few seconds, then goes to the next
station. Press either seek arrow again to stop scanning.
While a CD is playing, press the seek arrows to go to the
next or previous track.
>(Mute/OnStar®):Press this button to silence the
system. Press this button again, or any other radio
button, to turn the sound on.
If your vehicle has OnStar
®, press and hold this button
for more than two seconds to interact with the
OnStar
®system. See theOnStar®System on page 2-43
in this manual for more information.
BAND:Press this button to switch between FM1, FM2,
AM, or XM1™ or XM2™ (if equipped).
1–6 (Preset Pushbuttons):Press this button to play
stations that are programmed on the radio preset
pushbuttons. The radio seeks preset stations only with a
strong signal that are in the selected band.
When a CD is playing in the six-disc CD changer, press
this button to go to the next available CD, if multiple
CDs are loaded.
+
x/−x(Volume):Press the plus or minus volume
button to increase or to decrease the volume.
3-102
