BUICK LACROSSE 2013 Owner's Manual

Black plate (31,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
Vehicle Care 10-31

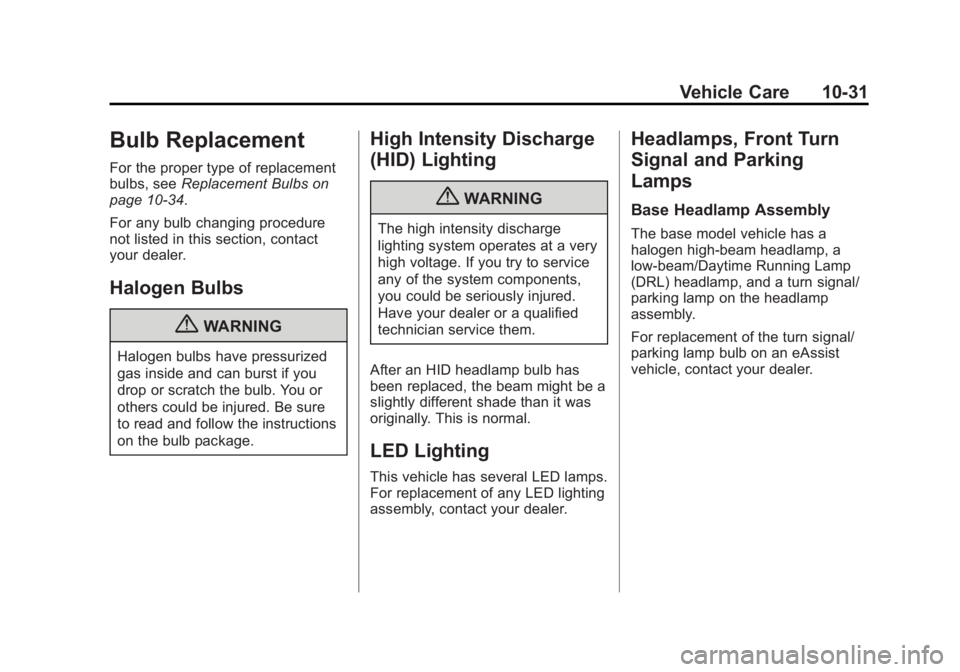

Bulb Replacement
For the proper type of replacement
bulbs, seeReplacement Bulbs on
page 10‑34.
For any bulb changing procedure
not listed in this section, contact
your dealer.
Halogen Bulbs
{WARNING
Halogen bulbs have pressurized
gas inside and can burst if you
drop or scratch the bulb. You or
others could be injured. Be sure
to read and follow the instructions
on the bulb package.
High Intensity Discharge
(HID) Lighting
{WARNING
The high intensity discharge
lighting system operates at a very
high voltage. If you try to service
any of the system components,
you could be seriously injured.
Have your dealer or a qualified
technician service them.
After an HID headlamp bulb has
been replaced, the beam might be a
slightly different shade than it was
originally. This is normal.
LED Lighting
This vehicle has several LED lamps.
For replacement of any LED lighting
assembly, contact your dealer.
Headlamps, Front Turn
Signal and Parking
Lamps
Base Headlamp Assembly
The base model vehicle has a
halogen high-beam headlamp, a
low-beam/Daytime Running Lamp
(DRL) headlamp, and a turn signal/
parking lamp on the headlamp
assembly.
For replacement of the turn signal/
parking lamp bulb on an eAssist
vehicle, contact your dealer.

Black plate (32,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
10-32 Vehicle Care

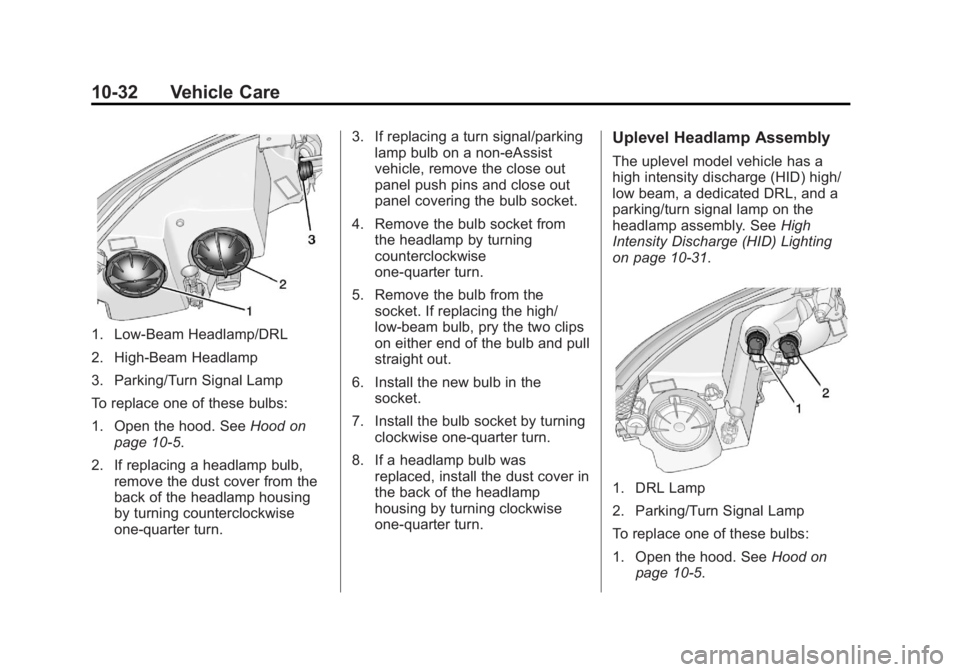

1. Low-Beam Headlamp/DRL
2. High-Beam Headlamp
3. Parking/Turn Signal Lamp
To replace one of these bulbs:
1. Open the hood. SeeHood on
page 10‑5.
2. If replacing a headlamp bulb, remove the dust cover from the
back of the headlamp housing
by turning counterclockwise
one-quarter turn. 3. If replacing a turn signal/parking
lamp bulb on a non-eAssist
vehicle, remove the close out
panel push pins and close out
panel covering the bulb socket.
4. Remove the bulb socket from the headlamp by turning
counterclockwise
one-quarter turn.
5. Remove the bulb from the socket. If replacing the high/
low-beam bulb, pry the two clips
on either end of the bulb and pull
straight out.
6. Install the new bulb in the socket.
7. Install the bulb socket by turning clockwise one-quarter turn.
8. If a headlamp bulb was replaced, install the dust cover in
the back of the headlamp
housing by turning clockwise
one-quarter turn.
Uplevel Headlamp Assembly
The uplevel model vehicle has a
high intensity discharge (HID) high/
low beam, a dedicated DRL, and a
parking/turn signal lamp on the
headlamp assembly. See High
Intensity Discharge (HID) Lighting
on page 10‑31.
1. DRL Lamp
2. Parking/Turn Signal Lamp
To replace one of these bulbs:
1. Open the hood. See Hood on
page 10‑5.

Black plate (33,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
Vehicle Care 10-33
2. Turn the bulb socketcounterclockwise to remove it
from the headlamp assembly.
3. Pull the bulb straight out from the socket.
4. Push the new bulb into the socket and reinstall the socket
into the headlamp assembly by
turning it clockwise.

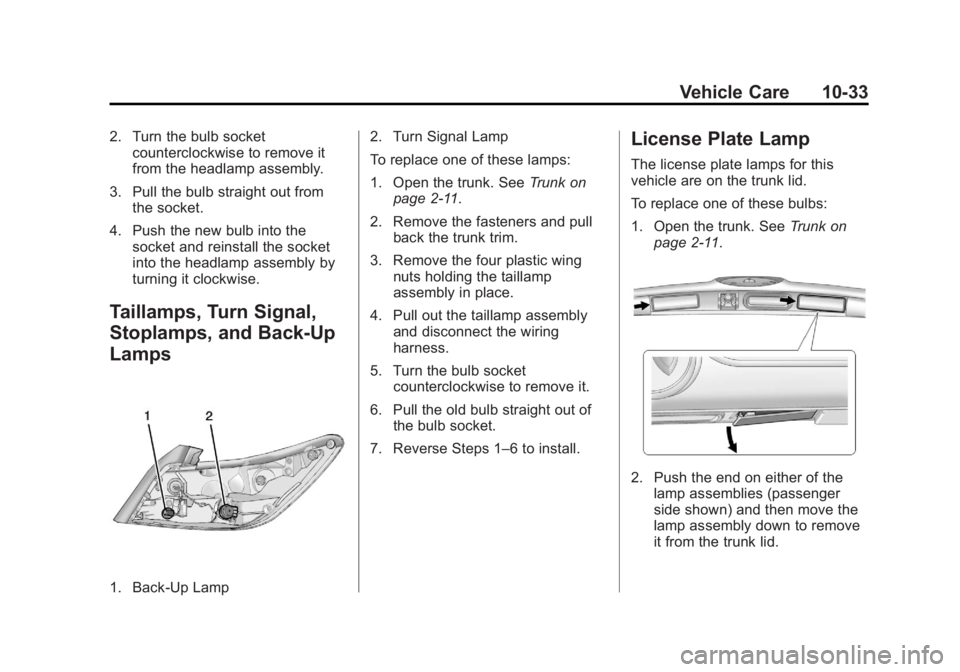

Taillamps, Turn Signal,
Stoplamps, and Back-Up
Lamps
1. Back-Up Lamp 2. Turn Signal Lamp
To replace one of these lamps:
1. Open the trunk. See
Trunk on
page 2‑11.
2. Remove the fasteners and pull back the trunk trim.
3. Remove the four plastic wing nuts holding the taillamp
assembly in place.
4. Pull out the taillamp assembly and disconnect the wiring
harness.
5. Turn the bulb socket counterclockwise to remove it.
6. Pull the old bulb straight out of the bulb socket.
7. Reverse Steps 1–6 to install.
License Plate Lamp
The license plate lamps for this
vehicle are on the trunk lid.
To replace one of these bulbs:
1. Open the trunk. See Trunk on
page 2‑11.
2. Push the end on either of the lamp assemblies (passenger
side shown) and then move the
lamp assembly down to remove
it from the trunk lid.

Black plate (34,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
10-34 Vehicle Care

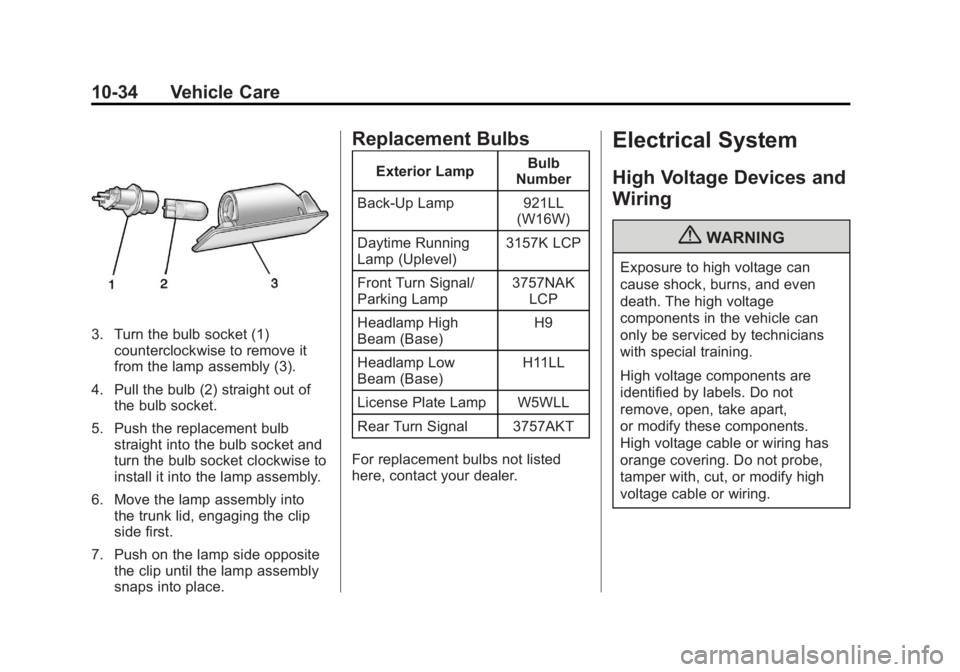

3. Turn the bulb socket (1)counterclockwise to remove it
from the lamp assembly (3).
4. Pull the bulb (2) straight out of the bulb socket.
5. Push the replacement bulb straight into the bulb socket and
turn the bulb socket clockwise to
install it into the lamp assembly.
6. Move the lamp assembly into the trunk lid, engaging the clip
side first.
7. Push on the lamp side opposite the clip until the lamp assembly
snaps into place.
Replacement Bulbs
Exterior Lamp Bulb
Number
Back-Up Lamp 921LL (W16W)
Daytime Running
Lamp (Uplevel) 3157K LCP
Front Turn Signal/
Parking Lamp 3757NAK
LCP
Headlamp High
Beam (Base) H9
Headlamp Low
Beam (Base) H11LL
License Plate Lamp W5WLL
Rear Turn Signal 3757AKT
For replacement bulbs not listed
here, contact your dealer.
Electrical System
High Voltage Devices and
Wiring
{WARNING
Exposure to high voltage can
cause shock, burns, and even
death. The high voltage
components in the vehicle can
only be serviced by technicians
with special training.
High voltage components are
identified by labels. Do not
remove, open, take apart,
or modify these components.
High voltage cable or wiring has
orange covering. Do not probe,
tamper with, cut, or modify high
voltage cable or wiring.

Black plate (35,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
Vehicle Care 10-35

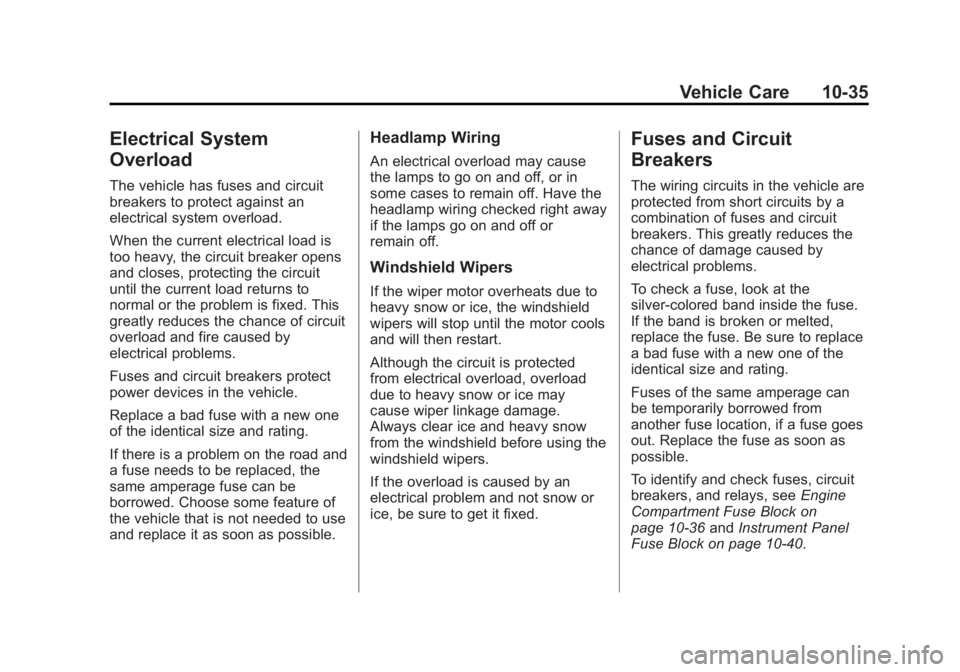

Electrical System
Overload
The vehicle has fuses and circuit
breakers to protect against an
electrical system overload.
When the current electrical load is
too heavy, the circuit breaker opens
and closes, protecting the circuit
until the current load returns to
normal or the problem is fixed. This
greatly reduces the chance of circuit
overload and fire caused by
electrical problems.
Fuses and circuit breakers protect
power devices in the vehicle.
Replace a bad fuse with a new one
of the identical size and rating.
If there is a problem on the road and
a fuse needs to be replaced, the
same amperage fuse can be
borrowed. Choose some feature of
the vehicle that is not needed to use
and replace it as soon as possible.
Headlamp Wiring
An electrical overload may cause
the lamps to go on and off, or in
some cases to remain off. Have the
headlamp wiring checked right away
if the lamps go on and off or
remain off.
Windshield Wipers
If the wiper motor overheats due to
heavy snow or ice, the windshield
wipers will stop until the motor cools
and will then restart.
Although the circuit is protected
from electrical overload, overload
due to heavy snow or ice may
cause wiper linkage damage.
Always clear ice and heavy snow
from the windshield before using the
windshield wipers.
If the overload is caused by an
electrical problem and not snow or
ice, be sure to get it fixed.
Fuses and Circuit
Breakers
The wiring circuits in the vehicle are
protected from short circuits by a
combination of fuses and circuit
breakers. This greatly reduces the
chance of damage caused by
electrical problems.
To check a fuse, look at the
silver-colored band inside the fuse.
If the band is broken or melted,
replace the fuse. Be sure to replace
a bad fuse with a new one of the
identical size and rating.
Fuses of the same amperage can
be temporarily borrowed from
another fuse location, if a fuse goes
out. Replace the fuse as soon as
possible.
To identify and check fuses, circuit
breakers, and relays, seeEngine
Compartment Fuse Block on

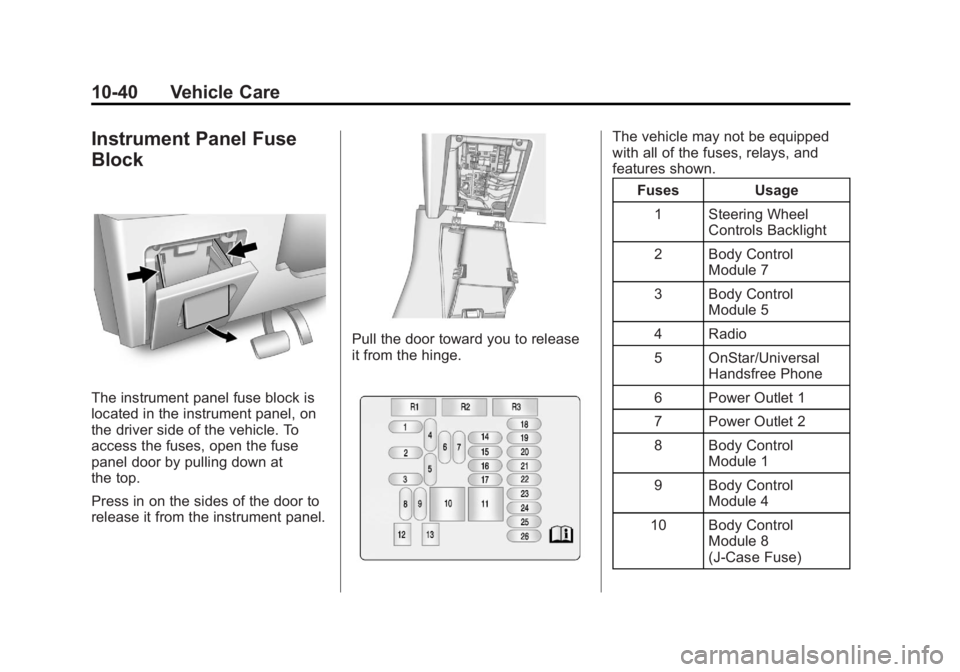

page 10‑36 andInstrument Panel
Fuse Block on page 10‑40.

Black plate (36,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
10-36 Vehicle Care

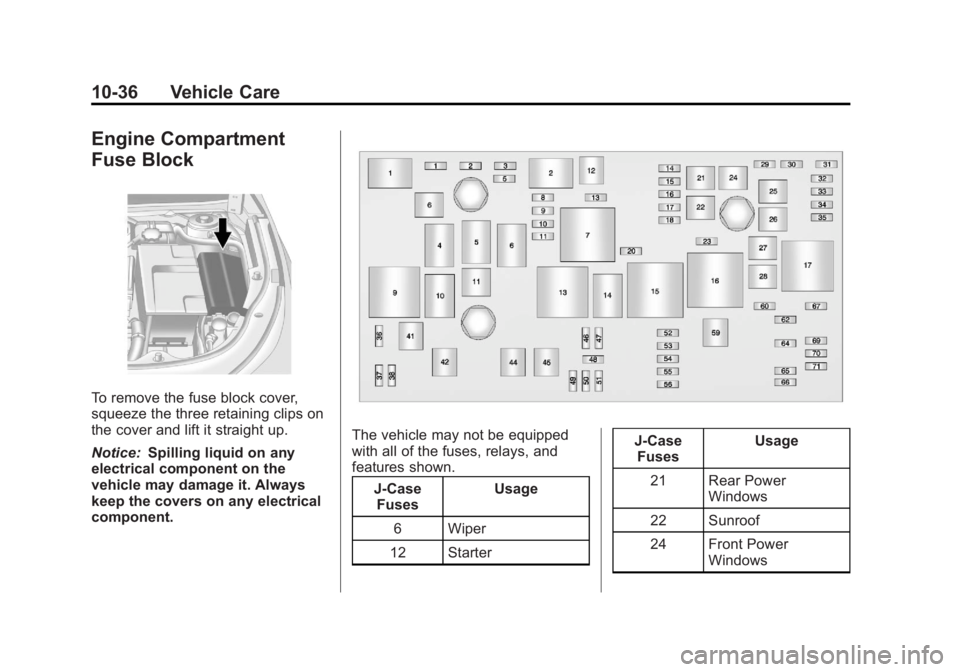

Engine Compartment
Fuse Block
To remove the fuse block cover,
squeeze the three retaining clips on
the cover and lift it straight up.
Notice:Spilling liquid on any
electrical component on the
vehicle may damage it. Always
keep the covers on any electrical
component.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.
J-CaseFuses Usage
6 Wiper
12 Starter J-Case
Fuses Usage
21 Rear Power Windows
22 Sunroof
24 Front Power Windows

Black plate (37,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
Vehicle Care 10-37

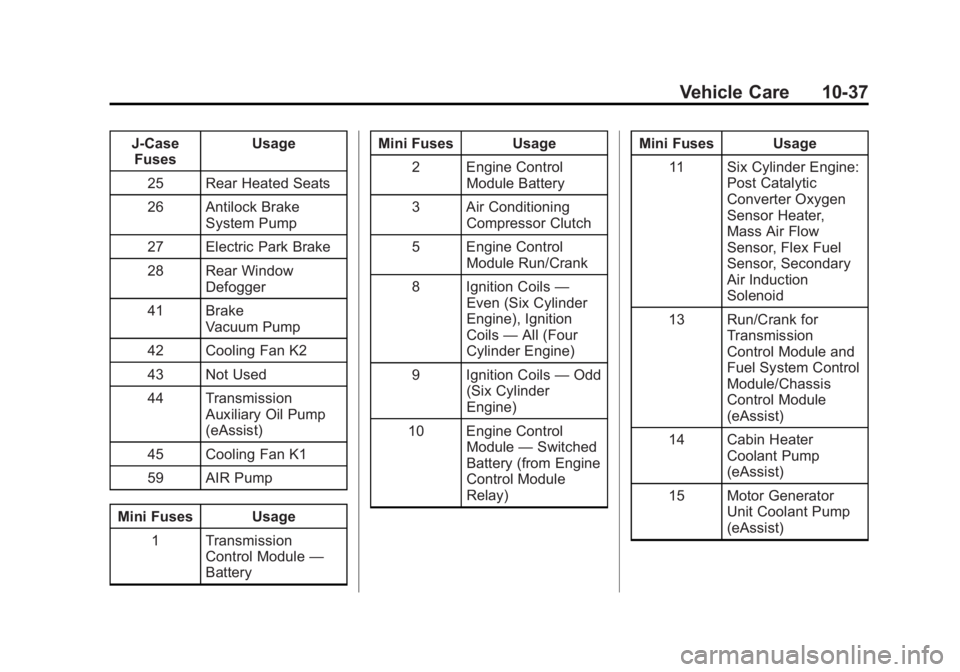

J-CaseFuses Usage
25 Rear Heated Seats
26 Antilock Brake System Pump
27 Electric Park Brake
28 Rear Window Defogger
41 Brake Vacuum Pump
42 Cooling Fan K2
43 Not Used
44 Transmission Auxiliary Oil Pump
(eAssist)
45 Cooling Fan K1
59 AIR Pump
Mini Fuses Usage 1 Transmission Control Module —
Battery Mini Fuses Usage
2 Engine Control Module Battery
3 Air Conditioning Compressor Clutch
5 Engine Control Module Run/Crank
8 Ignition Coils —
Even (Six Cylinder
Engine), Ignition
Coils —All (Four
Cylinder Engine)
9 Ignition Coils —Odd
(Six Cylinder
Engine)
10 Engine Control Module—Switched
Battery (from Engine
Control Module
Relay) Mini Fuses Usage
11 Six Cylinder Engine: Post Catalytic
Converter Oxygen
Sensor Heater,
Mass Air Flow
Sensor, Flex Fuel
Sensor, Secondary
Air Induction
Solenoid
13 Run/Crank for Transmission
Control Module and
Fuel System Control
Module/Chassis
Control Module
(eAssist)
14 Cabin Heater Coolant Pump
(eAssist)
15 Motor Generator Unit Coolant Pump
(eAssist)

Black plate (38,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
10-38 Vehicle Care

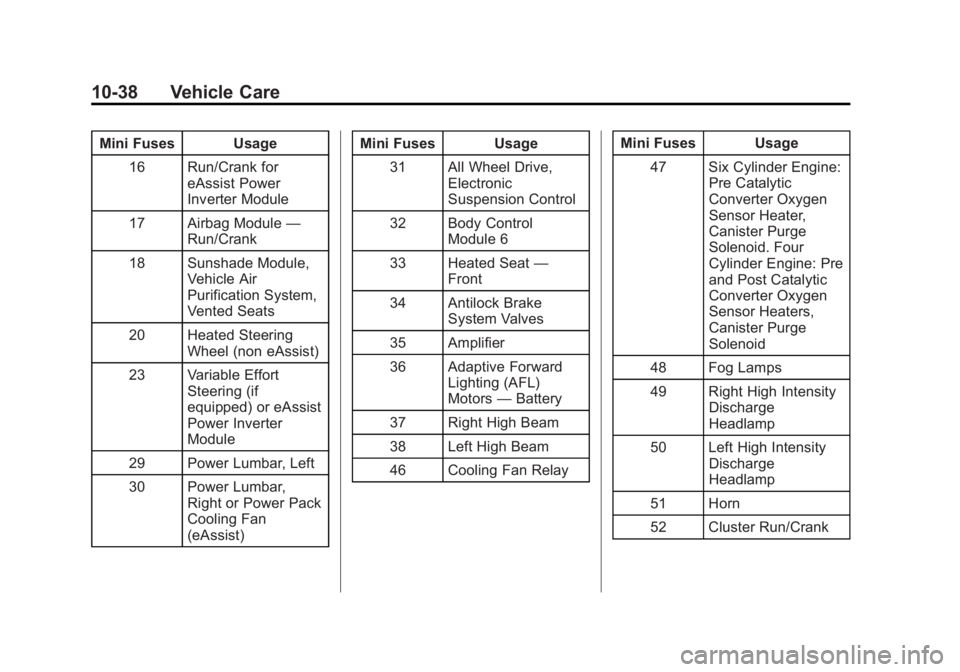

Mini Fuses Usage16 Run/Crank for eAssist Power
Inverter Module
17 Airbag Module —
Run/Crank
18 Sunshade Module, Vehicle Air
Purification System,
Vented Seats
20 Heated Steering Wheel (non eAssist)
23 Variable Effort Steering (if
equipped) or eAssist
Power Inverter
Module
29 Power Lumbar, Left
30 Power Lumbar, Right or Power Pack
Cooling Fan
(eAssist) Mini Fuses Usage
31 All Wheel Drive, Electronic
Suspension Control
32 Body Control Module 6
33 Heated Seat —
Front
34 Antilock Brake System Valves
35 Amplifier
36 Adaptive Forward Lighting (AFL)
Motors—Battery
37 Right High Beam
38 Left High Beam
46 Cooling Fan Relay Mini Fuses Usage
47 Six Cylinder Engine: Pre Catalytic
Converter Oxygen
Sensor Heater,
Canister Purge
Solenoid. Four
Cylinder Engine: Pre
and Post Catalytic
Converter Oxygen
Sensor Heaters,
Canister Purge
Solenoid
48 Fog Lamps
49 Right High Intensity Discharge
Headlamp
50 Left High Intensity Discharge
Headlamp
51 Horn
52 Cluster Run/Crank

Black plate (39,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
Vehicle Care 10-39

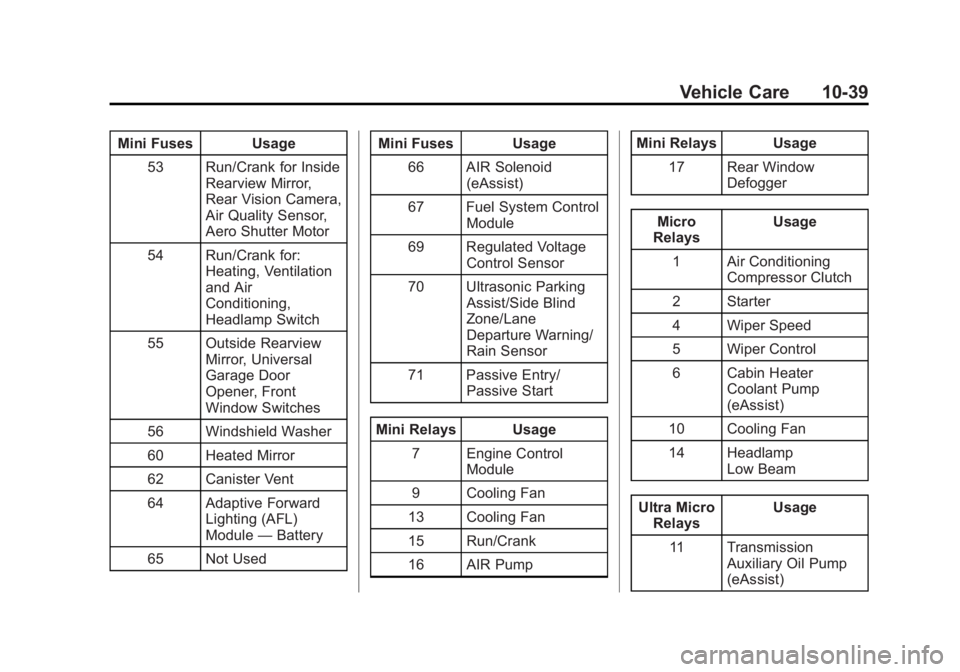

Mini Fuses Usage53 Run/Crank for Inside Rearview Mirror,
Rear Vision Camera,
Air Quality Sensor,
Aero Shutter Motor
54 Run/Crank for: Heating, Ventilation
and Air
Conditioning,
Headlamp Switch
55 Outside Rearview Mirror, Universal
Garage Door
Opener, Front
Window Switches
56 Windshield Washer
60 Heated Mirror
62 Canister Vent
64 Adaptive Forward Lighting (AFL)
Module—Battery
65 Not Used Mini Fuses Usage
66 AIR Solenoid (eAssist)
67 Fuel System Control Module
69 Regulated Voltage Control Sensor
70 Ultrasonic Parking Assist/Side Blind
Zone/Lane
Departure Warning/
Rain Sensor
71 Passive Entry/ Passive Start
Mini Relays Usage 7 Engine Control Module
9 Cooling Fan
13 Cooling Fan
15 Run/Crank
16 AIR Pump Mini Relays Usage
17 Rear Window Defogger
Micro
Relays Usage
1 Air Conditioning Compressor Clutch
2 Starter
4 Wiper Speed
5 Wiper Control
6 Cabin Heater Coolant Pump
(eAssist)
10 Cooling Fan
14 Headlamp Low Beam
Ultra Micro Relays Usage
11 Transmission Auxiliary Oil Pump
(eAssist)

Black plate (40,1)Buick LaCrosse Owner Manual - 2013 - crc - 9/7/12
10-40 Vehicle Care
Instrument Panel Fuse
Block
The instrument panel fuse block is
located in the instrument panel, on
the driver side of the vehicle. To
access the fuses, open the fuse
panel door by pulling down at
the top.
Press in on the sides of the door to
release it from the instrument panel.
Pull the door toward you to release
it from the hinge.
The vehicle may not be equipped
with all of the fuses, relays, and
features shown.Fuses Usage
1 Steering Wheel Controls Backlight
2 Body Control Module 7
3 Body Control Module 5
4 Radio
5 OnStar/Universal Handsfree Phone
6 Power Outlet 1
7 Power Outlet 2
8 Body Control Module 1
9 Body Control Module 4
10 Body Control Module 8
(J-Case Fuse)
