headlamp BUICK LACROSSE 2017 Owner's Guide

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-9803782) -
2017 - crc - 9/7/16

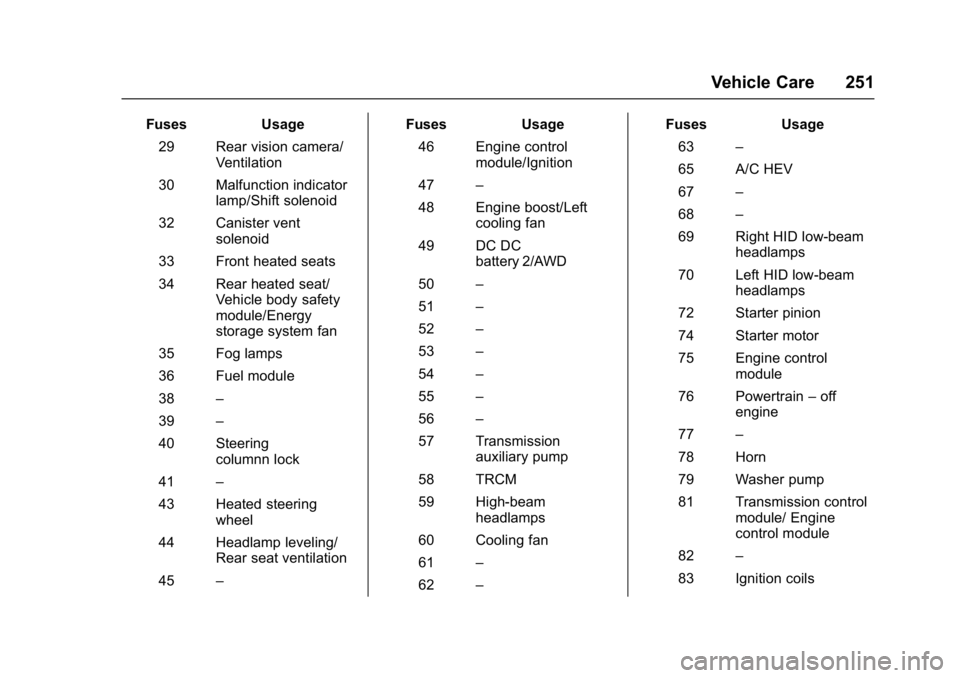

Vehicle Care 251
FusesUsage
29 Rear vision camera/ Ventilation
30 Malfunction indicator lamp/Shift solenoid
32 Canister vent solenoid
33 Front heated seats
34 Rear heated seat/ Vehicle body safety
module/Energy
storage system fan
35 Fog lamps
36 Fuel module
38 –
39 –
40 Steering columnn lock
41 –
43 Heated steering wheel
44 Headlamp leveling/ Rear seat ventilation
45 – Fuses
Usage
46 Engine control module/Ignition
47 –
48 Engine boost/Left cooling fan
49 DC DC battery 2/AWD
50 –
51 –
52 –
53 –
54 –
55 –
56 –
57 Transmission auxiliary pump
58 TRCM
59 High-beam headlamps
60 Cooling fan
61 –
62 – Fuses
Usage
63 –
65 A/C HEV
67 –
68 –
69 Right HID low-beam headlamps
70 Left HID low-beam headlamps
72 Starter pinion
74 Starter motor
75 Engine control module
76 Powertrain –off
engine
77 –
78 Horn
79 Washer pump
81 Transmission control module/ Engine
control module
82 –
83 Ignition coils

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-9803782) -
2017 - crc - 9/7/16

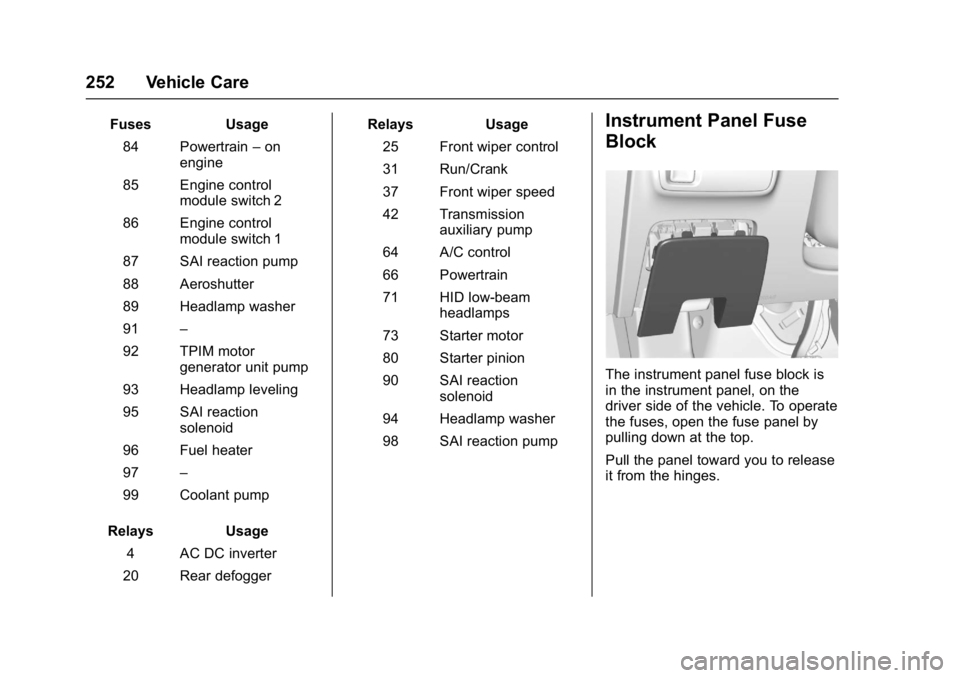

252 Vehicle Care
FusesUsage
84 Powertrain –on
engine
85 Engine control module switch 2
86 Engine control module switch 1
87 SAI reaction pump
88 Aeroshutter
89 Headlamp washer
91 –
92 TPIM motor generator unit pump
93 Headlamp leveling
95 SAI reaction solenoid
96 Fuel heater
97 –
99 Coolant pump
Relays Usage
4 AC DC inverter
20 Rear defogger Relays
Usage
25 Front wiper control
31 Run/Crank
37 Front wiper speed
42 Transmission auxiliary pump
64 A/C control
66 Powertrain
71 HID low-beam headlamps
73 Starter motor
80 Starter pinion
90 SAI reaction solenoid
94 Headlamp washer
98 SAI reaction pumpInstrument Panel Fuse
Block
The instrument panel fuse block is
in the instrument panel, on the
driver side of the vehicle. To operate
the fuses, open the fuse panel by
pulling down at the top.
Pull the panel toward you to release
it from the hinges.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-9803782) -
2017 - crc - 9/7/16
Vehicle Care 273
Some aluminum wheels can be
repaired. See your dealer if any of
these conditions exist.
Your dealer will know the kind of
wheel that is needed.
Each new wheel should have the
same load-carrying capacity,
diameter, width, offset, and be
mounted the same way as the one it
replaces.
Replace wheels, wheel bolts, wheel
nuts, or Tire Pressure Monitor
System (TPMS) sensors with new
GM original equipment parts.
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel
nuts can be dangerous. It could
affect the braking and handling of
the vehicle. Tires can lose air,
and cause loss of control, causing
a crash. Always use the correct
wheel, wheel bolts, and wheel
nuts for replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or
odometer calibration, headlamp
aim, bumper height, vehicle
ground clearance, and tire or tire
chain clearance to the body and
chassis.
Used Replacement Wheels
{Warning
Replacing a wheel with a used
one is dangerous. How it has
been used or how far it has been
driven may be unknown. It could
fail suddenly and cause a crash.
When replacing wheels, use a
new GM original equipment
wheel.
Tire Chains
{Warning
Do not use tire chains. There is
not enough clearance. Tire chains
used on a vehicle without the
proper amount of clearance can
cause damage to the brakes,
suspension, or other vehicle
parts. The area damaged by the
tire chains could cause loss of
control and a crash.
Use another type of traction
device only if its manufacturer
recommends it for the vehicle's
tire size combination and road
conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive slow
and readjust or remove the
traction device if it contacts the
vehicle. Do not spin the wheels.
If traction devices are used, install
them on the front tires.

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-9803782) -
2017 - crc - 9/7/16
Service and Maintenance 303
.To avoid break-down or failure to
start the vehicle, maintain a
battery with full cranking power.
. Trained dealer technicians have
the diagnostic equipment to test
the battery and ensure that the
connections and cables are
corrosion-free.
Belts
. Belts may need replacing if they
squeak or show signs of
cracking or splitting.
. Trained dealer technicians have
access to tools and equipment
to inspect the belts and
recommend adjustment or
replacement when necessary.
Brakes
Brakes stop the vehicle and are
crucial to safe driving.
. Signs of brake wear may include
chirping, grinding, or squealing
noises, or difficulty stopping. .
Trained dealer technicians have
access to tools and equipment
to inspect the brakes and
recommend quality parts
engineered for the vehicle.
Fluids
Proper fluid levels and approved
fluids protect the vehicle’s systems
and components. See
Recommended Fluids and
Lubricants 0305 for GM approved
fluids.
. Engine oil and windshield
washer fluid levels should be
checked at every fuel fill.
. Instrument cluster lights may
come on to indicate that fluids
may be low and need to be
filled.
Hoses
Hoses transport fluids and should
be regularly inspected to ensure
that there are no cracks or leaks.
With a multi-point inspection, your
dealer can inspect the hoses and
advise if replacement is needed. Lamps
Properly working headlamps,
taillamps, and brake lamps are
important to see and be seen on
the road.
.
Signs that the headlamps need
attention include dimming, failure
to light, cracking, or damage.
The brake lamps need to be
checked periodically to ensure
that they light when braking.
. With a multi-point inspection,
your dealer can check the lamps
and note any concerns.
Shocks and Struts
Shocks and struts help aid in control
for a smoother ride.
. Signs of wear may include
steering wheel vibration, bounce/
sway while braking, longer
stopping distance, or uneven
tire wear.
. As part of the multi-point
inspection, trained dealer
technicians can visually inspect
the shocks and struts for signs

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-9803782) -
2017 - crc - 9/7/16
336 Index
ArmrestRear Seat . . . . . . . . . . . . . . . . . . . . . . 58
Armrest Storage . . . . . . . . . . . . . . . . . 98
Assistance Program, Roadside . . . . . . . . . . . . . . . . . . . . . . 315
Assistance Systems for Driving . . . . . . . . . . . . . . . . . . . . . . . . 206
Assistance Systems for Parking and Backing . . . . . . . . . . 203
Automatic Dimming Mirrors . . . . . . . . . . . . . . . . 43
Door Locks . . . . . . . . . . . . . . . . . . . . . 37
Forward Braking . . . . . . . . . . . . . . 209
Headlamp System . . . . . . . . . . . . 149
Transmission . . . . . . . . . . . . . . . . . 181
Transmission Fluid . . . . . . . . . . . 234
Automatic Transmission Manual Mode . . . . . . . . . . . . . . . . . 185
Automatic Vehicle Hold (AVH) . . . . . . . . . . . . . . . . . . . . 189
B
BatteryLoad Management . . . . . . . . . . . . 153
Power Protection . . . . . . . . . . . . . 154
Voltage and ChargingMessages . . . . . . . . . . . . . . . . . . . 129
Battery - North America . . . . 243, 281
Blade Replacement, Wiper . . . . . 245 Brake
Parking, Electric . . . . . . . . . . . . . . 187
System Warning Light . . . . . . . . .116
Brakes . . . . . . . . . . . . . . . . . . . . . . . . . . 242 Antilock . . . . . . . . . . . . . . . . . . . . . . . 186
Assist . . . . . . . . . . . . . . . . . . . . . . . . . 188
Fluid . . . . . . . . . . . . . . . . . . . . . . . . . . 242
System Messages . . . . . . . . . . . . 129
Braking . . . . . . . . . . . . . . . . . . . . . . . . . 164 Automatic Forward . . . . . . . . . . . 209
Braking System
Front Pedestrian (FPB) . . . . . . . 210
Break-In, New Vehicle . . . . . . . . . . 173
Bulb Replacement . . . . . . . . . . . . . . 248 Headlamp Aiming . . . . . . . . . . . . . 246
Headlamps . . . . . . . . . . . . . . . . . . . 246
High Intensity Discharge(HID) Lighting . . . . . . . . . . . . . . . 246
License Plate Lamps . . . . . . . . . 247
Taillamps, Turn Signal, Stoplamps, and Back-up
Lamps . . . . . . . . . . . . . . . . . . . . . . 247
Buying New Tires . . . . . . . . . . . . . . . 269
C
Calibration . . . . . . . . . . . . . . . . . . . . . . 103
California Fuel Requirements . . . . . . . . . . . 217 California (cont'd)
Perchlorate Materials
Requirements . . . . . . . . . . . . . . . 227
California
Proposition
65 Warning . . . . . . . . . .227, 243, 281
Canadian Vehicle Owners . . . . . . . . 2
Capacities and Specifications . . . . . . . . . . . . . . . . . 309
Carbon Monoxide Engine Exhaust . . . . . . . . . . . . . . . 180
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Winter Driving . . . . . . . . . . . . . . . . 168
Cargo
Tie-Downs . . . . . . . . . . . . . . . . . . . . . . 98
Caution, Danger, and Warning . . . . 2
Center Console Storage . . . . . . . . . 98
Chains, Tire . . . . . . . . . . . . . . . . . . . . 273
Charging Wireless . . . . . . . . . . . . . . . . . . . . . . 106
Charging System Light . . . . . . . . . 114
Check Malfunction Indicator
Engine Light . . . . . . . . . . . . . . . . .114
Child Restraints Infants and Young Children . . . . . 80
Lower Anchors and Tethersfor Children . . . . . . . . . . . . . . . . . . . 85

Buick LaCrosse Owner Manual (GMNA-Localizing-U.S./Canada-9803782) -
2017 - crc - 9/7/16
Index 339
Front SeatsHeated and Ventilated . . . . . . . . . . 55
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217 Additives . . . . . . . . . . . . . . . . . . . . . 218
Economy Driving . . . . . . . . . . . . . . . 24
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 219
Filling the Tank . . . . . . . . . . . . . . . 218
Foreign Countries . . . . . . . . . . . . 218
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .110
Low Fuel Warning Light . . . . . . . 120
Requirements, California . . . . . 217
System Messages . . . . . . . . . . . . 132
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 249
Fuses and Circuit Breakers . . . 249
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 252
G
Garage Door Opener . . . . . . . . . . . 145Programming . . . . . . . . . . . . . . . . . 145
Gauges Engine CoolantTemperature . . . . . . . . . . . . . . . . . 111
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .110
Odometer . . . . . . . . . . . . . . . . . . . . . .110
Speedometer . . . . . . . . . . . . . . . . . .110 Gauges (cont'd)
Tachometer . . . . . . . . . . . . . . . . . . . .110
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . 107
General Information Service and Maintenance . . . . . 296
Towing . . . . . . . . . . . . . . . . . . . . . . . . 220
Vehicle Care . . . . . . . . . . . . . . . . . . 227
Glove Box . . . . . . . . . . . . . . . . . . . . . . . 97
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . 315
H
Hazard Warning Flashers . . . . . . . 150
Head Restraints . . . . . . . . . . . . . . . . . 50
Head-up Display . . . . . . . . . . . . . . . . 125
HeadlampsAdaptive ForwardLighting (AFL) . . . . . . . . . . . . . . . 150
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 246
Automatic . . . . . . . . . . . . . . . . . . . . . 149
Bulb Replacement . . . . . . . . . . . . 246
Daytime Running Lamps (DRL) . . . . . . . . . . . . . . . . 149
Flash-to-Pass . . . . . . . . . . . . . . . . . 149
High Intensity Discharge (HID) Lighting . . . . . . . . . . . . . . . 246
High-Beam On Light . . . . . . . . . . 121
High/Low Beam Changer . . . . . 149 Headlamps (cont'd)
Lamps On Reminder . . . . . . . . . 121
Heated Steering Wheel . . . . . . . . . . . . . . . 102
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Heated Mirrors . . . . . . . . . . . . . . . . . . . 43
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . 177
Heating . . . . . . . . . . . . . . . . . . . . . . . . . 156
High-Beam On Light . . . . . . . . . . . . 121
High-Speed Operation . . . . . . . . . . 262
Hill and Mountain Roads . . . . . . . . 167
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . 229
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
How to Wear Safety Belts Properly . . . . . . . . . . . . . . . . . . . . . . . . 60
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . . 156
I
Ignition Positions . . . . . . . . . . . . . . . 173
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 41
Indicator Vehicle Ahead . . . . . . . . . . . . . . . . .118
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 80
Infotainment . . . . . . . . . . . . . . . . . . . . 155
Infotainment System . . . . . . . . . . . . 324
Instrument Cluster . . . . . . . . . . . . . . 108
