BUICK LESABRE 2001 Owner's Manual

2-36
Turn Signal/Multifunction Lever
The lever on the left side of the steering column
includes the following:

Turn Signal and Lane Change Indicator

Headlamp High/Low
-Beam Changer

Flash
-To-Pass

Windshield Wipers and Washer
Turn Signal and Lane Change Indicator
To signal a turn, move the lever on the left side of the
steering wheel all the way up or down. The lever returns
automatically when the turn is complete.
An arrow on the instrument
panel cluster will flash in
the direction of the turn or
lane change.
If your vehicle is equipped with the Head
-Up Display
(HUD), an arrow will also appear in the display area
to indicate the direction of the turn or lane change
(See ªHead
-Up Display (HUD)º in Index for
more information).
Raise or lower the lever until the arrow starts to flash to
signal a lane change. Hold it there until the lane change
is complete. The lever will return by itself when you
release it.
If the arrows flash very fast as you signal a turn or a
lane change, a signal bulb may be burned out and other
drivers won't see your turn signal.

2-37
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check the fuse (see ªFuses and Circuit
Breakersº in the Index) and for burned
-out bulbs.
Turn Signal On Chime
If your turn signal is left on for more than 0.8 miles
(1.3 km), a chime will sound at each flash of the turn
signal. To turn off the chime, move the turn signal lever
to the off position.
Headlamp High/Low-Beam Changer
To change the headlamps from low beam to high beam
or high beam to low beam, pull the turn signal lever
toward you and release it.
When the high beams are
on, this light located on the
instrument panel will also
be on.If your vehicle is equipped with the Head
-Up Display
(HUD), an arrow will also appear in the display area to
indicate the high beams are on (See ªHead
-Up Display
(HUD)º in Index for more information).
Flash-To-Pass
This feature lets you use the high-beam headlamps to
signal the driver in front of you that you want to pass.
It works even if your headlamps are off.
Pull the turn signal lever toward you briefly to
flash
-to-pass.
If the headlamps are off or on low beam, the high
-beam
headlamps will turn on. They'll stay on as long as you
hold the lever toward you and the high
-beam indicator
on the instrument panel cluster will come on. Release
the lever to turn the high
-beam headlamps off.

2-38 Windshield Wipers
The windshield wipers are controlled by turning the
band marked WIPER.
For a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle. If you want more cycles, hold the
band on MIST longer.For steady wiping at low speed, turn the band away
from you to the LO position. For high
-speed wiping,
turn the band further, to HI. To stop the wipers, turn
the band to OFF.
The wiper speed may be set for a long or short delay
between wipes. This can be very useful in light rain
or snow. Turn the band to choose the delay time.
The closer to LO, the shorter the delay.
Heavy snow or ice can overload your wiper motor.
A circuit breaker will stop the motor until it cools.
Clear away snow or ice to prevent an overload.
Keep in mind that damaged wiper blades may prevent
you from seeing well enough to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If your blades do become
damaged, get new blades or blade inserts.
If your windshield wipers are on for more than
six seconds while you are driving, the low
-beam
headlamps, instrument panel cluster backlighting
and taillamps will turn on. For more information
see ªWiper
-Activated Headlampsº in the Index.

2-39 Rainsense
II Wipers (If Equipped)
The moisture sensor is mounted on the interior of the
windshield below the rearview mirror and is used to
automatically operate the wipers. This system operates
by monitoring the amount of moisture build
-up on
the windshield. Wipes occur as needed to clear the
windshield depending on the driving conditions and
the sensitivity setting. In light rain or snow, fewer wipes
will occur. In heavy rain or snow, wipes will occur more
frequently. The system will operate in the delay, low
speed and high speed modes. If the system is left on
for long periods of time, occasional wipes may occur
without any moisture on the windshield. This is normal
and indicates that the Rainsense system is active.
The Rainsense system is activated by turning the wiper
control band to one of the five sensitivity levels within
the delay area. The delay position closest to OFF/MIST
is the lowest sensitivity setting, level one. This allows
more rain or snow to collect on the windshield between
wipes. You can increase the sensitivity of the system
and the frequency of wipes by turning the wiper control
band away from you to the higher sensitivity levels.
The highest sensitivity setting, level five, is closest to
the LO position. A single wipe will occur each time you
turn the wiper control band to a higher sensitivity level
to indicate that the sensitivity level has been increased.
NOTICE:
The wipers must be turned off when going
through a car wash to avoid damage.
The MIST and wash cycles operate as normal and are
not affected by the Rainsense function. The system
can be overridden at any time by manually changing
the wiper control to LO or HI speed.
NOTICE:
Do not place stickers or other items on the
exterior glass surface directly in front of the
rainsensor. Doing this could cause the rainsensor
to malfunction.

2-40 Windshield Washer
At the top of the turn signal/multifunction lever, there's
a paddle with the word PUSH on it. To spray washer
fluid on the windshield, push the paddle. The wipers
will clear the window and either stop or return to your
preset speed.
CAUTION:
In freezing weather, don't use your washer until
the windshield is warmed. Otherwise the washer
fluid can form ice on the windshield, blocking
your vision.
Cruise Control
The controls to operate the cruise control are located on
the steering wheel.
With cruise control, you can maintain a speed of about
25 mph (40 km/h) or more without keeping your foot
on the accelerator. This is helpful on long trips.
Cruise control does not work at speeds below about
25 mph (40 km/h).
When you apply your brakes, the cruise control
shuts off.

2-41

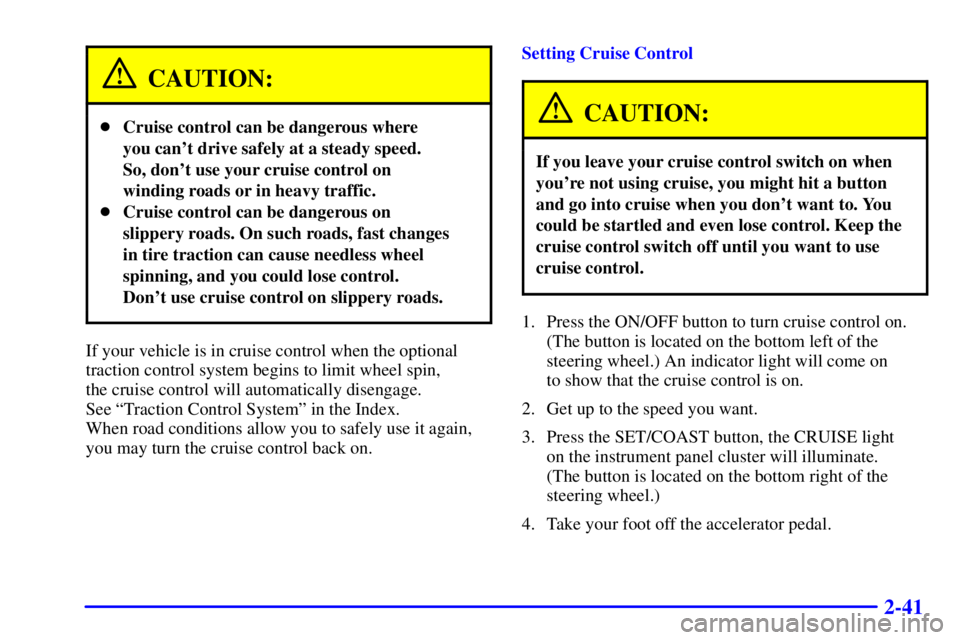

CAUTION:

Cruise control can be dangerous where
you can't drive safely at a steady speed.
So, don't use your cruise control on
winding roads or in heavy traffic.

Cruise control can be dangerous on
slippery roads. On such roads, fast changes
in tire traction can cause needless wheel
spinning, and you could lose control.
Don't use cruise control on slippery roads.
If your vehicle is in cruise control when the optional
traction control system begins to limit wheel spin,
the cruise control will automatically disengage.
See ªTraction Control Systemº in the Index.
When road conditions allow you to safely use it again,
you may turn the cruise control back on.Setting Cruise Control
CAUTION:
If you leave your cruise control switch on when
you're not using cruise, you might hit a button
and go into cruise when you don't want to. You
could be startled and even lose control. Keep the
cruise control switch off until you want to use
cruise control.
1. Press the ON/OFF button to turn cruise control on.
(The button is located on the bottom left of the
steering wheel.) An indicator light will come on
to show that the cruise control is on.
2. Get up to the speed you want.
3. Press the SET/COAST button, the CRUISE light
on the instrument panel cluster will illuminate.
(The button is located on the bottom right of the
steering wheel.)
4. Take your foot off the accelerator pedal.

2-42
Resuming a Set Speed
Suppose you set your cruise control at a desired speed
and then you apply the brake. This, of course, shuts off
the cruise control. But you don't need to reset it.
Once you're going about 25 mph (40 km/h) or
more, you can briefly press the RESUME/ACCEL
(resume/accelerate) button to return to your desired
preset speed.
You'll go right back up to your chosen speed and stay
there. If you press and hold the RESUME/ACCEL
button, the vehicle will keep going faster until you
release the button or apply the brake. So unless
you want to go faster, don't press and hold the
RESUME/ACCEL button.
Increasing Speed While Using Cruise Control
There are two ways to go to a higher speed:

Use the accelerator pedal to get to the higher speed.
Press the SET/COAST button, then release the
button and the accelerator pedal. You'll now cruise
at the higher speed.
Press the RESUME/ACCEL button. Hold it there
until you get up to the speed you want, and then
release the button. (To increase your speed in very
small amounts, briefly press the RESUME/ACCEL
button and then release it. Each time you do this,
your vehicle will go about 1 mph (1.6 km/h) faster.)
The accelerate feature will only work after you
have set the cruise control speed by pressing the
SET/COAST button.
Reducing Speed While Using Cruise Control
There are two ways to reduce your speed while using
cruise control:

Press the SET/COAST button until you reach the
lower speed you want, then release it.

To slow down in very small amounts, push the
SET/COAST button briefly. Each time you do this,
you'll go 1 mph (1.6 km/h) slower.
Passing Another Vehicle While Using Cruise Control
Use the accelerator pedal to increase your speed. When
you take your foot off the pedal, your vehicle will slow
down to the cruise control speed you set earlier.

2-43
Using Cruise Control on Hills
How well your cruise control will work on hills depends
upon your speed, load and the steepness of the hills.
When going up steep hills, you may have to step on the
accelerator pedal to maintain your speed. When going
downhill, you may have to brake or shift to a lower gear
to keep your speed down. Applying the brake or shifting
into a lower gear will take your vehicle out of cruise
control. If you need to apply the brake or shift to
a lower gear due to the grade of the downhill slope,
you may not want to attempt to use your cruise
control feature.
Ending Cruise Control
There are two ways to turn off the cruise control:

Step lightly on the brake pedal; or

press the ON/OFF button.
Erasing Speed Memory
When you turn off the cruise control or the ignition,
your cruise control set speed memory is erased.Exterior Lamps
These buttons control these systems:

Headlamps

Taillamps

Parking Lamps

License Lamps

Sidemarker Lamps

Instrument Panel Lights
Headlamps
Press the button with the lamp symbol on it to turn on
the headlamps. Press it again to turn them off. When the
headlamps are turned on, the instrument panel lights and
the parking lamps will also come on.

2-44
Wiper-Activated Headlamps
This feature turns on the low
-beam headlamps
instrument panel cluster backlighting and taillamps
when the Twilight Sentinel

is in day mode and after
the windshield wipers have been in use for
approximately six seconds.
To operate the wiper
-activated headlamps, the Twilight
Sentinel must be on. If the wiper
-activated headlamps
are on and the ignition switch is turned to RUN, the
wiper
-activated headlamps will continue. When you
turn the key to OFF, the wiper
-activated headlamps will
immediately turn off. The wiper
-activated headlamps
will also turn off if you turn off the Twilight Sentinel or
the windshield wipers.
Parking Lamps
Press the park button to turn on the parking lamps.
Press it again to turn them off. (If the parking lamps
were turned on with the park button, they must be
turned off with that button).
When the parking lamps are turned on during the day,
the instrument panel cluster lights and backlighting to the
buttons will turn on. At night, if the ignition key is turned
to RUN, the brightness of this lighting can be adjusted
using the instrument panel intensity/brightness control.
The radio and climate control displays will also be on.
Lamps On Reminder
If you leave the manual headlamp or parking lamp
switch on, remove the key from the ignition and open
the driver's door, you will hear a continuous warning
chime. The chime will turn off when the lamps are
turned off.
Daytime Running Lamps
Daytime Running Lamps (DRL) can make it easier for
others to see the front of your vehicle during the day.
DRL can be helpful in many different driving conditions,
but they can be especially helpful in the short periods
after dawn and before sunset. Fully functional daytime
running lights are required on all vehicles first sold
in Canada.
A light sensor on top of the instrument panel monitors
the exterior light level for the operation of DRL and
Twilight Sentinel, so be sure it isn't covered.
The DRL system will make your high
-beam headlamps
turn on at reduced brightness in daylight when the
following conditions are met:

The ignition is on,

the headlamp switch is off and

the transaxle is not in PARK (P).

2-45
When the DRL are on, only your high-beam headlamps
will be on. The parking lamps, taillamps, sidemarker
and other lamps won't be on.
When it is dark enough outside, your low
-beam
headlamps will come on. The other lamps that turn on
with your headlamps will also turn on. When it is bright
enough outside, the regular lamps will go off, and your
high
-beam headlamps change to the reduced brightness
of DRL.
To turn off all exterior lighting at night when you are
parked, turn off the headlamps and move the Twilight
Sentinel control all the way toward OFF. The exterior
lamps will turn back on automatically when you move
the transaxle out of PARK (P).
As with any vehicle, you should turn on the regular
headlamp system when you need it.
Cornering Lamps (If Equipped)
The cornering lamps are designed to turn on when
you signal a turn. This will provide more lighting
when cornering.
Twilight Sentinel

Twilight Sentinel turns your
lamps on and off by sensing
how dark it is outside.
To operate it, leave the lamp switch off.
If you move the control all the way to MAX, your
headlamps will remain on for about three minutes after
you turn off your engine. As you move the control
toward OFF, the headlamps will turn off more quickly
when you move your key from RUN. You can change
this delay time from only a few seconds to three minutes.
The exterior lamps can be completely shut off while the
vehicle is in PARK (P) by sliding the Twilight Sentinel
control all the way toward OFF, and releasing it. To turn the
exterior lamps back on, slide the control all the way toward
OFF again, and release it; or, shift out of PARK (P).
