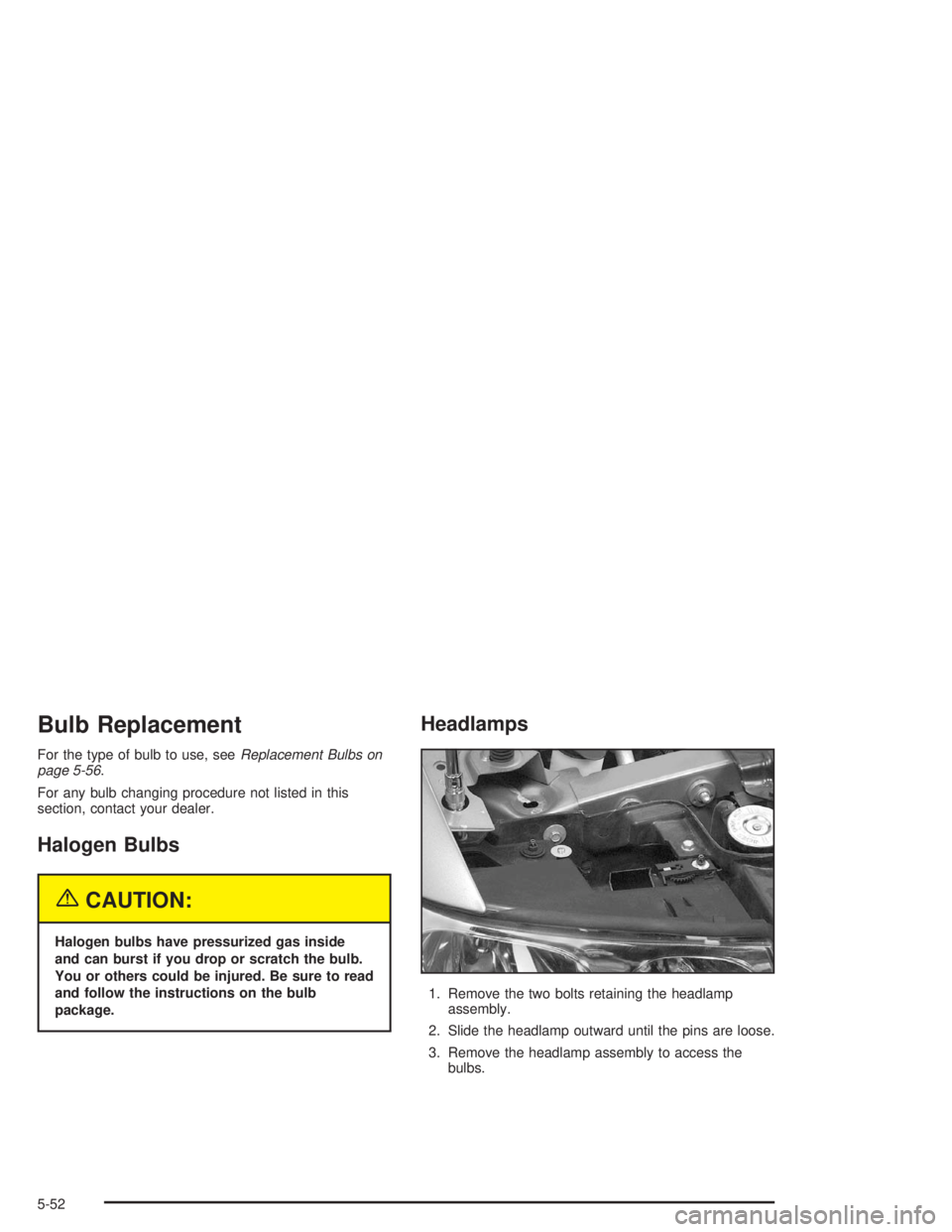

Bulb Replacement
For the type of bulb to use, seeReplacement Bulbs on
page 5-56.
For any bulb changing procedure not listed in this
section, contact your dealer.
Halogen Bulbs
{CAUTION:
Halogen bulbs have pressurized gas inside
and can burst if you drop or scratch the bulb.
You or others could be injured. Be sure to read
and follow the instructions on the bulb
package.
Headlamps
1. Remove the two bolts retaining the headlamp
assembly.
2. Slide the headlamp outward until the pins are loose.
3. Remove the headlamp assembly to access the
bulbs.
5-52

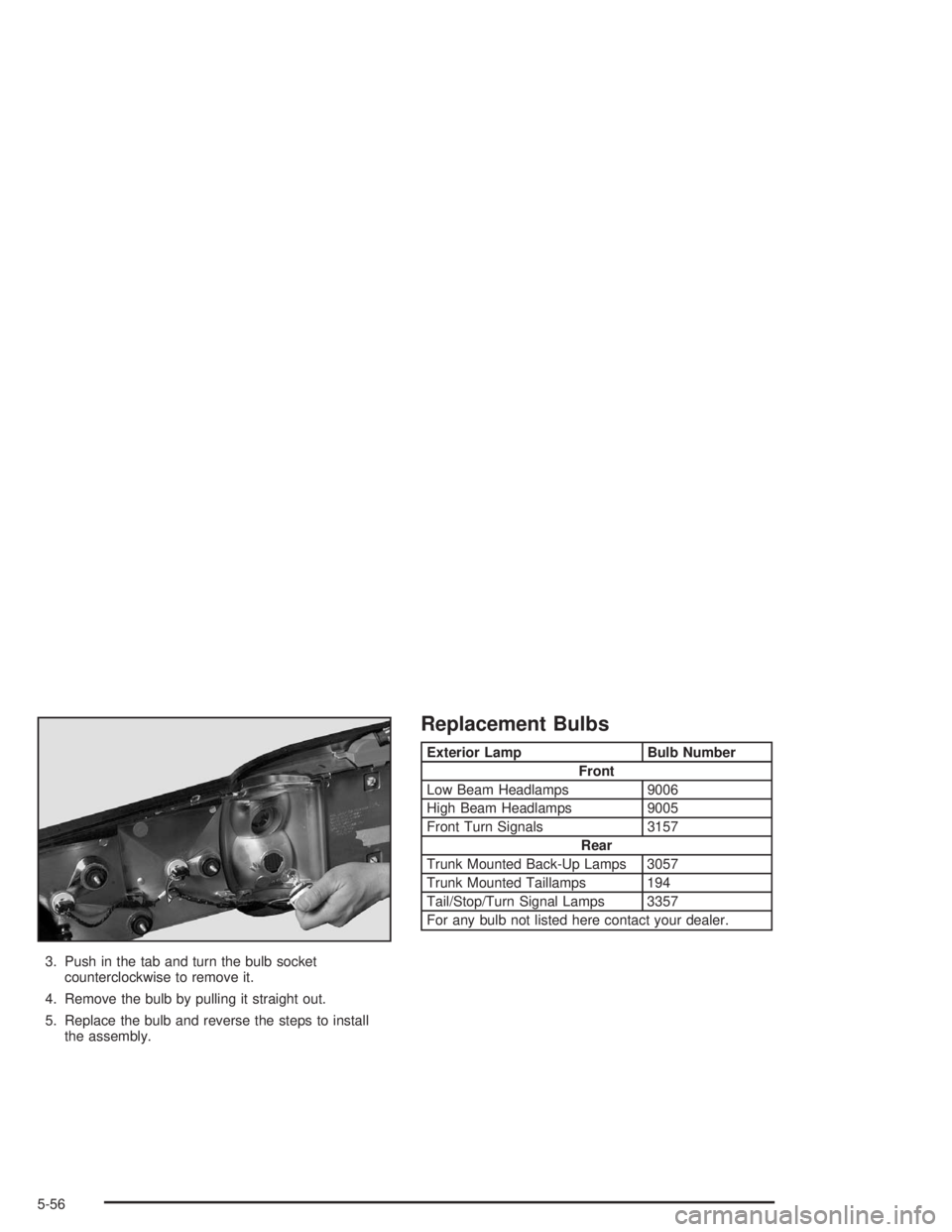

3. Push in the tab and turn the bulb socket
counterclockwise to remove it.
4. Remove the bulb by pulling it straight out.
5. Replace the bulb and reverse the steps to install
the assembly.
Replacement Bulbs
Exterior Lamp Bulb Number
Front
Low Beam Headlamps 9006
High Beam Headlamps 9005
Front Turn Signals 3157
Rear
Trunk Mounted Back-Up Lamps 3057
Trunk Mounted Taillamps 194
Tail/Stop/Turn Signal Lamps 3357
For any bulb not listed here contact your dealer.
