BUICK LUCERNE 2006 Owner's Manual

Center Console Storage Area
If your vehicle has a full oor console it has two storage
areas. To access the upper tray storage, lift the left
lever located in the front of the armrest lid. To access
the lower storage area, lift the right lever. If your vehicle
has a center seat console it will have two storage
areas. To access the upper storage area, press the
button located on the front of the armrest and lift
the armrest lid. To access the lower storage area, pull
the strap located behind the cup holder.
Center Flex Storage Unit
Your vehicle may be equipped with a center ex storage
unit that includes a front center seat with a lap belt
and an underseat storage compartment. The center
seatback can also be used as a fold down armrest.
Cupholders are also located at the front edge of
the storage unit and can be accessed by folding the
compartment forward.
When not being used, the center seat lap belt can be
stored in the underseat storage compartment as shown.
2-45

Rear Seat Armrest
Your vehicle has a rear seat armrest with cupholders.
To access, pull the tab on the armrest forward.
Convenience Net
The vehicle may have a convenience net located on the
back wall of the trunk.
The net is not for larger, heavier loads. Store those in
the trunk as far forward as possible.
Unhook the net so that it will lie at when not in use.
Sunroof
Your vehicle may be equipped with a power sunroof.
The sunroof buttons are
located on the headliner.To express-open the sunroof press and release the rear
of the driver’s side button. To stop the sunroof from
express opening, press the button again. If the
sunshade is in the closed position, it will open with the
sunroof, or it can be opened manually.
To close the sunroof, press and release the front of the
driver’s side button.
To vent the sunroof press and hold the back of the
passenger’s side button until the vent reaches the
desired position. Press the front of the passenger’s side
button to close the sunroof.
If an object is in the path of the sunroof while it is
closing, the anti-pinch feature will detect the object and
stop the sunroof from closing at the point of the
obstruction. The sunroof will then return to the full-open
or vent position.
Vehicle Personalization
In addition to the following features, your vehicle may
also have features that can be programmed through the
Driver Information Center (DIC). SeeDIC Vehicle
Customization on page 3-65for more information.
2-46

Memory Seat and Mirrors
Your vehicle may have the memory package.
The controls for this feature are located on the driver’s
door panel, and are used to program and recall
memory settings for the driver’s seat and the outside
mirrors.
To save your positions in memory, do the following:
1. Adjust the driver’s seat, including the seatback
recliner and lumbar, and both outside mirrors to
your preferred position.
2. Press and hold button 1 until two beeps sound
through the driver’s side front speaker to let you
know that the position has been stored.
A second seating and mirror position can be
programmed by repeating the above steps and pressing
button 2 for a second driver.To recall your memory positions, the vehicle must be in
PARK (P). Press and release either button 1 or
button 2 corresponding to the desired driving position.
The seat and outside mirrors will move to the position
previously stored for the identied driver. You will hear a
single beep.
If you use the remote keyless entry transmitter to enter
your vehicle and the remote recall memory feature
is on, automatic seat and mirror movement will occur.
See “MEMORY SEAT RECALL” underDIC Vehicle
Customization on page 3-65for more information.
To stop recall movement of the memory feature at any
time, press one of the power seat controls, memory
buttons, or power mirror buttons.
If something has blocked the driver’s seat while recalling
a memory position, the driver’s seat recall may stop
working. If this happens, press the appropriate control
for the area that is not recalling for two seconds,
after the obstruction is removed. Then try recalling the
memory position again by pressing the appropriate
memory button. If the memory position is still not
recalling, see your GM dealer for service.
2-47

Easy Exit Seat
The control for this feature is located on the driver’s
door panel between buttons 1 and 2.
With the vehicle in PARK (P), the exit position can be
recalled by pressing the exit button. You will hear
a single beep. The driver’s seat will move back.
If the easy exit seat feature is on in the Driver
Information Center (DIC), automatic seat movement will
occur when the key is removed from the ignition.
See “EASY EXIT SEAT” underDIC Vehicle
Customization on page 3-65for more information.Further programming for automatic seat movement can
be done using the DIC. You can select or not select
the following:
The easy exit seat feature
The memory seat recall feature
For programming information, seeDIC Vehicle
Customization on page 3-65.
2-48

Instrument Panel Overview...............................3-4
Hazard Warning Flashers................................3-6
Other Warning Devices...................................3-6
Horn .............................................................3-6
Tilt Wheel.....................................................3-6
Turn Signal/Multifunction Lever.........................3-7
Turn and Lane-Change Signals........................3-7
Headlamp High/Low-Beam Changer..................3-8
Flash-to-Pass.................................................3-8
Windshield Wipers..........................................3-8
Rainsense™ II Wipers.....................................3-9
Windshield Washer.......................................3-10
Cruise Control..............................................3-11
Exterior Lamps.............................................3-14
Wiper Activated Headlamps............................3-15
Headlamps on Reminder................................3-15
Daytime Running Lamps (DRL).......................3-15
Fog Lamps ..................................................3-16
Cornering Lamps..........................................3-16
Exterior Lighting Battery Saver........................3-16
Instrument Panel Brightness...........................3-16
Courtesy Lamps...........................................3-17
Entry Lighting...............................................3-17
Delayed Entry Lighting...................................3-17
Theater Dimming..........................................3-17
Delayed Exit Lighting.....................................3-17Perimeter Lighting.........................................3-17
Front Reading Lamps....................................3-18
Battery Load Management.............................3-18
Inadvertent Power Battery Saver.....................3-18
Ultrasonic Rear Parking Assist (URPA)............3-18
Accessory Power Outlet(s).............................3-21
Ashtray(s) and Cigarette Lighter......................3-22
Climate Controls............................................3-23
Climate Control System.................................3-23
Dual Automatic Climate Control System...........3-26
Outlet Adjustment.........................................3-31
Passenger Compartment Air Filter...................3-31
Warning Lights, Gages, and Indicators............3-33
Instrument Panel Cluster................................3-34
Speedometer and Odometer...........................3-35
Trip Odometer..............................................3-35
Tachometer.................................................3-35
Safety Belt Reminder Light.............................3-35
Passenger Safety Belt Reminder Light.............3-36
Airbag Readiness Light..................................3-36
Passenger Airbag Status Indicator...................3-37
Charging System Light..................................3-39
Brake System Warning Light..........................3-40
Anti-Lock Brake System Warning Light.............3-41
Traction Control System (TCS) Warning Light . . .3-41
Section 3 Instrument Panel
3-1

StabiliTrak®Indicator Light..............................3-42
Engine Coolant Temperature Warning Light......3-43
Engine Coolant Temperature Gage..................3-43
Tire Pressure Light.......................................3-44
Malfunction Indicator Lamp.............................3-44
Oil Pressure Light.........................................3-47
Security Light...............................................3-48
Fog Lamp Light............................................3-48
Cruise Control Light......................................3-48
Highbeam On Light.......................................3-48
Fuel Gage...................................................3-49
Driver Information Center (DIC).......................3-50
DIC Controls and Displays.............................3-50
DIC Warnings and Messages.........................3-56
DIC Vehicle Customization.............................3-65Audio System(s).............................................3-74
Setting the Time
(Without Date Display)...............................3-75
Setting the Time
(With Date Display)....................................3-76
Radio with CD (Base)...................................3-77
Radio with CD (MP3)....................................3-82
Navigation/Radio System...............................3-98
Theft-Deterrent Feature..................................3-98
Audio Steering Wheel Controls.......................3-99
Radio Reception.........................................3-100
Care of Your CDs.......................................3-100
Care of the CD Player.................................3-101
Backglass Antenna......................................3-101
XM™ Satellite Radio Antenna System............3-101
Section 3 Instrument Panel
3-2

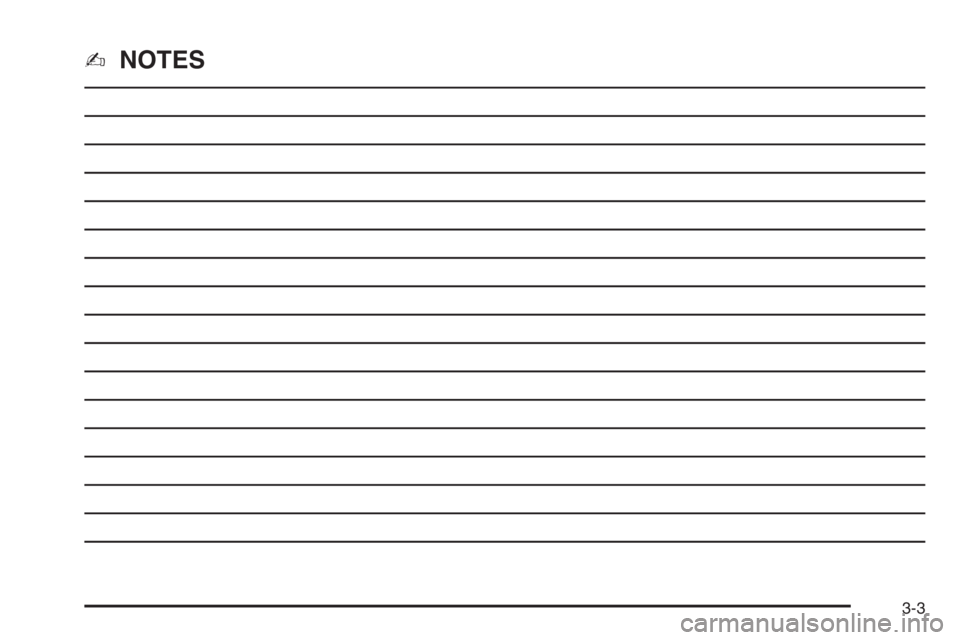

✍NOTES
3-3

Instrument Panel Overview
3-4

The main components of your instrument panel are the following:
A. Air Outlets. SeeOutlet Adjustment on page 3-31.
B. Driver Information Center (DIC) Buttons
(If Equipped). SeeDIC Controls and Displays
on page 3-50.
C. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7.
D. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-34.
E. Hazard Warning Flashers. SeeHazard Warning
Flashers on page 3-6.
F. Audio System. SeeAudio System(s) on page 3-74.
G. Exterior Lamp Buttons. SeeExterior Lamps on
page 3-14.
H. Instrument Panel Brightness Control. SeeInstrument
Panel Brightness on page 3-16.
I. Hood Release. SeeHood Release on page 5-11.
J. Cruise Controls. SeeCruise Control on page 3-11.K. Parking Brake. SeeParking Brake on page 2-28.
L. Audio Steering Wheel Controls. SeeAudio Steering
Wheel Controls on page 3-99.
M. Climate Controls. SeeClimate Control System on
page 3-23orDual Automatic Climate Control System
on page 3-26.
N. Traction Control/StabiliTrak
®Button. SeeTraction
Control System (TCS) on page 4-9andStabiliTrak®
System on page 4-10.
O. Ashtray. SeeAshtray(s) and Cigarette Lighter on
page 3-22.
P. Shift Lever. SeeAutomatic Transaxle Operation
on page 2-25.
Q. Accessory Power Outlet. SeeAccessory Power
Outlet(s) on page 3-21.
R. Trunk Release. SeeTrunk on page 2-14.
S. Glove Box. SeeGlove Box on page 2-44.
3-5

Hazard Warning Flashers
Your hazard warning ashers let you warn others. They
also let police know you have a problem. Your front
and rear turn signal lamps will ash on and off.
The hazard warning
asher button is located
in the center of the
instrument panel above
the radio.
Your hazard warning ashers work no matter what
position your key is in, and even if the key is not in the
ignition.
Press the button to make the front and rear turn signal
lamps ash on and off. Press the button again to
turn the ashers off.
When the hazard warning ashers are on, your turn
signals will not work.
Other Warning Devices
If you carry reective triangles, you can set them up at
the side of the road about 300 feet (100 m) behind
your vehicle.
Horn
Press near or on the horn symbols on your steering
wheel pad to sound the horn.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. You can also raise it to the highest
level to give your legs more room when you exit
and enter the vehicle.
The lever that allows you to tilt the steering wheel is
located on the left side of the steering column.
To tilt the wheel, hold the
wheel and pull the lever
toward you. Then move the
wheel to a comfortable
position and release
the lever to lock the wheel
in place.
3-6
