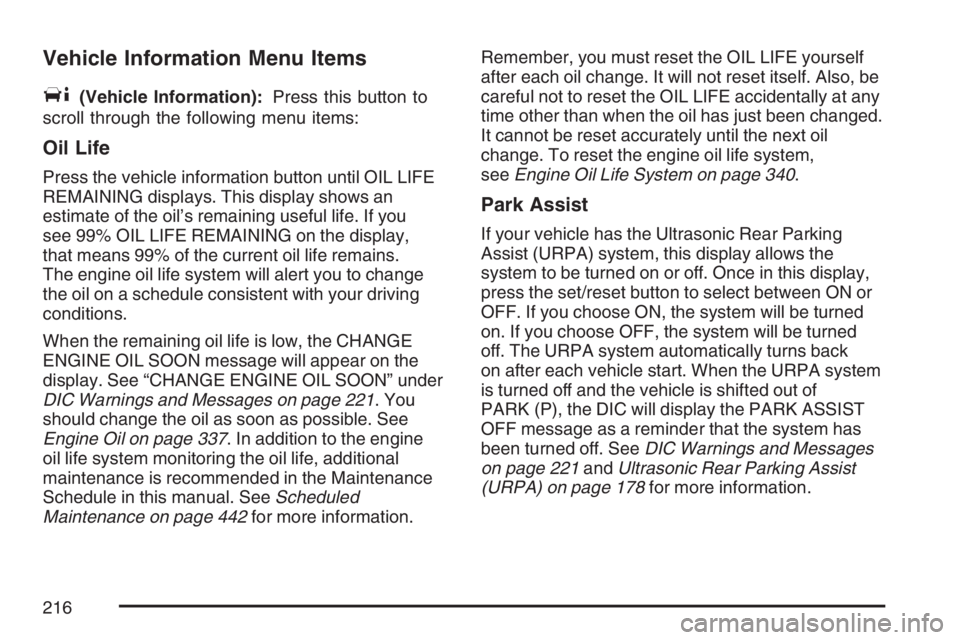

Vehicle Information Menu Items
T
(Vehicle Information):Press this button to
scroll through the following menu items:
Oil Life
Press the vehicle information button until OIL LIFE
REMAINING displays. This display shows an
estimate of the oil’s remaining useful life. If you
see 99% OIL LIFE REMAINING on the display,
that means 99% of the current oil life remains.
The engine oil life system will alert you to change
the oil on a schedule consistent with your driving
conditions.
When the remaining oil life is low, the CHANGE
ENGINE OIL SOON message will appear on the
display. See “CHANGE ENGINE OIL SOON” under
DIC Warnings and Messages on page 221. You
should change the oil as soon as possible. See
Engine Oil on page 337. In addition to the engine
oil life system monitoring the oil life, additional
maintenance is recommended in the Maintenance
Schedule in this manual. SeeScheduled
Maintenance on page 442for more information.Remember, you must reset the OIL LIFE yourself
after each oil change. It will not reset itself. Also, be
careful not to reset the OIL LIFE accidentally at any
time other than when the oil has just been changed.
It cannot be reset accurately until the next oil
change. To reset the engine oil life system,
seeEngine Oil Life System on page 340.
Park Assist
If your vehicle has the Ultrasonic Rear Parking
Assist (URPA) system, this display allows the
system to be turned on or off. Once in this display,
press the set/reset button to select between ON or
OFF. If you choose ON, the system will be turned
on. If you choose OFF, the system will be turned
off. The URPA system automatically turns back
on after each vehicle start. When the URPA system
is turned off and the vehicle is shifted out of
PARK (P), the DIC will display the PARK ASSIST
OFF message as a reminder that the system has
been turned off. SeeDIC Warnings and Messages
on page 221andUltrasonic Rear Parking Assist
(URPA) on page 178for more information.
216

Units
Press the vehicle information button until UNITS
displays. This display allows you to select between
English or Metric units of measurement. Once in
this display, press the set/reset button to select
between ENGLISH or METRIC units.
Tire Pressure
The pressure for each tire can be viewed in the
DIC. The tire pressure will be shown in either
pounds per square inch (psi) or kilopascals (kPa).
Press the vehicle information button until the
DIC displays FRONT TIRES PSI (kPa) LEFT ##
RIGHT ##. Press the vehicle information button
again until the DIC displays REAR TIRES
PSI (kPa) LEFT ## RIGHT ##.
If a low or high tire pressure condition is detected by
the system while driving, a message advising you
to check the pressure in a specic tire will appear
in the display. SeeInation - Tire Pressure on
page 392andDIC Warnings and Messages on
page 221for more information.
If the tire pressure display shows dashes instead of
a value, there may be a problem with your vehicle.
If this consistently occurs, see your dealer for
service.
Learn Tire Positions
To access this display, the vehicle must be in
PARK (P). After rotating the tires or after replacing
a tire or sensor, the Tire Pressure Monitor (TPM)
system must re-learn the tire positions. To re-learn
the tire positions, seeTire Pressure Monitor System
on page 393. SeeTire Inspection and Rotation on
page 398andDIC Warnings and Messages on
page 221for more information.
Compass Zone
Your vehicle may have this feature. Under
certain circumstances, such as during a long
distance cross-country trip, it will be necessary to
compensate for compass variance and reset the
zone. To change the compass zone through the
DIC, seeDIC Compass on page 218.
Compass Calibration
The compass can be manually calibrated. To
calibrate the compass through the DIC, seeDIC
Compass on page 218.
217

Remote Key
To access this display, the vehicle must be in
PARK (P). This display allows you to match the
Remote Keyless Entry (RKE) transmitter to your
vehicle. To match an RKE transmitter to your
vehicle, do the following:
1. Press the vehicle information button until
PRESS
VTO RELEARN REMOTE KEY
displays.
2. Press the set/reset button.
The message REMOTE KEY LEARNING
ACTIVE will display.
3. Press and hold the lock and unlock buttons
on the rst transmitter at the same time for
about 15 seconds.
A chime will sound indicating that the
transmitter is matched.
4. To match additional transmitters at this time,
repeat Step 3.
Each vehicle can have a maximum of
eight transmitters matched to it.
5. To exit the programming mode, you must
cycle the key to OFF.
Blank Display
This display shows no information.
Customization Menu Items
U
(Customization):Press this button to enter
the feature settings menu. This display allows
you to customize the feature settings on your
vehicle. SeeDIC Vehicle Customization on
page 231for more information.
DIC Compass
Your vehicle may have a compass in the Driver
Information Center (DIC). The information below
explains how to operate this feature in the DIC.
If your vehicle has a compass in the mirror, see
Automatic Dimming Rearview Mirror with Compass
on page 132.
218

Compass Zone
Under certain circumstances, such as during a
long distance cross-country trip, it will be
necessary to compensate for compass variance
and reset the zone through the DIC.
Compass variance is the difference between the
earth’s magnetic north and true geographic
north. If not adjusted to account for compass
variance, the compass in the vehicle could give
false readings.
In order to do this, the compass must be set or
calibrated to the variance zone in which the vehicle
is traveling.To adjust for compass variance, use the following
procedure:
Compass Variance Procedure
1. Press the vehicle information button until
PRESS
VTO CHANGE COMPASS ZONE
displays.
2. Find the vehicle’s current location and
variance zone number on the map.
Zones 1 through 15 are available.
219

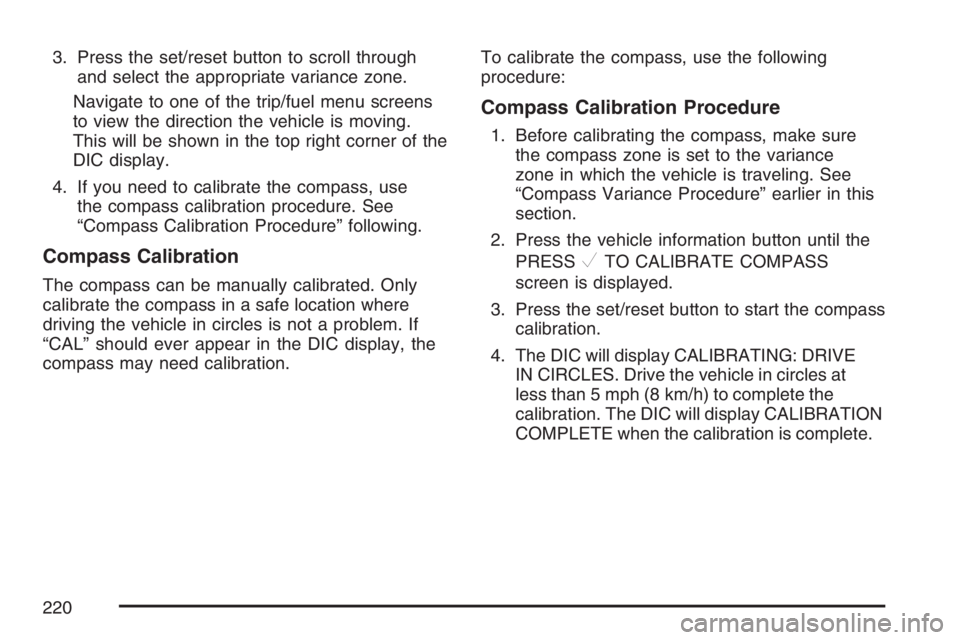

3. Press the set/reset button to scroll through
and select the appropriate variance zone.
Navigate to one of the trip/fuel menu screens
to view the direction the vehicle is moving.
This will be shown in the top right corner of the
DIC display.
4. If you need to calibrate the compass, use
the compass calibration procedure. See
“Compass Calibration Procedure” following.
Compass Calibration
The compass can be manually calibrated. Only
calibrate the compass in a safe location where
driving the vehicle in circles is not a problem. If
“CAL” should ever appear in the DIC display, the
compass may need calibration.To calibrate the compass, use the following
procedure:
Compass Calibration Procedure
1. Before calibrating the compass, make sure
the compass zone is set to the variance
zone in which the vehicle is traveling. See
“Compass Variance Procedure” earlier in this
section.
2. Press the vehicle information button until the
PRESS
VTO CALIBRATE COMPASS
screen is displayed.
3. Press the set/reset button to start the compass
calibration.
4. The DIC will display CALIBRATING: DRIVE
IN CIRCLES. Drive the vehicle in circles at
less than 5 mph (8 km/h) to complete the
calibration. The DIC will display CALIBRATION
COMPLETE when the calibration is complete.
220

DIC Warnings and Messages
Messages are displayed on the DIC to notify the
driver that the status of the vehicle has changed
and that some action may be needed by the driver
to correct the condition. Multiple messages may
appear one after another. Some messages may not
require immediate action, but you can press the
set/reset button to acknowledge that you received
the message and clear it from the DIC display.
Pressing any of the DIC buttons also acknowledges
and clears any messages. Some messages cannot
be cleared from the DIC display because they are
more urgent. These messages require action
before they can be cleared. You should take any
messages that appear on the display seriously and
remember that clearing the messages will only
make the messages disappear, not correct the
problem. The following are the possible messages
that can be displayed and some information
about them.
AUTOMATIC LIGHT CONTROL OFF
This message displays when the automatic
headlamps are turned off. SeeExterior Lamps
on page 170for more information.
AUTOMATIC LIGHT CONTROL ON
This message displays when the automatic
headlamps are turned on. SeeExterior Lamps
on page 170for more information.
BATTERY SAVER ACTIVE
This message displays when the system detects
that the battery voltage is dropping beyond a
reasonable level. The battery saver system starts
reducing certain features of the vehicle that you
may be able to notice. At the point that the features
are disabled, this message is displayed. It means
that the vehicle is trying to save the charge in the
battery.
Turn off all unnecessary accessories to allow the
battery to recharge.
The normal battery voltage range is
11.5 to 15.5 volts.
221

CHANGE ENGINE OIL SOON
This message displays when service is required for
the vehicle. See your dealer. SeeEngine Oil on
page 337andScheduled Maintenance on
page 442for more information.
Acknowledging the CHANGE ENGINE OIL SOON
message will not reset the OIL LIFE REMAINING.
That must be done at the OIL LIFE screen
under the vehicle information menu. See “Oil Life”
underDIC Controls and Displays on page 212
andEngine Oil Life System on page 340.
CHECK TIRE PRESSURE
This message displays when the tire pressure in
one of the tires needs to be checked. This message
also displays LEFT FRONT, RIGHT FRONT, LEFT
REAR, or RIGHT REAR to indicate which tire needs
to be checked. You can receive more than one tire
pressure message at a time. To read the other
messages that may have been sent at the same
time, press the set/reset button. If a tire pressure
message appears on the DIC, stop as soon as you
can. Have the tire pressures checked and set to
those shown on the Tire Loading Information Label.SeeTires on page 385,Loading Your Vehicle
on page 307, andInation - Tire Pressure on
page 392. The DIC display also shows the tire
pressure values for the front and rear tires by
pressing the vehicle information button. SeeDIC
Controls and Displays on page 212. If the tire
pressure is low, the low tire pressure warning light
comes on. SeeTire Pressure Light on page 205.
DRIVER DOOR OPEN
This message displays when the driver’s door is
not closed properly. When this message appears,
make sure that the driver’s door is closed
completely.
ENGINE HOT A/C
(Air Conditioning) OFF
This message displays when the engine coolant
becomes hotter than the normal operating
temperature. To avoid added strain on a hot engine,
the air conditioning compressor is automatically
turned off. When the coolant temperature returns to
normal, the A/C operation automatically resumes.
You can continue to drive your vehicle. If this
message continues to appear, have the system
repaired by your dealer as soon as possible to
avoid compressor damage.
222

OIL PRESSURE LOW STOP ENGINE
Notice:If you drive your vehicle while the
engine oil pressure is low, severe engine
damage may occur. If a low oil pressure
warning appears on the instrument panel
cluster and/or DIC, stop the vehicle as soon
as possible. Do not drive the vehicle until the
cause of the low oil pressure is corrected. See
Engine Oil on page 337for more information.
This message displays when the vehicle’s engine
oil pressure is low. The oil pressure light also
appears on the instrument panel cluster.
SeeOil Pressure Light on page 209.
Stop the vehicle immediately, as engine damage
can result from driving a vehicle with low oil
pressure. Have the vehicle serviced by your
dealer as soon as possible when this message
is displayed.
PARK ASSIST OFF
If your vehicle has this feature, after the vehicle has
been started, this message will reminder the driver
that the Ultrasonic Rear Parking Assist (URPA)
system has been turned off. Press the set/reset
button to acknowledge this message and clear it
from the DIC display. To turn the URPA system
back on, see “Park Assist” underDIC Controls and
Displays on page 212. SeeUltrasonic Rear Parking
Assist (URPA) on page 178for more information.
PASSENGER DOOR OPEN
This message displays when the front passenger’s
door is not closed properly. When this message
appears, make sure that the front passenger’s
door is closed completely.
RAINSENSE WIPERS ACTIVE
If your vehicle has this feature, this message
displays while the Rainsense™ system is active.
SeeRainsense™ II Wipers on page 165for
more information.
225

SERVICE STABILITRAK
If your vehicle has StabiliTrak®, this message
displays if there has been a problem detected with
StabiliTrak
®. A warning light also appears on
the instrument panel cluster. SeeTraction Control
System (TCS) Warning Light on page 202. See
StabiliTrak
®System on page 284for more
information.
If this message turns on while you are driving, pull
off the road as soon as possible and stop carefully.
Try resetting the system by turning the ignition off
and then back on. If this message still stays on or
turns back on again while you are driving, your
vehicle needs service. Have the StabiliTrak
®
System inspected by your dealer as soon as
possible.
SERVICE SUSPENSION SYSTEM
This message displays to indicate that the
suspension system is not operating properly.
See your dealer for service.
SERVICE THEFT SYSTEM
This message displays when there is a problem
with the theft-deterrent system programmed in the
key. A fault has been detected in the system which
means that the system is disabled and it is not
protecting the vehicle. The vehicle usually restarts;
however, you may want to take the vehicle to
your dealer before turning off the engine. See
PASS-Key
®III+ on page 111for more information.
SERVICE TIRE MONITOR SYSTEM
This message displays if a part on the Tire
Pressure Monitor (TPM) system is not working
properly. If you drive your vehicle while any of the
four sensors are missing or inoperable, the warning
comes on in about 20 minutes. A sensor would be
missing, for example, if you put different wheels on
your vehicle without transferring the sensors. If the
warning comes on and stays on, there may be a
problem with the TPM. See your dealer.
228

Entering the Feature Settings Menu
1. Turn the ignition on and place the vehicle in
PARK (P).
To avoid excessive drain on the battery,
it is recommended that the headlamps are
turned off.
2. Press the customization button to enter the
feature settings menu.
If the menu is not available, FEATURE
SETTINGS AVAILABLE IN PARK will display.
Before entering the menu, make sure the
vehicle is in PARK (P).
Feature Settings Menu Items
The following are customization features that allow
you to program settings to the vehicle:
DISPLAY IN ENGLISH
This feature will only display if a language other
than English has been set. This feature allows you
to change the language in which the DIC messages
appear to English.
Press the customization button until the PRESS
V
TO DISPLAY IN ENGLISH screen appears on
the DIC display. Press the set/reset button
to display all DIC messages in English.
DISPLAY LANGUAGE
This feature allows you to select the language in
which the DIC messages will appear.
Press the customization button until the DISPLAY
LANGUAGE screen appears on the DIC display.
Press the set/reset button to access the settings
for this feature. Then press the customization
button to scroll through the following choices:
ENGLISH (default):All messages will appear in
English.
FRANCAIS (French):All messages will appear in
French.
ESPANOL (Spanish):All messages will appear
in Spanish.
NO CHANGE:No change will be made to this
feature. The current setting will remain.
Select one of the available choices and press
the set/reset button while it is displayed on the DIC
to select it.
232
