When you go to your GM Goodwrench®dealer for
your service needs, you will know that GM-trained
and supported service technicians will perform
the work using genuine GM parts.
If you want to purchase service information, see
Service Publications Ordering Information on
page 478.
Owner Checks and Services on page 448tells you
what should be checked, when to check it, and
what you can easily do to help keep your vehicle in
good condition.
The proper replacement parts, uids, and
lubricants to use are listed inRecommended
Fluids and Lubricants on page 452andNormal
Maintenance Replacement Parts on page 453.
When your vehicle is serviced, make sure these
are used. All parts should be replaced and all
necessary repairs done before you or anyone else
drives the vehicle. We recommend the use of
genuine GM parts.Scheduled Maintenance
When the CHANGE ENGINE OIL SOON message
in the Driver Information Center (DIC) comes on, it
means that service is required for your vehicle.
Have your vehicle serviced as soon as possible
within the next 600 miles (1 000 km). It is possible
that, if you are driving under the best conditions, the
engine oil life system may not indicate that vehicle
service is necessary for over a year. However, the
engine oil and lter must be changed at least once
a year and at this time the system must be reset.
Your GM Goodwrench
®dealer has GM-trained
service technicians who will perform this work using
genuine GM parts and reset the system.
If the engine oil life system is ever reset
accidentally, you must service your vehicle within
3,000 miles (5 000 km) since your last service.
Remember to reset the oil life system whenever
the oil is changed. SeeEngine Oil Life System on
page 340for information on the Engine Oil Life
System and resetting the system.
442

When the CHANGE ENGINE OIL SOON message
appears, certain services, checks, and inspections
are required. Required services are described
in the following for “MaintenanceI” and
“MaintenanceII.” Generally, it is recommended
that your rst service be MaintenanceI, your
second service be MaintenanceII, and that you
alternate MaintenanceIand MaintenanceII
thereafter. However, in some cases,
MaintenanceIImay be required more often.MaintenanceI— Use MaintenanceIif the
CHANGE ENGINE OIL SOON message comes on
within 10 months since the vehicle was purchased
or MaintenanceIIwas performed.
MaintenanceII— Use MaintenanceIIif the
previous service performed was MaintenanceI.
Always use MaintenanceIIwhenever the message
comes on 10 months or more since the last
service or if the message has not come on at all
for one year.
Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 337. Reset oil life system.
SeeEngine Oil Life System on page 340.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (k).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 342.See footnote (m).•
Rotate tires and check ination pressures and wear. SeeTire Inspection and
Rotation on page 398and “Tire Wear Inspection” inAt Least Once a Month on
page 449.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
443

Scheduled Maintenance (cont’d)
Service MaintenanceIMaintenanceII
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
3.8L Engine Only: Check transaxle uid level and add uid as needed.•
Replace passenger compartment air lter.See footnote (g).•
Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated
miles (kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(40 000)50,000
(80 000)75,000
(120 000)100,000
(160 000)125,000
(200 000)150,000
(240 000)
Inspect fuel system for damage or
leaks.• •••••
Inspect exhaust system for loose or
damaged components.• •••••
444

(f)Lubricate all key lock cylinders. Lubricate all
hinges and latches, including those for the hood,
rear compartment, glove box door, and console
door. More frequent lubrication may be required
when exposed to a corrosive environment.
Applying silicone grease on weatherstrips with a
clean cloth will make them last longer, seal better,
and not stick or squeak.
(g)If you drive regularly under dusty conditions,
the lter may require replacement more often.
(h)Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of
these conditions:
In heavy city traffic where the outside
temperature regularly reaches 90°F (32°C) or
higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police, or delivery
service.(j)Drain, ush, and rell cooling system. This
service can be complex; you should have
your dealer perform this service. See Engine
Coolant on page 347 for what to use. Inspect
hoses. Clean radiator, condenser, pressure cap,
and ller neck. Pressure test the cooling
system and pressure cap.
(k)A uid loss in any vehicle system could
indicate a problem. Have the system inspected
and repaired and the uid level checked. Add uid
if needed.
(l)Inspect throttle body bore and valve plates for
deposits. Open the throttle valve and inspect
all surfaces. Clean as required.
(m)If you drive regularly under dusty conditions,
inspect the lter at each engine oil change.
(n)Visually inspect belt for fraying, excessive
cracks, or obvious damage. Replace belt if
necessary.
447

Owner Checks and Services
These owner checks and services should be
performed at the intervals specied to help ensure
the safety, dependability, and emission control
performance of your vehicle. Your GM
Goodwrench
®dealer can assist you with these
checks and services.
Be sure any necessary repairs are completed at
once. Whenever any uids or lubricants are added
to your vehicle, make sure they are the proper
ones, as shown inRecommended Fluids and
Lubricants on page 452.
At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 337for
further details.Notice:It is important to check your oil
regularly and keep it at the proper level. Failure
to keep your engine oil at the proper level can
cause damage to your engine not covered by
your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 347for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
448

At Least Once a Month
Tire Ination Check
Visually inspect your vehicle’s tires and make sure
they are inated to the correct pressures. Do not
forget to check the spare tire. SeeInation - Tire
Pressure on page 392. Check to make sure the
spare tire is stored securely. SeeChanging a Flat
Tire on page 408.
Tire Wear Inspection
Tire rotation may be required for high mileage
highway drivers prior to the Engine Oil Life System
service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire
Inspection and Rotation on page 398.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on
page 122.
Do not use the accelerator pedal, and be
ready to turn off the engine immediately if it
starts.
3. Try to start the engine in each gear. The
vehicle should start only in PARK (P) or
NEUTRAL (N). If the vehicle starts in any
other position, contact your GM Goodwrench
®
dealer for service.
449

Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 122.
Be ready to apply the regular brake
immediately if the vehicle begins to move.3. With the engine off, turn the ignition to RUN,
but do not start the engine. Without applying
the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), contact
your GM Goodwrench
®dealer for service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try
to turn the ignition to OFF in each shift lever
position.
The ignition should turn to OFF only when the
shift lever is in PARK (P).
The ignition key should come out only in OFF.
Contact your GM Goodwrench
®dealer if service
is required.
450

Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transaxle in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your GM Goodwrench
®dealer if service is
required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
451

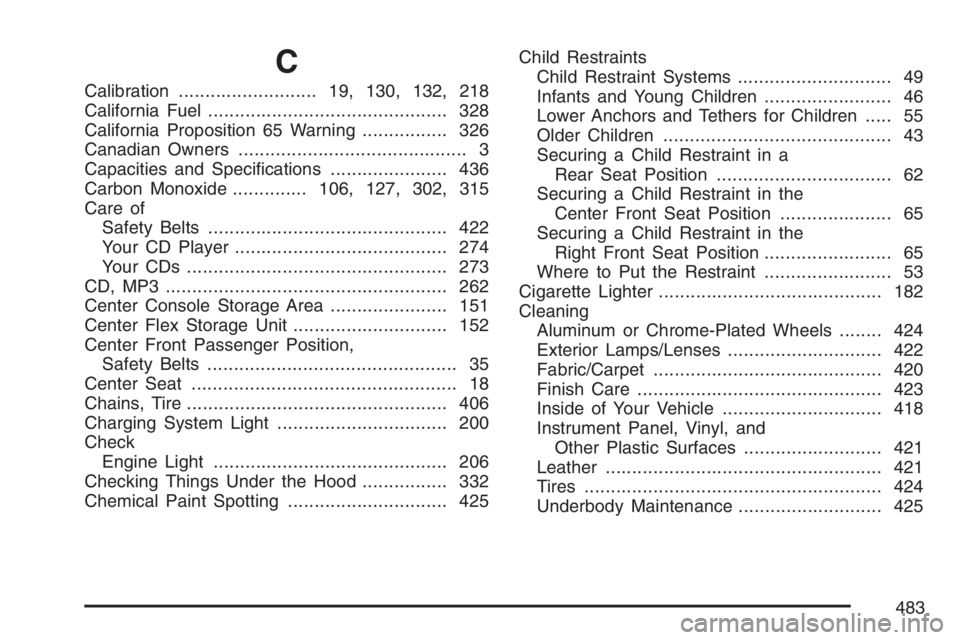

C
Calibration.......................... 19,130, 132, 218
California Fuel............................................. 328
California Proposition 65 Warning................ 326
Canadian Owners........................................... 3
Capacities and Specications...................... 436
Carbon Monoxide..............106, 127, 302, 315
Care of
Safety Belts............................................. 422
Your CD Player........................................ 274
Your CDs ................................................. 273
CD, MP3 ..................................................... 262
Center Console Storage Area...................... 151
Center Flex Storage Unit............................. 152
Center Front Passenger Position,
Safety Belts............................................... 35
Center Seat.................................................. 18
Chains, Tire................................................. 406
Charging System Light................................ 200
Check
Engine Light............................................ 206
Checking Things Under the Hood................ 332
Chemical Paint Spotting.............................. 425Child Restraints
Child Restraint Systems............................. 49
Infants and Young Children........................ 46
Lower Anchors and Tethers for Children..... 55
Older Children........................................... 43
Securing a Child Restraint in a
Rear Seat Position................................. 62
Securing a Child Restraint in the
Center Front Seat Position..................... 65
Securing a Child Restraint in the
Right Front Seat Position........................ 65
Where to Put the Restraint........................ 53
Cigarette Lighter.......................................... 182
Cleaning
Aluminum or Chrome-Plated Wheels........ 424
Exterior Lamps/Lenses............................. 422
Fabric/Carpet........................................... 420
Finish Care.............................................. 423
Inside of Your Vehicle .............................. 418
Instrument Panel, Vinyl, and
Other Plastic Surfaces.......................... 421
Leather.................................................... 421
Tires........................................................ 424
Underbody Maintenance........................... 425
483

Door
Delayed Locking...................................... 103
Locks....................................................... 102
Power Door Locks................................... 103
Programmable Automatic Door Locks....... 104
Rear Door Security Locks........................ 104
Driver
Position, Safety Belt................................... 25
Driver Information Center (DIC)................... 212
DIC Controls and Displays....................... 212
DIC Vehicle Customization....................... 231
DIC Warnings and Messages................... 221
Driving
At Night................................................... 291
City.......................................................... 296
Defensive................................................. 276
Drunken................................................... 277
Freeway................................................... 297
Hill and Mountain Roads.......................... 300
In Rain and on Wet Roads...................... 293
Rocking Your Vehicle to Get it Out.......... 307
Winter...................................................... 302
Dual Automatic Climate Control System....... 186E
Electric Power Management........................ 176
Electrical System
Add-On Equipment................................... 428
Fuses and Circuit Breakers...................... 428
Power Windows and
Other Power Options............................ 428
Rear Underseat Fuse Block..................... 431
Underhood Fuse Block............................. 428
Engine
Air Cleaner/Filter...................................... 342
Battery..................................................... 370
Check and Service Engine Soon Light..... 206
Coolant.................................................... 347
Coolant Heater......................................... 117
Coolant Temperature Gage...................... 204
Coolant Temperature Warning Light.......... 204
Drive Belt Routing.................................... 454
Engine Compartment Overview ................ 334
Exhaust................................................... 127
Oil ........................................................... 337
Oil Life System........................................ 340
485
