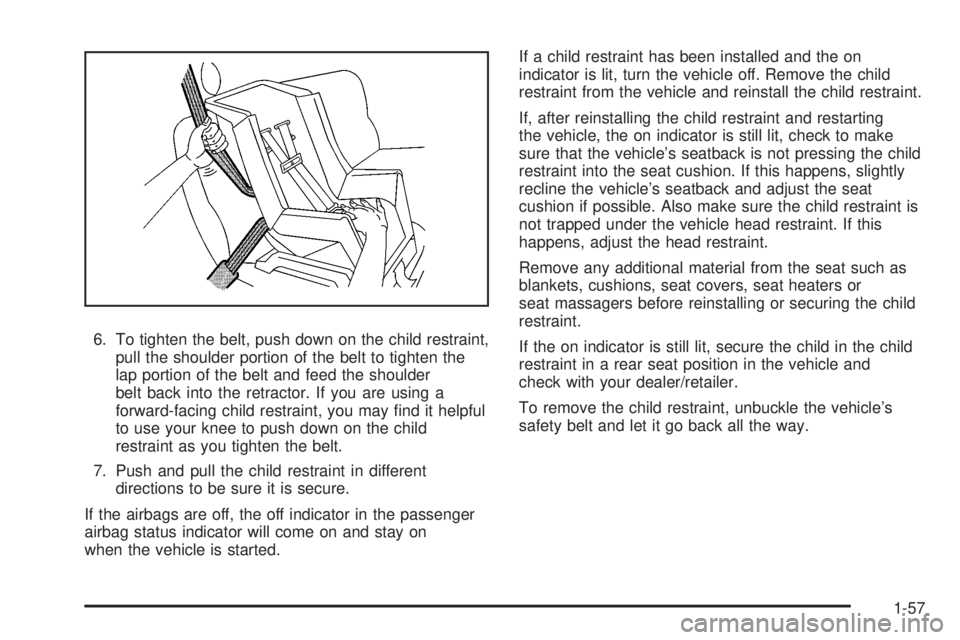

6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt.
7. Push and pull the child restraint in different
directions to be sure it is secure.
If the airbags are off, the off indicator in the passenger
airbag status indicator will come on and stay on
when the vehicle is started.If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If, after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
Remove any additional material from the seat such as
blankets, cushions, seat covers, seat heaters or
seat massagers before reinstalling or securing the child
restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer/retailer.
To remove the child restraint, unbuckle the vehicle’s
safety belt and let it go back all the way.
1-57
Page 62 of 434

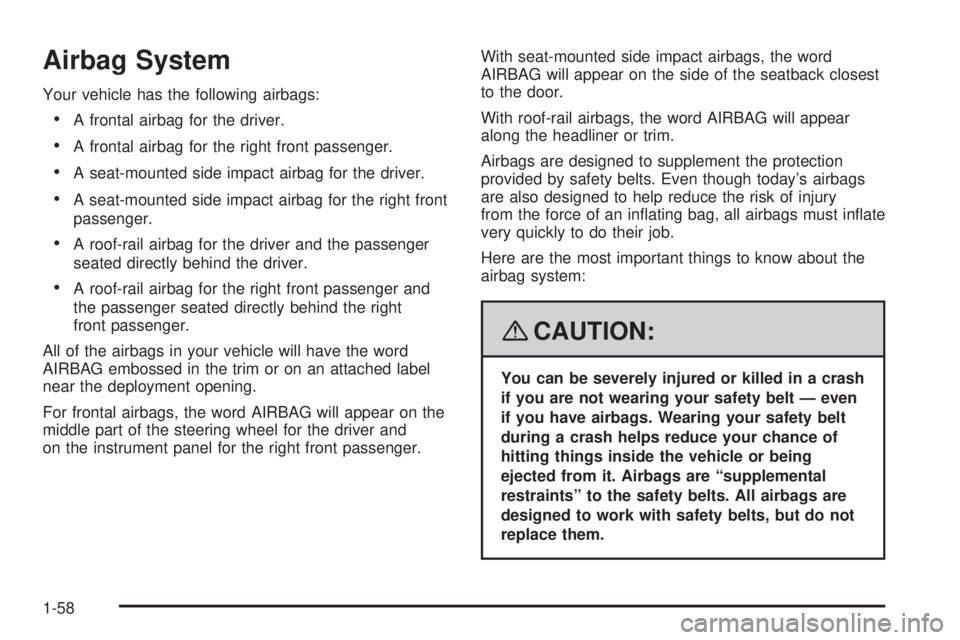

Airbag System
Your vehicle has the following airbags:
A frontal airbag for the driver.
A frontal airbag for the right front passenger.
A seat-mounted side impact airbag for the driver.
A seat-mounted side impact airbag for the right front
passenger.
A roof-rail airbag for the driver and the passenger
seated directly behind the driver.
A roof-rail airbag for the right front passenger and
the passenger seated directly behind the right
front passenger.
All of the airbags in your vehicle will have the word
AIRBAG embossed in the trim or on an attached label
near the deployment opening.
For frontal airbags, the word AIRBAG will appear on the
middle part of the steering wheel for the driver and
on the instrument panel for the right front passenger.With seat-mounted side impact airbags, the word
AIRBAG will appear on the side of the seatback closest
to the door.
With roof-rail airbags, the word AIRBAG will appear
along the headliner or trim.
Airbags are designed to supplement the protection
provided by safety belts. Even though today’s airbags
are also designed to help reduce the risk of injury
from the force of an in ating bag, all airbags must in ate
very quickly to do their job.
Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts, but do not
replace them.
1-58
Page 63 of 434
{CAUTION:
Frontal airbags are designed to deploy in
moderate to severe frontal and near frontal
crashes. They are not designed to in ate in
rollover, rear crashes, or in many side crashes.
Seat-mounted side impact airbags and roof-rail
airbags are designed to in ate in moderate to
severe crashes where something hits the side
of your vehicle. They are not designed to
in ate in frontal, in rollover, or in rear crashes.
Everyone in your vehicle should wear a safety
belt properly — whether or not there is an
airbag for that person.
{CAUTION:
Airbags in ate with great force, faster than the
blink of an eye. Anyone who is up against, or
very close to, any airbag when it in ates can
be seriously injured or killed. Do not sit
unnecessarily close to the airbag, as you
would be if you were sitting on the edge of
your seat or leaning forward. Safety belts help
keep you in position before and during a
crash. Always wear your safety belt, even with
airbags. The driver should sit as far back as
possible while still maintaining control of the
vehicle.
Occupants should not lean on or sleep against
the door or side windows in seating positions
with seat-mounted side impact airbags and/or
roof-rail airbags.
1-59
Page 64 of 434
{CAUTION:
Airbags plus lap-shoulder belts offer the best
protection for adults, but not for young
children and infants. Neither the vehicle’s
safety belt system nor its airbag system is
designed for them. Young children and infants
need the protection that a child restraint
system can provide. Always secure children
properly in your vehicle. To read how, see
Older Children on page 1-33orInfants and
Young Children on page 1-36.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-35
for more information.
Where Are the Airbags?
The driver’s frontal airbag is in the middle of the
steering wheel.
1-60
Page 65 of 434
The right front passenger’s frontal airbag is in the
instrument panel on the passenger’s side.
The seat-mounted side impact airbags for the driver and
right front passenger are in the side of the seatbacks
closest to the door.Driver Side shown, Passenger Side similar
1-61
Page 66 of 434
The roof-rail airbags for the driver, right front passenger,
and second row outboard passengers are in the
ceiling above the side windows.
{CAUTION:
If something is between an occupant and an
airbag, the airbag might not in ate properly or
it might force the object into that person
causing severe injury or even death. The path
of an in ating airbag must be kept clear. Do
not put anything between an occupant and an
airbag, and do not attach or put anything on
the steering wheel hub or on or near any other
airbag covering.
Do not use seat accessories that block the
in ation path of a seat-mounted side impact
airbag.
If your vehicle has roof-rail airbags, never
secure anything to the roof of your vehicle by
routing the rope or tie down through any door
or window opening. If you do, the path of an
in ating roof-rail airbag will be blocked. Driver Side shown, Passenger Side similar
1-62
Page 67 of 434
When Should an Airbag In ate?
Frontal airbags are designed to in ate in moderate to
severe frontal or near-frontal crashes to help reduce the
potential for severe injuries mainly to the driver’s or right
front passenger’s head and chest. However, they are only
designed to in ate if the impact exceeds a predetermined
deployment threshold. Deployment thresholds are used
to predict how severe a crash is likely to be in time for the
airbags to in ate and help restrain the occupants.
Whether your frontal airbags will or should deploy is not
based on how fast your vehicle is traveling. It depends
largely on what you hit, the direction of the impact,
and how quickly your vehicle slows down.
Frontal airbags may in ate at different crash speeds.
For example:
If the vehicle hits a stationary object, the airbags
could in ate at a different crash speed than if the
vehicle hits a moving object.
If the vehicle hits an object that deforms, the
airbags could in ate at a different crash speed than
if the vehicle hits an object that does not deform.
If the vehicle hits a narrow object (like a pole), the
airbags could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle, the
airbags could in ate at a different crash speed
than if the vehicle goes straight into the object.
Thresholds can also vary with speci c vehicle design.
Frontal airbags are not intended to in ate during vehicle
rollovers, rear impacts, or in many side impacts.
Your vehicle has a seat position sensor which enables
the sensing system to monitor the position of the
right front passenger’s seat. The passenger seat position
sensor and passenger safety belt buckle switch
provide information that is used to determine if the
airbags should deploy at a reduced level or at full
deployment.
In addition, your vehicle has a dual-stage driver airbag.
Dual-stage airbags adjust the restraint according to
crash severity. Your vehicle has electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more severe
frontal impact. For moderate frontal impacts, dual-stage
airbags in ate at a level less than full deployment.
For more severe frontal impacts, full deployment occurs.
1-63
Page 68 of 434
Your vehicle also has a dual-depth passenger airbag
that adjusts the restraint according to crash severity,
seat location, and safety belt status using electronic
frontal sensor(s) and other special sensors which enable
the sensing system to monitor the position of the front
passenger seat. The passenger airbag in ates to a
reduced depth when the passenger seat is in a forward
position. For more rearward front seating positions,
the passenger airbag may in ate to an increased depth
(a full deployment), based on safety belt status and
the crash severity measured early in the event. (Always
wear your safety belt, even with frontal airbags.)
Your vehicle has seat-mounted side impact and roof-rail
airbags. SeeAirbag System on page 1-58.
Seat-mounted side impact and roof-rail airbags are
intended to in ate in moderate to severe side crashes.
Seat-mounted side impact and roof-rail airbags will
in ate if the crash severity is above the system’s
designed threshold level. The threshold level can vary
with speci c vehicle design.Seat-mounted side impact and roof-rail airbags are not
intended to in ate in frontal impacts, near-frontal
impacts, rollovers, or rear impacts. A seat-mounted side
impact airbag is intended to deploy on the side of the
vehicle that is struck. Both roof-rail airbags will
deploy when either side of the vehicle is struck.
In any particular crash, no one can say whether an airbag
should have in ated simply because of the damage to a
vehicle or because of what the repair costs were. For
frontal airbags, in ation is determined by what the vehicle
hits, the angle of the impact, and how quickly the vehicle
slows down. For seat-mounted side impact and roof-rail
airbags, deployment is determined by the location and
severity of the side impact.
1-64
Page 69 of 434
What Makes an Airbag In ate?
In a deployment event, the sensing system sends an
electrical signal triggering a release of gas from
the in ator. Gas from the in ator lls the airbag causing
the bag to break out of the cover and deploy. The
in ator, the airbag, and related hardware are all part of
the airbag module.
Frontal airbag modules are located inside the steering
wheel and instrument panel. For vehicles with
seat-mounted side impact airbags, there are airbag
modules in the side of the front seatbacks closest to the
door. For vehicles with roof-rail airbags, there are
airbag modules in the ceiling of the vehicle, near the
side windows that have occupant seating positions.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle.
Airbags supplement the protection provided by safety
belts. Frontal airbags distribute the force of the impact
more evenly over the occupant’s upper body, stopping
the occupant more gradually. Seat-mounted side impact
and roof-rail airbags distribute the force of the impact
more evenly over the occupant’s upper body.
But airbags would not help in many types of collisions,
primarily because the occupant’s motion is not
toward those airbags. SeeWhen Should an Airbag
Inflate? on page 1-63for more information.
Airbags should never be regarded as anything more
than a supplement to safety belts.
1-65
Page 70 of 434
What Will You See After an Airbag
In ates?
After the frontal airbags and seat-mounted side impact
airbags in ate, they quickly de ate, so quickly that
some people may not even realize an airbag in ated.
Roof-rail airbags may still be at least partially in ated for
some time after they deploy. Some components of
the airbag module may be hot for several minutes. For
location of the airbag modules, seeWhat Makes an
Airbag Inflate? on page 1-65.
The parts of the airbag that come into contact with you
may be warm, but not too hot to touch. There may
be some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent
the driver from seeing out of the windshield or being
able to steer the vehicle, nor does it prevent people from
leaving the vehicle.
{CAUTION:
When an airbag in ates, there may be dust in
the air. This dust could cause breathing
problems for people with a history of asthma
or other breathing trouble. To avoid this,
everyone in the vehicle should get out as soon
as it is safe to do so. If you have breathing
problems but cannot get out of the vehicle
after an airbag in ates, then get fresh air by
opening a window or a door. If you experience
breathing problems following an airbag
deployment, you should seek medical
attention.
Your vehicle has a feature that may automatically
unlock the doors, turn the interior lamps on, and turn
the hazard warning ashers on when the airbags in ate.
You can lock the doors, turn the interior lamps off,
and turn the hazard warning ashers off by using the
controls for those features.
1-66
