BUICK PARK AVENUE 1999 Owners Manual

yellowblue
6-63
Underbody Maintenance
Chemicals used for ice and snow removal and dust
control can collect on the underbody. If these are not
removed, accelerated corrosion (rust) can occur on the
underbody parts such as fuel lines, frame, floor pan
and exhaust system even though they have
corrosion protection.
At least every spring, flush these materials from the
underbody with plain water. Clean any areas where mud
and other debris can collect. Dirt packed in closed areas
of the frame should be loosened before being flushed.
Your dealer or an underbody car washing system can do
this for you.
Chemical Paint Spotting
Some weather and atmospheric conditions can create a
chemical fallout. Airborne pollutants can fall upon and
attack painted surfaces on your vehicle. This damage
can take two forms: blotchy, ringlet
-shaped
discolorations, and small irregular dark spots etched into
the paint surface.
Although no defect in the paint job causes this, Buick
will repair, at no charge to the owner, the surfaces of
new vehicles damaged by this fallout condition within
12 months or 12,000 miles (20 000 km) of purchase,
whichever occurs first.
ProCarManuals.com

yellowblue
6-64
GM Vehicle Care/Appearance Materials
PART NUMBERSIZEDESCRIPTIONUSAGE
99495423 in. x 25 in.Polishing Cloth ± Wax TreatedExterior polishing cloth
105017216 oz. (0.473 L)Tar and Road Oil RemoverRemoves tar, road oil and asphalt
105017316 oz. (0.473 L)Chrome Cleaner and PolishUse on chrome, stainless steel, nickel, copper and brass
105017416 oz. (0.473 L)White Sidewall Tire CleanerRemoves soil and black marks from whitewalls
105021432 oz. (0.946 L)Vinyl CleanerCleans vinyl tops, upholstery and convertible tops
105042723 oz. (0.680 L)Glass CleanerRemoves dirt, grime, smoke and fingerprints
1052918**8 oz. (0.237 L)Armor All
ProtectantProtects leather, wood, acrylics, Plexiglas
, plastic,
rubber and vinyl
105292516 oz. (0.473 L)Multi-Purpose Interior
CleanerCleans carpets, seats, interior trim, door panels
and floor mats
105292916 oz. (0.473 L)Wheel CleanerSpray on and rinse with water
10529308 oz. (0.237 L)Capture Dry Spot RemoverAttracts, absorbs and removes soils on fabric
123457212.5 sq. ft.Synthetic ChamoisShines vehicle without scratching
1234572512 oz. (0.354 L)Silicone Tire ShineSpray on tire shine
12377964*16 oz. (0.473 L)Finish EnhancerRemoves dust, fingerprints and surface contaminants
12377966*16 oz. (0.473 L)Cleaner WaxRemoves light scratches and oxidation and protects finish
12377984*16 oz. (0.473 L)Surface CleanerRemoves contaminants, blemishes and swirl marks
See your General Motors Parts Department for these products. * For exterior use only.
See ªRecommended Fluids and Lubricantsº in the Index. ** Not recommended for use on instrument panels.
ProCarManuals.com

yellowblue
6-65
Vehicle Identification Number (VIN)
This is the legal identifier for your vehicle. It appears on
a plate in the front corner of the instrument panel, on the
driver's side. You can see it if you look through the
windshield from outside your vehicle. The VIN also
appears on the Vehicle Certification and Service Parts
labels and the certificates of title and registration.
Engine Identification
The 8th character in your VIN is the engine code. This
code will help you identify your engine, specifications
and replacement parts.
Service Parts Identification Label
You'll find this label on the spare tire cover. It's very
helpful if you ever need to order parts. On this label is:

your VIN,

the model designation,

paint information and

a list of all production options and
special equipment.
Be sure that this label is not removed from the vehicle.
ProCarManuals.com

yellowblue
6-66

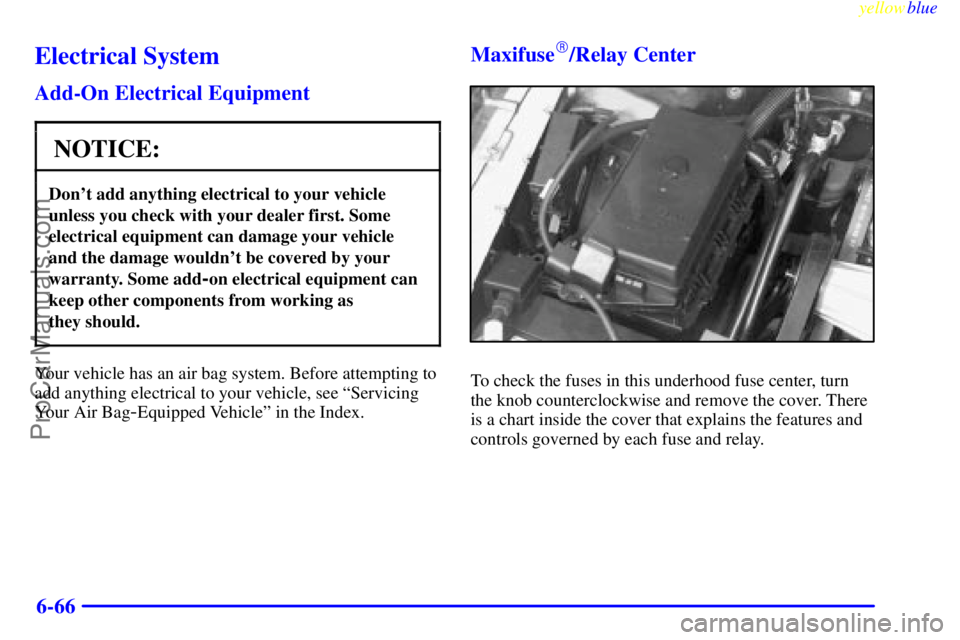

Electrical System
Add-On Electrical Equipment
NOTICE:
Don't add anything electrical to your vehicle
unless you check with your dealer first. Some
electrical equipment can damage your vehicle
and the damage wouldn't be covered by your
warranty. Some add
-on electrical equipment can
keep other components from working as
they should.
Your vehicle has an air bag system. Before attempting to
add anything electrical to your vehicle, see ªServicing
Your Air Bag
-Equipped Vehicleº in the Index.
Maxifuse
/Relay Center
To check the fuses in this underhood fuse center, turn
the knob counterclockwise and remove the cover. There
is a chart inside the cover that explains the features and
controls governed by each fuse and relay.
ProCarManuals.com

yellowblue
6-67 Fuses and Circuit Breakers
The wiring circuits in your vehicle are protected from
short circuits by a combination of fuses and circuit
breakers. This greatly reduces the chance of damage
caused by electrical problems.
Look at the silver
-colored band inside the fuse. If the
band is broken or melted, replace the fuse. Be sure you
replace a bad fuse with a new one of the identical size
and rating.
There are three fuse blocks in your vehicle: the
Instrument Panel Fuse Block located under the
instrument panel, the Underhood Fuse Block located on
the passenger's side engine compartment and the Rear
Fuse Block, located under the rear seat.Instrument Panel Fuse Block
The instrument panel fuse block is located to the far
right side under the instrument panel.
Remove the hush panel on the passenger's side to reveal
the fuses. To remove the panel, do the following:
1. Remove the two 7 mm screws located along the front
edge of the panel.
2. Lower the hush panel. The fuse block is a
rectangular covered box located on the far right side
under the instrument panel.
3. Remove the cover. Now you can see the fuses and
replace them.
4. Place the wide end of the fuse puller over the plastic
end of the fuse.
5. Squeeze the ends over the fuse and pull it out.
Spare fuses are located in the empty slots shown on the
following chart.
When finished, replace the hush panel. Replace lamps,
connectors, and HVAC duct temperature sensors if they
were removed.
ProCarManuals.com

yellowblue
6-68
Fuse Usage
SBM Interior Lamps
PDM PDM Module
A/C HVAC Motor, HVAC Mix Motors
IGN SEN EC Mirror, Driver HTS Seat,
Rear Defog Relay, MEM Module,
Cool LVL Sensor,
Pass Heated SeatFuse Usage
ELC HVAC Flat Pk Mtrs, ELC Sensor,
ELC Sensor (R Bec)
ABS
Anti
-Lock Brake System Module
HVAC HVAC Main Con Head,
HVAC Programmer, IPC
CR CONT Stepper Motor CR, Cruise Switch
HUD HUD Switch, HUD Display
CSTR/SBM HVAC Programmer, IPC (Cluster),
SBM (275 to LCM) (1135 to
BTSI SL)
LP PK L Underhood Lamp, L PK/Side-
marker, L Park/Turn Lamp, SBM,
L Tail Signal Lamp, L Tail/Stop
Lamp, L Rear Sidemarker
LP PK R Rt Pk/Sidemarker Lamp, Rt PK/
Turn Lamp, Rt Tail/Sign Lamp,
Rt Tail/Stoplamp,
Rt Rear Sidemarker, Stop/Tail
Lamp, Tail/Signal Lamp,
License Lamp, RFA
ProCarManuals.com

yellowblue
6-69
Fuse Usage
RUN Run/Accessory
WSW Wiper Motor
EMPTY Not Used
WSW/RFA Wiper Switch, RFA, Rain Sense
B/U LP
EC Mirror, Back
-Up LampsUnderhood Fuse Block
There are additional fuses located on the passenger's
side of the engine compartment.
Position Circuitry
1 Not Used
2 SBM, LCM
3 Turn Signal
ProCarManuals.com

yellowblue
6-70
Position Circuitry
4
Pre
-Oxygen Sensor, Post-Oxygen
Sensor
5
SDM
-R Module
6 PCM, MAF Sensor
7 AC Clutch
8 Brake Switch, Trans Shift, PCM/
EGR Ref, Lin EGR, Cnstr Purge
Sol, Cnstr Purge SW
9 Horn Relay
10 Not Used
11 Not Used
12
Injectors #1
-6
13 Ignition Module
14 Rt High Beam
15 Not Used
16 Lt High Beam
17 Not Used
18 Rt Low BeamPosition Circuitry
19 Lt Low Beam
20 Turn Signal, Stepper Mtr,
Brake Lamp, CHMSL
21 Fuel Pump Relay (Wire in BEC)
22 Ignition Switch
23 In Key Module, PCM
24
To IP BEC
-B/U Lamp
25 Flasher Module
26 Not Used
27 Not Used
28
Relay
--Ignition
29
Relay
--Horn
30
Relay
--Cooling Fan #2
31
Relay
--Starter
32 Not Used
33
Relay
--Cooling Fan S/P
34
Relay
--Cooling Fan #1
ProCarManuals.com

yellowblue
6-71
Position Circuitry
35
Relay
--A/C CLU micro
36
Relay
--Fuel Pump micro
37 BAT #1
38 HVAC Blower Motor
39 Low Speed Fan Relay
40 LCM Module
41 BAT #2
42 IGN
43 Starter
44 High Speed Fan Relay
Removing the Rear Seat Cushion
NOTICE:
A fuse center is located under the rear seat
cushion. To help avoid damage to the fuse center,
be careful when removing or reinstalling the
seat cushion.
To Remove the Rear Seat Cushion
1. Pull up on the front of the cushion to release the
front hooks.
2. Pull the cushion up and out toward the front of
the vehicle.
ProCarManuals.com

yellowblue
6-72

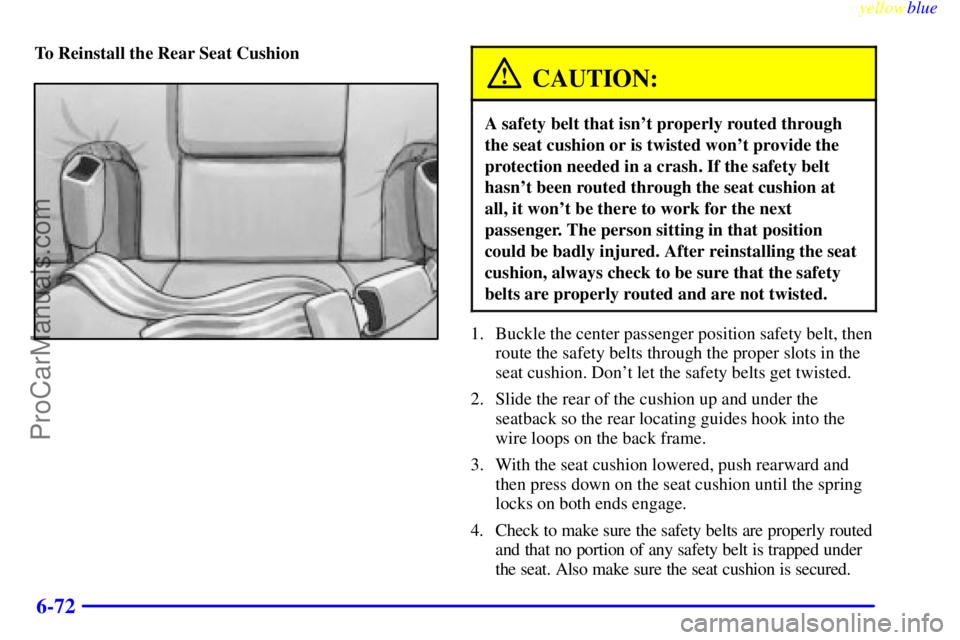

To Reinstall the Rear Seat Cushion
CAUTION:
A safety belt that isn't properly routed through
the seat cushion or is twisted won't provide the
protection needed in a crash. If the safety belt
hasn't been routed through the seat cushion at
all, it won't be there to work for the next
passenger. The person sitting in that position
could be badly injured. After reinstalling the seat
cushion, always check to be sure that the safety
belts are properly routed and are not twisted.
1. Buckle the center passenger position safety belt, then
route the safety belts through the proper slots in the
seat cushion. Don't let the safety belts get twisted.
2. Slide the rear of the cushion up and under the
seatback so the rear locating guides hook into the
wire loops on the back frame.
3. With the seat cushion lowered, push rearward and
then press down on the seat cushion until the spring
locks on both ends engage.
4. Check to make sure the safety belts are properly routed
and that no portion of any safety belt is trapped under
the seat. Also make sure the seat cushion is secured.
