1-5
If the ignition is not in RUN, automatic seat and mirror
movement will occur if the UNLOCK button on the
remote keyless entry transmitter is pressed. Automatic
seat and mirror movement is programmed through the
Driver Information Center (DIC) so that the driver can
select whether the seat moves to the programmed
driving position, the programmed exit position, or does
not move at all. For memory seat and mirror recall
programming instructions, see ªDIC Personal Choice
Programmingº in the Index.
Heated Seats (Option)
The heated seat controls are
located next to the climate
controls on the instrument
panel. Press this button to
turn on the heating element
in the seat.When the heated seat control is first pressed, the
HI setting is activated. Press the button again for the
LO setting. The third press of the button turns the
feature off.
The LO setting warms the seatback and cushion until the
seat nears body temperature. The HI setting heats the
seat to a slightly higher temperature.
A telltale light in the control reminds you that the
heating system is in use. When the ignition is turned off,
the heating element is also turned off.
ProCarManuals.com
Page 59 of 400
2-
yellowblue
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Keys
2
-4 Door Locks
2
-9 Remote Keyless Entry System
2
-14 Trunk
2
-15 Theft
2
-16 Content Theft-Deterrent System
2
-18 PASS-Key III
2
-20 New Vehicle ªBreak-Inº
2
-20 Ignition Positions
2
-22 Starting Your Engine
2
-23 Engine Coolant Heater (If Equipped)
2
-24 Automatic Transaxle Operation
2
-28 Parking Brake
2
-29 Shifting Into PARK (P)
2
-31 Shifting Out of PARK (P)
2
-32 Parking Over Things That Burn
2
-33 Engine Exhaust2
-33 Running Your Engine While You're Parked
2
-34 Windows
2
-35 Tilt Wheel
2
-36 Turn Signal/Multifunction Lever
2
-43 Exterior Lamps
2
-46 Interior Lamps
2
-49 Mirrors
2
-54 Storage Compartments
2
-62 OnStar System (Option)
2
-63 Astroroof (If Equipped)
2
-64 Universal Transmitter (If Equipped)
2
-68 The Instrument Panel - Your Information
System
2
-73 Warning Lights, Gages and Indicators
2
-82 Head-Up Display (HUD) (If Equipped)
2
-84 Driver Information Center (DIC)
(If Equipped)
ProCarManuals.com
Page 62 of 400
yellowblue
2-4

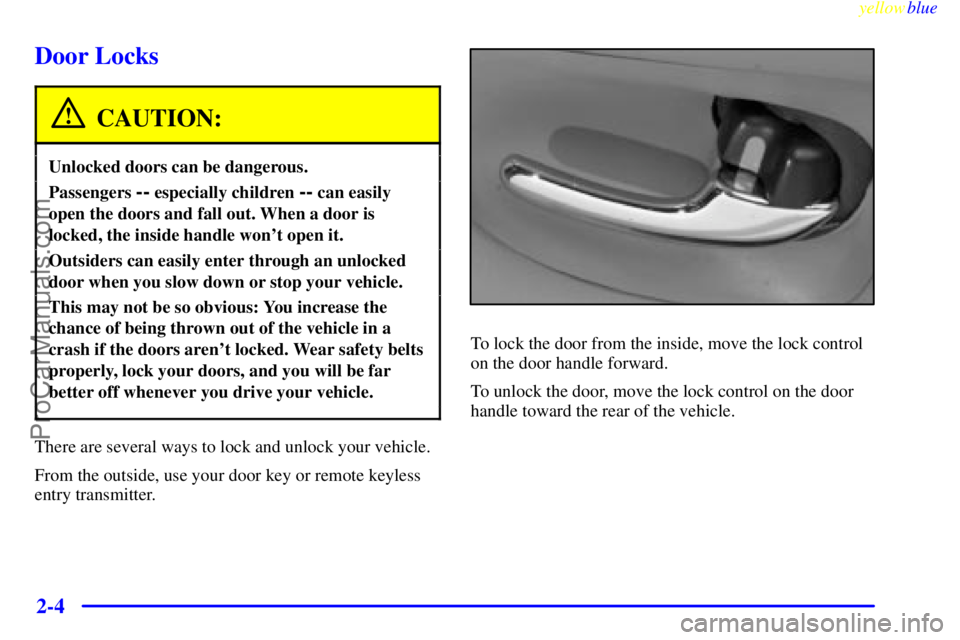

Door Locks
CAUTION:
Unlocked doors can be dangerous.
Passengers -- especially children -- can easily
open the doors and fall out. When a door is
locked, the inside handle won't open it.
Outsiders can easily enter through an unlocked
door when you slow down or stop your vehicle.
This may not be so obvious: You increase the
chance of being thrown out of the vehicle in a
crash if the doors aren't locked. Wear safety belts
properly, lock your doors, and you will be far
better off whenever you drive your vehicle.
There are several ways to lock and unlock your vehicle.
From the outside, use your door key or remote keyless
entry transmitter.
To lock the door from the inside, move the lock control
on the door handle forward.
To unlock the door, move the lock control on the door
handle toward the rear of the vehicle.
ProCarManuals.com
Page 64 of 400
yellowblue
2-6
Customizing Your Memory Door Locks Feature
You can program the memory door locks feature to one
of the following modes:
Mode 0: No automatic door lock or unlock.
Mode 1: All doors automatically lock when shifted out
of PARK (P). No automatic door unlock.
Mode 2: All doors automatically lock when shifted out
of PARK (P). Only the driver's door automatically
unlocks when shifted into PARK (P).
Mode 3: All doors automatically lock when shifted out
of PARK (P). All doors automatically unlock when
shifted into PARK (P).
Vehicles are delivered programmed in Mode 3;
however, each remote keyless entry transmitter can
be programmed to a different mode according to the
user's preference.To change modes:
1. Close all the doors and turn the ignition on. Keep all
doors closed throughout this procedure.
2. Press and hold LOCK on the power door lock switch
on the driver's door through Step 4.
3. Press the LOCK button on the remote keyless
entry transmitter to enter the programming mode.
The memory door lock mode will remain in the
current mode.
4. Press the LOCK button on the transmitter again.
Each time the transmitter's LOCK button is pressed,
the mode will advance by one, going from Mode 3 to
Mode 0 to Mode 1, etc.
For each press of the LOCK button, the door locks
will activate in the same manner they would activate
in the corresponding memory door lock mode. For
example, pressing the LOCK button on the
transmitter to advance to Mode 2 would result in all
doors locking and then, only the driver's door would
unlock. For Mode 0, no locking or unlocking
will occur.
5. Release the power door lock switch and turn the
ignition off. The automatic door locks will remain in
the most recent mode selected.
ProCarManuals.com
Page 65 of 400
yellowblue
2-7
You can also program the memory door locks feature
using the Driver Information Center. See ªDriver
Information Center Personal Choice Programmingº in
the Index.
Delayed Locking
This feature lets the driver delay the actual locking of
the vehicle. When the power door lock switch or the
remote keyless entry LOCK button is pressed with the
key removed from the ignition and the driver's door
open, a chime will sound three times to signal that the
lock delay mode is active. When all doors have been
closed, the doors will lock automatically after five
seconds. If any door is opened before this, the
five
-second timer will reset itself once all the doors have
been closed again.
Pressing the door lock switch or the remote keyless
entry LOCK button a second time within two seconds
will override this feature.The delayed locking feature can be turned on or off for
each remote keyless entry transmitter.
To turn the feature on:
1. Press and hold LOCK on the power door lock switch
on the door throughout this procedure. All the doors
will lock.
2. Press the UNLOCK button on the transmitter to
enter the programming mode. The lock delay is still
off and all doors will remain locked.
3. Press the UNLOCK button on the transmitter again.
Lock delay is now active and all doors will unlock.
4. Release the power door lock switch.
To turn this feature off, repeat the above procedure.
If your vehicle is equipped with the Driver Information
Center (DIC), you can also program these features
through the DIC. See ªDriver Information Centerº in
the Index.
ProCarManuals.com
Page 67 of 400
yellowblue
2-9 Lockout Protection
The power door locks will not work if the key is left in
the ignition and the driver's door is open. You can
override this feature by holding the power door lock
switch on the driver's door for more than three seconds.
Leaving Your Vehicle
If you are leaving the vehicle, take your keys, open your
door and set the locks from inside, then get out and close
the door.
Remote Keyless Entry System
With the remote keyless
entry system, you can lock
and unlock your doors or
unlock your trunk from
about 3 feet (1 m) up to
30 feet (9 m) away using
the remote keyless entry
transmitter supplied with
your vehicle.Your remote keyless entry system operates on a radio
frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
This device complies with RSS
-210 of Industry Canada.
Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation of
the device.
Changes or modifications to this system by other than an
authorized service facility could void authorization to
use this equipment.
ProCarManuals.com
Page 68 of 400
yellowblue
2-10
This system has a range of about 3 feet (1 m) up to
30 feet (9 m). At times you may notice a decrease in
range. This is normal for any remote keyless entry
system. If the transmitter does not work or if you have
to stand closer to your vehicle for the transmitter to
work, try this:
Check to determine if battery replacement or
synchronization is necessary. See the instructions
that follow.
Check the distance. You may be too far from your
vehicle. You may need to stand closer during rainy
or snowy weather.
Check the location. Other vehicles or objects may be
blocking the signal. Take a few steps to the left or
right, hold the transmitter higher, and try again.
If you're still having trouble, see your dealer or a
qualified technician for service.Operation
The driver's door will unlock when UNLOCK is
pressed. If pressed again within five seconds, all doors
will unlock. Pressing any button will also illuminate the
interior lamps (see ªIlluminated Entryº in the Index).
All doors will lock when LOCK is pressed.
The trunk will unlock when the trunk button is pressed,
and the ignition is in LOCK or OFF. The trunk button
will also work when the ignition is on, but only while
the transaxle is in PARK (P).
Instant Alarm
When the button with the horn symbol on the remote
keyless entry transmitter is pressed, the horn will sound
and the headlamps and taillamps will flash for up to
30 seconds. This can be turned off by pressing the
instant alarm button again or by turning the ignition on.
With the Content Theft
-Deterrent feature, you may also turn
off the instant alarm by unlocking the vehicle with a key.
ProCarManuals.com
Page 69 of 400
yellowblue
2-11
Personal Choice Features (If Equipped)
Each remote keyless entry transmitter can be
programmed to the driver's preference for memory door
locks, security feedback, delayed locking, memory seats,
perimeter lighting, parallel park assist mirror and
window lockout. See each feature in the Index. You can
also personalize your comfort control temperature, mode
and fan settings. See ªComfort Controls, Personal
Choiceº in the Index.
If your vehicle is equipped with the Driver Information
Center (DIC), you can also program these features
through the DIC. See ªDriver Information Centerº in
the Index.Security Feedback
This provides feedback to the driver when the vehicle
receives a command from the remote keyless entry
transmitter. The following modes may be selected:
Mode 0: No feedback when locking or
unlocking vehicle.
Mode 1: No feedback when locking; exterior lamps
flash when unlocking vehicle.
Mode 2: Exterior lamps flash when locking; no
feedback when unlocking vehicle.
Mode 3: Exterior lamps flash when locking and when
unlocking vehicle.
Mode 4: Exterior lamps flash and horn chirps when
locking; no feedback when unlocking vehicle.
Mode 5: Exterior lamps flash and horn chirps when
locking; exterior lamps flash when unlocking vehicle.
ProCarManuals.com
Page 70 of 400
yellowblue
2-12
Vehicles are delivered programmed in Mode 5; however,
each remote keyless entry transmitter can be
programmed to a different mode according to the user's
preference. To change to another mode:
1. Press and hold LOCK on the power door lock switch
on the door throughout the procedure.
2. Press the trunk button on the transmitter. The horn
will chirp and the transmitter will remain in its
current mode.
3. Press the trunk button again. Each time the trunk
button is pressed, the horn will chirp and the
transmitter will advance to the next mode.
4. Release the power door lock switch.
If your vehicle is equipped with the Driver Information
Center (DIC), you can also program these features
through the DIC. See ªDriver Information Centerº in
the Index.
Theft
-Deterrent System
The remote keyless entry transmitter will arm the
theft
-deterrent system whenever the doors are closed
and you push the LOCK button when the ignition is off.
It will disarm the system when you push UNLOCK.
Matching Transmitter(s) To Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your vehicle.
If a transmitter is lost or stolen, a replacement can be
purchased through your dealer. Remember to bring any
remaining transmitters with you when you go to your
dealer. When the dealer matches the replacement
transmitter to your vehicle, any remaining transmitters
must also be matched. Once your dealer has coded the
new transmitter, the lost transmitter will not unlock your
vehicle. Each vehicle can have only four transmitters
matched to it.
See your dealer to match additional transmitters to
your vehicle.
ProCarManuals.com
Page 71 of 400
yellowblue
2-13 Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about four years.
You can tell the battery is weak if the transmitter won't
work at the normal range in any location. If you have to
get close to your vehicle before the transmitter works,
it's probably time to change the battery.
For battery replacement, use a Duracell battery, type
DL
-2032, or a similar type.
NOTICE:
When replacing the battery, use care not to touch
any of the circuitry. Static from your body
transferred to these surfaces may damage
the transmitter.
To replace the battery:
1. Insert a coin into the notch near the key ring. Turn
the coin counterclockwise to separate the two halves
of the transmitter.
2. Once the transmitter is separated, use a pencil eraser
to remove the old battery. Do not use a metal object.
3. Remove and replace the battery as the instructions
under the cover indicate.
4. Snap the transmitter back together tightly to be sure
no moisture can enter.
5. Test the operation of the transmitter with your
vehicle. If the transmitter does not work,
resynchronize the transmitter.
ProCarManuals.com
