5. Pull the rest of the shoulder belt all the way out of
the retractor to set the lock.6. To tighten the belt, push down on the child restraint,
pull the shoulder portion of the belt to tighten the
lap portion of the belt and feed the shoulder
belt back into the retractor. If you are using a
forward-facing child restraint, you may nd it helpful
to use your knee to push down on the child
restraint as you tighten the belt. You should not be
able to pull more of the belt from the retractor
once the lock has been set.
7. Push and pull the child restraint in different
directions to be sure it is secure.
8. If the airbag is off, the off indicator in the inside
rearview mirror will be lit and stay lit when the
key is turned to RUN or START.
1-45
Page 52 of 452

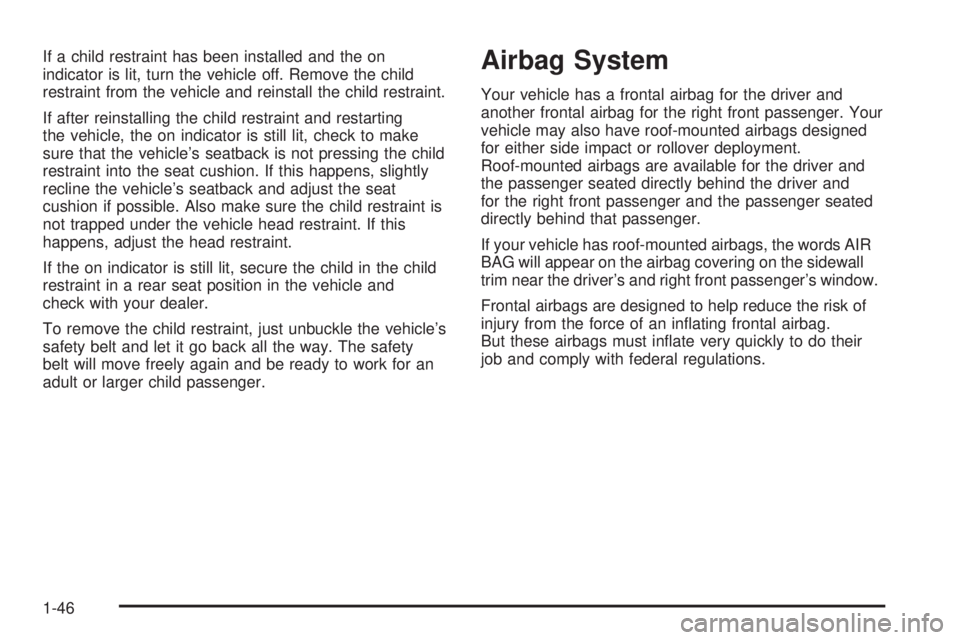

If a child restraint has been installed and the on
indicator is lit, turn the vehicle off. Remove the child
restraint from the vehicle and reinstall the child restraint.
If after reinstalling the child restraint and restarting
the vehicle, the on indicator is still lit, check to make
sure that the vehicle’s seatback is not pressing the child
restraint into the seat cushion. If this happens, slightly
recline the vehicle’s seatback and adjust the seat
cushion if possible. Also make sure the child restraint is
not trapped under the vehicle head restraint. If this
happens, adjust the head restraint.
If the on indicator is still lit, secure the child in the child
restraint in a rear seat position in the vehicle and
check with your dealer.
To remove the child restraint, just unbuckle the vehicle’s
safety belt and let it go back all the way. The safety
belt will move freely again and be ready to work for an
adult or larger child passenger.Airbag System
Your vehicle has a frontal airbag for the driver and
another frontal airbag for the right front passenger. Your
vehicle may also have roof-mounted airbags designed
for either side impact or rollover deployment.
Roof-mounted airbags are available for the driver and
the passenger seated directly behind the driver and
for the right front passenger and the passenger seated
directly behind that passenger.
If your vehicle has roof-mounted airbags, the words AIR
BAG will appear on the airbag covering on the sidewall
trim near the driver’s and right front passenger’s window.
Frontal airbags are designed to help reduce the risk of
injury from the force of an in ating frontal airbag.
But these airbags must in ate very quickly to do their
job and comply with federal regulations.
1-46
Page 53 of 452

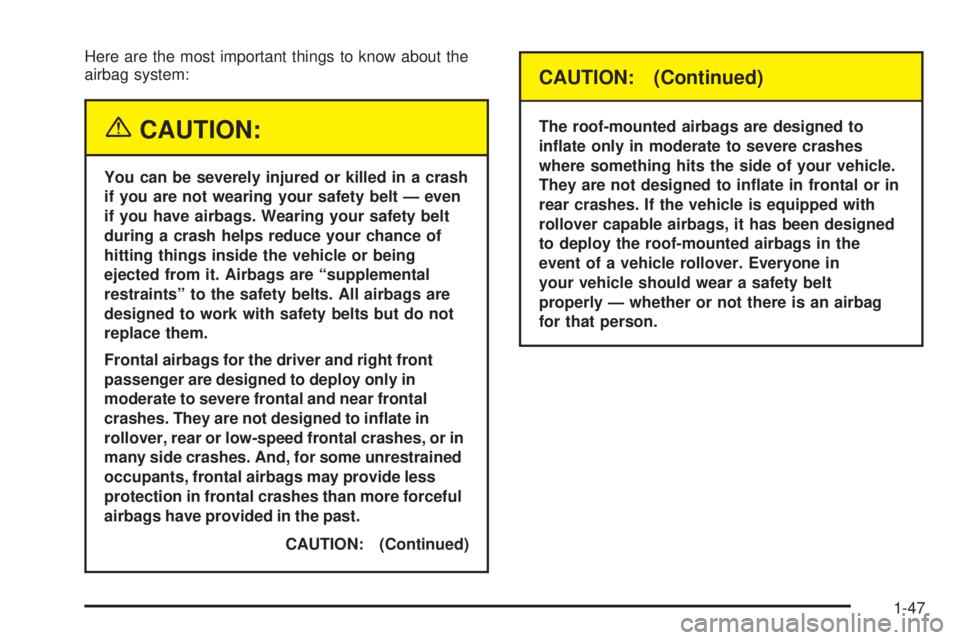

Here are the most important things to know about the
airbag system:
{CAUTION:
You can be severely injured or killed in a crash
if you are not wearing your safety belt — even
if you have airbags. Wearing your safety belt
during a crash helps reduce your chance of
hitting things inside the vehicle or being
ejected from it. Airbags are “supplemental
restraints” to the safety belts. All airbags are
designed to work with safety belts but do not
replace them.
Frontal airbags for the driver and right front
passenger are designed to deploy only in
moderate to severe frontal and near frontal
crashes. They are not designed to in ate in
rollover, rear or low-speed frontal crashes, or in
many side crashes. And, for some unrestrained
occupants, frontal airbags may provide less
protection in frontal crashes than more forceful
airbags have provided in the past.
CAUTION: (Continued)
CAUTION: (Continued)
The roof-mounted airbags are designed to
in ate only in moderate to severe crashes
where something hits the side of your vehicle.
They are not designed to in ate in frontal or in
rear crashes. If the vehicle is equipped with
rollover capable airbags, it has been designed
to deploy the roof-mounted airbags in the
event of a vehicle rollover. Everyone in
your vehicle should wear a safety belt
properly — whether or not there is an airbag
for that person.
1-47
Page 54 of 452
{CAUTION:
Both frontal and roof-mounted airbags in ate
with great force, faster than the blink of an
eye. If you are too close to an in ating airbag,
as you would be if you were leaning forward, it
could seriously injure you. Safety belts
helpkeep you in position for airbag in ation
before and during a crash. Always wear your
safety belt even with frontal airbags. The driver
should sit as far back as possible while still
maintaining control of the vehicle. Occupants
should not lean on or sleep against the door.
There is an airbag
readiness light on the
instrument panel cluster,
which shows the airbag
symbol.
The system checks the airbag electrical system for
malfunctions. The light tells you if there is an electrical
problem. SeeAirbag Readiness Light on page 3-29
for more information.

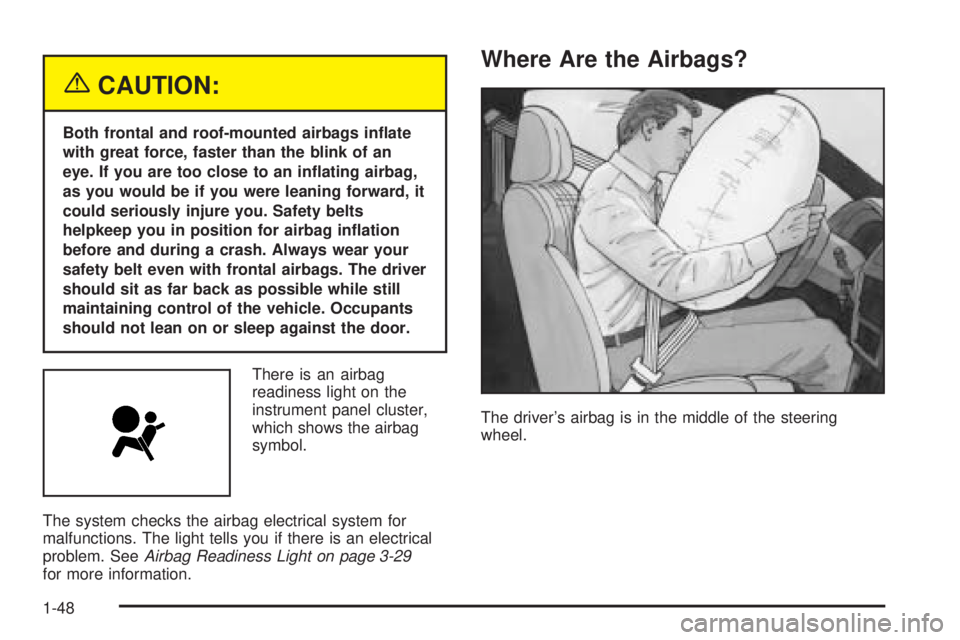

Where Are the Airbags?
The driver’s airbag is in the middle of the steering
wheel.
1-48
Page 55 of 452

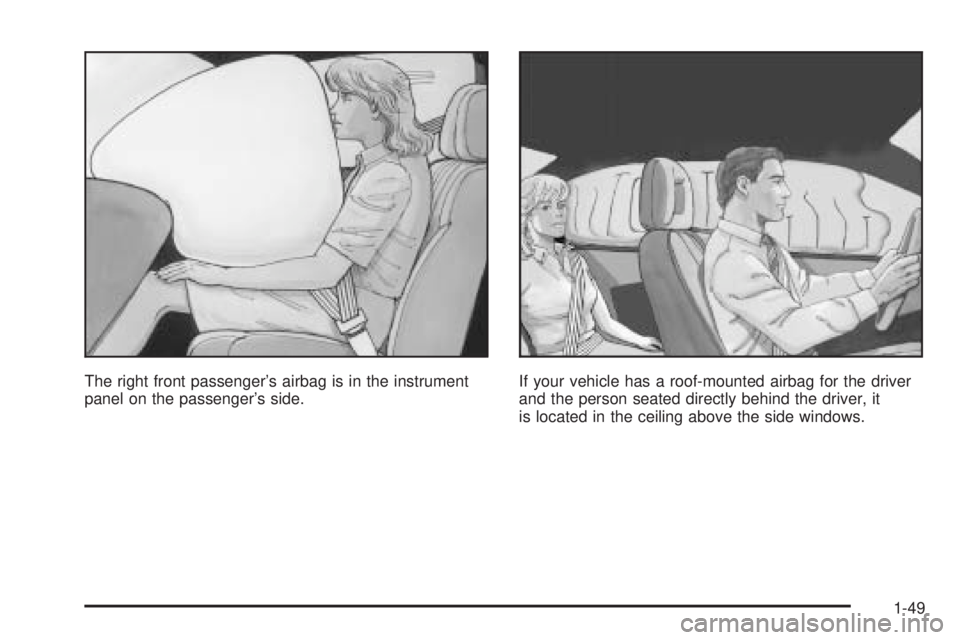

The right front passenger’s airbag is in the instrument
panel on the passenger’s side.If your vehicle has a roof-mounted airbag for the driver
and the person seated directly behind the driver, it
is located in the ceiling above the side windows.
1-49
Page 56 of 452

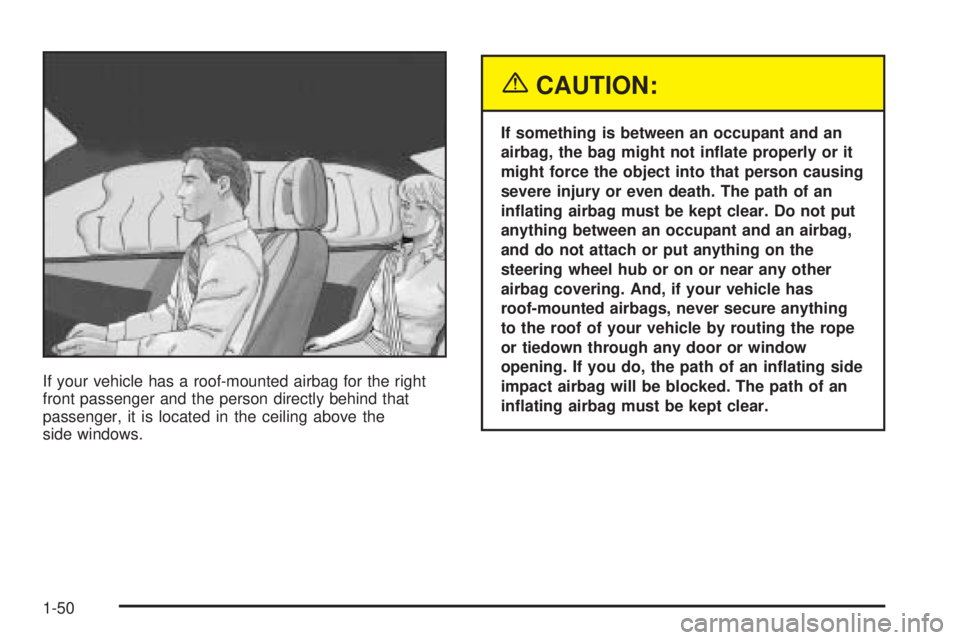

If your vehicle has a roof-mounted airbag for the right
front passenger and the person directly behind that
passenger, it is located in the ceiling above the
side windows.
{CAUTION:
If something is between an occupant and an
airbag, the bag might not in ate properly or it
might force the object into that person causing
severe injury or even death. The path of an
in ating airbag must be kept clear. Do not put
anything between an occupant and an airbag,
and do not attach or put anything on the
steering wheel hub or on or near any other
airbag covering. And, if your vehicle has
roof-mounted airbags, never secure anything
to the roof of your vehicle by routing the rope
or tiedown through any door or window
opening. If you do, the path of an in ating side
impact airbag will be blocked. The path of an
in ating airbag must be kept clear.
1-50
Page 57 of 452
When Should an Airbag In ate?
The driver’s and right front passenger’s frontal airbags
are designed to in ate in moderate to severe frontal
or near-frontal crashes. But they are designed to in ate
only if the impact exceeds a predetermined deployment
threshold. Deployment thresholds take into account
a variety of desired deployment and non-deployment
events and are used to predict how severe a crash
is likely to be in time for the airbags to in ate and help
restrain the occupants. Whether your frontal airbags
will or should deploy is not based on how fast your
vehicle is traveling. It depends largely on what you hit,
the direction of the impact and how quickly your
vehicle slows down.
In addition, your vehicle has “dual stage” frontal airbags,
which adjust the restraint according to crash severity.
Your vehicle is equipped with electronic frontal sensors,
which help the sensing system distinguish between a
moderate frontal impact and a more severe frontal
impact. For moderate frontal impacts, these airbags
in ate at a level less than full deployment. For more
severe frontal impacts, full deployment occurs. If the front
of your vehicle goes straight into a wall that does not
move or deform, the threshold level for the reduced
deployment is about 9 to 16 mph (14 to 26 km/h),
and the threshold level for a full deployment is about18 to 25 mph (29 to 40 km/h). (The threshold level can
vary, however, with speci c vehicle design, so that it can
be somewhat above or below this range.)
Airbags may in ate at different crash speeds. For
example:
If the vehicle hits a stationary object, the airbag
could in ate at a different crash speed than if
the object were moving.
If the object deforms, the airbag could in ate at a
different crash speed than if the object does not
deform.
If the vehicle hits a narrow object (like a pole) the
airbag could in ate at a different crash speed
than if the vehicle hits a wide object (like a wall).
If the vehicle goes into an object at an angle the
airbag could in ate at a different crash speed
than if the vehicle goes straight into the object.
The frontal airbags (driver and right front passenger) are
not intended to in ate during vehicle rollovers, rear
impacts, or in many side impacts because in ation
would not likely help the occupants.
1-51
Page 58 of 452
Your vehicle may or may not have a roof-mounted
airbag. SeeAirbag System on page 1-46. These
“rollover capable” airbags are designed to in ate in
moderate to severe side crashes or during a rollover.
A roof-mounted airbag will in ate if the crash severity is
above the system’s designed “threshold level.” The
threshold level can vary with speci c vehicle design.
Roof-mounted airbags are not designed to in ate
in frontal or near-frontal impacts, or rear impacts,
because in ation would not likely help the occupant.
Your vehicle has seat position sensors which enable the
sensing system to monitor the position of the driver’s
seat and the right front passenger’s seat. Seat position
sensors provide information that is used to determine
if the airbags should deploy at a reduced level or at full
deployment.In any particular crash, no one can say whether an
airbag should have in ated simply because of the
damage to a vehicle or because of what the repair costs
were. For frontal airbags, in ation is determined by
the angle of the impact and how quickly the vehicle
slows down in frontal and near-frontal impacts.
For roof-mounted airbags, in ation is determined by the
location and severity of the impact.
The airbag system is designed to work properly under a
wide range of conditions, including off-road usage.
Observe safe driving speeds, especially on rough
terrain. As always, wear your safety belt. SeeOperating
Your All-Wheel-Drive Vehicle Off Paved Roads on
page 4-15for tips on off-road driving.
1-52
Page 59 of 452
What Makes an Airbag In ate?
In an impact of sufficient severity, the airbag sensing
system detects that the vehicle is in a crash. In the case
of a “rollover capable” roof-mounted airbag, the sensing
system detects that the vehicle is about to roll over. For
both frontal and roof-mounted airbags, the sensing
system triggers a release of gas from the in ator, which
in ates the airbag. The in ator, airbag, and related
hardware are all part of the airbag modules inside the
steering wheel and in the instrument panel in front of the
right front passenger. For vehicles with roof-mounted
airbags, the airbag modules are located in the ceiling of
the vehicle, near the side windows.
How Does an Airbag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The airbag supplements the protection
provided by safety belts. Airbags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal airbags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motion

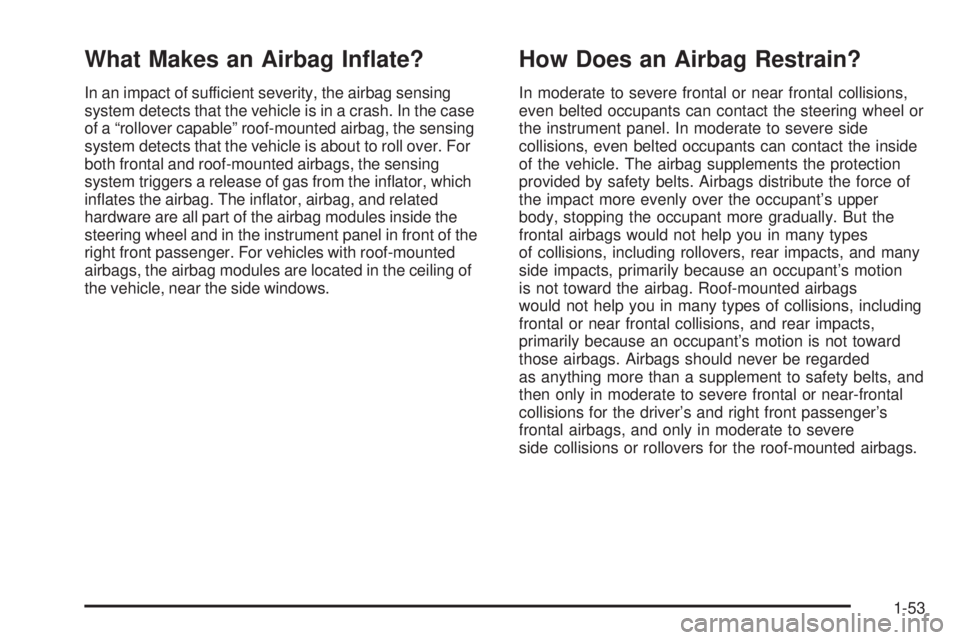

is not toward the airbag. Roof-mounted airbags
would not help you in many types of collisions, including
frontal or near frontal collisions, and rear impacts,
primarily because an occupant’s motion is not toward
those airbags. Airbags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal airbags, and only in moderate to severe
side collisions or rollovers for the roof-mounted airbags.
1-53
Page 60 of 452

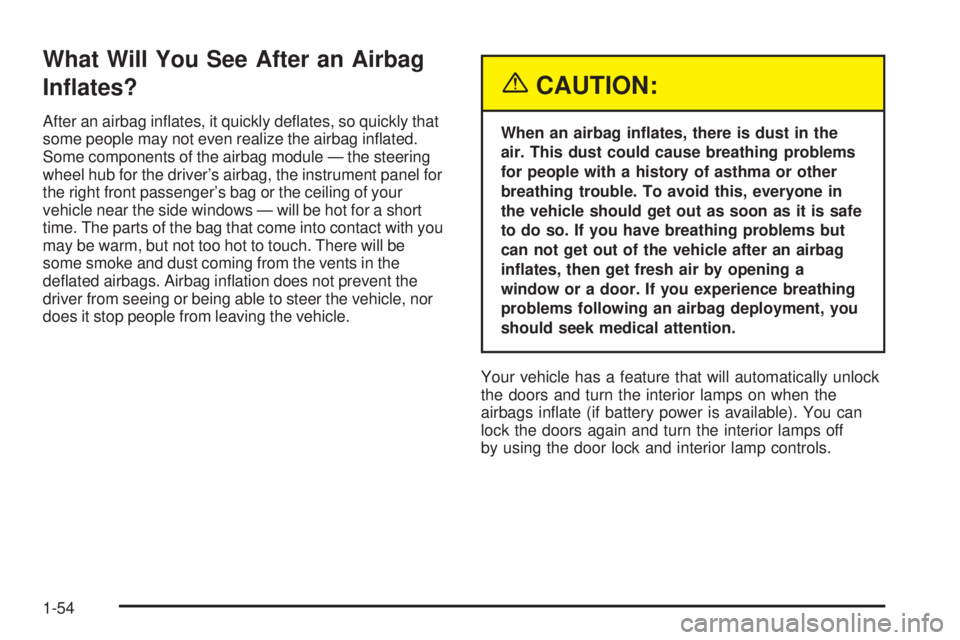

What Will You See After an Airbag
In ates?
After an airbag in ates, it quickly de ates, so quickly that
some people may not even realize the airbag in ated.
Some components of the airbag module — the steering
wheel hub for the driver’s airbag, the instrument panel for
the right front passenger’s bag or the ceiling of your
vehicle near the side windows — will be hot for a short
time. The parts of the bag that come into contact with you
may be warm, but not too hot to touch. There will be
some smoke and dust coming from the vents in the
de ated airbags. Airbag in ation does not prevent the
driver from seeing or being able to steer the vehicle, nor
does it stop people from leaving the vehicle.
{CAUTION:
When an airbag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
can not get out of the vehicle after an airbag
in ates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an airbag deployment, you
should seek medical attention.
Your vehicle has a feature that will automatically unlock
the doors and turn the interior lamps on when the
airbags in ate (if battery power is available). You can
lock the doors again and turn the interior lamps off
by using the door lock and interior lamp controls.
1-54
