coolant level BUICK RAINIER 2007 Owner's Manual

Engine Coolant Temperature Gage............ 189
Tire Pressure Light.................................... 189
Malfunction Indicator Lamp........................ 190
Oil Pressure Gage..................................... 193
Security Light............................................ 194
Cruise Control Light.................................. 194
Reduced Engine Power Light.................... 195
Highbeam On Light................................... 195
Service All-Wheel Drive Light.................... 196
Check Gages Warning Light...................... 196
Gate Ajar Light.......................................... 196
Fuel Gage................................................. 197
Low Fuel Warning Light............................ 197
Check Gas Cap Light................................ 197
Driver Information Center (DIC).................. 198
DIC Operation and Displays...................... 199
DIC Warnings and Messages.................... 202
DIC Vehicle Customization........................ 208Audio System(s)......................................... 215
Setting the Time........................................ 217
Radio with CD (Base)............................... 217
Radio with CD (MP3)................................ 228
Radio with Six-Disc CD............................. 238
Using an MP3........................................... 251
XM Radio Messages................................. 257
Navigation/Radio System........................... 260
Rear Seat Entertainment System............... 260
Rear Seat Audio (RSA)............................. 275
Theft-Deterrent Feature............................. 276
Audio Steering Wheel Controls.................. 277
Radio Reception........................................ 278
Care of Your CDs and DVDs.................... 279
Care of the CD and DVD Player............... 279
Fixed Mast Antenna.................................. 279
XM™ Satellite Radio Antenna System....... 280
Chime Level Adjustment............................ 280
Section 3 Instrument Panel
150

ENGINE COOLANT HOT/ENGINE
OVERHEATED
Notice:If you drive your vehicle while the
engine is overheating, severe engine damage
may occur. If an overheat warning appears
on the instrument panel cluster and/or
DIC, stop the vehicle as soon as possible.
Do not increase the engine speed above
normal idling speed. SeeEngine Overheating
on page 382for more information.
This message displays and a chime sounds if the
cooling system temperature gets hot. See
Engine Overheating on page 382for the proper
course of action. This message clears when
the coolant temperature drops to a safe operating
temperature.
FUEL LEVEL LOW
This message displays and a chime sounds if the
fuel level is low in the vehicle’s fuel tank. Refuel as
soon as possible. Press any of the DIC buttons, or
the trip stem, to acknowledge this message and
clear it from the DIC display. SeeLow Fuel Warning
Light on page 197,Filling the Tank on page 361,
andFuel on page 358for more information.
ICE POSSIBLE
This message may display if the outside
temperature reaches a level where ice could form
on the roadway. If the temperature rises to a safe
level, the message clears. This message clears
itself after 10 seconds, or you can press any of the
DIC buttons, or the trip stem, to acknowledge this
message and clear it from the DIC display.
KEY FOB # BATTERY LOW
This message displays if a Remote Keyless Entry
(RKE) transmitter battery is low. Replace the
battery in the transmitter. See “Battery
Replacement” underRemote Keyless Entry (RKE)
System Operation on page 94. Press any of the
DIC buttons, or the trip stem, to acknowledge this
message and clear it from the DIC display.
LEFT REAR DOOR AJAR
This message displays and a chime sounds if the
driver’s side rear door is not fully closed. Stop and
turn off the vehicle, check the door for obstructions,
and close the door again. Check to see if the
message still appears on the DIC. Press any of the
DIC buttons, or the trip stem, to acknowledge this
message and clear it from the DIC display.
204

Turn Signals When Towing a Trailer
The arrows on your instrument panel will
ash whenever you signal a turn or lane change.
Properly hooked up, the trailer lamps will also
ash, telling other drivers you’re about to
turn, change lanes or stop.
When towing a trailer, the arrows on your
instrument panel will ash for turns even if the
bulbs on the trailer are burned out. Thus, you may
think drivers behind you are seeing your signal
when they are not. It’s important to check
occasionally to be sure the trailer bulbs are
still working.
Driving On Grades
Reduce speed and shift to a lower gearbefore
you start down a long or steep downgrade. If you
don’t shift down, you might have to use your
brakes so much that they would get hot and no
longer work well.You can tow in DRIVE (D). You may want to shift
the transmission to THIRD (3) or a lower gear,
under heavy loads or hilly conditions.
When towing at high altitude on steep uphill
grades, consider the following: Engine coolant will
boil at a lower temperature than at normal
altitudes. If you turn your engine off immediately
after towing at high altitude on steep uphill grades,
your vehicle may show signs similar to engine
overheating. To avoid this, let the engine run while
parked (preferably on level ground) with the
automatic transmission in PARK (P) for a few
minutes before turning the engine off. If you do get
the overheat warning, seeEngine Overheating
on page 382.
349

A. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 374.
B. Engine Coolant Recovery Tank. SeeCooling
System on page 384.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 391.
D. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 390.
E. Automatic Transmission Fluid Dipstick (Out of
View). See “Checking the Fluid Level” under
Automatic Transmission Fluid on page 375.
F. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 369.G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 382.
H. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 369.
I. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 397.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 392.
K. Battery. SeeBattery on page 396.
L. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 465.
367

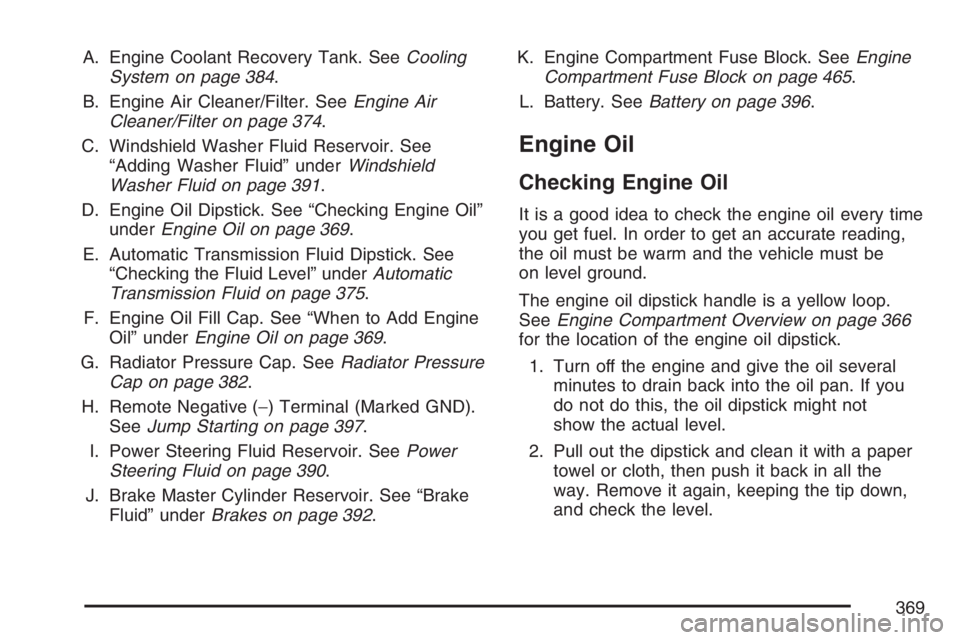

A. Engine Coolant Recovery Tank. SeeCooling
System on page 384.
B. Engine Air Cleaner/Filter. SeeEngine Air
Cleaner/Filter on page 374.
C. Windshield Washer Fluid Reservoir. See
“Adding Washer Fluid” underWindshield
Washer Fluid on page 391.
D. Engine Oil Dipstick. See “Checking Engine Oil”
underEngine Oil on page 369.
E. Automatic Transmission Fluid Dipstick. See
“Checking the Fluid Level” underAutomatic
Transmission Fluid on page 375.
F. Engine Oil Fill Cap. See “When to Add Engine
Oil” underEngine Oil on page 369.
G. Radiator Pressure Cap. SeeRadiator Pressure
Cap on page 382.
H. Remote Negative (−) Terminal (Marked GND).
SeeJump Starting on page 397.
I. Power Steering Fluid Reservoir. SeePower
Steering Fluid on page 390.
J. Brake Master Cylinder Reservoir. See “Brake
Fluid” underBrakes on page 392.K. Engine Compartment Fuse Block. SeeEngine
Compartment Fuse Block on page 465.
L. Battery. SeeBattery on page 396.
Engine Oil
Checking Engine Oil
It is a good idea to check the engine oil every time
you get fuel. In order to get an accurate reading,
the oil must be warm and the vehicle must be
on level ground.
The engine oil dipstick handle is a yellow loop.
SeeEngine Compartment Overview on page 366
for the location of the engine oil dipstick.
1. Turn off the engine and give the oil several
minutes to drain back into the oil pan. If you
do not do this, the oil dipstick might not
show the actual level.
2. Pull out the dipstick and clean it with a paper
towel or cloth, then push it back in all the
way. Remove it again, keeping the tip down,
and check the level.
369

Checking Coolant
The engine coolant
recovery tank is in the
engine compartment on
the passenger’s side of
the vehicle. The cap has
this symbol on it. See
Engine Compartment
Overview on page 366
for more information on
location.
The vehicle must be on a level surface. When
your engine is cold, the coolant level should be at
FULL COLD, or a little higher.
Adding Coolant
If you need more coolant, add the proper
DEX-COOL®coolant mixture at the coolant
recovery tank.
{CAUTION:
Turning the radiator pressure cap when
the engine and radiator are hot can allow
steam and scalding liquids to blow out
and burn you badly. With the coolant
recovery tank, you will almost never
have to add coolant at the radiator. Never
turn the radiator pressure cap — even
a little — when the engine and radiator
are hot.
381

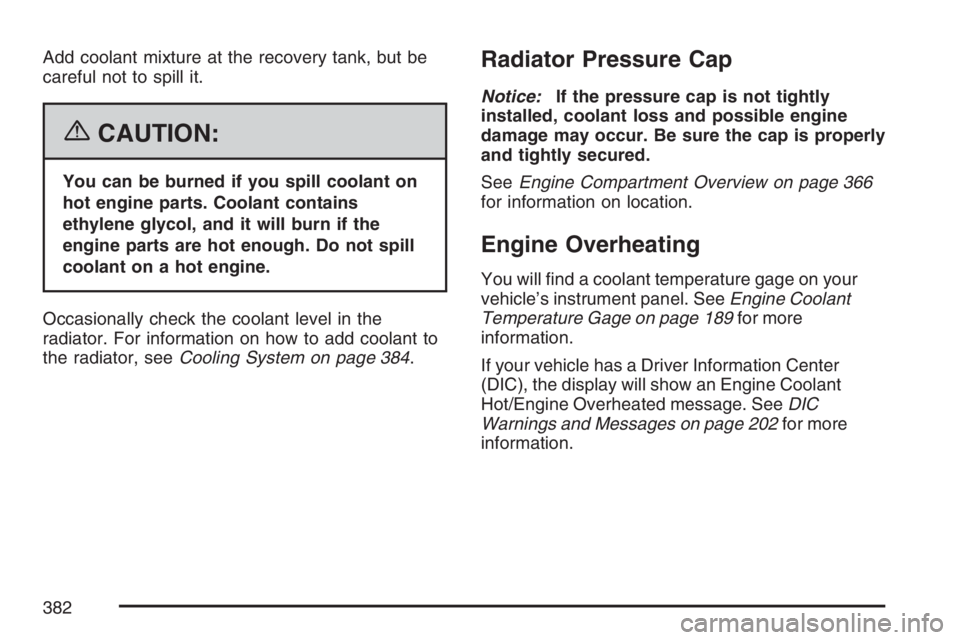

Add coolant mixture at the recovery tank, but be
careful not to spill it.
{CAUTION:
You can be burned if you spill coolant on
hot engine parts. Coolant contains
ethylene glycol, and it will burn if the
engine parts are hot enough. Do not spill
coolant on a hot engine.
Occasionally check the coolant level in the
radiator. For information on how to add coolant to
the radiator, seeCooling System on page 384.
Radiator Pressure Cap
Notice:If the pressure cap is not tightly
installed, coolant loss and possible engine
damage may occur. Be sure the cap is properly
and tightly secured.
SeeEngine Compartment Overview on page 366
for information on location.
Engine Overheating
You will nd a coolant temperature gage on your
vehicle’s instrument panel. SeeEngine Coolant
Temperature Gage on page 189for more
information.
If your vehicle has a Driver Information Center
(DIC), the display will show an Engine Coolant
Hot/Engine Overheated message. SeeDIC
Warnings and Messages on page 202for more
information.
382

A. Coolant Recovery Tank
B. Radiator Pressure Cap
C. Engine Fan
If the coolant inside the coolant recovery tank is
boiling, do not do anything else until it cools down.
The vehicle should be parked on a level surface.The coolant level should
be at least up to the
FULL COLD mark. If it
is not, you may
have a leak at the
pressure cap or in the
radiator hoses,
heater hoses, radiator,
water pump, or
somewhere else in the
cooling system.{CAUTION:
Heater and radiator hoses, and other
engine parts, can be very hot. Do not
touch them. If you do, you can be burned.
Do not run the engine if there is a leak.
If you run the engine, it could lose all
coolant. That could cause an engine re,
and you could be burned. Get any leak
xed before you drive the vehicle.
5.3L V8 Engine
385

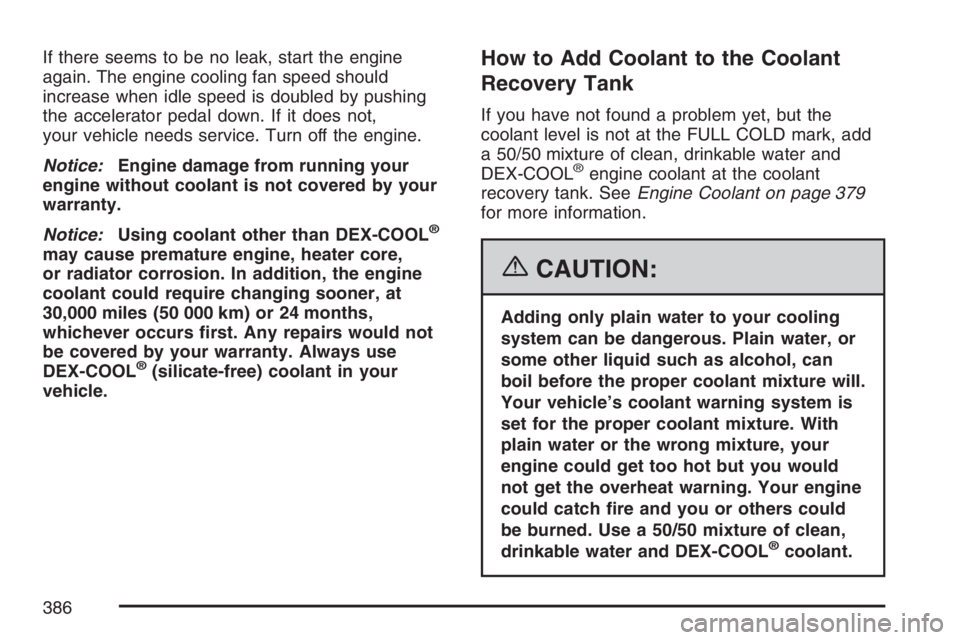

If there seems to be no leak, start the engine
again. The engine cooling fan speed should
increase when idle speed is doubled by pushing
the accelerator pedal down. If it does not,
your vehicle needs service. Turn off the engine.
Notice:Engine damage from running your
engine without coolant is not covered by your
warranty.
Notice:Using coolant other than DEX-COOL
®
may cause premature engine, heater core,
or radiator corrosion. In addition, the engine
coolant could require changing sooner, at
30,000 miles (50 000 km) or 24 months,
whichever occurs rst. Any repairs would not
be covered by your warranty. Always use
DEX-COOL
®(silicate-free) coolant in your
vehicle.
How to Add Coolant to the Coolant
Recovery Tank
If you have not found a problem yet, but the
coolant level is not at the FULL COLD mark, add
a 50/50 mixture of clean, drinkable water and
DEX-COOL
®engine coolant at the coolant
recovery tank. SeeEngine Coolant on page 379
for more information.
{CAUTION:
Adding only plain water to your cooling
system can be dangerous. Plain water, or
some other liquid such as alcohol, can
boil before the proper coolant mixture will.
Your vehicle’s coolant warning system is
set for the proper coolant mixture. With
plain water or the wrong mixture, your
engine could get too hot but you would
not get the overheat warning. Your engine
could catch re and you or others could
be burned. Use a 50/50 mixture of clean,
drinkable water and DEX-COOL
®coolant.
386

4. Then ll the coolant recovery tank to the
FULL COLD mark.
5. Put the cap back on the coolant recovery
tank, but leave the radiator pressure
cap off.6. Start the engine and let it run until you can
feel the upper radiator hose getting hot.
Watch out for the engine cooling fan.
7. By this time, the coolant level inside the
radiator ller neck may be lower. If the level is
lower, add more of the proper DEX-COOL
®
coolant mixture through the ller neck until the
level reaches the base of the ller neck.
8. Then replace the pressure cap. At any time
during this procedure if coolant begins to ow
out of the ller neck, reinstall the pressure
cap. Be sure the pressure cap is hand-tight
and fully seated.
389
