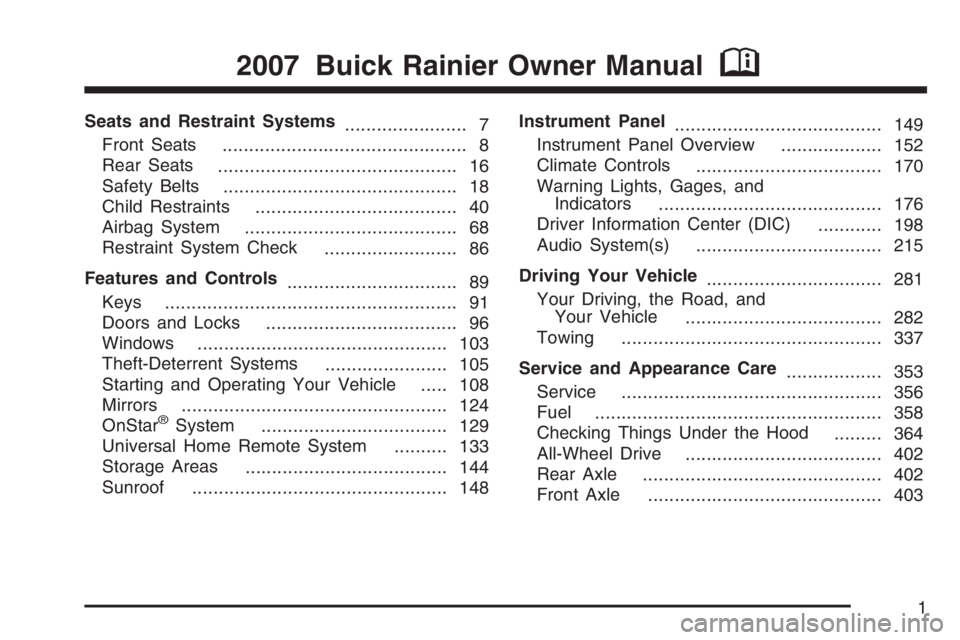

Seats and Restraint Systems
....................... 7
Front Seats
.............................................. 8
Rear Seats
............................................. 16
Safety Belts
............................................ 18
Child Restraints
...................................... 40
Airbag System
........................................ 68
Restraint System Check
......................... 86
Features and Controls
................................ 89
Keys
....................................................... 91
Doors and Locks
.................................... 96
Windows
............................................... 103
Theft-Deterrent Systems
....................... 105
Starting and Operating Your Vehicle
..... 108
Mirrors
.................................................. 124
OnStar
®System
................................... 129
Universal Home Remote System
.......... 133
Storage Areas
...................................... 144
Sunroof
................................................ 148Instrument Panel
....................................... 149
Instrument Panel Overview
................... 152
Climate Controls
................................... 170
Warning Lights, Gages, and
Indicators
.......................................... 176
Driver Information Center (DIC)
............ 198
Audio System(s)
................................... 215
Driving Your Vehicle
................................. 281
Your Driving, the Road, and
Your Vehicle
..................................... 282
Towing
................................................. 337
Service and Appearance Care
.................. 353
Service
................................................. 356
Fuel
...................................................... 358
Checking Things Under the Hood
......... 364
All-Wheel Drive
..................................... 402
Rear Axle
............................................. 402
Front Axle
............................................ 403
2007 Buick Rainier Owner ManualM
1

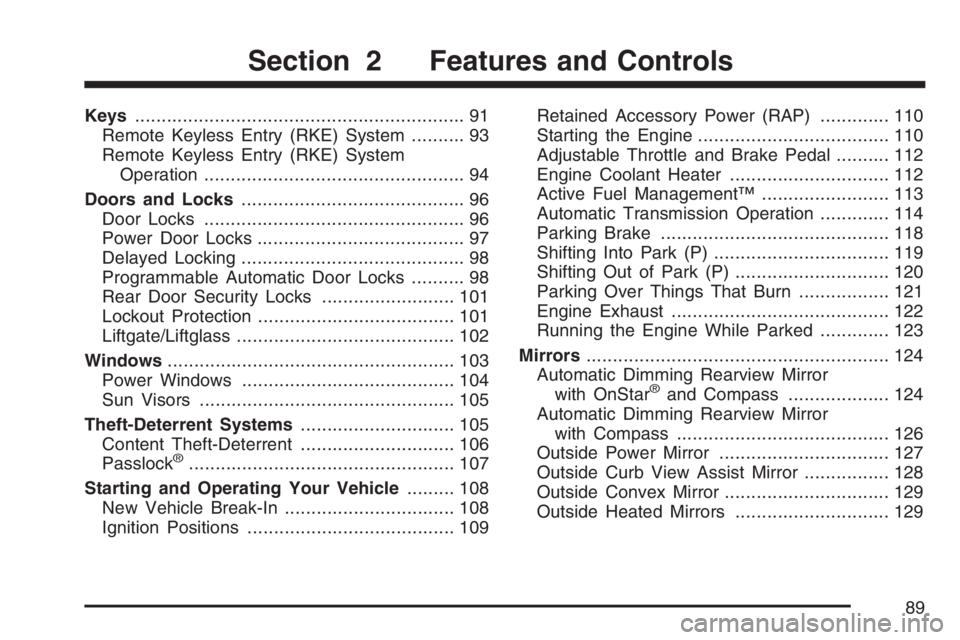

Keys.............................................................. 91
Remote Keyless Entry (RKE) System.......... 93
Remote Keyless Entry (RKE) System
Operation................................................. 94
Doors and Locks.......................................... 96
Door Locks................................................. 96
Power Door Locks....................................... 97
Delayed Locking.......................................... 98
Programmable Automatic Door Locks.......... 98
Rear Door Security Locks......................... 101
Lockout Protection..................................... 101
Liftgate/Liftglass......................................... 102
Windows...................................................... 103
Power Windows........................................ 104
Sun Visors................................................ 105
Theft-Deterrent Systems............................. 105
Content Theft-Deterrent............................. 106
Passlock
®.................................................. 107
Starting and Operating Your Vehicle......... 108
New Vehicle Break-In................................ 108
Ignition Positions....................................... 109Retained Accessory Power (RAP)............. 110
Starting the Engine.................................... 110
Adjustable Throttle and Brake Pedal.......... 112
Engine Coolant Heater.............................. 112
Active Fuel Management™........................ 113
Automatic Transmission Operation............. 114
Parking Brake........................................... 118
Shifting Into Park (P) ................................. 119
Shifting Out of Park (P)............................. 120
Parking Over Things That Burn................. 121
Engine Exhaust......................................... 122
Running the Engine While Parked............. 123
Mirrors......................................................... 124
Automatic Dimming Rearview Mirror
with OnStar
®and Compass................... 124
Automatic Dimming Rearview Mirror
with Compass........................................ 126
Outside Power Mirror................................ 127
Outside Curb View Assist Mirror................ 128
Outside Convex Mirror............................... 129
Outside Heated Mirrors............................. 129
Section 2 Features and Controls
89

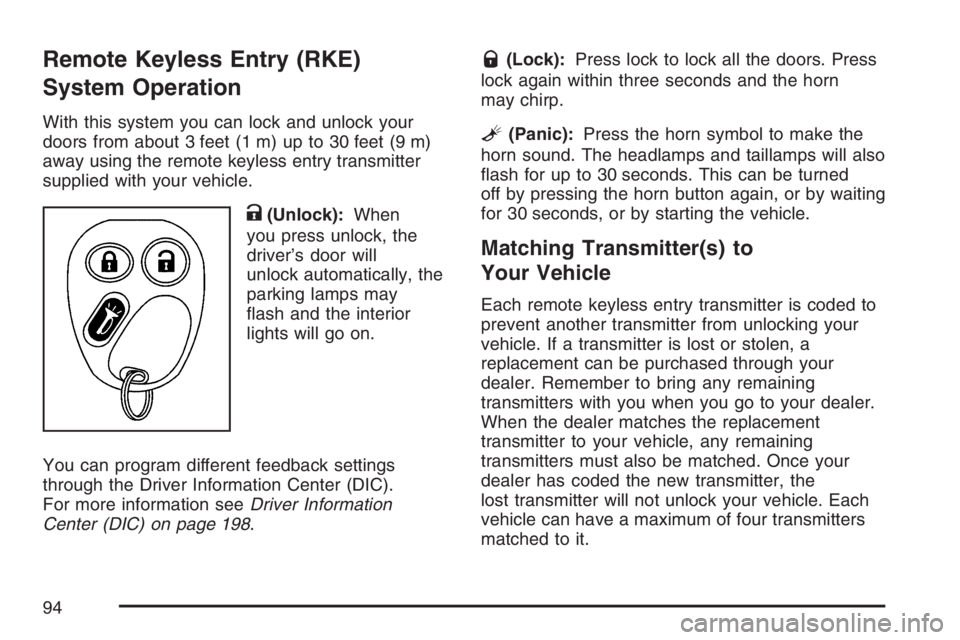

Remote Keyless Entry (RKE)
System Operation
With this system you can lock and unlock your
doors from about 3 feet (1 m) up to 30 feet (9 m)
away using the remote keyless entry transmitter
supplied with your vehicle.
K(Unlock):When
you press unlock, the
driver’s door will
unlock automatically, the
parking lamps may
ash and the interior
lights will go on.
You can program different feedback settings
through the Driver Information Center (DIC).
For more information seeDriver Information
Center (DIC) on page 198.
Q(Lock):Press lock to lock all the doors. Press
lock again within three seconds and the horn
may chirp.
L(Panic):Press the horn symbol to make the
horn sound. The headlamps and taillamps will also
ash for up to 30 seconds. This can be turned
off by pressing the horn button again, or by waiting
for 30 seconds, or by starting the vehicle.
Matching Transmitter(s) to
Your Vehicle
Each remote keyless entry transmitter is coded to
prevent another transmitter from unlocking your
vehicle. If a transmitter is lost or stolen, a
replacement can be purchased through your
dealer. Remember to bring any remaining
transmitters with you when you go to your dealer.
When the dealer matches the replacement
transmitter to your vehicle, any remaining
transmitters must also be matched. Once your
dealer has coded the new transmitter, the
lost transmitter will not unlock your vehicle. Each
vehicle can have a maximum of four transmitters
matched to it.
94

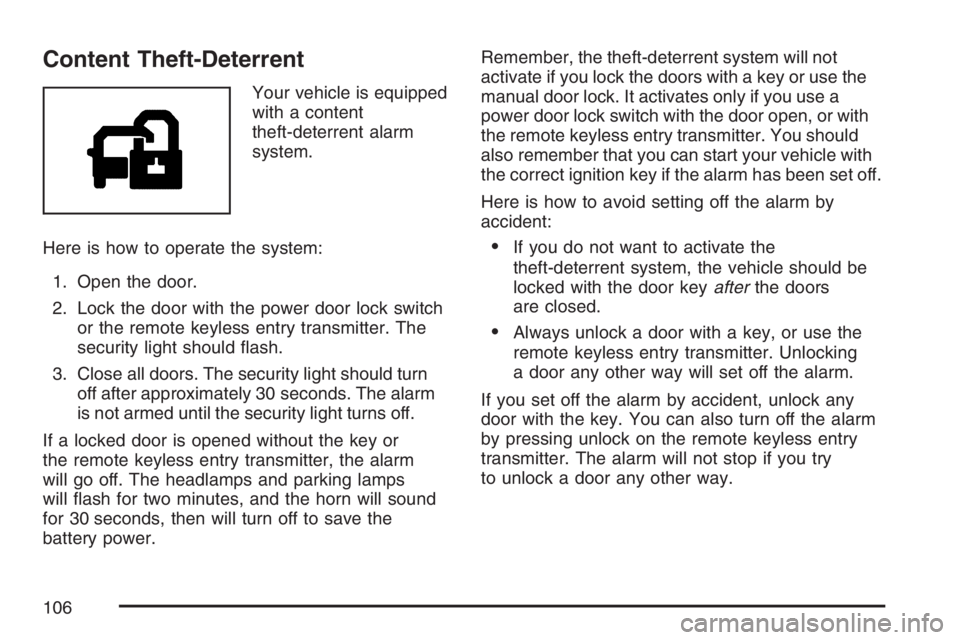

Content Theft-Deterrent
Your vehicle is equipped
with a content
theft-deterrent alarm
system.
Here is how to operate the system:
1. Open the door.
2. Lock the door with the power door lock switch
or the remote keyless entry transmitter. The
security light should ash.
3. Close all doors. The security light should turn
off after approximately 30 seconds. The alarm
is not armed until the security light turns off.
If a locked door is opened without the key or
the remote keyless entry transmitter, the alarm
will go off. The headlamps and parking lamps
will ash for two minutes, and the horn will sound
for 30 seconds, then will turn off to save the
battery power.Remember, the theft-deterrent system will not
activate if you lock the doors with a key or use the
manual door lock. It activates only if you use a
power door lock switch with the door open, or with
the remote keyless entry transmitter. You should
also remember that you can start your vehicle with
the correct ignition key if the alarm has been set off.
Here is how to avoid setting off the alarm by
accident:
If you do not want to activate the
theft-deterrent system, the vehicle should be
locked with the door keyafterthe doors
are closed.
Always unlock a door with a key, or use the
remote keyless entry transmitter. Unlocking
a door any other way will set off the alarm.
If you set off the alarm by accident, unlock any
door with the key. You can also turn off the alarm
by pressing unlock on the remote keyless entry
transmitter. The alarm will not stop if you try
to unlock a door any other way.
106

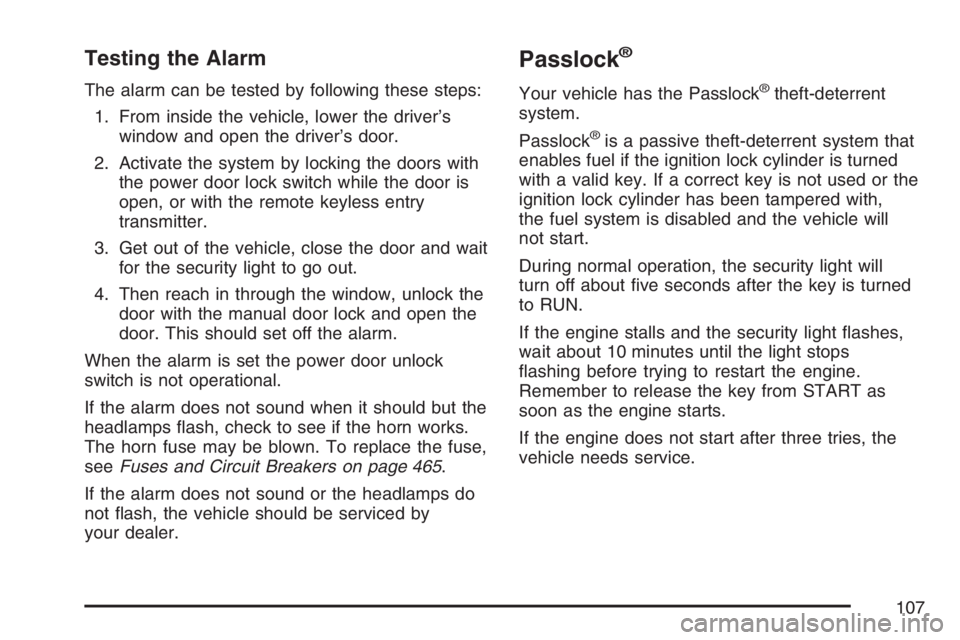

Testing the Alarm
The alarm can be tested by following these steps:
1. From inside the vehicle, lower the driver’s
window and open the driver’s door.
2. Activate the system by locking the doors with
the power door lock switch while the door is
open, or with the remote keyless entry
transmitter.
3. Get out of the vehicle, close the door and wait
for the security light to go out.
4. Then reach in through the window, unlock the
door with the manual door lock and open the
door. This should set off the alarm.
When the alarm is set the power door unlock
switch is not operational.
If the alarm does not sound when it should but the
headlamps ash, check to see if the horn works.
The horn fuse may be blown. To replace the fuse,
seeFuses and Circuit Breakers on page 465.
If the alarm does not sound or the headlamps do
not ash, the vehicle should be serviced by
your dealer.
Passlock®
Your vehicle has the Passlock®theft-deterrent
system.
Passlock
®is a passive theft-deterrent system that
enables fuel if the ignition lock cylinder is turned
with a valid key. If a correct key is not used or the
ignition lock cylinder has been tampered with,
the fuel system is disabled and the vehicle will
not start.
During normal operation, the security light will
turn off about ve seconds after the key is turned
to RUN.
If the engine stalls and the security light ashes,
wait about 10 minutes until the light stops
ashing before trying to restart the engine.
Remember to release the key from START as
soon as the engine starts.
If the engine does not start after three tries, the
vehicle needs service.
107

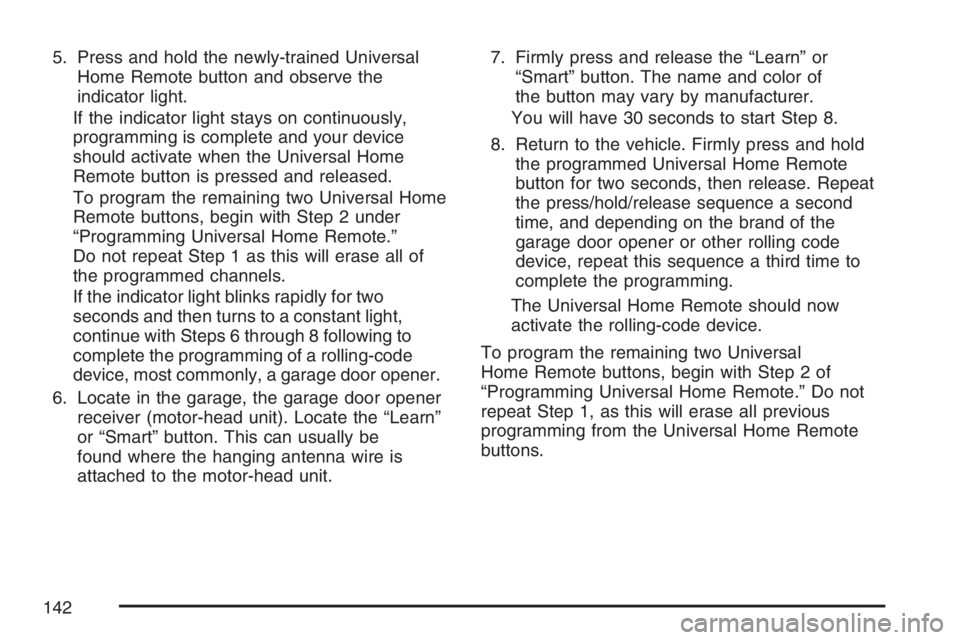

5. Press and hold the newly-trained Universal
Home Remote button and observe the
indicator light.
If the indicator light stays on continuously,
programming is complete and your device
should activate when the Universal Home
Remote button is pressed and released.
To program the remaining two Universal Home
Remote buttons, begin with Step 2 under
“Programming Universal Home Remote.”
Do not repeat Step 1 as this will erase all of
the programmed channels.
If the indicator light blinks rapidly for two
seconds and then turns to a constant light,
continue with Steps 6 through 8 following to
complete the programming of a rolling-code
device, most commonly, a garage door opener.
6. Locate in the garage, the garage door opener
receiver (motor-head unit). Locate the “Learn”
or “Smart” button. This can usually be
found where the hanging antenna wire is
attached to the motor-head unit.7. Firmly press and release the “Learn” or
“Smart” button. The name and color of
the button may vary by manufacturer.
You will have 30 seconds to start Step 8.
8. Return to the vehicle. Firmly press and hold
the programmed Universal Home Remote
button for two seconds, then release. Repeat
the press/hold/release sequence a second
time, and depending on the brand of the
garage door opener or other rolling code
device, repeat this sequence a third time to
complete the programming.
The Universal Home Remote should now
activate the rolling-code device.
To program the remaining two Universal
Home Remote buttons, begin with Step 2 of
“Programming Universal Home Remote.” Do not
repeat Step 1, as this will erase all previous
programming from the Universal Home Remote
buttons.
142

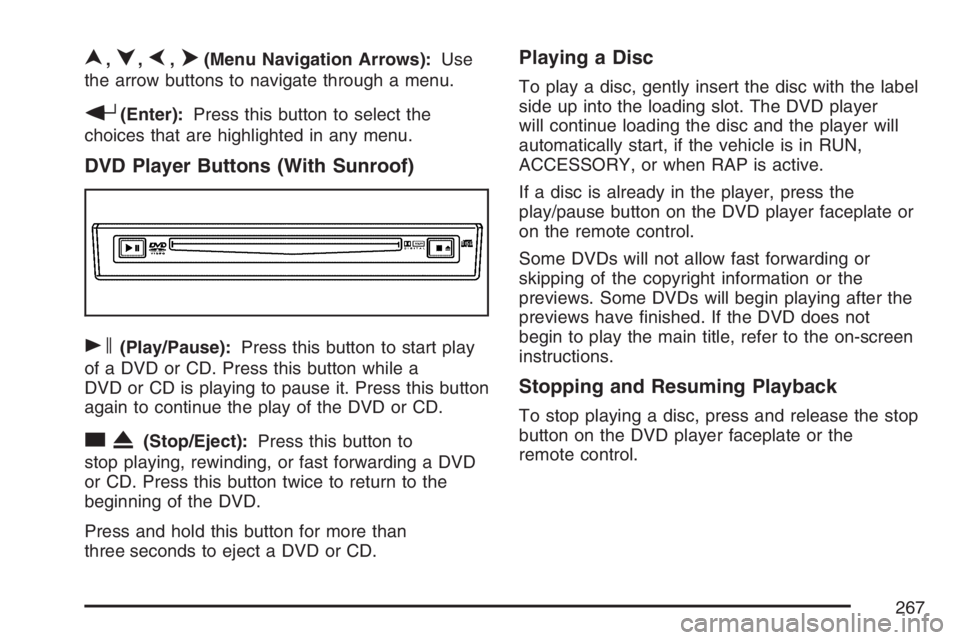

n,q,p,o(Menu Navigation Arrows):Use
the arrow buttons to navigate through a menu.
r(Enter):Press this button to select the
choices that are highlighted in any menu.
DVD Player Buttons (With Sunroof)
s(Play/Pause):Press this button to start play
of a DVD or CD. Press this button while a
DVD or CD is playing to pause it. Press this button
again to continue the play of the DVD or CD.
cX(Stop/Eject):Press this button to
stop playing, rewinding, or fast forwarding a DVD
or CD. Press this button twice to return to the
beginning of the DVD.
Press and hold this button for more than
three seconds to eject a DVD or CD.
Playing a Disc
To play a disc, gently insert the disc with the label
side up into the loading slot. The DVD player
will continue loading the disc and the player will
automatically start, if the vehicle is in RUN,
ACCESSORY, or when RAP is active.
If a disc is already in the player, press the
play/pause button on the DVD player faceplate or
on the remote control.
Some DVDs will not allow fast forwarding or
skipping of the copyright information or the
previews. Some DVDs will begin playing after the
previews have nished. If the DVD does not
begin to play the main title, refer to the on-screen
instructions.
Stopping and Resuming Playback
To stop playing a disc, press and release the stop
button on the DVD player faceplate or the
remote control.
267

t(Previous Track/Chapter):Press this button
to return to the start of the current track or chapter.
Press this button again to return to the previous
track or chapter. This button may not work
when the DVD is playing the copyright information
or the previews.
1 through 0 (Numeric Keypad):The numeric
keypad provides you with the capability of
direct chapter, title, and track number selection.
}10 (Double Digit Entries):Press this button to
select chapter, title, and track numbers greater
than 9. Press this button before inputting the
number.
\(Clear):Press this button within three seconds
after inputting a number to clear the number(s).
P(Illumination):Press this button to turn
the remote control backlight on. The backlight will
time out after about 7 to 10 seconds if no other
button is pressed while the backlight is on.
y(Main DVD Menu):Press this button to access
the DVD menu. The DVD menu is different on every
DVD. Use the up, down, left, and right arrow
buttons to move the cursor around the DVD menu.
After making a selection press the enter button.
This button only operates when playing a DVD.
r(Enter):Press this button to select the
choices that are highlighted in any menu.
q(Return):Press this button to exit the current
active menu and return to the previous menu.
This button will operate only when a DVD is
playing and a menu is active.
|(Camera Angle):Press this button to change
camera angles on DVDs that have this feature
when a DVD is playing. The format and content of
this function will vary for each disc.
{(Subtitle):Press this button to turn on subtitles
and to move through subtitle options when a
DVD is playing. The format and content of this
function will vary for each disc.
270

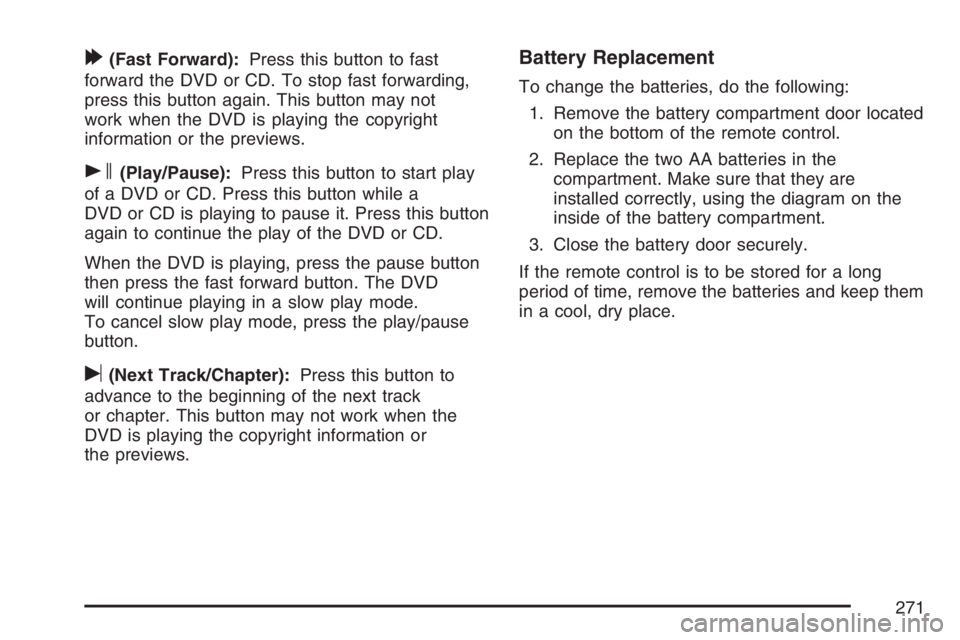

[(Fast Forward):Press this button to fast
forward the DVD or CD. To stop fast forwarding,
press this button again. This button may not
work when the DVD is playing the copyright
information or the previews.
s(Play/Pause):Press this button to start play
of a DVD or CD. Press this button while a
DVD or CD is playing to pause it. Press this button
again to continue the play of the DVD or CD.
When the DVD is playing, press the pause button
then press the fast forward button. The DVD
will continue playing in a slow play mode.
To cancel slow play mode, press the play/pause
button.
u(Next Track/Chapter):Press this button to
advance to the beginning of the next track
or chapter. This button may not work when the
DVD is playing the copyright information or
the previews.
Battery Replacement
To change the batteries, do the following:
1. Remove the battery compartment door located
on the bottom of the remote control.
2. Replace the two AA batteries in the
compartment. Make sure that they are
installed correctly, using the diagram on the
inside of the battery compartment.
3. Close the battery door securely.
If the remote control is to be stored for a long
period of time, remove the batteries and keep them
in a cool, dry place.
271

Problem Recommended Action
After stopping the player,
I push Play but
sometimes the DVD
starts where I left off and
sometimes at the
beginning.If the stop button was
pressed one time, the
DVD player will resume
playing where the DVD
was stopped. If the stop
button was pressed two
times the DVD player will
begin to play from the
beginning of the DVD.
The auxiliary source is
running but there is no
picture or sound.Check that the DVD
player is in the auxiliary
source mode.
Check the auxiliary input
connections at both
devices.
My disc is stuck in the
player. The Load/Eject
button does not work.Turn the DVD power off,
then on, then press the
load/eject button on the
DVD player.
Do not attempt to forcibly
remove the disc from the
DVD player. This could
permanently damage the
disc and DVD player.Problem Recommended Action
Sometimes the wireless
headphone audio cuts
out or buzzes.Check for obstructions,
low batteries, reception
range, and interference
from cellular telephone
towers or by using your
cellular telephone in the
vehicle.
Check that the
headphones are facing
the front of the vehicle.
I lost the remote and/or
the headphones.See your dealer for
assistance.
The DVD is playing,
but there is no picture
or sound.Check that the DVD
player is in DVD mode.
The audio/video skips
or jumps.The DVD or CD could be
dirty, scratched, or
damaged.
The audio from the radio
for the Radio with
Six-Disc CD and XM™
has taken over the audio
from the DVD or CD
when using the wired
headphones.The RSE is working
correctly.
Use the wireless
headphones or have the
front seat passengers
listen to another audio
source.
273
