tow BUICK RANDEZVOUS 2002 Owner's Guide

2-42
Running Your Engine While
You're Parked
It's better not to park with the engine running. But if you
ever have to, here are some things to know.
CAUTION:
Idling the engine with the climate control
system off could allow dangerous exhaust into
your vehicle. See the earlier Caution under
ªEngine Exhaust.º
Also, idling in a closed-in place can let deadly
carbon monoxide (CO) into your vehicle even
if the fan is at the highest setting. One place
this can happen is a garage. Exhaust
-- with
CO
-- can come in easily. NEVER park in a
garage with the engine running.
Another closed-in place can be a blizzard.
See ªBlizzardº in the Index.
CAUTION:
It can be dangerous to get out of your vehicle if
the shift lever is not fully in PARK (P) with the
parking brake firmly set. Your vehicle can roll.
Don't leave your vehicle when the engine is
running unless you have to. If you've left the
engine running, the vehicle can move suddenly.
You or others could be injured. To be sure your
vehicle won't move, even when you're on fairly
level ground, always set your parking brake and
move the shift lever to PARK (P).
Follow the proper steps to be sure your vehicle won't
move. See ªShifting Into PARK (P)º in the Index.
If you're pulling a trailer, see ªTowing a Trailerº in
the Index.
Horn
You can sound the horn by pressing the center of your
steering wheel.

2-44
Turn and Lane-Change Signals
The turn signal has two upward (for right) and two
downward (for left) positions. These positions allow you
to signal a turn or a lane change.
To signal a turn, move the lever all the way up
or down. When the turn is finished, the lever will
return automatically.
An arrow on the instrument
panel cluster and the
optional HUD display will
flash in the direction of the
turn or lane change.
To signal a lane change, just raise or lower the lever
until the arrow starts to flash. Hold it there until you
complete your lane change. The lever will return by
itself when you release it.As you signal a turn or a lane change, if the arrow
flashes faster than normal, a signal bulb may be burned
out and other drivers won't see your turn signal.
If a bulb is burned out, replace it to help avoid an
accident. If the arrows don't go on at all when you
signal a turn, check for burned
-out bulbs and check the
fuse (see ªFuses and Circuit Breakersº in the Index).
If you have a trailer towing option with added wiring for
the trailer lamps, the signal indicator will flash at a
normal rate even if a turn signal bulb is burned out.
Check the front and rear turn signal lamps regularly to
make sure they are working.
Turn Signal On Chime
If either turn signal is left on for more than 3/4 mile
(1.2 km), a chime will sound to let the driver know to
turn it off.
If you need to leave the signal on for more than 3/4 mile
(1.2 km), turn off the signal and then turn it back on.

2-45 Headlamp High/Low-Beam Changer
To change the headlamps from low to high, simply push
the turn signal lever back. Then release it. To change the
headlamps from high to low, pull the lever forward.
When the high beams are
on, this light, on the
instrument panel cluster and
the optional HUD display,
will also be on.
Flash-to-Pass
When the headlamps are off, pull the lever toward you
to momentarily switch on the high beams (to signal that
you are going to pass). When you release the lever, they
will turn off.
Windshield Wipers
You control the windshield wipers by turning the band
marked WIPER.
For a single wiping cycle, turn the band to MIST. Hold
it there until the wipers start, then let go. The wipers will
stop after one cycle. If you want more cycles, hold the
band on mist longer.
For delayed wiping cycles, you can set the wiper speed
for a long or short delay between wipes. This can be
very useful in light rain or snow. Turn the band to
choose the delay time. The closer to LO (low), the
shorter the delay time.
For steady wiping cycles, at low speed, turn the band
away from you to the LO position. For high
-speed
wiping, turn the band further to HI (high). To stop the
wipers, turn the band to OFF.
Remember that damaged wiper blades may prevent you
from seeing well enough to drive safely. To avoid
damage, be sure to clear ice and snow from the wiper
blades before using them. If they're frozen to the
windshield, carefully loosen or thaw them. If your blades
do become damaged, get new blades or blade inserts.
Heavy snow or ice can overload your wipers. A circuit
breaker will stop them until the motor cools. Clear away
snow or ice to prevent an overload.

2-56
Cargo Lamp/Reading Lamp
The cargo lamp is located in the rear of the vehicle,
above the liftgate opening, and it has an on/off switch.
The lamp will go on each time you open the doors, if the
interior lamp control is in the DOOR position.
There are two reading lamps located on the cargo lamp.
To turn either reading lamp on or off, press the button
located next to the lamp.
Battery Saver
Your vehicle has a feature to help prevent you from
draining the battery, in case you accidentally leave the
interior or exterior lamps on. If the interior lamps are
left on while the ignition is in OFF, they will
automatically turn off after 10 minutes. If the exterior
lamps are left on while the ignition is in OFF with all
doors and the liftgate closed, they will automatically
turn off after 10 minutes.If your vehicle has less than 14 miles (24 km) on the
odometer, the battery saver will turn off the lamps after
only three minutes.
If the interior lamps are turned off as a result of the
battery saver feature, they may be turned back on by
turning the interior lamp control to OFF and then back
to ON. The battery saver will not turn the interior lamps
off automatically after doing this. They will have to be
turned off manually.
Mirrors
Inside Day/Night Rearview Mirror
To reduce glare from headlamps behind you, pull the
lever toward you (to the night position). To return
the mirror to the day position, push the lever away
from you.

2-58
Convex Outside Mirror
Your passenger's side mirror is convex. A convex
mirror's surface is curved so you can see more from the
driver's seat.
CAUTION:
A convex mirror can make things (like other
vehicles) look farther away than they really are.
If you cut too sharply into the right lane, you
could hit a vehicle on your right. Check your
inside mirror or glance over your shoulder before
changing lanes.
Heated Outside Rearview Mirrors
(If Equipped)
If your vehicle has this feature, the outside rearview
mirrors are heated when you activate the rear window
defogger. See ªRear Window Defoggerº in the Index.
Parallel Park Assist Mirror (If Equipped)
If your vehicle has this feature, the passenger's outside
rearview mirror will tilt towards the curb when the
vehicle is shifted into REVERSE (R) and return to its
previous position when the vehicle is shifted out of
REVERSE (R). See ªTilt Mirrorº in the Index for
information on how to turn this feature on and off.

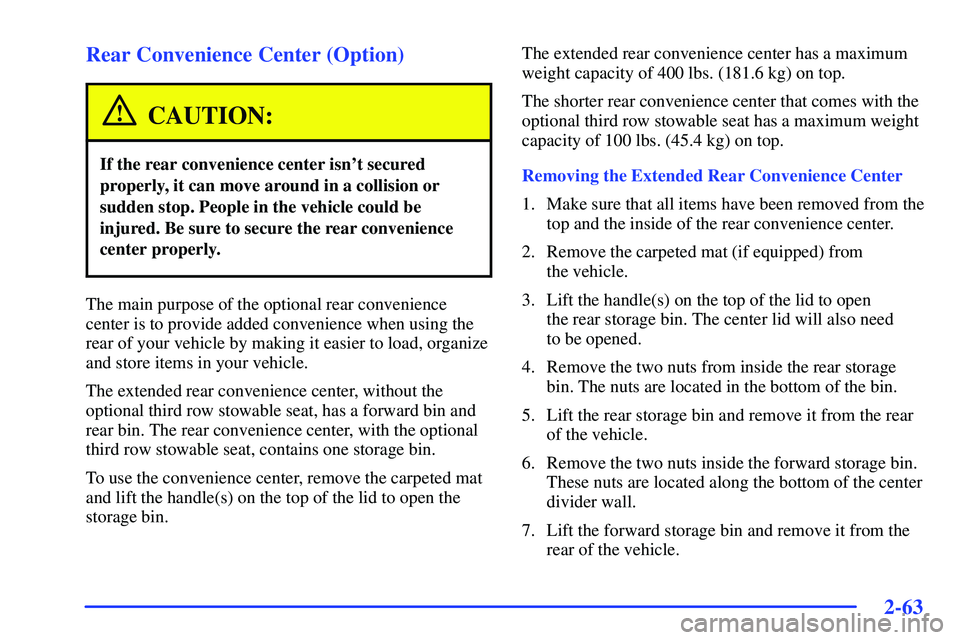

2-63 Rear Convenience Center (Option)
CAUTION:
If the rear convenience center isn't secured
properly, it can move around in a collision or
sudden stop. People in the vehicle could be
injured. Be sure to secure the rear convenience
center properly.
The main purpose of the optional rear convenience
center is to provide added convenience when using the
rear of your vehicle by making it easier to load, organize
and store items in your vehicle.
The extended rear convenience center, without the
optional third row stowable seat, has a forward bin and
rear bin. The rear convenience center, with the optional
third row stowable seat, contains one storage bin.
To use the convenience center, remove the carpeted mat
and lift the handle(s) on the top of the lid to open the
storage bin.The extended rear convenience center has a maximum
weight capacity of 400 lbs. (181.6 kg) on top.
The shorter rear convenience center that comes with the
optional third row stowable seat has a maximum weight
capacity of 100 lbs. (45.4 kg) on top.
Removing the Extended Rear Convenience Center
1. Make sure that all items have been removed from the
top and the inside of the rear convenience center.
2. Remove the carpeted mat (if equipped) from
the vehicle.
3. Lift the handle(s) on the top of the lid to open
the rear storage bin. The center lid will also need
to be opened.
4. Remove the two nuts from inside the rear storage
bin. The nuts are located in the bottom of the bin.
5. Lift the rear storage bin and remove it from the rear
of the vehicle.
6. Remove the two nuts inside the forward storage bin.
These nuts are located along the bottom of the center
divider wall.
7. Lift the forward storage bin and remove it from the
rear of the vehicle.

2-65
Removing the Rear Convenience Center When the
Vehicle has the Third Row Stowable Seat
1. Make sure that all items have been removed from the
top and the inside of the rear convenience center.
2. Lift the handle(s) on the top of the lid to open the
storage bin.
3. Remove the two nuts from inside the storage bin.
The nuts are located in the bottom of the bin.
If you are only removing the convenience center and
not the stowable seat, you must replace these nuts
once the bin is removed to secure the seat.
4. Lift the storage bin and remove it from the rear of
the vehicle.Replacing the Rear Convenience Center When the
Vehicle has the Third Row Stowable Seat
1. Make sure that all items have been removed from the
rear of the vehicle.
2. Lift the bin into the back of the vehicle. Align the
bin over the rear mounting bolts.
3. Put the nuts back onto the mounting bolts
and tighten.
4. Push and pull on the rear storage system to make
sure that it is locked into place properly.

2-87 Brake System Warning Light
When the ignition is on, the brake system warning light
will come on when you set your parking brake. The light
will stay on if your parking brake doesn't release fully.
If it stays on after your parking brake is fully released,
it means you have a brake problem.
Your vehicle's hydraulic brake system is divided into
two parts. If one part isn't working, the other part can
still work and stop you. For good braking, though, you
need both parts working well.
If the warning light comes on, there could be a brake
problem. Have your brake system inspected right away.
United States CanadaThis light should come on briefly when you turn
the ignition key to ON. If it doesn't come on then,
have it fixed so it will be ready to warn you if there's
a problem.
If the light comes on while you are driving, pull off the
road and stop carefully. You may notice that the pedal is
harder to push. Or, the pedal may go closer to the floor.
It may take longer to stop. If the light is still on, have the
vehicle towed for service. See ªAnti
-Lock Brake
System Warning Lightº and ªTowing Your Vehicleº in
the Index.
CAUTION:
Your brake system may not be working properly
if the brake system warning light is on. Driving
with the brake system warning light on can lead
to an accident. If the light is still on after you've
pulled off the road and stopped carefully, have
the vehicle towed for service.

2-92
If the Light Is Flashing
The following may prevent more serious damage to
your vehicle:

Reducing vehicle speed.

Avoiding hard accelerations.

Avoiding steep uphill grades.

If you are towing a trailer, reduce the amount of
cargo being hauled as soon as it is possible.
If the light stops flashing and remains on steady, see ªIf
the Light Is On Steadyº following.
If the light continues to flash, when it is safe to do so,
stop the vehicle. Find a safe place to park your vehicle.
Turn the key off, wait at least 10 seconds and restart the
engine. If the light remains on steady, see ªIf the Light
Is On Steadyº following. If the light is still flashing,
follow the previous steps, and drive the vehicle to your
dealer or qualified service center for service.If the Light Is On Steady
You may be able to correct the emission system
malfunction by considering the following:
Did you recently put fuel into your vehicle?
If so, reinstall the fuel cap, making sure to fully install
the cap. See ªFilling Your Tankº in the Index. The
diagnostic system can determine if the fuel cap has been
left off or improperly installed. A loose or missing fuel
cap will allow fuel to evaporate into the atmosphere. A
few driving trips with the cap properly installed should
turn the light off.
Did you just drive through a deep puddle of water?
If so, your electrical system may be wet. The condition
will usually be corrected when the electrical system
dries out. A few driving trips should turn the light off.
Are you low on fuel?
As your engine starts to run out of fuel, your engine may
not run as efficiently as designed since small amounts of
air are sucked into the fuel line causing a misfire. The
system can detect this. Adding fuel should correct this
condition. Make sure to install the fuel cap properly. See
ªFilling Your Tankº in the Index. It will take a few
driving trips to turn the light off.

2-121
Tilt Mirror
The tilt mirror feature can be programmed to one of the
following modes:
ON: The passengers side outside rearview mirror will
tilt down towards the curb when the vehicle is shifted to
REVERSE (R) and returns to its previous position when
the vehicle is shifted out of REVERSE (R).
OFF: The mirror will not tilt.
To determine the mode to which your vehicle is
programmed or to program your vehicle to a different
mode, do the following:
1. Follow the instructions for ªEntering Programming
Modeº listed previously.
2. Press the MODE button until TILT appears on
the DIC.
3. Press the SET button until the arrow is before
ON or OFF.
The mode you selected is now set. You can either exit
programming mode by following the instructions later in
this section or program the next feature available on
your vehicle.Exiting Programming Mode
To exit programming mode, do one of the following:

Shift out of PARK (P),

turn the ignition key out of ON, or

do not program any commands for one minute while
in the programming mode.
The programming mode message will turn off to let you
know that you are no longer in the programming mode.
Once you have reached the end of the personalization
features, PERSONALIZATION SELECTION DONE
will appear briefly. Then PRESS SET TO EXIT MODE
TO CONTINUE will appear. Pressing SET will exit you
out of the DIC. Pressing MODE will take you to the
beginning of personalization.
