lock BUICK RANDEZVOUS 2002 Owner's Manual

1-2
Seats and Seat Controls
This section tells you about the seats -- how to
adjust them, take them out, put them back in, fold
and unfold them.
Driver's Four-Way Manual Seat
To move the seat forward
or rearward, pull up on the
lever, located on the front
left of the seat, to unlock it.
Slide the seat to where you want it and release the lever.
To make sure that the seat is locked into place, try to
move the seat with your body.
To raise the seat, pull up
on the lever located on the
front right side of the seat.
To lower the seat, push the
lever down. Adjust the seat
and release the lever.
CAUTION:
You can lose control of the vehicle if you try to
adjust a manual driver's seat while the vehicle is
moving. The sudden movement could startle and
confuse you, or make you push a pedal when you
don't want to. Adjust the driver's seat only when
the vehicle is not moving.

1-3 Manual Front Passenger Seats
To move the seat forward
or rearward, pull up on the
lever, located on the front of
the seat, to unlock it.
Slide the seat to where you want it and release the lever.
To make sure that the seat is locked into place, try to
move the seat with your body.
Six-Way Power Seat (Option)
The six-way power seat
controls are located on the
outboard side of the driver's
seat or on the outboard sides
of both the driver's and
front passenger's seats.

Move the front of the control in the direction of the
arrows to adjust the front portion of the cushion up
or down.

Move the rear of the control in the direction of the
arrows to adjust the rear portion of the cushion up
or down.

Lift up or push down on both outer arrows at the
same time to move the entire seat up or down.

To move the whole seat forward or rearward, slide
the control in the direction of the center arrows.

1-8
Rear Seats
The rear seats in your vehicle have seat operating
features to adjust, fold, remove and reinstall the seats.
By using the seat operating features, in the correct order,
you can easily remove the seats from your vehicle.
When you put the seats back in the vehicle, be sure to
follow the label on the back of the seat for proper location.
Split Bench Seats (If Equipped)
If your vehicle has the split bench seat, the seatbacks
can be folded forward or reclined individually and the
sections can be flipped forward or removed individually.Folding or Reclining the Seatbacks
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
The seatbacks on each section of the split bench seat can
be reclined or folded forward.

1-9

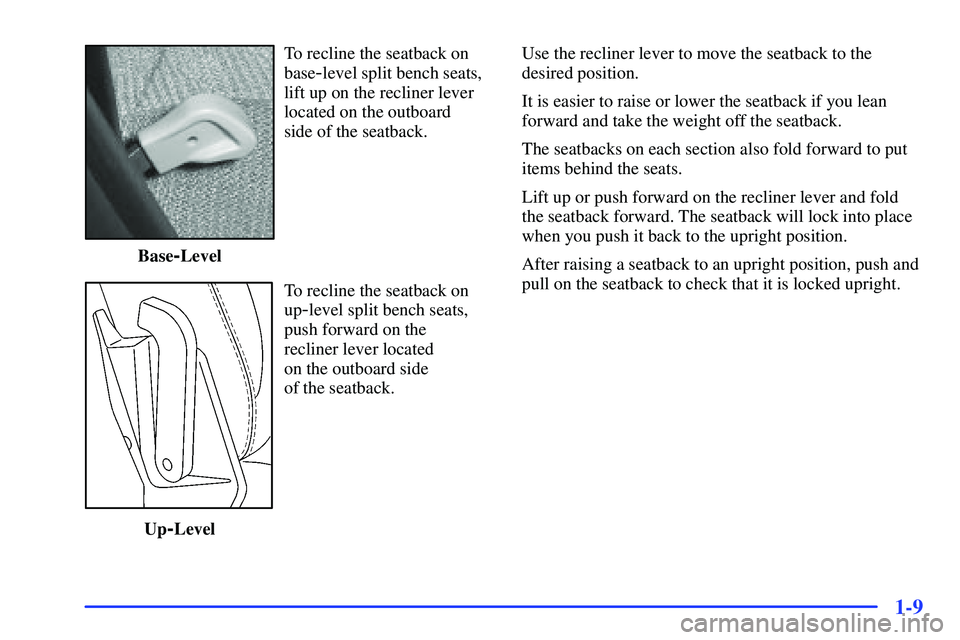

To recline the seatback on
base
-level split bench seats,
lift up on the recliner lever
located on the outboard
side of the seatback.
Base
-Level
To recline the seatback on
up
-level split bench seats,
push forward on the
recliner lever located
on the outboard side
of the seatback.
Up
-LevelUse the recliner lever to move the seatback to the
desired position.
It is easier to raise or lower the seatback if you lean
forward and take the weight off the seatback.
The seatbacks on each section also fold forward to put
items behind the seats.
Lift up or push forward on the recliner lever and fold
the seatback forward. The seatback will lock into place
when you push it back to the upright position.
After raising a seatback to an upright position, push and
pull on the seatback to check that it is locked upright.

1-11
5. To release the front latches, squeeze the angled latch
release bar toward the straight crossbar.
6. Remove the seat by rocking it slightly toward the
rear of the vehicle and then pulling it out.
Repeat these steps for the other section of the split
bench seat.Replacing the Split Bench Sections
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
A seat that isn't locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.

1-13

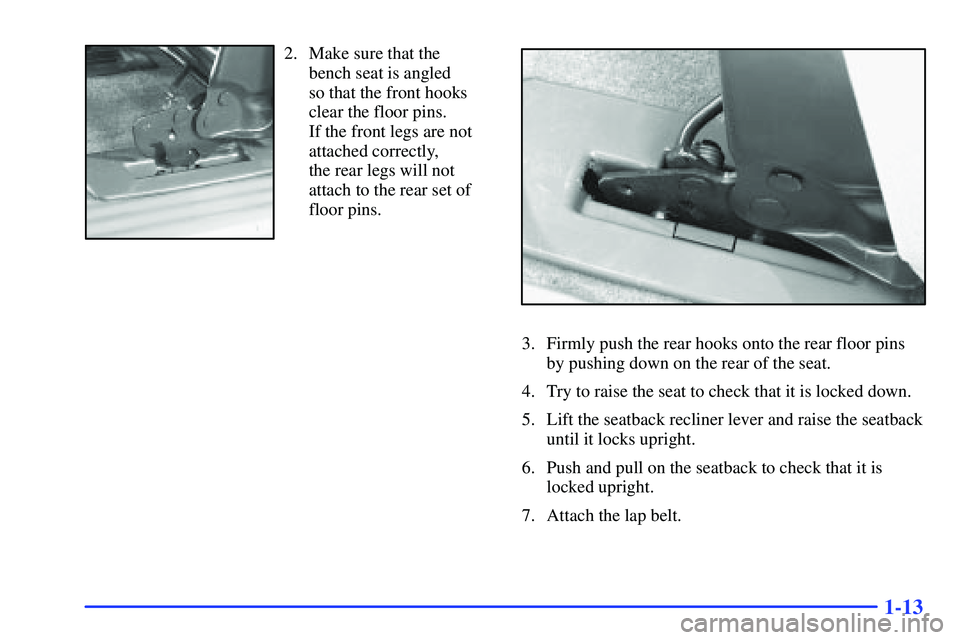

2. Make sure that the
bench seat is angled
so that the front hooks
clear the floor pins.
If the front legs are not
attached correctly,
the rear legs will not
attach to the rear set of
floor pins.
3. Firmly push the rear hooks onto the rear floor pins
by pushing down on the rear of the seat.
4. Try to raise the seat to check that it is locked down.
5. Lift the seatback recliner lever and raise the seatback
until it locks upright.
6. Push and pull on the seatback to check that it is
locked upright.
7. Attach the lap belt.

1-14 Captain's Chairs (If Equipped)
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
If your vehicle has the captain's chairs, the seatbacks
can be reclined or folded forward.
To recline the seatback, lift up on the recliner lever located
on the outboard side of the seatback. Use the recliner lever
to move the seatback to the desired position.
It is easier to raise or lower the seatback if you lean
forward and take the weight off the seatback.
The seatbacks on the second row captain's chairs also
fold forward.
Lift up on the recliner lever and fold the seatback
forward. The seatback will lock into place when you
push it back to the upright position.
After raising a seatback to an upright position, push and
pull on the seatback to check that it is locked upright.

1-16
Replacing the Captain's Chairs
CAUTION:
If the seatback isn't locked, it could move forward
in a sudden stop or crash. That could cause injury
to the person sitting there. Always press rearward
on the seatback to be sure it is locked.
CAUTION:
A seat that isn't locked into place properly
can move around in a collision or sudden stop.
People in the vehicle could be injured. Be sure
to lock the seat into place properly when
installing it.
CAUTION:
A safety belt that is improperly routed, not
properly attached, or twisted won't provide
the protection needed in a crash. The person
wearing the belt could be seriously injured.
After installing the seat, always check to be
sure that the safety belts are properly routed
and attached, and are not twisted.
Make sure that the seatback is in the folded forward
position and that the safety belts are on the correct side
of the chair.
Don't put the chairs in so that they face rearward
because they won't latch that way.
The captain's chairs have seat position labels, located
on the back of each section, showing where the section
must go.
The seat must be placed in the proper location for the
legs to attach correctly.

1-17
1. Hook the front latches over the front floor pins.2. Push the rear of the seat down to lock the rear
latches onto the rear set of floor pins.
3. Push and pull on the seat to check that it is
properly attached.

1-18 Stowable Seat (Option)
The optional stowable seat is a two passenger bench seat
and comes with the rear convenience center. See ªRear
Convenience Centerº in the Index for more information.
The stowable seat can be removed and replaced or,
with the seatback folded, it can lie flush with the
convenience center.Folding the SeatbackTo fold down the
seatback, pull up on
the lever located on
the back of the seat
and push the seatback
down until it is locked
into place.
