warning lights BUICK RANDEZVOUS 2002 Owner's Manual

iv
You will also find a circle
with a slash through it
in this book. This safety
symbol means ªDon't,º
ªDon't do thisº or ªDon't
let this happen.º
Vehicle Damage Warnings
Also, in this book you will find these notices:
NOTICE:
These mean there is something that could damage
your vehicle.
In the notice area, we tell you about something that
can damage your vehicle. Many times, this damage
would not be covered by your warranty, and it could
be costly. But the notice will tell you what to do to help
avoid the damage.When you read other manuals, you might see
CAUTION and NOTICE warnings in different
colors or in different words.
You'll also see warning labels on your vehicle.
They use the same words, CAUTION or NOTICE.
Vehicle Symbols
Your vehicle may be equipped with components and
labels that use symbols instead of text. Symbols,
used on your vehicle, are shown along with the text
describing the operation or information relating to a
specific component, control, message, gage or indicator.
If you need help figuring out a specific name of a
component, gage or indicator reference the following
topics in the Index:

ªEngine Compartment Overviewº

ªInstrument Panelº

ªComfort Controlsº

ªAudio Systemsº
Also see ªWarning Lights and Gagesº in the Index.

2-
2-1
Section 2 Features and Controls
Here you can learn about the many standard and optional features on your vehicle, and information on starting,
shifting and braking. Also explained are the instrument panel and the warning systems that tell you if everything is
working properly
-- and what to do if you have a problem.
2
-2 Windows
2
-4 Keys
2
-6 Door Locks
2
-9 Remote Keyless Entry System (Option)
2
-14 Vehicle Customization
2
-21 Liftgate
2
-22 Theft
2
-23 Content Theft-Deterrent (Option)
2
-25 PASS-Key III
2
-28 New Vehicle ªBreak-Inº
2
-28 Ignition Positions
2
-30 Starting Your Engine
2
-31 Engine Coolant Heater (If Equipped)
2
-32 Automatic Transaxle Operation
2
-37 Parking Brake
2
-38 Shifting Into PARK (P)
2
-40 Shifting Out of PARK (P)
2
-41 Parking Over Things That Burn
2
-41 Engine Exhaust2
-42 Running Your Engine While You're Parked
2
-43 Turn Signal/Multifunction Lever
2
-50 Exterior Lamps
2
-52 Interior Lamps
2
-59 Storage Compartments
2
-70 Accessory Inflator System (Option)
2
-71 Accessory Power Outlets
2
-72 OnStar System (Option)
2
-77 HomeLink Transmitter (Option)
2
-80 The Instrument Panel -- Your
Information System
2
-85 Warning Lights, Gages, Messages
and Indicators
2
-95 Message Center
2
-105 Driver Information Center (DIC)
(If Equipped)
2
-122 Head-Up Display (Option)
2
-125 Rear Parking Assist (Option)

2-29
NOTICE:
If your key seems stuck in OFF and you can't
turn it, be sure you are using the correct key; if
so, is it all the way in? Turn the key only with
your hand. Using a tool to force it could break
the key or the ignition switch. If none of this
works, then your vehicle needs service.
B (ACCESSORY): This position allows you to use
things like the radio and the windshield wipers when the
engine is off. This position will allow you to turn off the
engine, but still turn the steering wheel. Use
ACCESSORY if you must have your vehicle in motion
while the engine is off (for example, if your vehicle is
being pushed or towed).C (ON): This is the position that the switch returns to
after you start your engine and release the key. The
switch stays in ON when the engine is running. But even
when the engine is not running, you can use ON to
operate your electrical power accessories, and to display
some instrument panel warning lights.
D (START): This position starts the engine. When the
engine starts, release the key. The ignition switch will
return to ON for normal driving.
If the engine is not running, ACCESSORY and ON are
positions that allow you to operate your electrical
accessories, such as the radio.
Retained Accessory Power (RAP)
With RAP, the power windows, the audio system, the
optional sunroof and the optional Electronic Level
Control (ELC) will continue to work up to 10 minutes
after the ignition key is turned to OFF and none of the
doors are opened.

2-82

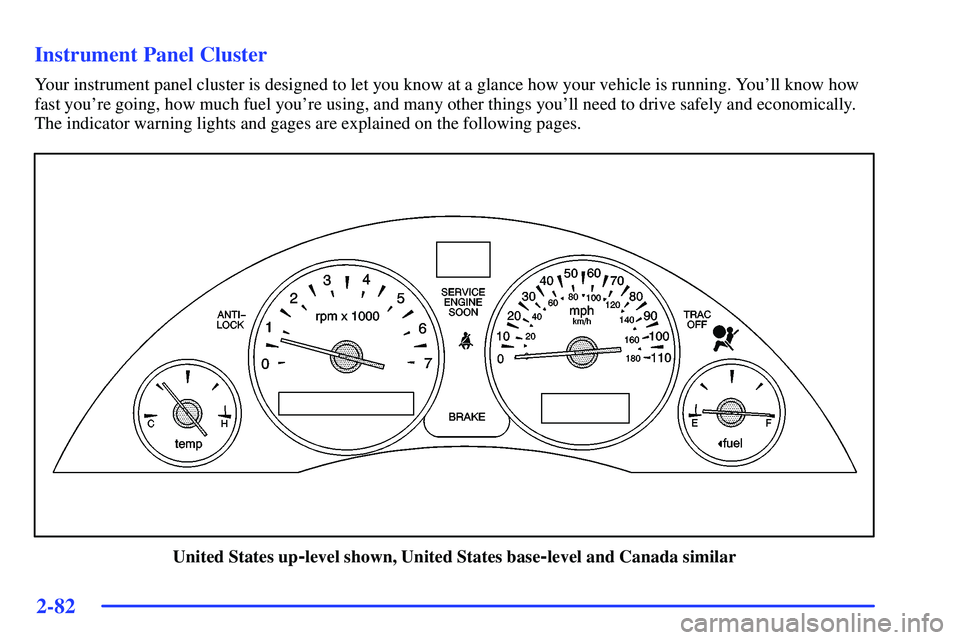

Instrument Panel Cluster
Your instrument panel cluster is designed to let you know at a glance how your vehicle is running. You'll know how
fast you're going, how much fuel you're using, and many other things you'll need to drive safely and economically.
The indicator warning lights and gages are explained on the following pages.
United States up-level shown, United States base-level and Canada similar

2-85
Warning Lights, Gages, Messages
and Indicators
This part describes the warning lights and gages that
may be on your vehicle. The pictures will help you
locate them.
Warning lights and gages can signal that something is
wrong before it becomes serious enough to cause an
expensive repair or replacement. Paying attention to
your warning lights and gages could also save you or
others from injury.
Warning lights come on when there may be or is a
problem with one of your vehicle's functions. As you
will see in the details on the next few pages, some
warning lights come on briefly when you start the
engine just to let you know they're working. If you are
familiar with this section, you should not be alarmed
when this happens.
Gages can indicate when there may be or is a problem
with one of your vehicle's functions. Often gages and
warning lights work together to let you know when
there's a problem with your vehicle.When one of the warning lights comes on and stays on
when you are driving, or when one of the gages shows
there may be a problem, check the section that tells you
what to do about it. Please follow this manual's advice.
Waiting to do repairs can be costly
-- and even
dangerous. So please get to know your warning lights
and gages. They're a big help.
Your vehicle also has a message center that works along
with the warning lights and gages. See ªMessage
Centerº in the Index.
Safety Belt Reminder Light
When the key is turned to ON or START, a chime will
come on for about eight seconds to remind people to
fasten their safety belts.
The safety belt light will
also come on and stay on
for about 70 seconds. If the
driver's belt is already
buckled, neither the chime
nor the light will come on.

2-122
Head-Up Display (HUD) (Option)
CAUTION:
If the HUD image is too bright, or too high in
your field of view, it may take you more time to
see things you need to see when it's dark outside.
Be sure to keep the HUD image dim and placed
low in your field of view.
If your vehicle has this option, it can display the
speedometer reading in English or metric. The current
radio station, CD number and/or track number or tape
may also be displayed and will appear as an image
focused out toward the front of your vehicle.
The HUD is capable of displaying English or French.
See ªDriver Information Center (DIC) Messagesº
earlier in this section to change the display from English
to metric.The Head
-Up Display also displays the following lights
and messages when they appear on the instrument
panel cluster:

Turn Signal Indicators

High
-Beam Indicator

Low
-Fuel Warning Message
See each of these features in the Index for
more information.
The Head
-Up Display also displays a CHECK GAGES
icon. The following messages could appear on the
instrument panel cluster when CHECK GAGES appears:

Engine Coolant Temperature Warning Message

Low Oil Pressure Message

Charging System Indicator Message

Low Brake Fluid Warning Message
See each of these messages in the Index for
more information.

6-25
Engine Coolant
The cooling system in your vehicle is filled with
DEX
-COOL
engine coolant. This coolant is designed
to remain in your vehicle for 5 years or 150,000 miles
(240 000 km), whichever occurs first, if you add only
DEX
-COOL
extended life coolant.
The following explains your cooling system and how
to add coolant when it is low. If you have a problem
with engine overheating, see ªEngine Overheatingº in
the Index.
A 50/50 mixture of clean, drinkable water and
DEX
-COOL
coolant will:

Give freezing protection down to
-34F (-37C).

Give boiling protection up to 265F (129C).

Protect against rust and corrosion.

Help keep the proper engine temperature.

Let the warning lights and gages work as
they should.
NOTICE:
When adding coolant, it is important that you use
only DEX
-COOL (silicate-free) coolant.
If coolant other than DEX-COOL is added to the
system, premature engine, heater core or radiator
corrosion may result. In addition, the engine
coolant will require change sooner
-- at
30,000 miles (50 000 km) or 24 months, whichever
occurs first. Damage caused by the use of coolant
other than DEX
-COOL is not covered by your
new vehicle warranty.
