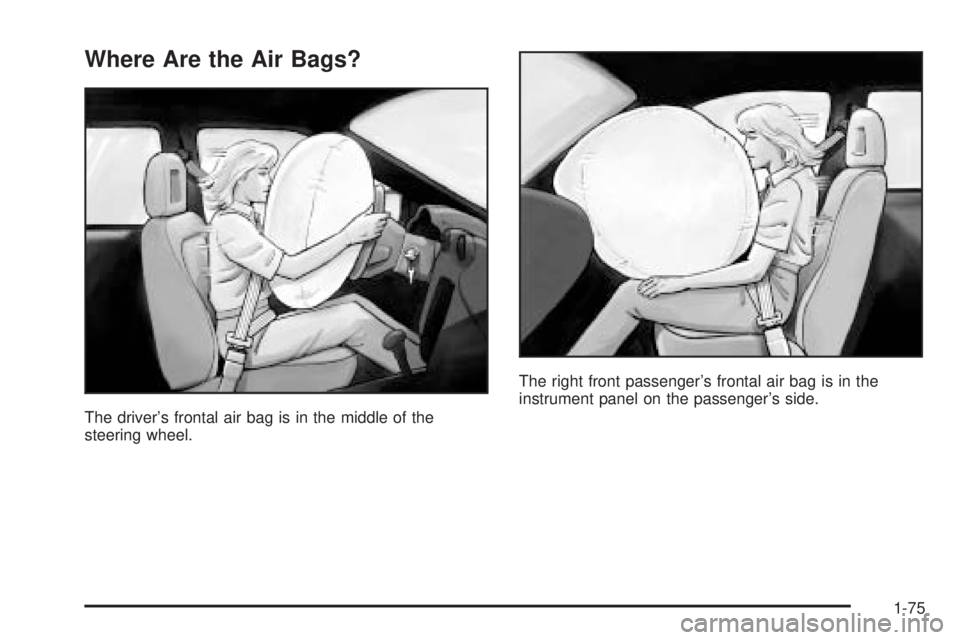

Where Are the Air Bags?
The driver’s frontal air bag is in the middle of the
steering wheel.The right front passenger’s frontal air bag is in the
instrument panel on the passenger’s side.
1-75
Page 83 of 486

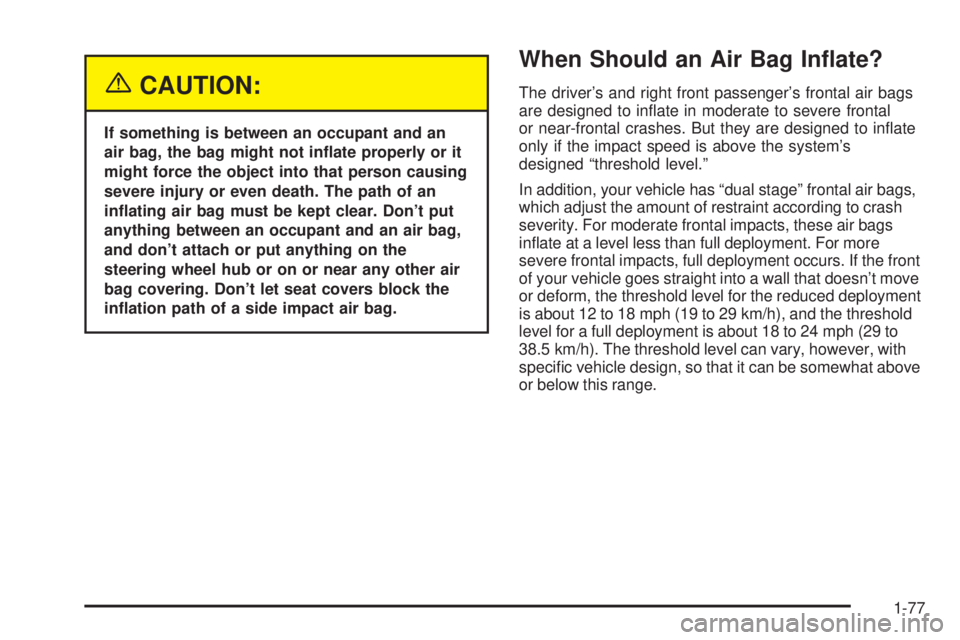

{CAUTION:
If something is between an occupant and an
air bag, the bag might not in ate properly or it
might force the object into that person causing
severe injury or even death. The path of an
in ating air bag must be kept clear. Don’t put
anything between an occupant and an air bag,
and don’t attach or put anything on the
steering wheel hub or on or near any other air
bag covering. Don’t let seat covers block the
in ation path of a side impact air bag.
When Should an Air Bag In ate?
The driver’s and right front passenger’s frontal air bags
are designed to in ate in moderate to severe frontal
or near-frontal crashes. But they are designed to in ate
only if the impact speed is above the system’s
designed “threshold level.”
In addition, your vehicle has “dual stage” frontal air bags,
which adjust the amount of restraint according to crash
severity. For moderate frontal impacts, these air bags
in ate at a level less than full deployment. For more
severe frontal impacts, full deployment occurs. If the front
of your vehicle goes straight into a wall that doesn’t move
or deform, the threshold level for the reduced deployment
is about 12 to 18 mph (19 to 29 km/h), and the threshold
level for a full deployment is about 18 to 24 mph (29 to
38.5 km/h). The threshold level can vary, however, with
speci c vehicle design, so that it can be somewhat above
or below this range.
1-77
Page 84 of 486

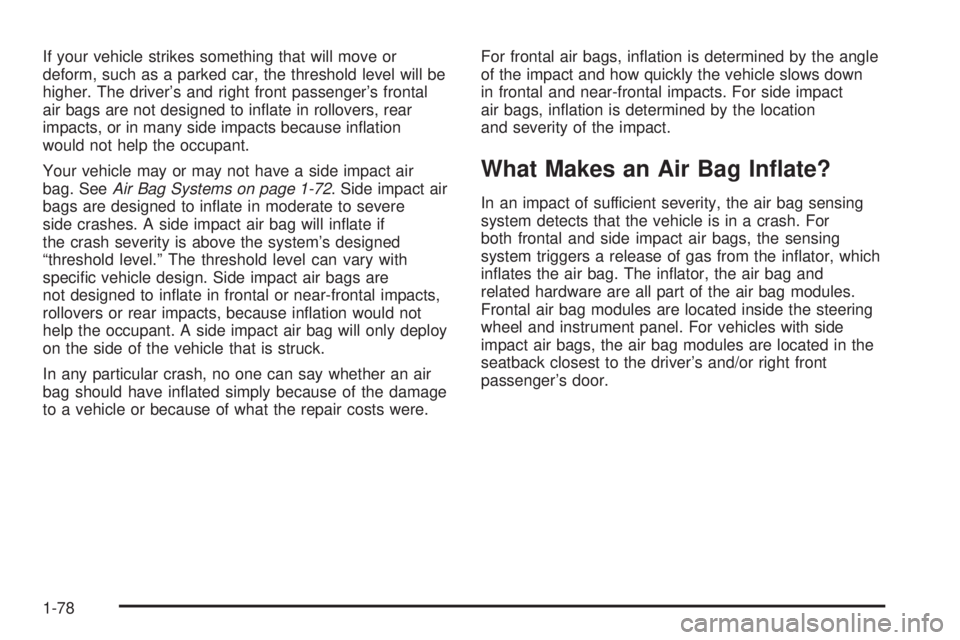

If your vehicle strikes something that will move or
deform, such as a parked car, the threshold level will be
higher. The driver’s and right front passenger’s frontal
air bags are not designed to in ate in rollovers, rear
impacts, or in many side impacts because in ation
would not help the occupant.
Your vehicle may or may not have a side impact air
bag. SeeAir Bag Systems on page 1-72. Side impact air
bags are designed to in ate in moderate to severe
side crashes. A side impact air bag will in ate if
the crash severity is above the system’s designed
“threshold level.” The threshold level can vary with
speci c vehicle design. Side impact air bags are
not designed to in ate in frontal or near-frontal impacts,
rollovers or rear impacts, because in ation would not
help the occupant. A side impact air bag will only deploy
on the side of the vehicle that is struck.
In any particular crash, no one can say whether an air
bag should have in ated simply because of the damage
to a vehicle or because of what the repair costs were.For frontal air bags, in ation is determined by the angle
of the impact and how quickly the vehicle slows down
in frontal and near-frontal impacts. For side impact
air bags, in ation is determined by the location
and severity of the impact.
What Makes an Air Bag In ate?
In an impact of sufficient severity, the air bag sensing
system detects that the vehicle is in a crash. For
both frontal and side impact air bags, the sensing
system triggers a release of gas from the in ator, which
in ates the air bag. The in ator, the air bag and
related hardware are all part of the air bag modules.
Frontal air bag modules are located inside the steering
wheel and instrument panel. For vehicles with side
impact air bags, the air bag modules are located in the
seatback closest to the driver’s and/or right front
passenger’s door.
1-78
Page 85 of 486
How Does an Air Bag Restrain?
In moderate to severe frontal or near frontal collisions,
even belted occupants can contact the steering wheel or
the instrument panel. In moderate to severe side
collisions, even belted occupants can contact the inside
of the vehicle. The air bag supplements the protection
provided by safety belts. Air bags distribute the force of
the impact more evenly over the occupant’s upper
body, stopping the occupant more gradually. But the
frontal air bags would not help you in many types
of collisions, including rollovers, rear impacts, and many
side impacts, primarily because an occupant’s motionis not toward the air bag. Side impact air bags would
not help you in many types of collisions, including frontal
or near frontal collisions, rollovers, and rear impacts,
primarily because an occupant’s motion is not toward
those air bags. Air bags should never be regarded
as anything more than a supplement to safety belts, and
then only in moderate to severe frontal or near-frontal
collisions for the driver’s and right front passenger’s
frontal air bags, and only in moderate to severe
side collisions for vehicles with a driver’s and right front
passenger’s side impact air bag.
1-79
Page 86 of 486
What Will You See After an Air Bag
In ates?
After the air bag in ates, it quickly de ates, so quickly
that some people may not even realize the air bag
in ated. Some components of the air bag module will be
hot for a short time. These components include the
steering wheel hub for the driver’s frontal air bag and the
instrument panel for the right front passenger’s frontal
air bag. For vehicles with side impact air bags, the side
of the seatback closest to the driver’s and/or right
front passenger’s door will be hot. The parts of the bag
that come into contact with you may be warm, but
not too hot to touch. There will be some smoke and dust
coming from the vents in the de ated air bags. Air
bag in ation doesn’t prevent the driver from seeing or
being able to steer the vehicle, nor does it stop
people from leaving the vehicle.
{CAUTION:
When an air bag in ates, there is dust in the
air. This dust could cause breathing problems
for people with a history of asthma or other
breathing trouble. To avoid this, everyone in
the vehicle should get out as soon as it is safe
to do so. If you have breathing problems but
can’t get out of the vehicle after an air bag
in ates, then get fresh air by opening a
window or a door. If you experience breathing
problems following an air bag deployment, you
should seek medical attention.
1-80
Page 87 of 486
In many crashes severe enough to in ate an air bag,
windshields are broken by vehicle deformation.
Additional windshield breakage may also occur from the
right front passenger air bag.
Air bags are designed to in ate only once. After an
air bag in ates, you’ll need some new parts for your
air bag system. If you don’t get them, the air bag
system won’t be there to help you in another crash. A
new system will include air bag modules and possibly
other parts. The service manual for your vehicle
covers the need to replace other parts.
Your vehicle is equipped with two electronic frontal
sensors, which help the sensing system distinguish
between a moderate frontal impact and a more
severe frontal impact. Your vehicle is also equipped
with a crash sensing and diagnostic module, which
records information about the frontal air bag system.
The module records information about the readiness
of the system, when the system commands air bag
in ation and driver’s safety belt usage at deployment.
The module also records speed, engine RPM, brake
and throttle data.
Let only quali ed technicians work on your air bag
systems. Improper service can mean that an air bag
system won’t work properly. See your dealer for
service.
Notice:If you damage the covering for the driver’s
or the right front passenger’s air bag, or the air
bag covering on the driver’s and right front
passenger’s seatback, the bag may not work
properly. You may have to replace the air bag
module in the steering wheel, both the air bag
module and the instrument panel for the right front
passenger’s air bag, or both the air bag module
and seatback for the driver’s and right front
passenger’s side impact air bag. Do not open or
break the air bag coverings.
1-81
Page 94 of 486
Your vehicle’s key can be used for the ignition as well
as the driver’s door lock, the oor console, and the
glovebox. If you need a new key, contact your dealer,
who can obtain the correct key code.
Your vehicle has the PASS-Key
®III vehicle theft system.
The key has a transponder in the key head that matches
a decoder in the vehicle’s steering column. If a
replacement key or any additional key is needed, you
must purchase this key from your dealer. The key will
have PK3
®stamped on it. Keep the bar code tag that
came with the original keys. Give this tag to your dealer
if you need a new key made.
Any new PASS-Key
®III key must be programmed
before it will start your vehicle. SeePASS-Key®III
on page 2-17for more information on programming your
new key.
Notice:If you ever lock your keys in your vehicle,
you may have to damage the vehicle to get in.
Be sure you have spare keys.
If you ever do get locked out of your vehicle, see
Roadside Assistance Program on page 7-6for more
information.
If your vehicle is equipped with the OnStar
®system with
an active subscription and you lock your keys inside the
vehicle, OnStar
®may be able to send a command to
unlock your vehicle. SeeOnStar®System on page 2-33
for more information.
Remote Keyless Entry System
If equipped, the keyless entry system operates on a
radio frequency subject to Federal Communications
Commission (FCC) Rules and with Industry Canada.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
This device complies with RSS-210 of Industry Canada.
Operation is subject to the following two conditions:
1. This device may not cause interference, and
2. This device must accept any interference received,
including interference that may cause undesired
operation of the device.
Changes or modi cations to this system by other than
an authorized service facility could void authorization to
use this equipment.
2-4
Page 110 of 486
Ignition Positions
With the key in the ignition, you can turn the key to four
different positions.
A (OFF):This is the only position in which you can
remove the key. This position locks the steering wheel,
ignition and transaxle.Notice:If your key seems stuck in OFF and you
can’t turn it, be sure you are using the correct key; if
so, is it all the way in? If it is, then turn the steering
wheel left and right while you turn the key hard. Turn
the key only with your hand. Using a tool to force it
could break the key or the ignition switch. If none of
these works, then your vehicle needs service.
B (ACCESSORY):This position allows you to use
things like the radio and the windshield wipers while the
engine is off. This position will allow you to turn off
the engine, but still turn the steering wheel. Use
ACCESSORY if you must have your vehicle in motion
while the engine is off, for example, if your vehicle
is being pushed or towed.
C (ON):This is the position that the switch returns to
after you start your engine and release the key.
The switch stays in ON when the engine is running. But
even when the engine is not running, you can use
ON to operate your electrical power accessories, and to
display some instrument panel warning lights.
D (START):This position starts the engine. When the
engine starts, release the key. The ignition switch
will return to ON for normal driving.
If the engine is not running, ACCESSORY and ON are
positions that allow you to operate your electrical
accessories, such as the radio.
2-20
Page 142 of 486
Service Vehicle Soon Message.......................3-57
Program Mode Message................................3-58
Remote Keyless Entry Transmitter Battery Low
Warning Message......................................3-58
Parking Lamp Warning Message.....................3-59
Highbeam Out Warning Message....................3-59
Driver Information Center (DIC).......................3-60
DIC Controls and Displays.............................3-62
DIC Vehicle Personalization............................3-64
Audio System(s).............................................3-73
Setting the Time...........................................3-73
Radio with CD..............................................3-74
Radio with Cassette and CD..........................3-85
Radio with Six-Disc CD.................................3-98Navigation/Radio System..............................3-112
Rear Seat Entertainment System...................3-113
Rear Seat Audio (RSA)................................3-126
Theft-Deterrent Feature................................3-128
Audio Steering Wheel Controls......................3-129
DVD Distortion............................................3-129
Understanding Radio Reception....................3-130
Care of Your Cassette Tape Player...............3-130
Care of Your CDs and DVDs........................3-131
Care of Your CD and DVD Player.................3-131
Cleaning Your DVD Player...........................3-131
Integrated Windshield Antenna......................3-132
XM™ Satellite Radio Antenna System
(48 Contiguous US States)........................3-132
Section 3 Instrument Panel
3-2
Page 145 of 486
The main components of the instrument panel are the
following:
A. Exterior/Interior Lamps Control. SeeExterior Lamps
on page 3-14andInterior Lamps on page 3-16.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-8.
C. Hazard Warning Flasher Switch. SeeHazard
Warning Flashers on page 3-6.
D. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-40.
E. Shift Lever. SeeAutomatic Transaxle Operation on
page 2-23.
F. Instrument Panel Outlets. SeeOutlet Adjustment on
page 3-38.
G. Audio System. SeeAudio System(s) on page 3-73.
H. Audio Steering Wheel Controls. SeeAudio
Steering Wheel Controls on page 3-129.
I. Head-Up Display Switch and Driver Information
Center (DIC) Controls. SeeHead-Up Display (HUD)
on page 3-21andDIC Controls and Displays on
page 3-62.J. Hood Release. SeeHood Release on page 5-11.
K. Ignition Switch. SeeIgnition Positions on page 2-20.
L. Climate Controls. SeeClimate Control System on
page 3-28,Dual Climate Control System on
page 3-32orDual Automatic Climate Control System
on page 3-35.
M. Instrument Panel Switchbank. SeeInstrument Panel
Switchbank on page 3-21.
N. Front Armrest Storage. SeeFront Armrest Storage
Area on page 2-40.
O. Ashtray/Cigarette Lighter/Accessory Power
Outlet/Cell Phone Storage/Purse
Storage/Cupholders. SeeAshtrays and Cigarette
Lighter on page 3-28,Accessory Power Outlets on
page 3-27,Cell Phone Storage Area on page 2-39,
Floor Console Storage Area on page 2-40and
Cupholder(s) on page 2-39.
P. Floor Console Fuse Block. SeeFuses and Circuit
Breakers on page 5-109.
Q. Glove Box. SeeGlove Box on page 2-39.
3-5
