engine coolant BUICK RANDEZVOUS 2005 Owner's Guide

How to Add Coolant to the Radiator
Notice:Your engine has a specic radiator
ll procedure. Failure to follow this procedure could
cause your engine to overheat and be severely
damaged.
1. You can remove the radiator pressure cap when
the cooling system, including the radiator pressure
cap and upper radiator hose, is no longer hot.
Turn the pressure cap slowly counterclockwise until
it rst stops. Do not press down while turning the
pressure cap.
If you hear a hiss, wait for that to stop. A hiss
means there is still some pressure left.2. Then keep turning the pressure cap, but now push
down as you turn it. Remove the pressure cap.
{CAUTION:
You can be burned if you spill coolant on hot
engine parts. Coolant contains ethylene glycol
and it will burn if the engine parts are hot
enough. Do not spill coolant on a hot engine.
HousingBypass Tube
5-34

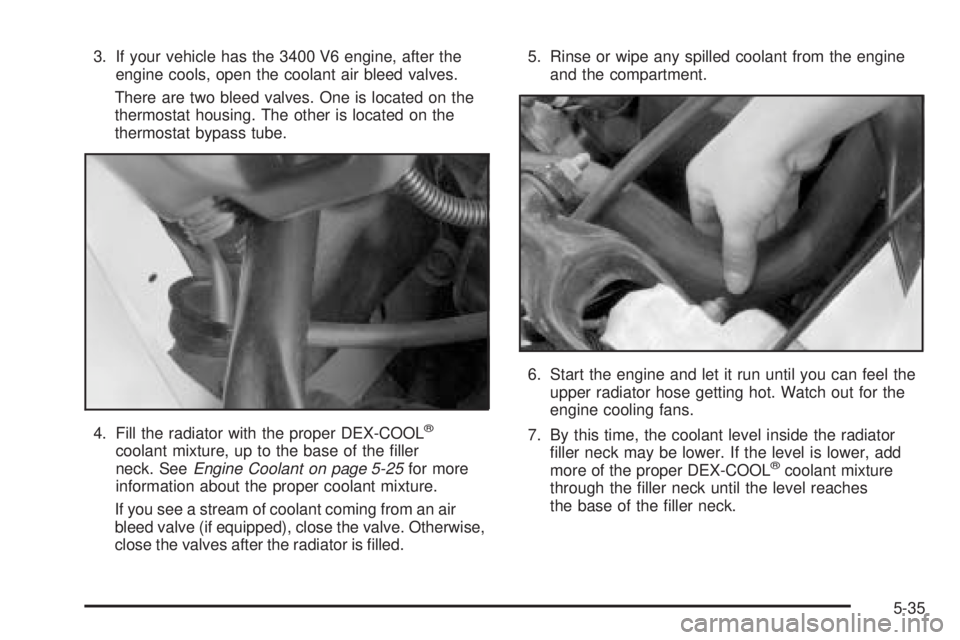

3. If your vehicle has the 3400 V6 engine, after the
engine cools, open the coolant air bleed valves.
There are two bleed valves. One is located on the
thermostat housing. The other is located on the
thermostat bypass tube.
4. Fill the radiator with the proper DEX-COOL
®
coolant mixture, up to the base of the ller
neck. SeeEngine Coolant on page 5-25for more
information about the proper coolant mixture.
If you see a stream of coolant coming from an air
bleed valve (if equipped), close the valve. Otherwise,
close the valves after the radiator is lled.5. Rinse or wipe any spilled coolant from the engine
and the compartment.
6. Start the engine and let it run until you can feel the
upper radiator hose getting hot. Watch out for the
engine cooling fans.
7. By this time, the coolant level inside the radiator
ller neck may be lower. If the level is lower, add
more of the proper DEX-COOL®coolant mixture
through the ller neck until the level reaches
the base of the ller neck.
5-35

8. Then replace the pressure cap. At any time during
this procedure if coolant begins to ow out of the
ller neck, reinstall the pressure cap. Be sure
the arrows on the pressure cap line up properly.
9. Then ll the coolant recovery tank to the FULL
COLD mark.
10. Put the cap back on the coolant recovery tank.Power Steering Fluid
SeeEngine Compartment
Overview on page 5-12for
reservoir location.
When to Check Power Steering Fluid
It is not necessary to regularly check power steering uid
unless you suspect there is a leak in the system or
you hear an unusual noise. A uid loss in this system
could indicate a problem. Have the system inspected
and repaired.
5-36

Adding Washer Fluid
Open the cap with the
washer symbol on it. Add
washer uid until the
tank is full. SeeEngine
Compartment Overview on
page 5-12for reservoir
location.
Notice:
When using concentrated washer uid, follow the
manufacturer’s instructions for adding water.
Do not mix water with ready-to-use washer uid.
Water can cause the solution to freeze and
damage your washer uid tank and other parts of
the washer system. Also, water does not clean as
well as washer uid.
Fill your washer uid tank only three-quarters full
when it is very cold. This allows for expansion if
freezing occurs, which could damage the tank if
it is completely full.
Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
Brakes
Brake Fluid
Your brake master cylinder
reservoir is lled with
DOT-3 brake uid. See
Engine Compartment
Overview on page 5-12for
the location of the
reservoir.
There are only two reasons why the brake uid level in
the reservoir might go down. The rst is that the
brake uid goes down to an acceptable level during
normal brake lining wear. When new linings are put in,
the uid level goes back up. The other reason is
that uid is leaking out of the brake system. If it is, you
should have your brake system xed, since a leak
means that sooner or later your brakes will not work
well, or will not work at all.
5-38

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil on page 5-16. Reset oil life system.
SeeEngine Oil Life System on page 5-19.An Emission Control Service.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter. If necessary, replace lter. SeeEngine Air
Cleaner/Filter on page 5-21.An Emission Control Service. See footnotes †
and (l).•
Rotate tires and check ination pressures and wear. SeeTires on page 5-55.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
Check transaxle uid level and add uid as needed.•
Inspect throttle system.See footnote (j).•
Replace passenger compartment air lter.See footnote (k).•
6-5

(h)Change automatic transaxle uid and lter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.
(i)Drain, ush and rell cooling system. See Engine
Coolant on page 5-25for what to use. Inspect hoses.
Clean radiator, condenser, pressure cap and ller neck.
Pressure test the cooling system and pressure cap.
(k)If you drive regularly under dusty conditions, the lter
may require replacement more often.
(l)If you drive regularly under dusty conditions, inspect
the lter at each engine oil change.Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your GM Goodwrench dealer can assist you
with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-12.
At Each Fuel Fill
It is important to perform these underhood checks at
each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 5-16for further
details.
Notice:It is important to check your oil regularly
and keep it at the proper level. Failure to keep your
engine oil at the proper level can cause damage
to your engine not covered by your warranty.
6-8

Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. SeeEngine
Coolant on page 5-25for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in the windshield
washer tank and add the proper uid if necessary.
At Least Once a Month
Tire Ination Check
Visually inspect your tires and make sure tires are inated
to the correct pressures. Do not forget to check your
spare tire. SeeTires on page 5-55for further details.
Check to make sure the spare tire is stored securely.
Push, pull and then try to turn the spare tire. If it moves,
tighten it. SeeChanging a Flat Tire on page 5-72.
At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-26if necessary.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. Try to start the engine in each gear. The starter
should work only in PARK (P) or NEUTRAL (N).
If the starter works in any other position, contact
your GM Goodwrench dealer for service.
6-9

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number or specication may be obtained from your
dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM Standard
GM6094M and displays the
American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM Goodwrench
oil meets all the requirements for your
vehicle. To determine the proper
viscosity for your vehicle’s engine,
seeEngine Oil on page 5-16.
Engine Coolant50/50 mixture of clean, drinkable
water and use only
DEX-COOL
®Coolant. SeeEngine
Coolant on page 5-25.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid (GM Part
No. U.S. 89021184, in Canada
89021186).
Usage Fluid/Lubricant
Automatic
TransaxleDEXRON®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Carrier
Assembly —
Differential
(Rear Drive
Module) and
Transfer Case
(Power Transfer
Unit)VERSATRAK™ Fluid (GM Part No.
U.S. 12378514, in Canada
88901045).
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor
and Release
PawlLubriplate Lubricant Aerosol (GM
Part No. U.S. 12346293, in Canada
992723) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Hood and Door
Hinges, Rear
Folding SeatMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
ConditioningDielectric Silicone Grease (GM Part
No. U.S. 12345579, in Canada
992887).
6-12

Cleaning (cont.)
Tires........................................................5-100
Underbody Maintenance.............................5-101
Vinyl..........................................................5-97
Washing Your Vehicle...................................5-98
Weatherstrips..............................................5-98
Windshield, Backglass, and Wiper Blades.......5-99
Climate Control System...................................3-28
Dual..........................................................3-30
Dual Automatic............................................3-33
Outlet Adjustment........................................3-36
Comfort Guides, Rear Safety Belt.....................1-40
Compact Spare Tire........................................5-94
Content Theft-Deterrent....................................2-15
Control of a Vehicle.......................................... 4-6
Convenience Center, Rear...............................2-44
Convenience Net............................................2-43
Coolant
Engine Temperature Gage............................3-46
Engine Temperature Warning Message...........3-52
Heater, Engine............................................2-22
SGCM, Surge Tank Pressure Cap..................3-51
Cooling System..............................................5-30
Cruise Control Lever.......................................3-10
Cupholder(s)..................................................2-39
Customer Assistance Information
Courtesy Transportation.................................. 7-7Customer Assistance Information (cont.)
Customer Assistance for Text Telephone (TTY)
Users....................................................... 7-4
Customer Assistance Offices........................... 7-4
Customer Satisfaction Procedure..................... 7-2
GM Mobility Reimbursement Program............... 7-5
Reporting Safety Defects to General Motors.......7-12
Reporting Safety Defects to the Canadian
Government............................................7-12
Reporting Safety Defects to the United States
Government............................................7-11
Roadside Assistance Program......................... 7-6
Service Publications Ordering Information........7-12
D
Daytime Running Lamps..................................3-14
Defensive Driving............................................. 4-3
Delayed Lighting.............................................3-18
Delayed Locking............................................... 2-9
Doing Your Own Service Work........................... 5-4
Door
Ajar Warning Message.................................3-56
Delayed Locking........................................... 2-9
Locks.......................................................... 2-8
Power Door Locks......................................... 2-9
4

Door (cont.)
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-10
Driver
Four-Way Manual Seat.................................. 1-3
Position, Safety Belt.....................................1-25
Driver Behavior................................................ 4-2
Driver Information Center (DIC).........................3-62
DIC Controls and Displays............................3-64
DIC Vehicle Personalization..........................3-66
Driving
At Night.....................................................4-17
City...........................................................4-21
Defensive..................................................... 4-3
Drunken....................................................... 4-3
Environment................................................. 4-2
Freeway.....................................................4-22
Hill and Mountain Roads..............................4-24
In Rain and on Wet Roads...........................4-18
Rocking Your Vehicle to Get it Out.................4-31
Winter........................................................4-26
Dual Automatic Climate Control System.............3-33
Dual Climate Control System............................3-30
DVD
Rear Seat Entertainment System..................3-115E
Electrical System
Add-On Equipment.....................................5-104
Floor Console Fuse Block...........................5-105
Fuses and Circuit Breakers.........................5-105
Headlamp Wiring.......................................5-104
Power Windows and Other Power Options.......5-104
Underhood Fuse Block...............................5-107
Windshield Wiper Fuses.............................5-104
Engine
Air Cleaner/Filter.........................................5-21
Battery.......................................................5-41
Change Oil Message...................................3-55
Check and Service Engine Soon Light............3-46
Coolant......................................................5-25
Coolant Heater............................................2-22
Coolant Temperature Gage...........................3-46
Coolant Temperature Warning Message..........3-52
Engine Compartment Overview......................5-12
Exhaust.....................................................2-29
Low Oil Level Message................................3-55
Oil .............................................................5-16
Overheated Protection Operating Mode...........5-30
5
