relay BUICK REGAL 1995 Owners Manual

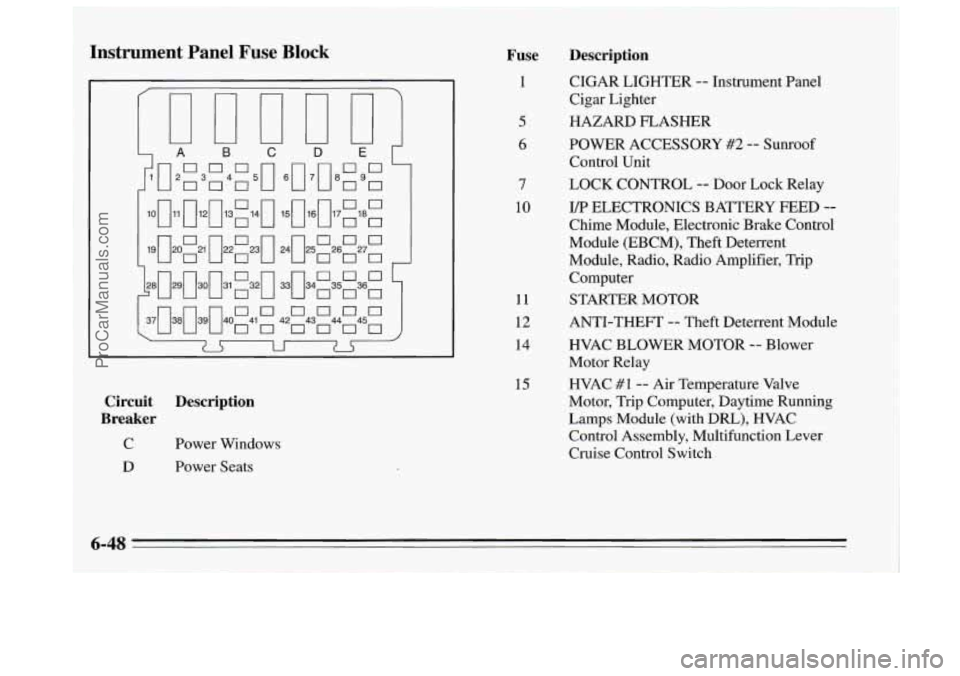

Instrument Panel Fuse Block Fuse
1
5
6
7
10
11
12
14
15
Circuit Description
Breaker
C Power Windows
Description
CIGAR LIGHTER -- Instrument Panel
Cigar Lighter
HAZARD FLASHER
POWER ACCESSORY
#2 -- Sunroof
Control Unit
LOCK CONTROL
-- Door Lock Relay
I/p ELECTRONICS BATTERY FEED --
Chime Module, Electronic Brake Control
Module (EBCM), Theft Deterrent
Module, Radio, Radio Amplifier,
Trip
Computer
STARTER MOTOR
ANTI-THEFT
-- Theft Deterrent Module
HVAC BLOWER MOTOR
-- Blower
Motor Relay
HVAC
#1 -- Air Temperature Valve
Motor,
Trip Computer, Daytime Running
Lamps Module (with
DRL), HVAC
Control Assembly, Multifunction Lever
Cruise Control Switch
D Power Seats
6-48
ProCarManuals.com

r use
16
19
21
23
24 2s

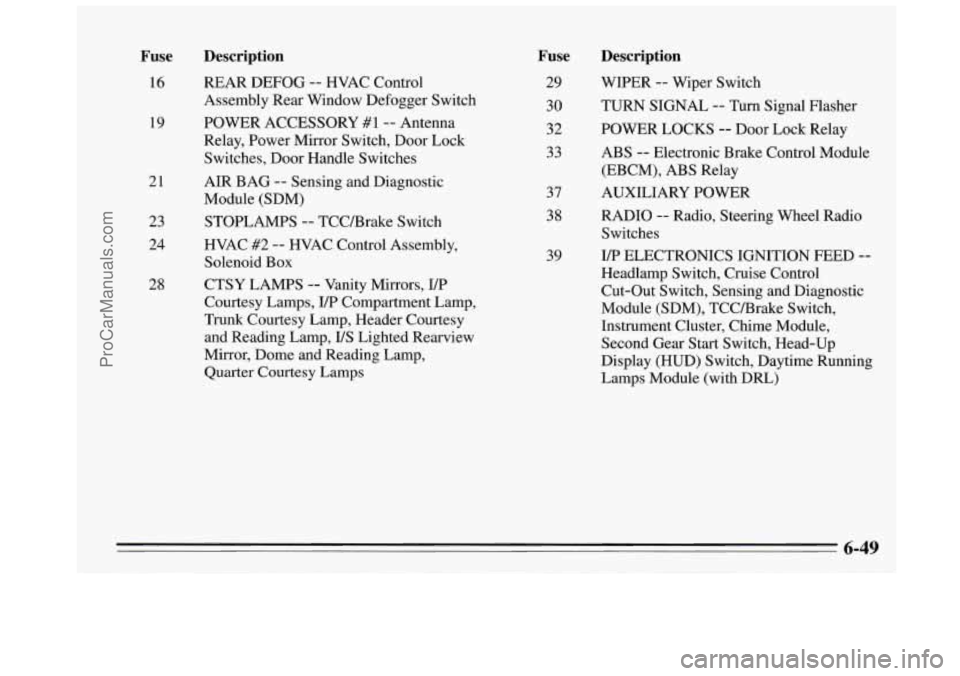

Description
REAR DEFOG -- HVAC Control
Assembly Rear Window Defogger Switch
POWER ACCESSORY
#1-- Antenna
Relay, Power Mirror Switch, Door Lock
Switches, Door Handle Switches
AIR BAG
-- Sensing and Diagnostic
Module (SDM)
STOPLAMPS
-- TCCBrake Switch
HVAC #2
-- HVAC Control Assembly,
Solenoid Box
CTSY LAMPS
-- Vanity Mirrors, I/P
Courtesy Lamps, UP Compartment Lamp,
Trunk Courtesy Lamp, Header Courtesy
and Reading Lamp,
US Lighted Rearview
Mirror, Dome and Reading Lamp,
Quarter Courtesy Lamps
Fuse
29
30
32
33
37
3s
39
Description
WIPER -- Wiper Switch
TURN SIGNAL
-- Turn Signal Flasher
POWER LOCKS
-- Door Lock Relay
ABS -- Electronic Brake Control Module
(EBCM), ABS Relay
AUXILIARY POWER
RADIO
-- Radio, Steering Wheel Radio
Switches
I/P ELECTRONICS IGNITION FEED --
Headlamp Switch, Cruise Control
Cut-Out Switch, Sensing and Diagnostic
Module (SDM), TCCBrake Switch,
Instrument Cluster, Chime Module,
Second Gear Start Switch, Head-Up
Display (HUD) Switch, Daytime Running
Lamps Module (with DRL)
6-49
I
ProCarManuals.com

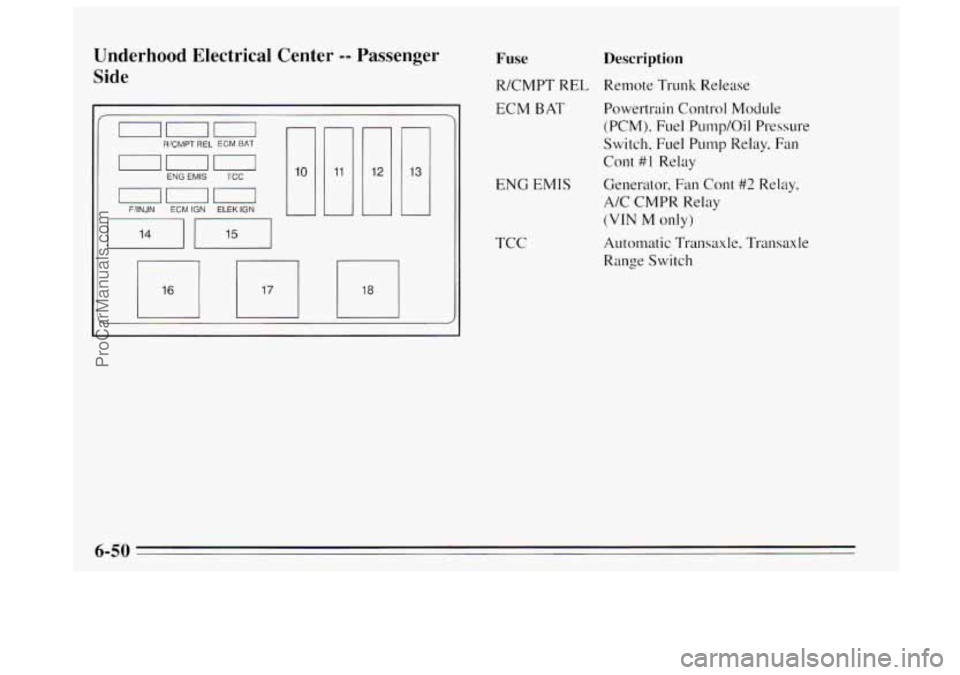

Underhood Electrical Center -- Passenger
Side
r
RCMPT REL EGM BAT
000 ENG EMIS TCC
FilNJN ECM IGN ELEK IGN
--
Fuse Description
R/CMPT REL Remote Trunk Release
ECM
BAT
ENG EMIS
TCC Powertrain Control Module
(PCM), Fuel Pump/Oil Pressure
Switch, Fuel Pump Relay,
Fan
Cont #I Relay
Generator, Fan Cont
#2 Relay,
A/C CMPR Relay
(VIN M only)
Automatic Transaxle, Transaxle
Range Switch
6-50
ProCarManuals.com

Fuse
F/INJN
ECM IGN
ELEK
IGN
10
I1
12
13
Description
Fuel Injectors
Powertrain Control Module
(PCM), EGR, CCP, VAPSW, Mass
Air Flow (MAF) Sensor (VIN X
only). Oxy Sensor
Electronic Ignition
(EI) Control
Module
I/P Fuse Block
FAN CONT
#I Relay
Passenger Side Underhood
Electrical Center and
I/P FLW
Blocks: Fuses 5, 14, 23 and 32
FAN CONT #2 Relay and I/P Fuse
Block: Fuse
16. Power Seat
Circuit Breaker
“D”
Relay
14
1s
16
17
18
Description
FUEL PUMP
A/C CMPR
FAN CONT
#2 -- Secondary
Cooling Fan (Passenger Side)
FAN CONT #1 -- Primary
Cooling Fan (Driver Side)
Ignition Relay
6-51
ProCarManuals.com

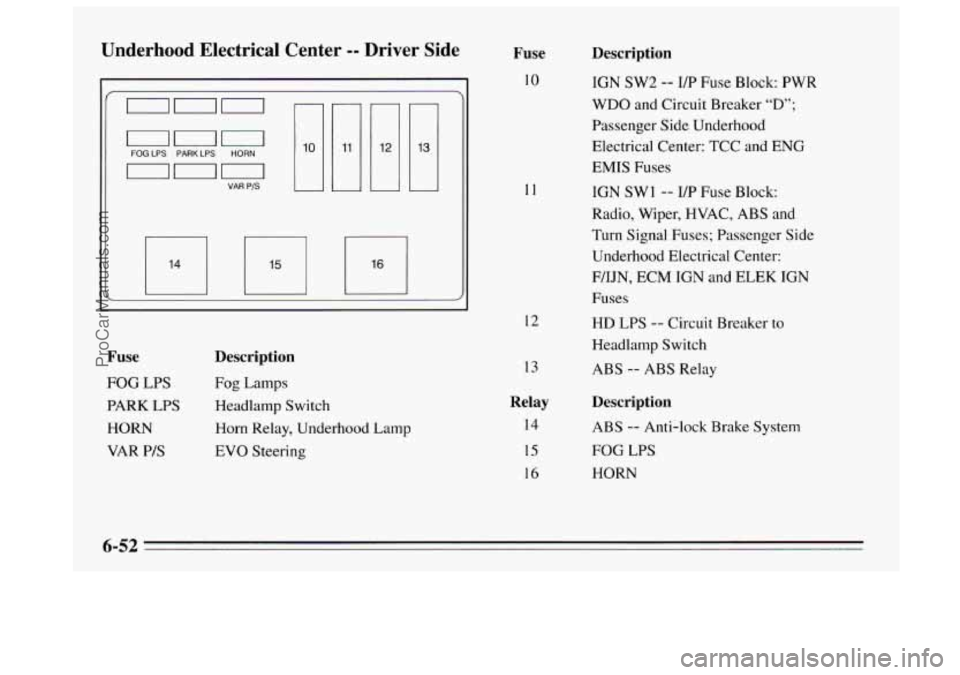

Underhood Electrical Center -- Driver Side
000 FOG LPS PARKLPS HORN
VAR PIS u
12
Fuse
FOG LPS
PARK LPS
HORN
VAR
P/S
uescription
Fog Lamps
Headlamp Switch
Horn Relay, Underhood Lamp
EVO Steering
Fuse
10
11
12
13
Relay
14
15
16
Description
IGN SW2 -- UP Fuse Block: PWR
WDO and Circuit Breaker “D”;
Passenger Side Underhood
Electrical Center:
TCC and ENG
EMIS Fuses
IGN
SW 1 -- UP Fuse Block:
Radio, Wiper, HVAC, ABS and
Turn Signal Fuses; Passenge.r Side
Underhood Electrical Center:
F/IJN,
ECM IGN and ELEK IGN
Fuses
HD LPS -- Circuit Breaker to
Headlamp Switch
ABS
-- ABS Relay
Description
ABS -- Anti-lock Brake System
FOG LPS
HORN
6-52
