horn BUICK REGAL 2003 Owner's Manual

L: (Remote Alarm)Press this button to activate an
alarm. The ignition must be in OFF or ACC for the
remote alarm to work. When you press the remote alarm
button the headlamps willflash, the horn will sound
repeatedly and your interior lamps will turn on, attracting
attention. The alarms will continue until one of the
following occurs:
•You press the remote alarm on the remote keyless
entry transmitter a second time,
•the ignition is moved to RUN, or
•an alarm period of about two minutes has elapsed.
Security Feedback
Security feedback provides audible and/or visible
feedback confirming that a remote keyless entry lock or
unlock command has been received and executed.
The ignition must be off for this feature to work.
You may select one of four operating modes for
reception of a lock command. You may also select one
of four operating modes for reception of an unlock
command. The selection and programming of the lock
and unlock operating modes are independent of
each other.
Programmable Modes
Your vehicle can be programmed to one of the following
modes.
Mode 1:No Verification
Mode 2:Horn Chirp only
Mode 3:Headlamps Flash only
Mode 4:Horn Chirp and Headlamps Flash
Before your vehicle was shipped from the factory, it was
programmed to Mode 3. The mode to which your
vehicle was programmed may have been changed since
it left the factory. To determine which security feedback
lock mode your vehicle is programmed to or to
program your vehicle to a different mode, do the
following:
1. Close all doors and turn the ignition key to RUN.
2. Press and hold the power door lock switch in
the lock position.
3. While holding the door lock switch in the lock
position, press and release the remote keyless entry
transmitter LOCK button. This will start the
customization mode. While in the customization
mode, the feature will sound the number of chimes
corresponding to the current lock mode. If you
do not wish to change the current mode, you can
either exit the programming mode by following
the instructions listed here or program the
next feature available on your vehicle.
2-5
2003 - Regal OM

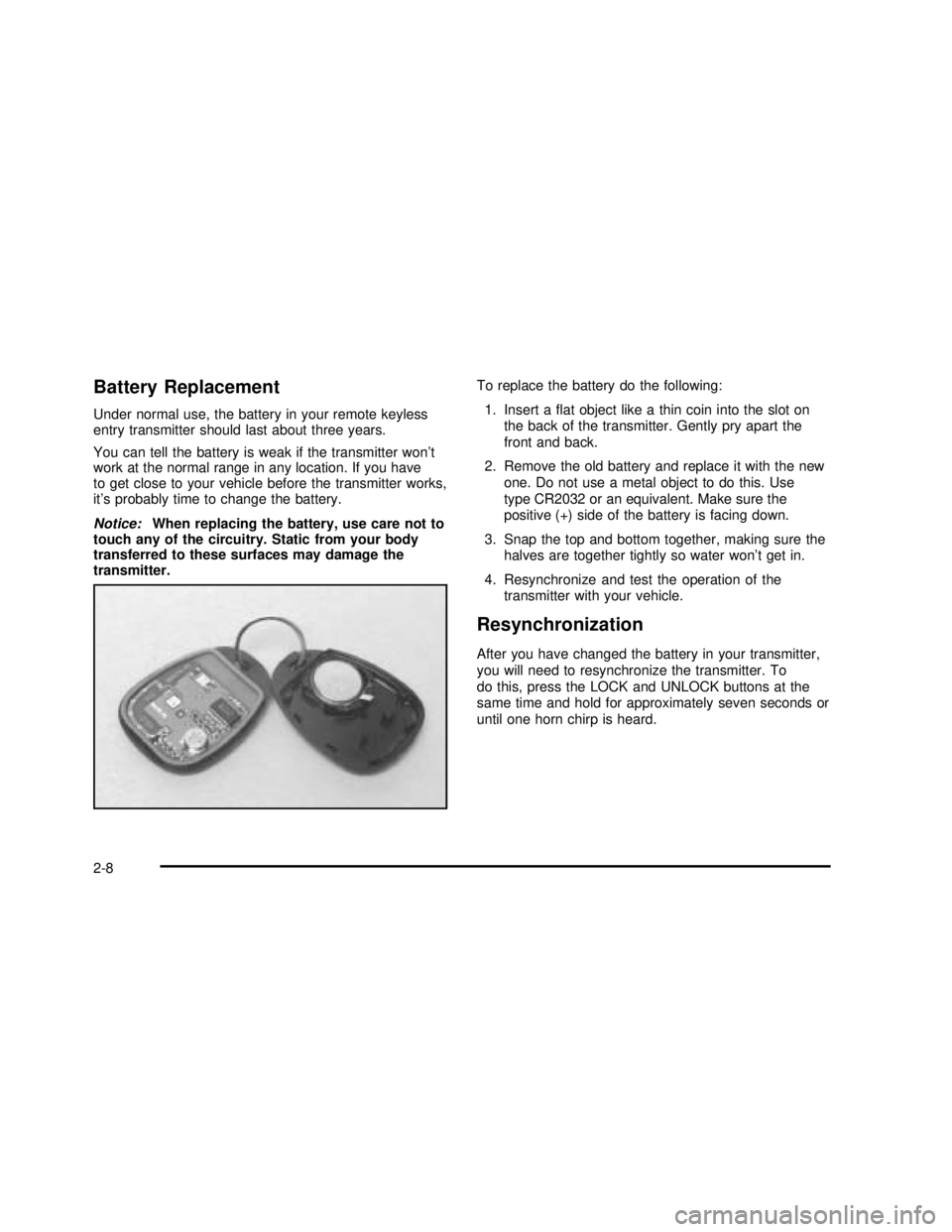

Battery Replacement
Under normal use, the battery in your remote keyless
entry transmitter should last about three years.
You can tell the battery is weak if the transmitter won’t
work at the normal range in any location. If you have
to get close to your vehicle before the transmitter works,
it’s probably time to change the battery.
Notice:When replacing the battery, use care not to
touch any of the circuitry. Static from your body
transferred to these surfaces may damage the
transmitter.To replace the battery do the following:
1. Insert aflat object like a thin coin into the slot on
the back of the transmitter. Gently pry apart the
front and back.
2. Remove the old battery and replace it with the new
one. Do not use a metal object to do this. Use
type CR2032 or an equivalent. Make sure the
positive (+) side of the battery is facing down.
3. Snap the top and bottom together, making sure the
halves are together tightly so water won’t get in.
4. Resynchronize and test the operation of the
transmitter with your vehicle.
Resynchronization
After you have changed the battery in your transmitter,
you will need to resynchronize the transmitter. To
do this, press the LOCK and UNLOCK buttons at the
same time and hold for approximately seven seconds or
until one horn chirp is heard.
2-8
2003 - Regal OM

Instrument Panel Overview...............................3-2
Hazard Warning Flashers................................3-4
Other Warning Devices...................................3-4
Horn .............................................................3-5
Tilt Wheel.....................................................3-5
Turn Signal/Multifunction Lever.........................3-5
Exterior Lamps.............................................3-10
Interior Lamps..............................................3-13
Accessory Power Outlets...............................3-15
Auxiliary Power Connection (Power Drop).........3-16
Ashtrays and Cigarette Lighter........................3-17
Climate Controls............................................3-17
Dual Climate Control System..........................3-17
Dual Automatic Climate Control System...........3-20
Outlet Adjutment...........................................3-24
Passenger Compartment Air Filter...................3-24
Warning Lights, Gages and Indicators.............3-26
Instrument Panel Cluster................................3-27
Speedometer and Odometer...........................3-28
Tachometer.................................................3-29
Safety Belt Reminder Light.............................3-29
Air Bag Readiness Light................................3-30
Charging System Light..................................3-31
Brake System Warning Light..........................3-31
Anti-Lock Brake System Warning Light.............3-32
Traction Control System (TCS) Warning Light . . .3-33
Low Traction Light
........................................3-33Engine Coolant Temperature Warning Light......3-34
Engine Coolant Temperature Gage..................3-34
Tire Pressure Light.......................................3-35
Malfunction Indicator Lamp.............................3-35
Oil Pressure Light.........................................3-38
Low Oil Level Light.......................................3-39
Change Engine Oil Light................................3-39
Security Light...............................................3-40
Cruise Control Light......................................3-40
Low Washer Fluid Warning Light.....................3-40
Door/Trunk Ajar Warning Light........................3-40
Service Vehicle Soon Light............................3-41
Fuel Gage...................................................3-41
Low Fuel Warning Light.................................3-42
Driver Information Center (DIC).......................3-42
Audio System(s).............................................3-44
Setting the Time...........................................3-45
Radio with Cassette......................................3-45
Radio with Cassette and CD..........................3-49
Theft-Deterrent Feature..................................3-55
Audio Steering Wheel Controls.......................3-57
Understanding Radio Reception......................3-57
Care of Your Cassette Tape Player.................3-58
Care of Your CDs.........................................3-59
Care of Your CD Player................................3-59
Backglass Antenna.......................................3-59
Section 3 Instrument Panel
3-1
2003 - Regal OM

The main components of the instrument panel are the following:
A. Exterior Lamps Control
B. Turn Signal/Multifunction Lever
C. Instrument Panel Cluster
D. Audio Steering Wheel Controls
E. Air Outlets
F. Side Window Defogger Outlet
G. Hood ReleaseH. Tilt Wheel Lever
I. Horn
J. Audio System
K. Ashtray
L. Climate Control
M. Glove Box
N. Instrument Panel Fuse Block
3-3
2003 - Regal OM

Horn
Press the horn symbols on your steering wheel pad to
sound the horn.
Tilt Wheel
A tilt wheel allows you to adjust the steering wheel
before you drive. You can raise it to the highest level to
give your legs more room when you exit and enter
the vehicle.
The lever that allows you to tilt the steering wheel is
located on the left side of the steering column.
To tilt the wheel, hold the
wheel and pull the lever.
Then move the steering
wheel to a comfortable
position and release
the lever to lock the
wheel into place.
Turn Signal/Multifunction Lever
The lever located on the left side of the steering column
includes the following:
•Turn and Lane-Change Signals
•Headlamp High/Low-Beam Changer
•Flash-to-Pass
•Windshield Wipers
•Windshield Washer
•Cruise Control
3-5
2003 - Regal OM

Relays Usage
9 Cooling Fan 2
10 Cooling Fan 3
11 Starter Solenoid
12 Cooling Fan 1
13 Ignition Main
14 Air Pump (Optional)
15 Not Used
16 Horn
17 Fog Lamps
18 Not Used
19 Fuel Pump
Fuses Usage
20 Not Used
21 Generator
22 Engine Control Module
23 A/C Compressor Clutch
24 Cooling Fan
25 Electronic Ignition
Fuses Usage
26 Transaxle
27 Horn
28 Fuel Injector
29 Oxygen Sensor
30 Engine Emissions
31 Fog Lamps
32 Headlamp (Right)
33 Rear Compartment Release
34 Parking Lamps
35 Fuel Pump
36 Headlamp (Left)
37 Not Used
38 Not Used
39 Not Used
40 Not Used
41 Not Used
42 Not Used
43 Not Used
SYMBOL A/C Compressor Clutch Diode
5-91
2003 - Regal OM

Fuel............................................................... 5-4
Additives...................................................... 5-5
California Fuel.............................................. 5-5
Filling a Portable Fuel Container..................... 5-8
Filling Your Tank........................................... 5-6
Fuels in Foreign Countries.............................. 5-6
Gage .........................................................3-41
Gasoline Octane........................................... 5-4
Gasoline Specifications.................................. 5-5
Low Warning Light.......................................3-42
System Inspection.......................................6-15
Full-Range Traction Control System..................... 4-9
Fuses
Fuses and Circuit Breakers...........................5-87
Windshield Wiper.........................................5-86
G
Gage
Engine Coolant Temperature.........................3-34
Fuel..........................................................3-41
Speedometer..............................................3-28
Tachometer.................................................3-29
Gasoline
Octane........................................................ 5-4
Specifications............................................... 5-5Glass Surfaces...............................................5-80
Glove Box.....................................................2-35
GM Mobility Program for Persons with
Disabilities.................................................... 7-5
H
Hazard Warning Flashers................................... 3-4
Head Restraints............................................... 1-5
Headlamp
Aiming .......................................................5-48
Headlamp High/Low-Beam Changer.................... 3-6
Headlamp Wiring
............................................5-86
Headlamps
....................................................5-51
Bulb Replacement
.......................................5-50
Front Turn Signal and Parking Lamps
.............5-52
Halogen Bulbs
............................................5-50
Heated Seats
................................................... 1-3
Highway Hypnosis
...........................................4-24
Hill and Mountain Roads
..................................4-24
Hitches
..........................................................4-38
Hood
Checking Things Under
.................................. 5-8
Release
....................................................... 5-9
Horn
............................................................... 3-5
6
2003 - Regal OM
