rear view mirror BUICK REGAL 2018 Owner's Manual

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
16 In Brief
Passenger Sensing
System
The passenger sensing system
turns off the front outboard
passenger frontal airbag and knee
airbag under certain conditions. No
other airbag is affected by the
passenger sensing system. See
Passenger Sensing System085.
The passenger airbag status
indicator will light on the overhead
console when the vehicle is started.
See Passenger Airbag Status
Indicator 0132.
Mirror Adjustment
Interior Mirrors
Adjustment
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
Automatic Dimming Rearview
Mirror
The mirror automatically dims to
reduce the glare of headlamps from
behind. The dimming feature comes
on when the vehicle is started. See
Automatic Dimming Rearview Mirror
054.
Exterior Mirrors
To adjust a mirror:
1. Press
}or|to select the
driver or passenger mirror.
2. Press the arrows on the control pad to move the selected
mirror in the desired direction.
See Power Mirrors 053.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
24 In Brief
approaching these areas from
behind. The LCA warning display
will light up in the corresponding
outside mirror and will flash if the
turn signal is on. The Side Blind
Zone Alert (SBZA) system is
included as part of the LCA system.
SeeSide Blind Zone Alert (SBZA)
0 223 andLane Change Alert (LCA)
0 223.
Rear Vision
Camera (RVC)
RVC displays a view of the area
behind the vehicle on the
infotainment display when the
vehicle is shifted into R (Reverse) to
aid with parking and low-speed
backing maneuvers.
See Assistance Systems for Parking
or Backing 0214.
Rear Cross Traffic Alert
(RCTA) System
If equipped, the RCTA system uses
a triangle with an arrow on the
infotainment display to warn of traffic behind your vehicle that may
cross your vehicle's path while in
R (Reverse). In addition, beeps will
sound.
See
Assistance Systems for Parking
or Backing 0214.
Parking Assist
If equipped, Rear Parking Assist
(RPA) uses sensors on the rear
bumper to assist with parking and
avoiding objects while in
R (Reverse). It operates at speeds
less than 8 km/h (5 mph). RPA may
show a warning triangle on the
infotainment display and a graphic
on the instrument cluster to provide
the object distance. In addition,
multiple beeps may occur if very
close to an object.
The vehicle may also have the Front
Parking Assist system.
See Assistance Systems for Parking
or Backing 0214.
Power Outlets
The 12-volt power outlets can be
used to plug in electrical equipment,
such as a cell phone or MP3 player.
The vehicle may have accessory
power outlets:
.
Below the climate controls.
. In the cargo area, if equipped.
The outlet is powered when the
ignition is on or in ACC/
ACCESSORY, or until the driver
door is opened within 10 minutes of
turning off the vehicle. See Retained
Accessory Power (RAP) 0191.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
Keys, Doors, and Windows 29
Keys, Doors, and
Windows
Keys and Locks
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Remote Keyless Entry (RKE)System . . . . . . . . . . . . . . . . . . . . . . . 30
Remote Keyless Entry (RKE) System Operation . . . . . . . . . . . . 30
Remote Vehicle Start . . . . . . . . . . 36
Door Locks . . . . . . . . . . . . . . . . . . . . 38
Power Door Locks . . . . . . . . . . . . . 40
Delayed Locking . . . . . . . . . . . . . . . 40
Automatic Door Locks . . . . . . . . . 41
Lockout Protection . . . . . . . . . . . . . 41
Safety Locks . . . . . . . . . . . . . . . . . . . 41
Doors
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . 42
Vehicle Security
Vehicle Security . . . . . . . . . . . . . . . . 50
Vehicle Alarm System . . . . . . . . . 50
Immobilizer . . . . . . . . . . . . . . . . . . . . 51
Immobilizer Operation . . . . . . . . . 52
Exterior Mirrors
Convex Mirrors . . . . . . . . . . . . . . . . 53
Power Mirrors . . . . . . . . . . . . . . . . . . 53 Folding Mirrors . . . . . . . . . . . . . . . . . 53
Heated Mirrors . . . . . . . . . . . . . . . . . 53
Reverse Tilt Mirrors . . . . . . . . . . . . 54
Interior Mirrors
Interior Rearview Mirrors . . . . . . . 54
Automatic Dimming Rearview
Mirror . . . . . . . . . . . . . . . . . . . . . . . . . 54
Windows
Windows . . . . . . . . . . . . . . . . . . . . . . . 55
Power Windows . . . . . . . . . . . . . . . 55
Sun Visors . . . . . . . . . . . . . . . . . . . . . 57
Roof
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . 57
Keys and Locks
Keys
{Warning
Leaving children in a vehicle with
a Remote Keyless Entry (RKE)
transmitter is dangerous and
children or others could be
seriously injured or killed. They
could operate the power windows
or other controls or make the
vehicle move. The windows will
function with the RKE transmitter
in the vehicle, and children or
others could be caught in the path
of a closing window. Do not leave
children in a vehicle with an RKE
transmitter.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
54 Keys, Doors, and Windows
See“Rear Window Defogger” under
Dual Automatic Climate Control
System 0168.
Reverse Tilt Mirrors
If equipped with memory seats, the
passenger and/or driver mirror tilts
to a preselected position when the
vehicle is in R (Reverse). This
allows the curb to be seen when
parallel parking. The mirror(s) return
to the original position when:
.
The vehicle is shifted out of
R (Reverse), or remains in
R (Reverse) for about
30 seconds.
. The ignition is turned off.
. The vehicle is driven in
R (Reverse) above a set speed.
Turn this feature on or off through
vehicle personalization. See Vehicle
Personalization 0150.
Interior Mirrors
Interior Rearview Mirrors
Adjust the rearview mirror for a clear
view of the area behind your
vehicle.
If equipped with OnStar, the vehicle
may have three control buttons at
the bottom of the mirror. See OnStar
Overview 0360.
Do not spray glass cleaner directly
on the mirror. Use a soft towel
dampened with water.
Automatic Dimming
Rearview Mirror
The rearview mirror automatically
dims to reduce the glare of the
headlamps from behind. This
feature comes on when the vehicle
is started.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
Driving and Operating 219
Unnecessary Alerts
FCA may provide unnecessary
alerts for turning vehicles, vehicles
in other lanes, objects that are not
vehicles, or shadows. These alerts
are normal operation and the
vehicle does not need service.
Cleaning the System
If the FCA system does not seem to
operate properly, this may correct
the issue:
.Clean the outside of the
windshield in front of the
rearview mirror.
. Clean the entire front of the
vehicle.
. Clean the headlamps.
Forward Automatic
Braking (FAB)
If the vehicle has Adaptive Cruise
Control (ACC), it also has FAB,
which includes Intelligent Brake
Assist (IBA). When the system
detects a vehicle ahead in your path
that is traveling in the same direction that you may be about to
crash into, it can provide a boost to
braking or automatically brake the
vehicle. This can help avoid or
lessen the severity of crashes when
driving in a forward gear. Depending
on the situation, the vehicle may
automatically brake moderately or
hard. This forward automatic
braking can only occur if a vehicle is
detected. This is shown by the FCA
vehicle ahead indicator being lit.
See
Forward Collision Alert (FCA)
System 0217.
The system works when driving in a
forward gear between 10 km/h
(6 mph) and 180 km/h (112 mph) for
moving vehicles, or between
10 km/h (6 mph) and 55 km/h
(34 mph) for stationary vehicles.
It can detect vehicles up to
approximately 60 m (197 ft).{Warning
FAB is an emergency crash
preparation feature and is not
designed to avoid crashes. Do (Continued)
Warning (Continued)
not rely on FAB to brake the
vehicle. FAB will not brake
outside of its operating speed
range and only responds to
detected vehicles.
FAB may not:
. Detect a vehicle ahead on
winding or hilly roads.
. Detect all vehicles,
especially vehicles with a
trailer, tractors, muddy
vehicles, etc.
. Detect a vehicle when
weather limits visibility, such
as in fog, rain, or snow.
. Detect a vehicle ahead if it
is partially blocked by
pedestrians or other objects.
Complete attention is always
required while driving, and you
should be ready to take action
and apply the brakes and/or steer
the vehicle to avoid crashes.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
222 Driving and Operating
Without Head-Up Display
When the vehicle approaches a
pedestrian ahead too rapidly, the
red FPB alert display will flash on
the windshield. Eight rapid
high-pitched beeps will sound from
the front. When this Pedestrian Alert
occurs, the brake system may
prepare for driver braking to occur
more rapidly which can cause a
brief, mild deceleration. Continue to
apply the brake pedal as needed.
Cruise control may be disengaged
when the Front Pedestrian Alert
occurs.
Automatic Braking
If FPB detects it is about to crash
into a pedestrian directly ahead, and
the brakes have not been applied,
FPB may automatically brake
moderately or brake hard. This can
help to avoid some very low speed pedestrian crashes or reduce
pedestrian injury. FPB can
automatically brake to detected
pedestrians between 8 km/h (5 mph)
and 80 km/h (50 mph). Automatic
braking levels may be reduced
under certain conditions, such as
higher speeds.
If this happens, Automatic Braking
may engage the Electric Parking
Brake (EPB) to hold the vehicle at a
stop. Release the EPB. A firm press
of the accelerator pedal will also
release Automatic Braking and
the EPB.
{Warning
FPB may alert or automatically
brake the vehicle suddenly in
situations where it is unexpected
and undesired. It could falsely
alert or brake for objects similar in
shape or size to pedestrians,
including shadows. This is normal
operation and the vehicle does
not need service. To override
(Continued)
Warning (Continued)
Automatic Braking, firmly press
the accelerator pedal, if it is safe
to do so.
Automatic Braking can be disabled
through vehicle personalization. See
“Collision/Detection Systems” under
Vehicle Personalization 0150.
{Warning
Using the Front Pedestrian
Braking system while towing a
trailer could cause you to lose
control of the vehicle and crash.
Turn the system to Alert or Off
when towing a trailer.
Cleaning the System
If FPB does not seem to operate
properly, cleaning the outside of the
windshield in front of the rearview
mirror may correct the issue.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
226 Driving and Operating
Warning (Continued)
and LDW, you must steer the
vehicle. Always keep your
attention on the road and
maintain proper vehicle position
within the lane, or vehicle
damage, injury, or death could
occur. Always keep the
windshield, headlamps, and
camera sensors clean and in
good repair. Do not use LKA in
bad weather conditions.
{Warning
Using LKA while towing a trailer
or on slippery roads could cause
loss of control of the vehicle and
a crash. Turn the system off.
How the System Works
The LKA camera sensor is on the
windshield ahead of the rearview
mirror.To turn LKA on and off, press
A
on the center console.
When on,
Ais green if LKA is
available to assist and provide LDW
alerts. It may assist by gently
turning the steering wheel and
display
Aas amber if the vehicle
approaches a detected lane marking
without using a turn signal in that
direction. It may also provide an
LDW alert by flashing
Aamber
as the lane marking is crossed.
Additionally, there may be three
beeps on the right or left, depending
on the lane departure direction.
Take Steering
The LKA system does not
continuously steer the vehicle.
If LKA does not detect active driver
steering, an alert, chime, or DIC
message may be provided. Steer
the vehicle to dismiss.
When the System Does Not
Seem to Work Properly
The system performance may be
affected by:
. Close vehicles ahead.
. Sudden lighting changes, such
as when driving through tunnels.
. Banked roads.
. Roads with poor lane markings,
such as two-lane roads.
If the LKA system is not functioning
properly when lane markings are
clearly visible, cleaning the
windshield may help.
A camera blocked message may
display if the camera is blocked.
Cleaning the outside of the
windshield behind the rearview
mirror may correct the issue. Some
driver assistance systems may have
reduced performance or not work at
all. An LKA or LDW unavailable
message may display if the systems
are temporarily unavailable. This
message could be due to a blocked
camera. The LKA system does not

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
Driving and Operating 227

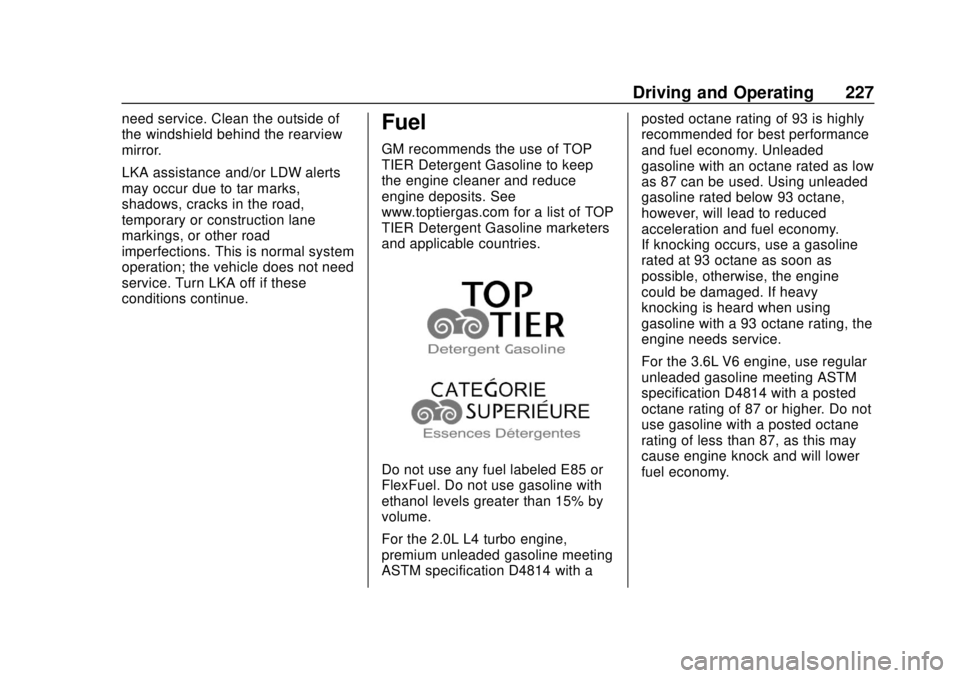

need service. Clean the outside of
the windshield behind the rearview
mirror.
LKA assistance and/or LDW alerts
may occur due to tar marks,
shadows, cracks in the road,
temporary or construction lane
markings, or other road
imperfections. This is normal system
operation; the vehicle does not need
service. Turn LKA off if these
conditions continue.Fuel
GM recommends the use of TOP
TIER Detergent Gasoline to keep
the engine cleaner and reduce
engine deposits. See
www.toptiergas.com for a list of TOP
TIER Detergent Gasoline marketers
and applicable countries.
Do not use any fuel labeled E85 or
FlexFuel. Do not use gasoline with
ethanol levels greater than 15% by
volume.
For the 2.0L L4 turbo engine,
premium unleaded gasoline meeting
ASTM specification D4814 with aposted octane rating of 93 is highly
recommended for best performance
and fuel economy. Unleaded
gasoline with an octane rated as low
as 87 can be used. Using unleaded
gasoline rated below 93 octane,
however, will lead to reduced
acceleration and fuel economy.
If knocking occurs, use a gasoline
rated at 93 octane as soon as
possible, otherwise, the engine
could be damaged. If heavy
knocking is heard when using
gasoline with a 93 octane rating, the
engine needs service.
For the 3.6L V6 engine, use regular
unleaded gasoline meeting ASTM
specification D4814 with a posted
octane rating of 87 or higher. Do not
use gasoline with a posted octane
rating of less than 87, as this may
cause engine knock and will lower
fuel economy.

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
Index 377
I
Ignition Positions . . . . . . . . . . . . . . . 187
Immobilizer . . . . . . . . . . . . . . . . . . . . . . 51
IndicatorVehicle Ahead . . . . . . . . . . . . . . . . 136
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . 93
Infotainment . . . . . . . . . . . . . . . . . . . . 167
Infotainment System . . . . . . . . . . . . 359
Instrument Cluster . . . . . . . . . . . . . . 124
Interior Rearview Mirrors . . . . . . . . . 54
Introduction . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . . . . . . . . . . . . . . . . . . . . 315
K
Keyless EntryRemote (RKE) System . . . . . . . . . 30
Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
L
Labeling, Tire Sidewall . . . . . . . . . . 276
Lamps Daytime Running (DRL) . . . . . . 160
Dome . . . . . . . . . . . . . . . . . . . . . . . . . 163
Exterior Controls . . . . . . . . . . . . . . 159 Lamps (cont'd)
Exterior Lamps Off
Reminder . . . . . . . . . . . . . . . . . . . 160
Exterior Lighting Battery
Saver . . . . . . . . . . . . . . . . . . . . . . . 165
Front Turn Signal . . . . . . . . . . . . . 266
Malfunction Indicator (Check Engine) . . . . . . . . . . . . . 133
On Reminder . . . . . . . . . . . . . . . . . 140
Reading . . . . . . . . . . . . . . . . . . . . . . 164
Lane Change Alert (LCA) . . . . . . . 223
Lane Departure Warning (LDW) . . . . . . . . . . . . . . . . 225
Lane Keep Assist (LKA) . . . . . . . . 225
Lane Keep Assist Light . . . . . . . . . 136
Lap-Shoulder Belt . . . . . . . . . . . . . . . 75
LATCH System Replacing Parts after a
Crash . . . . . . . . . . . . . . . . . . . . . . . 104
LATCH, Lower Anchors and Tethers for Children . . . . . . . . . . . . 98
Liftgate . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Lighting Adaptive Forward . . . . . . . . . . . . . 161
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 164
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Illumination Control . . . . . . . . . . . 163 Lights
Adaptive Forward Lighting
(AFL) Light . . . . . . . . . . . . . . . . . . 140
Airbag Readiness . . . . . . . . . . . . . 131
Antilock Brake System (ABS) Warning . . . . . . . . . . . . . . 136
Brake System Warning . . . . . . . 135
Charging System . . . . . . . . . . . . . 132
Check Engine (Malfunction
Indicator) . . . . . . . . . . . . . . . . . . . . 133
Cruise Control . . . . . . . . . . . . . . . . 140
Door Ajar . . . . . . . . . . . . . . . . . . . . . 141
Electric Parking Brake . . . . . . . . 135
Engine Coolant
Temperature Warning . . . . . . . 138
Engine Oil Pressure . . . . . . . . . . 139
Flash-to-Pass . . . . . . . . . . . . . . . . . 160
Front Fog Lamp . . . . . . . . . . . . . . 140
High-Beam On . . . . . . . . . . . . . . . . 139
High/Low Beam Changer . . . . . 160
Lane Keep Assist . . . . . . . . . . . . . 136
Low Fuel Warning . . . . . . . . . . . . 139
Seat Belt Reminders . . . . . . . . . . 130
Security . . . . . . . . . . . . . . . . . . . . . . 139
Service Electric Parking
Brake . . . . . . . . . . . . . . . . . . . . . . . 135
StabiliTrak OFF . . . . . . . . . . . . . . . 137
Tire Pressure . . . . . . . . . . . . . . . . . 138

Buick Regal Owner Manual (GMNA-Localizing-2nd Timed Print-U.S./Canada-
11486030) - 2018 - crc - 3/23/18
378 Index
Lights (cont'd)Traction Control System
(TCS)/StabiliTrak . . . . . . . . . . . . 137
Traction Off . . . . . . . . . . . . . . . . . . . 137
Locks Automatic Door . . . . . . . . . . . . . . . . . 41
Delayed Locking . . . . . . . . . . . . . . . . 40
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Lockout Protection . . . . . . . . . . . . . . 41
Power Door . . . . . . . . . . . . . . . . . . . . . 40
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Loss of Control . . . . . . . . . . . . . . . . . 179
Low Fuel Warning Light . . . . . . . . . 139
Low-Profile Tires . . . . . . . . . . . . . . . . 275
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 98
Lumbar Adjustment . . . . . . . . . . . . . . 63
Front Seats . . . . . . . . . . . . . . . . . . . . . 63
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 342
Maintenance and Care
Additional . . . . . . . . . . . . . . . . . . . . . 337
Maintenance Schedule . . . . . . . . . 332 Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . 340 Malfunction Indicator Lamp . . . . . 133
Manual Mode . . . . . . . . . . . . . . . . . . . 196
Massage . . . . . . . . . . . . . . . . . . . . . . . . 70
Memory Features . . . . . . . . . . . . . . . . 14
Memory Seats . . . . . . . . . . . . . . . . . . . 66
Messages
Engine Power . . . . . . . . . . . . . . . . 149
Vehicle . . . . . . . . . . . . . . . . . . . . . . . 149
Vehicle Speed . . . . . . . . . . . . . . . . 150
Mirrors Automatic Dimming
Rearview . . . . . . . . . . . . . . . . . . . . . . 54
Convex . . . . . . . . . . . . . . . . . . . . . . . . . 53
Folding . . . . . . . . . . . . . . . . . . . . . . . . . 53
Heated . . . . . . . . . . . . . . . . . . . . . . . . . 53
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 53
Tilt in Reverse . . . . . . . . . . . . . . . . . . 54
Mirrors, Interior Rearview . . . . . . . . 54
Monitor System, Tire Pressure . . . . . . . . . . . . . . . . . . . . . . 283N
NavigationOnStar . . . . . . . . . . . . . . . . . . . . . . . 362
Net, Convenience . . . . . . . . . . . . . . 116
New Vehicle Break-In . . . . . . . . . . . 186
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . 128
Off-Road Recovery . . . . . . . . . . . . . . . . . . . . . 179
Oil
Engine . . . . . . . . . . . . . . . . . . . . . . . . 247
Engine Oil Life System . . . . . . . 249
Pressure Light . . . . . . . . . . . . . . . . 139
Older Children, Restraints . . . . . . . 91
Online Owner Center . . . . . . . . . . . 349
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . 359
OnStar Additional Information . . . . . . . . . . . . . . . . . . . . 366
OnStar Connections . . . . . . . . . . . . 363
OnStar Diagnostics . . . . . . . . . . . . . 365
OnStar Emergency . . . . . . . . . . . . . 361
OnStar Navigation . . . . . . . . . . . . . . 362
OnStar Overview . . . . . . . . . . . . . . . 360
OnStar Security . . . . . . . . . . . . . . . . 362
Operation
Fog Lamps . . . . . . . . . . . . . . . . . . . 162
Ordering Service Publications . . . . . . . . . . 355
Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . 120
Overheating, Engine . . . . . . . . . . . . 256
