BUICK SKYLARK 1993 Owners Manual

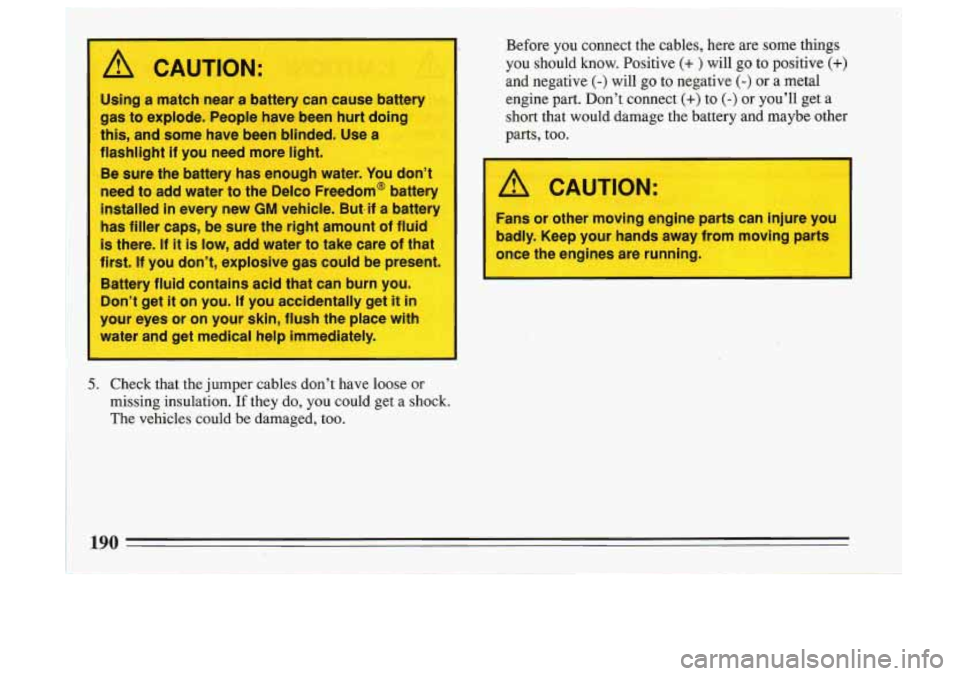

Before you connect the cables, here are some things
you should know. Positive (+ ) will go to positive (+)
and negative (-) will go to negative (-) or a metal
engine part. Don't connect
(+) to (-) or you'll get a
short that would damage the battery and maybe other
parts, too.
I
5. Check that the jumper cables don't have loose or
missing insulation. If they do, you could get a shock.
The vehicles could
be damaged, too.
190
r

7. Don’t let the other
end touch metal. Connect it to the
positive
(+ )
terminal of the
good battery. Use a
remote positive
(+)
terminal if the
vehicle has one.
6. Connect the red positive (+) cable to the positive (+)
terminal of the vehicle with the dead battery. Use a
remote positive
(+) terminal if the vehicle has one.
8. Now connect the black
negative
(-) cable to the
good battery’s negative
(-) terminal.
191

Don't let the other end touch anything until the next
step. The other end of the negative cable doesn't go to
the dead battery. It goes to a heavy unpainted metal part
on the engine of the vehicle with the dead battery.
9. Attach the cable at least 18 inches (45 cm) away
from the dead battery, but not near engine parts that
move. The electrical connection is just as good there,
but the chance
of sparks getting back to the battery is
much less.
10. Now start the vehicle with the good battery and run
the engine for awhile.
11. Try to start the vehicle with the dead battery.
If it won't start after a few tries, it probably needs
service.
'-? - ' * < :.!. , .,_. = , .::.t, ._ .. . . c_
12. Remove the cables in reverse order to prevent
electrical shorting. Take care that they don't touch each other or any other metal.

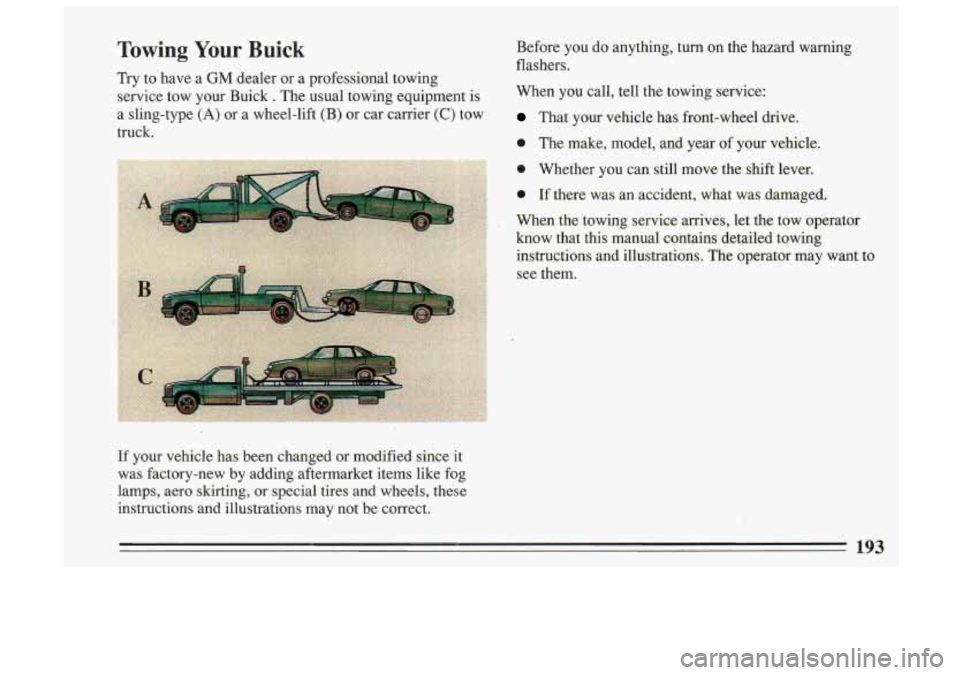

Towing Your Buick
Try to have a GM dealer or a professional towing
service tow your Buick
. The usual towing equipment is
a sling-type
(A) or a wheel-lift (B) or car carrier (C) tow
truck. Before you do anything, turn on the hazard warning
flashers.
When you call, tell the towing service: That your vehicle has front-wheel drive.
0 The make, model, and year of your vehicle.
0 Whether you can still move the shift lever.:,.
0 If there was an accident, what was damaged.
When the towing service arrives, let the tow operator
know that this manual contains detailed towing instructions and illustrations. The operator may wan.t to
see them.
If your vehicle has been changed or modified since it
was factory-new by adding aftermarket items like fog
lamps, aero skirting,
or special tires and wheels, these
instructions and illustrations may not be correct.
193

P-

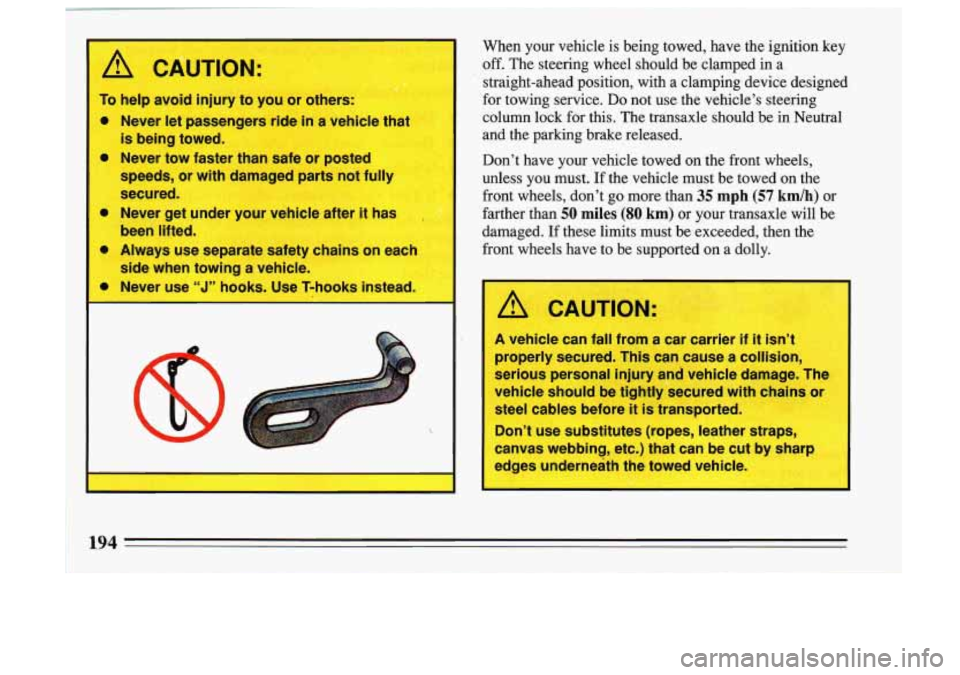

When your vehicle is being towed, have the ignition key
off. The steering wheel should be clamped in a
straight-ahead position, with a clamping device designed
for towing service.
Do not use the vehicle’s steering
column lock for this. The transaxle should be in Neutral
and the parking brake released.
Don’t have your vehicle towed on the front wheels,
unless you must.
If the vehicle must be towed on the
front wheels, don’t go more than
35 mph (57 kmh) or
farther than
50 miles (80 km) or your transaxle will be
damaged. If these limits must be exceeded, then the
front wheels have to be supported on a dolly.
CAUTION:
I A vehicle 1 fall from a car cal t It isn’t
properly secured. This can cause a collision,
serious personal injury and vehicle damage. The
vehicle should be tightly secured with chains or
steel cables before
it is transported.
on’t use substitutes (ropes, leather straps,
canvas webbing, etc.) that can be cut by
sh; 1
I
I edges underneath the towed vehicle.

1 Front Towing
i
Use a wheel lif? or a car carrier only. Additional ramping
may
be required for the car carrier equipment. Use
safety chains and wheel straps.
195

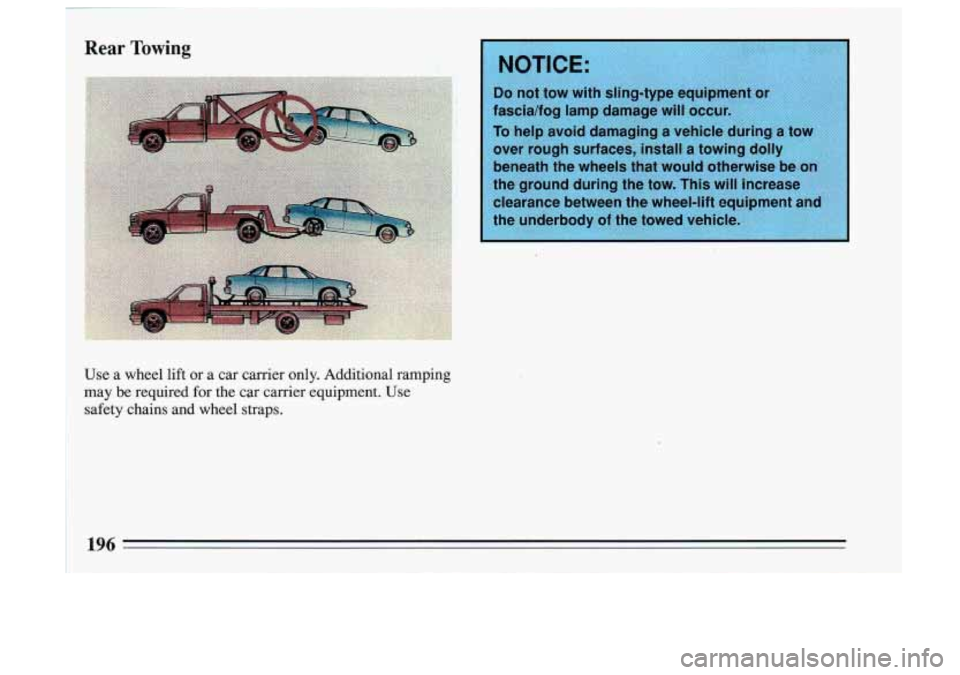

Rear Towing
Use a wheel lift or a car carrier only. Additional ramping
may be required for the car carrier equipment. Use
safety chains and wheel straps.
NOTICE:
o not tow with Ui
ascia/fog lamp damage will occur.
196

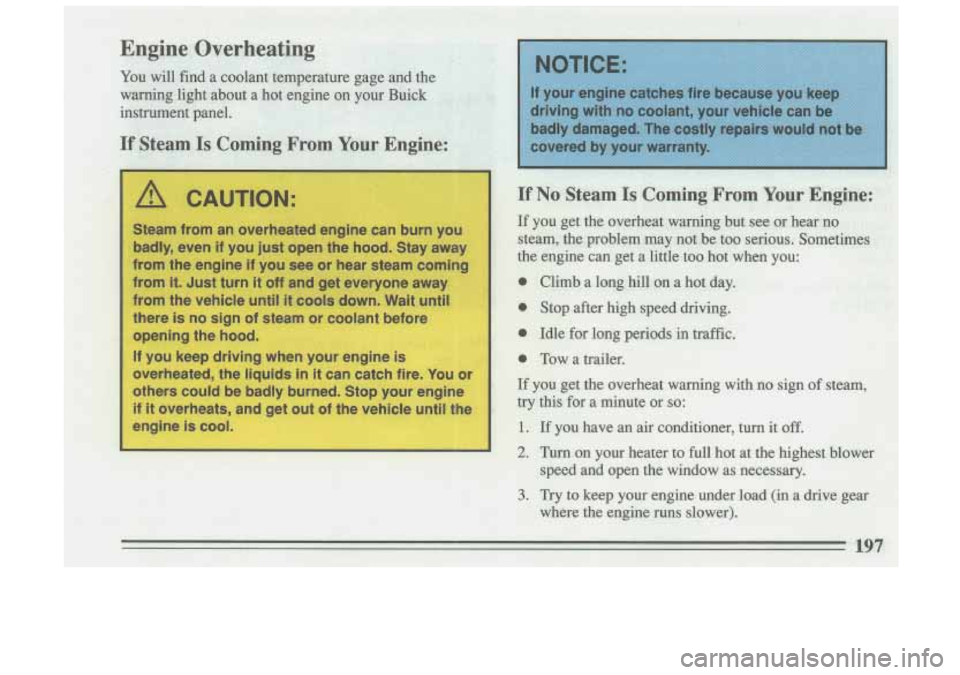

11 ,m CAUTION:
Steam from an overheated engine can burn you
badly, even
if you just open the hood. Stay away
from the engine
if you see or hear steam coming
from
it. Just turn it off and get everyone away
from the vehicle
until it cools down. Wait until
there
is no sign of steam or coolant before
opening the hood.
If you keep driving when your engine is
overheated, the liquids
in it can catch fire. You or
others could be badly burned. Stop your engine
if it overheats, and get out of the vehicle until the
engine is cool.
I
I

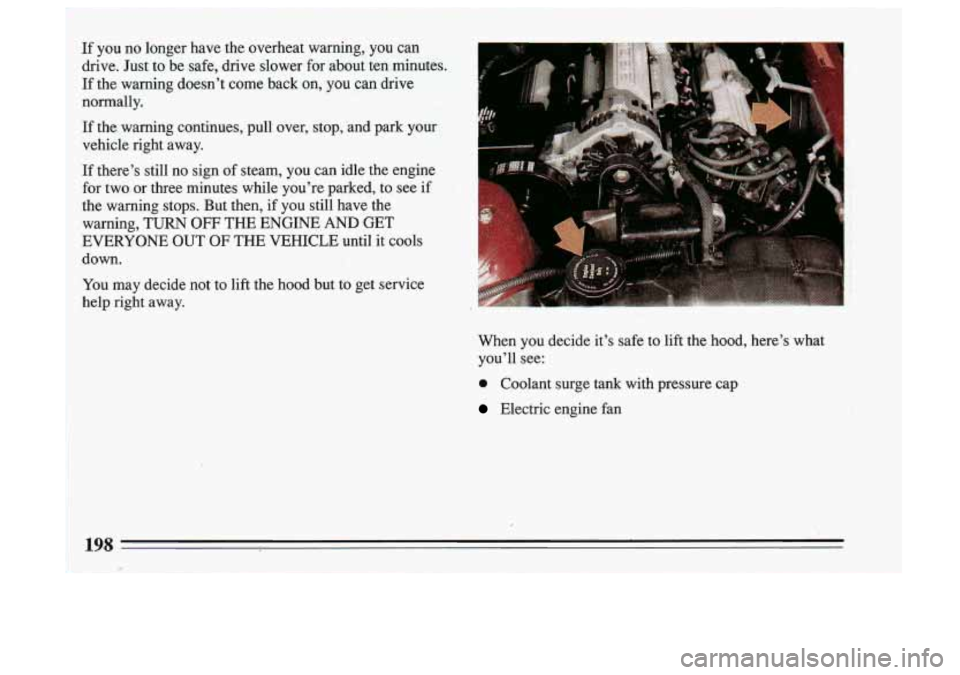

If you no longer have the overheat warning, you can
drive. Just to be safe, drive slower for about ten minutes.
If the warning doesn’t come back on, you can drive
normally.
If the, warning continues, pull over, stop, and park your
vehicle right away.
If there’s still no sign
of steam, you can idle the engine
for two.or three minutes while you’re parked, to see if
the warning stops. But then, if you still have the
warning, TURN
OFF THE ENGINE AND GET
EVERYONE OUT
OF THE VEHICLE until it cools
down.
You may decide not.to lift the hood but to get service
help right away.
When you decide it’s safe to lift the hood, here’s what \
you’ll see:
0 Coolant surge tank with pressure cap
Electric engine fan
198

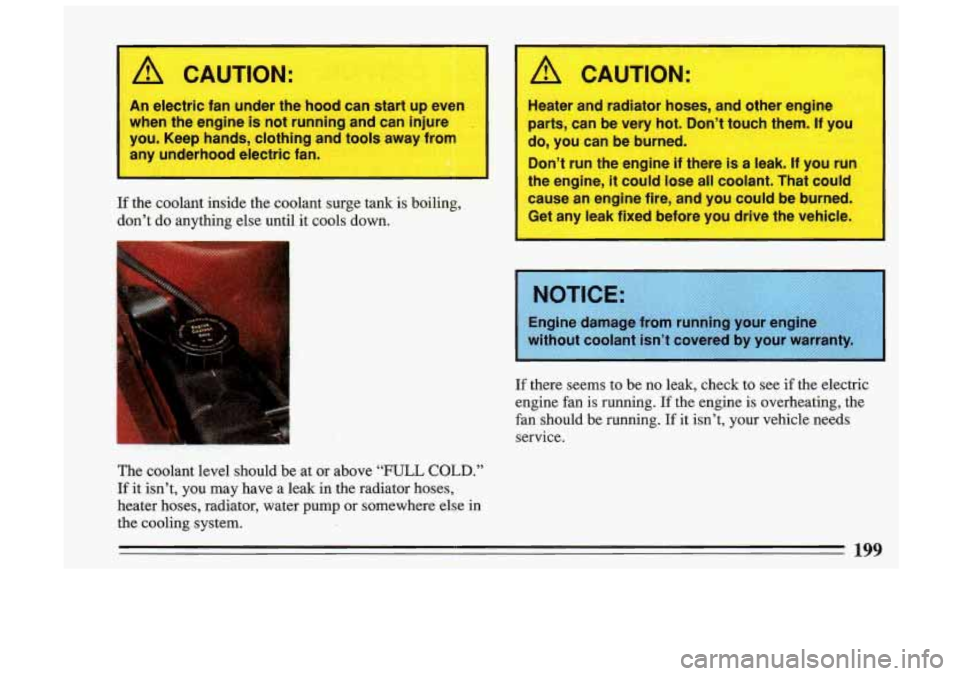

A CAUTION:
I
An electric fan under the hood can start up even
when the engine is not running and can injure
you. Keep hands, clothing and tools away from
any underhood electric fan.
If the coolant inside the coolant surge tank is boiling,
don’t
do anything else until it cools down.
The coolant level should be at or above
“FULL COLD.”
If it isn’t, you may have a leak in the radiator hoses,
heater hoses, radiator, water pump or somewhere else in
the cooling system.
A CAUTION:
Heater and radiator hoses, and other engine
parts, can be very hot. Don’t touch them. If you
do, you can be burned.
Don’t run the engine if there is a leak. If you run
-le engine, it could lose all coolant. That could
cause an engine fire, and you could be burned.
Nt any leak fixed before you drive the vehicle.
If there seems to be no leak, check to see if the electric
engine fan is running.
If the engine is overheating, the
fan should be running.
If it isn’t, your vehicle needs
service.
199
