Heated Seats
Your vehicle may have this feature. If it does, the
heated seat buttons are located on the climate
control panel.
This feature will heat the lower cushions of the
driver’s and front passenger’s seats.
Press this button once
to turn the heated seat
on to the high setting.
Both indicator lights next to the heated seat
symbol will be lit to indicate that it is on the high
setting. Press the button a second time to go to the
low setting. One indicator will be lit. Press the
button a third time to turn the heated seat off.This feature will turn off automatically when the
ignition is turned off.
Memory Seat
If your vehicle has this
feature, the controls for
the memory function
are located on the
driver’s door.
These buttons are used to program and recall
memory settings for the driver’s seating position.
The settings for these features can be
personalized for both driver 1 and driver 2.
Driver 1 or driver 2 corresponds to the memory
buttons labeled 1 and 2 on the driver’s door and to
the numbers, 1 or 2, on the back of the remote
keyless entry transmitters.
Driver’s Side Button
shown, Passenger’s
Side similar
10

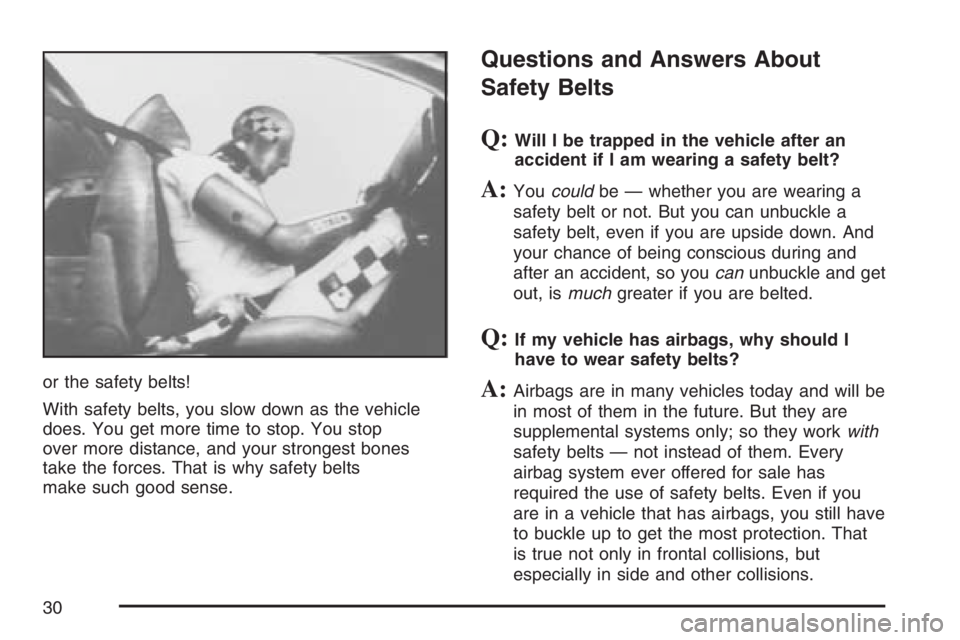

or the safety belts!
With safety belts, you slow down as the vehicle
does. You get more time to stop. You stop
over more distance, and your strongest bones
take the forces. That is why safety belts
make such good sense.
Questions and Answers About
Safety Belts
Q:Will I be trapped in the vehicle after an
accident if I am wearing a safety belt?
A:Youcouldbe — whether you are wearing a
safety belt or not. But you can unbuckle a
safety belt, even if you are upside down. And
your chance of being conscious during and
after an accident, so youcanunbuckle and get
out, ismuchgreater if you are belted.
Q:If my vehicle has airbags, why should I
have to wear safety belts?
A:Airbags are in many vehicles today and will be
in most of them in the future. But they are
supplemental systems only; so they workwith
safety belts — not instead of them. Every
airbag system ever offered for sale has
required the use of safety belts. Even if you
are in a vehicle that has airbags, you still have
to buckle up to get the most protection. That
is true not only in frontal collisions, but
especially in side and other collisions.
30

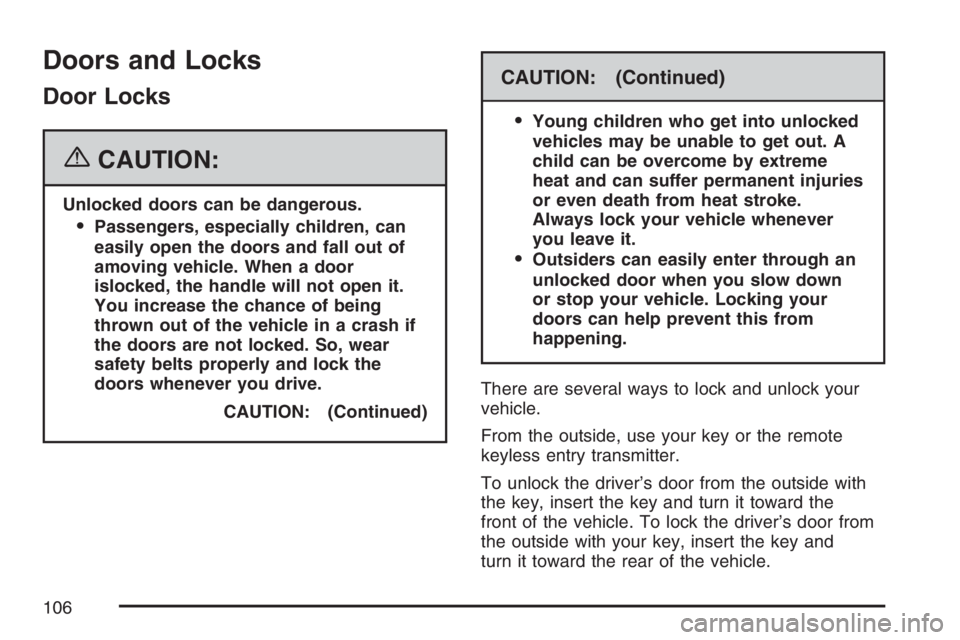

Doors and Locks
Door Locks
{CAUTION:
Unlocked doors can be dangerous.
Passengers, especially children, can
easily open the doors and fall out of
amoving vehicle. When a door
islocked, the handle will not open it.
You increase the chance of being
thrown out of the vehicle in a crash if
the doors are not locked. So, wear
safety belts properly and lock the
doors whenever you drive.
CAUTION: (Continued)
CAUTION: (Continued)

Young children who get into unlocked
vehicles may be unable to get out. A
child can be overcome by extreme
heat and can suffer permanent injuries
or even death from heat stroke.
Always lock your vehicle whenever
you leave it.
Outsiders can easily enter through an
unlocked door when you slow down
or stop your vehicle. Locking your
doors can help prevent this from
happening.
There are several ways to lock and unlock your
vehicle.
From the outside, use your key or the remote
keyless entry transmitter.
To unlock the driver’s door from the outside with
the key, insert the key and turn it toward the
front of the vehicle. To lock the driver’s door from
the outside with your key, insert the key and
turn it toward the rear of the vehicle.
106

Windows
{CAUTION:
Leaving children, helpless adults, or pets
in a vehicle with the windows closed is
dangerous. They can be overcome by the
extreme heat and suffer permanent
injuries or even death from heat stroke.
Never leave a child, a helpless adult, or a
pet alone in a vehicle, especially with the
windows closed in warm or hot weather.
121

Power Rear Quarter Windows
Your vehicle has power rear quarter windows.
This switch, located in
the overhead console
switchbank, is used
for opening and closing
the power rear
quarter windows.
Press the top of the switch to open the windows;
both windows will open. The windows will
continue to open as long as the switch is pressed,
until they are fully opened.
Press the bottom of the switch with the symbol to
close both windows. The windows can be
closed fully or partially, depending on how long
the switch is pressed.The ignition must be in RUN, ACCESSORY, or
Retained Accessory Power (RAP) must be active,
to use the power rear quarter windows. See
Retained Accessory Power (RAP) on page 130.
Sun Visors
To block out glare, you can swing down the visors
and slide them along the rod to cover different
areas of the front window. You can also remove
them from the center mount and swing them to
the side.
Lighted Vanity Mirror
Your vehicle has lighted vanity mirrors. Pull down
the sun visor and ip up the cover to expose
the vanity mirror. The lamps will come on when
you ip up the cover.
Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
123

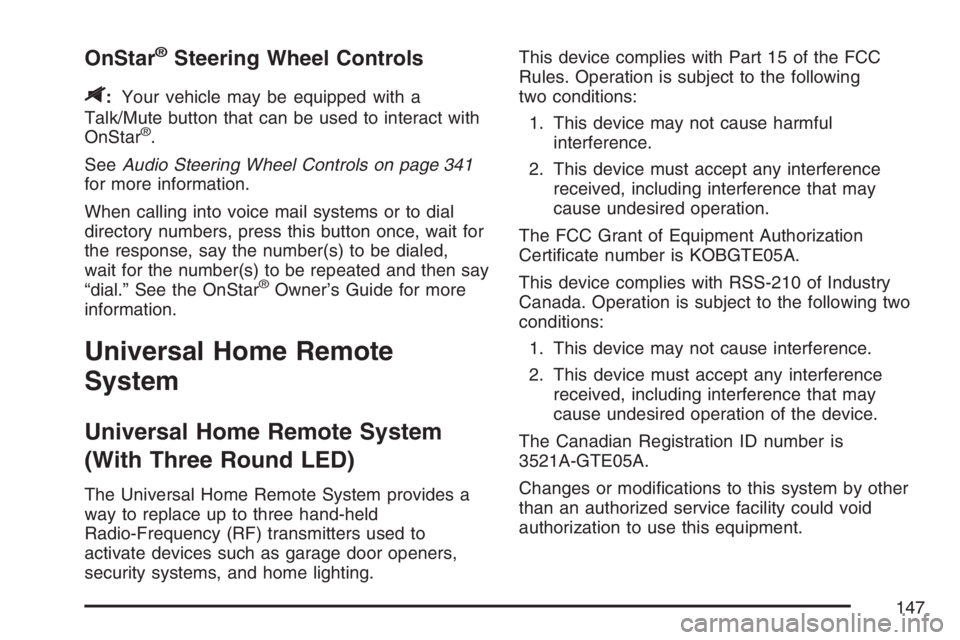

OnStar®Steering Wheel Controls
$
:Your vehicle may be equipped with a
Talk/Mute button that can be used to interact with
OnStar
®.
SeeAudio Steering Wheel Controls on page 341
for more information.
When calling into voice mail systems or to dial
directory numbers, press this button once, wait for
the response, say the number(s) to be dialed,
wait for the number(s) to be repeated and then say
“dial.” See the OnStar
®Owner’s Guide for more
information.
Universal Home Remote
System
Universal Home Remote System
(With Three Round LED)
The Universal Home Remote System provides a
way to replace up to three hand-held
Radio-Frequency (RF) transmitters used to
activate devices such as garage door openers,
security systems, and home lighting.This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions:
1. This device may not cause harmful
interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation.
The FCC Grant of Equipment Authorization
Certicate number is KOBGTE05A.
This device complies with RSS-210 of Industry
Canada. Operation is subject to the following two
conditions:
1. This device may not cause interference.
2. This device must accept any interference
received, including interference that may
cause undesired operation of the device.
The Canadian Registration ID number is
3521A-GTE05A.
Changes or modications to this system by other
than an authorized service facility could void
authorization to use this equipment.
147

Wiper Activated Headlamps
This feature, if equipped, will automatically
activate the headlamps and parking lamps after
the windshield wipers have been in use for
about 30 seconds and when all of the following
conditions are met.
The exterior lamp control is in AUTO.
The headlamps have not already been
activated by automatic lighting.
The automatic lighting feature has not been
disabled using the exterior lamp control.
SeeExterior Lamps on page 181for additional
information.
If the wipers are activated for over 30 seconds
and the exterior lamp control is in the parking
lamps position, or the automatic lighting feature
has been disabled using the exterior lamp control,
a HEADLAMPS SUGGESTED message will
appear on the Driver Information Center,
if equipped.
Headlamps on Reminder
If you turn the ignition to LOCK while leaving the
lamps on, you will hear a warning chime once
the driver’s door is opened.
Daytime Running Lamps (DRL)/
Automatic Headlamp System
Daytime Running Lamps (DRL) can make it easier
for others to see the front of your vehicle during
the day. DRL can be helpful in many different
driving conditions, but they can be especially
helpful in the short periods after dawn and before
sunset. Fully functional Daytime Running Lamps
are required on all vehicles rst sold in Canada.
A light sensor on top of the instrument panel
makes the DRL work, so be sure it is not covered.
The DRL system will make front parking and
turn signal lamps come on in daylight when the
following conditions are met:
The ignition is on.
The exterior lamps control is off.
182

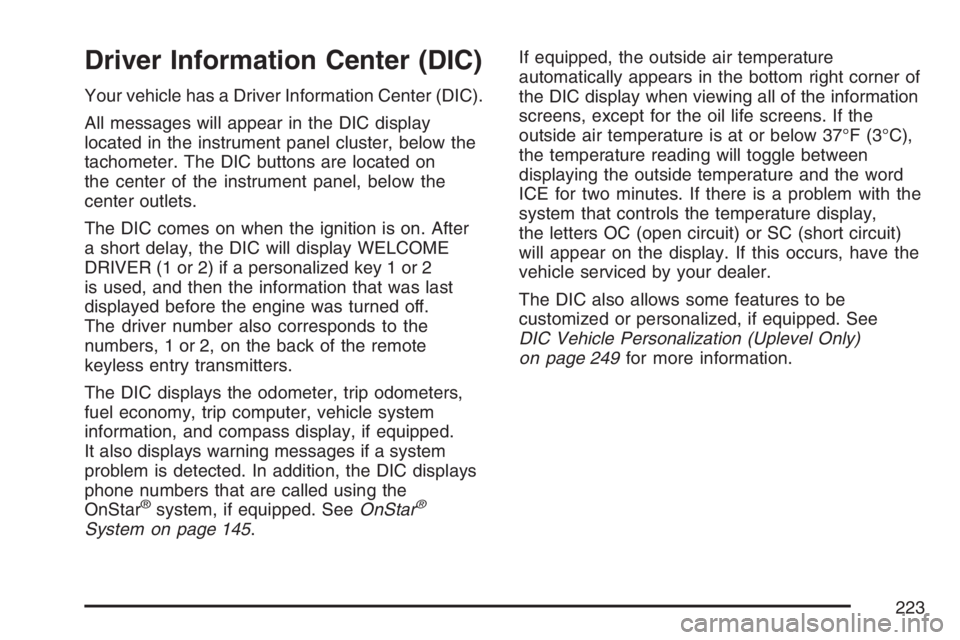

Driver Information Center (DIC)
Your vehicle has a Driver Information Center (DIC).
All messages will appear in the DIC display
located in the instrument panel cluster, below the
tachometer. The DIC buttons are located on
the center of the instrument panel, below the
center outlets.
The DIC comes on when the ignition is on. After
a short delay, the DIC will display WELCOME
DRIVER (1 or 2) if a personalized key 1 or 2
is used, and then the information that was last
displayed before the engine was turned off.
The driver number also corresponds to the
numbers, 1 or 2, on the back of the remote
keyless entry transmitters.
The DIC displays the odometer, trip odometers,
fuel economy, trip computer, vehicle system
information, and compass display, if equipped.
It also displays warning messages if a system
problem is detected. In addition, the DIC displays
phone numbers that are called using the
OnStar
®system, if equipped. SeeOnStar®
System on page 145.If equipped, the outside air temperature
automatically appears in the bottom right corner of
the DIC display when viewing all of the information
screens, except for the oil life screens. If the
outside air temperature is at or below 37°F (3°C),
the temperature reading will toggle between
displaying the outside temperature and the word
ICE for two minutes. If there is a problem with the
system that controls the temperature display,
the letters OC (open circuit) or SC (short circuit)
will appear on the display. If this occurs, have the
vehicle serviced by your dealer.
The DIC also allows some features to be
customized or personalized, if equipped. See
DIC Vehicle Personalization (Uplevel Only)
on page 249for more information.
223

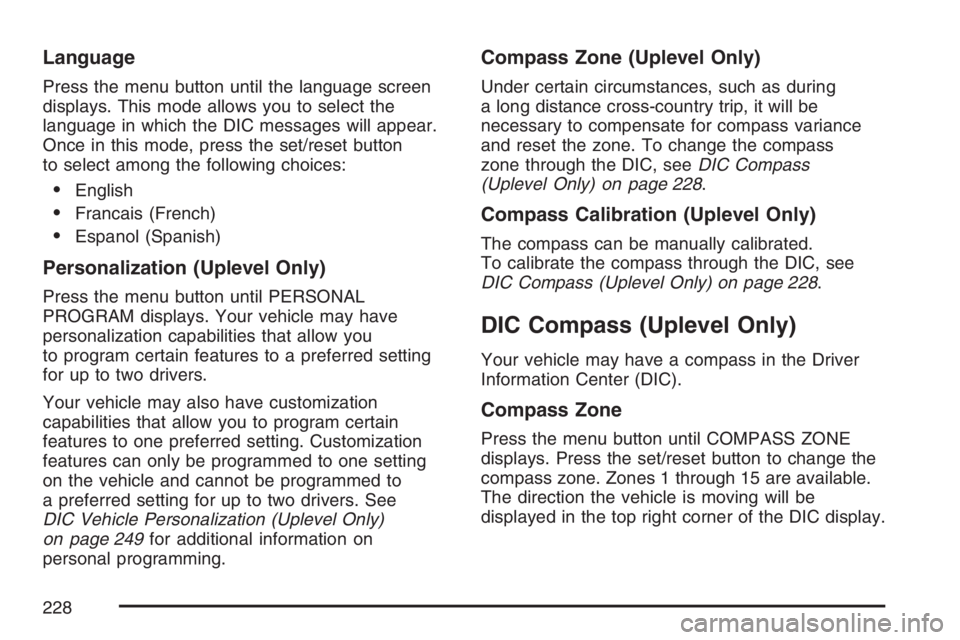

Language
Press the menu button until the language screen
displays. This mode allows you to select the
language in which the DIC messages will appear.
Once in this mode, press the set/reset button
to select among the following choices:
English
Francais (French)
Espanol (Spanish)
Personalization (Uplevel Only)
Press the menu button until PERSONAL
PROGRAM displays. Your vehicle may have
personalization capabilities that allow you
to program certain features to a preferred setting
for up to two drivers.
Your vehicle may also have customization
capabilities that allow you to program certain
features to one preferred setting. Customization
features can only be programmed to one setting
on the vehicle and cannot be programmed to
a preferred setting for up to two drivers. See
DIC Vehicle Personalization (Uplevel Only)
on page 249for additional information on
personal programming.
Compass Zone (Uplevel Only)
Under certain circumstances, such as during
a long distance cross-country trip, it will be
necessary to compensate for compass variance
and reset the zone. To change the compass
zone through the DIC, seeDIC Compass
(Uplevel Only) on page 228.
Compass Calibration (Uplevel Only)
The compass can be manually calibrated.
To calibrate the compass through the DIC, see
DIC Compass (Uplevel Only) on page 228.
DIC Compass (Uplevel Only)
Your vehicle may have a compass in the Driver
Information Center (DIC).
Compass Zone
Press the menu button until COMPASS ZONE
displays. Press the set/reset button to change the
compass zone. Zones 1 through 15 are available.
The direction the vehicle is moving will be
displayed in the top right corner of the DIC display.
228

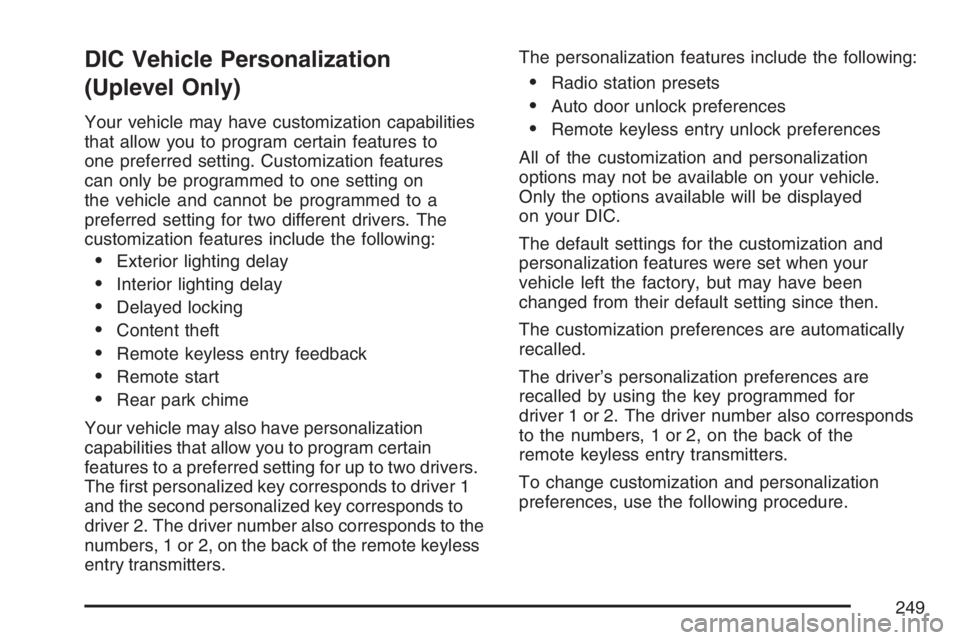

DIC Vehicle Personalization
(Uplevel Only)
Your vehicle may have customization capabilities
that allow you to program certain features to
one preferred setting. Customization features
can only be programmed to one setting on
the vehicle and cannot be programmed to a
preferred setting for two different drivers. The
customization features include the following:
Exterior lighting delay
Interior lighting delay
Delayed locking
Content theft
Remote keyless entry feedback
Remote start
Rear park chime
Your vehicle may also have personalization
capabilities that allow you to program certain
features to a preferred setting for up to two drivers.
The rst personalized key corresponds to driver 1
and the second personalized key corresponds to
driver 2. The driver number also corresponds to the
numbers, 1 or 2, on the back of the remote keyless
entry transmitters.The personalization features include the following:
Radio station presets
Auto door unlock preferences
Remote keyless entry unlock preferences
All of the customization and personalization
options may not be available on your vehicle.
Only the options available will be displayed
on your DIC.
The default settings for the customization and
personalization features were set when your
vehicle left the factory, but may have been
changed from their default setting since then.
The customization preferences are automatically
recalled.
The driver’s personalization preferences are
recalled by using the key programmed for
driver 1 or 2. The driver number also corresponds
to the numbers, 1 or 2, on the back of the
remote keyless entry transmitters.
To change customization and personalization
preferences, use the following procedure.
249
