display BUICK TERRAZA 2007 Owner's Manual

Ignition Positions
The key can be turned to one of four positions
while in the ignition switch.
A (LOCK):This is the only position from which
you can remove the key. This position locks
your ignition and transaxle.Notice:Using a tool to force the key from the
ignition switch could cause damage or
break the key. Use the correct key and turn the
key only with your hand. Make sure the key
is all the way in. If none of this works,
then your vehicle needs service.
B (ACCESSORY):This is the position in which
you can operate the electrical accessories, such as
the radio.
C (RUN):This is the position to which the switch
returns after the engine is started and the ignition
key is released. This is the position for driving. Even
while the engine is not running, RUN can be used to
operate your electrical accessories and to display
some instrument panel warning lights.
The battery could be drained if you leave the key in
the ACCESSORY or RUN position with the engine
off. You may not be able to start your vehicle if the
battery is allowed to drain for an extended period
of time.
D (START):This position starts the engine. When
the engine starts, release the ignition key. The
switch will return to RUN for driving.
129

Tachometer............................................... 209
Safety Belt Reminder Light........................ 209
Passenger Safety Belt Reminder Light....... 210
Airbag Readiness Light............................. 210
Passenger Airbag Status Indicator............. 211
Charging System Light.............................. 213
Brake System Warning Light..................... 214
Anti-Lock Brake System Warning Light...... 215
Traction Control System (TCS)
Warning Light........................................ 216
Engine Coolant Temperature Gage............ 217
Malfunction Indicator Lamp........................ 217
Oil Pressure Light..................................... 220
Security Light............................................ 221
Cruise Control Light.................................. 221
Highbeam On Light................................... 221
Fuel Gage................................................. 222
Low Fuel Warning Light............................ 222
Driver Information Center (DIC).................. 223
DIC Operation and Displays...................... 224
DIC Compass (Uplevel Only)..................... 228
DIC Warnings and Messages.................... 230
DIC Vehicle Personalization
(Uplevel Only)........................................ 249Audio System(s)......................................... 258
Setting the Time........................................ 259
Radio with CD........................................... 260
Using an MP3........................................... 274
XM Radio Messages................................. 280
Navigation/Radio System........................... 282
Rear Seat Entertainment System
(Option A, Uplevel)................................ 282
Rear Seat Entertainment System
(Option B, Uplevel)................................ 298
Rear Seat Audio (RSA)
(Option A, Uplevel)................................ 314
Rear Seat Audio (RSA)
(Option B, Uplevel)................................ 316
Mobile Digital Media System..................... 319
Theft-Deterrent Feature............................. 340
Audio Steering Wheel Controls.................. 341
Radio Reception........................................ 342
Care of Your CDs and DVDs.................... 343
Care of the CD and DVD Player............... 343
Fixed Mast Antenna.................................. 344
XM™ Satellite Radio Antenna System....... 344
Chime Level Adjustment............................ 344
Section 3 Instrument Panel
168

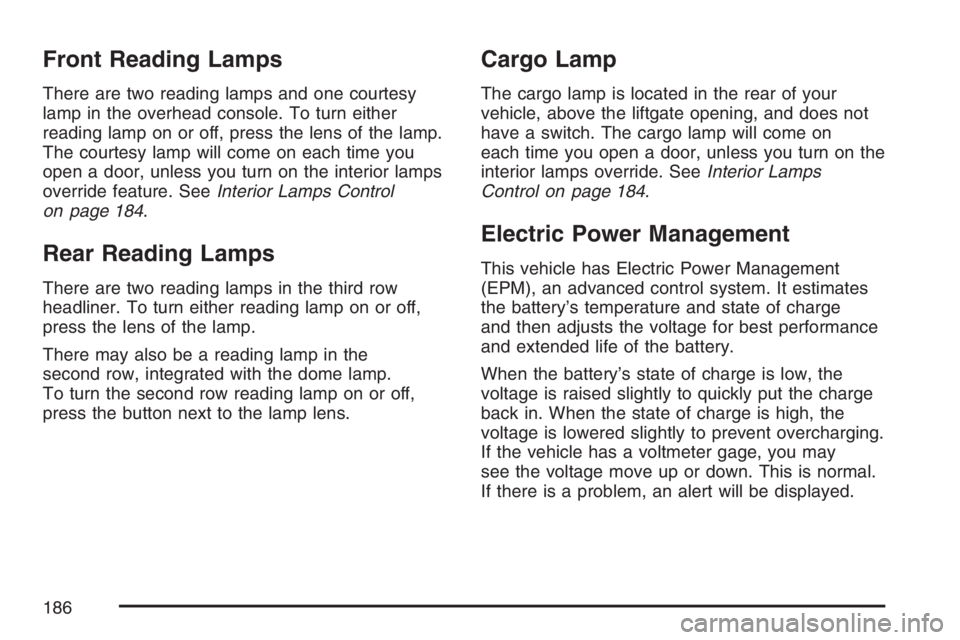

Front Reading Lamps
There are two reading lamps and one courtesy
lamp in the overhead console. To turn either
reading lamp on or off, press the lens of the lamp.
The courtesy lamp will come on each time you
open a door, unless you turn on the interior lamps
override feature. SeeInterior Lamps Control
on page 184.
Rear Reading Lamps
There are two reading lamps in the third row
headliner. To turn either reading lamp on or off,
press the lens of the lamp.
There may also be a reading lamp in the
second row, integrated with the dome lamp.
To turn the second row reading lamp on or off,
press the button next to the lamp lens.
Cargo Lamp
The cargo lamp is located in the rear of your
vehicle, above the liftgate opening, and does not
have a switch. The cargo lamp will come on
each time you open a door, unless you turn on the
interior lamps override. SeeInterior Lamps
Control on page 184.
Electric Power Management
This vehicle has Electric Power Management
(EPM), an advanced control system. It estimates
the battery’s temperature and state of charge
and then adjusts the voltage for best performance
and extended life of the battery.
When the battery’s state of charge is low, the
voltage is raised slightly to quickly put the charge
back in. When the state of charge is high, the
voltage is lowered slightly to prevent overcharging.
If the vehicle has a voltmeter gage, you may
see the voltage move up or down. This is normal.
If there is a problem, an alert will be displayed.
186

The battery can be discharged at idle if the electrical
loads are very high. This is true for all vehicles. This
is because the generator (alternator) may not be
spinning fast enough at idle to produce all the power
that is needed for very high electrical loads.
A high electrical load occurs when several of the
following loads are on: headlamps, high beams,
fog lamps, rear window defogger, climate
control fan at high speed, heated seats, engine
cooling fans, trailer loads, and loads plugged into
accessory power outlets.
EPM works to prevent excessive discharge of the
battery. It does this by balancing the generator’s
output and the vehicle’s electrical needs. It
can increase engine idle speed to generate more
power, whenever needed. It can temporarily
reduce the power demands of some accessories.
Normally, these actions occur in steps or levels,
without being noticeable. In rare cases at the
highest levels of corrective action, this action
may be noticeable to the driver. If so, a Driver
Information Center (DIC) message might be
displayed, such as Battery Saver Active or Battery
Voltage Low. If this message is displayed, it is
recommended that the driver reduce the electrical
loads as much as possible.Battery Run-Down Protection
Your vehicle has a feature to help prevent you
from draining the battery, in case you accidentally
leave the interior lamps on. If you leave any
interior lamps on while the ignition is in lock or off,
they will automatically turn off after 10 minutes.
The lamps will not come back on again until
you do one of the following:
Turn the ignition to RUN or ACCESSORY
Open a closed door, or close and reopen
a door.
Turn the interior lamps on if they are in the
door or override position.
Turn the interior lamps to the door or override
position and then to on again if the interior
lamp control is in the on position.
If your vehicle has less than 15 miles (25 km)
on the odometer, the battery saver will turn off
the lamps after only three minutes.
187

Overhead Console Switchbank
The overhead console switchbank is located in the
overhead console. This switchbank may include
the following:
Power Sliding Door(s)/Override Switch(es).
SeePower Sliding Door (PSD) on page 112.
Power Rear Quarter Windows. SeePower
Rear Quarter Windows on page 123.
Ultrasonic Rear Parking Assist (URPA)
Disable Switch. SeeUltrasonic Rear Parking
Assist (URPA) on page 188.
If your vehicle does not have some of these
options, there will be a blank.
Ultrasonic Rear Parking
Assist (URPA)
If your vehicle is equipped with the Ultrasonic
Rear Parking Assist (URPA) system, it is
designed to help you park, while the vehicle is
in REVERSE (R). It operates only at very
low speeds, less than 3 mph (5 km/h). URPA can
help make parking easier and to help you avoid
colliding with objects such as parked vehicles.
The URPA system can detect objects up to 5 feet
(1.5 m) behind the vehicle, and tell you how
close these objects are from your rear bumper.
Your vehicle’s URPA operates when the shift lever
is moved into REVERSE (R) and the vehicle
speed is less than 3 mph (5 km/h). Four ultrasonic
sensors located at the rear bumper are used to
detect the distance to the object. The URPA
display is located inside the vehicle, near the rear
window. It has three color-coded lights used to
provide distance and system information to
the driver.
188

{CAUTION:
The Ultrasonic Rear Park Assist (URPA)
system does not replace driver vision.
URPA does not:
Operate above speeds of
3 mph (5 km/h).
Detect objects more than 5 feet
(1.5 meters) behind the vehicle.
This distance may be less during
warmer or humid weather.
Detect objects that are below the
bumper, underneath the vehicle, or
that are very close to the vehicle.
Detect children, pedestrians,
bicyclists, or pets.
So if you do not use proper care before
backing up, you could hit a vehicle, child,
pedestrian, bicyclist, or pet, resulting in
vehicle damage, injury, or death. Even
though the vehicle has the URPA system,
always check carefully before backing up
by checking behind your vehicle.URPA can be turned off
by pressing the rear
park aid disable switch
located in the
overhead console
switchbank.
While the system is disabled, an indicator light
will be lit on the switch. You will not see any
lights on the rear display if the switch is in the
off position.
189

How the System Works
Unless disabled, the URPA will turn on
automatically when the shift lever is moved into
REVERSE (R). When the system turns on, the
three lights on the display will illuminate for one and
a half seconds to let you know that the system is
working. If your vehicle is moving in REVERSE (R)
at a speed greater than 3 mph (5 km/h), the red
light will ash to remind you that the system does
not work at speed greater than 3 mph (5 km/h).
If an object is detected at a REVERSE (R) speed
of less than 3 mph (5 km/h), one of the following
will occur:
Description English Metric
amber light 5 ft 1.5 m
amber/amber lights 40 in 1.0 m
amber/amber/red lights &
continuous chime20 in 0.5 m
amber/amber/
red lights ashing &
continuous chime1 ft 0.3 m
A chime will sound the rst time an object
is detected between 20 inches (0.5 m) and
5 feet (1.5 m) away.URPA cannot detect objects that are above liftgate
level. In order for the rear sensors to recognize
an object, it must be within detection range behind
the vehicle.
When the System Does Not Seem to
Work Properly
The light may ash red when the vehicle is in
REVERSE (R) if the ultrasonic sensors are
not kept clean. So be sure to keep your rear
bumper free of mud, dirt, snow, ice and slush.
Other conditions that may affect system
performance include things like the vibrations from
a jackhammer or the compression of air brakes
on a very large truck. If after cleaning the
rear bumper and then driving forward at least
15 mph (25 km/h), the display continues to ash
red, see your dealer.
If a trailer was attached to your vehicle, or a
bicycle or an object was on the back of, or hanging
out of your liftgate during your last drive cycle,
the light may also ash red. The light will continue
to ash whenever in REVERSE (R) until your
vehicle is driven forward at least 15 mph (25 km/h)
without any obstructions behind the vehicle.
190

AUX:Slide the lever to AUX to allow the rear
passengers to adjust the temperature and airow
to the rear seating area.
Your vehicle may also have a rear climate
control system that allows the rear passengers to
adjust the temperature and fan speed for the
rear seating area.
When the front climate control is in AUX and the
rear climate control fan or temperature button
is pressed, the display will show the same airow
modes as the front climate control system. See
Dual Climate Control System on page 197
The front control must be in AUX position to enable
adjustment of the temperature and fan speed on
the rear control system. If it is not in AUX, pressing
the fan or temperature button on the rear climate
control will show a DISABLED message on the rear
seat entertainment system display.
tr(Decrease Setting):Press this button to
decrease the fan or temperature setting when
arrows are active in the display.
201

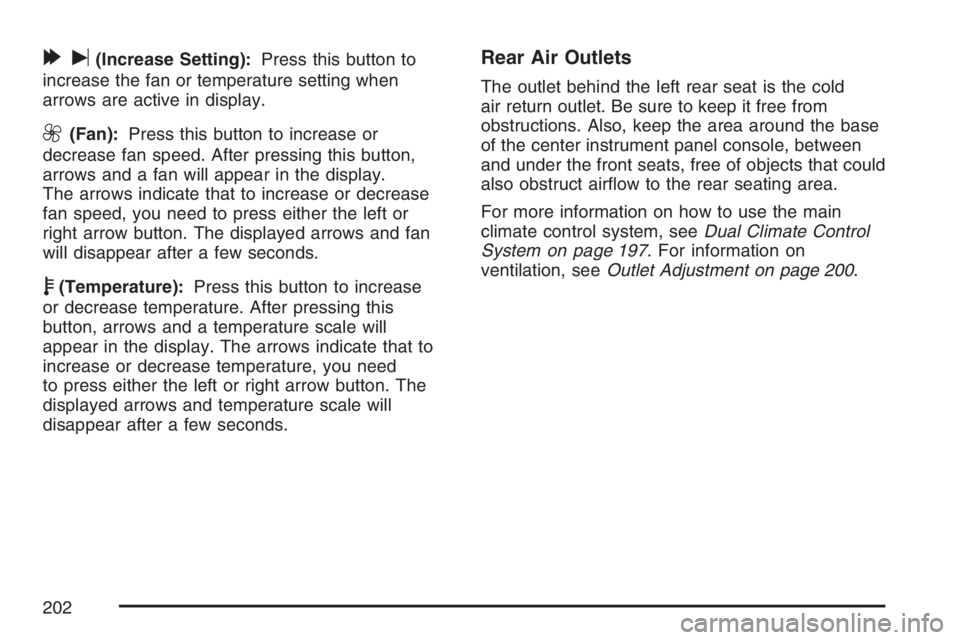

[u(Increase Setting):Press this button to
increase the fan or temperature setting when
arrows are active in display.
9(Fan):Press this button to increase or
decrease fan speed. After pressing this button,
arrows and a fan will appear in the display.
The arrows indicate that to increase or decrease
fan speed, you need to press either the left or
right arrow button. The displayed arrows and fan
will disappear after a few seconds.
b(Temperature):Press this button to increase
or decrease temperature. After pressing this
button, arrows and a temperature scale will
appear in the display. The arrows indicate that to
increase or decrease temperature, you need
to press either the left or right arrow button. The
displayed arrows and temperature scale will
disappear after a few seconds.
Rear Air Outlets
The outlet behind the left rear seat is the cold
air return outlet. Be sure to keep it free from
obstructions. Also, keep the area around the base
of the center instrument panel console, between
and under the front seats, free of objects that could
also obstruct airow to the rear seating area.
For more information on how to use the main
climate control system, seeDual Climate Control
System on page 197. For information on
ventilation, seeOutlet Adjustment on page 200.
202

Rear Climate Control System
(Option B, Uplevel)
Your vehicle may have a rear climate control
system that allows the driver to adjust the fan speed
for the rear seating area. This system works with
the main climate control system in your vehicle.
This lever is located below the main climate
control system on the instrument panel. Use this
lever to adjust the fan speed for the rear seat
passengers.
A(Fan):Slide the lever to 1, 2, or 3 to increase
or decrease airow to the rear seating area.
Slide the fan knob to 0 to turn the fan off.
AUX:Slide the lever to AUX to allow the rear
passengers to adjust the temperature and airow
to the rear seating area.
Your vehicle may also have a rear climate
control system that allows the rear passengers
to adjust the temperature and fan speed for
the rear seating area.
When the front climate control is in AUX and the
rear climate control fan or temperature button
is pressed, the display will show the same airow
modes as the front climate control system. See
Dual Climate Control System on page 197
203
