Seats and Restraints 3-43

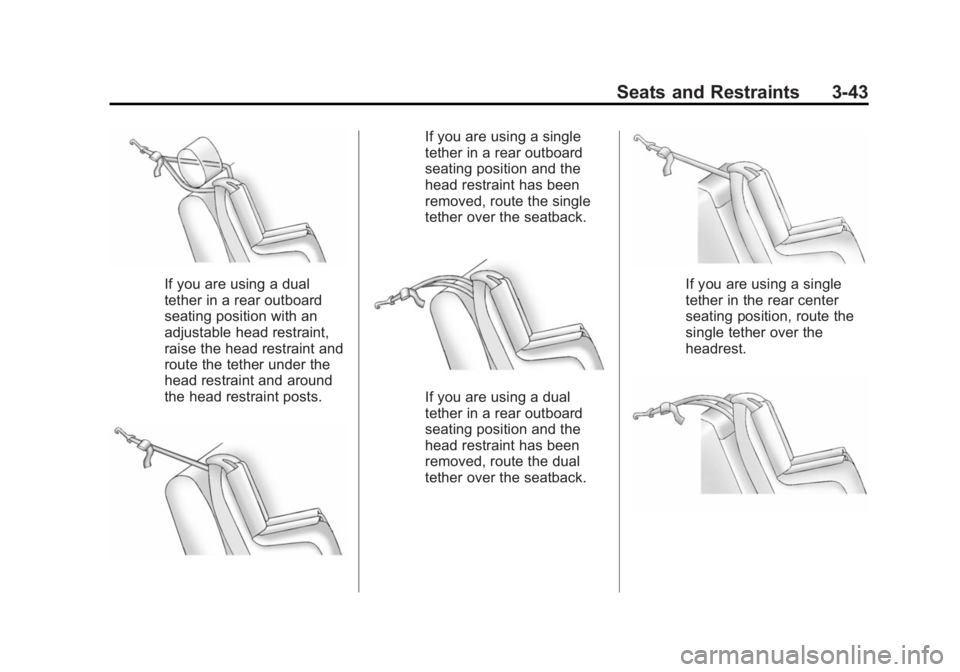

If you are using a dual
tether in a rear outboard
seating position with an
adjustable head restraint,
raise the head restraint and
route the tether under the
head restraint and around
the head restraint posts.
If you are using a single
tether in a rear outboard
seating position and the
head restraint has been
removed, route the single
tether over the seatback.
If you are using a dual
tether in a rear outboard
seating position and the
head restraint has been
removed, route the dual
tether over the seatback.
If you are using a single
tether in the rear center
seating position, route the
single tether over the
headrest.

Black plate (44,1)Buick Verano Owner Manual (GMNA-Localizing-U.S./Canada/Mexico-
7707488) - 2015 - CRC - 10/31/14
3-44 Seats and Restraints
If you are using a dual
tether in the rear center
seating position, route the
dual tether over the
headrest.
3. Before placing a child in the child restraint, make sure it is
securely held in place. To check,
grasp the child restraint at the
LATCH path and attempt to
move it side to side and back
and forth. There should be no
more than 2.5 cm (1 in) of
movement, for proper
installation.

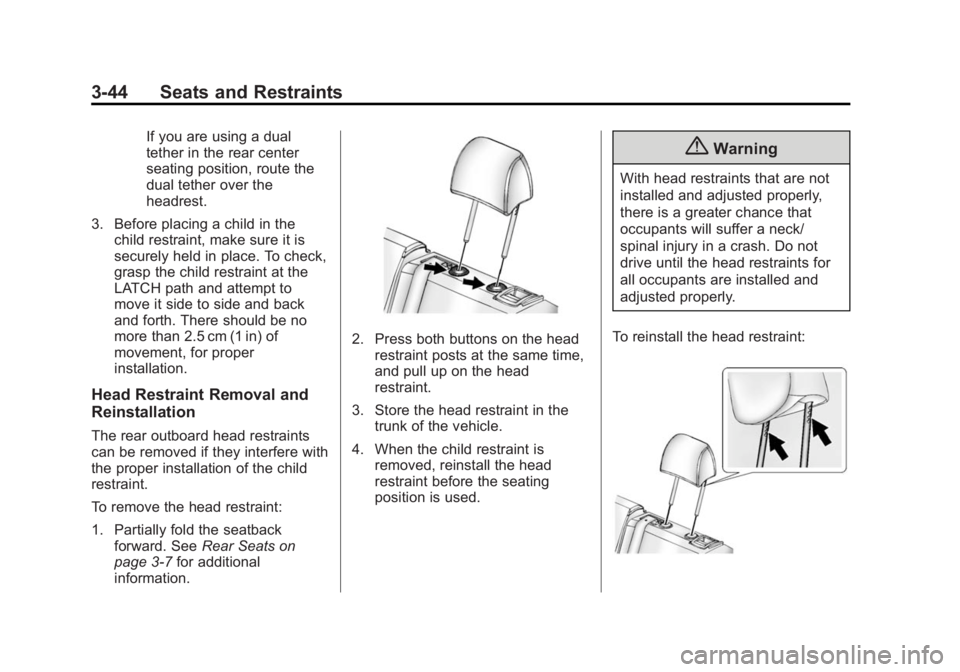

Head Restraint Removal and
Reinstallation
The rear outboard head restraints
can be removed if they interfere with
the proper installation of the child
restraint.
To remove the head restraint:
1. Partially fold the seatbackforward. See Rear Seats on
page 3-7 for additional
information.
2. Press both buttons on the head restraint posts at the same time,
and pull up on the head
restraint.
3. Store the head restraint in the trunk of the vehicle.
4. When the child restraint is removed, reinstall the head
restraint before the seating
position is used.
{Warning
With head restraints that are not
installed and adjusted properly,
there is a greater chance that
occupants will suffer a neck/
spinal injury in a crash. Do not
drive until the head restraints for
all occupants are installed and
adjusted properly.
To reinstall the head restraint:
