technical data CADILLAC ATS 2016 1.G Owners Manual

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
ContentsIntroduction . . . . . . . . . . . . . . . . . . . . . . 2
In Brief . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Keys, Doors, and Windows . . . . . 28
Seats and Restraints . . . . . . . . . . . 50
Storage . . . . . . . . . . . . . . . . . . . . . . . 100
Instruments and Controls . . . . . . 103
Lighting . . . . . . . . . . . . . . . . . . . . . . . 150
Infotainment System . . . . . . . . . . 158
Climate Controls . . . . . . . . . . . . . . 164
Driving and Operating . . . . . . . . . 175
Vehicle Care . . . . . . . . . . . . . . . . . . 244
Service and Maintenance . . . . . 322
Technical Data . . . . . . . . . . . . . . . . 331
Customer Information . . . . . . . . . 336
Index . . . . . . . . . . . . . . . . . . . . 338

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15

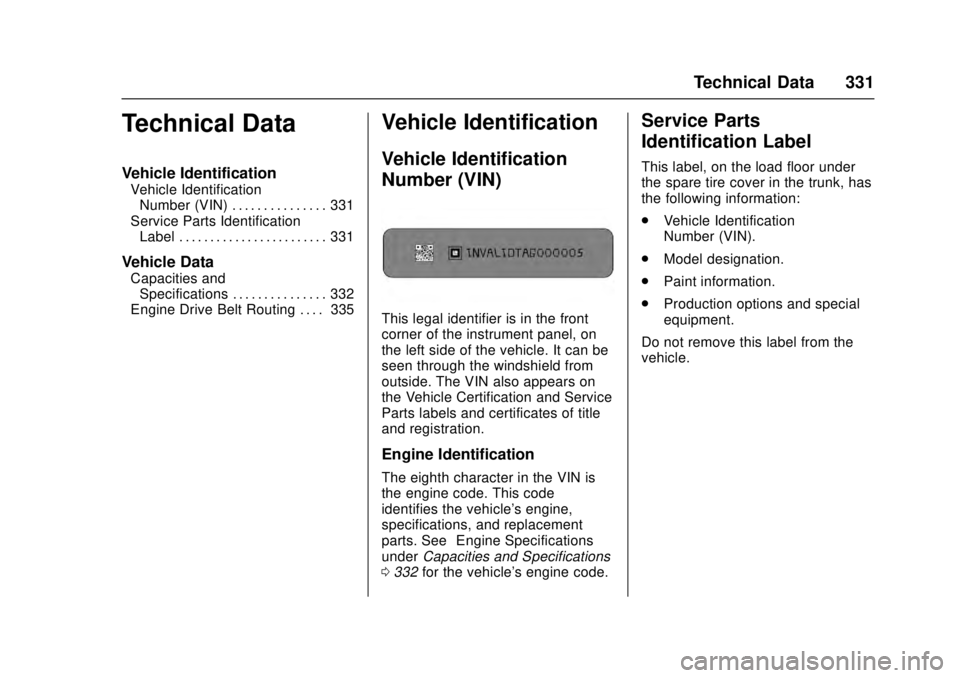

Technical Data 331
Technical Data
Vehicle Identification
Vehicle IdentificationNumber (VIN) . . . . . . . . . . . . . . . 331
Service Parts Identification Label . . . . . . . . . . . . . . . . . . . . . . . . 331
Vehicle Data
Capacities andSpecifications . . . . . . . . . . . . . . . 332
Engine Drive Belt Routing . . . . 335
Vehicle Identification
Vehicle Identification
Number (VIN)
This legal identifier is in the front
corner of the instrument panel, on
the left side of the vehicle. It can be
seen through the windshield from
outside. The VIN also appears on
the Vehicle Certification and Service
Parts labels and certificates of title
and registration.
Engine Identification
The eighth character in the VIN is
the engine code. This code
identifies the vehicle's engine,
specifications, and replacement
parts. See “Engine Specifications”
under Capacities and Specifications
0 332 for the vehicle's engine code.
Service Parts
Identification Label
This label, on the load floor under
the spare tire cover in the trunk, has
the following information:
.
Vehicle Identification
Number (VIN).
. Model designation.
. Paint information.
. Production options and special
equipment.
Do not remove this label from the
vehicle.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
332 Technical Data
Vehicle Data
Capacities and Specifications
The following approximate capacities are given in metric and English conversions. SeeRecommended Fluids and
Lubricants 0327 for more information.
Application Capacities
Metric English
Air Conditioning Refrigerant For the air conditioning system refrigerant type and charge amount, see the refrigerant label under thehood. See your dealer for more information.
Cooling System –Engine
2.0L L4 Engine 7.6 L 8.0 qt
2.5L L4 Engine 8.3 L 8.8 qt
3.6L V6 Engine 10.2 L 10.8 qt
Engine Oil with Filter
2.0L L4 Engine 4.7 L5.0 qt
2.5L L4 Engine 4.7 L5.0 qt
3.6L V6 Engine RWD (with oil cooler) 5.7 L6.0 qt
3.6L V6 Twin Turbo Engine 6.6 L7.0 qt
Fuel Tank 62.5 L16.5 gal
Wheel Nut Torque –ATS 140Y 100 lb ft

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Technical Data 333
ApplicationCapacities
Metric English
Wheel Nut Torque –ATS-V (Blue Tint Nut) 150 Y110 lb ft
Wheel Nut Torque –ATS-V (Silver Tint Nut) 190 Y140 lb ft
All capacities are approximate. When adding, be sure to fill to the approximate level, as recommended in this
manual. Recheck fluid level after filling.
Engine Specifications
Engine VIN Code Horsepower TorqueSpark Plug Gap
2.0L L4 Engine X203 kW@ 5600 rpm
(272 hp@ 5600 rpm) 400
Y@ 3800 rpm
(295 lb ft @
3800 rpm) 0.75–0.90 mm (0.030–
0.035 in)
2.5L L4 Engine A151 kW@ 6300 rpm
(202 hp@ 6300 rpm) 258
Y@ 4400 rpm
(190 lb ft @ 4400 rpm) 0.95–1.10 mm (0.037–
0.043 in)
3.6L V6 Engine 3239 kW@ 6800 rpm
(321 hp@ 6800 rpm) 372
Y@ 4800 rpm
(274 lb ft @ 4800 rpm) 0.80–0.90 mm (0.031–
0.035 in)
3.6L V6 Twin Turbo
Engine Y
339 kW@ 5750 rpm
(455 hp@ 5750 rpm) 603
Y@ 3500 rpm
(445 lb ft @ 3500 rpm) 0.75–0.90 mm (0.030–
0.035 in)

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
334 Technical Data

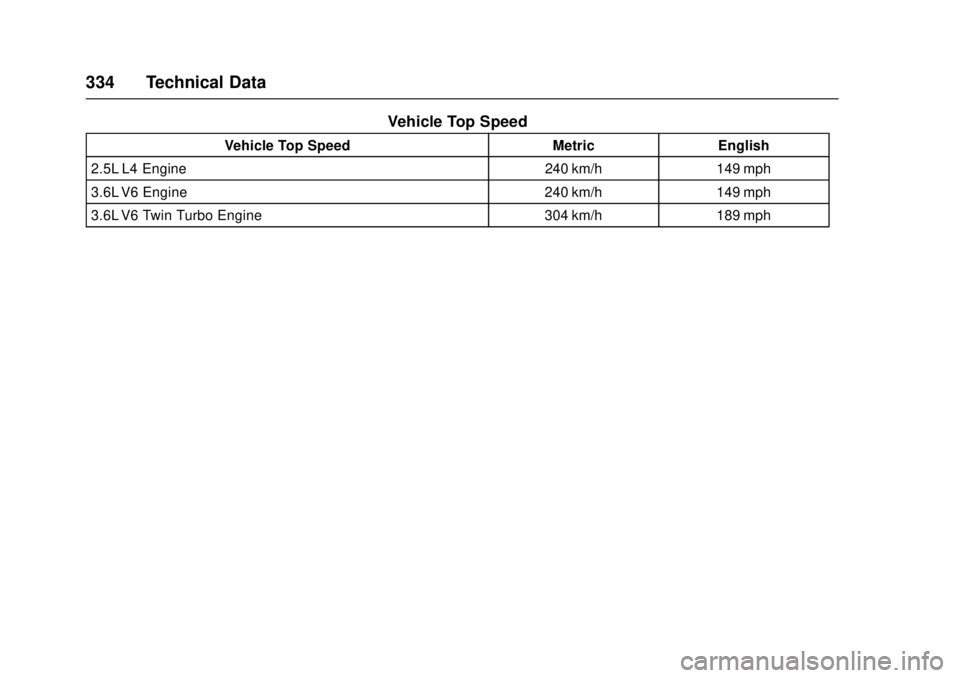

Vehicle Top Speed
Vehicle Top SpeedMetricEnglish
2.5L L4 Engine 240 km/h149 mph
3.6L V6 Engine 240 km/h149 mph
3.6L V6 Twin Turbo Engine 304 km/h189 mph

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Technical Data 335

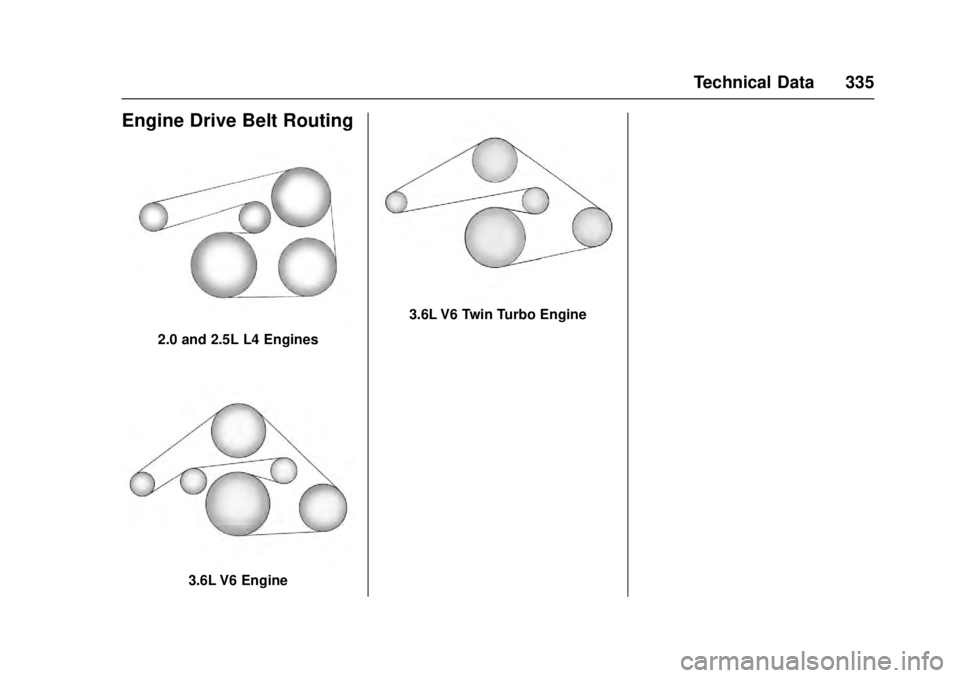

Engine Drive Belt Routing
2.0 and 2.5L L4 Engines
3.6L V6 Engine
3.6L V6 Twin Turbo Engine
