Page 104 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Instruments and Controls 103
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . 104
Steering Wheel Controls . . . . . . 105
Heated Steering Wheel . . . . . . . 105
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . 105
Windshield Wiper/Washer . . . . 105
Clock . . . . . . . . . . . . . . . . . . . . . . . . . 107
Power Outlets . . . . . . . . . . . . . . . . 107
Wireless Charging . . . . . . . . . . . . 109
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . 110
Instrument Cluster . . . . . . . . . . . . 111
Speedometer . . . . . . . . . . . . . . . . . 113
Odometer . . . . . . . . . . . . . . . . . . . . . 113
Trip Odometer . . . . . . . . . . . . . . . . 114
Tachometer . . . . . . . . . . . . . . . . . . . 114
Fuel Gauge . . . . . . . . . . . . . . . . . . . 114
Engine Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . 115
Safety Belt Reminders . . . . . . . . 116
Airbag Readiness Light . . . . . . . 116
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . 117 Charging System Light . . . . . . . 117
Malfunction Indicator Lamp
(Check Engine Light) . . . . . . . . 118
Brake System Warning Light . . . . . . . . . . . . . . . . . . . . . . . . 120
Parking Brake Light . . . . . . . . . . 120
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . 121
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . 121
Lane Keep Assist (LKA) Light . . . . . . . . . . . . . . . . . . . . . . . . 121
Vehicle Ahead Indicator . . . . . . 122
Traction Off Light . . . . . . . . . . . . . 122
StabiliTrak
®OFF Light . . . . . . . . 122
Traction Control System (TCS)/ StabiliTrak
®Light . . . . . . . . . . . 123
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . 123
Tire Pressure Light . . . . . . . . . . . 123
Engine Oil Pressure Light . . . . 124
Low Fuel Warning Light . . . . . . 124
Security Light . . . . . . . . . . . . . . . . . 125
High-Beam On Light . . . . . . . . . . 125
Adaptive Forward Lighting (AFL) Light . . . . . . . . . . . . . . . . . . 125
Lamps On Reminder . . . . . . . . . 125
Cruise Control Light . . . . . . . . . . 126
Information Displays
Driver Information Center (DIC) . . . . . . . . . . . . . . . . 126
Head-Up Display (HUD) . . . . . . 128
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . 131
Battery Voltage and Charging Messages . . . . . . . . . . . . . . . . . . . 132
Brake System Messages . . . . . 132
Cruise Control Messages . . . . . 133
Door Ajar Messages . . . . . . . . . . 133
Engine Cooling System Messages . . . . . . . . . . . . . . . . . . . 134
Engine Oil Messages . . . . . . . . . 134
Engine Power Messages . . . . . 135
Fuel System Messages . . . . . . . 135
Key and Lock Messages . . . . . 135
Lamp Messages . . . . . . . . . . . . . . 136
Object Detection System Messages . . . . . . . . . . . . . . . . . . . 136
Ride Control System Messages . . . . . . . . . . . . . . . . . . . 139
Airbag System Messages . . . . 139
Safety Belt Messages . . . . . . . . 139
Security Messages . . . . . . . . . . . 139
Service Vehicle Messages . . . . 139
Starting the Vehicle Messages . . . . . . . . . . . . . . . . . . . 140
Tire Messages . . . . . . . . . . . . . . . . 140
Transmission Messages . . . . . . 141
Page 111 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
110 Instruments and Controls
To charge a mobile device:1. Open the climate control system panel. 2. Remove all objects from the
charging pad. The system may
not charge if there are any
objects on the charging pad.
3. Place the mobile device face up on the
@symbol on the
charging pad.
4. The
~will display on theV
on the infotainment screen.
This indicates that the mobile
device is properly positioned
and charging. If a phone is
placed on the charging pad
and
~does not display,
remove the phone from the
pad, turn 180 degrees and wait
three seconds before placing/
aligning the phone on the pad
again.
Keep the storage door closed while
driving.
Warning Lights,
Gauges, and
Indicators
Warning lights and gauges can
signal that something is wrong
before it becomes serious enough
to cause an expensive repair or
replacement. Paying attention to the
warning lights and gauges could
prevent injury.
Some warning lights come on briefly
when the engine is started to
indicate they are working. When
one of the warning lights comes on
and stays on while driving, or when
one of the gauges shows there may
be a problem, check the section that
explains what to do. Waiting to do
repairs can be costly and even
dangerous.
Page 118 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Instruments and Controls 117
{Warning
If the airbag readiness light stays
on after the vehicle is started or
comes on while driving, it means
the airbag system might not be
working properly. The airbags in
the vehicle might not inflate in a
crash, or they could even inflate
without a crash. To help avoid
injury, have the vehicle serviced
right away.
If there is a problem with the airbag
system, a Driver Information Center
(DIC) message may also come on.
See Airbag System
Messages 0139.
Passenger Airbag Status
Indicator
The vehicle has a passenger
sensing system. See Passenger
Sensing System 076 for important
safety information. The passenger
airbag status indicator is in the
overhead console.
When the vehicle is started, the
passenger airbag status indicator
will light the symbol for on and off
for several seconds as a system
check. Then, after several more
seconds, the status indicator will
light either the on or off symbol to let
you know the status of the front
outboard passenger frontal airbag
and knee airbag.
If the on symbol is lit on the
passenger airbag status indicator, it
means that the front outboard
passenger frontal airbag and knee
airbag are allowed to inflate.
If the off symbol is lit on the airbag
status indicator, it means that the
passenger sensing system has
turned off the front outboard
passenger frontal airbag and knee
airbag. If, after several seconds, both status
indicator lights remain on, or if there
are no lights at all, there may be a
problem with the lights or the
passenger sensing system. See
your dealer for service.{Warning
If the airbag readiness light ever
comes on and stays on, it means
that something may be wrong
with the airbag system. To help
avoid injury to yourself or others,
have the vehicle serviced right
away. See
Airbag Readiness
Light 0116 for more information,
including important safety
information.
Charging System Light
Page 192 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Driving and Operating 191
.New brake linings also need a
break-in period. Avoid making
hard stops during the first
322 km (200 mi). This is
recommended every time brake
linings are replaced.
Carbon Fiber
This vehicle may be equipped with
carbon fiber parts. Dealer-installed
accessories may also contain
carbon fiber.
{Warning
The exposed edges of carbon
fiber parts can be sharp when
damaged. You or others could be
injured. Use caution when
washing the vehicle, coming in
contact with damaged carbon
fiber parts, or removing these
parts. See your dealer for
replacement.
Ignition Positions
The vehicle has an electronic
keyless ignition with pushbutton
start.
Pressing the button cycles it through
three modes: ACC/ACCESSORY,
ON/RUN/START, and Stopping the
Engine/OFF.
The Remote Keyless Entry (RKE)
transmitter must be in the vehicle for
the system to operate. If the
pushbutton start is not working, the
vehicle may be near a strong radio
antenna signal causing interference to the keyless access system. See
Remote Keyless Entry (RKE)
System Operation
029.
To shift out of P (Park), the vehicle
must be in ON/RUN and the brake
pedal must be applied.
Stopping the Engine/OFF (No
Indicator Lights) : When the
vehicle is stopped, press the
ENGINE START/STOP button once
to turn the engine off.
If the vehicle is in P (Park), the
ignition will turn off, and Retained
Accessory Power (RAP) will remain
active. See Retained Accessory
Power (RAP) 0195.
If the vehicle is not in P (Park), the
ignition will return to ACC/
ACCESSORY and display a
message in the Driver Information
Center (DIC). See Transmission
Messages 0141. When the vehicle
is shifted into P (Park), the ignition
system will switch to OFF.
Page 227 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
226 Driving and Operating

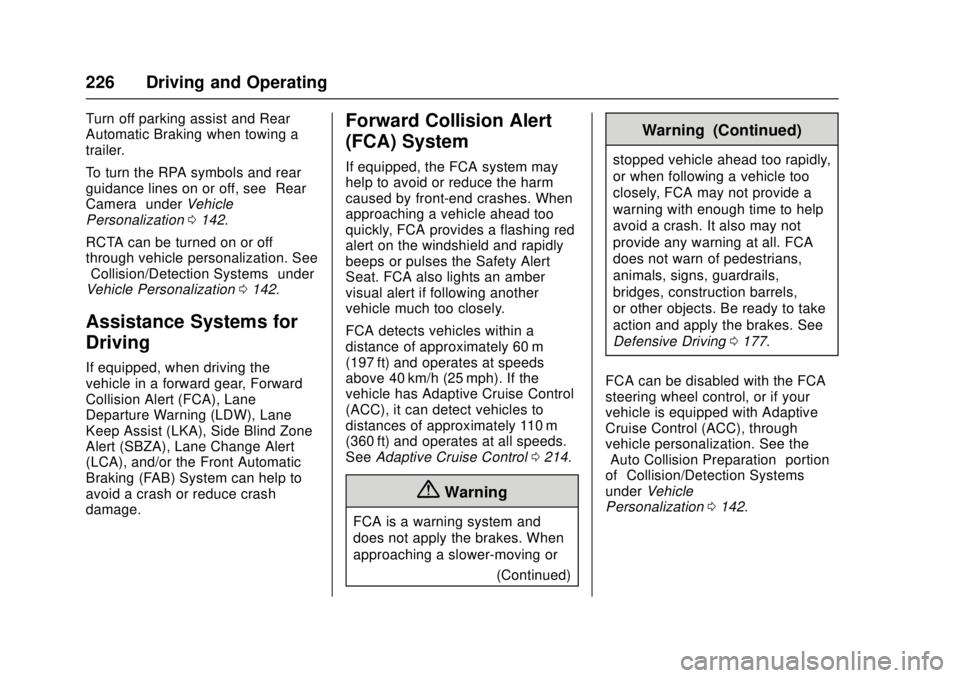

Turn off parking assist and Rear
Automatic Braking when towing a
trailer.
To turn the RPA symbols and rear
guidance lines on or off, see“Rear
Camera” underVehicle
Personalization 0142.
RCTA can be turned on or off
through vehicle personalization. See
“Collision/Detection Systems” under
Vehicle Personalization 0142.
Assistance Systems for
Driving
If equipped, when driving the
vehicle in a forward gear, Forward
Collision Alert (FCA), Lane
Departure Warning (LDW), Lane
Keep Assist (LKA), Side Blind Zone
Alert (SBZA), Lane Change Alert
(LCA), and/or the Front Automatic
Braking (FAB) System can help to
avoid a crash or reduce crash
damage.
Forward Collision Alert
(FCA) System
If equipped, the FCA system may
help to avoid or reduce the harm
caused by front-end crashes. When
approaching a vehicle ahead too
quickly, FCA provides a flashing red
alert on the windshield and rapidly
beeps or pulses the Safety Alert
Seat. FCA also lights an amber
visual alert if following another
vehicle much too closely.
FCA detects vehicles within a
distance of approximately 60 m
(197 ft) and operates at speeds
above 40 km/h (25 mph). If the
vehicle has Adaptive Cruise Control
(ACC), it can detect vehicles to
distances of approximately 110 m
(360 ft) and operates at all speeds.
See Adaptive Cruise Control 0214.
{Warning
FCA is a warning system and
does not apply the brakes. When
approaching a slower-moving or
(Continued)
Warning (Continued)
stopped vehicle ahead too rapidly,
or when following a vehicle too
closely, FCA may not provide a
warning with enough time to help
avoid a crash. It also may not
provide any warning at all. FCA
does not warn of pedestrians,
animals, signs, guardrails,
bridges, construction barrels,
or other objects. Be ready to take
action and apply the brakes. See
Defensive Driving0177.
FCA can be disabled with the FCA
steering wheel control, or if your
vehicle is equipped with Adaptive
Cruise Control (ACC), through
vehicle personalization. See the
“Auto Collision Preparation” portion
of “Collision/Detection Systems”
under Vehicle
Personalization 0142.
Page 232 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Driving and Operating 231
LCA Detection Zones
1. SBZA Detection Zone
2. LCA Detection Zone
The LCA sensor covers a zone of
approximately one lane over from
both sides of the vehicle, or 3.5 m
(11 ft). The height of the zone is
approximately between 0.5 m (1.5 ft)
and 2 m (6 ft) off the ground. The
Side Blind Zone Alert (SBZA)
warning area starts at approximately
the middle of the vehicle and goes
back 5 m (16 ft). Drivers are also
warned of vehicles rapidly
approaching from up to 25 m (82 ft)
behind the vehicle.
How the System Works
The LCA symbol lights up in the
side mirrors when the system
detects a moving vehicle in the next
lane over that is in the side blind
zone or rapidly approaching from
behind. A lit LCA symbol indicates it
may be unsafe to change lanes.
Before making a lane change,
check the LCA display, check
mirrors, glance over your shoulder,
and use the turn signals.
Left Side MirrorDisplayRight Side Mirror Display
When the vehicle is started, both
outside mirror LCA displays will
briefly come on to indicate the
system is operating. When the
vehicle is in a forward gear, the left
or right side mirror display will light
up if a moving vehicle is detected in
the next lane over in that blind zone or rapidly approaching that zone.
If the turn signal is activated in the
same direction as a detected
vehicle, this display will flash as an
extra warning not to change lanes.
LCA can be disabled through
vehicle personalization. See
“Collision/Detection Systems”
under
Vehicle Personalization 0142.
If LCA is disabled by the driver, the
LCA mirror displays will not light up.
When the System Does Not
Seem to Work Properly
The LCA system requires some
driving for the system to calibrate to
maximum performance. This
calibration may occur more quickly if
the vehicle is driven on a straight
highway road with traffic and
roadside objects (e.g., guardrails,
barriers). During a trip, the LCA
system is not operational until the
vehicle first reaches a speed of
24 km/h (15 mph).
LCA displays may not come on
when passing a vehicle quickly, for
a stopped vehicle, or when towing a
trailer. The LCA detection zones
that extend back from the side of
Page 310 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Vehicle Care 309
Caution
If any accessories are left on or
plugged in during the jump
starting procedure, they could be
damaged. The repairs would not
be covered by the vehicle
warranty. Whenever possible, turn
off or unplug all accessories on
either vehicle when jump starting.
4. Set the ignition to OFF. Turn off all lights and accessories in
both vehicles, except the
hazard warning flashers if
needed.
{Warning
An electric fan can start up even
when the engine is not running
and can injure you. Keep hands,
clothing, and tools away from any
underhood electric fan.
{Warning
Using a match near a battery can
cause battery gas to explode.
People have been hurt doing this,
and some have been blinded.
Use a flashlight if you need more
light.
Battery fluid contains acid that
can burn you. Do not get it on
you. If you accidentally get it in
your eyes or on your skin, flush
the place with water and get
medical help immediately.
{Warning
Fans or other moving engine
parts can injure you badly. Keep
your hands away from moving
parts once the engine is running.
5. Connect one end of the red positive (+) cable to the
positive (+) terminal on the
discharged battery. 6. Connect the other end of the
red positive (+) cable to the
positive (+) terminal of the good
battery.
7. Connect one end of the black negative (–) cable to the
negative (–) terminal of the
good battery.
8. Connect the other end of the black negative (–) cable to the
negative (–) grounding point for
the discharged battery.
9. Start the engine in the vehicle with the good battery and run
the engine at idle speed for at
least four minutes.
10. Try to start the vehicle that had the dead battery. If it will not
start after a few tries, it
probably needs service.
Caution
If the jumper cables are
connected or removed in the
wrong order, electrical shorting
may occur and damage the
(Continued)
Page 342 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Index 341
Engine (cont'd)Oil Messages . . . . . . . . . . . . . . . . . 134
Oil Pressure Light . . . . . . . . . . . . 124
Overheating . . . . . . . . . . . . . . . . . . 264
Power Messages . . . . . . . . . . . . . 135
Running While Parked . . . . . . . . 197
Starting . . . . . . . . . . . . . . . . . . . . . . . 193
Entry Lighting . . . . . . . . . . . . . . . . . . . 157
Equipment, Towing . . . . . . . . . . . . . 242
Event Data Recorders . . . . . . . . . . 336
Exit Lighting . . . . . . . . . . . . . . . . . . . . 157
Exterior Lamp Controls . . . . . . . . . 150
Exterior Lamps Off Reminder . . . 152
Exterior Lighting Battery Saver . . . . . . . . . . . . . . . . . . . . . . . . . 157
F
FeaturesMemory . . . . . . . . . . . . . . . . . . . . . . . . . 14
Filter, Engine Air Cleaner . . . . . . . . . . . 258
Flash-to-Pass . . . . . . . . . . . . . . . . . . . 152
Flashers, Hazard Warning . . . . . . 154
Flat Tire . . . . . . . . . . . . . . . . . . . . . . . . 299
Floor Mats . . . . . . . . . . . . . . . . . . . . . . 320
Fluid Automatic Transmission . . . . . . 257
Brakes . . . . . . . . . . . . . . . . . . . . . . . . 267
Washer . . . . . . . . . . . . . . . . . . . . . . . 266 Folding Mirrors . . . . . . . . . . . . . . . . . . 44
Forward Collision Alert
(FCA) System . . . . . . . . . . . . . . . . . 226
Front Automatic Braking (FAB) System . . . . . . . . . . . . . . . . . 229
Front Seats Heated . . . . . . . . . . . . . . . . . . . . . . . . . 59
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 234 Additives . . . . . . . . . . . . . . . . . . . . . 235
Economy Driving . . . . . . . . . . . . . . . 27
Filling a Portable FuelContainer . . . . . . . . . . . . . . . . . . . 238
Filling the Tank . . . . . . . . . . . . . . . 235
Gauge . . . . . . . . . . . . . . . . . . . . . . . . .114
Low Fuel Warning Light . . . . . . . 124
System Messages . . . . . . . . . . . . 135
Fuses Engine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . 275
Fuses and Circuit Breakers . . . 275
Instrument Panel Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 278
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . 281
G
GaugesEngine CoolantTemperature . . . . . . . . . . . . . . . . .115
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . .114
Odometer . . . . . . . . . . . . . . . . . . . . . .113
Speedometer . . . . . . . . . . . . . . . . . .113
Tachometer . . . . . . . . . . . . . . . . . . . .114
Trip Odometer . . . . . . . . . . . . . . . . .114
Warning Lights and
Indicators . . . . . . . . . . . . . . . . . . . .110
General Information Service and Maintenance . . . . . 322
Towing . . . . . . . . . . . . . . . . . . . . . . . . 238
Vehicle Care . . . . . . . . . . . . . . . . . . 245
Glove Box . . . . . . . . . . . . . . . . . . . . . . 101
H
Halogen Bulbs . . . . . . . . . . . . . . . . . . 272
Hazard Warning Flashers . . . . . . . 154
Head Restraints . . . . . . . . . . . . . . . . . 51
Head-up Display . . . . . . . . . . . . . . . . 128
Headlamps Adaptive Forward
Lighting (AFL) . . . . . . . . . . . . . . . 154
Aiming . . . . . . . . . . . . . . . . . . . . . . . . 272
Automatic . . . . . . . . . . . . . . . . . . . . . 153
Bulb Replacement . . . . . . . . . . . . 272
Page 344 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Index 343
LightAdaptive Forward Lighting
(AFL) Light . . . . . . . . . . . . . . . . . . 125
Parking Brake . . . . . . . . . . . . . . . . 120
Lighting Adaptive Forward . . . . . . . . . . . . . 154
Entry . . . . . . . . . . . . . . . . . . . . . . . . . 157
Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . 157
Illumination Control . . . . . . . . . . . 155
LED . . . . . . . . . . . . . . . . . . . . . . . . . . 272
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 121
Airbag Readiness . . . . . . . . . . . . . .116
Antilock Brake System(ABS) Warning . . . . . . . . . . . . . . 121
Brake System Warning . . . . . . . 120
Charging System . . . . . . . . . . . . . .117
Cruise Control . . . . . . . . . . . . . . . . 126
Engine Coolant Temperature Warning . . . . . . . 123
Engine Oil Pressure . . . . . . . . . . 124
Flash-to-Pass . . . . . . . . . . . . . . . . . 152
High-Beam On . . . . . . . . . . . . . . . . 125
High/Low Beam Changer . . . . . 152
Low Fuel Warning . . . . . . . . . . . . 124
Safety Belt Reminders . . . . . . . . .116
Security . . . . . . . . . . . . . . . . . . . . . . 125
Service Electric Parking Brake . . . . . . . . . . . . . . . . . . . . . . . 121 Lights (cont'd)
StabiliTrak®OFF . . . . . . . . . . . . . 122
Tire Pressure . . . . . . . . . . . . . . . . . 123
Traction Control System (TCS)/StabiliTrak
®. . . . . . . . . . 123
Traction Off . . . . . . . . . . . . . . . . . . . 122
Limited-Slip Rear Axle . . . . . . . . . . 211
Locks Automatic Door . . . . . . . . . . . . . . . . . 37
Delayed Locking . . . . . . . . . . . . . . . . 37
Door . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Lockout Protection . . . . . . . . . . . . . . 37
Power Door . . . . . . . . . . . . . . . . . . . . . 37
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Loss of Control . . . . . . . . . . . . . . . . . 179
Low Fuel Warning Light . . . . . . . . . 124
Lower Anchors and Tethers for Children (LATCH
System) . . . . . . . . . . . . . . . . . . . . . . . . 89
Lumbar Adjustment . . . . . . . . . . . . . . 56 Front Seats . . . . . . . . . . . . . . . . . . . . . 56
M
MaintenanceRecords . . . . . . . . . . . . . . . . . . . . . . 330
Maintenance Schedule . . . . . . . . . 323 Recommended Fluids and
Lubricants . . . . . . . . . . . . . . . . . . . 327
Malfunction Indicator Lamp . . . . . 118
Manual Mode . . . . . . . . . . . . . . . . . . . 200
Memory Features . . . . . . . . . . . . . . . . 14
Memory Seats . . . . . . . . . . . . . . . . . . . 58
Messages Airbag System . . . . . . . . . . . . . . . . 139
Battery Voltage andCharging . . . . . . . . . . . . . . . . . . . . 132
Brake System . . . . . . . . . . . . . . . . 132
Door Ajar . . . . . . . . . . . . . . . . . . . . . 133
Engine Cooling System . . . . . . . 134
Engine Oil . . . . . . . . . . . . . . . . . . . . 134
Engine Power . . . . . . . . . . . . . . . . 135
Fuel System . . . . . . . . . . . . . . . . . . 135
Key and Lock . . . . . . . . . . . . . . . . . 135
Lamp . . . . . . . . . . . . . . . . . . . . . . . . . 136
Object Detection System . . . . . 136
Ride Control System . . . . . . . . . . 139
Safety Belt . . . . . . . . . . . . . . . . . . . . 139
Security . . . . . . . . . . . . . . . . . . . . . . 139
Service Vehicle . . . . . . . . . . . . . . . 139
Starting the Vehicle . . . . . . . . . . . 140
Page 348 of 348
Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-9369639) -
2016 - crc - 12/9/15
Index 347
Traction (cont'd)Limited-Slip Rear Axle . . . . . . . . .211
Off Light . . . . . . . . . . . . . . . . . . . . . . 122
Traction Control/Electronic
Stability Control . . . . . . . . . . . . . . . 205
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . 241
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . 198
Fluid, Automatic . . . . . . . . . . . . . . 257
Messages . . . . . . . . . . . . . . . . . . . . 141
Trip Odometer . . . . . . . . . . . . . . . . . . 114
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Turn and Lane-Change Signals . . . . . . . . . . . . . . . . . . . . . . . . 154
V
VehicleAlarm System . . . . . . . . . . . . . . . . . . 41
Control . . . . . . . . . . . . . . . . . . . . . . . 177
Identification Number (VIN) . . . 331
Load Limits . . . . . . . . . . . . . . . . . . . 187
Messages . . . . . . . . . . . . . . . . . . . . 131
Personalization . . . . . . . . . . . . . . . 142
Reminder Messages . . . . . . . . . . 141
Remote Start . . . . . . . . . . . . . . . . . . . 34
Security . . . . . . . . . . . . . . . . . . . . . . . . 41
Speed Messages . . . . . . . . . . . . . 141 Vehicle (cont'd)
Towing . . . . . . . . . . . . . . . . . . . . . . . . 310
Vehicle Ahead Indicator . . . . . . . . 122
Vehicle Care Storing the Tire Sealantand Compressor Kit . . . . . . . . . 307
Tire Pressure . . . . . . . . . . . . . . . . . 286
Vehicle Data Recording and Privacy . . . . . . . . . . . . . . . . . . . . . . . . 336
Ventilation, Air . . . . . . . . . . . . . . . . . . 173
Visors . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
W
Warning Brake System Light . . . . . . . . . . . 120
Caution and Danger . . . . . . . . . . . . . 2
Lane Departure (LDW) . . . . . . . 232
Warning Lights, Gauges, and Indicators . . . . . . . . . . . . . . . . . . . . . 110
Warnings Hazard Flashers . . . . . . . . . . . . . . 154
Washer Fluid . . . . . . . . . . . . . . . . . . . 266 Messages . . . . . . . . . . . . . . . . . . . . 141
Wheels
Alignment and Tire Balance . . 296
Different Size . . . . . . . . . . . . . . . . . 296
Replacement . . . . . . . . . . . . . . . . . 297
When It Is Time for New
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . 294 Where to Put the Restraint . . . . . . 88
Windows . . . . . . . . . . . . . . . . . . . . . . . . 45
Power . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Windshield Replacement . . . . . . . . . . . . . . . . . 271
Wiper/Washer . . . . . . . . . . . . . . . . 105
Winter
Driving . . . . . . . . . . . . . . . . . . . . . . . . 185
Winter Tires . . . . . . . . . . . . . . . . . . . . 284
Wiper Blade Replacement . . . . . . 271
Wireless Charging . . . . . . . . . . . . . . 109
