Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
112 INSTRUMENTS AND CONTROLS
Instruments and
Controls
Controls
Steering Wheel Adjustment . . . . . 113
Steering Wheel Controls . . . . . . . . . 113
Heated Steering Wheel . . . . . . . . . . 113
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Windshield Wiper/Washer . . . . . . . 113
Compass . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Power Outlets . . . . . . . . . . . . . . . . . . . . . 115
Wireless Charging . . . . . . . . . . . . . . . . 117
Cigarette Lighter . . . . . . . . . . . . . . . . . . 119
Warning Lights, Gauges, and
Indicators
Warning Lights, Gauges, andIndicators . . . . . . . . . . . . . . . . . . . . . . . 120
Instrument Cluster . . . . . . . . . . . . . . . 121
Speedometer . . . . . . . . . . . . . . . . . . . . . . 125
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . 125
Trip Odometer . . . . . . . . . . . . . . . . . . . . 125
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 125
Fuel Gauge . . . . . . . . . . . . . . . . . . . . . . . . 125
Boost Gauge (Performance Configuration Only) . . . . . . . . . . . . 126 Engine Oil Temperature Gauge
(Performance
Configuration Only) . . . . . . . . . . . . 127
Engine Coolant Temperature Gauge . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128
Seat Belt Reminders . . . . . . . . . . . . . . 128
Airbag Readiness Light . . . . . . . . . . 129
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . 130
Charging System Light . . . . . . . . . . . 131
Malfunction Indicator Lamp (Check Engine Light) . . . . . . . . . . . 131
Brake System Warning Light . . . . 133
Electric Parking Brake Light . . . . . 133
Service Electric Parking Brake Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Antilock Brake System (ABS) Warning Light . . . . . . . . . . . . . . . . . . 134
Lane Departure Warning (LDW) Light . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134
Lane Keep Assist (LKA) Light . . . 135
Vehicle Ahead Indicator . . . . . . . . . 135
Traction Off Light . . . . . . . . . . . . . . . . 135
StabiliTrak OFF Light . . . . . . . . . . . . 136
Traction Control System (TCS)/ StabiliTrak Light . . . . . . . . . . . . . . . . 136
Engine Coolant Temperature Warning Light . . . . . . . . . . . . . . . . . . 136
Tire Pressure Light . . . . . . . . . . . . . . . 137
Engine Oil Pressure Light . . . . . . . . 137 Low Fuel Warning Light . . . . . . . . . 138
Security Light . . . . . . . . . . . . . . . . . . . . . 138
High-Beam On Light . . . . . . . . . . . . . 138
Lamps On Reminder . . . . . . . . . . . . . 138
Cruise Control Light . . . . . . . . . . . . . . 139
Door Ajar Light . . . . . . . . . . . . . . . . . . . 139
Information Displays
Driver Information
Center (DIC) . . . . . . . . . . . . . . . . . . . . . 139
Head-Up Display (HUD) . . . . . . . . . 142
Vehicle Messages
Vehicle Messages . . . . . . . . . . . . . . . . . 146
Engine Power Messages . . . . . . . . . . 146
Vehicle Speed Messages . . . . . . . . . 146
Vehicle Personalization
Vehicle Personalization . . . . . . . . . . 147
Universal Remote System
Universal Remote System . . . . . . . . 151
Universal Remote System Programming . . . . . . . . . . . . . . . . . . . 151
Universal Remote System Operation . . . . . . . . . . . . . . . . . . . . . . . . 154

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
INSTRUMENTS AND CONTROLS 125
Head-up Display (HUD) Rotation :
This feature allows for adjusting the
angle of the HUD image. Press SEL on
the steering wheel controls while
Head-up Display Rotation is
highlighted to enter Adjust Mode.
Press
yorzto adjust the angle of
the HUD display. Press
SorTto
highlight OK, then press SEL to save
the setting. Cancel can also be
selected to cancel the setting. The
vehicle must be in P (Park).
Open Source Software : Press SEL
while Open Source Software is
highlighted to display open source
software information.
Speedometer
The speedometer shows the vehicle's
speed in either kilometers per hour
(km/h) or miles per hour (mph).
Odometer
The odometer shows how far the
vehicle has been driven, in either
kilometers or miles.
Trip Odometer
The trip odometer shows how far the
vehicle has been driven since the trip
odometer was last reset.
The trip odometer is accessed and
reset through the Driver Information
Center (DIC). See Driver Information
Center (DIC) 0139.
Tachometer
The tachometer displays the engine
speed in revolutions per minute (rpm).
Caution
If the engine is operated with the
rpm’s in the warning area at the
high end of the tachometer, the
vehicle could be damaged, and the
damage would not be covered by
the vehicle warranty. Do not operate
the engine with the rpm’s in the
warning area.
Fuel Gauge
Base Level

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
140 INSTRUMENTS AND CONTROLS
SEL :Press to open a menu or select a
menu item. Press and hold to reset
values on certain screens.
DIC Information Display Options
The info displays on the DIC can be
turned on or off through the
Options menu.
1. Press SEL while viewing the Options page in one of the
interactive display zones on the
cluster.
2. Scroll to Info Pages and press SEL.
3. Press
yorzto move through
the list of possible info displays.
4. Press SEL while an item is highlighted to select or deselect
that item. When an item is
selected, a checkmark will appear
next to it.
DIC Information Displays
The following is the list of all possible
DIC information displays. Some of the
information displays may not be
available for your particular vehicle. Speed (Base Cluster) :
Shows the
vehicle speed in either kilometers per
hour (km/h) or miles per hour (mph).
Trip 1 or Trip 2 (Base Cluster) / Trip
1 or Trip 2 and Average Fuel
Economy (Uplevel Cluster) : The Trip
display shows the current distance
traveled, in either kilometers (km) or
miles (mi), since the trip odometer
was last reset. The trip odometer can
be reset by pressing and holding SEL
while this display is active.
The Average Fuel Economy display
shows the approximate average liters
per 100 kilometers (L/100 km) or
miles per gallon (mpg). This number
is calculated based on the number of
L/100 km (mpg) recorded since the
last time this menu item was reset.
This number reflects only the
approximate average fuel economy
that the vehicle has right now, and
will change as driving conditions
change. The Average Fuel Economy
can be reset along with the trip
odometer by pressing and holding SEL
while this display is active. Fuel Range :
Shows the approximate
distance the vehicle can be driven
without refueling. LOW will be
displayed when the vehicle is low on
fuel. The fuel range estimate is based
on an average of the vehicle's fuel
economy over recent driving history
and the amount of fuel remaining in
the fuel tank.
Average Fuel Economy (Base
Cluster) : Shows the approximate
average liters per 100 kilometers (L/
100 km) or miles per gallon (mpg).
This number is calculated based on
the number of L/100 km (mpg)
recorded since the last time this menu
item was reset. This number reflects
only the approximate average fuel
economy that the vehicle has right
now, and will change as driving
conditions change. The Average Fuel
Economy can be reset by pressing and
holding SEL while this display is
active.
Instantaneous Fuel Economy : Shows
the current fuel economy in either
liters per 100 kilometers (L/100 km) or
miles per gallon (mpg). This number
reflects only the approximate fuel

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
142 INSTRUMENTS AND CONTROLS
Oil Life :Shows an estimate of the
oil's remaining useful life.
If REMAINING OIL LIFE 99% is
displayed, that means 99% of the
current oil life remains.
When the remaining oil life is low, the
CHANGE ENGINE OIL SOON message
will appear on the display. The oil
should be changed as soon as
possible. See Engine Oil0244. In
addition to the engine oil life system
monitoring the oil life, additional
maintenance is recommended. See
Maintenance Schedule 0322.
The Oil Life display must be reset
after each oil change. It will not reset
itself. Do not reset the Oil Life display
accidentally at any time other than
when the oil has just been changed.
It cannot be reset accurately until the
next oil change. To reset the engine
oil life system, press and hold SEL for
several seconds while the Oil Life
display is active. See Engine Oil Life
System 0246.
Tire Pressure : Shows the
approximate pressures of all four tires.
Tire pressure is displayed in either
kilopascal (kPa) or in pounds per square inch (psi). If the pressure is
low, the value for that tire is shown in
amber.
See
Tire Pressure Monitor System 0281
and Tire Pressure Monitor Operation
0 282.
Vehicle Odometer (Base Cluster) :
Shows the odometer.
Blank Page : Allows for no
information to be displayed in the
cluster info display areas.
Head-Up Display (HUD)
{Warning
If the HUD image is too bright or
too high in your field of view, it
may take you more time to see
things you need to see when it is
dark outside. Be sure to keep the
HUD image dim and placed low in
your field of view.
If equipped with HUD, some
information concerning the operation
of the vehicle is projected onto the
windshield. The image is projected through the HUD lens on top of the
instrument panel. The information
appears as an image focused out
toward the front of the vehicle.
Caution
If you try to use the HUD image as
a parking aid, you may misjudge
the distance and damage your
vehicle. Do not use the HUD image
as a parking aid.
The HUD information can be
displayed in various languages. The
speedometer reading and other
numerical values can be displayed in
either English or metric units.
The language selection is changed
through the radio and the units of
measurement is changed through the
instrument cluster. See “Settings”in
the Infotainment Manual and
“Options” underInstrument Cluster
0 121.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
VEHICLE CARE 291
{Warning
Using the wrong replacement
wheels, wheel bolts, or wheel nuts
can be dangerous. It could affect
the braking and handling of the
vehicle. Tires can lose air, and
cause loss of control, causing a
crash. Always use the correct wheel,
wheel bolts, and wheel nuts for
replacement.
Caution
The wrong wheel can also cause
problems with bearing life, brake
cooling, speedometer or odometer
calibration, headlamp aim, bumper
height, vehicle ground clearance,
and tire or tire chain clearance to
the body and chassis.
Professional vehicle wheels have a
unique offset and bolt hole diameter.
Professional vehicle wheels have six wheel nuts. Non-professional vehicle
wheels have five wheel nuts. See
Tire
Changing 0300.
Used Replacement Wheels
{Warning
Replacing a wheel with a used one
is dangerous. How it has been used
or how far it has been driven may
be unknown. It could fail suddenly
and cause a crash. When replacing
wheels, use a new GM original
equipment wheel.
Tire Chains
{Warning
Do not use tire chains. There is not
enough clearance. Tire chains used
on a vehicle without the proper
amount of clearance can cause
damage to the brakes, suspension,
(Continued)
Warning (Continued)
or other vehicle parts. The area
damaged by the tire chains could
cause loss of control and a crash.
Use another type of traction device
only if its manufacturer
recommends it for the vehicle's tire
size combination and road
conditions. Follow that
manufacturer's instructions. To
avoid vehicle damage, drive slow
and readjust or remove the traction
device if it contacts the vehicle. Do
not spin the wheels. If traction
devices are used, install them on
the front tires.
If a Tire Goes Flat
It is unusual for a tire to blow out
while driving, especially if the tires are
maintained properly. See Tires0272.
If air goes out of a tire, it is much
more likely to leak out slowly. But if
there is ever a blowout, here are a few
tips about what to expect and what
to do:

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
SERVICE AND MAINTENANCE 335

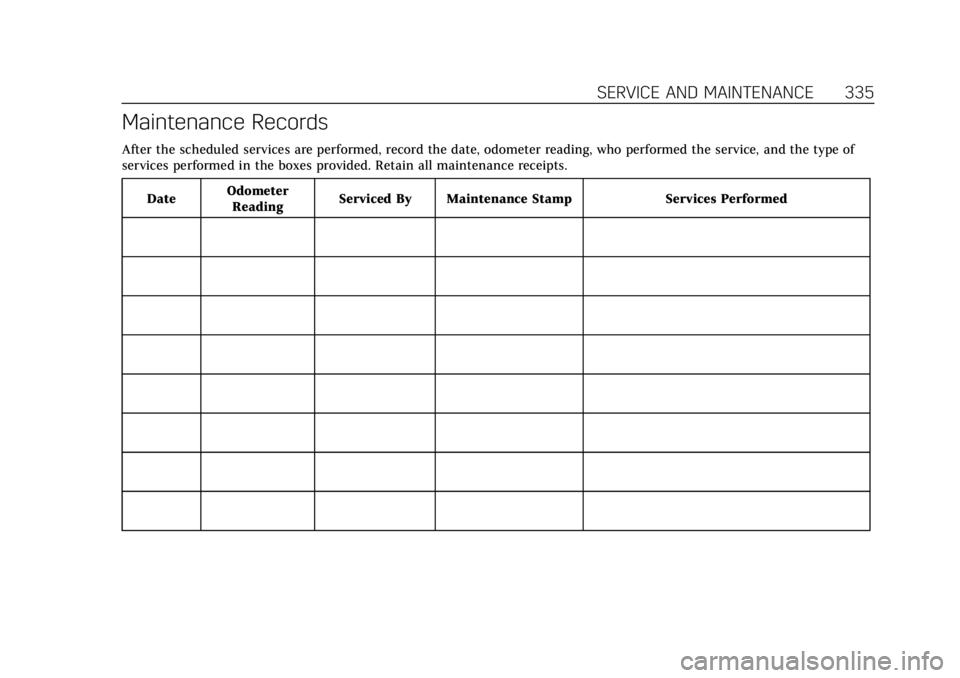

Maintenance Records
After the scheduled services are performed, record the date, odometer reading, who performed the service, and the type of
services performed in the boxes provided. Retain all maintenance receipts.Date Odometer
Reading Serviced By Maintenance Stamp Services Performed

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
CUSTOMER INFORMATION 343
General Motors of Canada also has a
Mobility program. See www.gm.ca or
call 1-800-GM-DRIVE (800-463-7483)
for details. TTY users call
1-800-263-3830.
Roadside Service
U.S.: 1-800-224-1400.
Canada: 1-800-882-1112.
Text Telephone (TTY) Users (U.S.
Only): 1-888-889-2438.
Service is available 24 hours a day,
365 days a year.
Calling for Service
When calling Roadside Service, have
the following information ready:
.Your name, home address, and
home telephone number
. Telephone number of your
location
. Location of the vehicle
. Model, year, color, and license
plate number of the vehicle .
Odometer reading, Vehicle
Identification Number (VIN), and
delivery date of the vehicle
. Description of the problem
Coverage
Services are provided for the duration
of the vehicle’s powertrain warranty.
In the U.S., anyone driving the vehicle
is covered. In Canada, a person driving
the vehicle without permission from
the owner is not covered.
Roadside Service is not a part of the
New Vehicle Limited Warranty.
General Motors North America and
Cadillac reserve the right to make any
changes or discontinue the Roadside
Service program at any time without
notification.
General Motors North America and
Cadillac reserve the right to limit
services or payment to an owner or
driver if they decide the claims are
made too often, or the same type of
claim is made many times.
Cadillac Owner Privileges ™
.
Emergency Fuel Delivery:
Delivery of enough fuel for the
vehicle to get to the nearest
service station.
. Lock-Out Service: Service to
unlock the vehicle if you are
locked out. A remote unlock may
be available if you have OnStar.
For security reasons, the driver
must present identification before
this service is given.
. Emergency Tow from a Public
Road or Highway: Tow to the
nearest Cadillac dealer for
warranty service, or if the vehicle
was in a crash and cannot be
driven. Assistance is not given
when the vehicle is stuck in the
sand, mud, or snow.
. Flat Tire Change: Service to
change a flat tire with a spare tire.
The spare tire, if equipped, must
be in good condition and properly
inflated. It is your responsibility
for the repair or replacement of
the tire if it is not covered by the
warranty.

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
368 INDEX
Full-Size Spare Tire . . . . . . . . . . . . . . . . . 305
FusesEngine Compartment FuseBlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265
Fuses and Circuit Breakers . . . . . . . 265
Instrument Panel Fuse Block . . . . 268
Rear Compartment Fuse Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270
G
Garage Door Opener . . . . . . . . . . . . . . . . 151Programming . . . . . . . . . . . . . . . . . . . . . . 151
Gas Strut(s) . . . . . . . . . . . . . . . . . . . . . . . . . 261
Gauges Boost . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Engine Coolant Temperature . . . . 128
Engine Oil Temperature . . . . . . . . . . 127
Fuel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Speedometer . . . . . . . . . . . . . . . . . . . . . . 125
Tachometer . . . . . . . . . . . . . . . . . . . . . . . 125
Trip Odometer . . . . . . . . . . . . . . . . . . . . 125
Warning Lights andIndicators . . . . . . . . . . . . . . . . . . . . . . . . 120
General Information Service and Maintenance . . . . . . . . 321
Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230
Vehicle Care . . . . . . . . . . . . . . . . . . . . . . . 237 Glove Box . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
GM Mobility Reimbursement
Program . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342
H
Hazard Warning Flashers . . . . . . . . . . 158
Head Restraints . . . . . . . . . . . . . . . . . . . . . . 53
Head-up Display . . . . . . . . . . . . . . . . . . . . 142
HeadlampsAiming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262
Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 157
Bulb Replacement . . . . . . . . . . . . . . . . 263
Daytime RunningLamps (DRL) . . . . . . . . . . . . . . . . . . . . 157
Flash-to-Pass . . . . . . . . . . . . . . . . . . . . . . 157
High-Beam On Light . . . . . . . . . . . . . . 138
High/Low Beam Changer . . . . . . . . . 156
Lamps On Reminder . . . . . . . . . . . . . . 138
Heated Rear Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Steering Wheel . . . . . . . . . . . . . . . . . . . . 113
Heated and Ventilated Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Heated Mirrors . . . . . . . . . . . . . . . . . . . . . . . 45
Heater Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186
Heating . . . . . . . . . . . . . . . . . . . . . . . . .163, 168
High-Beam On Light . . . . . . . . . . . . . . . . 138 High-Speed Operation . . . . . . . . . . . . . . 281
Hill and Mountain Roads . . . . . . . . . . 177
Hill Start Assist (HSA) . . . . . . . . . . . . . 196
Hood . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Horn . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
How to Wear Seat Belts Properly . . . 69
HVAC . . . . . . . . . . . . . . . . . . . . . . . . . . .163, 168
I
Ignition Positions . . . . . . . . . . . . . . . . . . . 184
Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Indicator
Vehicle Ahead . . . . . . . . . . . . . . . . . . . . . 135
Infants and Young Children, Restraints . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Information Publication Ordering . . . . . . . . . . . . . 348
Infotainment . . . . . . . . . . . . . . . . . . . . . . . . 162
Infotainment System . . . . . . . . . . . . . . . 351
Instrument Cluster . . . . . . . . . . . . . . . . . 121
Instrument Panel Storage Area . . . . . . . . . . . . . . . . . . . . . . 108
Instrument Panel Overview . . . . . . . . . . . 6
Interior Rearview Mirrors . . . . . . . . . . . 46
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
J
Jump Starting - North America . . . . 306

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
370 INDEX
Lumbar Adjustment (cont'd)Front Seats . . . . . . . . . . . . . . . . . . . . . . . . . . 57
M
Magnetic Ride Control . . . . . . . . . . . . . 198
Maintenance
Records . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335
Maintenance and Care Additional . . . . . . . . . . . . . . . . . . . . . . . . . 329
Maintenance Schedule . . . . . . . . . . . . . 322
Recommended Fluids andLubricants . . . . . . . . . . . . . . . . . . . . . . . 332
Malfunction Indicator Lamp . . . . . . . 131
Manual Mode . . . . . . . . . . . . . . . . . . . . . . . 193
Massage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
Memory Features . . . . . . . . . . . . . . . . . . . . 11
Memory Seats . . . . . . . . . . . . . . . . . . . . . . . . 60
Messages Engine Power . . . . . . . . . . . . . . . . . . . . . 146
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 146
Vehicle Speed . . . . . . . . . . . . . . . . . . . . . 146
Mirrors Automatic Dimming . . . . . . . . . . . . . . . . 45
Automatic Dimming Rearview . . . . . 46
Convex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Folding . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Heated . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44 Mirrors (cont'd)
Tilt in Reverse . . . . . . . . . . . . . . . . . . . . . . 45
Mirrors, Interior Rearview . . . . . . . . . . . 46
Monitor System, Tire Pressure . . . . . 281
N
Navigation Connected Services . . . . . . . . . . . . . . . 360
Net, Convenience . . . . . . . . . . . . . . . . . . . 111
New Vehicle Break-In . . . . . . . . . . . . . . . 183
O
Odometer . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 Trip . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125
Off-Road
Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . 176
Oil Engine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244
Engine Oil Life System . . . . . . . . . . . 246
Pressure Light . . . . . . . . . . . . . . . . . . . . . 137
Older Children, Restraints . . . . . . . . . . . 89
Online Owner Center . . . . . . . . . . . . . . . 342
OnStar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 351
OnStar Additional Information . . . . 354
OnStar Emergency . . . . . . . . . . . . . . . . . . 353
OnStar Overview . . . . . . . . . . . . . . . . . . . . 352
OnStar Security . . . . . . . . . . . . . . . . . . . . . 354
Operating Mode Overheated Engine Protection . . . 254 Outlets
Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Overheated Engine Protection Operating Mode . . . . . . . . . . . . . . . . . . . 254
Overheating, Engine . . . . . . . . . . . . . . . . 253
P
Park Shifting Into . . . . . . . . . . . . . . . . . . . . . . 188
Shifting Out of . . . . . . . . . . . . . . . . . . . . 189
Park Assist . . . . . . . . . . . . . . . . . . . . . . . . . . 211
Parking Brake and P (Park)Mechanism Check . . . . . . . . . . . . . . . 260
Extended . . . . . . . . . . . . . . . . . . . . . . . . . . 189
Over Things That Burn . . . . . . . . . . . 189
Parking or Backing
Assistance Systems . . . . . . . . . . . . . . . 211
Passenger Airbag Status Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . 130
Passenger Compartment Air
Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170
Passenger Sensing System . . . . . . . . . . 82
Perchlorate Materials Requirements, California . . . . . . . . . 238
Personalization
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

Cadillac XTS Owner Manual (GMNA-Localizing-U.S./Canada-12032610) -
2019 - crc - 8/22/18
INDEX 373
Sunroof . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
SunshadeRear Window . . . . . . . . . . . . . . . . . . . . . . . . 49
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
System Forward Collision Alert (FCA) . . . . 217
Infotainment . . . . . . . . . . . . . . . . . 162, 351
Systems Driver Assistance . . . . . . . . . . . . . . . . . 209
T
Tachometer . . . . . . . . . . . . . . . . . . . . . . . . . 125
Text Telephone (TTY) Users . . . . . . . 341
Theft-Deterrent Systems . . . . . . . . . . . . 43Immobilizer . . . . . . . . . . . . . . . . . . . . . . . . . 43
Thigh Support Adjustment . . . . . . . . . . 59
Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115
Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 272 All-Season . . . . . . . . . . . . . . . . . . . . . . . . . 273
Buying New Tires . . . . . . . . . . . . . . . . . 287
Chains . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 291
Changing . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Compact Spare . . . . . . . . . . . . . . . . . . . . 305
Designations . . . . . . . . . . . . . . . . . . . . . . 276
Different Size . . . . . . . . . . . . . . . . . . . . . . 288
Full-Size Spare . . . . . . . . . . . . . . . . . . . . 305
If a Tire Goes Flat . . . . . . . . . . . . . . . . 291
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . 285 Tires (cont'd)
Low Profile . . . . . . . . . . . . . . . . . . . . . . . . 273
Pressure . . . . . . . . . . . . . . . . . . . . . . 279, 281
Pressure Light . . . . . . . . . . . . . . . . . . . . . 137
Pressure Monitor Operation . . . . . . 282
Pressure Monitor System . . . . . . . . 281
Rotation . . . . . . . . . . . . . . . . . . . . . . . . . . . 285
Sealant and Compressor Kit . . . . . 293
Sealant and Compressor Kit,
Storing . . . . . . . . . . . . . . . . . . . . . . . . . . . 300
Sidewall Labeling . . . . . . . . . . . . . . . . . 274
Terminology and Definitions . . . . 277
Uniform Tire Quality Grading . . . . 289
Wheel Alignment and Tire Balance . . . . . . . . . . . . . . . . . . . . . . . . . . 290
Wheel Replacement . . . . . . . . . . . . . . 290
When It Is Time for New Tires . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 286
Winter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 273
Top Tier Fuel . . . . . . . . . . . . . . . . . . . . . . . . 226
Towing Driving Characteristics . . . . . . . . . . . 230
Equipment . . . . . . . . . . . . . . . . . . . . . . . . 234
General Information . . . . . . . . . . . . . . 230
Recreational Vehicle . . . . . . . . . . . . . . 310
Trailer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Vehicle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 309 Traction
Control System
(TCS)/StabiliTrak Light . . . . . . . . . 136
Limited-Slip Rear Axle . . . . . . . . . . . 198
Off Light . . . . . . . . . . . . . . . . . . . . . . . . . . . 135
Traction Control/Electronic Stability Control . . . . . . . . . . . . . . . . . . . 196
Trailer Towing . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232
Transmission Automatic . . . . . . . . . . . . . . . . . . . . . . . . . 191
Fluid, Automatic . . . . . . . . . . . . . . . . . . 247
Transportation Program, Courtesy . . . . . . . . . . . . . . . . . . . . . . . . . . . 345
Trip Odometer . . . . . . . . . . . . . . . . . . . . . . 125
Trunk . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Turn and Lane-Change Signals . . . . 158
U
Uniform Tire Quality Grading . . . . . . 289
Universal Remote System . . . . . . . . . . 151 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . 154
Programming . . . . . . . . . . . . . . . . . . . . . . 151
Using This Manual . . . . . . . . . . . . . . . . . . . . 2
V
Vehicle Alarm System . . . . . . . . . . . . . . . . . . . . . . . 41
Canadian Owners . . . . . . . . . . . . . . . . . . . . 2
