10 IN BRIEF
Trunk
Sedan Shown, Coupe Similar
To open the trunk, the vehicle must
be off or the shift lever must be in
P (Park). Press
|from inside the
vehicle, press
Xtwice quickly on the
Remote Keyless Entry (RKE)
transmitter, or press the touch pad on
the rear of the trunk above the license
plate after unlocking all doors. See
Remote Keyless Entry (RKE) System
Operation 028 and Trunk 038.
Windows
Sedan Shown, Coupe Similar
The power windows only operate with
the ignition in ACC/ACCESSORY or
ON/RUN/START, or when Retained
Accessory Power (RAP) is active. See
Retained Accessory Power (RAP) 0188.
Press or pull the switch to open or
close the window.
See Power Windows 045.
Seat Adjustment
Power Seats
High Performance Seat Shown,
Others Similar
To adjust the seat:
. Move the seat forward or rearward
by sliding the control forward or
rearward.
. Raise or lower the seat by moving
the rear of the control up or down.
. If equipped, raise or lower the
front part of the seat cushion by
moving the front of the control up
or down.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 11
High Performance Seat Adjustment
1. Feature Select
2. Up
3. Rearward
4. Down
5. Forward
.Move Feature Select (1) to display
seat adjustments on the center
stack. Press and release or hold to
scroll through features.
. Press Up (2) to make upward
adjustments of the selected
feature. .
Press Rearward (3) to make
rearward adjustments of the
selected feature.
. Press Down (4) to make downward
adjustments of the selected
feature.
. Press Forward (5) to make forward
adjustments of the selected
feature.
See Power Seat Adjustment 052.
Reclining Seatbacks
Base Seat
To adjust the seatback:
. Tilt the top of the control
rearward to recline. .
Tilt the top of the control forward
to raise.
High Performance Seat
To adjust the seatback:
. Tilt the top of the control
rearward to recline.
. Tilt the top of the control forward
to raise.
See Reclining Seatbacks 055.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
12 IN BRIEF

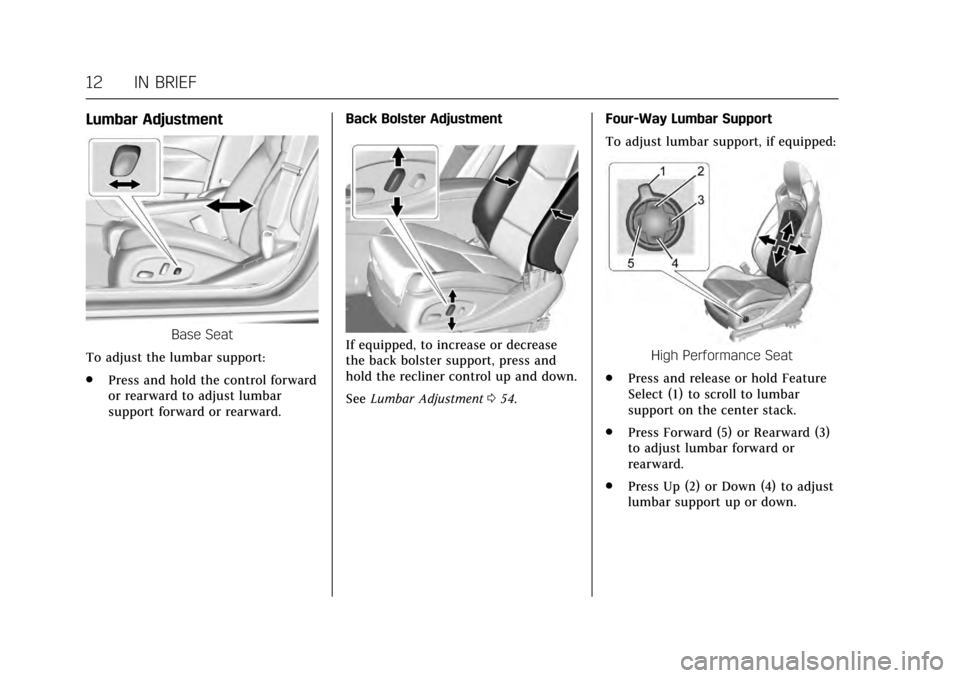

Lumbar Adjustment
Base Seat
To adjust the lumbar support:
. Press and hold the control forward
or rearward to adjust lumbar
support forward or rearward. Back Bolster AdjustmentIf equipped, to increase or decrease
the back bolster support, press and
hold the recliner control up and down.
See
Lumbar Adjustment 054. Four-Way Lumbar Support
To adjust lumbar support, if equipped:High Performance Seat
. Press and release or hold Feature
Select (1) to scroll to lumbar
support on the center stack.
. Press Forward (5) or Rearward (3)
to adjust lumbar forward or
rearward.
. Press Up (2) or Down (4) to adjust
lumbar support up or down.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 13
Cushion Bolster Support
To adjust cushion bolster support,
if equipped:
.Press and release or hold Feature
Select (1) to scroll to cushion
bolster support on the center
stack.
. Press Forward (5) or Rearward (3)
to adjust cushion bolster support
inward or outward. Back Bolster Support
To adjust back bolster support,
if equipped:.
Press and release or hold Feature
Select (1) to scroll to back bolster
support on the center stack.
. Press Forward (5) or Rearward (3)
to adjust back bolster support
inward or outward.
Memory Features
The 1, 2, SET, andB(Exit) buttons
on the driver door are used to
manually save and recall memory
settings for the driver seat, outside
mirrors, and power tilt and
telescoping steering column (if
equipped).
Automatic Memory Recall and/or Easy
Exit Recall features may be enabled in
the vehicle personalization menus to
automatically recall positions stored
to the 1, 2, and
Bbuttons.
See Memory Seats 056 and Vehicle
Personalization 0137.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
14 IN BRIEF

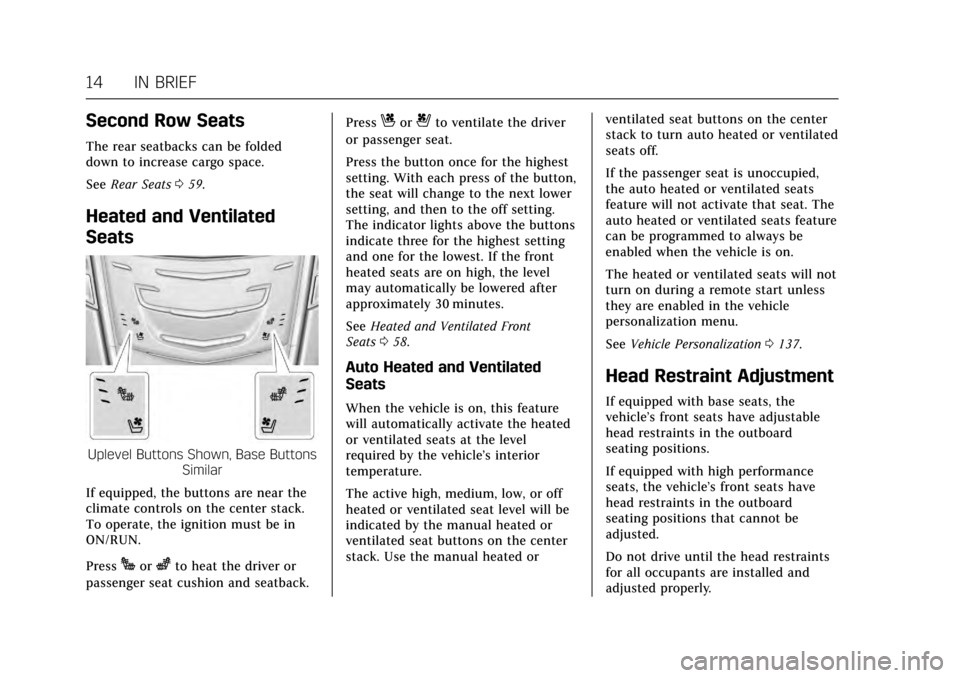

Second Row Seats
The rear seatbacks can be folded
down to increase cargo space.
SeeRear Seats 059.
Heated and Ventilated
Seats
Uplevel Buttons Shown, Base Buttons
Similar
If equipped, the buttons are near the
climate controls on the center stack.
To operate, the ignition must be in
ON/RUN.
Press
Jorzto heat the driver or
passenger seat cushion and seatback. Press
Cor{to ventilate the driver
or passenger seat.
Press the button once for the highest
setting. With each press of the button,
the seat will change to the next lower
setting, and then to the off setting.
The indicator lights above the buttons
indicate three for the highest setting
and one for the lowest. If the front
heated seats are on high, the level
may automatically be lowered after
approximately 30 minutes.
See Heated and Ventilated Front
Seats 058.
Auto Heated and Ventilated
Seats
When the vehicle is on, this feature
will automatically activate the heated
or ventilated seats at the level
required by the vehicle’s interior
temperature.
The active high, medium, low, or off
heated or ventilated seat level will be
indicated by the manual heated or
ventilated seat buttons on the center
stack. Use the manual heated or ventilated seat buttons on the center
stack to turn auto heated or ventilated
seats off.
If the passenger seat is unoccupied,
the auto heated or ventilated seats
feature will not activate that seat. The
auto heated or ventilated seats feature
can be programmed to always be
enabled when the vehicle is on.
The heated or ventilated seats will not
turn on during a remote start unless
they are enabled in the vehicle
personalization menu.
See
Vehicle Personalization 0137.
Head Restraint Adjustment
If equipped with base seats, the
vehicle’s front seats have adjustable
head restraints in the outboard
seating positions.
If equipped with high performance
seats, the vehicle’s front seats have
head restraints in the outboard
seating positions that cannot be
adjusted.
Do not drive until the head restraints
for all occupants are installed and
adjusted properly.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 15
To achieve a comfortable seating
position, change the seatback recline
angle as little as necessary while
keeping the seat and the head
restraint height in the proper position.
SeeHead Restraints 050 and Power
Seat Adjustment 052.
Safety Belts
Refer to the following sections for
important information on how to use
safety belts properly:
.
Safety Belts 061.
. How to Wear Safety Belts
Properly 062. .
Lap-Shoulder Belt 063.
. Lower Anchors and Tethers for
Children (LATCH System) 085.
Passenger Sensing System
The passenger sensing system will
turn off the front outboard passenger
frontal airbag and knee airbag under
certain conditions. No other airbag is
affected by the passenger sensing
system. See Passenger Sensing
System 073.
The passenger airbag status indicator
lights on the overhead console are
visible when the vehicle is started. See
Passenger Airbag Status
Indicator 0113.
Mirror Adjustment
Exterior Mirrors
1. Move the selector switch to L
(Left) or R (Right) to choose the
driver or passenger mirror.
2. Press one of the four arrows to move the mirror.
3. Move the selector switch to
)to
deselect the mirror.
The vehicle has power folding mirrors.
See Folding Mirrors 043.
Interior Mirrors
Adjust the rearview mirror for a clear
view of the area behind the vehicle.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
16 IN BRIEF
Automatic Dimming Rearview Mirror
The rearview mirror automatically
dims to reduce the glare of the
headlamps from behind. This feature
comes on when the vehicle is started.
SeeAutomatic Dimming Rearview
Mirror 045.
Steering Wheel Adjustment
To adjust the steering wheel:
1. Pull the lever down.
2. Move the steering wheel up or down.
3. Pull or push the steering wheel closer or away from you. 4. Pull the lever up to lock the
steering wheel in place.
Power Tilt and Telescoping Wheel
If equipped, the control is on the left
side of the steering column.
. Push the control up or down to tilt
the steering wheel up or down.
. Push the control forward or
rearward to move the steering
wheel toward the front or rear of
the vehicle.
Do not adjust the steering wheel while
driving.
To set the power tilt wheel memory
position, see Memory Seats 056.
Interior Lighting
Dome Lamp
The dome lamp is in the overhead
console.
To change the dome lamp settings,
press the following:
OFF : Turns the lamp off, even when a
door is open.
DOOR : The lamp comes on when a
door is opened.
ON : Turns the lamp on.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 17
Reading Lamps
There are front and rear reading
lamps. These lamps come on when
any door is opened.
The front reading lamps are in the
overhead console.
Press
mornto turn the lamps on
or off. Sedan
The rear reading lamps are over the
rear passenger doors.
Press the lamp lens to turn the rear
passenger reading lamps on or off.
Coupe
The rear reading lamps are in the
headliner.Press
mornto turn the lamps on
or off.
For more information on interior
lighting, see Instrument Panel
Illumination Control 0149.
Exterior Lighting
There are four positions:
O:Turns off the exterior lamps. The
knob returns to the AUTO position
after it is released. Turn to
Oagain to
reactivate the AUTO mode.
AUTO : Automatically turns the
exterior lamps on and off, depending
on outside lighting.
;: Turns on the parking lamps
including all lamps, except the
headlamps.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
18 IN BRIEF
5:Turns on the headlamps together
with the parking lamps and
instrument panel lights.
See Exterior Lamp Controls 0145 and
Daytime Running Lamps (DRL) 0147.
Windshield Wiper/Washer
With the ignition in ACC/ACCESSORY
or ON/RUN/START, move the lever to
select the wiper speed.
HI : Use for fast wipes.
LO : Use for slow wipes.
INT : Use this setting for intermittent
wipes or Rainsense ™, if equipped. For
intermittent wipes, move the
windshield wiper lever to INT. Turn
the
xINT band up for more
frequent wipes or down for less
frequent wipes.
If equipped with Rainsense and the
feature is enabled in vehicle
personalization, move the windshield
wiper lever to INT and turn the
x
INT band to adjust the sensitivity to
moisture.
. Turn the band up for more
sensitivity to moisture.
. Turn the band down for less
sensitivity to moisture.
. Move the windshield wiper lever
out of the INT position to
deactivate Rainsense.
To turn the Rainsense feature on or
off, see “Rain Sense Wipers ”under
Vehicle Personalization 0137.
OFF : Use to turn the wipers off.
1X : For a single wipe, briefly move
the lever down. For several wipes, hold
the lever down.
n L: Pull the lever toward you to
spray windshield washer fluid and
activate the wipers.
See Windshield Wiper/Washer 0101.
Climate Controls
If equipped with one of these systems,
it controls the heating, cooling, and
ventilation.

Cadillac ATS/ATS-V Owner Manual (GMNA-Localizing-MidEast-10287885) -
2017 - crc - 6/16/16
IN BRIEF 19

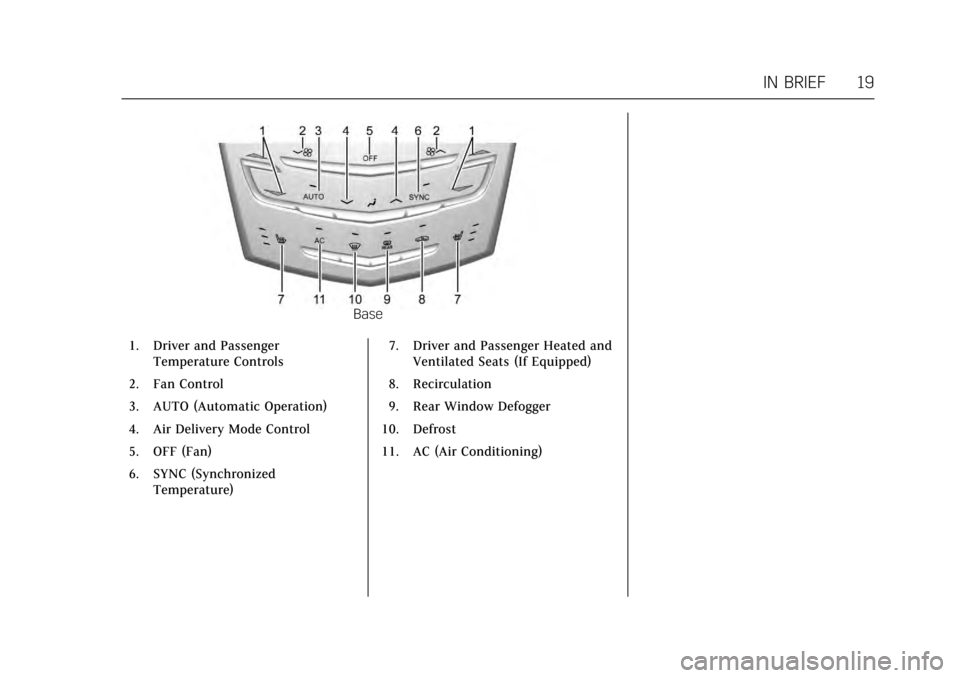

Base
1. Driver and Passenger Temperature Controls
2. Fan Control
3. AUTO (Automatic Operation)
4. Air Delivery Mode Control
5. OFF (Fan)
6. SYNC (Synchronized Temperature) 7. Driver and Passenger Heated and
Ventilated Seats (If Equipped)
8. Recirculation
9. Rear Window Defogger
10. Defrost
11. AC (Air Conditioning)
